woodmizer EG200 Guide

Twin Blade Edger
Safety, Operation& Maintenance Manual
EG200G26 rev. B2.03
EG200D24 rev. B2.03
EG200EC15 rev. B2.03
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
Form #904

©2019
Printed in the United States of America, all rights reserved. No part of this manual may be
reproduced in any form by any photographic, electronic, mechanical or other means or
used in any information storage and retrieval system without written permission from
Wood-Mizer
8180 West 10th Street
Indianapolis, Indiana 46214
&DOLIRUQLD
3URSRVLWLRQ:DUQLQJ
:$51,1*%UHDWKLQJJDVGLHVHOHQJLQHH[KDXVWH[SRVHV\RXWRFKHPLFDOVNQRZQWR
WKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHUDQGELUWKGHIHFWVRURWKHUUHSURGXFWLYHKDUP
$OZD\VVWDUWDQGRSHUDWHWKHHQJLQHLQDZHOOYHQWLODWHGDUHD
,ILQDQHQFORVHGDUHDYHQWWKHH[KDXVWWRWKHRXWVLGH
'RQRWPRGLI\RUWDPSHUZLWKWKHH[KDXVWV\VWHP
'RQRWLGOHWKHHQJLQHH[FHSWDVQHFHVVDU\
)RUPRUHLQIRUPDWLRQJRWRZZZ3ZDUQLQJVFDJRY
:$51,1*'ULOOLQJVDZLQJVDQGLQJRUPDFKLQLQJZRRGSURGXFWVFDQH[SRVH\RXWR
ZRRGGXVWDVXEVWDQFHNQRZQWRWKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHU$YRLGLQKDOLQJ
ZRRGGXVWRUXVHDGXVWPDVNRURWKHUVDIHJXDUGVIRUSHUVRQDOSURWHFWLRQ
)RUPRUHLQIRUPDWLRQJRWRZZZ3:DUQLQJVFDJRYZRRG

Table of Contents Section-Page
Table of Contents EGdoc072519 iii

Table of Contents Section-Page
iv EGdoc072519 Table of Contents
ABOUT THIS MANUAL V
SECTION 1 SAFETY 1-1
1.1 Safety Symbols.......................................................................................1-1
1.2 Safety Instructions..................................................................................1-2
SECTION 2 SERVICING THE EDGER 2-1
2.1 If You Need To Order Parts ...................................................................2-1
2.2 Customer and Edger Identification.........................................................2-2
2.3 If You Need Service ...............................................................................2-4
SECTION 3 EDGER SETUP 3-1
3.1 Setting Up the Edger ..............................................................................3-1
3.2 Electrical Installation (EE15 Only) ........................................................3-3
3.3 Pre-Operation Check ..............................................................................3-4
3.4 Edging Lumber.......................................................................................3-6
3.5 Preparing the Edger for Towing...........................................................3-11
SECTION 4 MAINTENANCE 4-1
4.1 Changing the Blades...............................................................................4-1
4.2 Tensioning the Belts...............................................................................4-5
4.3 Tensioning the Chains ............................................................................4-8
4.4 Checking the Rollers ..............................................................................4-9
4.5 Lubrication ...........................................................................................4-10
4.6 Feed Rate..............................................................................................4-11
4.7 Maintaining and Sharpening Anti-Kickback Fingers...........................4-12
4.8 Alignment .............................................................................................4-13
SECTION 5 TROUBLESHOOTING 5-1
5.1 Boards Are Not Self-Feeding .................................................................5-1
5.2 Jammed Boards ......................................................................................5-2
INDEX I

EGdoc072519 v
ABOUT THIS MANUAL
This manual is to replace or to be used with all previous information received on the
Wood-Mizer® * EG200 Twin Blade Edger. All future mailings will be an addition to or a revi-
sion of individual sections of this manual as we obtain new information.
The information and instructions given in this manual do not amend or extend the limited
warranties for the equipment given at the time of purchase.
*Wood-Mizer® is a registered trademark of Wood-Mizer Products, Inc.

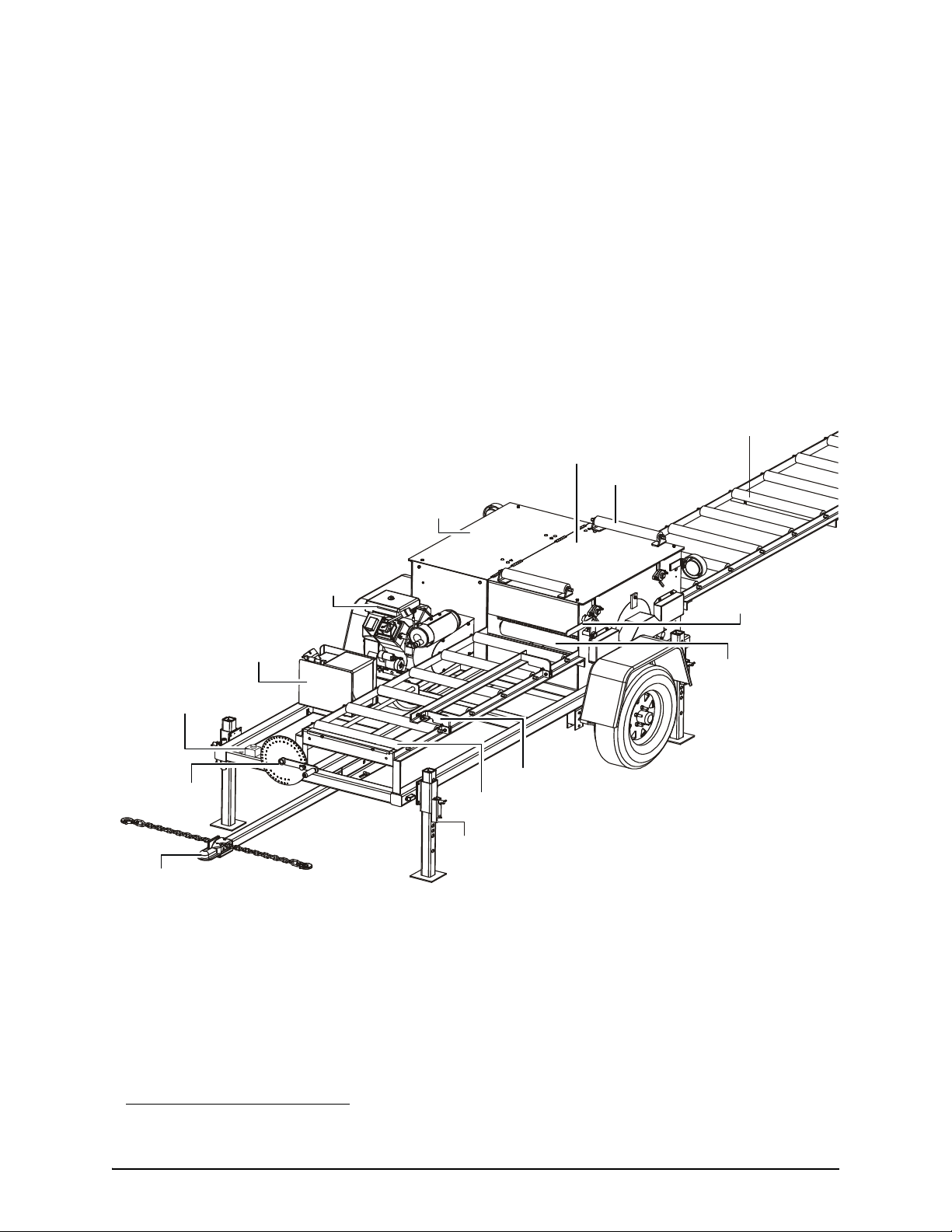

Setworks Dial
Fuel Tank
Power Supply
Gearbox Housing
Blade Housing
Outfeed Table/Feed Rollers
Infeed Table/Feed Rollers
TB0001
Front Guide Fence
Anti-kickback
Release Lever
Press Rollers
Feed Return Rollers
Adjustable Outriggers
Retractable Hitch
Emergency Stop

Safety
Safety Symbols
1
1-1 EGdoc072519 Safety
SECTION 1 SAFETY
1.1 Safety Symbols
The following symbols and signal words call your attention to instructions concerning your
personal safety. Be sure to observe and follow these instructions.
DANGER! indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING! suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION! refers to potentially hazardous situations which,
if not avoided, may result in minor or moderate injury or
damage to equipment.
IMPORTANT! indicates vital information.
NOTE: gives helpful information.
Warning stripes are placed on areas where a single decal
would be insufficient. To avoid serious injury, keep out of
the path of any equipment marked with warning stripes.

Servicing The Edger
Safety Instructions
Servicing The Edger EGdoc072519 1-2
1
1.2 Safety Instructions
NOTE: ONLY safety instructions regarding personal injury are listed in this section. Cau-
tion statements regarding only equipment damage appear where applicable throughout
the manual.
WARNING! Clean sawdust from all guards, vents, con-
trol boxes, or any area where sawdust may gather after
every shift. Failure to do so may result in fire, causing
death or serious injury.
OBSERVE SAFETY INSTRUCTIONS
IMPORTANT! Read the entire Owner's Manual before operating
the Edger. Take notice of all safety warnings throughout this man-
ual and those posted on the machine. Keep this manual with this
machine at all times, regardless of ownership.
Also read any additional manufacturer’s manuals and observe any
applicable safety instructions including dangers, warnings, and
cautions.
Only persons who have read and understood the entire operator's
manual should operate the Edger. The Edger is not intended for
use by or around children.
IMPORTANT! It is always the
owner's responsibility to comply
with all applicable federal, state
and local laws, rules and regula-
tions regarding the ownership,
operation and towing of your
Wood-Mizer Edger. All
Wood-Mizer owners are encour-
aged to become thoroughly
familiar with these applicable
laws and comply with them fully while using or towing the Edger.
WEAR SAFETY CLOTHING
WARNING! Secure all loose clothing and jewelry before operating
the Edger. Failure to do so may result in serious injury or death.

Servicing The Edger
Safety Instructions
1
1-3 EGdoc072519 Servicing The Edger
WARNING! Always wear eye, ear, respiration,
and foot protection when operating or servicing
the Edger.
DISPOSE OF SAWING BY-PRODUCTS PROPERLY
WARNING! Maintain a clean and clear path for all necessary
movement around the Edger and lumber stacking areas. Failure to
do so will result in serious injury.
IMPORTANT! Always properly dispose of all sawing by-products,
including sawdust and other debris, coolant, oil, fuel, oil filters and
fuel filters.
USE CAUTION WHEN WORKING WITH BATTERIES
DANGER! Batteries expel explosive gases. Keep sparks, flames,
burning cigarettes, or other ignition sources away at all times.
Always wear safety goggles and a face shield when working near
batteries. Failure to do so will cause serious injury.
WARNING! Battery posts, terminals and related accessories con-
tain lead and lead compounds, chemicals known to the State of
California to cause cancer and reproductive harm. Wash hands
after handling.
WARNING! Charge the battery in a well ventilated area. Do not
attempt to charge a frozen battery.
CAUTION! Do not overcharge the battery. Overcharging may
reduce the overall service life of the battery.
CAUTION! Be sure the battery is fully charged before transporting
the edger. If the battery is not fully charged, excessive vibration
could reduce the overall service life of the battery.
HANDLE FUEL/LUBRICANTS SAFELY
DANGER! Due to the flammable nature of fuel and oil, never
smoke, weld, grind or allow sparks near your engine or storage
tanks, especially during times of fueling.
DANGER! Never allow fuel to spill on a hot engine during fueling
operations or otherwise. The hot temperature of your engine could

Servicing The Edger
Safety Instructions
Servicing The Edger EGdoc072519 1-4
1
induce a fire or explosion.
WARNING! Store gasoline away from saw-
dust and other flammable materials. Failure
to do so may result in serious injury.
CHECK EDGER BEFORE OPERATION OR TOW-
ING
DANGER! Make sure all guards
and covers are in place and
secured before operating or tow-
ing the Edger. Failure to do so
may result in serious injury.
WARNING! Also make sure
your hitch has adequate safety
chain hookups. Safety chains
should be hooked to bumper of vehicle so that each chain would
pull the trailer equally in the event the hitch became disengaged.
Failure to do so may result in serious personal injury and/or severe
machine damage
WARNING! Always shut off the engine to stop the blade whenever
the Edger is not in use. Failure to do so may result in serious injury.
WARNING! Do not for any reason adjust the engine drive belts
with the engine running. Doing so may result in serious injury.
WARNING! Always ensure that there is a sharp point on the
anti-kickback fingers before each use of the Edger.
Be sure anti-kickback fingers are free from obstruction and are in a
downward position with lever released. Failure to do so may result
in serious injury.
KEEP PERSONS AWAY
DANGER! Keep all persons out of the path of moving equipment
and boards when operating the Edger. Failure to do so will result in
serious injury.
KEEP HANDS AWAY

Servicing The Edger
Safety Instructions
1
1-5 EGdoc072519 Servicing The Edger
DANGER! Engine components can become very hot during opera-
tion. Avoid contact with any part of a hot engine. The exhaust com-
ponents of your engine are especially hot during and following
operation. Contact with hot engine components can cause serious
burns. Therefore, never touch or perform service functions on a hot
engine. Allow the engine to cool sufficiently before beginning any
service function.
DANGER! Moving Parts Can Crush and Cut. Keep hands clear.
Make sure all guards and covers are in place and secured before
operating or towing. Failure to do so may result in serious injury.
DANGER! Always be aware of and
take proper protective measures
against rotating shafts, pulleys, fans,
etc. Always stay a safe distance from
rotating members and make sure that
loose clothing or long hair does not
engage rotating members resulting in
possible injury.

Servicing The Edger
Safety Instructions
Servicing The Edger EGdoc072519 1-6
1
WARNING! Coastdown Required. Always shut off the engine and
allow all moving parts to come to a complete stop before removing
any guards or covers. Do NOT operate with any guards or covers
removed.
WARNING! Kickback Hazard. Stay
clear of area during operation. Follow
all anti-kickback service and safety
rules. Failure to do so may result in
serious injury.
CAUTIONS FOR ENGINE OPERATION
DANGER! Operate your engine/machine only in well venti-
lated areas. The exhaust gases of your engine can cause
nausea, delirium and potentially death unless adequate
ventilation is present.
DANGER! Never operate an engine with a fuel or oil leak.
The leaking fuel or oil could potentially come in contact with
hot surfaces and ignite into flames.
WARNING! Do not operate engine without proper and
operational spark arrester/muffler. Sparks emitted from the
engine exhaust could ignite surrounding materials, causing
serious injury or death.
USE PROPER PROCEDURE WHEN CONDUCTING ELECTRICAL SAFETY CHECKS
AND MAINTENANCE
DANGER! Make sure all electrical installation, service and/or
maintenance work is performed by a qualified electrician and is in
accordance with applicable electrical codes.
DANGER! ARC FLASH AND SHOCK HAZARD!
Hazardous voltage inside the electric sawmill
disconnect box, starter box, and at the motor
can cause shock, burns, or death. Disconnect
and lock out power supply before servicing!
Keep all electrical component covers closed and
securely fastened during edger operation. Wear
appropriate Personal Protection Equipment.
WARNING! Consider all electrical circuits energized and danger-
ous.

Servicing The Edger
Safety Instructions
1
1-7 EGdoc072519 Servicing The Edger
WARNING! Never assume or take the word of another person that
the power is off; check it out and lock it out.
WARNING! Do not wear rings, watches, or other jewelry while
working around an open electrical circuit.
WARNING! Before performing service
near moving parts such as blades, pul-
leys, motors, belts and chains, first turn
the engine key switch to the OFF (#0)
position and remove the key. If the key is
turned on and moving parts activated,
serious injury may result.
DANGER! Lockout procedures must be used during:
Changing or adjusting blades
Unjamming operations
Cleaning
Mechanical repair
Electrical maintenance
Retrieval of tools/parts from work area
Activities where guards or electrical panel guard is open or
removed
Maintenance hazards include:
Blade contact
Pinch points
Kickbacks
Missiles (thrown blades/wood chips)
Electrical
Failure to lockout may result in:
Cut
Crush
Blindness
Puncture
Serious injury and death
Amputation
Burn
Shock
Electrocution

Servicing The Edger
Safety Instructions
Servicing The Edger EGdoc072519 1-8
1
To control maintenance dangers:
Lockout procedures must be followed (see ANSI Standard
Z244.1-1982 and OSHA regulation 1910.147).
Never rely on machine stop control for maintenance safety (emer-
gency stops, on/off buttons, interlocks).
Do not reach into moving blades or feed systems. Allow all coast-
ing parts to come to a complete stop.
Electrical power supply and air supply must both be locked out.
Where established lockout procedures cannot be used (electrical
troubleshooting or mechanical dynamic troubleshooting), alterna-
tive effective protective techniques shall be employed which may
require special skills and planning.
Always follow safe operations practices in the workplace.
EDGER LOCKOUT PROCEDURE
Lockout procedures must be followed (see ANSI Standard Z244.1-1982 and OSHA regu-
lation 1910.147).
Purpose:
This procedure establishes the minimum requirements for lockout of energy sources that
could cause injury.
Responsibility:
The responsibility for seeing that this procedure is followed is binding upon all workers. All
workers shall be instructed in the safety significance of the lockout procedure. It is your
responsibility to ensure safe operation of the machine.
Sequence of Lockout Procedure:
1. Notify all persons that a lockout is required and the reason therefore.
2. If the edger is operating, shut it down by the normal stopping procedure.
3. Operate the switch so that the energy sources are disconnected or isolated from the
edger. Stored energy such as moving blades and feed system shall be dissipated.
4. Lockout the energy isolating devices with assigned individual locks.
5. After ensuring that no persons are exposed and as a check on having disconnected the
energy sources, operate the push button or other normal operating controls to make cer-
tain the edger will not operate. Caution: Return operating controls to neutral position after
the test.

Servicing The Edger
Safety Instructions
1
1-9 EGdoc072519 Servicing The Edger
6. The edger is now locked out.
Restoring Equipment to Service
1. When the job is complete and the edger is ready for testing or normal service, check the
edger area to see that no one is exposed.
2. When the edger is all clear, remove all locks. The energy isolating devices may be oper-
ated to restore energy to the edger.
Procedure Involving More Than One Person
In the preceding steps, if more than one individual is required to lock out the edger, each
shall place his own personal lock on the energy isolating devices.
Rules for Using Lockout Procedure
The edger shall be locked out to protect against accidental or inadvertent operation when
such operation could cause injury to personnel. Do not attempt to operate any switch or
valve bearing a lock.
Owner’s Responsibility
The procedures listed in this manual may not include all ANSI, OSHA, or locally required
safety procedures. It is the owner/operator’s responsibility and not Wood-Mizer Products
to ensure all operators are properly trained and informed of all safety protocols.
Owner/Operators are responsible for following all safety procedures when operating and
performing maintenance to the edger.

Servicing The Edger
If You Need To Order Parts
Servicing The Edger EGdoc072519 2-1
2
SECTION 2 SERVICING THE EDGER
Wood-Mizer is committed to providing you with the latest technology, best quality and
strongest customer service available on the market today. We continually evaluate our
customers’ needs to ensure we’re meeting current wood-processing demands. Your com-
ments and suggestions are welcome.
2.1 If You Need To Order Parts
From the continental U.S., call our toll-free Parts hotline at 1-800-525-8100. Please have
the vehicle identification number and your customer number ready when you call.
Wood-Mizer will accept these methods of payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on
size and quantity of order. In most cases, items will ship on the day they are ordered.
Second Day and Next Day shipping are available at additional cost.
If your edger was purchased outside of the United States, contact your distributor for
replacement parts.

Servicing The Edger
Customer and Edger Identification
2
2-2 EGdoc072519 Servicing The Edger
2.2 Customer and Edger Identification
Each Wood-Mizer edger has a 17-digit Vehicle Identification Number (VIN). In addition,
when you pick up your edger, you will receive a customer number. These three numbers
will help expedite our service to you. Please locate them now and write them below so
you have quick, easy access to them. VIN plates can be found in three locations: 1) on
the Edger’s frame above the hitch receiver tube; 2) inside the gearbox housing below the
hour meter; 3) and on the trailer axle (if applicable).
See Figure 2-1. See the following figures for V.I.N. locations.
(To be filled in by purchaser)
Edger VIN ___________________
Customer No. ___________________
FIG. 2-1
VIN on
Trailer Axle
VIN on
Edger Frame
TB0002
VIN
Gearbox Housing
Inside

Servicing The Edger
Customer and Edger Identification
Servicing The Edger EGdoc072519 2-3
2
See below for a description of the V.I.N.
Company Identification Number
456=Wood-Mizer Indiana
Weight Class; A=Under 3,000 lbs B=3,001-4,000 lbs
C=4,001-5000 lbs
Product No.; 1 = Edger
Length of the Trailer;
14=14 Ft.
Number of axles on the trailer
Check Digit
Add all the numbers and divide by 11
Year of Manufacture;
X=1999, Y=2000
State of Manufacture
N=Indiana, P=Poland
Month of Manufacture
A=January, B=February, C=March, etc...
Revision Level
Sequence Number
Ranging from 000-999
End of 17-Digit VIN
Revision Level (Repeated)
Two-Digit Minor Revision Level
456 A 1 14 1 X S N A A1 017 A1 .01
V.I.N. DESCRIPTION.

Servicing The Edger
If You Need Service
2
2-4 EGdoc072519 Servicing The Edger
2.3 If You Need Service
From the continental U.S., call us toll-free at 1-800-525-8100. Ask to speak with a Cus-
tomer Service Representative. Please have your vehicle identification number and your
customer number ready when you call. The Service Representative can help you with
questions about the operation and maintenance of your edger. He also can schedule you
for a service call.
Office Hours: All times are Eastern Standard Time. Please remember that Indiana does
not go on Daylight Savings Time in the summer.
If your edger was purchased outside the United States, contact the distributor for service.
Monday - Friday Saturday Sunday
8 a.m. to 5 p.m. 8 a.m. to 12 p.m. Closed

Servicing The Edger
Setting Up the Edger
Servicing The Edger EGdoc072519 3-1
3
SECTION 3 EDGER SETUP
3.1 Setting Up the Edger
1. Lower and set the front two outriggers. To lower, use the provided jack handle to lift the
weight from the locking pin. If necessary, rotate the locking pin counterclockwise so that
the inner roll pin is free from the outrigger channel notch, then pull the locking pin out to
release the outrigger. Lower the outrigger as necessary. Push the locking pin back in and
turn clockwise until the inner roll pin is behind the outrigger channel notch to “lock” the
outrigger in place.
See Figure 3-1.
FIG. 3-1. OUTRIGGER ADJUSTMENT.
SM0045B
Jack Handle
Outrigger Leg
Channel Notch
Locking Pin

Servicing The Edger
Setting Up the Edger
3
3-2 EGdoc072519 Servicing The Edger
2. Unhitch the Edger from the vehicle.
See Figure 3-2. When towing, the hitch can be used in the upper or lower hitch receiver
tube. For storage, however, the hitch must be in the lower hitch receiver tube. To store,
move the hitch safety pin to the upper receiver tube. Make sure the hitch lock lever is
folded down and slide the hitch all the way back into the lower receiver tube.
3. Lower and set the remaining two rear outriggers.
4. Level the Edger. Adjust the outriggers to raise or lower each end of the Edger as needed.
Adjust all outriggers evenly to avoid twisting the Edger frame by jacking one outrigger
higher than the other.
CAUTION! Use the four outriggers on each corner of the
Edger to level the machine prior to operating. Failure to do
so can and will affect machine operation and wear life.
5. Remove the front shipping braces and loosen the rear bolts used to secure the outfeed
table in the travel position. Place the outfeed table behind the Edger in the operating posi-
tion and retighten the rear bolts to secure in place.
Make sure the outfeed table is level with the rest of the Edger. Place blocks under the
table if necessary.
FIG. 3-2
Hitch Pin
Lower Receiver Tube
Upper Receiver Tube
TB0004B
