woodmizer LT70DC User manual

Wood-Mizer®
Remote Operation
Wireless Option rev. A3.00
Operator’s Manual
Safety is our #1 concern! Read and understand all
safety information and instructions before operating,
setting up or maintaining this machine.
July 2007
Form #120
!

Table of Contents Section-Page
2 ROdoc042915 Table of Contents
SECTION 1 REMOTE OPERATION 1-1
1.1 Safety Precautions ..................................................................................................... 1-1
1.2 Control Panel Overview ............................................................................................ 1-2
1.3 Remote Operation...................................................................................................... 1-5
SECTION 2 DIAGNOSTICS AND MAINTENANCE 2-1
2.1 Diagnostics - Transmitter .......................................................................................... 2-1
2.2 Diagnostics - Receiver............................................................................................... 2-3
2.3 Maintenance .............................................................................................................. 2-4
Daily Maintenance Procedures
Three-Month Maintenance Procedures
Six-Month Maintenance Procedures
SECTION 3 SPECIFICATIONS 3-1
SECTION 4 PARTS LIST 4-1
4.1 How To Use The Parts List ....................................................................................... 4-1
4.2 Sample Assembly ...................................................................................................... 4-1
4.3 Wireless Control Kit, DC Sawmills .......................................................................... 4-2
4.4 CONTROL HANGER, AC WIRELESS (LES)........................................................ 4-3
4.5 CONTROL HANGER, AC WIRELESS (LT40/70)................................................. 4-4
4.6 WIRELESS CONTROL KIT, LT20 AC................................................................... 4-5

Remote Operation
Safety Precautions
Remote Operation ROdoc042915 1-1
1
SECTION 1 REMOTE OPERATION
1.1 Safety Precautions
IMPORTANT! This manual is provided as a supplement to
the equipment manufacturer’s manual. Refer to the
manufacturer’s manual before attempting to operate this
equipment.
WARNING! Failure to follow the SAFETY PRECAUTIONS
may result in radio equipment failure or serious personal
injury.
CAUTION! Wood-Mizer will not bear responsibility for any
unapproved changes or modifications made to the
equipment.
Installation
CAUTION! PROVIDE A SAFETY CUTOFF SWITCH.
If maintenance is required, the radio must be disconnected
from power. USE PROPER WIRING. Loose or frayed wires
can cause system failure, intermittent operation, machine
damage, etc. DO NOT INSTALL IN HOT AREAS.
This apparatus can be damaged by heat at a temperature
of above 55oC (131oF).
Personal Safety
CAUTION! MAKE SURE THE EQUIPMENT AND
SURROUNDING AREA IS CLEAR BEFORE OPERATING.
Do not activate the remote system unless it is safe to do so.
CAUTION! TURN OFF THE RECEIVER POWER BEFORE
WORKING ON THE SAWMILL. Always disconnect the
remote system before doing any maintenance to prevent
accidental operation of the machine.
Care
CAUTION! KEEP DRY. Do not clean the
transmitter / receiver under high pressure. If water or other
liquids get inside the transmitter battery or receiver
compartment, immediately dry the unit. Remove the case
and let the unit air dry.
!

Remote Operation
Control Panel Overview
1
1-2 ROdoc042915 Remote Operation
CAUTION! CLEAN THE UNIT AFTER OPERATION.
Remove any mud, dirt, concrete, etc. from the unit to
prevent clogging of buttons, switches, etc. by using a damp
cloth.
Maintenance / Welding
CAUTION! DISCONNECT THE RADIO RECEIVER
BEFORE WELDING on the machine the receiver is
connected to. Failure to disconnect will result in destruction
of the radio receiver.
1.2 Control Panel Overview
The LT70DC sawmills can be equipped with the saw head remote control system
(with a wireless control panel). This system allows you to fully control the saw head, i.e.
engage and disengage the blade, the power feed and up/down operation, the blade guide
arm and the debarker as well as to adjust the feed rate.

Remote Operation
Control Panel Overview
Remote Operation ROdoc042915 1-3
1

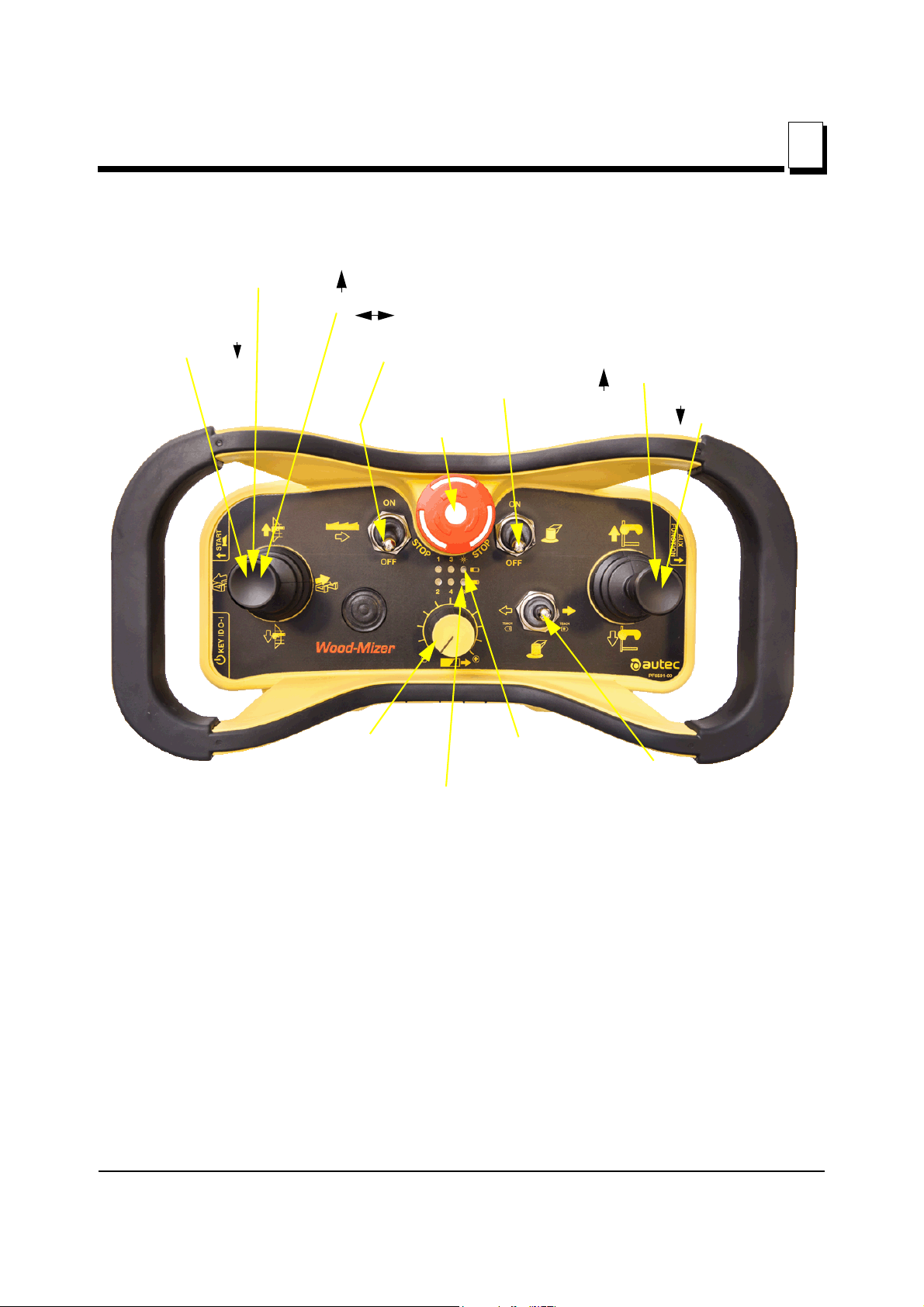

See Figure 1-1. Wireless control panel functions
Saw Head Forward
Saw Head Backward
Blade Guide In/Out
Saw Head Down
Saw Head Up
Debarker On/Off
Blade Drive On/Off
Battery Charge Indicator
(Red)
Emergency Stop
Button
Feed Rate Dial
Debarker In/Out
Panel Working Status
Indicator (Green)

Remote Operation
Control Panel Overview
1
1-4 ROdoc042915 Remote Operation
See Figure 1-2. Wireless control panel functions (side panel)
Air-KEY (Electronic Starting Key)
START Pushbutton

Remote Operation
Remote Operation
Remote Operation ROdoc042915 1-5
1
1.3 Remote Operation
Set up the sawmill as instructed in your sawmill operator’s manual.
Install the charged battery.
Refer to the provided Wireless System manufacturer’s manual for detailed instructions for
installing and charging the battery.
NOTE: When the battery is fully charged, the panel should
run for approximately 20 hours at 20oC.
To turn on the wireless control panel on any DC sawmill:
Make sure that all switches and joysticks are in the neutral or OFF position.
The feed rate dial should be set to the minimum value.

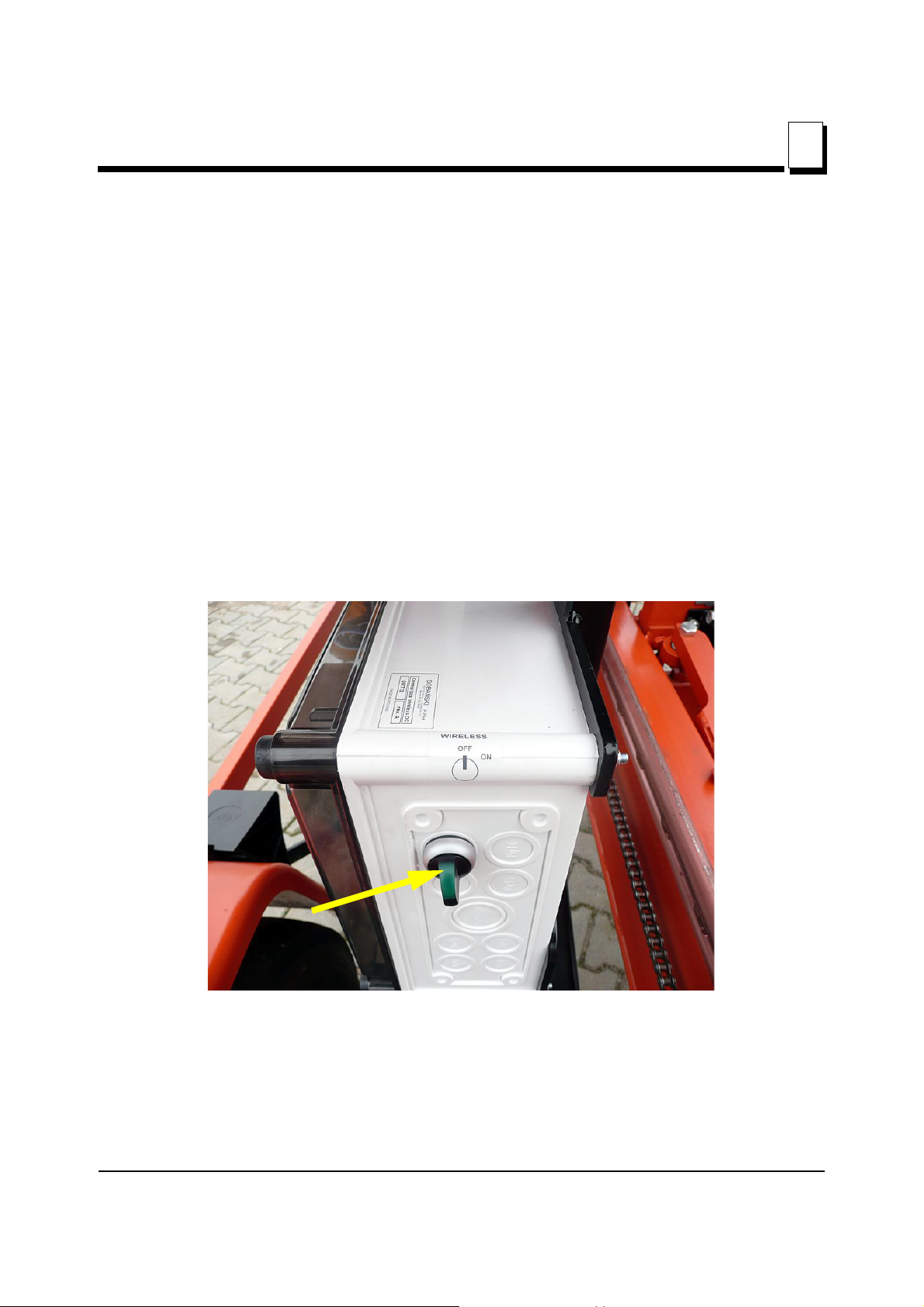

Check that the switch located on the electric box is in the ON position;
NOTE: When the green switch on the electric box is in the
OFF position, the wireless control system is completely
turned off and all sawmill functions can be activated from
the standard control box on the saw head.
Make sure the emergency stop button is released;

Remote Operation
Remote Operation
1
1-6 ROdoc042915 Remote Operation
Insert the electronic starting key (Air-KEY) into the corresponding socket located on
the left side of the control panel. Turn the key right to the ”1” position.
Push and hold the START button on the left side of the control panel until the panel
working status indicator comes on;
Start the main engine using the key switch located on the sawmill control box
(on the saw head);
Load and clamp the log;
Program the Accuset controller (or PLC-Setworks/SW-10) (See Accuset,
PLC-Setworks or SW-10 Operator’s Manual);
Position the saw head at a height of the first cut;
If necessary, turn the debarker on;
Set the Blade Drive On/Off Switch in the ”ON” position;
Push the left joystick forward and hold it in this position. The blade drive will be
turned on.
Set the feed rate dial to the desired value;
After making the cut, release the left joystick. The blade drive will be turned off and
the main engine will still be running idle.
Position the saw head for the next cut and set the Blade Drive On/Off switch in the
”OFF” position and then in the ”ON” position;
Push the left joystick forward and hold it in this position. The blade drive will be
turned on.
NOTE: As soon as the joystick is released, the blade drive
is disengaged. To engage the blade drive again, set the
blade drive switch in the ”OFF” position” and then in the
“ON” position.
NOTE: If none of the pushbuttons, switches or joysticks is
used within 5 minutes after switching on the transmitter, the
transmitter will turn off automatically.
When sawing is finished, switch the transmitter off by turning the electronic starting key to
the ”0” position. Remove the key and always store it in a safe place.

Remote Operation
Remote Operation
Remote Operation ROdoc042915 1-7
1
NOTE: The electronic starting key (Air-KEY) stores the
receiver identification data. The transmitter cannot
communicate with the receiver without this key. Do not lose
the Air-KEY.

Remote Operation
Remote Operation
1
1-8 ROdoc042915 Remote Operation

DIAGNOSTICS AND MAINTENANCE
Diagnostics - Transmitter
DIAGNOSTICS AND MAINTENANCE doc042915 2-1
2
SECTION 2 DIAGNOSTICS AND MAINTENANCE
IMPORTANT! The description of the Wireless System diagnostics and
maintenance procedures provided below is a supplement to the
equipment manufacturer’s manual. Before maintaining the Wireless
System or performing its diagnostics, read the equipment
manufacturer’s manual.
CAUTION! DISCONNECT POWER SUPPLY FROM THE SAWMILL
BEFORE SERVICING! Always turn the wireless control system off
before performing any sawmill maintenance to prevent accidental
start-up of the machine.
Before starting to perform any diagnostic operation, do as follows:
Bring the transmitting unit close to the receiving unit to avoid any radio interference and
disturbances;
Determine if the existing problem lies with the wireless control system or with the sawmill.
To do that, disconnect the wireless control system using the switch on the electric box (See
Section 1.3) and try to activate the desired functions from the control box on the sawmill. If the
problem persists, it is related to the sawmill control system (not to the wireless control system).
If it does not exist, please refer to the diagnostic procedures described below.
2.1 Diagnostics - Transmitter

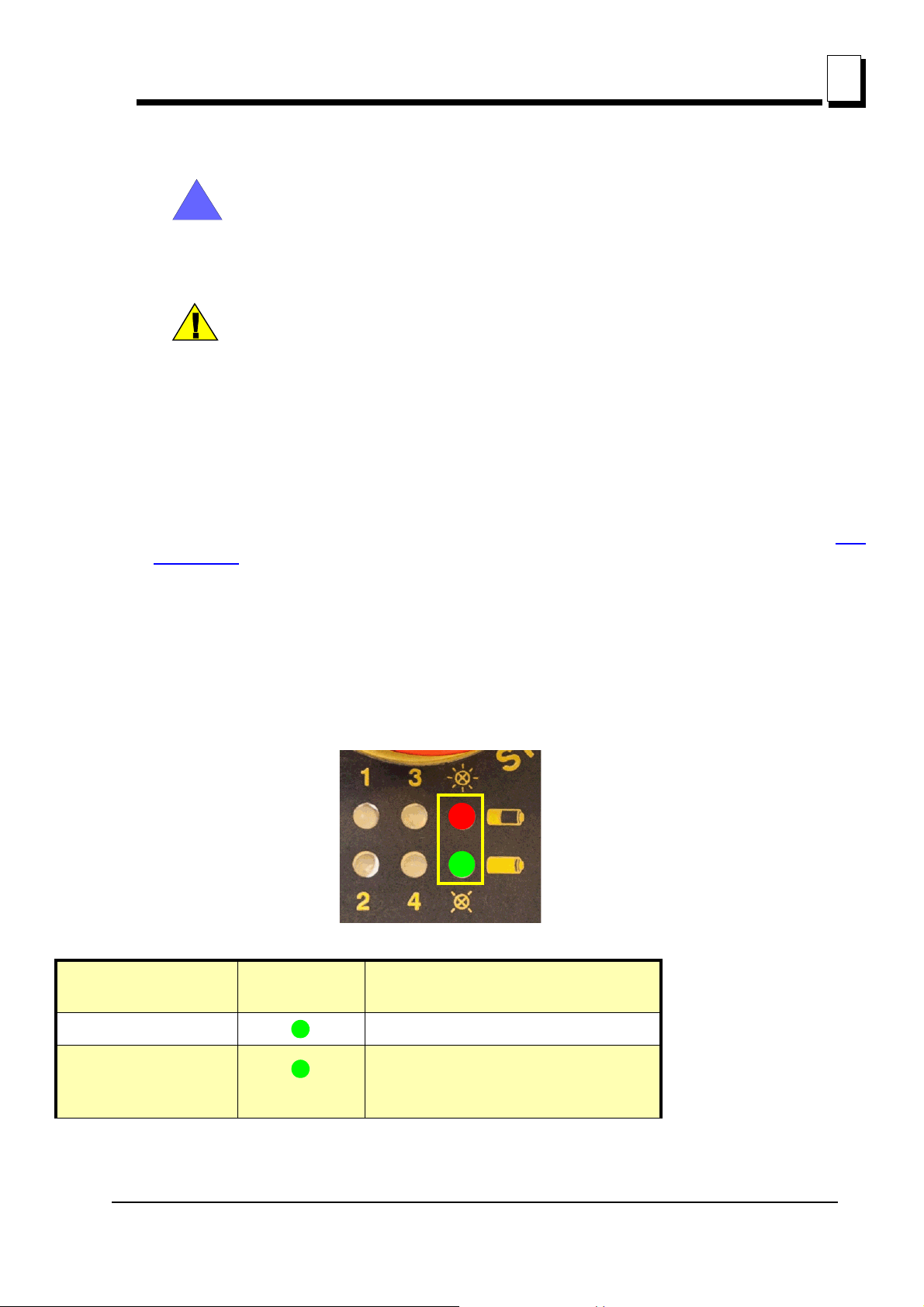

See Figure 2-1. Signal Lights
Signal Signal Light
Color
Possible Reason
The light is off. The transmitter is turned off.
The light is steady
on.
The transmitter and receiver do not
communicate.
!

DIAGNOSTICS AND MAINTENANCE
Diagnostics - Transmitter
2
2-2 doc042915 DIAGNOSTICS AND MAINTENANCE
The LED blinks fast. The transmitter and receiver
communicate. It is possible to start
the radio remote control by pressing
the START pushbutton.
The LED blinks
slowly (one blink per
second).
It is possible to send commands.
The LED is off. The transmitter works correctly.
The light is steady
on.
At start-up, the STOP pushbutton is
activated or damaged.
The light blinks twice
per second.
At least one of the commands that
were checked at start-up is enabled
or damaged.
The LED blinks three
times per second.
At start-up, the battery is flat.
The LED is steady on
for 2s.
The transmitting unit does not work
correctly.
The light blinks slowly
(one blink per
second).
The battery has a 2h run time.
The light blinks fast. The battery has a 10min run time.

DIAGNOSTICS AND MAINTENANCE
Diagnostics - Receiver
DIAGNOSTICS AND MAINTENANCE doc042915 2-3
2
2.2 Diagnostics - Receiver

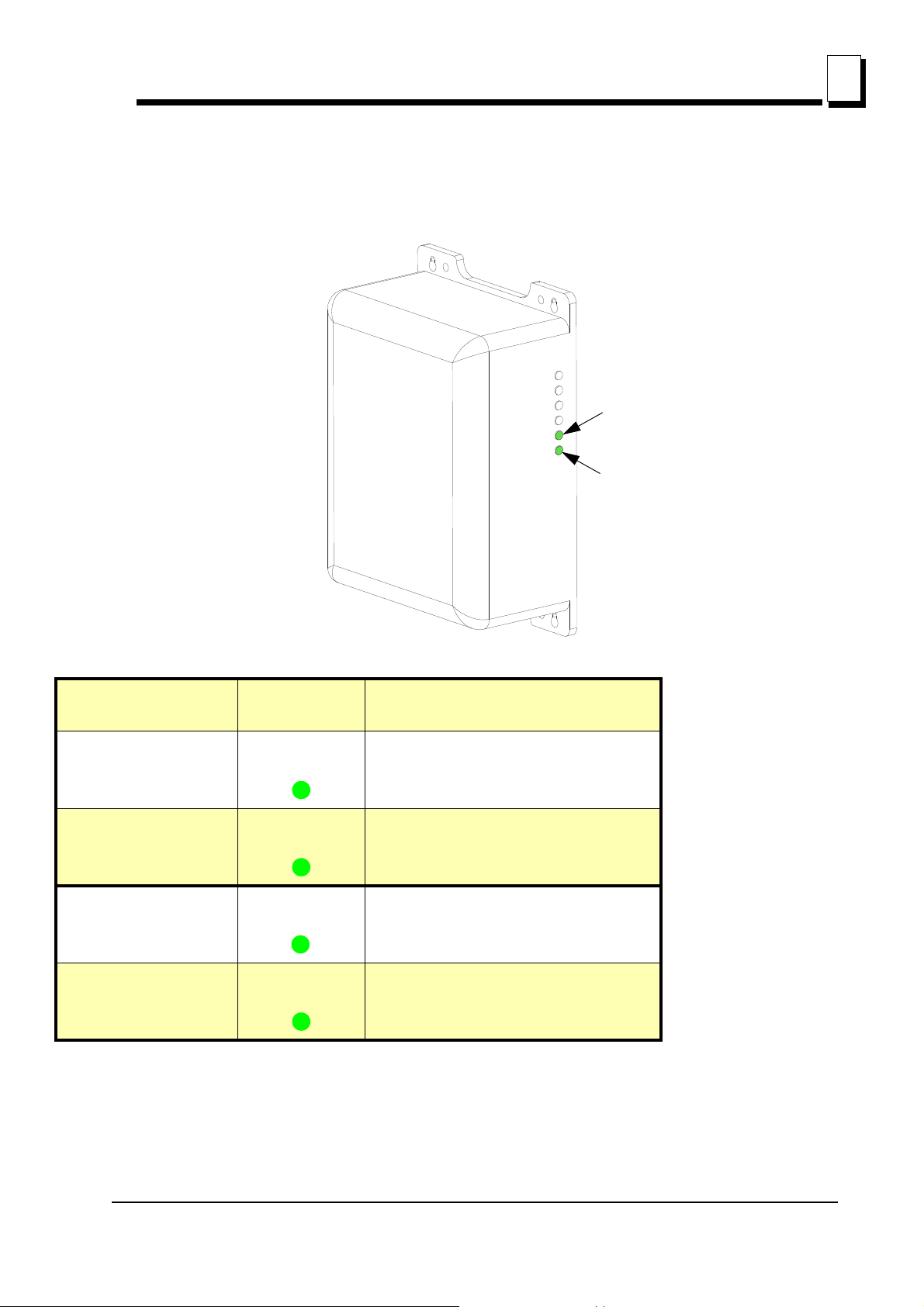

See Figure 2-2. Signal Lights
Signal Signal Light
Color
Possible Reason
The light is off. POWER
Light
The receiving unit is not powered.
The light is on. POWER
Light
The receiving unit is powered.
The LED blinks once
every 5 seconds.
ENABLE
Light
The transmitter and receiver do not
communicate.
The LED blinks fast. ENABLE
Light
The unit is ready to receive
commands sent by the transmitter.
POWER LED
ENABLE LED

DIAGNOSTICS AND MAINTENANCE
Maintenance
2
2-4 doc042915 DIAGNOSTICS AND MAINTENANCE
2.3 Maintenance
2.3.1 Daily Maintenance Procedures
Before starting to work:
Make sure that the symbols of all control elements on the transmitter panel are readable.
Replace the transmitter panel if necessary.
Check that the three plates on the transmitting unit are intact and readable.
Make sure that the mechanical operation of the STOP pushbutton is correct.
During normal operation:
Check that there are not any visible damages to the transmitting unit;
Make sure that materials that could endanger the transmitter usage and safety (such as:
sawdust, slabs, concrete, sand, dust, lime) are not accumulated on its surface.
After using the Wireless Option:
Clean the transmitting unit: never use solvents or flammable/corrosive materials and do not
use high-pressure water cleaners or steam cleaners;
Store the transmitting unit in a clean and dry place.
2.3.2 Three-Month Maintenance Procedures
Every three months of operation:
Remove any dust or debris from the transmitter. To do this, never use solvents
or flammable/corrosive materials and high-pressure water cleaners or steam cleaners.
Check that there are not any visible damages to the transmitting unit;
Make sure that the electrical connections between the receiver and the electric box are not
loose or damaged;
Make sure that the receiver panel symbols are readable. Replace the receiver panel
if necessary.
Check that the plates located on the receiving unit are intact and readable.

DIAGNOSTICS AND MAINTENANCE
Six-Month Maintenance Procedures
DIAGNOSTICS AND MAINTENANCE doc042915 2-5
2
2.3.3 Six-Month Maintenance Procedures
Every six months of operation:
Check if the commands sent by the transmitter are correctly performed by the sawmill.
Make sure that the SAFETY relay contact is open when the transmitter is not sending any
commands. This is critical for the Wireless Option user’s safety. It is necessary to keep a record
(date, signature, comments) showing that this check has been carried out regularly. Keep the
record together with other installation documents.
Make sure that the contacts of all receiver relays are functioning correctly. Check that each
contact closes when the corresponding function is activated and opens when the function is
disabled.
If any transmitter/receiver fault occurs, contact your Wood-Mizer Representative. All repairs of the
equipment should be done by authorized persons only.

Specifications
3
3-1 ROdoc042915 Specifications
SECTION 3 SPECIFICATIONS
Receiver Transmitter
Size 287mm x 185mm x 105mm 258mm x 170mm x 126mm
Weight 2.2 kg 1.3 kg (w/battery)
Construction High impact plastic, waterproof (IP65) High impact plastic, waterproof
Input Power 12V-24V DC
1.2 A
7.2V DC
Battery Life N/A ca. 20 hours
Operating
Temperature
Range
-20oC to 70oC-20
oC to 55oC
Outputs 10A (max) N/A
Antenna Internal or external Internal
Approvals ISO 12100, 14121 IEC 60204-32
Range 75-100m

Parts List
How To Use The Parts List
Parts List doc042915 4-1
4
SECTION 4 PARTS LIST
4.1 How To Use The Parts List
Use the index above to locate the assembly that contains the part you need.
Go to the appropriate section and locate the part in the illustration.
Use the number pointing to the part to locate the correct part number and description in the
table.
Parts shown indented under another part are included with that part.
Parts marked with a diamond () are only available in the assembly listed above the part.
See the sample table below. Sample Part #A01111 includes part F02222-2 and subassembly
A03333. Subassembly A03333 includes part S04444-4 and subassembly K05555. The diamond ()
indicates that S04444-4 is not available except in subassembly A03333. Subassembly K05555
includes parts M06666 and F07777-77. The diamond () indicates M06666 is not available except in
subassembly K05555.
To Order Parts:
From Europe call our European Headquarters and Manufacturing Facility in Kolo, Poland at
[phone]. From the continental U.S., call our toll-free Parts hotline at 1-800-448-7881.
Have your customer number, vehicle identification number, and part numbers ready when you
call.
From other international locations, contact the Wood-Mizer distributor in your area for parts.
4.2 Sample Assembly
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
Sample Assembly, Complete (Includes All Indented Parts Below) A01111 1
1Sample Part F02222-22 1
Sample Subassembly (Includes All Indented Parts Below) A03333 1
2Sample Part (Indicates Part Is Only Available With A03333) S04444-4 1 
Sample Subassembly (Includes All Indented Parts Below) K05555 1
3Sample Part (Indicates Part Is Only Available With K05555) M06666 2 
4Sample Part F07777-77 1

Parts List
Wireless Control Kit, DC Sawmills
4
4-2 doc042915 Parts List
4.3 Wireless Control Kit, DC Sawmills
REF. DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
WIRELESS CONTROL SYSTEM, DC SAWMILLS 097803 1
1BRACKET, WIRELESS JUNCTION BOX 096930-1 1
INTERFACE, AUTEC DC - COMPLETE 515304 1
2INTERFACE, AUTEC DC 516174 1
3GLAND, PG 21 CABLE F81096-3 1
4DIODE, 1N4007 087497 1
5POTENTIOMETER, 2.5K 53C3-2500 KIT 505385 1
6RESISTOR, 600R/0.5W 505386 1
7RESISTOR, 180R/0.5W 506224 1
8STABILIZER, 12V L7812ACV 514017 1
9SCREW, M6 X 35-8.8 HEX SOCKET HEAD CAP ZINC F81001-23 4
10 WASHER, 6.4 FLAT ZINC C/R F05011-11 F81053-1 8
11 NUT, M6-8-B HEX NYLON ZINC LOCK C/R F05010-69 F81031-2 4
12 TERMINAL, HIx1.5 CORD-END F81083-4 50
13 FITTING, ELZ-4 F81086-1 2
14 GLAND, Pg 21 CABLE F81096-3 1
WIRELESS CONTROL KIT, DC AUTEC 512965 1
15 TRANSMITTER, DC AUTEC 516134 1
16 RECEIVER, DC AUTEC 516135 1

Parts List
CONTROL HANGER, AC WIRELESS (LES)
Parts List doc042915 4-3
4
4.4 CONTROL HANGER, AC WIRELESS (LES)
REF. DESCRIPTION (Indicates Parts Available In Assemblies Only) W-M PART # QTY.
HANGER, AC WIRELESS CONTROL 501440-1 1
1HANGER WELDMENT, CONTROL 100458-1 1
2BLOCK, BORAMID 100222 1
3SCREW, M4X16 5.8-B CROSS RECESSED PAN HEAD F81011-42 2
4MAGNET, ORANGE-PAINTED S10519-1 1
5BRACKET, CONTROL HANGER 100445-1 1
6FITTING, M6 TYPE A GREASE 086280 1
7WASHER, 15 SPECIAL FLAT ZINC F81057-3 1
8BOLT, M12X25-8.8 HEX HEAD FULL THREAD ZINC F81004-31 1
9PIN, 3/8X2 1/4 SNAP 014151 2
1
23
4
5
6
7
8
9

Parts List
CONTROL HANGER, AC WIRELESS (LT40/70)
4
4-4 doc042915 Parts List
4.5 CONTROL HANGER, AC WIRELESS (LT40/70)
REF. DESCRIPTION (Indicates Parts Available In Assemblies Only) W-M PART # QTY.
HANGER, AC WIRELESS CONTROL 100451 1
1HANGER WELDMENT, CONTROL 100458-1 1
2BLOCK, BORAMID 100222 1
3SCREW, M4X16 5.8-B CROSS RECESSED PAN HEAD F81011-42 2
4MAGNET, ORANGE-PAINTED S10519-1 1
5BRACKET, CONTROL HANGER 100445-1 1
6FITTING, M6 GREASE 086280 1
7WASHER, 15 SPECIAL FLAT ZINC F81057-3 1
8BOLT, M12X25-8.8 HEX HEAD FULL THREAD ZINC F81004-31 1
9PIN, 3/8X2 1/4 SNAP 014151 2
1
23
4
5
6
7
8
9
