Wood-Mizer®
Wireless Option rev. B1.00
Operator’s Manual
Safety is our #1 concern! Read and understand all
safety information and instructions before operating,
setting up or maintaining this machine.
Form #120
!

Table of Contents Section-Page
2 ROdoc021820 Table of Contents
SECTION 1 OPERATION 1-1
1.1 Safety......................................................................................................................... 1-1
1.2 Wireless control panel ............................................................................................... 1-2
1.3 Operation ...................................................................................................................1-4
SECTION 2 DIAGNOSTICS AND MAINTENANCE 2-1
2.1 Diagnostics - Receiver............................................................................................... 2-2
2.2 Maintenance .............................................................................................................. 2-3
Daily Maintenance Procedures
Three-Month Maintenance Procedures
SECTION 3 SPECIFICATIONS 3-1
SECTION 4 PARTS LIST 4-1
4.1 How To Use The Parts List ....................................................................................... 4-1
4.2 Sample Assembly ...................................................................................................... 4-1
4.3 Wireless Control Kit, DC Sawmills .......................................................................... 4-2
4.4 Wireless Control Kit, AC Sawmills .......................................................................... 4-2
4.5 Wireless Receiver Housing, DC Sawmills................................................................ 4-3
4.6 Wireless Receiver Housing, AC Sawmills................................................................ 4-4

Operation
Safety
Operation doc021820 1-1
1
SECTION 1 OPERATION
1.1 Safety
CAUTION! This manual is provided as a supplement to the equipment
manufacturer’s manual. Refer to the manufacturer’s manual before
attempting to operate this equipment.
WARNING! Failure to follow the safety precautions may result in radio
equipment failure or serious personal injury.
CAUTION! Wood-Mizer will not bear responsibility for any unapproved
changes or modifications made to the equipment.
Installation
CAUTION! If maintenance is required, the radio must be disconnected
from power. USE PROPER WIRING. Loose or frayed wires can cause
system failure, intermittent operation, machine damage, etc.
CAUTION! DO NOT INSTALL IN HOT AREAS. This apparatus can be
damaged by heat at a temperature of above 70oC.
Personal Safety
CAUTION! MAKE SURE THE EQUIPMENT AND SURROUNDING
AREA IS CLEAR BEFORE OPERATING. Do not activate the remote
system unless it is safe to do so.
CAUTION! TURN OFF THE RECEIVER POWER BEFORE
WORKING ON THE SAWMILL. Always disconnect the remote system
before doing any maintenance to prevent accidental operation of the
machine.
CAUTION! IN CASE OF EMERGENCY, immediately press the red
emergency stop switch.
Care
CAUTION! KEEP DRY. Do not clean the transmitter/receiver under
high pressure. If water or other liquids get inside the transmitter
or receiver compartment, immediately dry the unit. Remove the case
and let the unit air dry.
CAUTION! CLEAN THE UNIT AFTER OPERATION. Remove any
mud, dirt, concrete, etc. from the unit to prevent clogging of buttons,
switches, etc. by using a damp cloth.
!

Operation
Wireless control panel
1
1-2 doc021820 Operation
Maintenance / Welding
CAUTION! DISCONNECT THE RADIO RECEIVER BEFORE
WELDING on the machine the receiver is connected to. Failure to
disconnect will result in destruction of the radio receiver.
1.2 Wireless control panel

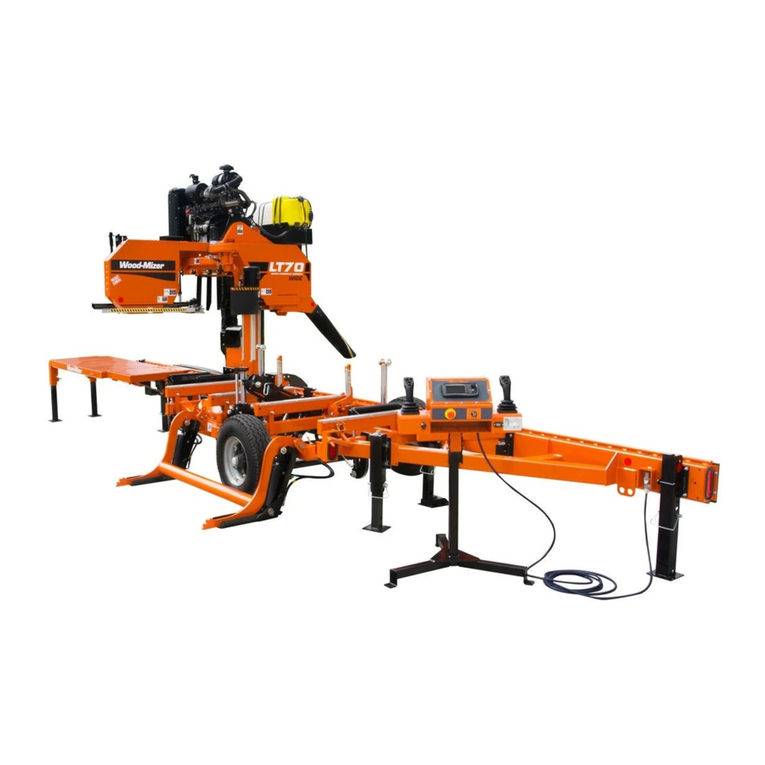

The LT70 sawmills can be equipped with the saw head remote control system (with a wireless
control panel). This system allows you to fully control the saw head, i.e. engage and disengage the
blade, the power feed and up/down operation, the blade guide arm and the debarker as well as to
adjust the feed rate.
Patrz rysunek 1-1. Wireless control panel functions LT70DC
Saw Head
Forward/Reverse
Blade Guide In/Out
Saw Head Up/Down
Debarker On/Off Blade Drive On/Off
Emergency Stop
Feed Rate Dial
Debarker In/Out
Panel Working
Status Indicator
(Green)
Diagnostic socket
Starting Key
(Air-Key)
Transmitter
Activation Button

Operation
Wireless control panel
Operation doc021820 1-3
1
Patrz rysunek 1-2. Wireless control panel functions LT70AC
Saw Head
Forward/Reverse
Blade Guide In/Out
Saw Head Up/Down
Debarker On/Off
Emergency Stop
Feed Rate Dial
Debarker In/Out
Panel Working
Status Indicator
(Green)
Diagnostic socket
Starting Key
(Air-Key)
Transmitter
Activation Button
Blade Drive Motor
START/STOP

Operation
Operation
1
1-4 doc021820 Operation
1.3 Operation
Set up the sawmill as instructed in your sawmill operator’s manual.
Install the charged battery.
Transmitter electronic system constantly controls battery voltage. When it falls below the appropriate
value, the LED indicator light will turn red or an acoustic signal will be heard after which the system
will automatically turn off. In this case, perform the following steps:
Set the saw head in safe position.
Turn the key to the “0” position. The transmitter will be turned off. Remove the key.
NOTE: When the battery is fully charged, the panel should work for
approximately 20 hours at 20oC.
Charging the battery.
To remove the battery, move it forward and lift.
Place the battery in the charger provided by the manufacturer. Use original charger only.
Be sure the charger is connected to the appropriate power supply (220-230V socket or car plug
etc.)
The battery requires about 3-6 hours to be fully charged. Control light CHARGE is on during
charging. When battery is fully charged control light READY illuminates. To charge the battery
fast, push the FAST CHARGE button.
CAUTION! Charger automatically stops charging when the battery is
fully charged. One of the batteries should always be in the charger, as
a spare fully charged battery.
CAUTION! If batteries are not in use for a long time, they should be
charged every 6 months.
!
!

Operation
Operation
Operation doc021820 1-5
1
To turn on the wireless control panel on any DC (with diesel engine) sawmill:
Make sure that all switches and joysticks are in the neutral or OFF position. The feed
rate dial should be set to the minimum value.
Check that the switch located on the electric box is in the ON position;
NOTE: When the green switch on the electric box is in the OFF
position, the wireless control system is completely turned off and all
sawmill functions can be activated from the standard control box on
the saw head.
Make sure the emergency stop buttons are released and the feed rate dial is set to minimum
value.;
Insert the starting key (Air-KEY) into the corresponding socket located on the right side of the
control panel. Turn the key right to the ”I” position.
Wait about 3-4 seconds and then push the transmitter activation button.
IMPORTANT! If the emergency stop was pushed at the moment when
the transmitter was activated, or the feed dial was not set to minimum
value, it is necessary to release the emergency stop or set the feed
dial to the minimum value and press the transmitter activation button.
After 3-4 seconds press the transmitter activation button again.
Start the engine using the key switch located on the sawmill control box (on the saw head);
Load and clamp the log;
Program the Accuset controller (or PLC-Setworks/SW-10) (See Accuset, PLC-Setworks or
!

Operation
Operation
1
1-6 doc021820 Operation
SW-10 Operator’s Manual);
Position the saw head at a height of the first cut;
If necessary, turn the debarker on;
Set the Blade Drive On/Off Switch in the upper position;
Push the left joystick forward and hold it in this position. The blade drive will be turned on within
3 seconds.
Set the feed rate dial to the desired value.
After making the cut, release the left joystick. The blade drive will be turned off and the main
engine will still be running idle.
After position the saw head for the next cut, push the left joystick forward and hold it in this
position. The blade drive will be turned on within 3 seconds.
NOTE: As soon as the joystick is released, the blade drive is
disengaged.
NOTE: If none of the pushbuttons, switches or joysticks is used within
5 minutes after switching on the transmitter, the transmitter will turn off
automatically.
When sawing is finished, switch the transmitter off by turning the starting key to the ”0” position.
Remove the key and always store it in a safe place.
NOTE: The starting key (Air-KEY) stores the receiver identification
data. The transmitter cannot communicate with the receiver without
this key. Do not lose the Air-KEY.

Operation
Operation
Operation doc021820 1-7
1
To turn on the wireless control panel on any AC (with electric blade motor) sawmill:
Make sure that all switches and joysticks are in the neutral or OFF position. The feed
rate dial should be set to the minimum value.
Check that the switch located on the electric box is in the ON position;
NOTE: When the green switch on the electric box is in the OFF
position, the wireless control system is completely turned off and all
sawmill functions can be activated from the standard control box on
the saw head.
Make sure the emergency stop buttons are released and the feed rate dial is set to minimum
value.
Insert the starting key (Air-KEY) into the corresponding socket located on the right side of the
control panel. Turn the key right to the ”I” position.
Wait about 3-4 seconds and then push the transmitter activation button.
IMPORTANT! If the emergency stop was pushed at the moment when
the transmitter was activated, or the feed dial was not set to minimum
value, it is necessary to release the emergency stop or set the feed
dial to the minimum value and press the transmitter activation button.
After 3-4 seconds press the transmitter activation button again.
Load and clamp the log;
Program the Accuset controller (or PLC-Setworks/SW-10) (See Accuset, PLC-Setworks or
SW-10 Operator’s Manual);
!

Operation
Operation
1
1-8 doc021820 Operation
Position the saw head at a height of the first cut;
If necessary, turn the debarker on;
Start the blade motor by pressing the START button on the left side of the control panel;
Push the left joystick forward and hold it in this position.
Set the feed rate dial to the desired value.
After making the cut, release the left joystick. Press the STOP button. The blade will be
stopped.
After position the saw head for the next cut, start the blade motor by pressing the START
button.
NOTE: If none of the pushbuttons, switches or joysticks is used within
5 minutes after switching on the transmitter, the transmitter will turn off
automatically.
When sawing is finished, switch the transmitter off by turning the starting key to the ”0” position.
Remove the key and always store it in a safe place.
NOTE: The starting key (Air-KEY) stores the receiver identification
data. The transmitter cannot communicate with the receiver without
this key. Do not lose the Air-KEY.

Operation
Operation
Operation doc021820 1-9
1

Diagnostics and Maintenance
2
2-1 doc021820 Diagnostics and Maintenance
SECTION 2 DIAGNOSTICS AND MAINTENANCE
CAUTION! DISCONNECT POWER SUPPLY FROM THE SAWMILL
BEFORE SERVICING! Always disconnect the remote system before
doing any maintenance to prevent accidental start-up of the machine.
Before starting to perform any diagnostic operation, do as follows:
Bring the transmitting unit close to the receiving unit to avoid any radio interference and
disturbances.
Determine if the existing problem lies with the wireless control system or with the sawmill. To do
that, disconnect the wireless control system using the switch on the electric box (See Section
1.3) and try to activate the desired functions from the control box on the sawmill. If the problem
persists, it is related to the sawmill control system (not to the wireless control system). If it does
not exist, please refer to the diagnostic procedures described below.

Diagnostics and Maintenance
Diagnostics - Receiver
Diagnostics and Maintenance doc021820 2-2
2
2.1 Diagnostics - Receiver
Signal lights are located on the side wall of the receiver.
Operation Control light
Yellow
Operation
Control light
Green
Signal
Control light
Red
Error
Control light
Orange
Normal
Receiver is turning on On
Blinks every
0.5 sec.
Off Off Off
Receiver is turned off Off Off Off Off
The transmitter is
turned off
Receiver is on
On
Blinks every
0.5 sec.
Off Off Off
The transmitter and
receiver
communicate.
On
Blinks every
0.5 sec.
On
Blinks fast
Off On
START button is not
pressed
On
Blinks every
0.5 sec.
On
Blinks fast
Off Off
(The light is on when
joysticks on the
transmitter are not in
the neutral position)
E-stop button is
pressed
when receiver is on.
On
Blinks every
0.5 sec.
On
Blinks fast
Off Off
The transmitter and
receiver do not
communicate.
On
Blinks every
0.5 sec.
Off Off Off

Diagnostics and Maintenance
Maintenance
2
2-3 doc021820 Diagnostics and Maintenance
2.2 Maintenance
2.2.1 Daily Maintenance Procedures
Before starting to work:
Make sure that the symbols of all control elements on the transmitter panel are readable.
Replace the transmitter panel if necessary.
Check that the plates on the transmitting unit are intact and readable
Make sure that the mechanical operation of the STOP pushbutton is correct.
During normal operation:
Check that there are not any visible damages to the transmitter.
Make sure that materials that could endanger the transmitter usage and safety (such as:
sawdust, slabs, concrete, sand, dust, lime) are not accumulated on its surface.
After using the Wireless Option:
Clean the transmitting unit: never use solvents or flammable/corrosive materials and do not
use high-pressure water cleaners or steam cleaners;
Store the transmitting unit in a clean and dry place.
Check if the commands sent by the transmitter are correctly performed by the sawmill.
2.2.2 Three-Month Maintenance Procedures
Every three months of operation:
Remove any dust or debris from the transmitter. Never use solvents or flammable/corrosive
materials and do not use high-pressure water cleaners or steam cleaners;
Check that there are not any visible damages to the transmitter.
Make sure that the electrical connections between the receiver and the electric box are not
loose or damaged.
Make sure that the symbols of all control elements on the transmitter panel are readable.
Replace the transmitter panel if necessary.
Check that the plates on the receiver are intact and readable.
If any transmitter/receiver fault occurs, contact your Wood-Mizer Representative. All repairs of the
equipment should be done by authorized persons only.

Specifications
Specifications doc021820 3-1
3
SECTION 3 SPECIFICATIONS
Transmitter
Frequency 434MHz
Weight < 2kg
Power of transmitted signal <10mW
Range about 100m
Operating temperature range -25oC - +70oC
(-18oF - +160oF)
Operating humidity range 0-97%
IP65
Approvals CE, TUV, ISO 9001
Antenna Internal
Operating time on fully
charged battery
14-20 hours
Time to fully charge the battery 3-6 hours
Receiver
Frequency 434MHz
Weight about 7 kg
Operating temperature range -25oC - +70oC
(-18oF - +160oF)
Operating humidity range 0-97%
IP65
Antenna External
Power Supply Voltage 12-24V DC
Power consumption <0,8 A

Parts List
How To Use The Parts List
4
4-1 doc021820 Parts List
SECTION 4 PARTS LIST
4.1 How To Use The Parts List
Use the index above to locate the assembly that contains the part you need.
Go to the appropriate section and locate the part in the illustration.
Use the number pointing to the part to locate the correct part number and description in the
table.
Parts shown indented under another part are included with that part.
Parts marked with a diamond () are only available in the assembly listed above the part.
See the sample table below. Sample Part #A01111 includes part F02222-2 and subassembly
A03333. Subassembly A03333 includes part S04444-4 and subassembly K05555. The diamond ()
indicates that S04444-4 is not available except in subassembly A03333. Subassembly K05555
includes parts M06666 and F07777-77. The diamond () indicates M06666 is not available except in
subassembly K05555.
To Order Parts:
From Europe call our European Headquarters and Manufacturing Facility in Kolo, Poland at
[phone]. From the continental U.S., call our toll-free Parts hotline at 1-800-448-7881.
Have your customer number, vehicle identification number, and part numbers ready when you
call.
From other international locations, contact the Wood-Mizer distributor in your area for parts.
4.2 Sample Assembly
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
Sample Assembly, Complete (Includes All Indented Parts Below) A01111 1
1Sample Part F02222-22 1
Sample Subassembly (Includes All Indented Parts Below) A03333 1
2Sample Part ( Indicates Part Is Only Available With A03333) S04444-4 1 
Sample Subassembly (Includes All Indented Parts Below) K05555 1
3Sample Part ( Indicates Part Is Only Available With K05555) M06666 2 
4Sample Part F07777-77 1

Parts List
Wireless Control Kit, DC Sawmills
Parts List doc021820 4-2
4
4.3 Wireless Control Kit, DC Sawmills
4.4 Wireless Control Kit, AC Sawmills
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
WIRELESS CONTROL SYSTEM, HETRONIC LT70 DC SAWMILLS 533785 1
TRANSMITTER, DC HETRONIC NOVE-L/K RX18 533771 1
RECEIVER, HETRONIC RX18 PROP-HL 533772 1
BATTERY, HETRONIC 533773 1
CHARGER DC, HETRONIC 10-30VDC 527435 1
CHARGER AC, HETRONIC 533774 1
BELT, CARRING 533775 1
DECAL, WIRELESS INTERFACE 533789 1
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
WIRELESS CONTROL SYSTEM, HETRONIC LT70AC SAWMILLS 533791 1
TRANSMITTER, DC HETRONIC NOVE-L/K RX18 533771 1
RECEIVER, HETRONIC RX18 PROP-HL 533772 1
BATTERY, HETRONIC 533773 1
CHARGER, AC HETRONIC 533774 1
CHARGER, 10-30VDC HETRONIC 527435 1
BELT, CARRING 533775 1
DECAL, WIRELESS INTERFACE 533789 1

Parts List
Wireless Receiver Housing, DC Sawmills
4
4-3 doc021820 Parts List
4.5 Wireless Receiver Housing, DC Sawmills
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
- HOUSING, DC WIRELESS RECEIVER 532248 1
1BOX WELDMENT 530943-1 1
2GASKET, CORK 532355 1
3PLATE, FRONT 530945 1
4PLATE, MOUNTING 532351-1 1
5WASHER, 5.3 FLAT ZINC F81052-1 10
6BOLT, #10-24X1/2 SELF-TAPPING F05015-7 10
7SCREW, M4X16-5.8-B SLOTTED COUNTERSUNK HEAD ZINC F81011-4 2
8NUT, M4-8 HEX NYLON ZINC LOCK F81029-1 2
9GASKET, CORK 532366 1
10 SCREW, M6X10 BN 11252 "BOSSARD". F81001-57 4
11 SCREW, M6X16 8.8 HEX SOCKET HEAD CAP ZINC F81001-21 4
12 WASHER, 6.4 FLAT ZINC F81053-1 4

Parts List
Wireless Receiver Housing, AC Sawmills
Parts List doc021820 4-4
4
4.6 Wireless Receiver Housing, AC Sawmills
REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
- HOUSING, AC WIRELESS RECEIVER 534501 1
1BOX WELDMENT 534496-1 1
2GASKET, CORK 534502 1
3PLATE, FRONT 534500-1 1
4WASHER, 5.3 FLAT ZINC F81052-1 12
5BOLT, #10-24X1/2 SELF-TAPPING F05015-7 12
6GASKET, CORK 532366 1
7SCREW, M6X10 BN 11252 "BOSSARD". F81001-57 4
8PLATE, ELECTRIC BOX MOUNT 088266-8 1
9WASHER, 10.5 FLAT ZINC F81055-1 4
10 WASHER, Z 10.2 SPLIT LOCK ZINC F81055-2 4
11 BOLT, M10X12 HEX HEAD FULL THREAD ZINC F81003-30 4
12 WASHER, 6.4 FLAT ZINC F81053-1 4
13 WASHER, Z 6.1 SPLIT LOCK F81053-3 4
14 SCREW, M6X20 8.8 HEX SOCKET HEAD CAP ZINC F81001-22 4
