General information
Safety
General information TRdoc112213 1-1
1
SECTION 1 GENERAL INFORMATION
IMPORTANT! This manual is provided as a supplement to
the equipment manufacturer’s manuals. Refer to the
manufacturer’s manual before attempting to operate this
equipment.
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word. The
word DANGER refers to hazards that can cause death or serious, irreversible personal
injury. WARNING suggests a potentially hazardous situation which, if not avoided, could
result in death or serious injury. CAUTION refers to potentially hazardous situations
which, if not avoided, may result in minor or moderate injury to persons or equipment.
1.1 Safety
DANGER! If the sawmill with the trailer is unhitched from a
towing vehicle, then the sawmill should be secured through
placing wedge blocks under the wheels.
DANGER! Chock the trailer wheels to prevent movement
before unhitching it from the towing vehicle.
DANGER! Be sure that the hitch and safety chains are
secure before towing the sawmill. Check all lights and
signals for correct operation.
DANGER! Always check trailer tires for proper inflation
before towing sawmill.
DANGER! Always keep away from trailer axle to avoid
being caught between the axle and moving saw carriage.
!

Assembly
Installation of the axle assembly
2
2-1 TUVdoc112213 Assembly
SECTION 2 ASSEMBLY
IMPORTANT NOTE! In case of all screw joints, which are
not protected against unscrewing with the help of a spring
washer or a nylon lock nut, it is recommended to use a
thread-locker of the "LOCTITE 243" type (blue), medium
strength, for screw joints.
2.1 Installation of the axle assembly
1. Unpacking the sawmill (See Section 2.2 LT15 Operator’s Manual)

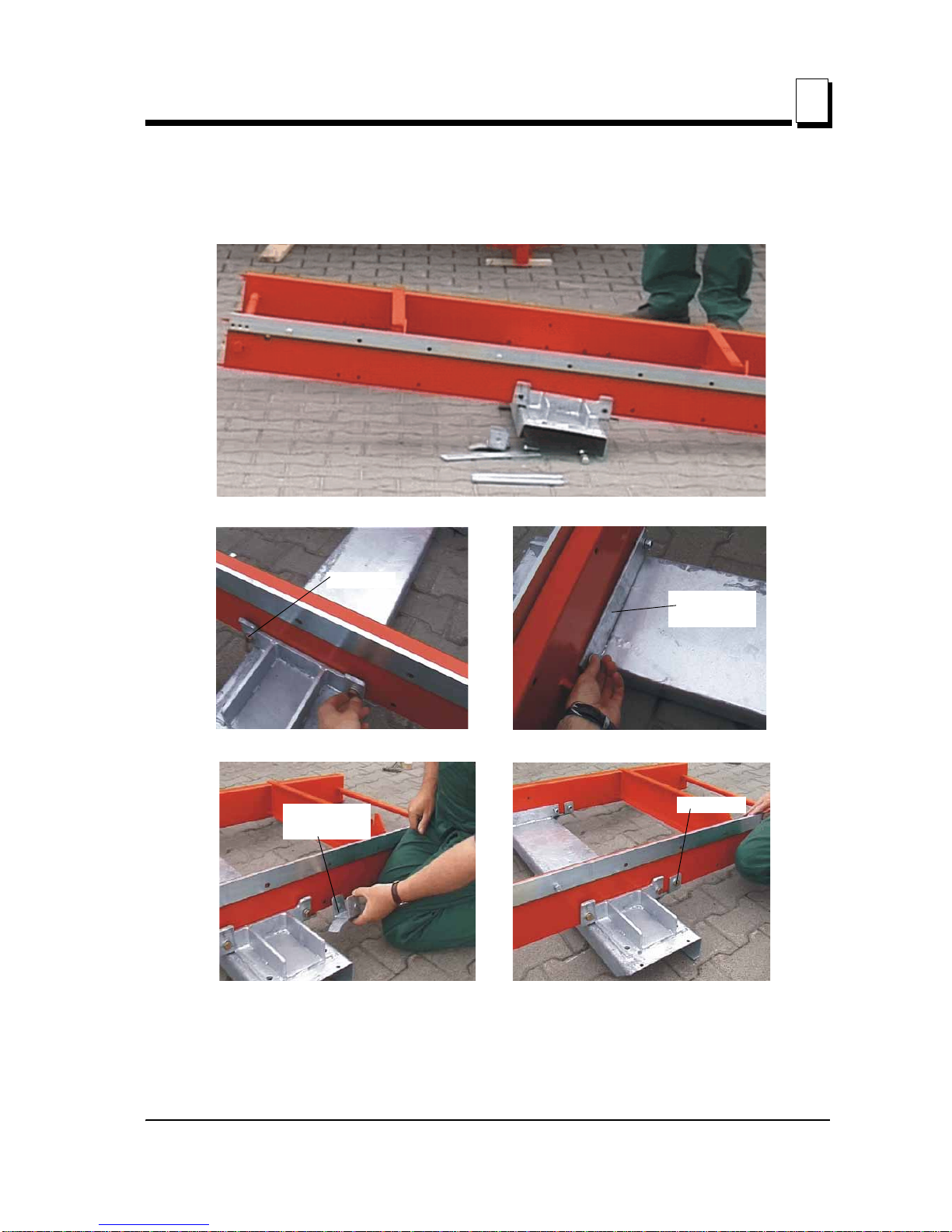

2. Install a wheel axle bracket to one of the sawmill beds
See Figure 2-1. Place the axle mounting assembly under the bed, in its middle part (A).
Align the holes of the mounting assembly with the holes in the bed section. Insert two
bolts (B) and put the bracket (C) on them from the internal side of the frame. Screw the
retaining bracket under the axle (D,E). Both types of brackets should be screwed at the
FIG. 2-0
!

Assembly
Installation of the axle assembly
Assembly TUVdoc112213 2-2
2
left and right side.
3. Install the wheel axle assembly

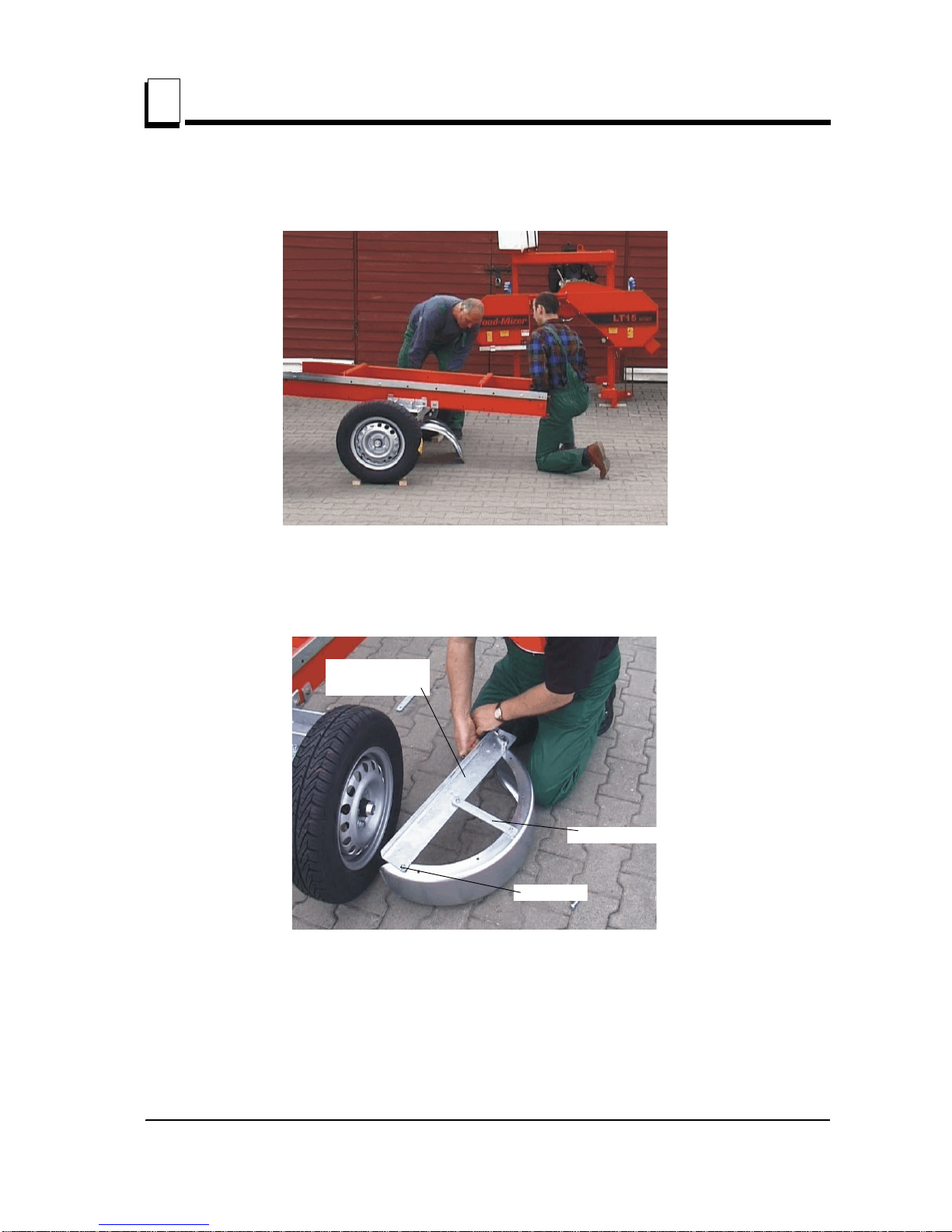

See Figure 2-2. Install wheels to the steer axle. Place the frame segment with the
FIG. 2-1
A.
BC
DE
M12x90
M12x75
Support
additional
Retaining
bracket

Assembly
Installation of the axle assembly
2
2-3 TUVdoc112213 Assembly
mounting assembly on the axle with wheels. Screw the axle to the mounting assembly
with four M12x35 bolts.
See Figure 2-3. Screw the mounting bar and the bracket to the fender.
See Figure 2-4. Screw the complete fender to the trailer mounting assembly. Install the
FIG. 2-2
FIG. 2-3
Mounting bar
Bracket
M8x20

Assembly
Installation of the axle assembly
Assembly TUVdoc112213 2-4
2
left-side fender in the same way.
4. Install the hitch assembly.
See Figure 2-5. Reverse the front bed section upside down. Using a rubber hammer
drive the hitch mounting bracket to the bed section, so that the holes of the bracket are
aligned with the holes in the bed section.
See Figure 2-6. Screw together the hitch bracket with the frame segment and the leg
FIG. 2-4
FIG. 2-5
M8x20
Hitch
mounting
bracket

Assembly
Installation of the axle assembly
2
2-5 TUVdoc112213 Assembly
mounting block.

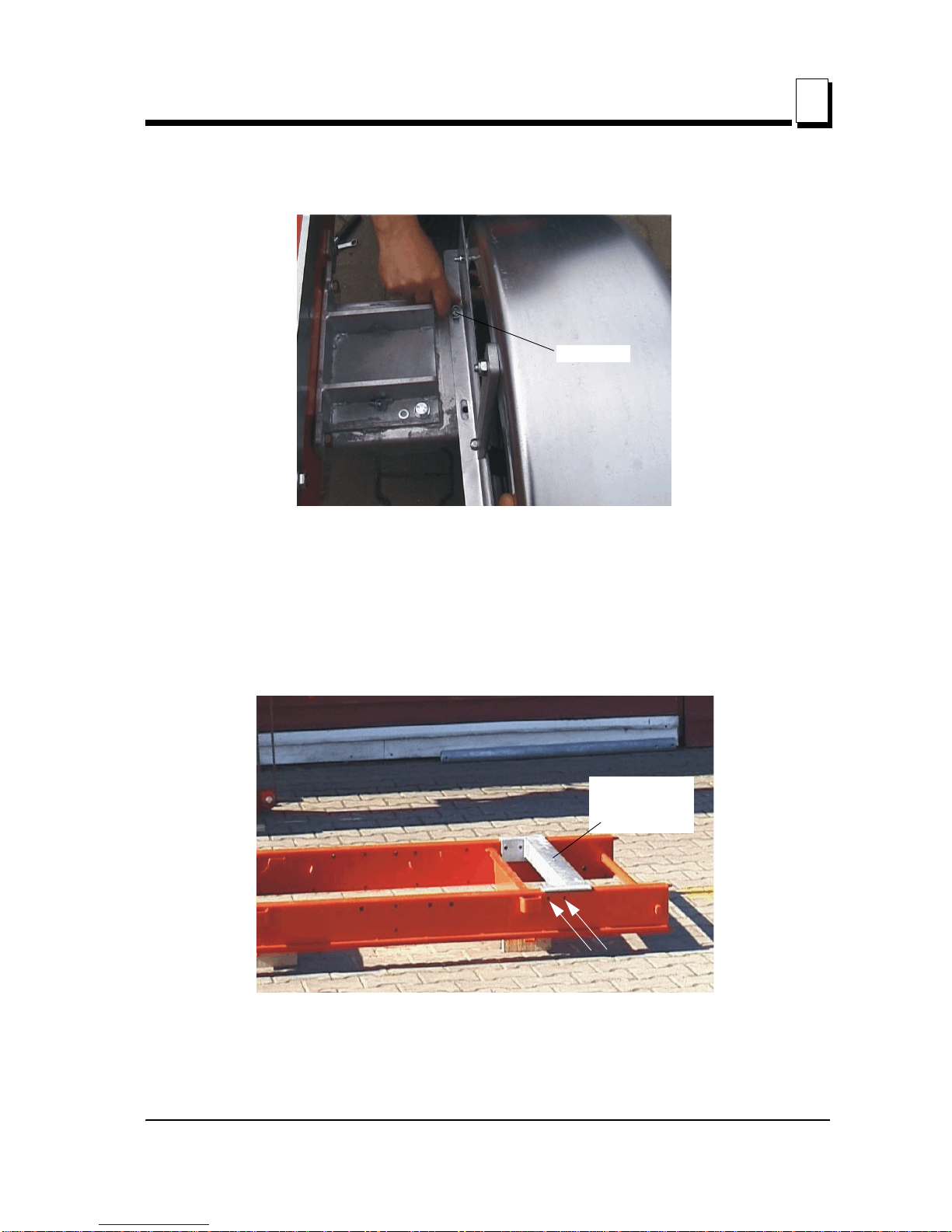

See Figure 2-7. Place the tow bar bracket on the pins of the front part of the bed section,
and then screw it down.
See Figure 2-8. Install the tow bar to the brackets using three bolts. Screw the hitch to
FIG. 2-6
FIG. 2-7
Leg
Mounting
Block
M12x75

Assembly
Installation of the axle assembly
Assembly TUVdoc112213 2-6
2
the tow bar.
5. Put together all sections of the sawmill bed, See Section 2.3 LT15 Operator’s manual
FIG. 2-8
Hitch M12x75
M12x35
M12x90

Assembly
Installation of the axle assembly
2
2-7 TUVdoc112213 Assembly
6. Install the light board to the back section of the bed.
See Figure 2-9.
FIG. 2-9

Assembly
Installation of the axle assembly
Assembly TUVdoc112213 2-8
2
7. Install the jockey wheel unit.
See Figure 2-10. Install the jockey wheel clasps. Before screwing these clasps,
remember to place the bolt for screwing the bracket.
See Figure 2-11. Screw the jockey wheel bracket and install the jockey wheel.
FIG. 2-10
FIG. 2-11
Bolt for
screwing the
bracket

Assembly
Installation of the axle assembly
2
2-9 TUVdoc112213 Assembly

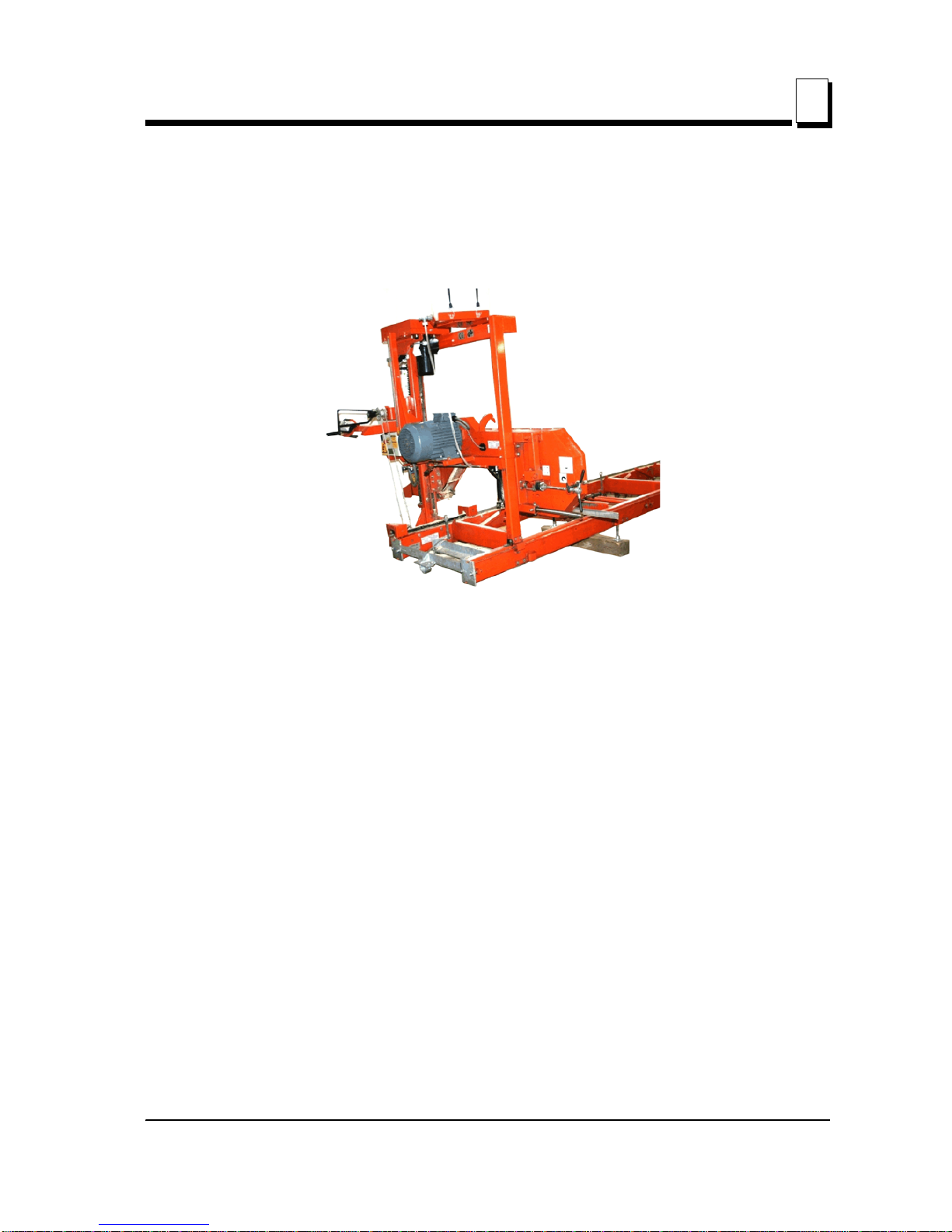

8. Install the sawmill head on the frame. See Section 2.5 LT15 Operator’s Manual.
9. Install clearance lamps and make electrical connections according to the circuit diagram
(See Section 5.1).
See Figure 2-12.
FIG. 2-12
M10x80

Assembly
Installation of the axle assembly
Assembly TUVdoc112213 2-10
2

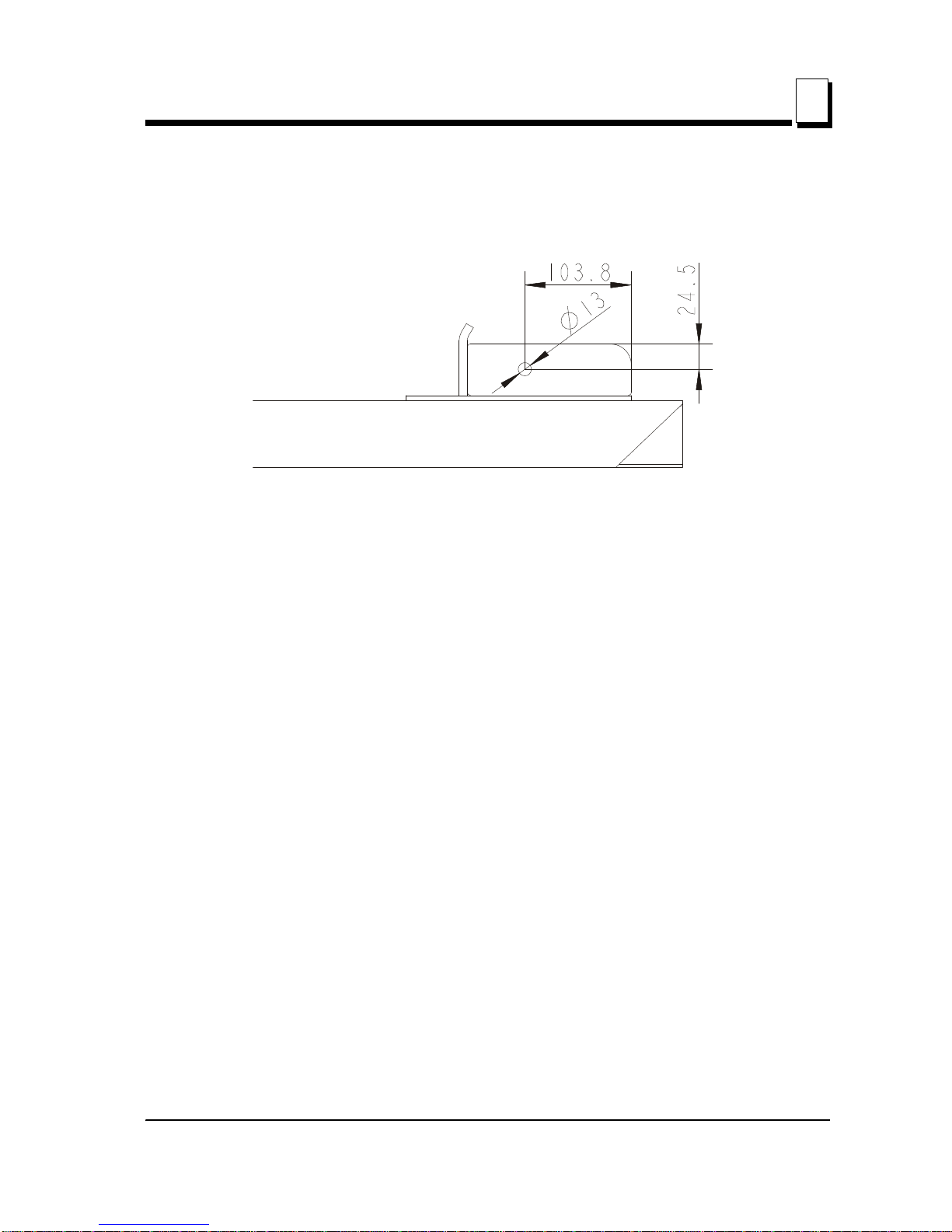

10. Drill φ13 hole in the trailer axle mounting bracket.
See Figure 2-13.
FIG. 2-13

Assembly
Installation of the axle assembly
2
2-11 TUVdoc112213 Assembly
11. Install transport brackets. Use sawmill mounting bolts to screw them down and fasteners
listed below.
See Figure 2-14.
FIG. 2-14
F81004-24 Bolt
F81056-2
Washer
F81056-1
Washer
F81034-1 Nut

Assembly
Specifications of Fasteners
Assembly TUVdoc112213 2-12
2
2.1.1 Specifications of Fasteners
2.1.2 Trailer rating plate
See Figure 2-15. The trailer rating plate mounts to the tow bar bracket using two rivets
(Part No F81021-11).
Table 1:
Designations of fasteners:
FIG. 2-15
6,5
8
8,4
20
13
M8 Nut M8x20 Bolt 8.4 Washer
Rating plate location

Operation
3
3-1 TUVdoc112213 Operation
SECTION 3 OPERATION
Dismantling the trailer before starting the operation.

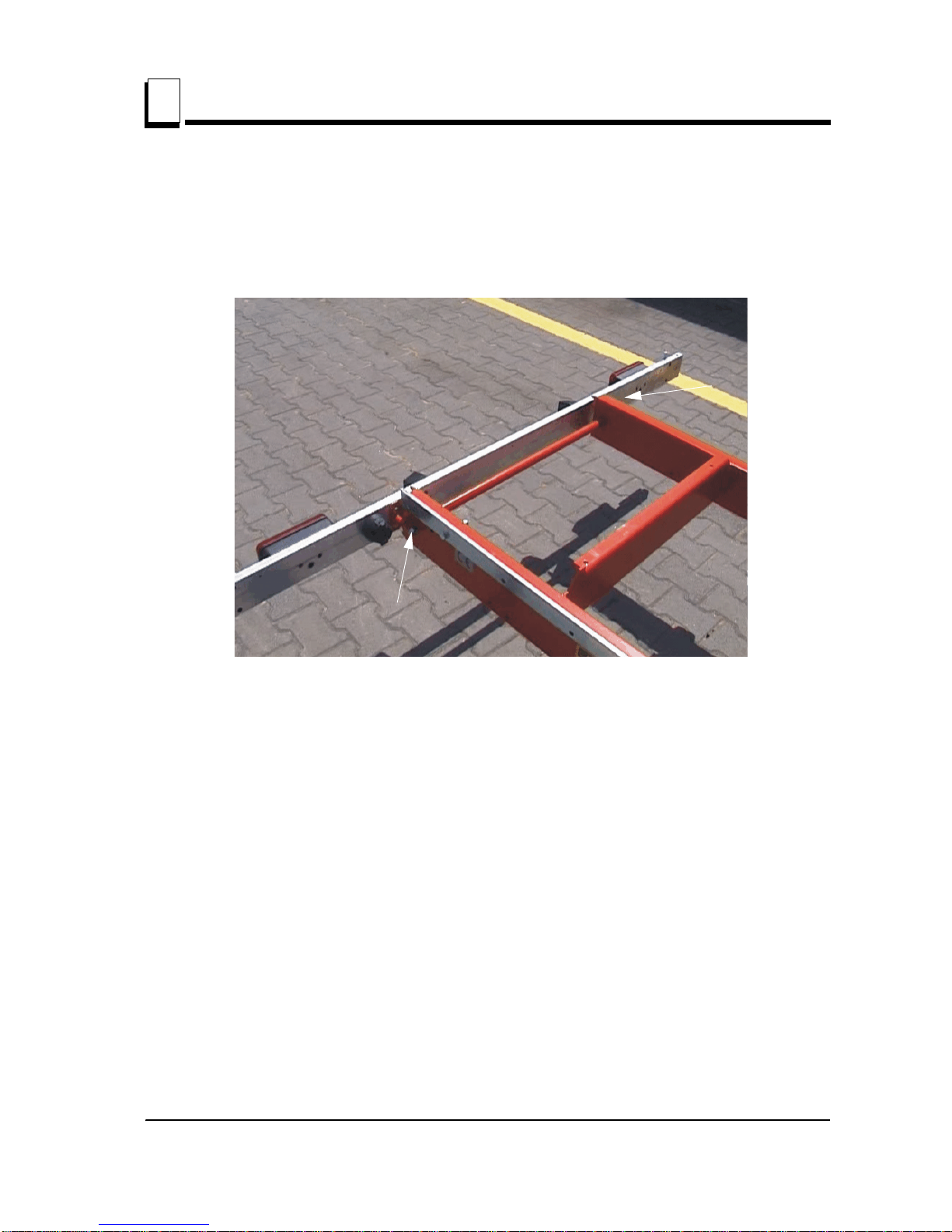

See Figure 3-1. Dismantle the rear light board.
FIG. 3- 1

Operation
Operation TUVdoc112213 3-2
3

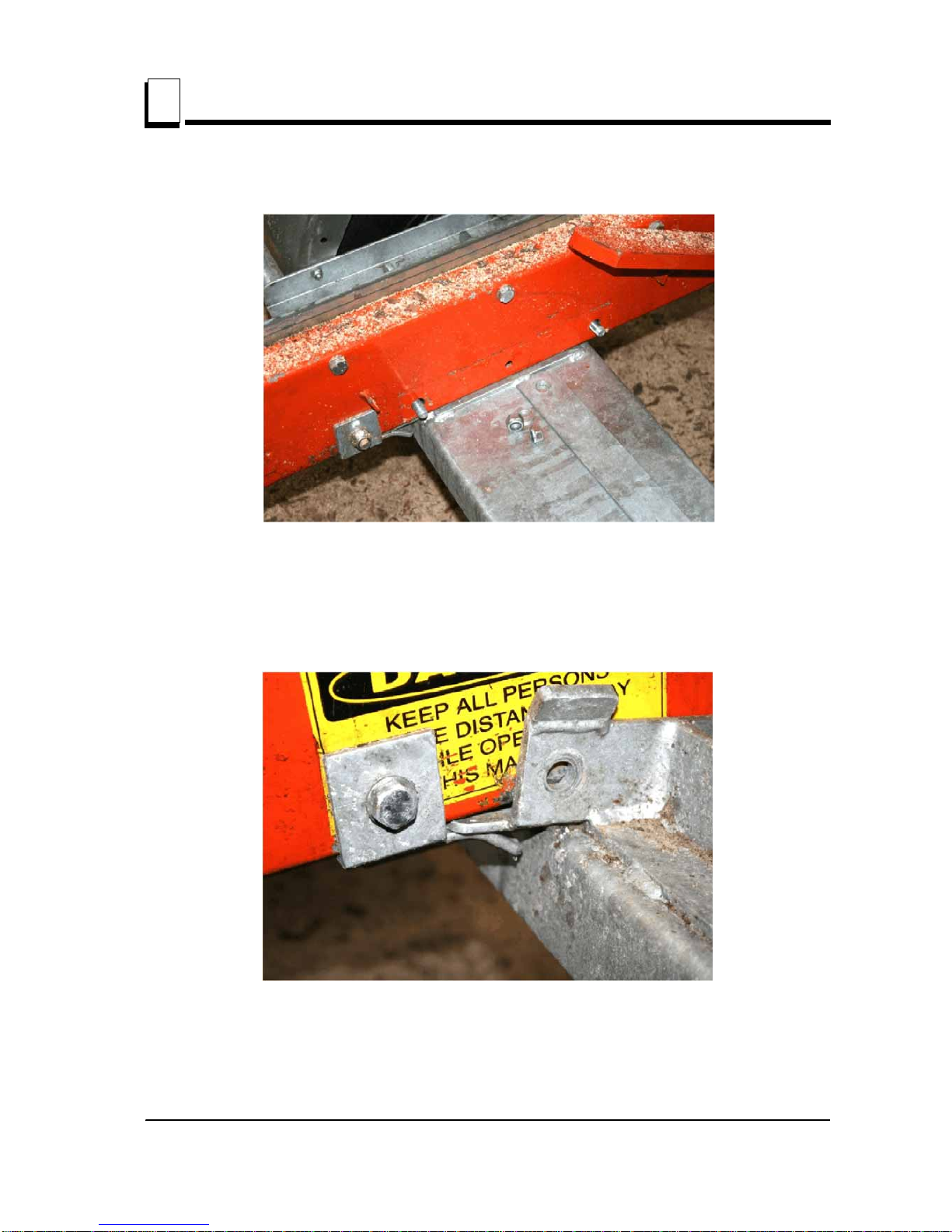

See Figure 3-2. Unscrew the transport brackets.
FIG. 3- 2

Operation
3
3-3 TUVdoc112213 Operation
See Figure 3-3. Tie a wooden block to the back part of the sawmill frame or otherwise
protect the end of the frame against hitting the ground. Block the wheels using the
wedges. Then raise the saw head over the fenders and move it to the end of the frame.
Secure temporarily the saw head in this position using the rest pin in the hole in the back
part of the frame.
See Figure 3-4. Dismantle the hitch bar with the jockey wheel.
FIG. 3- 3
FIG. 3- 4

Operation
Operation TUVdoc112213 3-4
3
See Figure 3-5. Screw upwards to the maximum the pair of legs, second from the front
of the frame, place the 12x14x100 cants, and then completely unscrew the legs
downwards. Screw the first pair of legs fully upwards. If the head is now moved forward,
then the location of the center of gravity will cause raising the back end of the frame to the
1 m height.
FIG. 3- 5

Operation
3
3-5 TUVdoc112213 Operation
See Figure 3-6. Unscrew 4 bolts of the axle assembly.
See Figure 3-7. Take the axle assembly out from the raised sawmill frame moving it out
the retaining brackets. Then take out the cant from under the support legs. After proper
adjustment of legs, cutting can be started.
Installation of the trailer after finishing the work.
FIG. 3- 6
FIG. 3- 7
