Woodward HighPROTEC User manual

Version: 3.4
English
DOK-QS-HPT-2
(Revision: B, 2018)
Original document
Quick Start Guide
HighPROTEC

Original operating manual
Woodward Kempen GmbH
Krefelder Weg 47 ∙ D–47906 Kempen (Germany)
Postfach 10 07 55 (P.O.Box) ∙ D–47884 Kempen (Germany)
Telephone: [phone]
© 2018 Woodward Kempen GmbH
2 HighPROTEC DOK-QS-HPT-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Table of contents
1 Introduction
1.1 Important De󰍏nitions
2 Quick Start – Operating Software Smart view
2.1 Operation via Smart view
3 Quick Start – HighPROTEC
3.1 Menu Structure
3.2 Navigation via Softkeys
3.3 Softkey Symbols
3.4 Entering a Password
3.5 Function Keys
3.6 “INFO” key – Check LED Assignments
3.7 Parameter Changes – “OK” key
3.8 “C” key – Acknowledge (Reset) Latched Signals, Output Relays, Trip
Commands
3.9 “CTRL” key – Control Switchgear Devices
3.10 Assisting Tokens
3.11 Single-Line Diagrams
4 Good to Know for Commissioning
5 How to Con󰍏gure a Protection Device
5.1 Con󰍏guration File
5.2 Con󰍏guration Steps
5.2.1 Display Language
5.2.2 Device Planning
5.2.3 Measurement Display
5.2.4 Digital Inputs
5.2.5 Output Relays (Binary Outputs)
5.2.6 LED Assignment
5.2.7 Field Parameters
5.2.8 Blocking Parameters
5.2.9 Protection Parameters
5.2.10 Synchrocheck Settings
5.2.11 Trip Manager and Switchgear Con󰍓guration 1
5.2.12 Switchgear Con󰍓guration 2
6 Index
3HighPROTECDOK-QS-HPT-2
Table of contents

4 HighPROTEC DOK-QS-HPT-2
Table of contents

1 Introduction
The goal of this description is to guide the user quickly through the essential steps
required for commissioning a HighPROTEC protection device.
This document serves as a 󰍓rst introduction for:
• Engineers in the protection 󰍓eld,
• commissioning engineers,
• people dealing with setting, testing and maintenance of protection and control
devices,
•as well as trained personnel for electrical installations and power stations.
This document is roughly divided into the following parts:
• The “Quick Start – Smart view” chapter describes what is necessary to establish a
connection between a HighPROTEC protection device and the operating software
Smart view.
Since operating a HighPROTEC device via HMI can be quite cumbersome this chapter
is recommended for all user types, in particular commissioning engineers.
• The “Quick Start – HighPROTEC” chapter with all its sub-chapters, comprising several
step-by-steps tutorials. These introduce you to the basic concepts, with the main
priority set to operations using the HMI (panel) of the protection device.
This chapter is of particular interest for users who want to con󰍓gure and/or operate a
HighPROTEC protection device.
• The “Good to Know” chapter is a collection of tips and hints. With these, we hope to
help with some of the questions and problems that the Woodward Support is often
asked.
• The “How to Con󰍓gure a Protection Device” chapter is a list of aspects which must
generally be taken into account during the commissioning of a HighPROTEC
protection device, with the main priority set to the use of Smart view as
con󰍓guration software. Please understand that we cannot guarantee for its
completeness, nor can it be a detailed step-by-step description, because the
con󰍓guration and commissioning of a protection device depends on your particular
application needs. Therefore this chapter cannot be more than a set of friendly
reminders, targeted at commissioning engineers.
Of course, this three-fold concept has the consequence that some special topics, e. g.
switchgear devices (circuit breakers) appear in each of these parts. We therefore
recommend that beginners read this document in its entirety.
This description is not a replacement for the complete manual. For wiring instructions and
complete descriptions of the protective functions, please consult the Technical Manual.
No part of this manual is allowed to be reproduced or passed on to others in any form,
unless Woodward have approved in writing.
Any repair work carried out on the device requires skilled and competent personnel who
need to be well aware especially of the local safety regulations and have the necessary
5HighPROTECDOK-QS-HPT-2
1 Introduction

experience for working on electronic protection devices and power installations (provided
by evidence).
CAUTION!
We prepared this information carefully, with focus on “a general use”, and intentionally as
a valuable help. But this is still a showcase: Settings might not 󰍓t your application needs,
activities might be dangerous regarding to your application.
NOTICE!
It is, in particular, not intended (and absolutely not possible) to give any explicit advice
with respect to protection settings required for your application. If you feel unsure about
how to con󰍓gure the protection device, feel free to contact the Customer Support of
Woodward.
Please understand that you have to take care of the following:
• Prepare your local application for safety aspects before you start working with this
document.
• Transfer all examples given in this document to 󰍓t your needs.
We cannot take over any responsibility for any unwanted e󰍒ect.
We require that managing your application follows all applicable local and international
rules, guidelines and directives, and that all your activities are committed to what is
generally expected from professional work.
Information Concerning Liability and Warranty
Woodward does not accept any liability for damage resulting from conversions or changes
carried out on the device or planning (projecting) work, parameter setting or adjustment
changes done by the customer.
The warranty expires after a device has been opened by others than Woodward
specialists.
Warranty and liability conditions stated in Woodward General Terms and Conditions are
not supplemented by the above mentioned explanations.
6 HighPROTEC DOK-QS-HPT-2
1 Introduction

1.1 Important De󰍏nitions

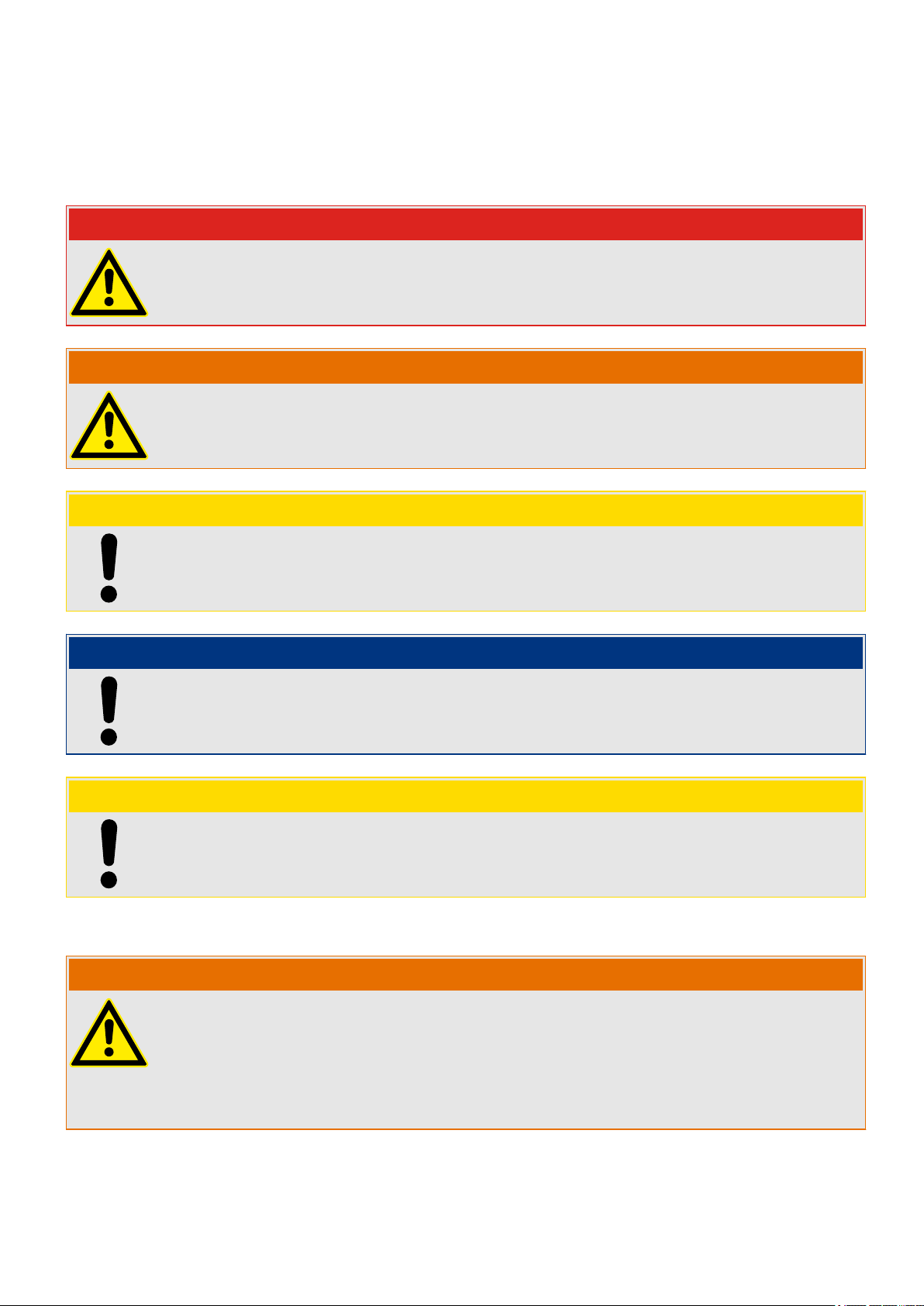

The types of messages shown below serve the safety of life and limb as well as for the
appropriate operating life of the device.
DANGER!
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING!
WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION!
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE!
NOTICE is used to address practices not related to personal injury.
CAUTION!
CAUTION, without the safety alert symbol, is used to address practices not related to
personal injury.
Proper Use of the Device and of This Manual
WARNING!
FOLLOW INSTRUCTIONS
Read this entire manual and all other publications pertaining to the work to be performed
before installing, operating, or servicing this equipment. Practice all plant and safety
instructions and precautions. Failure to follow instructions can cause personal injury
and/or property damage.
7HighPROTECDOK-QS-HPT-2
1 Introduction
1.1 Important De󰍓nitions

WARNING!
PROPER USE
Any unauthorized modi󰍓cations to or use of this equipment outside its speci󰍓ed
mechanical, electrical, or other operating limits may cause personal injury and/or
property damage, including damage to the equipment. Any such unauthorized
modi󰍓cations: (1) constitute “misuse” and/or “negligence” within the meaning of the
product warranty thereby excluding warranty coverage for any resulting damage, and (2)
invalidate product certi󰍓cations or listings.
The programmable devices subject to this manual are designed for protection and also
control of power installations and operational devices that are fed by voltage sources with
a 󰍓xed frequency, i.e. 󰍓xed at 50 or 60 Hertz. They are not intended for use with Variable
Frequency Drives. The devices are further designed for installation in low-voltage (LV)
compartments of medium voltage (MV) switchgear panels or in de-centralized protection
panels. The programming and parameterization has to meet all requirements of the
protection concept (of the equipment that is to be protected). You must ensure that the
device will properly recognize and manage (e. g. switch o󰍒 the circuit breaker) on the
basis of your programming and parameterization all operational conditions (failures). The
proper use requires a backup protection by an additional protective device. Before
starting any operation and after any modi󰍓cation of the programming (parameterization)
test make a documentary proof that your programming and parameterization meets the
requirements of your protection concept.
The Self-Supervision Contact (Life-Contact) has to be wired with the substation
automation system in order to supervise and monitor the state of health of the
programmable protective device. It is very important that an alarm annunciation is driven
from the programmable protective device self-supervision contact (Life-Contact) that
requires immediate attention when tripped. The alarm indicates that the protective
device is no longer protecting the circuit and the system should be serviced.
Typical applications for this product family/device line are for instance:
• Feeder protection
• Mains protection
• Machine protection
• Transformer Protection
• Generator Protection
Any usage beyond these applications the devices are not designed for. This applies also
to the use as a partly completed machinery. The manufacturer cannot be held liable for
any resulting damage, the user alone bears the risk for this. As to the appropriate use of
the device: The technical data and tolerances speci󰍓ed by Woodward have to be met.
8 HighPROTEC DOK-QS-HPT-2
1 Introduction
1.1 Important De󰍓nitions

Out-of-date documentation?
This publication may have been revised or updated since this copy was produced. To
verify that you have the latest revision, please visit the download section of our website.
Please check the web site of Woodward for the latest revision of this Technical Manual and
if there is an Errata Sheet with updated information.
•Visit the company website (══▷ www.woodward.com) and search for the documents
you are interested in. (The ID of every document is printed on its cover page.)
•Alternatively, every HighPROTEC device has a QR code printed on it. Scan this code,
and you are taken to an online directory that contains all relevant documents in the
most recent version.
Important Information
WARNING!
In line with the customer’s requirement the devices are combined in a modular way (in
compliance with the order code). The terminal assignment of the device can be found on
the top of the device (wiring diagram).
9HighPROTECDOK-QS-HPT-2
1 Introduction
1.1 Important De󰍓nitions

CAUTION!
Electrostatic Discharge Awareness
All electronic equipment is electro static-sensitive, some components more than others.
To protect these components from electro static damage, you must take special
precautions to minimize or eliminate electrostatic discharges. Follow these precautions
when working with or near the control.
1. Before doing maintenance on the electronic control, discharge the static electricity on
your body to ground by touching and holding a grounded metal object (pipes, cabinets,
equipment, etc.).
2. Avoid the build-up of static electricity on your body by not wearing clothing made of
synthetic materials. Wear cotton or cotton-blend materials as much as possible because
these do not store static electric charges as much as synthetics.
3. Keep plastic, vinyl, and Styrofoam materials (such as plastic or Styrofoam cups, cup
holders, cigarette packages, cellophane wrappers, vinyl books or folders, plastic bottles,
and plastic ash trays) away from the control, the modules, and the work area as much as
possible.
4. Do not remove any printed circuit board (PCB) from the control cabinet unless
absolutely necessary. If you must remove the PCB from the control cabinet, follow these
precautions:
• Verify the safe isolation from supply. All connectors have to be unplugged.
• Do not touch any part of the PCB except the edges.
• Do not touch the electrical conductors, the connectors, or the components with
conductive devices or with your hands.
• When replacing a PCB, keep the new PCB in the plastic antistatic protective bag it
comes in until you are ready to install it. Immediately after removing the old PCB
from the control cabinet, place it in the antistatic protective bag.
To prevent damage to electronic components caused by improper handling, read and
observe the precautions in the Woodward manual 82715, “Guide for Handling and
Protection of Electronic Controls, Printed Circuit Boards, and Modules”.
Woodward reserves the right to update any portion of this publication at any time.
Information provided by Woodward is believed to be correct and reliable. However, no
responsibility is assumed by Woodward unless otherwise expressly undertaken.
© 2018 Woodward. All Rights Reserved.
10 HighPROTEC DOK-QS-HPT-2
1 Introduction
1.1 Important De󰍓nitions

11HighPROTECDOK-QS-HPT-2
1 Introduction

2 Quick Start – Operating Software Smart view
Installation of Smart view
Smart view is the setting and operation software for Woodward
protective devices.
It is available on the product DVD that is part of the delivery of
the protective device. The setup program
“Smartview_SE_Install.exe” is contained in the “Smart view
SE” folder of the product DVD.
In addition, the Smart view setup can also be retrieved from this
Woodward doanload area: ══▷ wwdmanuals.com/smart_view
•Start the setup program and follow the steps displayed by the setup wizard.
•After the software has been successfully installed it can be launched via: Start →
Programs → Woodward → Smart view SE → Smart view
Setup of the Connection PC – Protective Device
Smart view can receive data from the protective device only after the connection has
been set up. This needs to be done only once.
The following pages present an overview of the connection setup for the various types of
protective devices.
A detailed description can be found in the Smart view manual, which is available as a
separate document on the product DVD, but can also be accessed directly from the Smart
view Help menu.
Optional Accessories
The type of cable required for the connection is dependent on the type of protective
device. The cables are not part of the product delivery, but can be ordered separately
from Woodward.
SmartV_Z22
SmartV_Z23
SmartV_Z24
USB cable, for protective
devices with USB front
connector.
Woodward article:
5450‑1946
Null Modem cable, for protective
devices with RS232 front
connector.
Woodward article:
COMRS232Nullm
USB/Serial adaptor, for
protective devices with RS232
front connector and PC without
RS232 connector.
Woodward article:
USB2RS232ADAP
12 HighPROTEC DOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

Connect a Protective Device to a PC via USB
SmartV_Z22
USB cable
Woodward article:
5450‑1946
SmartV_Z06
• Use the USB cable to connect the PC with the switched on protective device.
• Start Smart view.
• In the “Settings” menu select the menu item “Device Connection…”

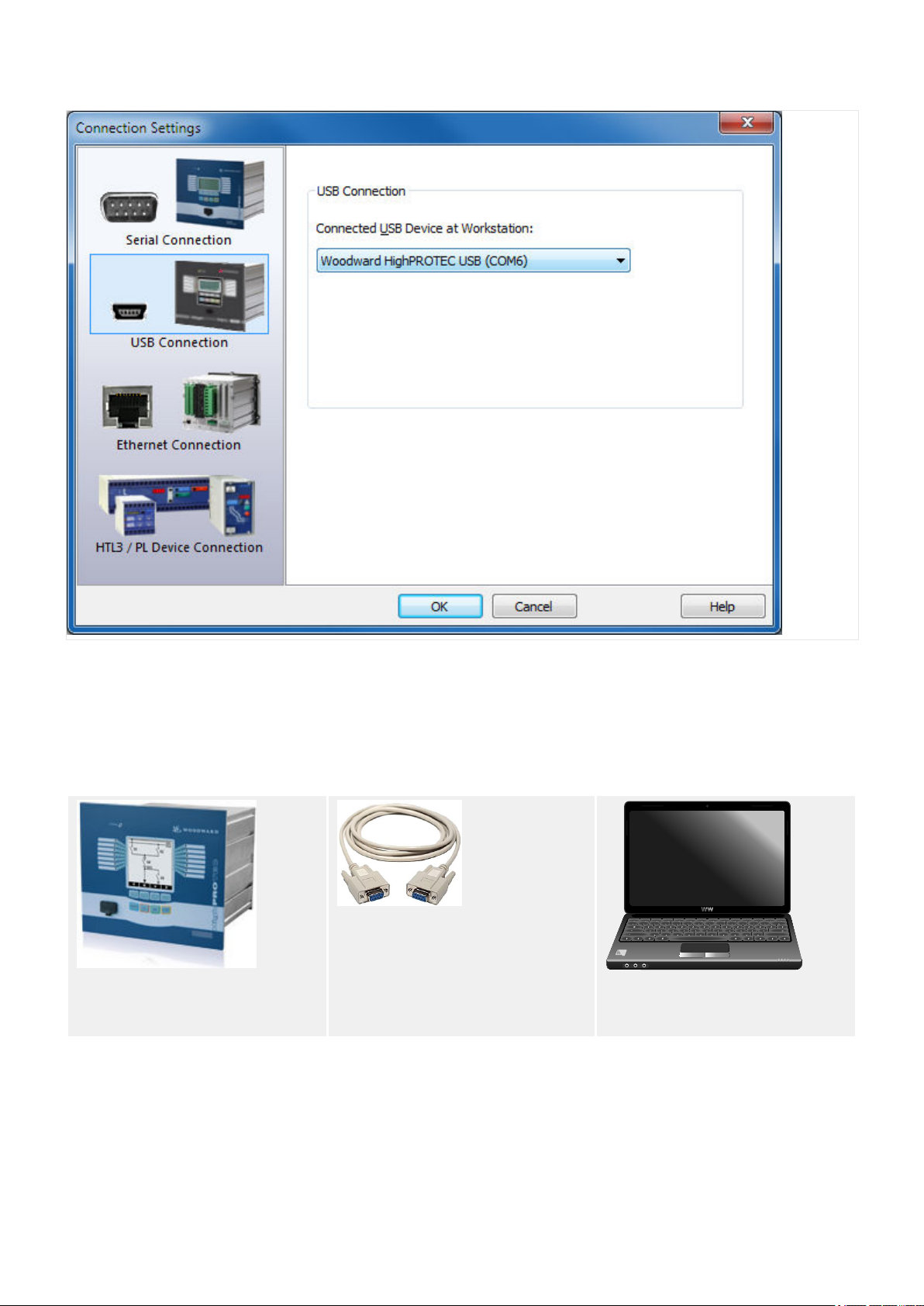

• Select “USB Connection” in the dialog. Then you can pick the connected USB device
from a selection list.
13HighPROTECDOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

•If this connection is established for the 󰍓rst time you will see a special con󰍓rmation
dialog. Click “Yes” to con󰍓rm.
⇨ Finished – The connection has been set up.
Connect a Protective Device to a PC via Serial RS232 Connector
SmartV_Z23
Null Modem cable
Woodward article:
COMRS232Nullm
SmartV_Z06
•Use the Null Modem cable to connect the PC with the switched on protective
device.
• Start Smart view.
• In the “Settings” menu select the menu item “Device Connection…”
14 HighPROTEC DOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

• Select “Serial Connection” in the dialog. Then you can pick the particular COM port
to which the protective device is connected from the selection list.
• If this connection is established for the 󰍓rst time you will see a special con󰍓rmation
dialog. Click “Yes” to con󰍓rm.
⇨ Finished – The connection has been set up.
Connect a Protective Device to a PC without a Serial RS232 Connector
SmartV_Z23
Null Modem cable
SmartV_Z24
USB/Serial adaptor
Woodward article:
USB2RS232ADAP
SmartV_Z06
15HighPROTECDOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

Woodward article:
COMRS232Nullm
•Connect the USB/Serial adaptor with a free USB connector of the PC.
• Connect the adaptor with the Null Modem cable and the Null Modem cable with the
switched on protective device.
• Start Smart view.
• In the “Settings” menu select the menu item “Device Connection…”
• Select “Serial Connection” in the dialog. Then you can pick the particular COM port
to which the protective device is connected from the selection list.
• If this connection is established for the 󰍓rst time you will see a special con󰍓rmation
dialog. Click “Yes” to con󰍓rm.
16 HighPROTEC DOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

⇨ Finished – The connection has been set up.
Connect a Protective Device to a PC via Ethernet (TCP/IP)
It is only possible to establish an Ethernet TCP/IP connection if the protective device
features an Ethernet connector.

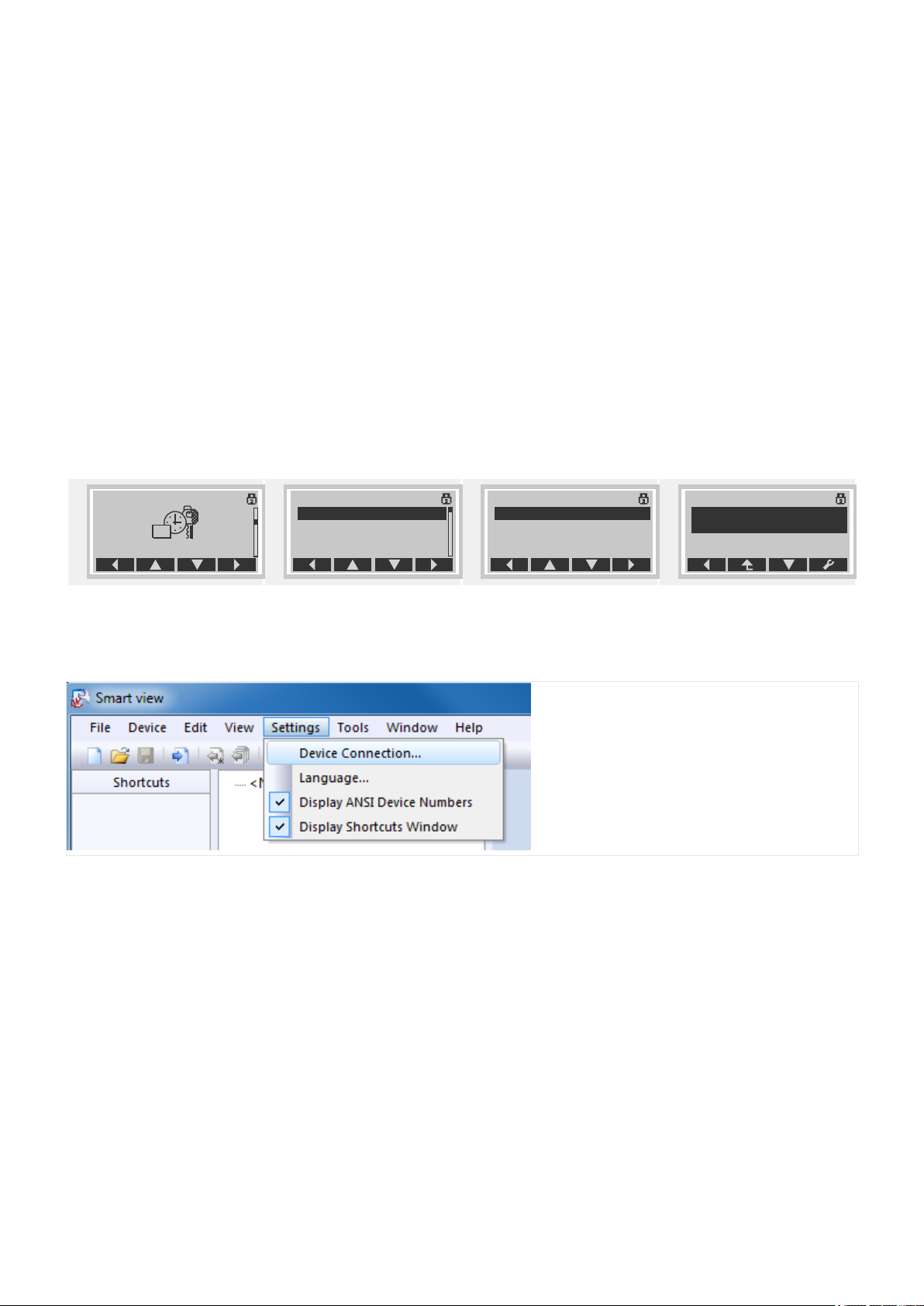

• Set (or check) the TCP/IP parameters on the HMI panel of the protective device.
These are accessed via the following menu path:
[Device Para / TCP/IP / TCP/IP con󰍓g]
First, set »TCP/IP« = “active”.
Then set the »IP address«, »Subnet mask« and the »Default gateway«. (The values
shown below are only an example.)
The values to be entered are dependent on the individual TCP/IP network where the
protective device is connected. If in doubt, ask your network administrator.
Device Para
1,0
SmartV_Z10
SmartV_Z11
Device Para
Time
Version
TCP/IP
SmartV_Z12
TCP/IP
Advanced Settings
TCP/IP config
SmartV_Z13
TCP/IP config
TCP/IP
active
• Start Smart view.
•In the “Settings” menu select the menu item “Device Connection…”

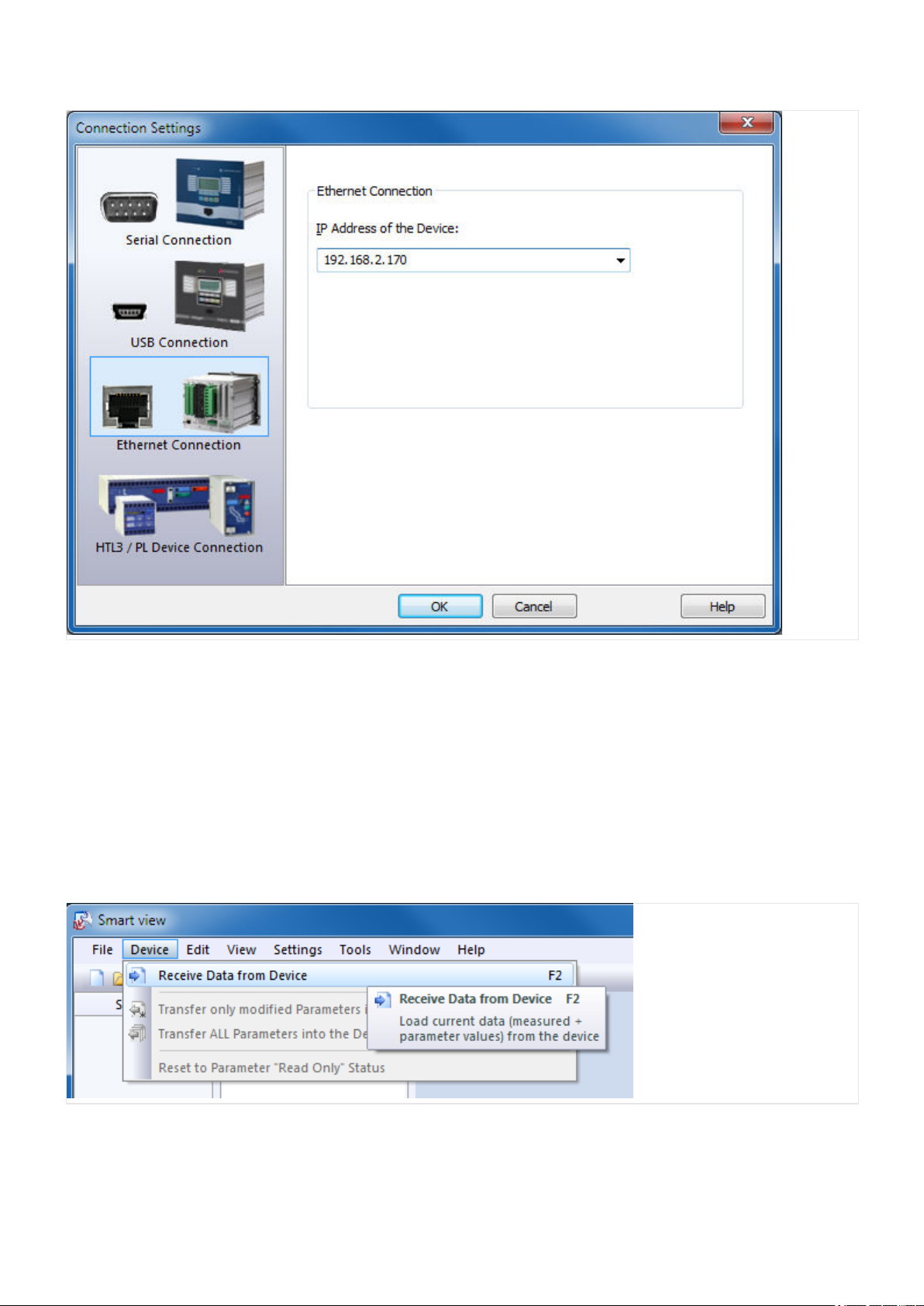

• Select “Ethernet Connection” in the dialog. Then enter the TCP/IP address of the
protective device into the input 󰍓eld.
17HighPROTECDOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

•If this connection is established for the 󰍓rst time you will see a special con󰍓rmation
dialog. Click “Yes” to con󰍓rm.
⇨ Finished – The connection has been set up.
Receive Settings from the Protective Device
After the connection has been set up it is possible to receive information from the
protective device.
• After a click on the menu item “Device” → “Receive Data from Device” data is
retrieved from the protective device.
•Smart view establishes a connection with the protective device, reads data from it
and displays these values in form of a tree structure.
18 HighPROTEC DOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

Change Settings in the Protective Device
•Step 1: Change the setting values:
A protection module that is required can be con󰍓gured only after it has been
activated. To do this, access the module in the [Device planning] menu branch of the
tree structure and change the value of the »Mode« parameter from “-” (= “do not
use”) to “use”.
19HighPROTECDOK-QS-HPT-2
2 Quick Start – Operating Software Smart view

•Step 2: Transfer the changes:
The changed values are used only after they have been transferred to the protective
device: Click the menu item “Device” → “Transfer only modi󰍓ed Parameters into the
Device…”.
• This transfer of the changes involves entering the password of the protective device.
After it has been correctly entered the changes are sent to the device (and the
device activates the new settings).
20 HighPROTEC DOK-QS-HPT-2
2 Quick Start – Operating Software Smart view
