Thank you for purchasing a Worcester W125 gas-fired water heater.
The Worcester W125 appliances are made by Bosch Thermotechnic and the strictest
quality control standards are demanded throughout every stage of production.
Indeed, Worcester Heat Systems have led the field in innovative appliance design and
performance for more than 30 years.
Theresultisthat yournew WorcesterW125appliance offersyouthe verybest ofeverything
- quality, efficiency, economical running costs, proven reliability and value for money.
What’s more, you also have the assurance of our no-nonsense 1 year parts and labour
guarantee.
And it’s backed up by Worcester Care Call - a complete maintenance scheme to keep
your water heater operating at peak condition and efficiency.
No wonder that more and more people are agreeing that when it is gas, it has to be
Worcester.
CONTENTS
Page No.
Operating Instructions.............................................................................................. 3-9
Fault and Breakdowns .............................................................................................. 10
Maintenance and Extended Warranty Information .............................................. 11-13
Guarantee Details ..................................................................................................... 16

Supplied By www.heating spares.co Tel. [phone]
3
GENERAL
INFORMATION
GAS SAFETY (INSTALLATION AND USE) REGULATIONS 1998
Itis the law thatallgas appliances must beinstalledby a competent personinaccordance
with the above regulations. Failure to correctly install appliances correctly could lead to
prosecution. It is in your interest and that of safety to ensure compliance with the law. The
manufacturers notes must not be taken, in any way, as over-riding statutory obligations.
IMPORTANT: To get the best from your Worcester W125 please read these instructions
carefully.
NOTE: In the event of a fault the appliance should not be used until the fault has been
corrected by a competent person.
GENERAL DESCRIPTION
The W125 is a flueless gas fired singlepoint water heater.
The appliance does not require a flue. It is essential that the correct installation
requirements are satisfied.This appliance is intended for intermittent use only and should
not be in use for more than 5 minutes in any one draw-off, must not be positioned in or
adjacent to a bedroom or any room containing a bath or shower.
It is the law that all gas appliances are installed by a Corgi registered installer.
Failure to correctly install appliances can lead to prosecution.
Technical Data
Nat. gas L.P.G.
Rated Input (Qn) 10.4 kW 10.4 kW
Maximum Rated Output (Pn) 8.7 kW 8.7 kW
Minimum Rated Output (Pmin) 4.4 kW 4.4 kW
Gas Rate (maximum)
1
.1 m3/h 0.8 kg/h
W125
Appliance Type

Supplied By www.heating spares.co Tel. [phone]
4
Performance
Temperature control turned fully anti-clockwise
5 litres/minute at 25°C temperature rise
Temperature control turned fully clockwise
2.5 litres/minute at 55°C temperature rise
Burner
Gas valve
Atmosphere
- Sensing
Device
Water
valve
Gas inlet pipe
Cold water
pipe (inlet) Hot water (outlet)
Temperature
limiter
Piezo
igniter
Gas control
slide
Natural Gas
L.P.G.

Supplied By www.heating spares.co Tel. [phone]
5
GENERAL
NOTES
CLEARANCES
Your installer will have provided adequate space around the appliance for safety and
servicing. Do not restrict this space by the addition of cupboards, shelves etc. close to
the appliance.
Minimum clearances in millimetres.
Above 300 mm
In front 600 mm
Below 150 mm
Right hand side 10 mm
Left hand side 10 mm

Supplied By www.heating spares.co Tel. [phone]
6
SHOWERS, BIDETS, TAPS AND MIXING VALVES
The W 125 heater must not be connected to a bath or hot water draw-off located in
different rooms to where the heater is installed. The W 125 water heater is designed for
installation over the sink to deliver hot water either through a swivel spout or to a hot
water tap at the sink or basin.
HOT AND COLD FLOW
If the flow of water demanded from both hot and cold service outlets is dependent upon
mains supply, it may not be possible in some installations to operate all outlets
simultaneously.
WATER MAINS FAILURE
It is important to note that in the event of a mains water supply failure, no tap water will be
available until the mains supply is restored.
USE IN HARD WATER AREAS
Normally there is no need for scale protection. However, in areas of exceptionally hard
water supply it is recommended that an In-Line scale inhibitor be fitted.
Installation should be strictly in accordance with the requirements of the local Water
Company. An isolating valve to facilitate servicing should be incorporated.
The water hardness may be determined using the standard test paper or by reference to
the local Water Company.
Further information may be obtained from Worcester Heat Systems Technical Helpline.
FROST PRECAUTIONS
If the appliance is not to be used for a long period of time and there is a likelihood of
freezing, then the appliance should be drained. The Worcester Heat Systems Technical
Helpline will advise you on suitable frost precautions.
SERVICE
Annual servicing is important in order to ensure continuing high efficiency and long life for
your appliance. In the event of any difficulty in making suitable servicing arrangements,
WorcesterHeatSystems Limited orother competent personswill discussregularservicing
arrangements and offer a comprehensive maintenance contract.
WARNING
If a gas leak exists, or is suspected, turn off the gas supply to the appliance at the service
cock and consult your local service engineer.
Do not touch any electrical switches to turn them either on or off. Open all windows and
doors. Do not smoke. Extinguish all naked lights.
CLEANING
Do not use abrasive cleaners on the outer casing. Use a damp cloth and a little detergent.
SAFETYFEATURES
Your Worcester W 125 is fitted with an atmosphere-Sensing Device which must not be
altered in any way.
1.) If the air in the room in which the heater is situated becomes depleted of oxygen the
pilot will be extinguished automatically.
2.) If the flue outlet is obscured or the heat exchanger becomes blocked again the pilot
will be extinguished automatically.
Note:If thepilot isextinguished duringuse, theroom shouldbe ventilatedbefore attempting
to re-light.

Supplied By www.heating spares.co Tel. [phone]
7
OPERATION OF
CONTROLS
Operation
Starting up (see fig. 2)
Move the gas control slide to the ignition position. Observe the pilot burner. Press in the
central button of the control slider and hold depressed while pushing the Piezo igniter
button two or three times. The pilot should light. Wait approximately twenty seconds and
then release the centre button of the control slider.
The pilot should remain alight. If the pilot does not light, repeat the operation until a flame
is established.
Note: On initial light up, or after any prolonged shut down, the pilot may take several
attempts to establish due to the presence of air in the gas supply system.
Fig. 2
G661_013
Gas control slide - ignition position
G661_012
Gas control slide - output control (see fig. 3)
After successful ignition move the slide control to the right positioning it according to your
output requirement. The further to the right you position the slide control the higher the
output, and consequently the higher the consumption of gas.
Maximum output is obtained when the slide control is to the far right.
In order to optimize energy consumption, adjust slide control position to supply the
minimum output required.
Fig. 3
output decrease output increase

Supplied By www.heating spares.co Tel. [phone]
8
G661_004
Anti-clockwise for more
water at a lower
temperature
Clockwise for less
water at a higher
temperature
Temperature Control (see fig. 4)
The temperature Control Knob should be turned anti-clockwise to obtain a higher flow
rateof waterat alower temperature rise,or turnedclockwise toobtaina highertemperature
rise at a lower flow rate.
Fig. 4
Shut Down (see fig. 5)
When there is no demand for hot water over a long period, the pilot can be extinguished
by moving the slide control fully to the left.
When hot water is required again, the pilot must be re-established.
If, during prolonged inactive periods, there is any risk of freezing, the heater should be
drained by firstly isolating the appliance from the incoming cold water supply (close the
water cock). Then open the taps and drain down.
Servicing
To ensure continued efficient operation of the appliance it is recommended that it is
checked and serviced as necessary at regular intervals.
The frequency of servicing will depend upon the particular installation conditions and
usage but in general once a year should be adequate.
It is the law that any service work be carried out by a competent person such as British
Gas or other Corgi registered personnel.
The casing should be wiped clean using a damp cloth
Do not use abrasive or corrosive cleaners
G661_011
Fig. 5

Supplied By www.heating spares.co Tel. [phone]
9
G081_239
Fig. 6
6 Hot water tap
7 Water flow selector
8 Cold water tap
9 Cold water inlet isolating cock
10 Gas isolating cock
1 Observation window
2 Pilot flame
3 Piezo igniter
4 Gas control slide
5 Screw

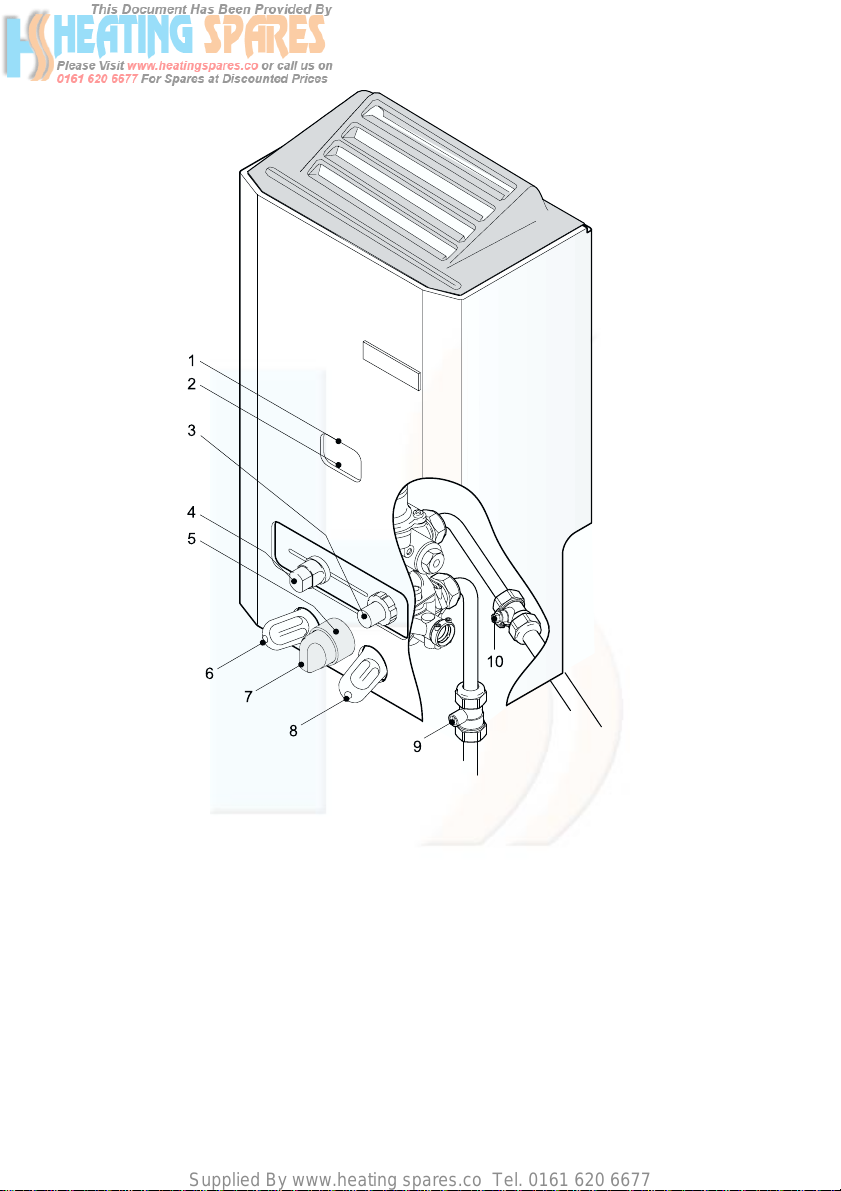

Fig. 6 - Controls

Supplied By www.heating spares.co Tel. [phone]
10
APPLIANCE FAILS
TO OPERATE
More than 30% of all calls made to Worcester Heat Systems to report appliance faults or
breakdownsprove tobe falsealarms, asthere isoftenasimpleexplanationfor theapparent
malfunction.
So, to help you save time and money - not to mention frustration and inconvenience -
please refer to the General Information, Notes and Lighting Instructions ensuring all
controls are set correctly.
If, after following the instructions the appliance still fails to operate correctly call the
Worcester Heat Systems Service Centre.
Arrangements will be made for an engineer to call as soon as possible.
CALL-OUT CHARGES
All of our field service engineers are factory trained.
If you request a visit from an engineer and your appliance has been installed within the
last 12 months, no charge will be made for parts and/or labour, providing:
- The appliance was commissioned correctly on installation.
- An appliance fault is found and the appliance has been installed within the past 12
months.
A call-out charge will be made where:
- The appliance has been installed for over 12 months, or
- Our Field Service Engineer finds no fault with the appliance (see note), or
- The cause of breakdown is with other parts of your plumbing/heating system, or with
equipment not supplied by Worcester.
NOTE: Invoices for attendance and/or repair work carried out on your appliance by any
third party will not be accepted.

Supplied By www.heating spares.co Tel. [phone]
11
MAINTAINING YOUR
APPLIANCE
Your new Worcester gas-fired appliance represents a long-term investment in a reliable,
high quality product.
In order to realise its maximum working life, and to ensure it continues to operate at peak
efficiency and performance, it is essential that your boiler receives regular, competent
servicing and annual maintenance checks beyond the initial 12 month guarantee period.
Regularservice contractscan bearranged withyour installer-however ifyou havedifficulty
making a satisfactory arrangement simply contact Worcester Heat Systems on 0345
256206 for help.
If you would like to know more about Worcester’s extended warranty options please tick
the appropriate box on your registration card.

Supplied By www.heating spares.co Tel. [phone]
SERVICE
CENTRES
Region Telephone Fax Opening Hours (Mon to Fri) Sat
Scotland 0345 256206 (01506) 441687 8.00 am to 9.00 am to
The rest 0345 256206 (01905) 757536 6.00 pm 1.00 pm
We have Service Centres situated throughout the country.
If you have a service request simply call our local rate number above and your request
will be routed to your Regional Service Centre.
NOTE:
Should you have a service request outside normal office hours, please leave a recorded
message giving as much information as possible to assist the administrator to deal with
your request.
If the visit of an engineer is necessary your administrator will confirm any arrangement
made.

Supplied By www.heating spares.co Tel. [phone]
YOUR WORCESTER
W125 GUARANTEE
This appliance is guaranteed against faulty materials or workmanship for a period of
twelve calendar months from the date of installation subject to the following conditions
and exceptions.
1. That during the currency of this guarantee any components of the unit which are
proved to be faulty or defective in manufacture will be exchanged or repaired free of
material charges and free of labour charges by Worcester Heat Systems Limited.
2. That thehouseholder may be askedto prove the dateof installation,that theappliance
was correctly commissioned and, where appropriate, the first 12 month service has
beencarried outtothesatisfactionof WorcesterHeatSystems Limitedwhen requested.
3. That any product or part thereof returned for servicing under the guarantee must be
accompanied by a claim stating the Model, Serial Number, Date of Installation.
4. That WorcesterHeat SystemsLimited will notaccept responsibility fordamage caused
by faulty installation, neglect, misuse or accidental damage, the non-observance of
the instructions contained in the installation and Operating Instructions Leaflets.
5. That the appliance has been used only for normal domestic purposes for which it was
designed.
6. That this guarantee applies only to equipment purchased and used in mainland Great
Britain.
This guarantee is given in addition to all your normal statutory rights.

Supplied By www.heating spares.co Tel. [phone]
14

Supplied By www.heating spares.co Tel. [phone]
15

Supplied By www.heating spares.co Tel. [phone]
GUARANTEE
REGISTRATION
You should complete and return the postpaid Guarantee Registration Card within 14
days of purchase.
The card will register you as the owner of your new Worcester appliance and, while this
will not affect your statutory rights in any way, it will assist us to maintain an effective and
efficient customer service by establishing a reference and permanent record for your
boiler.
IMPORTANT: SERIAL NUMBER. Copy the number off the Guarantee Card.
FOR YOUR OWN RECORD
MODEL SERIAL NUMBER
(See identity label inside appliance casing)
TYPE/SIZE DATE OF INSTALLATION
EXCELLENCE COMES AS STANDARD
Worcester Heat Systems Limited, Cotswold Way, Warndon, Worcester WR4 9SW.
Telephone: [phone]. Fax: [phone] Technical Helpline [phone]
6 720 606 019 (01.09) AL
