Work Smart EC1283C-EC3 User manual

EC1283C-EC3 / ECH12801-EC1 / ECH12807-EC3
LEATHER MANAGER’S CHAIR
OPERATING INSTRUCTIONS
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and
knobs are securely tightened.
3. Check that all bolts screws and knobs are tight every
three months or as needed.
4. Do not overturn back tilt knob when decreasing
tension.
5. Dispose of packing material properly. Do not use
plastic cover as head covering. It may cause
suffocation.
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
8. Use mild detergent only for cleaning.

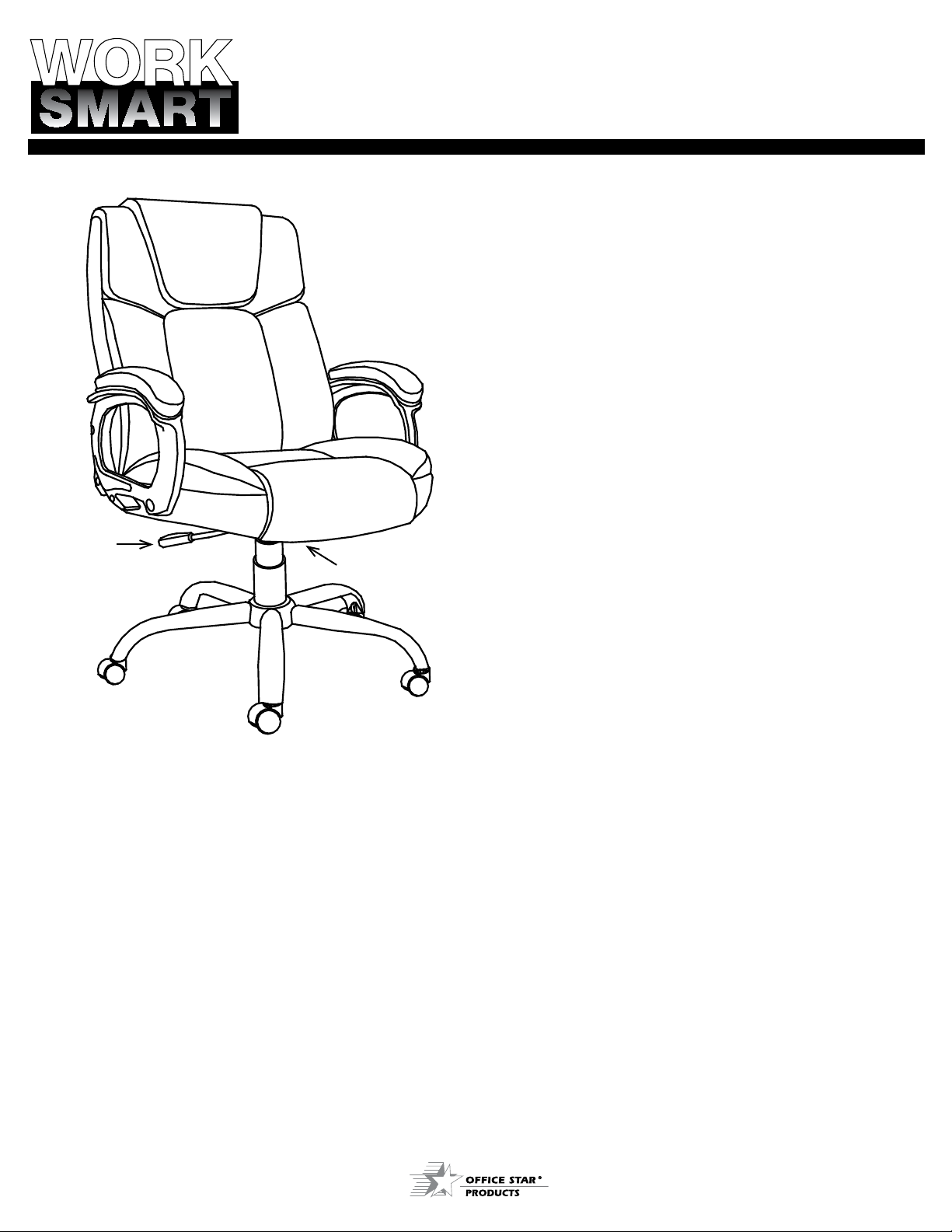

FEATURES
• PNEUMATIC SEAT HEIGHT ADJUSTMENT
To raise seat remove pressure from seat and lift lever (1).
To lower seat height sit on chair and lift lever (1).
NOTE: It is normal for chair to slightly lower under
body weight.
• LOCKING TILT ADJUSTMENT
For individual comfort, this chair has been equipped with
an adjustment that will allow the user to change the tension
of the tilting feature. Turn knob (2) clockwise to increase
tension and counter-clockwise to decrease or ease the
tension. To lock return chair to the upright position and push
lever (1) in. To unlock pull lever (1) out.
NOTE: Be careful not to loosen the back tilt adjustment knob
completely.
1
2
LIMITED WARRANTy
Work Smart chairs are warranted from the date of purchase against failure due to material and workmanship as follows:
• 15 Years on all non-moving metal parts.
• 5 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• We cannot warrant leather against routine scratching and scuffing, as all leather is subject to minor blemishes in use.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and
obtain return authorization. At it’s option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer’s component. The customer must prepay freight on any components returned to the factory. Return
freight on components still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 350 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a two
year warranty on all parts applies. Fabric and foam is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts
are damaged or missing. Our Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail
parts@officestar.net, by Fax [phone], or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00
p.m. Pacific Time.

EC1283C-EC3 / ECH12801-EC1 / ECH12807-EC3
LEATHER MANAGER’S CHAIR
ASSEMBLY INSTRUCTIONS
© Office Star Products May 2011
1
15
2
4
4
3
6
5
STEP 1
STEP 4
STEP 2
STEP 5
STEP 3
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
Attach Base Cover (4) to Base (1) and Insert Pneumatic Cylinder w/ Bellows (3) into Base (1).
STEP 2 Attach Seat Plate (5) to Seat Cushion (6) with the arrow towards the front of the chair using four Seat Plate Screws (9).
STEP 3 Attach Back Support (14) to rear of Seat Cushion (6) and over Seat Plate (5) using two Short Back Support Screws (12) and two Long
Back Support Screws (13). DO NOT FULLY TIGHTEN SCREWS.
STEP 4 Attach Arms (8L & 8R) to Seat Cushion (6) and Back Cushion (7) using four Arm Screws (10) for each Arm (8R & 8L).
FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (15.). Cover holes in Arms (8L & 8R) using four Plastic Caps (11) for each Arm (8).
STEP 5 Place the assembled seat on top of Pneumatic Cylinder w/ Bellows (3) and apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
PA R T QTY
1. Base .......................1
2. Casters .....................5
3. Pneumatic Cylinder w/ Bellows ...1
4. Base Cover ..................1
5. Seat Plate ...................1
6. Seat Cushion .................1
7. Back Cushion ................1
8. Arms (8R & 8L) ...............2
9. Seat Plate Screws .............4
10. Arm Screws .................8
11. Plastic Caps .................8
12. Short Back Support Screws .....2
13. Long Back Support Screws .....2
14. Back Support (pre-installed) ....1
15. Allen Wrench ................1
8L
8R
10
15
11
9
15
13
14
6
3
6
7
12
