Workrite PA3000 User manual

Installation Instructions
Workrite Poise™ HD
PA3000 / PA4000
#1500157 - Rev. A

2 Workrite Ergonomics 800.959.9675 www.workriteergo.com
Workrite Poise™ HD
FLAT SCREEN MONITOR ARM
Contents
Important Safety Instructions ............................ 2
Components and Fasteners ................................ 3
Poise HD Assembly Instructions.......................... 4
LCD Monitor Attachment.................................... 5
Cable Management ........................................... 6
Arm Adjustment ...............................................7
Desk Base Template.......................................... 8
Important Safety Instructions
Read and understand all these safety
instructions before using the product.
Do not mount the Desk Base or Wall Mounted Bracket
of the Arm on an unstable surface or any surface that
could not mount the Desk Base rmly.
For safety reasons, the internal gas-strut of the LCD
Arm product was pre-adjusted in the factory to the
lowest force to prevent the Arm body from being re-
coiled during installation.
During installation, beware of the recoil of the Arm
body when attaching or detaching the LCD monitor to
the Arm. To prevent damage or injury when changing
the LCD monitor, always readjust the gas-strut to the
lowest force level to control the recoil of the Arm body
when the LCD monitor is detached.
Do not attempt to disassemble, service or modify the
product by yourself.
Use only a slightly damp cloth to clean the Arm sur-
face. Never apply ammable solvents like alcohol,
benzene, thinner, etc. to the product.
Do not use or mount any unsuitable/oversized/non-
standard monitors on the product.

Workrite Ergonomics 800.959.9675 www.workriteergo.com 3
Fasteners
a Plastic Spacer
x1
bRound Head Cap Screw
x1
cWasher
x2
dDisc Spring Washer
x1
eM5 Hex Wrench
x1
fM8 Thread Rod
x1
gWing Nut
x1
iM8 Flat Head Cap Screw
x1
hM4 Hex Wrench
x2
x2
j Round Head Cap Screw
x4
k M4 6mm Screw
x4
l M4 10mm Screw
q M4 8mm Screw
r M4 Washer
x1
Components
ADesk Base with Clamp
x1
x1
BArm Assembly
CPlastic Cap
DBase Cushion
EU Bracket
x1
x1
x1
x2
x2
mCable Clip
x1
x1
n M5 10mm Set Screw
x2
o M3 6mm Screw
x1
x1
x1
p M2.5 Hex Wrench
x8
F Holding Tab A
G Holding Tab B
H Hook and Loop Strips
J PA TWIN-B
Workrite Poise™ Twin
Workrite Poise ™ Twin
PA TWIN-B
(PA4000 units only)

4 Workrite Ergonomics 800.959.9675 www.workriteergo.com
Steps:
Poise HD Assembly Instructions
GROMMET MOUNT
Step 5
convex side
face up
Step 6
Step 8
C
d
b
c
bolt hole >12mm
Step 2
Step 3
c
gE
f
B
Clamp Mount:
1 Mount Bracket to Desk Base then tighten (i)Flat Head Cap Screws with (e)M5 Hex Wrench.
2 Attach (D)Base Cushion to (A)Desk Base.
3 Put Desk Base onto work surface then mount Clamp to the Bracket then tighten (j)Round
Head Cap Screw with (e)M5 Hex Wrench.
4 Put (a) Plastic Spacer over (A) main shaft of Desk Base.
5 Put (B)Arm Assembly onto the main shaft.
6 Insert (b), (c) and (d) into Arm Assembly and tighten with (e)M5 Hex Wrench. Be sure arm
rotates freely.
7 Insert (n) Set Screw in back of Desk Base and tighten with (p)M2.5 Hex Wrench.
8 Snap (C)Plastic Cap into the top of Arm Assembly.
Grommet Mount:
1 Remove the Bracket from (A)Desk Base with (e)M5 Hex Wrench (not illustrated).
2 Attach (D)Base Cushion to (A)Desk Base.
3 Use template on page 8 to drill bolting hole in work surface if needed.
Put Desk Base directly on the bolting hole of work surface and tighten (f)M8 Thread Rod
with (h)M4 Hex Wrench.
Insert (E)U Bracket & (c)Washer through (f)M8 Thread Rod and tighten them with (g)Wing Nut.
4 Follow Desk Mount Steps 4 to 8.
Step 4
aStep 8
Clamp
Bracket
i
j
Step 3
Step 1
CLAMP MOUNT
D
A
p
p
Step 7
n
n
Step 2

Workrite Ergonomics 800.959.9675 www.workriteergo.com 5

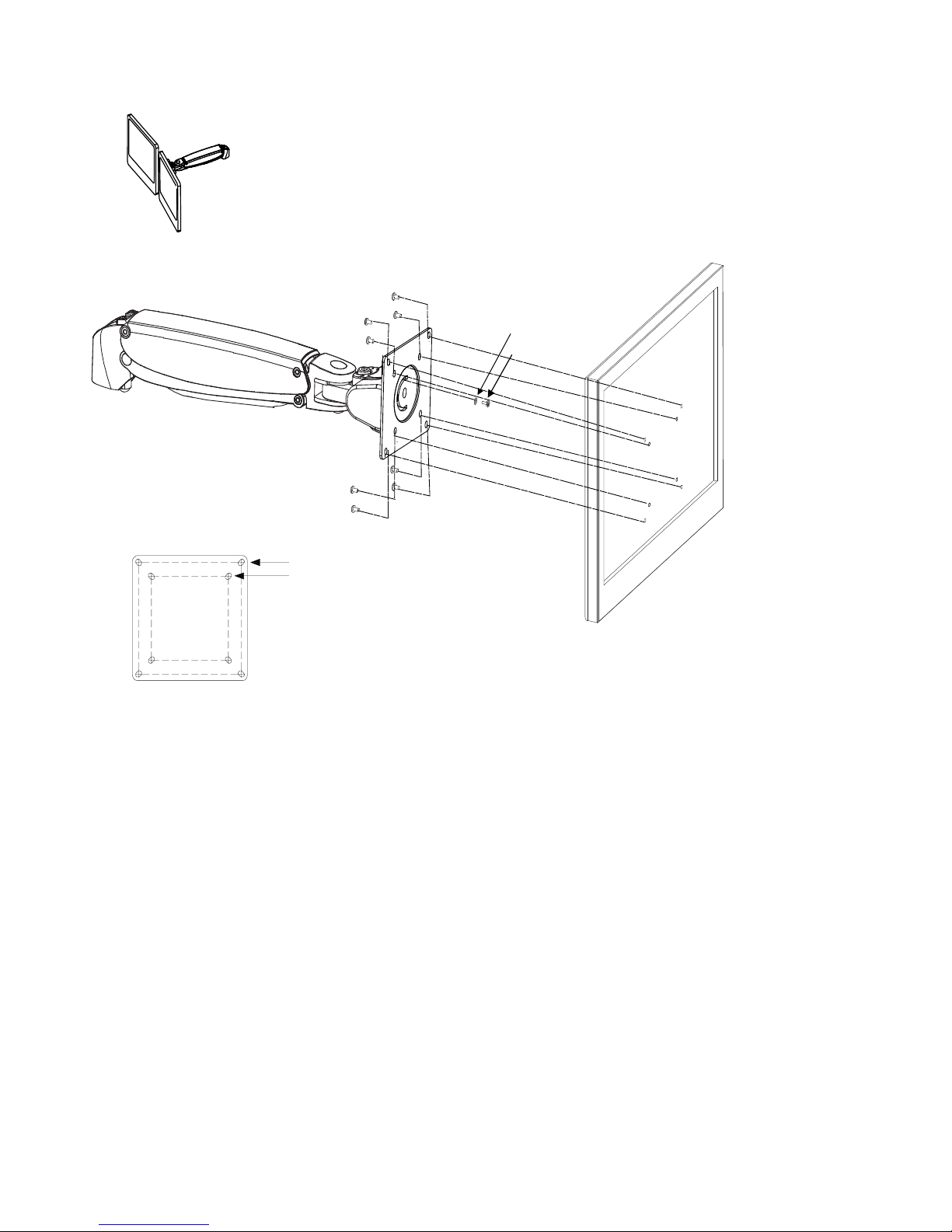

LCD Monitor Attachment
The combination 75/100mm VESA plate is pre-mounted to the Workrite Poise.
Mount the LCD monitor directly to the front plate of the Tilt Adjustment Pivot with the supplied
M4 x 6mm (or M4 x 10mm) screws or screws provided by the manufacturer.
For 100mm x 100mm or 75mm x 75mm standard, use the 4 outer corner holes or 4 inner
corner holes on the front plate respectively.
(Optional)
Attach the M4 8mm screw (q) and washer (r) to lock the pivot.
IMPORTANT
It is strongly recommended to use the mounting screws provided by the LCD monitor
manufacturer. Due to the varieties of monitor mounting design, the mounting holes at
the back of the LCD monitor might not be suitable for the M4 screws provided by our
Product. Using unsuitable mounting screws might cause damage to the LCD monitor.
Please consult your LCD monitor manufacturer if you have enquires.
100mm VESA standard
75mm VESA standard
If you have purchased the PA4000 (Poise Twin) product, please refer
now to the instructions that came in the PA TWIN-B box to assemble
the Twin Arm and attach your monitors. When you have attached your
monitors, continue on to the next page of these instructions.
M4 x 8 Screw
M4 Washer
(Optional)

6 Workrite Ergonomics 800.959.9675 www.workriteergo.com
Cable Management
Secure Hook and Loop Strips
under side of Extension around
monitor cables, leaving slack
for monitor cables to move freely.
EXTENSION
FOREARM
Note:
To allow free movement of monitor and Arm/Extension, please leave sufficient slack in the cables.
Cable Mount
Strip
Strip
M3 Screws
Attach the Cable Clip to the
back of the Desk Base with the
supplied M3 Screws (o) and put
cables into the Cable Clip.
DESK BASE
1 Thread monitor cables through Cable Mount located on underside of Forearm.
2 Place Holding Tabs (F) and (G) in center slot as shown and slide into place along
Mount track. Use four tabs (F) and 1 tab (G) on each side. If any cables do not fit
inside the track, attach them under the track with the Hook and Loop Strips (H).
Workrite
Ergonomics
o
G
F

Workrite Ergonomics 800.959.9675 www.workriteergo.com 7
Arm Adjustment
Adjust the Monitor Tilt Action
Vertical Movement
Depending on the weight of the monitor, adjustments may be required to the Arm. This can be
done by using the M5 Hex wrench provided.
IMPORTANT
When performing this adjustment, the Arm must be in a HORIZONTAL position as shown
above. To prevent damage to the aluminium Arm body, remove the M5 Hex Wrench before
releasing the Arm from the horizontal adjustment position.
If the Arm tends to drift down or rise up when positioned, it will be necessary to make small
adjustments at the Adjustment Screw. The above shows the adjusting method. The M5 Hex
wrench provided should be used to make this adjustment.
If the Arm tends to rise, the M5 Hex Wrench should be turned clockwise to decrease the tension
until the Arm reaches a stable position.
If the Arm tends to fall, the M5 Hex Wrench should be turned counter-clockwise to increase the
tension until the Arm reaches a stable position.
Depending on the size of your LCD monitor, it may be required to adjust the Tilt Adjustment screw.
If the monitor doesn’t hold its tilt position or is too hard to tilt, adjust the screw directly behind the
LCD screen with the M5 Allen wrench provided (clockwise to tighten, counter-clockwise to loosen
as shown on the graphic near the adjustment screw). Check the monitor, and adjust again as necessary.
Tensioning
Screw
Adjustment Screw
Increase
Tension
Decrease
Tension

8 Workrite Ergonomics 800.959.9675 www.workriteergo.com
2"
Desk Base Template for Grommet Mount
Drill hole at least ½" in diameter
Workrite reserves the right to make changes to its products without notice. No liability is assumed for any misprinting or error in this
publication. Copyright 2010. All rights reserved.
