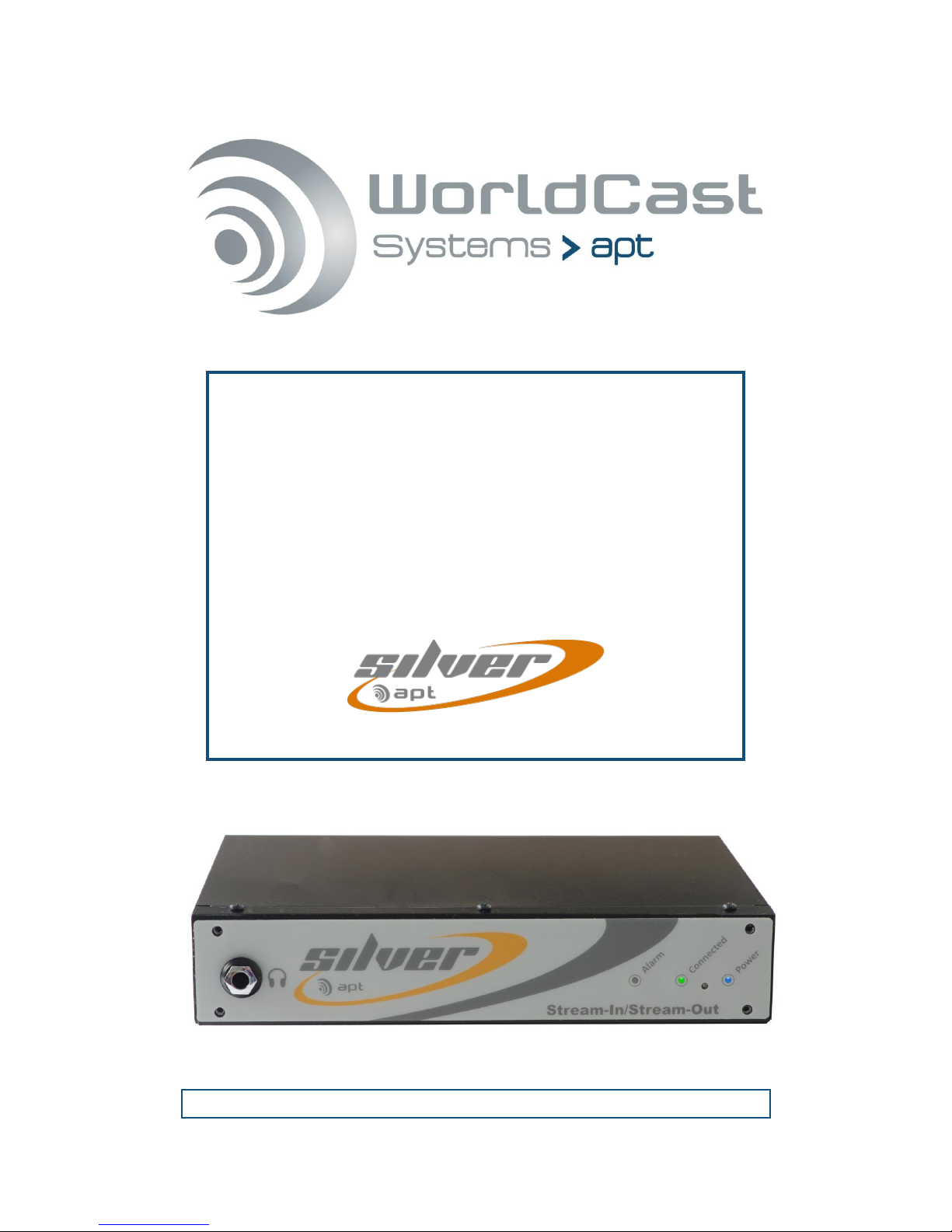

Worldcast Systems Silver Series User manual

Silver
Stream-In / Stream-Out
RCA/XLR version
User manual
System Release 1.5.2 | Document Version 0.9.9 | release/update: April 2015

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 2
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
DECLARATION OF CONFORMANCE
Established following the Directives 99/5/EC and 2006/95/EC
We, hereby, certify that Silver Stream-In / Stream Out complies with the dispositions of the European
Community Directive for harmonized standards within the Member States related to radio equipment
and telecommunications terminal equipment (Directive 99/5/EC) and low voltage (Directive
2006/95/EC).
This is a Class A product. In a domestic environment this product may cause radio interfer-
ence, in which case the user may be required to take adequate measures.
Installation and Operational Manual:
Silver Stream-In / Stream-Out User Manual
System Release 1.5.2 paired with NMS #1183 / April 2015
© Copyright 2011/2015 by WorldCast Systems. All rights reserved.
No part of this publication is permitted to be reproduced, stored in a retrieval system, transmitted by
any means, electronically, mechanically or otherwise, without written consent of WorldCast Systems.
Warranty
All information is believed to be true and correct at time of print. WorldCast Systems reserves the
right to make any changes, without notification, to their products and manual.
WorldCast Systems makes no warranty of any kind with regards to this material, including the implied
warranties of merchantability and fitness for a particular purpose.
WorldCast Systems shall not be liable for errors contained herein or for incidental or consequential
damage in connection with the furnishing, performance or use of this material.
Trademarks
Apt-X® and Enhanced apt-X®are registered trademarks of CSR. Other trademarks are the property of
their respective owners.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 3
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
How to contact us:
WorldCast Systems Head Office
20, avenue Neil Armstrong - Parc d'Activités J.F. Kennedy
33700 BORDEAUX –MERIGNAC
FRANCE
Tel: [phone] | Fax: [phone]
Americas Office
19595 NE 10th Ave, Suite A
Miami FL 33179
USA
Tel: [phone] | Fax: [phone]
How to get support
If you have a technical question or issue with your APT equipment, please consult the sup-
port section of our website at:
http://www.aptcodecs.com
or [email protected]

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 4
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Table of Contents
This is the main table of contents of the entire User Manual. It presents the main topics
of each section of this document.
Safety & Disposing Information 8
About this Manual 9
1.0
1.1 Release Notes 9
1.1.1 System Options for SR.1.4.2: 9
1.2 Company Profile 10
1.3 Unpacking and Inspection 11
1.4 Introduction 12
1.4.1 System Options 13
1.5 Getting Connected 14
1.6 The WorldCast Codec Management System - Overview 15
1.6.1 Installing the Network Management System 17
1.6.2 Getting Started 19
1.7 Codecs and Switches 21
Installation and Wiring 23
2.0
2.1 Pre-Installation Notes 23
2.1.1 Tools and Cables Required 23
2.1.2 Front panel Components 24
2.1.2.1 Monitoring 24
2.1.2.2 Power- Connection - and Alarm Status 24
2.1.2.3 Reset Switch –Default IP Addresses 24
2.2 Wiring Information 25
2.2.1 Power Adaptor –DC In 25
2.2.2 Ethernet Interface 25
2.2.3 Audio Inputs and Outputs on XLR version 26
2.2.4 Audio Inputs and Outputs on RCA version 26
2.2.5 Auxiliary Data Interface 27
2.2.6 Ethernet Interface 27
WorldCast/Silver WEB-Browser GUI 28
3.0
3.1 The WorldCast WEB GUI - Overview 28
3.1.1 WEB GUI –Technical Requirements 28
3.1.1.1 Browser Cache 28
3.1.2 WEB GUI - Default Network Settings 29
3.2 WEB GUI - Getting Started 29
3.2.1 WEB GUI - Default LogIn 29

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 5
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Table of Contents
3.2.2 Loading and Locking 30
3.2.3 Additional Status Indications 31
3.2.3.1 Activated Licenses 31
3.2.3.2 CPU Utilization 31
3.2.4 Status Page 32
3.2.5 Session Close/Session Time Out 32
3.2.6 Main Menu 33
3.3 Main Menu - Status 34
3.3.1 Current Status Frame 36
3.3.2 Alarm Status 37
3.3.3 Performance Monitor 39
3.3.3.1 IP Statistics –Details 40
3.3.3.2 IP Statistics –Receive Buffer Level 40
3.3.3.3 About Stream Tables (general) 41
3.4 Main Menu –Connection 42
3.4.1 Quick Connection Error! Bookmark not defined.
3.4.2 Profile Wizard - Creating a Profile 44
3.4.3 Profile Wizard –Codec Settings 45
3.4.3.1 Encoder Settings Error! Bookmark not defined.
3.4.3.2 Decoder Settings 46
3.4.4 Embedded AUX Data Error! Bookmark not defined.
3.4.5 Connection Wizard –IP Streams Configuration 47
3.4.6 IP Stream Configuration - general 49
3.4.6.1 About Stream Types 50
3.4.7 Audio Stream Configuration 51
3.4.7.1 Transmit (Tx) Stream-In 51
3.4.7.2 About Packet Sizes 53
3.4.7.3 Receive (Rx) Stream-Out 54
3.4.7.4 AUX data Stream Configuration (Tx) 55
3.4.7.5 About Packet Size of AUX Data Streams 57
3.4.7.6 IP Forwarding 57
3.4.7.7 Receive Audio Stream, Decode and Forward 58
3.4.7.8 Forwarding an IP Stream (Tx) 60
3.4.8 Profile Wizard –Saving a Profile Error! Bookmark not defined.
3.4.9 Connection –Advanced Configuration 62
3.4.10 Connection –Validation Engine 64
3.5 Main Menu –System 66
3.5.1 Date and Time 66

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 6
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Table of Contents
3.5.2 User Management 67
3.5.3 Network Settings 67
3.5.3.1 Network Page 67
3.5.3.2 Dynamic DNS 69
3.5.3.3 NAT Traversal Mode –UPnP 71
3.5.4 mDNS Server –Look Up 72
3.5.5 Diagnostics 72
3.5.6 SMTP (Mail Setup) 73
3.5.7 SNMP 74
3.5.7.1 SNMP Agent 75
3.5.7.2 SNMP Trap Management 76
3.5.7.3 SNMP Notifications Management 77
3.5.8 System –ScriptEasy 78
3.5.8.1 About ScriptEasy 78
3.5.8.2 ScriptEasy –Script Example 79
3.5.8.3 ScriptEasy –Configuration 79
3.5.8.4 ScriptEasy –Remove a Script 80
3.5.9 Event Log 81
3.5.9.1 Event Log Export 82
3.5.9.2 Event Log History 83
3.5.10 (Firmware) –Update 84
3.5.11 Licenses 84
3.5.12 System 85
3.5.12.1 Chat Box 86
3.6 Main Menu –Configuration 87
3.6.1 Audio Configurations 87
3.6.1.1 Audio Configuration Options 89
3.6.1.2 Advanced Routing & Decoder Mono Mode 91
3.6.2 Network Alarms 92
3.6.3 AUX Data Configuration 93
3.6.4 Alarms Configuration 94
3.6.5 Alarms - Customer Alarms 95
SureStream 96
4.0
4.1 About SureStream 96
4.1.1 SureStream Encoder 98
4.1.2 SureStream Decoder 98
4.2 SureStream –Encoder Configuration 99

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 7
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Table of Contents
4.2.1 About Diversity Generator Levels 100
4.2.2 Creating a Set of Component Streams 101
4.3 SureStream –Decoder Configuration 102
4.3.1 SureStream –Decoder Performance 104
System –Firmware Update 105
5.0
5.1 About –System Firmware 105
5.1.1 Firmware Update –Step 1 105
5.1.2 Firmware Update –Step 2 106
5.1.3 Firmware Update –Step 3 107
5.1.4 Firmware Update –Step 4 108
5.1.5 Firmware Update –Step 5 109
5.1.6 Firmware Update –Step 6 110

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 8
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Safety & Disposing Information
The Silver Stream-In / Stream-Out IP-Audio devices are powered by an external switching
power adapter. If a product defect occurs on the power adapter this adapter must be re-
placed. There are no user-serviceable parts inside.
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE COVER OF THE POWER
ADAPTER THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. PLEASE REFER
SERVICING TO QUALIFIED APT SERVICE PERSONNEL.
According to local laws and regulations this product should not be disposed of in the house-
hold waste but sent for recycling.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 9
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
About this Manual1.0
Thank you for purchasing the Silver Stream-In/Stream-Out audio Codec from APT. We have
developed these units to be as user friendly as possible, and they contain many advanced
features which are designed to make the use of this product simple and straightforward.
This operations manual is intended for operators of the Silver Stream-In/Stream-Out audio
network transmission link. This manual describes the function, the installation and use of the
unit.
It is recommended that new users of the Silver Stream-In/Stream-Out should read the full
manual before switching it on for the first time, to get a better feel for the functionality and
to eliminate any possible area of confusion.
1.1 Release Notes
This manual is the primary reference covering the configuration, installation, operation and
troubleshooting of the Silver Stream-In/Stream-Out.
As of this publication date, this document is the current manual revision. We recommend
that you check with your distributor or on the APT website for updates to firmware and this
manual.
This Manual refers to System Release 1.5.2 –April 2015
1.1.1 System Options for SR.1.5.2:
Optional ScriptEasy version 2.6.1.001
Optional MasterView version 1.4.20.001
1.2 Important Security Advices
1.2.1 This IP Audio Codec is a network device!
For further information, please also refer to section 1.8.
Before commissioning, we strongly recommend to change the default LogIn on the WEB
GUI (refer to section 3.5.2)!
Before connecting to your Network, please check the SNMP community strings. Don’t use
the trivial default names (refer to section 3.5.7.1)

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 10
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.3 Company Profile
WorldCast Systems is a highly respected provider of professional, reliable and innovative so-
lutions to the Radio & TV industry worldwide.
Encompassing the industry-leading brands of APT, Ecreso and Audemat, WorldCast Systems
offers high-performing broadcast systems including audio codecs, FM transmitters and RF
signal monitoring designed to meet the needs of both large international broadcast networks
and small private stations alike. WorldCast Systems’ products are deployed throughout the
networks of many major public and commercial broadcasters such as the BBC, ARD, the
EBU, RTE, TDF, RNE, Teracom, RAI, ORF and Clear Channel Radio
APT codecs deliver audio over IP, T1, ISDN & Leased Lines. Our award-winning
SureStream technology enables high quality audio transport over cost-effective IP links.
Ecreso offers highly efficient FM transmitters with extensive inbuilt functionality, highly
competitive Total Cost of Ownership and an industry-leading 10 year warranty.
Audemat provides a range of professional monitoring and measurement tools for Radio
& TV, complemented by an extensive range of remote control systems for management,
configuration and monitoring of broadcast networks.
Three core values have shaped the growth and direction of WorldCast Systems
1. Product innovation:
Audemat places a key emphasis on Research & Development and its innovative approach
has been repeatedly recognized by the industry. WorldCast Systems has won awards for
innovation at consecutive NAB Shows for over 10 years.
2. Customer satisfaction:
Audemat is dedicated to ensuring the best quality, value and service for its customers
and has achieved IS0 9001 certification.
3. Sustainable Development:
Audemat is committed to sustainable development and demonstrates this commitment in
several ways: it has been ISO 14001 certified since 2007, adheres to the UN Global
Compact project and all new products are developed in keeping with an eco-design phi-
losophy and built within Audemat’s low energy consumption factory.
Headquartered in Bordeaux-Merignac, France, WorldCast Systems employs nearly 100 peo-
ple worldwide with an R&D center in Northern Ireland and sales offices in the UK, Germany,
India and the US. A global distributor network works together with our international sales
and support staff to offer local assistance to our international customer base.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 11
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.4 Unpacking and Inspection
After unpacking:
Check the unit for damage during shipping. Immediately report any damage back to the
distributor or APT.
Check that the list of contents is complete as follows:
Silver Stream-In / Stream-Out
Serial Number located on the
rear panel:
Stream-In/RCA: I000-
Stream-Out/RCA: P000-
Stream-IN/XLR: K000-
Stream-Out/XLR: R000-
(please complete)
External Power Adapter
Please confirm that the local power supply voltage matches the required voltage levels of
100-240VAC
CD Box
A CD box including a Quick Start guide and a CD where you will find the documentation
for this product.
If the equipment supplied does not match the items requested please contact APT or your lo-
cal distributor immediately and report any shortages.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 12
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.5 Introduction
The Silver audio Codec range is based on the new APT Codec core engine. This new engine is
designed to be as flexible and versatile in use as possible. The core is powerful and address-
es more than ever the needs of professional IP audio transmissions.
The set of Silver Stream-In and Stream-Out can be used to setup a full duplex link. The Sil-
ver Codec range consists of the Encoder (Stream-In) and the Decoder (Stream-Out) as sepa-
rate units in a ½ 1U format.
As a multi-algorithm audio Encoder or Decoder it is offering conventional analog left and
right audio connections operating through IP. These analog audio connections are carried out
for semi-professional phone jacks or as professional XLR connectors.
The new Codec generation incorporates the enhanced versions of the apt-X®algorithm (real
time transmission on the network with data reduction by factor 4:1,) Linear PCM 16 and 24
bit as well as MPEG 4 HE-AACv1/2.
The units are capable of delivering high quality audio used for inter-studio networking, re-
mote/outside broadcasts and STL/TSL monitor applications.
Audio modes and bandwidths are dependent on the network bit rate, the algorithm, mode
and frequency response selected and the bit resolution of the desired audio.
The Silver Codec range runs an embedded WEB GUI which can be accessed from a web
browser or via the WorldCast Codec Management System which runs on a PC connected via
LAN or WAN. A headphone socket provides for additional monitoring of the audio input (En-
coder) or the output (Decoder)
An Additional interface allows for the connection of auxiliary data terminated on a DB-9way
connector. Regardless of using the Encoder (Stream-In) or the Decoder (Stream-Out) the
AUX Data link is provided always as a duplex link (while the audio is always simplex).
The Silver Stream-In and Stream-Out come with the SureStream option applied as standard.
Both units are very similar with the exception that the Decoder offers an additional USB port
for future use (e.g. playing out stored audio files).

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 13
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.5.1 System Options
The following soft- and hardware options are available:
ScriptEasy: A scripting language for enhanced management and control of a Codec de-
vice. In addition ScriptEasy allows the user to communicate and control external equip-
ment using SNMP protocol GET/SET commands.
MasterView: it allows to create customized dashboards to be able remotely to check the
equipment status and to perform user remote actions
Advanced Audio Backup: playlist for USB stick & Play out from Shoutcast server (available in
later release)
Notes:
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 14
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.6 Getting Connected
This chapter outlines how you can quickly connect your Silver Codec and start sending audio.
Begin by connecting the power adapter to the unit.
Making a connection and send audio:
Set up the Silver Stream-In Encoder and the transmitting IP stream
apply this configuration to the unit
Set up the Silver Stream-Out Decoder and the receiving IP stream
Apply this configuration to the unit
The audio connections are made on the rear panel using RCA phone jacks or XLR type con-
nectors.
Stream-In / RCA

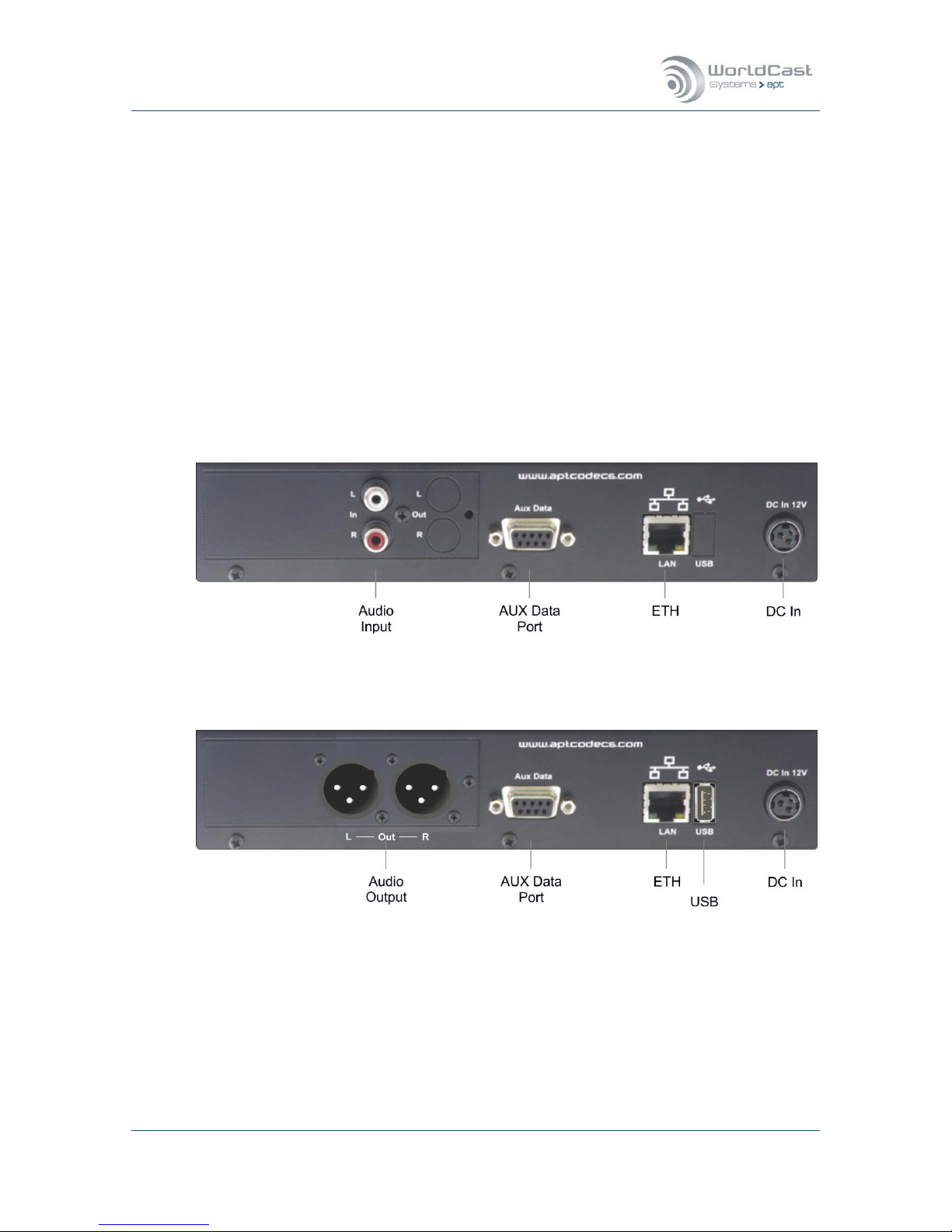

Figure 1-1: Silver Stream-In (Encoder RCA version) rear panel view
Stream-Out / XLR
Figure 1-2: Silver Stream-Out (Decoder XLR version) rear panel view
Note: Silver Stream-In/Stream-Out are both available with XLR connectors

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 15
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.7 The WorldCast Codec Management System - Overview
The WorldCast Network Management System (NMS) allows viewing multiple units from one
control point. The program has an intuitive look and feel that is easy to understand by both
the experienced technician and the casual user.
The graphical user interface provides access to an embedded WEB GUI to the Silver IP
Streamer when accessed from the NMS family tree view. The presentation of the GUI of the
Silver units is the same when opened from the family tree view (NMS) or directly from a
WEB browser.
Figure 1-3: Family Tree of the Network Management System (NMS)
The presentation of the Silver configuration pages is the same whether it is opened from
the family tree view (NMS) or directly from a WEB browser.
The NextGen codec range provides a context menu by right-clicking on the device (once
it is connected). This context menu provides an option called “Open Free View” – this
option opens as many independent views of the GUI as required but only one instance in
read-write mode. All other instances are locked to read-only mode.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 16
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
The Codec Management System –(continued)
The Codec Management System is designed to operate as a program under Windows as a
single task. This means that only one instance of the NMS software can be installed on the
same PC.
Nevertheless, it’s possible and allowed to have more than one installation of the NMS in the
network. The NMS software design does not allow a simultaneous access to the same Codec
device from different seats. If one seat has opened a Codec device on the family tree, the
software inhibits any attempt of accessing the same unit from another seat in read/write
mode. The first user gets the read-write control of this particular device, and any other user
will be prompted to be restricted on read-only permissions. This feature avoids configuration
conflicts caused by several seats.
Whenever a user opens a device on the family tree, the NMS sends out a broadcast re-
quest/announcement to the network looking for any other user actually configuring this par-
ticular unit.
If the network does not allow broadcasting, i.e. in public domain networks like the internet,
this protection becomes ineffective.
Notes:
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 17
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
1.7.1 Installing the Network Management System
Prior to installing and running the NMS software, please ensure that your service PC meets
the minimum hard- and software requirements:
Microsoft Windows®XP, Windows®Vista, Windows® 7/8
30 MB free Hard Disc space
1024px x 768 px Screen Resolution or better
CD ROM Drive (optional)
Running any NextGen-Codec with the current system release on the NMS software re-
quires the NMS build version #1183 or higher (supplied with the Codec).
The NMS requires IP port 7777 and 7778 to be opened on your network!
The NMS software is generally supplied as a self-extracting application. Run the application
and follow the instructions of the following screens:

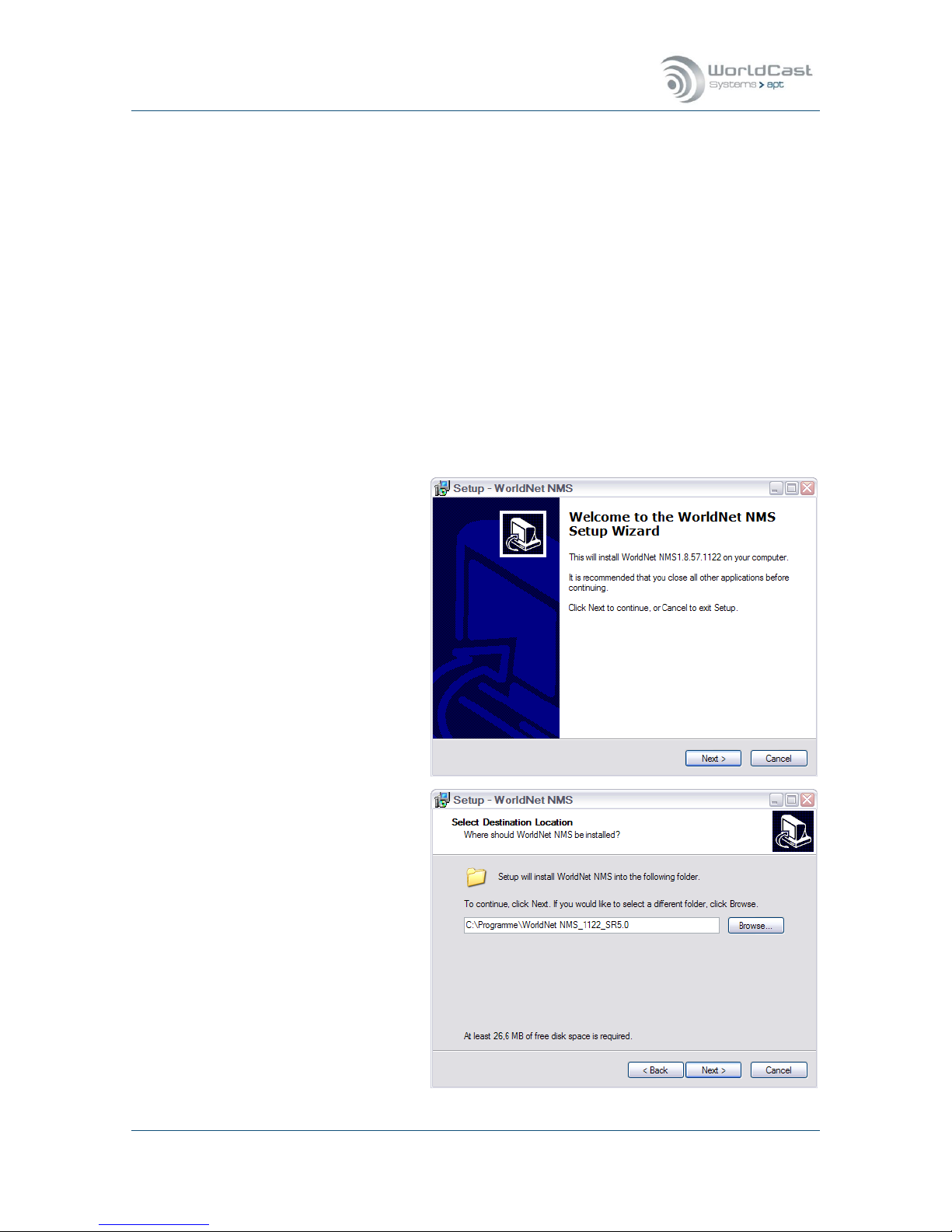

First Screen
It shows the NMS build version;
please make sure that you’re in-
stalling the correct version, this
example shows #1122.
SR 1.5.2 requires NMS ver-
sion 1183 or higher!
Next Screen
Please choose the folder where you
like to install the NMS application.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 18
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Installing the Codec Management System (continued)
Next Screen
Journalist Panel is available for
Eclipse/Meridian type Codecs
only –do not select it unless
you are also running Eclipse or
Meridian units in your network.
Next Screen
You can create a desktop and/or
a quick launch icon as required.
Final Screen
Now you need to complete the
installation by clicking on “In-
stall”.

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 19
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]

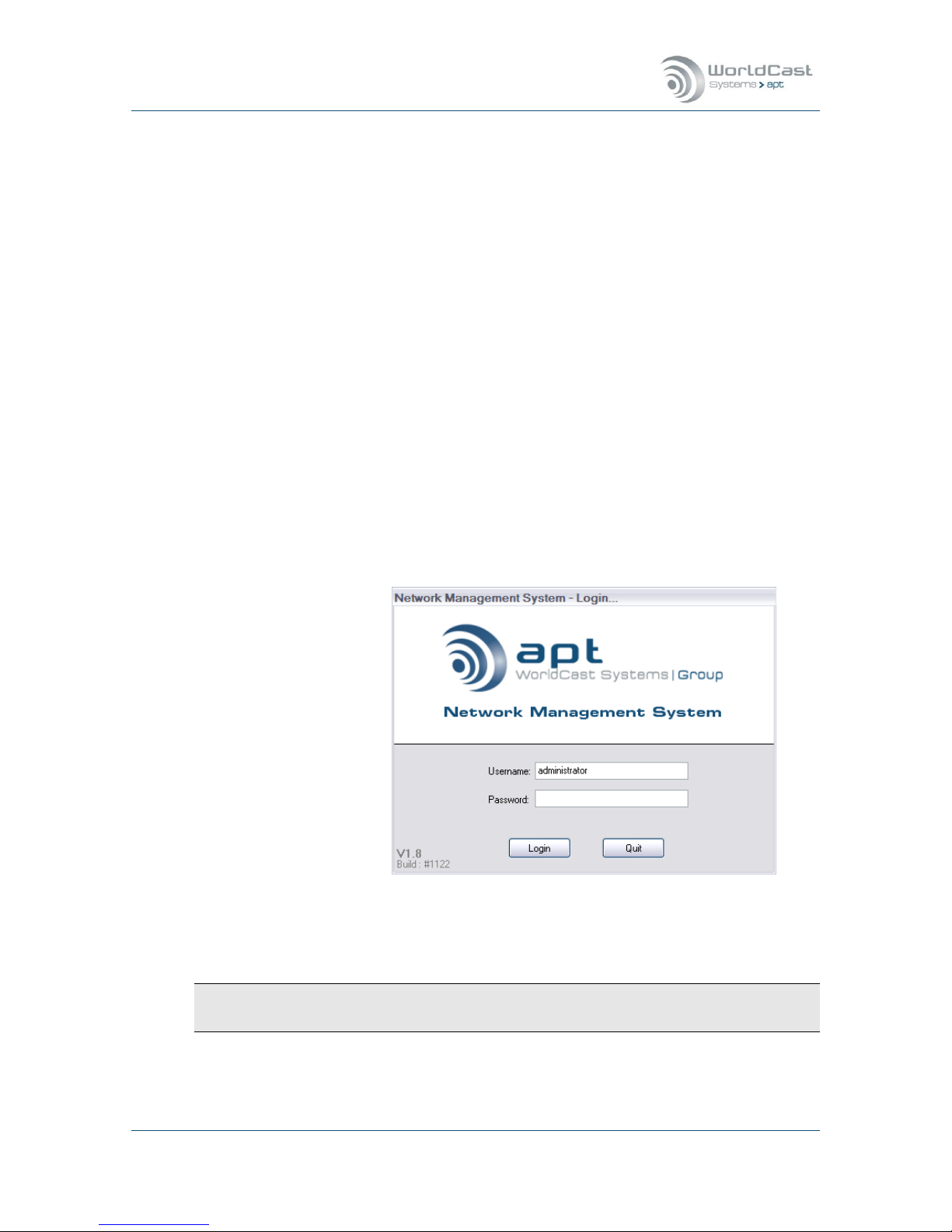

1.7.2 Getting Started
Before you can launch the Management System please ensure the following pre-conditions of
your network settings:
To get started with the NMS application, ensure that the cabling is properly connected
from the Codec to the PC, and that your service PC’s Ethernet cards has an IP address
within the range of 192.168.100.0 to 192.168.100.255. The Silver Stream-In and
Stream-Out are set to an IP address within this range as a factory default –usually
192.168.100.110.
The NMS application will remain inactive until a link is established between the service
PC and an active Codec device.
Release Notes
As of this publication date, system release 1.3.0 is shipped with the Codec device. We rec-
ommend that you check the APT website for updates.
Launch the Management System application. You will find the program located in the Win-
dows Start Menu under “Program WorldNet NMS”. Start the program and you will be
prompted to log in:
NMS Log-In:
There are three levels of
access to the WorldNet
Codec Management Sys-
tem:
All accounts, the “Administrator”, “Normal” and the “Read Only”, require Username and
Password login. When shipped only an Administrator account is configured with the default
login. We recommended that you change the Administrator login as soon as possible.
Default Username: administrator
Default Password: password
Do not forget to change the default password before connecting to an unprotected net-
work!

Silver Stream-In / Stream-Out - System Release 1.5.2 –April 2015
Page 20
Whiterock Business Park - 729 Springfield Road - Belfast BT12 7FP - Northern Ireland
Tel.: [phone] | Fax: [phone] | www.aptcodecs.com | [e-mail]
Getting started (continued)
Once you have logged in successfully the Main Screen of the Network Management System
(the NMS Family Tree) will appear:
Figure 1-4: The NMS Front Page appears empty, when you log in for the first time
Note: When running the NMS for the first time, this main screen will not show any Codec
devices.
The manual of the WorldCast NMS system is provided with the software. You will find
the full documentation as help file: Click on the menu “Help->Help”
