Worx Nitro WG173 User manual

WG173 WG173.X
P02
P17
P26
20V 13’’ Cordless GrassTrimmer EN
F
ES

1
2
3
4
5
6
7
8
11
12 13
9
10

2
1
Click!
Cliquez!
¡Clic!
1
2
1
22
B3 C
B2
A1 A2
B1

100%
0%
1
2
1
2
3
1
2
G H
F
D1 D2
E

J1 J2
I4
I1 I2
I3

1
2
90º
M
TM
L
K4
K1 K2
K3
K6
K5

1
2
90º
M
TM
L
K4
K1 K2
K3
K6
K5
1
2
O2 O3
O1
N1 N2
N3
O4

1
2
O2 O3
O1
N1 N2
N3
O4

9
20V 13’’ Cordless GrassTrimmer
EN
TABLE OF CONTENTS
1. PRODUCT SAFETY
2. COMPONENT LIST
3. TECHNICAL DATA
4. ASSEMBLY & OPERATION
5. MAINTENANCE
6. TROUBLESHOOTING
1. PRODUCT SAFETY
WARNING! This product can expose you to
chemicals including lead and Di(2-ethylhexyl)
phthalate (DEHP) which are known to the State of
California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.
Important Safety Instructions
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or
serious injury.
FOR ALL PRODUCTS
1) Avoid Dangerous Environment - Don’t use appliances
in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept at a
distance from work area.
4) Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust mask if
operation is dusty.
6) Use Right Product - Do not use product for any job
except that for which it is intended.
7) Don’t Force Appliance - It will do the job better and
with less likelihood of a risk of injury at
the rate for which it was designed.
8) Don’t Overreach - Keep proper footing and balance at
all times.
9) Stay Alert - Watch what you are doing. Use common
sense. Do not operate appliance
when you are tired.
10) Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in dry, and high
or locked-up place - out of reach of children.
11) Maintain Appliance With Care - Keep cutting edge
sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating
and changing accessories. Keep handles dry, clean,
and free from oil and grease.
12) Check Damaged Parts - Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other condition that may affect its operation. A guard
or other part that is damaged should be properly
repaired or replaced by an authorized service center
unless indicated elsewhere in this manual.
FOR ALL BATTERY – OPERATED GARDENING
PRODUCTS:
1. Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to battery pack,
picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such preventive
safety measures reduce the risk of starting the
appliance accidentally.
3. Recharge only with the charger specified by the
manufacturer .A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another battery pack.
4. Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
5. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
6. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
7. Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or appliance to fire
or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
9. Follow all charging instructions and do not charge
the battery pack or appliance outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
10. Have servicing performed by a qualified repair person
using only identical replacement parts. This will
ensure that the safety of the product is maintained.
11. Do not modify or attempt to repair the appliance or
the battery pack (as applicable) except as indicated
in the instructions for use and care.
ADDITIONAL SAFETY RULES FOR GRASS TRIMMER
AND EDGE TRIMMER
1. Keep guards in place and in good working order.
2. Keep hands and feet away from cutting area.
3. Do not use heavier lines than recommended in this
manual.

10
20V 13’’ Cordless GrassTrimmer
EN
4. Do not use line materials of other types – for
example, metal wire, rope, and the like.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or re. Avoid
storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer where
they may short-circuit each other or be short-
circuited by other metal objects. When battery pack
is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other
small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals
together may cause burns or fire.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid
to come in contact with the skin or eyes. If contact
has been made, wash the affected area with copious
amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed
for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by
the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual
for proper charging instructions.
l) Do not leave battery pack on prolonged charge when
not in use.
m) After extended periods of storage, it may be
necessary to charge and discharge the battery pack
several times to obtain maximum performance.
n) Recharge only with the charger specied by Worx.
Do not use any charger other than that specically
provided for use with the equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for which
it was intended.
q) Remove the battery pack from the equipment when
not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture, capacity,
size or type within a device.
t) Keep the battery away from microwaves and high
pressure.
SAVE THESE INSTRUCTIONS

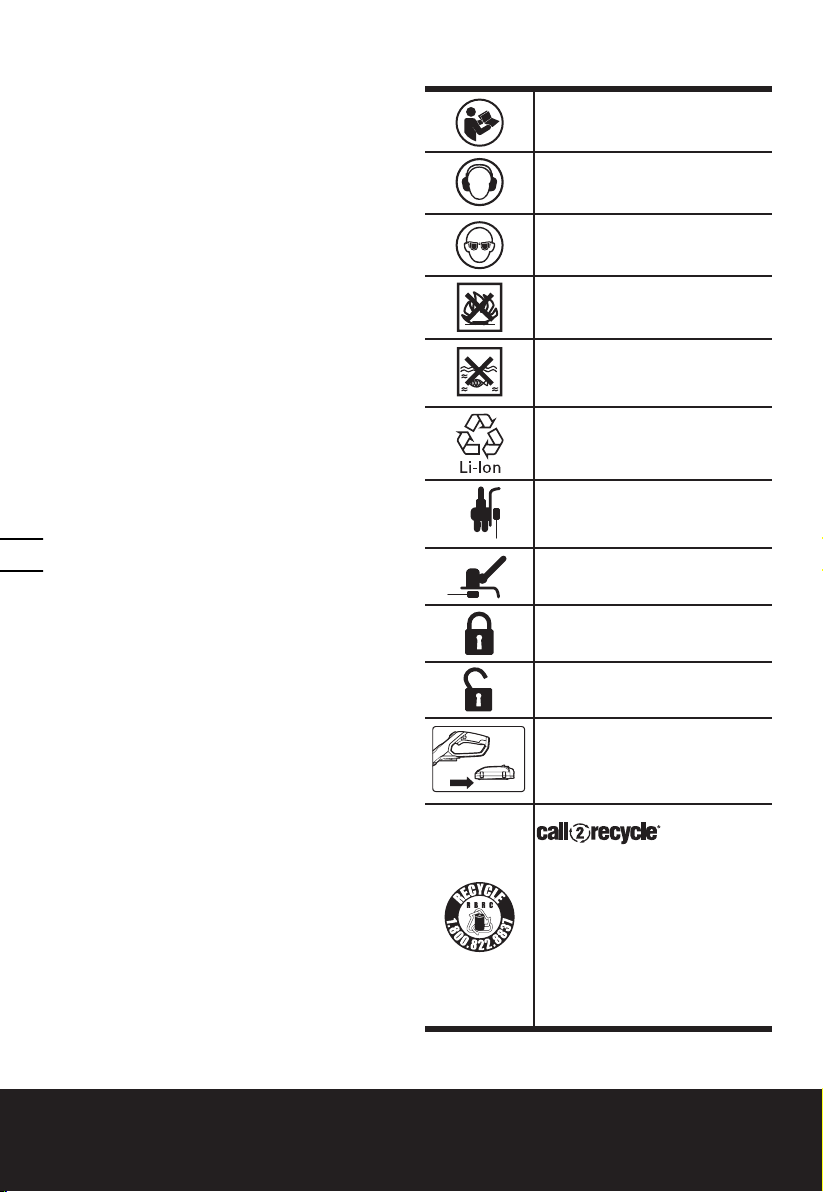

SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Wear ear protection
Wear eye protection
Do not burn
Do not expose to rain or water
Li-Ion battery, battery must be
recycled
Edging
Trimming
Lock
Unlock
Make sure the battery is removed
prior to changing accessories
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any Positec
batteries with the RBRC-call2recycle
seal. For environmental protection,
please do not discard batteries in the
trash. After the batteries’ life cycle
is ended, then please call 1-800-
822-8837 for a free service that will
properly dispose of the battery.

11
20V 13’’ Cordless GrassTrimmer
EN
2.COMPONENT LIST
1. REAR HANDLE
2. ON/OFF TRIGGER
3. BATTERY PACK*
4. AUXILIARY HANDLE LOCKING KNOB
5. LOCKING COLLAR
6. TELESCOPIC SHAFT
7. PIVOT HEAD LOCKING KNOB
8. SAFETY GUARD
9. EDGER /TRIMMING SUPPORT WHEELS
10. LINE CUTTER
11. AUXILIARY HANDLE
12. COMMAND FEED BUTTON
13. LOCK OFF BUTTON
* Not all the accessories illustrated or described are
included in standard delivery.
3. TECHNICAL DATA
WG173 WG173.X **
Voltage 20 V Max.***
No Load Speed 6500 /min
Line Cutting Diameter 13 “ (33 cm)
Cutting line length 2X16ft (5m)
Line diameter 0.065 “ (2.03 mm)
Wheel set type WA0042
Spool type WA0054
Spool cap type WA0216
Machine Weight (bare tool) 5.18 lbs (2.35kg)
**The “X” noted at the end of the model number is a
placeholder that represents a variation to the original
model (kit contents or packaging change). “X” may be
replaced with any number from “1” to “999” or English
letter “A” to “Z” or “M1” to” M9”.
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts.
SUGGESTED BATTERIES
AND CHARGERS
Category Type Capacity
20V Battery WA3012 4.0 Ah
20V Charger WA3881 2.0 A
We recommend that you purchase your accessories
from the same store that sold you the tool. Choose the
type according to the work you intend to undertake.
Refer to the accessory packaging for further details.
Store personnel can assist you and offer advice.
4.ASSEMBLY & OPERATION
Action Figure
ASSEMBLY

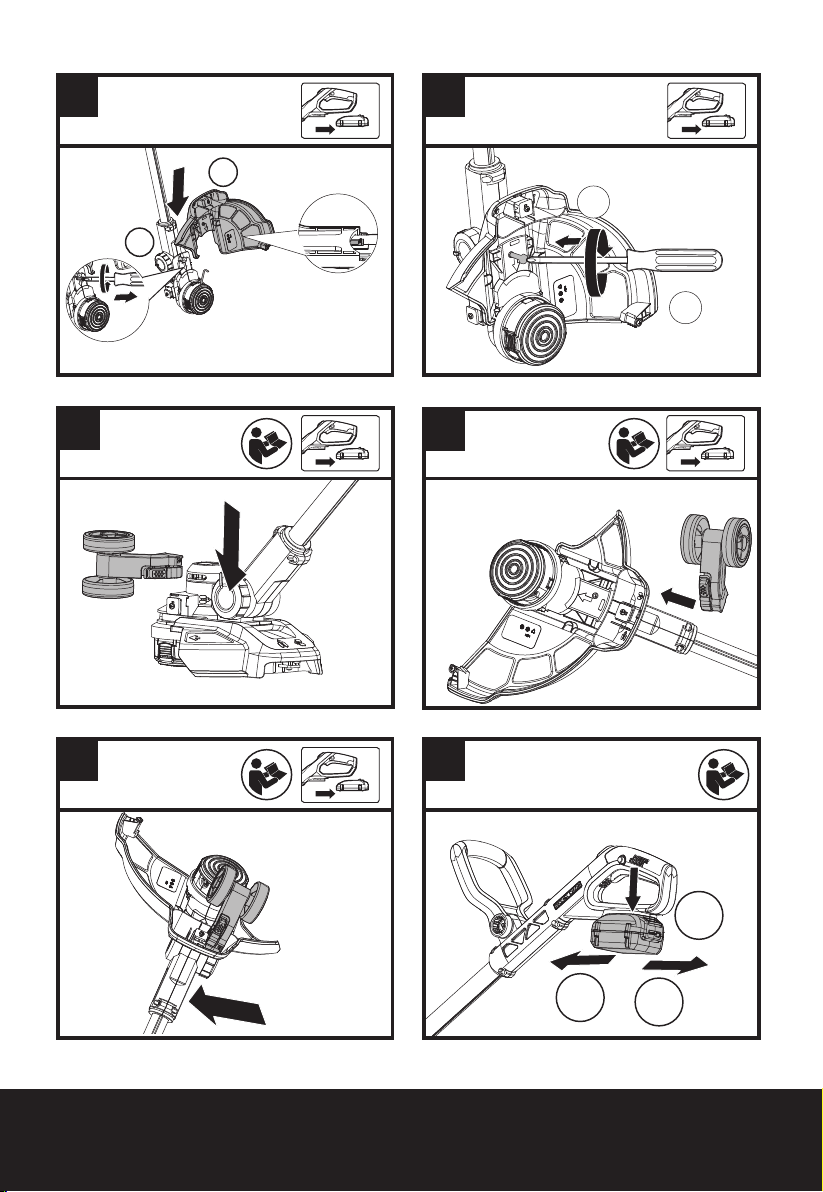

Assembling the Safety Guard See Fig. A1, A2
Mounting the Edger /Trimming
Support Wheels
NOTE: There are three optional
positions for the Edger /Trimming
Support Wheels to attach when
assisting in Trimming and Edging. Fig.
B1 is for Edging. Fig. B2 and B3 is for
Trimming.
See Fig. B1,
B2, B3
Installing and Removing the Battery
Pack
Your Battery Pack is UNCHARGED
and it must be fully charged once
before it is used.
See Fig. C
Checking the Battery Condition See Fig. D1
Charging the Battery Pack
More details can be found in charger’s
manual
WARNING! The charger and
battery pack are specially
designed to work together so do not
attempt to use any other devices.
Never insert or allow metallic objects
into your charger or battery pack
connections because of an electrical
failure and hazard will occur.
See Fig. D2
OPERATION
Safety ON/OFF Switch
WARNING! The cutting head
continues to rotate after the
trimmer has been switched off; wait
until it has completely stopped then
lay down the tool.
WARNING!Make sure that line
is fed out before operation.
Make sure motor is up to full speed
before trimming or edging.
See Fig. E
Adjusting the Shaft See Fig. F
Adjusting the Auxiliary handle See Fig. G

12
20V 13’’ Cordless GrassTrimmer
EN
Using the Flower Guard See Fig. H

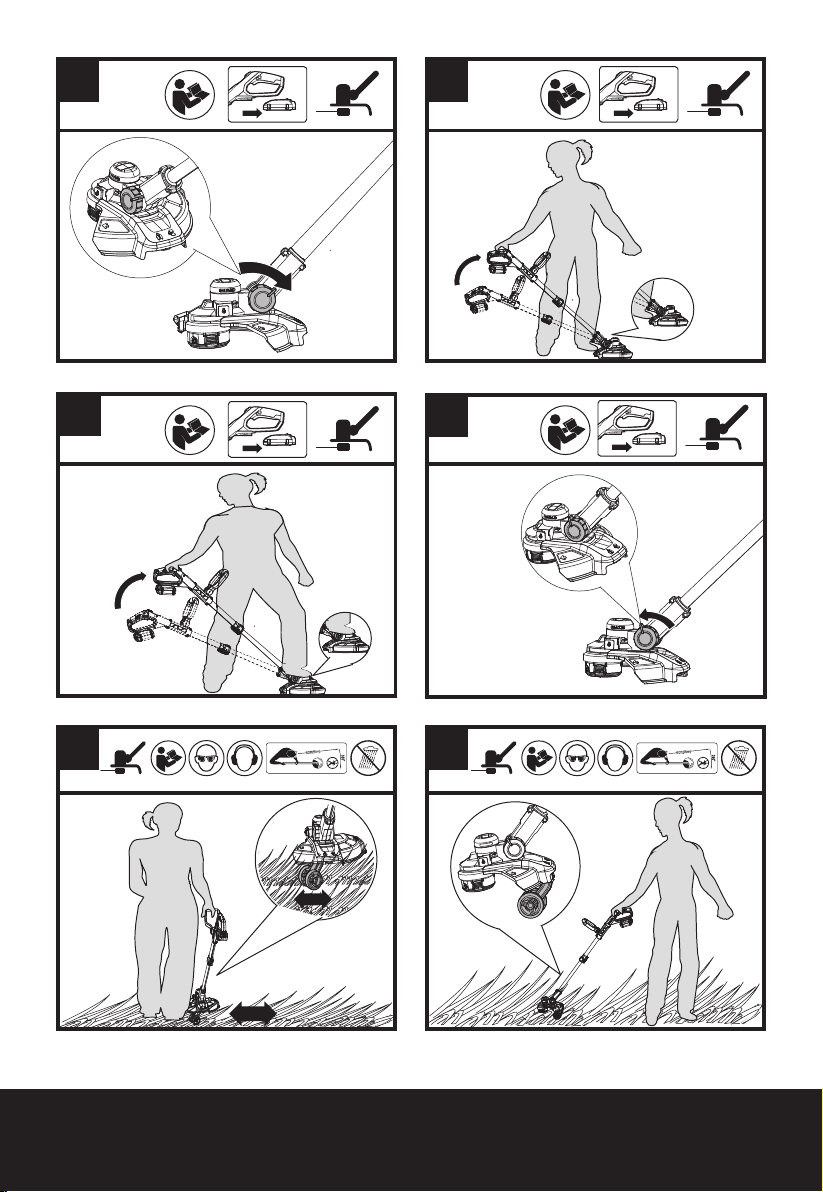

Trimming
- Adjusting the Trimmer Head
NOTE: The trimmer head must be
locked as Fig. I4.
See Fig. I1, I2,
I3, I4
- Trimming / Mowing
NOTE:
•For trimming/mowing Fig. J1, please
mount the wheels following Fig. B2.
For trimming in Fig. J2, please mount
the wheels following Fig. B3.
•You could also use the machine
without the guide wheels on the
guard when trimming.
See Fig. J1, J2
Edging
- Main handle rotation
“Secure the lower housing and guard
in place (using your foot or hand).
Pull up on the telescopic shaft and
turn clockwise 90 degrees.
Release, and the shaft will
automatically lock into edging mode.”
See Fig. K1, K2
- Changing the tool into the Edging
mode
See Fig. K3,
K4, K5
- Edging See Fig. K6

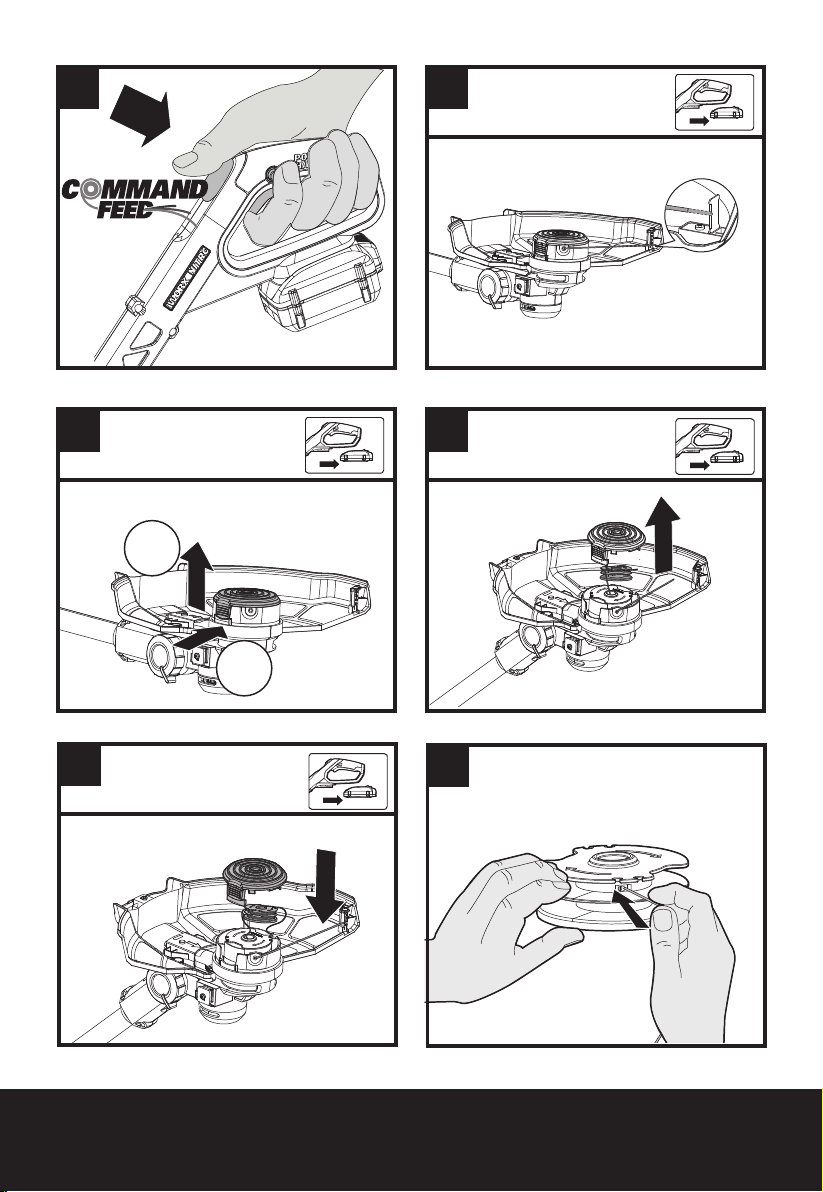

Command feeding the line
NOTE: Press as needed.
See Fig. L
Manually feeding the line See Fig. M
Replacing the trimmer Spool
See Fig. N1,
N2, N3
Manually winding the line
See Fig. O1, O2,
O3, O4
LINE FEEDING/WINDING
INSTRUCTION
1. Automatic line feed system
When initially switching on the trimmer, a small length of
line is fed out. Each time the tool is started from rest it
will advance about 0.25 inches of trimmer line.
A ‘clattering’ noise will be heard when the lines hit the
Line Cutter. DO NOT BE ALARMED. This is quite normal.
After about 5 seconds the line will be cut to the correct
length and the noise will reduce as the motor gains full
speed.
If the noise of the line being cut can’t be heard, more line
will need to be fed out.
To feed more line, it is first necessary to allow the
trimmer to stop completely; it must come to a complete
rest, then restart, allowing the motor to reach full speed.
Repeat above until you hear the line hitting against the
Line Cutter.
2.
TM
(See Fig. L)
Your trimmer is equipped with a Command Feed System.
For eciently feeding the line, just press the command
feed button while the machine is running until you hear
the ‘clattering’ noise of the line cutting.
The motor will shut off when pressing the Command
Feed button and will restart when releasing the button.
During that process the line will automatically feed
additional line for cutting.
3. Manually feeding the line (See Fig. M)
Turn off the trimmer and remove the battery. If required,
line can be fed out manually. To operate, press and
release manual Line Feed Button, while gently pulling out
the line until it is long enough to reach the Line Cutter. If
the line extends past the Line Cutter, too much line has
been fed out. If too much line is fed out, remove the Spool
Cap and turn Spool counter-clockwise until the line is at
the desired length.
4. Manually winding the line
( See Fig. O1, O2, O3, O4)
Take approximately 10ft (3m) of line. Insert 5/8 inch
(15mm) of line into the Spool holes and wind line in the
direction of the arrows on the top of the Spool. Leave
approximately 4 inches (100mm) of line unwound and
place into the cleat. Ensure that the line is neatly coiled
on the Spool. Failure to do so will impair the eciency of
the automatic line feed. Then fit the Spool as shown in
Fig. N1, N2, N3
5. MAINTENANCE
After use, disconnect the battery from the tool and check
for damage.
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts in
your power tool. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place, and out of
the reach of children. Keep the motor ventilation slots
clean. Keep all working controls free of dust.
For Battery tools
The ambient temperature range for the use and storage
of tool and battery is 0oC-45oC.
The recommended ambient temperature range for the
charging system during charging is 0oC-40oC.

13
20V 13’’ Cordless GrassTrimmer
EN
6. TROUBLESHOOTING
The following table gives problems and actions that you can perform if your machine does not operate correctly. If
these do not identify and correct the problem, contact your WORX Customer Service at 1-866-354-WORX.
WARNING: Switch the machine off and remove the battery prior to any troubleshooting.
Problems Possible Causes Corrective Action
Trimmer fails to
operate.
Battery discharged.
Battery too hot/cold.
Motor is broken.
Internal wiring of machine damaged.
Recharge battery; also see
the content in charger manual
Allow to cool/warm.
Contact Service Agent.
Contact Service Agent.
Trimmer runs
intermittently.
Motor is broken.
Battery not fully charged.
On/Off switch defective.
Contact Service Agent.
Recharge battery.
Contact Service Agent.
Excessive vibrations/
noise.
Machine defective.
Line spool is not wound well.
Contact Service Agent.
Rewind the line. See “MANUALLY WINDING
THE LINE” (Fig. O1, O2, O3, O4).
Cutting time per battery
charge
too short.
Battery has not been used for long period or
only charged for short term.
Grass too high.
Battery defective.
Recharge battery; also see
the content in charger manual.
Cut in stages.
Replace the battery.
Machine does not cut. Line broken.
Battery not fully charged.
Motor is broken (speed is too low).
Grass entangled around cutting head.
Replace the line
Recharge battery; also see
the content in charger manual.
Contact Service Agent.
Remove grass.
Continuous lighting
of the battery charge
indicator.
No charging procedure
possible.
Battery not (properly) inserted.
Battery contacts contaminated.
Battery defective.
Properly insert battery into battery charger.
Clean the battery contacts or replace the
battery.
Replace the battery.
Battery charge indicator
does not light up.
Plug of battery charger not plugged in
(properly).
Socket outlet, mains cable or battery charger
defective.
Insert mains plug (fully) into the socket
outlet.
Check the mains voltage; have the battery
charger checked by an authorized after-
sales service agent.
Command feed does
not work
Cutting line is not wound well.
The line is tangled.
Line is used up.
Manually feed the line, if still cannot feed
out, remove the Spool out and rewind the
line.
Replace with a new spool of line.
