Worx Landroid M User manual

INSTALLATION GUIDE
GUIDE D'INSTALLATION
GUÍA DE INSTALACIÓN

Installation guide EN P04
Guide d'installation F P20
Guía de instalación ES P36

4
EN
How to install your Landroid®M
The installation of the Landroid
®
M is easy. Depending on the size of your garden, the entire process only
takes a short amount of time. If your are like us, you hate having to waste your precious free time mowing
your lawn. The Landroid
®
M will prove to be your best investment eliminating the need to mow your lawn
ever again.
You can watch the installation demo video at www.worxlandroid.com.
The Landroid®M loves to mow
It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the
size of your lawn, the Landroid
®
M may be programmed to operate at any time or frequency with no restrictions. It
is here to work for you.

5
EN

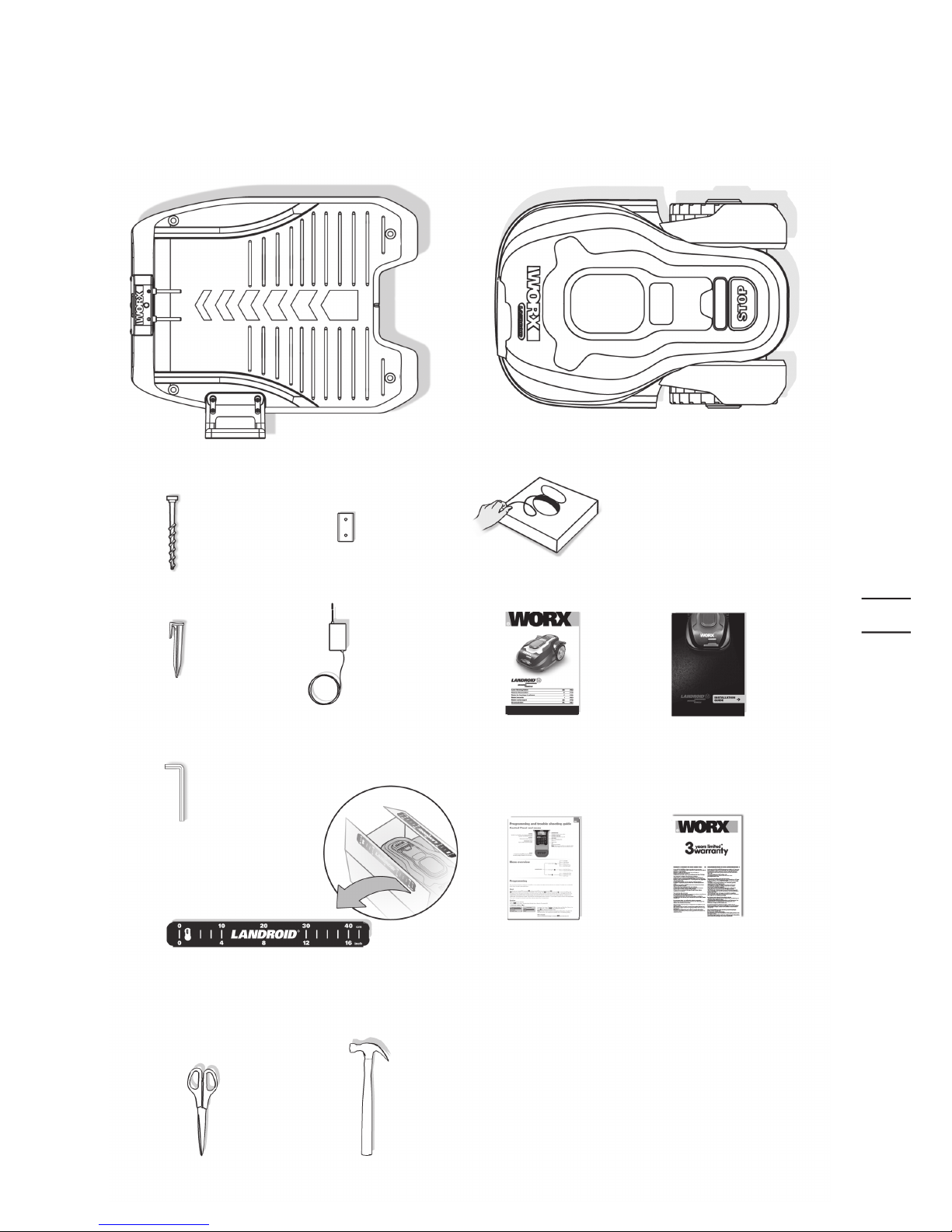

In the box
Preparation
Tools Needed
Distance gauge
Hex key
Scissors Hammer
Landroid®MCharging base
Base fixing
nails
Wire pegs
Boundary
wire reel
Owner’s manual
Warranty
statement
Installation
guide
Spare blades
Power Adaptor
Programming and
trouble shooting
guide

6
EN

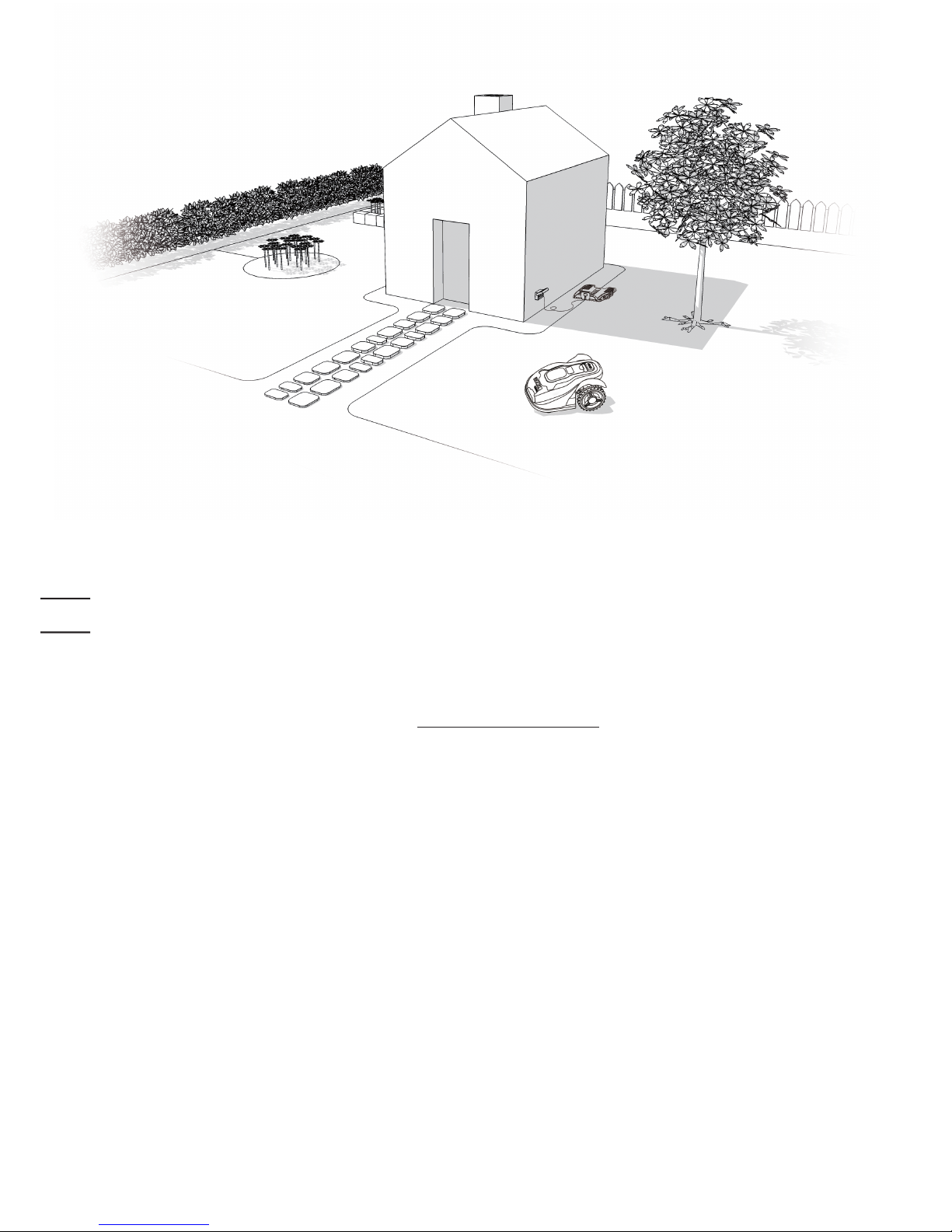

Landroid®M's new home-your garden
Let's start by having a closer look at Landroid®M's new home—your lawn—highlighting the areas where it
can safely go and areas it’s best for Landroid®M to avoid.
When hitting any obstacle that’s rigid, stable and taller than
6 inches—such as a wall or a fence—your Landroid®M will
simply stop and re-direct away from the obstacle.
Obstacles that can be hit
Stones that are heavy enough not to be moved by your
Landroid®M can be safely hit. However, if any stone has an
inclined surface that your Landroid®M can climb, you should
either remove it or exclude from the working area.
Stones
If your driveway is level with your lawn, without any protruding
surface, the Landroid®M can freely run over it. If you'd like the
Landroid®M to avoid it, then only a 4 inches* space between the
Boundary Wire and the driveway is needed. If it’s covered with
gravel, you should not allow the Landroid®M to travel over it,
using the distance gauge in this case, keeping a 14 inches* space
between the boundary wire and the driveway.
*This is the recommended distance. Use the provided
distance gauge to ensure proper installation.
Driveways
You certainly don’t want your Landroid®M to mow your flowers,
or fall into the water. These areas should be avoided.
Flowerbeds, ponds, pools...

7
EN
20°
If there are roots emerging from the ground, this area should be
avoided in order not to damage the roots.
Trees
In the case of large bumps or dips, please consider if the blades
could touch the ground; if this is the case, either make the
inclines smoother or exclude those areas from your Landroid®M’s
operation.
Depressions and bumps
Your Landroid®M has the ability to safely climb slopes up to 20°,
so just avoid anything steeper than this.
Slopes
The Upper Boundary Wire should NOT be placed on slopes
steeper than 20°.The Upper Boundary Wire should have a
distance of at least 14 inches between any obstacles.The Lower
Boundary Wire should NOT be placed on slopes steeper than
15°. The Lower Boundary Wire should have a distance of at least
18 inches between any obstacles when it is positioned on a slope
that is 15°.
Placement of Boundary Wire on slopes
Upper boundary wire
Lower boundary wire
Lower boundary
Wire
10°-20°<15°
14inches
18 inches

8
EN
Marking out Landroid®M’s
territory within your garden
The charging base should be placed along a straight line-allow 6 ft
at both the front and the back. If possible, place the charging base
in the shade-batteries are better recharged in a cool place.
First of all, locate the best spot for the charging base, taking
into account where your nearest outdoor electricity socket is.
The charging base has a 50ft power cord.
NOTE: Make sure the adaptor and the electrical socket are
kept in a dry area at all times.
An island is an area that sits inside your lawn where you don't
want Landroid®M to go.The boundary wire starts from the
mowing boundary, goes straight to the island, around it and
back to the boundary as shown by the arrows on the picture.
Make sure it is on a flat area, clear of any obstacles.
Your Landroid
®
M needs to know where to mow. This is why you have to mark its working area with a boundary wire
that will form an invisible fence.This wire will also guide your Landroid
®
M to its charging base.
If your neighbor also uses a Landroid
®
M, then you must keep
a space of at least 6ft between your Boundary Wire and your
neighbors.
Please be aware that your Landroid®M will not be able to receive
a signal from the Boundary Wire beyond the distance of 60 ft.
6ft
6ft

9
EN
A forbidden area that's close to the mowing boundary should
be a part of the boundary itself, as shown in the picture.
If your lawn has two or more separate areas connected to each
other by means of a corridor, this should be at least 3 ft wide.
In the case of two islands that are close to each other, it would be
convenient to lay out the wire as illustrated above.
The Landroid®M can travel freely over the boundary wire in
between the islands and the mowing boundary.
If your lawns are not connected by a corridor that's wide enough,
then you'll have to pick your Landroid®M up and move it to the other
lawn. Landroid®M will mow this lawn no problem, but you'll have to
bring it back to the charging base when the battery runs out.
3ft

10
EN
Place the Charging Base in its designated spot, without fixing it
permanently. The “IN” arrow should be oriented so that it indicates
the inside of your lawn.
Pegging your boundary wire

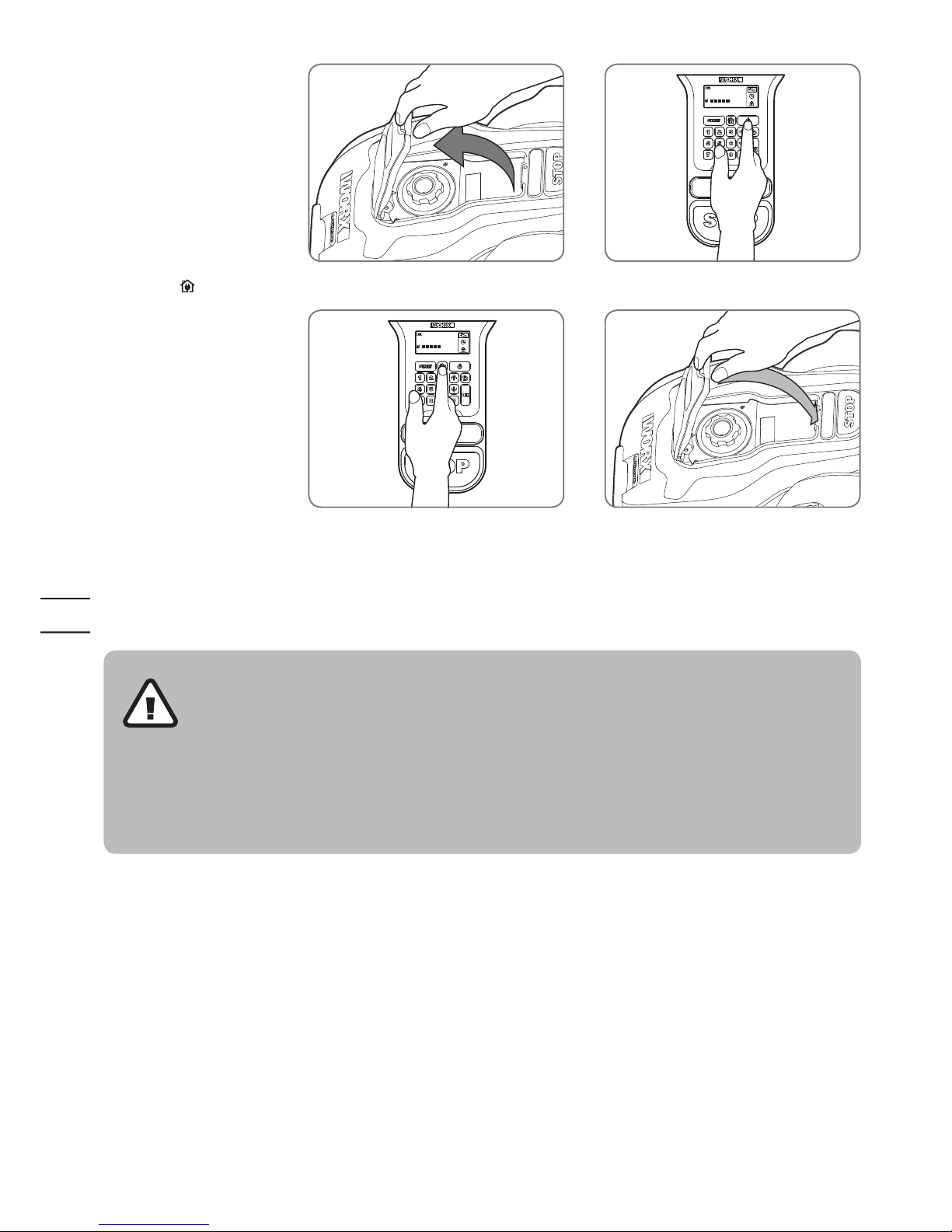

Installation
We recommend that you first mow the lawn where the wire is to be laid using a normal lawn mower or a
grass trimmer.This ensures that the wire is laid as close to the ground as possible so the Landroid
®
M does not
accidentally cut the wire. The boundary wire is powered with a very low voltage so that it is totally safe to human
beings and pets.
1
Feed the boundary wire through the tunnel underneath the
charging base.
Leaving about 3 ft in length of extra wire, start from the rear
of your charging base and begin pegging the wire along the
boundary. When you’ve finished laying the wire along the
boundary back to the charging base, leave another meter of
extra wire and then cut it.
2
3
3ft
