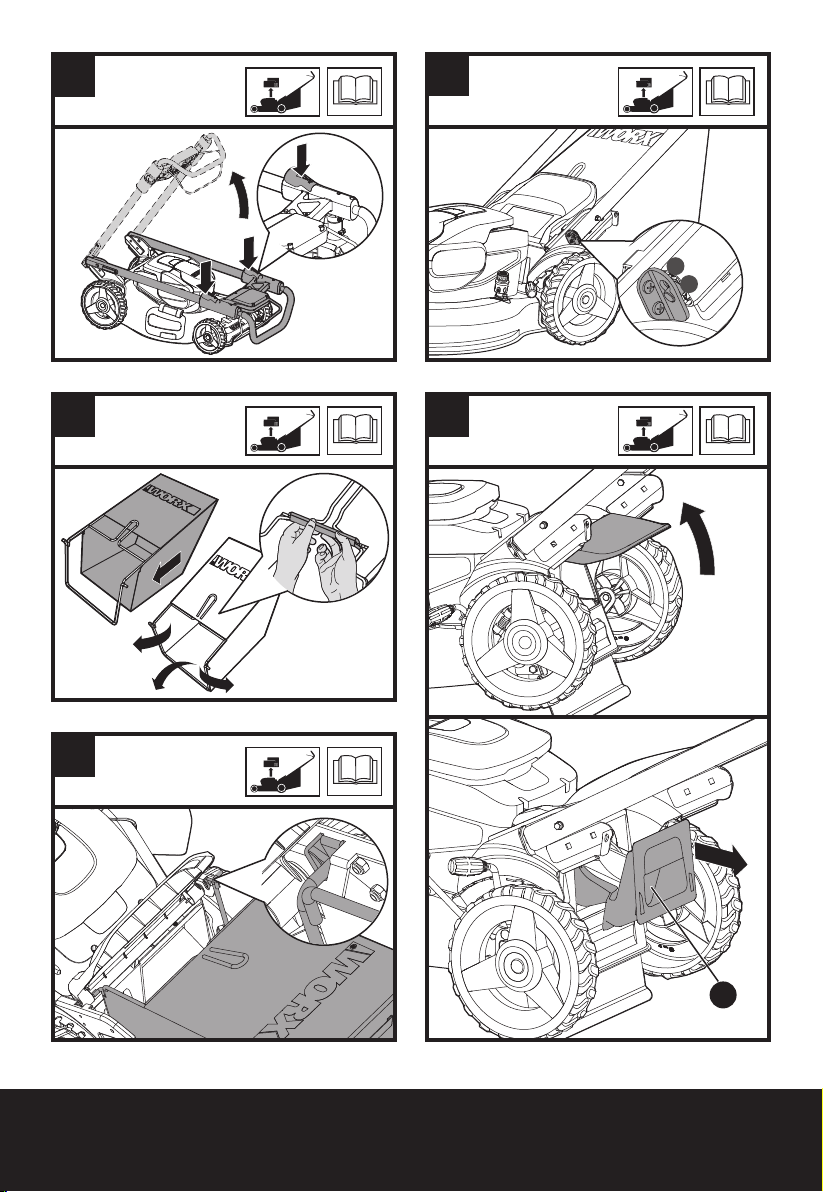

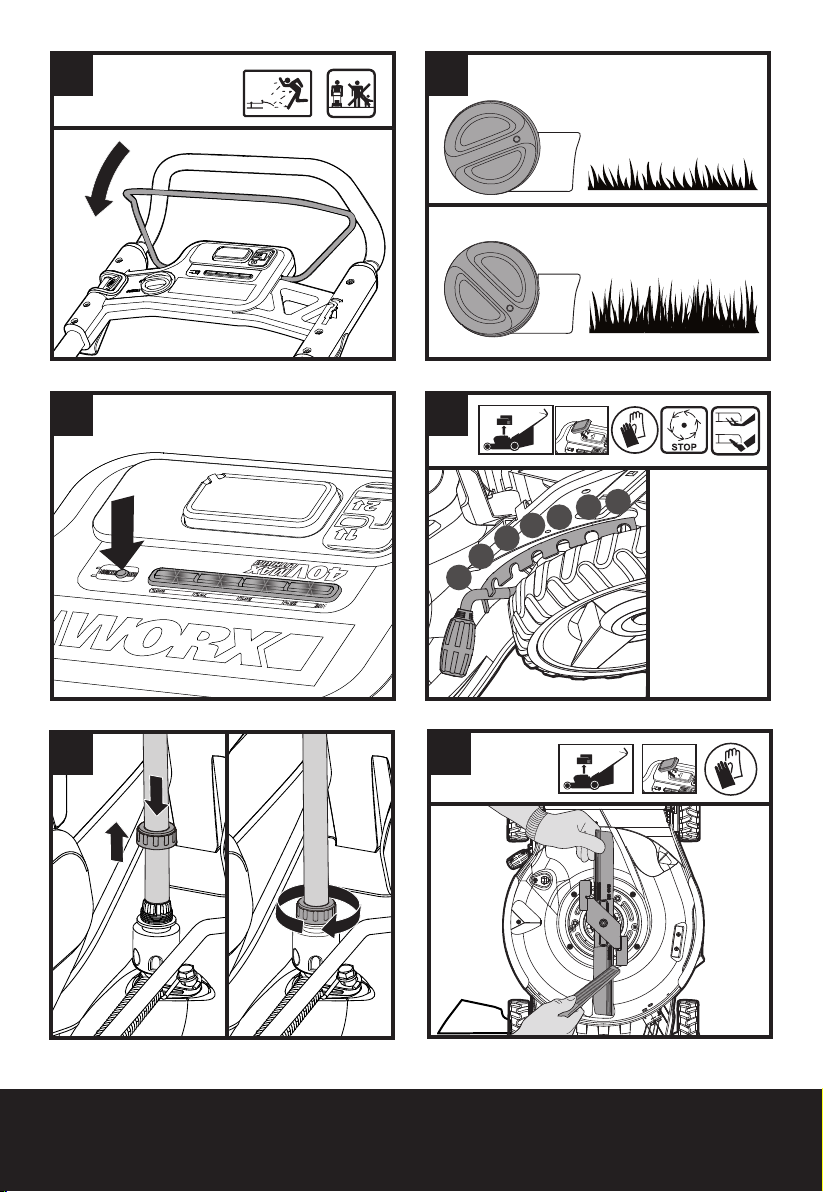

Cordless Lawn Mower EN
9

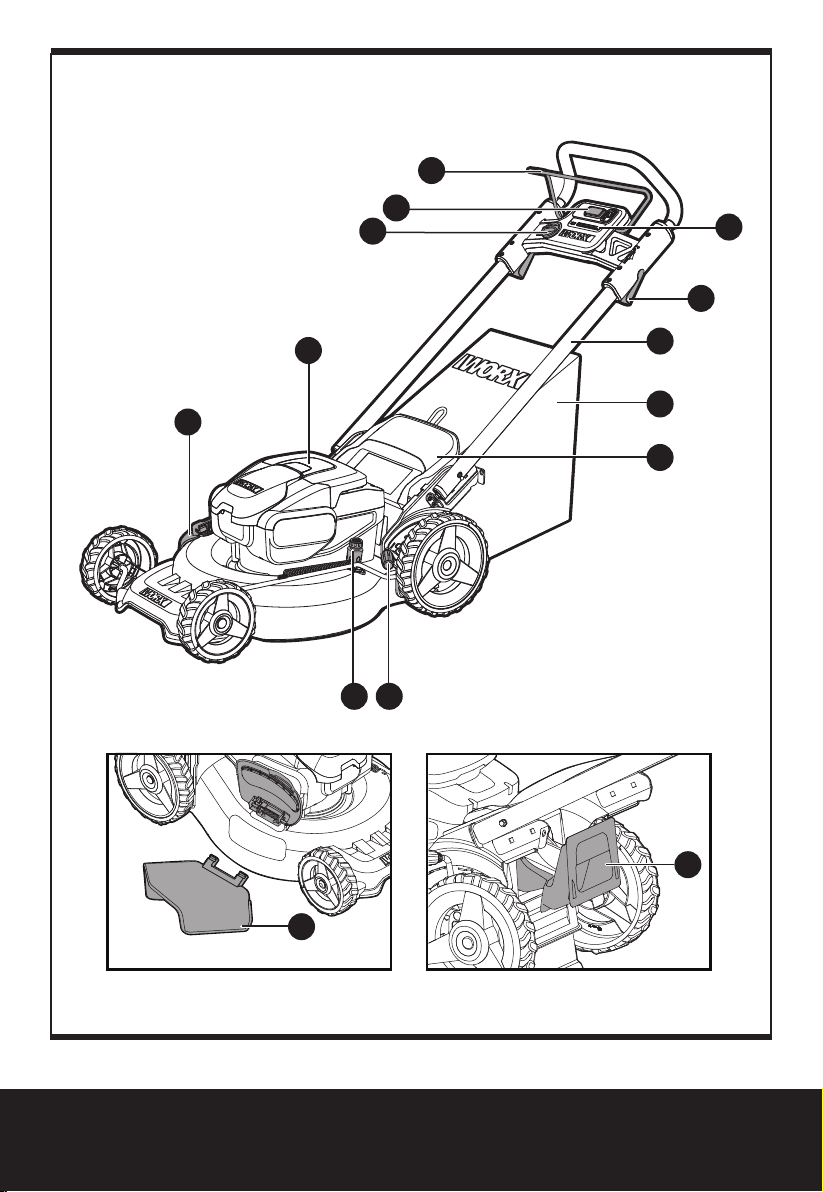

1. OPERATING DAIL
2. SAFETY KEY
3. INTELLICUT DIAL
4. BATTERY HOUSING COVER
5. SIDE-DISCHARGE COVER
6. WASHOUT PORT
7. CUTTING HEIGHT ADJUSTMENT LEVER
8. SAFETY FLAP
9. GRASS COLLECTION BAG
10. HANDLE BAR
11. HANDLE QUICK ADJUST LEVER
12. BATTERY POWER INDICATOR
13. SIDE-DISCHARGE CHUTE
14. MULCHING PLUG
15. BLADE BOLT (See Fig. N1)
16. BLADE (See Fig. N1)
17. FAN (See Fig. N1)
18. SPACER (See Fig. N1)
Not all the accessories illustrated or described are included in standard delivery.

Cordless Lawn Mower EN
10
TECHNICAL DATA
Type WG770E (770-789- designation of machinery, representative of Cordless Lawn
Mower)
Voltage 40V Max*
Cutting diameter 48cm
Cutting height 20-80mm
Cutting height positions 7
Grass collection capacity 50L
Battery capacity 2Ah
Battery type Lithium-ion
Battery model WA3536
Charging time 1hr (Per Battery pack)
Charger model WA3735
Charger rating Input: AC 100-240V~ 50/60Hz
Output: 40V DC, 2.0A
Machine Weight 25kg
*Voltage measured without workload. Initial battery voltage reaches maximum of 40 volts.
Nominal voltage is 36 volts.
NOISE/VIBRATION INFORMATION
A weighted sound pressure LpA : 77dB (A) KpA: 3dB(A)
A weighted sound power LwA:92dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Typical weighted vibration < 2.5m/s2 K=1.5m/s2
ACCESSORY
Battery pack WA3536 2
Charger WA3735 1
Grass collection bag 1
Side-discharge chute 1
Mulching plug 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
