Worx WG724E Installation manual

Electric Lawn Mower WG724E
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS

1
2
3
4
5
6
7
8
9
10
11

7

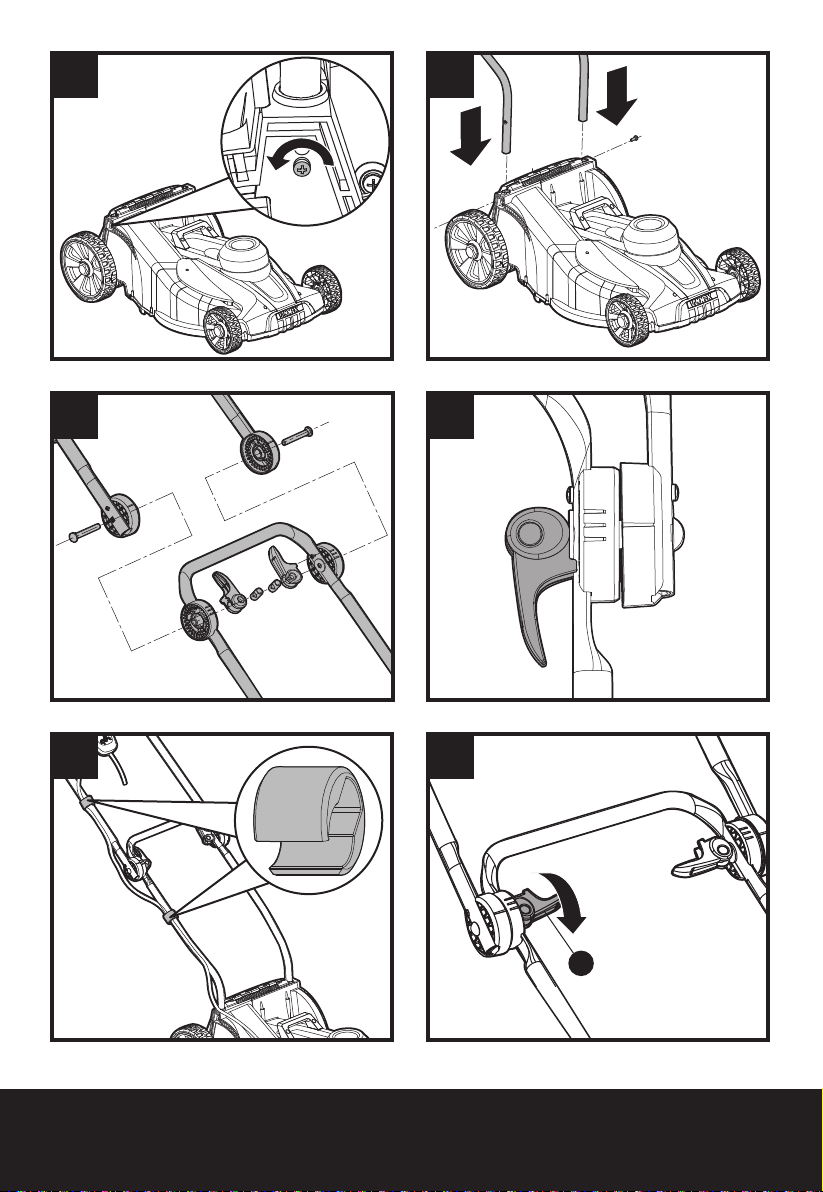

A5 B1
A1 A2
A4
A3

Front Part Back Part
1
2
3
7

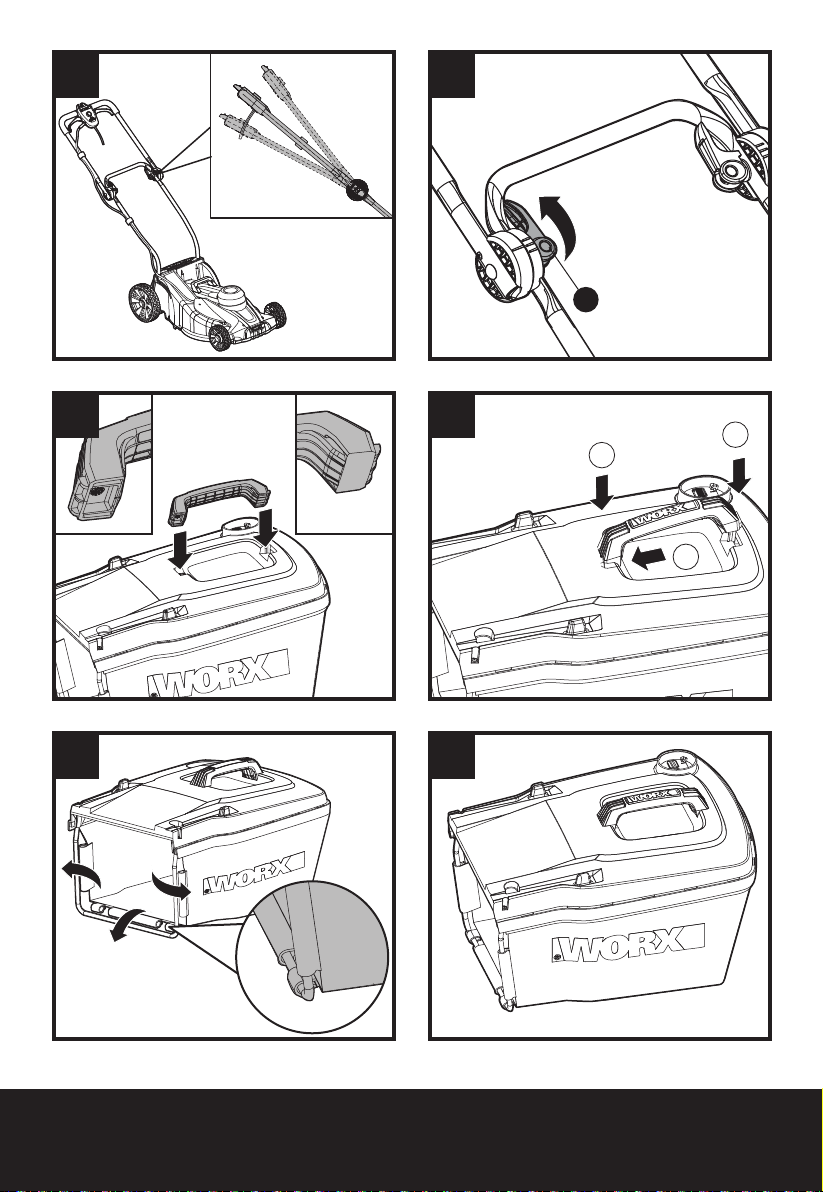

C3 C4
B2 B3
C2
C1

a
a
b
F G

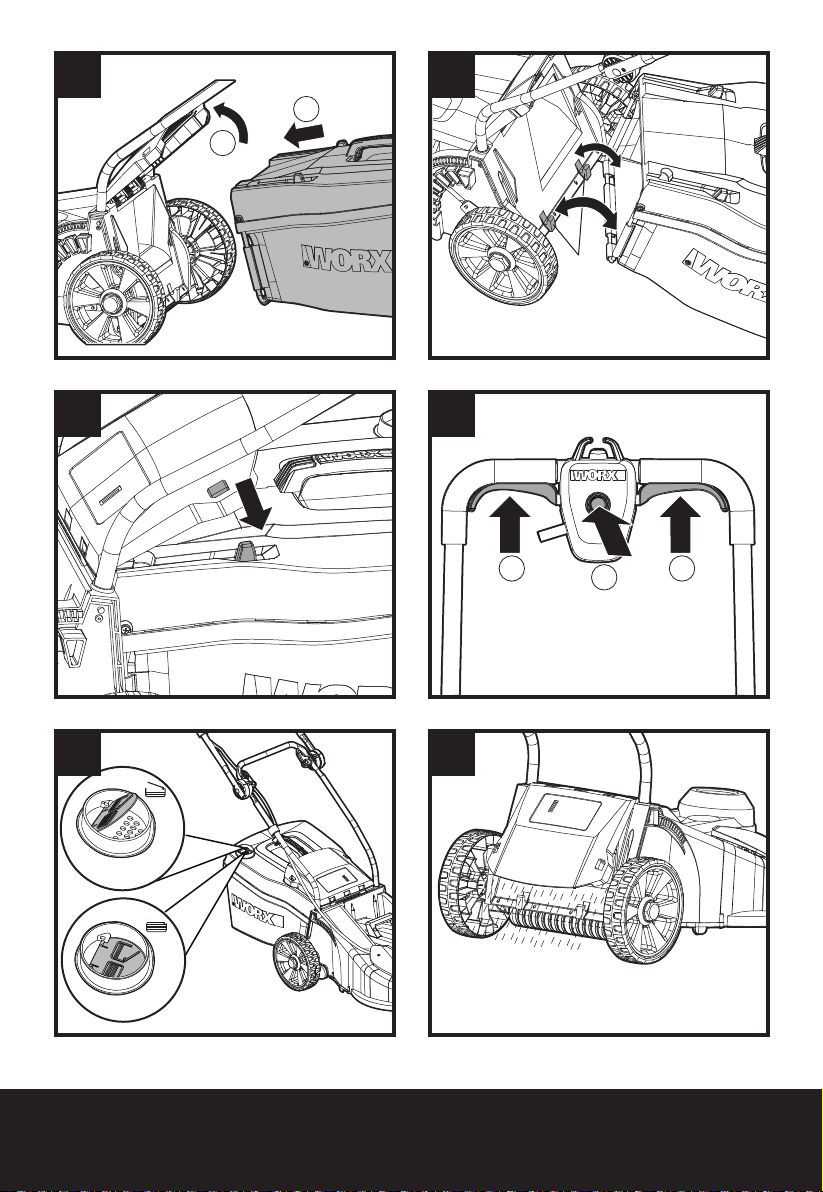

D1 D2
E
D3
1
2
2
1
2

13
12
1
2
H I1
J
I2

8
Electric Lawn Mower WG724E
1. SWITCH LEVER
2. CABLE CLIP
3 GRASS BAG FILLING INDICATOR
4. GRASS COLLECTION BAG
5. SAFETY BUTTON
6. UPPER HANDLE
7. LOCK CAM LEVER
8. LOWER HANDLE
9. SAFETY FLAP
10. CARRY HANDLE
11. MOTOR COVER

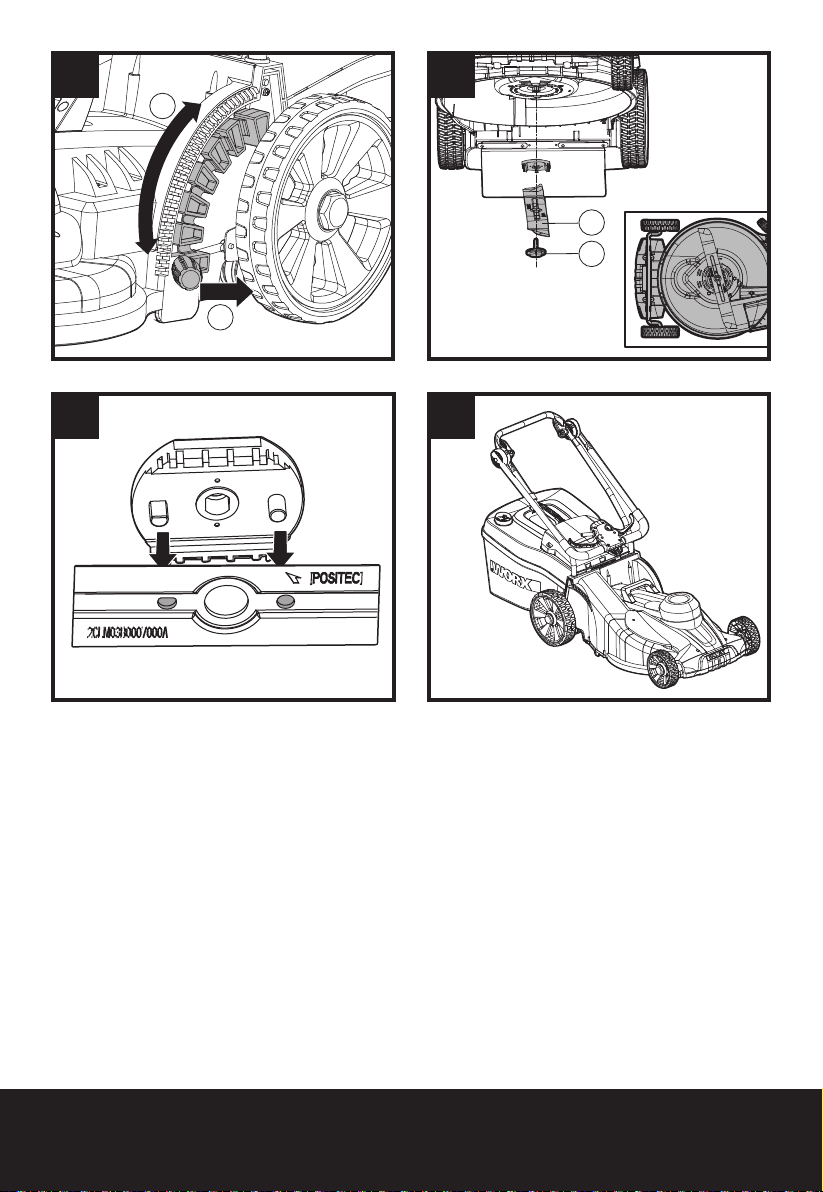

12. BLADE BOLT (SEE FIG I1)
13. BLADE (SEE FIG I1)
Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type WG724E (705-739-designation of machinery,
representative of Electric rotary mower)
Rated voltage 230-240V~50Hz
Rated power 1800W
No load speed 3700/min
Cutting capacity 40cm
Cutting height 20-70mm
Cutting height positions 6
Grass collection capacity 50L
Protection class /II
Machine weight 13.5kg
NOISE AND VIBRATION DATA
A weighted sound pressure LpA: 82dB(A)
KpA: 3dB(A)
A weighted sound power LwA: 95.2dB(A)
Wear ear protection
Vibration information
Typical weighted vibration ah<2.5 m/s2,
uncertainty K=1.5 m/s2
WARNING: The vibration emission value
during actual use of the power tool can differ
from the declared value depending on the ways in
which the tool is used dependant on the following
examples and other variations on how the tool is
used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well
maintained
Using the correct accessory for the tool and
ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any
anti vibration accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation
of exposure level in the actual conditions of
use should also take account of all parts of the
operating cycle such as the times when the tool
is switched off and when it is running idle but not
actually doing the job.This may significantly reduce
the exposure level over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate)
If the tool is to be used regularly then invest in anti
vibration accessories.
Plan your work schedule to spread any high
vibration tool use across a number of days.
ACCESSORIES
Spanner 1
Grass collection bag 1
Lock cam levers 2
Cable clips 2
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.

9
Electric Lawn Mower WG724E
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
fire and/or serious injury.
Save all warnings and
instructions for future
reference.
- This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
- Children should be
supervised to ensure that
they do not play with the
appliance.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.
IMPORTANT
READ CAREFULLY BEFORE
USE.
KEEP FOR FUTURE
REFERENCE.
Safe operating practices
for electrically powered
lawnmowers
Training
a) Read the instructions
carefully. Be familiar with
the controls and the proper
use of the machine.
b) Never allow children or
people unfamiliar with
these instructions to use
the lawnmower. Local
regulations can restrict the
age of the operator.
c) Never operate the machine
while people, especially
children, or pets are nearby.
d) Keep in mind that the
operator or user is
responsible for accidents or
hazards occurring to other
people or their property.
Preparation
a) While operate the machine,
always wear substantial
footwear and long trousers.
Do not operate the
equipment when barefoot
or wearing open sandals.
Avoid wearing clothing that
is loose fitting or that has
hanging cords or ties.

10
Electric Lawn Mower WG724E
b) Thoroughly inspect the area
where the equipment is
to be used and remove all
objects which can be thrown
by the machine.
c) Before using, always
visually inspect to see that
the blade, blade bolt and
the blade assembly are not
worn or damaged. Replace
worn or damaged blades
and bolts in sets to preserve
balance. Replace damaged
and unreadable labels.
d) Before use check the
supply and extension cord
for signs of damage or
aging. If the cord becomes
damaged during the use,
disconnect the cord from
the supply immediately.
DO NOTTOUCHTHE CORD
BEFORE DISCONNECTING
THE SUPPLY. Do not use
the machine if the cord is
damaged or worn.
Operation
a) Operate the machine only in
daylight or in good artificial
light.
b) Avoid operating the
machine in wet grass.
c) Always be sure of your
footing on slopes.
d) Walk, never run.
e) Mow across the face of
slopes, never up and down.
f) Exercise extreme caution
when changing direction on
slopes.
g) Do not mow excessively
steep slopes.
h) Use extreme caution when
reversing or pulling the
lawnmower towards you.
i) Stop the blade(s) if the
lawnmower has to be tilted
for transportation when
crossing surfaces other
than grass, and when
transporting the lawnmower
to and from the area to be
mowed.
j) Never operate the
lawnmower with defective
guards, or without safety
devices, for example
deflectors and/or grass
catchers, in place.
k) Switch on the motor
carefully according to
instructions and with feet
well away from the blade(s).
l) Do not tilt the lawnmower
when switching on the
motor, except if the
lawnmower has to be tilted
for starting. In this case,
do not tilt it more than
absolutely necessary and lift
only the part which is away
from the operator.
m)Do not start the machine
when standing in front of
the discharge.
n) Do not put hands or feet
near or under rotating parts.
