Worx WX423 User manual

WX423 WX423.1
Electric Circular Saw EN
Пила дисковая электрическая RU
Elektriline ketassaag ET
Elektriskais ripzāģis LV
Elektrinis diskinis pjūklas LT
P07
P18
P30
P41
P52

Original instructions EN
Перевод исходных инструкций RU
Algsete juhiste tõlge ET
Oriģinālo instrukciju tulkojums LV
Originalių instrukcijų vertimas LT

5
11
38 2
1
7
12
6
16
9
10
15
4

A
2
13 17 14
1
2
1
C
B
F2
E2E1
D2
F1
D1
2
3
1

F2
E2E1
D2
F1
D1
2
3
1
G1 G2
G3 G4
G5

G1 G2
G3 G4
G5

Electric Circular Saw EN
7
1. LOCK OFF BUTTON
2. SOFT GRIP HANDLE
3. HEX KEY
4. ON/OFF SWITCH
5. SPINDLE LOCK BUTTON
6. LOWER BLADE GUARD
7. LOWER GUARD LEVER
8. FIXED UPPER GUARD
9. DUST EXTRACTION OUTLET
10. VACUUM ADAPTER
11. DEPTH ADJUSTMENT LEVER
12. BASE PLATE
13. SAW BLADE (See Fig. A)
14. BLADE BOLT (See Fig. A)
15. PARALLEL GUIDE
16. PARALLEL GUIDE CLAMPING FIXTURE
17. OUTER FLANGE (See Fig. A)
Not all the accessories illustrated or described are included in standard delivery.

Electric Circular Saw EN
8
TECHNICAL DATA
Type WX423 WX423.1 (4 - designation of machinery, representative of Saw)
Voltage 230–240V~50Hz
Rated power 400W
No load (rated) speed 3600/min
Blade size 85mmx15mm
TCT blade 85mmx1.2mmx15mmx24T
HSS blade 85mmx1.2mmx15mmx44T
Diamond disc 85mmx1.2mmx15mmx60G
Max cutting depth 27mm
Recommended maximum material thickness
Wood 27mm
Aluminum 3mm
PVC pipe (radius) 13mm
Tile 8mm
Sheet steel 0.91mm
Protection class /ll
Bare tool weight 1.4kg
Spindle thread size M5
Saw blade thickness
TCT blade 0.8mm
HSS blade 0.65mm
Diamond disc 0.8mm
NOISE INFORMATION
A weighted sound pressure LpA: 82dB(A)
A weighted sound power LwA: 93dB(A)
KPA& KWA 3.0dB(A)
Wear ear protection.

Electric Circular Saw EN
9
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value:
Cutting wood: ah,W < 2,5m/s2
Uncertainty K = 1.5m/s²
Cutting metal: ah,M < 2,5m/s2
Uncertainty K = 1.5 m/s²
The declared vibration total value may be used for comparing one tool with another, and may
also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool
is switched off and when it is running idle but not actually doing the job.This may
significantly reduce the exposure level over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10°C or less
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
WX423 WX423.1
TCT Blade: 24T for wood 1 1
Parallel Guide 1 1
Vacuum Adaptor 1 1
Hex Key 1 1
Diamond disc / 1
HSS Blade 44T / 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.

Electric Circular Saw EN
10
SAFETY INSTRUCTIONS
FOR ALL SAWS
a) DANGER: Keep hands away from
cutting area and the blade. If both
hands are holding the saw, they cannot be
cut by the blade.
b) Do not reach underneath the
workpiece. The guard cannot protect you
from the blade below the workpiece.
c) Adjust the cutting depth to the
thickness of the workpiece. Less than
a full tooth of the blade teeth should be
visible below the workpiece.
d) Never hold piece being cut in your
hands or across your leg. Secure
the workpiece to a stable platform. It is
important to support the work properly to
minimize body exposure, blade binding, or
loss of control.
e) Hold the power tool by insulated
gripping surfaces only, when
performing an operation where the
cutting tool may contact hidden
wiring or its own cord. Contact with a
“live” wire will also make exposed metal
parts of the power tool “live” and could
give the operator an electric shock.
f) When ripping always use a rip fence
or straight edge guide.This improves
the accuracy of cut and reduces the chance
of blade binding.
g) Always use blades with correct size
and shape (diamond versus round) of
arbour holes. Blades that do not match
the mounting hardware of the saw will run
eccentrically, causing loss of control.
h) Never use damaged or incorrect blade
washers or bolt. The blade washers and
bolt were specially designed for your saw,
for optimum performance and safety of
operation.
FURTHER SAFETY
INSTRUCTIONS FOR ALL
SAWS
Kickback causes and related warnings
- Kickback is a sudden reaction to a pinched,
bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the
workpiece toward the operator.
- When the blade is pinched or bound tightly
by the kerf closing down, the blade stalls
and the motor reaction drives the unit
rapidly back toward the operator.
- If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the
wood causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or
incorrect operating procedures or conditions
and can be avoided by taking proper
precautions as given below.
a) Maintain a firm grip on the saw and
position your arm to resist kickback
forces. Position your body to either
side of the blade, but not in line with
the blade. Kickback could cause the saw
to jump backwards, but kickback forces
can be controlled by the operator, if proper
precautions are taken.
b) When blade is binding, or when
interrupting a cut for any reason,
release the trigger and hold the
saw motionless in the material until
the blade comes to a complete
stop. Never attempt to remove the
saw from the work or pull the saw
backward while the blade is in motion
or kickback may occur. Investigate and
take corrective actions to eliminate the
cause of blade binding.
c) When restarting a saw in the
workpiece, center the saw blade in
the kerf and check that saw teeth are
not engaged into the material. If saw
blade is binding, it may walk up or kickback
from the workpiece as the saw is restarted.
d) Support large panels to minimize the
risk of blade pinching and kickback.
Large panels tend to sag under their own
weight. Supports must be placed under
the panel on both sides, near the line of cut
and near the edge of the panel.
e) Do not use dull or damaged blades.
Unsharpened or improperly set blades
produce narrow kerf causing excessive

Electric Circular Saw EN
11
friction, blade binding and kickback.
f) Blade depth and bevel adjusting
locking levers must be tight and
secure before making cut. If blade
adjustment shifts while cutting, it may
cause binding and kickback.
g) Use extra caution when sawing into
existing walls or other blind areas. The
protruding blade may cut objects that can
cause kickback.
SAFETY INSTRUCTIONS
FOR SAWS WITH INNER
PENDULUM GUARD
Lower Guard Function
a) Check lower guard for proper closing
before each use. Do not operate the
saw if lower guard does not move
freely and close instantly. Never
clamp or tie the lower guard into the
open position. If saw is accidentally
dropped, lower guard may be bent.Raise
the lower guard with the retracting handle
and make sure it moves freely and does
not touch the blade or any other part, in all
angles and depths of cut.
b) Check the operation of the lower
guard spring. If the guard and the
spring are not operating properly,
they must be serviced before use.
Lower guard may operate sluggishly due
to damaged parts, gummy deposits, or a
build-up of debris.
c) Lower guard may be retracted
manually only for special cuts such
as "plunge cuts" and "compound
cuts." Raise lower guard by retracting
handle and as soon as blade enters
the material, the lower guard must be
released. For all other sawing, the lower
guard should operate automatically.
d) Always observe that the lower guard
is covering the blade before placing
saw down on bench or floor. An
unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is
in its path. Be aware of the time it takes for
the blade to stop after switch is released.
ADDITIONAL SAFETY
RULES FOR YOUR
CIRCULAR SAW
1. Always wear a dust mask, hearing
protection and eye protection.
2. Only use saw blades recommended in the
specification.
3. Use only blade diameter(s) in accordance
with the markings.
ADDITIONAL SAFETY
RULES FOR YOUR
CUTTING-OFF MACHINES
a) The guard provided with the tool must
be securely attached to the power
tool and positioned for maximum
safety, so the least amount of wheel
is exposed towards the operator.
Position yourself and bystanders away
from the plane of the rotating wheel.
The guard helps to protect operator from
broken wheel fragments and accidental
contact with wheel.
b) Use only bonded reinforced or
diamond cut-off wheels for your
power tool. Just because an accessory
can be attached to your power tool, it does
not assure safe operation.
C) The rated speed of the accessory
must be at least equal to the
maximum speed marked on the power
tool. Accessories running faster than their
rated speed can break and fly apart.
d) Wheels must be used only for
recommended applications. For
example: do not grind with the side
of cut-off wheel. Abrasive cut-off wheels
are intended for peripheral grinding, side
forces applied to these wheels may cause
them to shatter.
e) Always use undamaged wheel flanges
that are of correct diameter for your
selected wheel. Proper wheel flanges
support the wheel thus reducing the
possibility of wheel breakage.
f) Do not use worn down reinforced
wheels from larger power tools.

Electric Circular Saw EN
12
Wheels intended for a larger power tool
are not suitable for the higher speed of a
smaller tool and may burst.
g) The outside diameter and the
thickness of your accessory must
be within the capacity rating of your
power tool. Incorrectly sized accessories
cannot be adequately guarded or
controlled.
h) The arbour size of wheels and flanges
must properly fit the spindle of
the power tool. Wheels and flanges
with arbour holes that do not match the
mounting hardware of the power tool will
run out of balance, vibrate excessively and
may cause loss of control.
i) Do not use damaged wheels. Before
each use, inspect the wheels for chips
and cracks. If power tool or wheel is
dropped, inspect for damage or install
an undamaged wheel. After inspecting
and installing the wheel, position
yourself and bystanders away from
the plane of the rotating wheel and
run the power tool at maximum no
load speed for one minute. Damaged
wheels will normally break apart during
this test time.
j) Wear personal protective equipment.
Depending on application, use face
shield, safety goggles or safety
glasses. As appropriate, wear dust
mask, hearing protectors, gloves and
shop apron capable of stopping small
abrasive or workpiece fragments.
The eye protection must be capable of
stopping flying debris generated by various
operations.The dust mask or respirator
must be capable of filtrating particles
generated by your operation. Prolonged
exposure to high intensity noise may cause
hearing loss.
k) Keep bystanders a safe distance away
from work area. Anyone entering
the work area must wear personal
protective equipment. Fragments of
workpiece or of a broken wheel may fly
away and cause injury beyond immediate
area of operation.
I) Hold the power tool by insulated
gripping surfaces only, when
performing an operation where
the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may
make exposed metal parts of the power
tool “live” and could give the operator an
electric shock.
m)Position the cord clear of the spinning
accessory. lf you lose control, the cord
may be cut or snagged and your hand or
arm may be pulled into the spinning wheel.
n) Never lay the power tool down until
the accessory has come to a complete
stop. The spinning wheel may grab the
surface and pull the power tool out of your
control.
o) Do not run the power tool while
carrying it at your side. Accidental
contact with the spinning accessory could
snag your clothing, pulling the accessory
into your body.
p) Regularly clean the power tool’s air
vents. The motor’s fan will draw the
dust inside the housing and excessive
accumulation of powdered metal may
cause electrical hazards.
q) Do not operate the power tool near
flammable materials. Sparks could ignite
these materials.
r) Do not use accessories that require
liquid coolants. Using water or other
liquid coolants may result in electrocution
or shock.
KICKBACK AND RELATED
WARNINGS
Kickback is a sudden reaction to a pinched or
snagged rotating wheel. Pinching or snagging
causes rapid stalling of the rotating wheel
which in turn causes the uncontrolled power
tool to be forced in the direction opposite of
the wheel’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged
or pinched by the workpiece, the edge of the
wheel that is entering into the pinch point can
dig into the surface of the material causing
the wheel to climb out or kick out.The wheel

Electric Circular Saw EN
13
may either jump toward or away from the
operator, depending on direction of the
wheel’s movement at the point of pinching.
Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse
and/or incorrect operating procedures or
conditions and can be avoided by taking
proper precautions as given below.
a) Maintain a firm grip on the power
tool and position your body and
arm to allow you to resist kickback
forces. Always use auxiliary handle, if
provided, for maximum control over
kickback or torque reaction during
start-up.The operator can control torque
reactions or kickback forces, if proper
precautions are taken.
b) Never place your hand near the
rotating accessory. Accessory may
kickback over your hand.
C) Do not position your body in line with
the rotating wheel. Kickback will propel
the tool in direction opposite to the wheel’s
movement at the point of snagging.
d) Use special care when working
Corners, sharp edges etc. Avoid
bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory
and cause loss of control or kickback.
e) Do not attach a saw chain,
woodcarving blade, segmented
diamond wheel with a peripheral
gap greater than 10mm or toothed
saw blade. Such blades create frequent
kickback and loss of control.
f) Do not “jam” the wheel or apply
excessive pressure. Do not attempt
to make an excessive depth of cut.
Overstressing the wheel increases the
loading and susceptibility to twisting or
binding of the wheel in the cut and the
possibility of kickback or wheel breakage.
g) When wheel is binding or when
interrupting a cut for any reason,
switch off the power tool and hold
the power tool motionless until the
wheel Comes to a complete stop.
Never attempt to remove the wheel
from the cut while the wheel is in
motion otherwise kickback may occur.
lnvestigate and take corrective action to
eliminate the cause of wheel binding.
h) Do not restart the cutting operation
in the workpiece. Let the wheel reach
full speed and carefully re-enter the
cut. The wheel may bind, walk up or
kickback if the power tool is restarted in the
workpiece.
i ) Support panels or any oversized
workpiece to minimize the risk of
wheel pinching and kickback. Large
workpieces tend to sag under their own
weight. Supports must be placed under the
workpiece near the line of cut and near the
edge of the workpiece on both sides of the
wheel.
j) Use extra caution when making a
“pocket cut” into existing walls or
other blind areas. The protruding wheel
may cut gas or water pipes, electrical
wiring or objects that can cause kickback.
ADDITIONAL SAFETY
RULES
1. Always wear a dust mask.

Electric Circular Saw EN
14

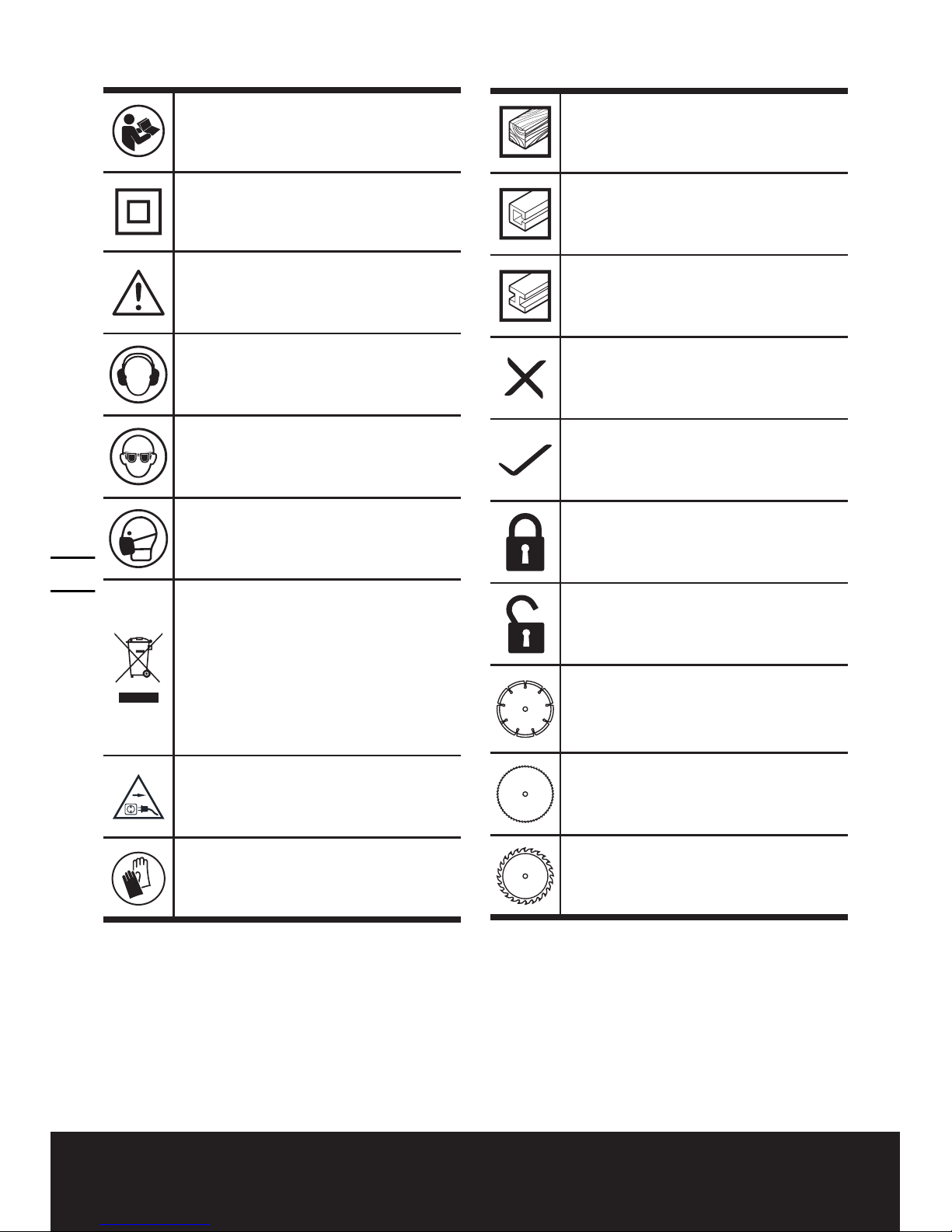

To reduce the risk of injury, user
must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products must not
be disposed of with household
waste. Please recycle where
facilities exist. Check with your local
authorities or retailer for recycling
advice.
Before any work on the machine
itself, pull the mains plug from the
socket outlet.
Wear protective gloves
SYMBOLS
Wood
Aluminium
Metal
Incorrect
Correct
Lock
Unlock
Diamond disc
HSS blade
TCT blade

Electric Circular Saw EN
15
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE:
The tool is intended for ripping and cross-
cutting wood and other materials in straight
cutting lines, while resting firmly on the work
piece.
ASSEMBLY AND OPERATION
Action Figure
Saw blade Assembly and
Removing See Fig. A
Safety On/Off Switch See Fig. B
Sawdust Removal See Fig. C
Cross and Rip Cutting See Fig. D1, D2
Parallel Guide See Fig. E1, E2
Cutting Depth Adjusting See Fig. F1, F2
Pocket Cutting See Fig. G1,
G2, G3, G4, G5
WORKING HINTS FOR YOUR
TOOL
If your power tool becomes too hot, please
run your circular saw no load for 2-3 minutes
to cool the motor. Avoid prolonged usage at
very low speeds.
Protect saw blades against impact and shock.
Cutting with extreme force can significantly
reduces the performance capability of the tool
and reduces the service life of the saw blade.
Sawing performance and cutting quality
depend essentially on the condition and the
tooth count of the saw blade.Therefore, use
only sharp saw blades that are suited for the
material being cut.
Choice of blades: 24 teeth for general work,
approx. 40 teeth for finer cuts, more than 40
teeth for very fine cuts into delicate surfaces,
diamond for tile, cement board, etc.
Only use saw blades recommended.
MAINTAIN TOOLS WITH
CARE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Keep tools sharp and clean for better and
safer performance. Follow instructions for
lubricating and changing accessories. Inspect
tool cords periodically and if damaged, have
repaired by authorized service facility.Your
power tool requires no additional lubrication
or maintenance.There are no user serviceable
parts in your power tool. Never use water or
chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store
your power tool in a dry place. Keep the
motor ventilation slots clean. Keep all working
controls free of dust.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
Periodically clear dust and chips from guard
and base to ensure proper performance.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or retailer for
recycling advice.

Electric Circular Saw EN
16
TROUBLE SHOOTING
Symptom Possible Causes Possible Solution
Tool will not start when
operating the on/off switch.
Power cord not plugged in.
Power cord is broken.
Carbon brush has worn
down
Check to make sure power cord
is connected well into a working
outlet.
Unplug the power cord. Replace
it using a qualified maintenance
person.
Replace the carbon brush using a
qualified maintenance person.
Cutting depth is less than
that is set.
Sawdust accumulated at
the rear of the base.
Shake out sawdust. Consider
connecting a vacuum for dust
collection.
Blade spins or slips Blade is not tightly
engaged with the spindle.
Remove the blade, and
reassemble it as described in
Saw blade Assembly and
Removing section.
Blade will not cut a straight
line.
Blade is dull.
Blade is not mounted
properly.
Saw is not being guided
properly.
Mount a new, sharp blade on
the saw.
Check that blade is properly
mounted.
Use a parallel guide.
Blade kicks back when
beginning a cut
Blade is not spinning fast
enough
Allow the saw blade to reach full
speed prior to beginning a cut in
the material.

Electric Circular Saw EN
17
PLUG REPLACEMENT
( UK & IRELAND ONLY )
If you need to replace the fitted plug then
follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
BLUE =NEUTRAL
Brown = Live
As the colors of the wires in the mains lead of
this appliance may not correspond with the
colored markings identifying the terminals
in your plug, proceed as follows.The wire
which is colored blue must be connected to
the terminal which is marked with N.The wire
which is colored brown must be connected to
the terminal which is marked with L.
WARNING! Never connect live or neutral
wires to the earth terminal of the plug. Only
fit an approved 13ABS1363/A plug and the
correct rated fuse.
NOTE: If a moulded plug is fitted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed
to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Konrad-Adenauer-Ufer 37
50668 Köln
Declare that the product,
Description WORX Electric Circular Saw
Type WX423 WX423.1 (4-designation of
machinery, representative of Saw)
Function Cutting various materials with a
rotating toothed blade
Complies with the following Directives,
2006/42/EC
2004/108/EC
2011/65/EU
Standards conform to:
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
EN 60745-1
EN 60745-2-5
EN 60745-2-22
The person authorized to compile the technical
file,
Name: Russell Nicholson
Address: Positec Power Tools (Europe)
Ltd, PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2014/12/24
Allen Ding
Deputy Chief Engineer,Testing & Certification

Пила дисковая электрическая RU
19
18
1. КНОПКА БЛОКИРОВКИ ВЫКЛЮЧАТЕЛЯ
2. МЯГКАЯ НАКЛАДКА НА РУКОЯТКЕ
3. ГАЕЧНЫЙ КЛЮЧ
4. ВЫКЛЮЧАТЕЛЬ ПИТАНИЯ
5. КНОПКА БЛОКИРОВКИ ШПИНДЕЛЯ
6. НИЖНЕЕ ОГРАЖДЕНИЕ ДИСКА
7. РЫЧАГ ПОДВИЖНОГО КОЖУХА
8. ФИКСИРОВАННАЯ ВЕРХНЯЯ ЧАСТЬ ОГРАЖДЕНИЯ
9. ВЫХОД ПЫЛЕУДАЛЕНИЯ
10. АДАПТЕР ПЫЛЕОТВОДА
11. РЫЧАГ НАСТРОЙКИ ГЛУБИНЫ ПРОПИЛА
12. ПЛИТА ОСНОВАНИЯ
13. ПИЛЬНЫЙ ДИСК (См. A)
14. ПРИЖИМНОЙ БОЛТ ДИСКА (См. A)
15. ПАРАЛЛЕЛЬНЫЙ УПОР
16. ЗАЖИМНОЕ УСТРОЙСТВО ПАРАЛЛЕЛЬНОЙ НАПРАВЛЯЮЩЕЙ
17. ШАЙБА ПРИЖИМНАЯ (См. A)
Не все принадлежности, иллюстрированные или описанные включены в
стандартную поставку.

Пила дисковая электрическая RU
19
18
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Моделей WX423 WX423.1(4-обозначение инструмента, класс пил)
Номинальное напряжение: 230 – 240В~ 50Гц
Потребляемая мощность 400Вт
Скорость без нагрузки 3600/мин
Диаметр пильного диска 85mmx15mm
Ленточная пила с режущими частями из карбида вольфрама 85ммX1.2ммX15ммX24T
Пила из инструментальной стали 85ммX1.2ммX15ммX44T
Алмазный диск 85ммX1.2ммX15ммx60G
Максимальная глубина разреза 27мм
Рекомендуемая максимальная толщина материала
дерево 27мм
Алюминий 3мм
Полихлорвиниловая трубка(диаметр) 13мм
Плитка 8мм
Тонколистовое железо 0.91мм
Двойная изоляция /ll
Вес 1.4кг
Размер резьбы шпинделя M5
Толщина диска пилы
Ленточная пила с режущими частями из карбида вольфрама 0.8мм
Пила из инструментальной стали 0.65мм
Алмазный диск 0.8мм
ХАРАКТЕРИСТИКИ ШУМА
Звуковое давление LpA: 82Дб(A)
Акустическая мощность LwA: 93Дб(A)
KPA& KWA 3.0Дб(A)
Наденьте защиту слуха.

Пила дисковая электрическая RU
21
20
ХАРАКТЕРИСТИКИ ВИБРАЦИИ
Суммарные значения вибрации, определенные согласно EN 60745:
Уровень вибрации:
Обрезка дерева: ah,W < 2,5m/s2
Погрешность K = 1.5m/s²
Обрезка металла: ah,M < 2,5m/s2
Погрешность K = 1.5 m/s²
Заявленное общее значение вибрации может использоваться для сравнения инструментов
между собой, а также для предварительной оценки воздействия.
ВНИМАНИЕ: вибрация, производимая при работе механизированного инструмента, может отличаться от заявленных значений в зависимости от способов использования
устройства. Ниже перечислены некоторые условия, от которых зависит интенсивность вибрации:
Способ использования инструмента и свойства обрабатываемого материала.
Состояние инструмента и уровень техобслуживания
Тип используемых принадлежностей и их техническое состояние.
Сила удержания рукояток и наличие противовибрационных средств.
Используемые рабочие инструменты, соответствие применения инструментов их назначению.
При неправильном обращении данное устройство может стать причиной
синдрома дрожания рук
ВНИМАНИЕ: для точной оценки воздействия вибрации во время эксплуатации необходимо также учитывать все этапы рабочего процесса, включая время, когда
устройство выключено или включено, но бездействует. Эти перерывы значительно снижают
общее влияние вибрации в ходе всего рабочего цикла.
Следующие рекомендации помогут снизить опасность воздействия вибрации при работе.
ВСЕГДА пользуйтесь только острыми инструментами (резцами, сверлами, пилами и т.д.)
Проводите техобслуживание в соответствии с указаниями, тщательно смазывайте устройство в
соответствующих местах
Если устройство используется регулярно, приобретите противовибрационные средства.
Избегайте применения устройства при температурах ниже 10oC
Распределите задачи так, чтобы работы, сопровождающиеся высоким уровнем вибрации,
проводились через большие промежутки времени.
ПРИНАДЛЕЖНОСТИ
WX423 WX423.1
Режущий диск с твердосплавными напайками: 24T для
дерева 1 1
Параллельный упор 1 1
Адаптер пылеотвода 1 1
Гаечный ключ 1 1
Алмазные диски /1
Пильный Диск (44T HSS) /1
Рекомендуется приобретать все принадлежности в том же магазине, где был приобретен
инструмент. Используйте качественные принадлежности с указанием общеизвестной
торговой марки. За более подробной информацией обратитесь к разделу «Рекомендации по
использованию перфоратора» в этой инструкции или сведениям на упаковке принадлежностей.
Помощь и консультацию можно также получить у продавца.
