Cordless Pruning Saw EN
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool.
Failure
to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts.
Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A
moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool.
Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of
dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles.
A careless action
can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct
power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous
in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use.
Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and

11
Cordless Pruning Saw EN
the work to be performed.
Use of the power tool
for operations different from those intended could
result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease.
Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically
designated battery packs.
Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another.
Shorting the battery terminals together
may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
e) Do not use a battery pack or tool that is damaged
or modified.
Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature.
Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside
the specified range may damage the battery and
increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power
tool is maintained.
b) Never service damaged battery packs.
Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
1) General pruning saw safety warnings:
a) Keep all parts of the body away from the saw
chain when the pruning saw is operating.
Before you start the pruning saw, make sure
the saw chain is not contacting anything.
A
moment of inattention while operating pruning
saws may cause entanglement of your clothing or
body with the saw chain.
b) Always hold the pruning saw with your right
hand on the rear handle and your left hand on
the front handle.
Holding the pruning saw with a
reversed hand configuration increases the risk of
personal injury and should never be done.
c) Hold the pruning saw by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring.
Saw chains contacting
a live wire may make exposed metal parts of the
pruning saw live and could give the operator an
electric shock.
d) Wear safety glasses protection. Further
protective equipment for hearing, head,
hands, legs and feet is recommended.
Adequate
protective clothing will reduce personal injury by
flying debris or accidental contact with the saw chain.
e) Do not operate a pruning saw in a tree, on a
ladder, from a rooftop, or any unstable support.
Operation of a pruning saw in this manner could
result in serious personal injury.
f) Always keep proper footing and operate the
pruning saw only when standing on fixed,
secure and level surface.
Slippery or unstable
surfaces may cause a loss of balance or control of
the pruning saw.
g) When cutting a limb that is under tension , be
alert for spring back.
When the tension in the
wood fibres is released , the spring loaded limb may
strike the operator and/or throw the pruning saw
out of control.
h) Use extreme caution when cutting brush and
saplings.
The slender material may catch the saw
chain and be whipped toward you or pull you off
balance.
i) Carry the pruning saw by the front handle with
the pruning saw switched off and away from
your body. When transporting or storing the
pruning saw , always fit the guide bar cover.
Proper handling of the pruning saw will reduce the
likelihood of accidental contact with the moving
saw chain.
j) Follow instructions for lubricating, chain
tensioning and changing the bar and chain.
Improperly tensioned or lubricated chain may either
break or increase the chance for kickback.
k) Cut wood only. Do not use pruning saw for
purposes not intended. For example: do not use
pruning saw for cutting metal, plastic, masonry
or non-wood building materials.
Use of the
pruning saw for operations different than intended
could result in a hazardous situation.
l) This pruning saw is not intended for tree
felling.
Use of the pruning saw for operations
different than intended could resultin serious
injury to the operator or bystanders.
m) Follow all instructions when clearing jammed
material, storing or servicing the pruning saw.
Make sure the switch is off and the battery
pack is removed.
Unexpected actuation of the
pruning saw while clearing jammed material or
servicing may result in serious personal injury.
n) Recommendation that the first-time user
should, as a minimum, practise cutting logs on
a saw-horse or cradle.
o) Recommendation to have sharpening and
maintenance of the saw chain performed by
authorised service centres.

12
Cordless Pruning Saw EN
2) Causes and operator prevention of kickback:
Kickback may occur when the nose or tip of the guide
bar touches an object, or when the wood closes in and
pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden reverse
reaction, kicking the guide bar up and back towards the
operator.
Pinching the saw chain along the top of the guide bar may
push the guide bar rapidly back towards the operator.
Either of these reactions may cause you to lose control
of the saw which could result in serious personal
injury. Do not rely exclusively upon the safety devices
built into your saw. As a pruning saw user, you should
take several steps to keep your cutting jobs free from
accident or injury.
Kickback is the result of pruning saw misuse and/or
incorrect operating procedures or conditions and can
be avoided by taking proper precautions as given below:
a) Maintain a firm grip, with thumbs and fingers
encircling the pruning saw handles, with both
hands on the saw and position your body and
arm to allow you to resist kickback forces.
Kickback forces can be controlled by the operator,
if proper precautions are taken. Do not let go of the
pruning saw.
b) Do not overreach and do not cut above shoulder
height.
This helps prevent unintended tip contact
and enables better control of the pruning saw in
unexpected situations.
c) Only use replacement bars and chains
specified by the manufacturer.
Incorrect
replacement guide bars and saw chains may cause
chain breakage and/or kickback.
d) Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to
increased kickback.
Residual risks
Even with the intended use of the appliance there
is always a residual risk, which can not prevented.
According to the type and construction of the appliance
the following potential hazards might apply:
- Contact with exposed saw teeth of the saw chain
(cutting hazards)
- Access to the rotating saw chain (cutting hazards)
- Unforeseen, abrupt movement of the guide bar
(cutting hazards)
- Flung out of parts from the saw chain (Cutting /
injection hazards)
- Flung out of parts of the work piece
- Skin contact with the oil
- Loss of hearing, if no required ear protection used
during work
For pruning saw with the extended pole safety
warnings
1. Do not use the machine when the operator is tired,
ill or under the influence of alcohol or other drugs.
2. To reduce the risk, please keep bystanders at a safe
distance from the machine during its operation.
3. Be aware of the dangerous of operating positions,
as well as the risk of being struck by falling
branches or branches that, having hit the ground,
rebound, the operator may be struck by falling
branches or by those that rebound after hitting the
ground. Remove the branches in sections.
4. Keep a firm footing and balance during operating.
Use the harness provided.
5. Keep the machine a sufficient distance away from
overhead electrical power lines.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or battery
pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use, keep
it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery terminals
together may cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow
the liquid to come into contact with the skin
or eyes. If contact has been made, wash the
affected area with copious amounts of water
and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean
dry cloth if they become dirty.
i) Battery pack needs to be charged before use.
Always refer to this instruction and use the
correct charging procedure.
j) Do not maintain battery pack on charge when
not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
l) Recharge only with the charger specified
by Worx. Do not use any charger other than
that specifically provided for use with the
equipment.
m) Do not use any battery pack which is not
designed for use with the equipment.
n) Keep battery pack out of the reach of children.
o) Retain the original product literature for future
reference.
p) Remove the battery from the equipment when
not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture,
capacity, size or type within a device.

13
Cordless Pruning Saw EN
s) Do not remove battery pack from its original
packaging until required for use.
t) Observe the plus (+) and minus (–) marks on the
battery and ensure correct use.
SAVE THESE INSTRUCTIONS
Instructions concerning the proper techniques for
limbing and cross-cutting
1. Limbing a tree
Limbing is removing the branches from a fallen tree.
When limbing leave larger lower limbs to support the
log off the ground. Remove the small limbs in one cut as
illustrated in Figure 1. Branches under tension should
be cut from the bottom up to avoid binding the pruning
saw.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 1
2. Bucking a log
Bucking is cutting a log into lengths. It is important to
make sure your footing is firm and your weight is evenly
distributed on both feet. When possible, the log should
be raised and supported by the use of limbs, logs or
chocks. Follow the simple directions for easy cutting.
When the log is supported along its entire length as
illustrated in Figure 2, it is cut from the top (overbuck),
avoid contacting ground as this will greatly reduce the
chain sharpness.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 2
When the log is supported on one end, as illustrated
in Figure 3, cut 1/3 the diameter from the underside
( underbuck) (1). Then make the finished cut by
overbucking (2) to meet the first cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 3
When the log is supported on both ends, as illustrated
in Figure 4, cut 1/3 the diameter from the top (overbuck)
(1). Then make the finished cut by underbucking (2) the
lower 2/3 to meet the first cut.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 4
When bucking on a slope always stand on the uphill
side of the log, as illustrated in Figure 5. When “cutting
through”, to maintain complete control release the
cutting pressure near the end of the cut without relaxing
your grip on the pruning saw handles. Don’t let the chain
contact the ground. After completing the cut, wait for
the saw chain to stop before you move the pruning saw.
Always stop the motor before moving from tree to tree.
3
22
W
YZ
X
2˝
2˝
1
1
1
2
2/3
1
1/3
12
2/3
1/3
Figure 5

14
Cordless Pruning Saw EN

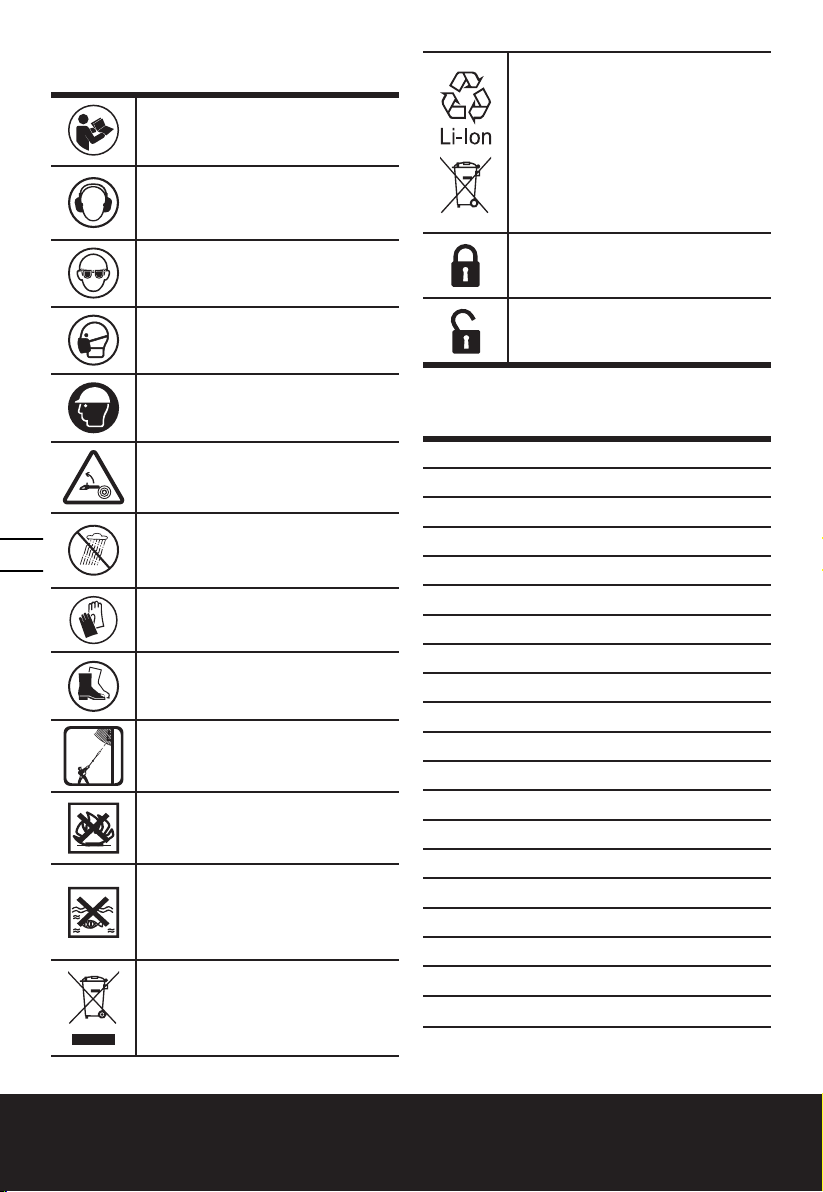

SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Wear head protection
Beware of pruning saw kickback and
avoid contact with bar tip
Do not expose to rain
Wear protective gloves
Wear protective footwear
10m
Warning of danger from overhead
electric-power lines
Do not burn
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.
Waste electrical products must not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.
Li-Ion battery. This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will then
be recycled or dismantled in order to
reduce the impact on the environment.
Battery packs can be hazardous
for the environment and for human
health since they contain hazardous
substances.
Lock
Unlock
COMPONENT LIST
1. CHAIN GUARD
2. HOUSINGCOVER KNOB
3. SECONDARY GRIP AREA
4. LOCKOUT BUTTON
5. ONOFF SWITCH
6. GRIP AREA
7. BATTERY PACK
8. BATTERY PACK RELEASE BUTTON
9. CHAIN TENSIONING TOOL
10. HAND GUARD
11. HOUSINGCOVER
12. CHAIN
13. GUIDE BAR
14. CHAIN TENSIONING SCREW
15. BASE PLATE
16. BAR PAD
17. DRIVE SPROCKET
18. FASTENING BAR BOLT
19. BAR LOCATING TAB
20. BAR AND CHAIN SHEATHSCABBARD

15
Cordless Pruning Saw EN
21. LOCKOUT BUTTON ON EXTENSION POLE
HANDLE
22. EXTENSION POLE HANDLE
23. ONOFF SWITCH ON EXTENSION POLE
HANDLE
24. LOCKING KNOB
25. EXTENSION POLE RELEASE BUTTON
26. CLAMPING LEVER
* Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type WG324E WG324E.1 WG324E.9 (3 - designation
of machinery, representative of battery-operated
pruning saw)
WG324E WG324E.1 WG324E.9
Voltage 20 V Max.**
Bar length 12 cm
Chain speed 6.7 m/s
Chain pitch 7.6 mm
Number of chain
drive links 28
Chain gauge 1.1 mm
Adaptive chain
type WA0142
Adaptive guide
bar type WA0151
Charging time 1 hr 1 hr /
Extension pole
length / 125 cm /
Maximum cutting
height /275 cm /
Extension pole
weight /1.1 kg /
Machine weight
(chain & bar
included) 1.75 kg 2.8 kg 1.38 kg
** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts.
NOISE INFORMATION
A weighted sound pressure LpA = 79 dB(A)
KpA 3 dB(A)
A weighted sound power LwA = 88.11 dB(A)
KpA 3 dB(A)
Wear ear protection.
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined
according to EN 62841:
Vibration emission value: ah< 2.5 m/s2
Uncertainty K = 1.5 m/s
The declared vibration total value and the declared noise
emission value have been measured in accordance with
a standard test method and may be used for comparing
one tool with another.
The declared vibration total value and the declared
noise emission value may also be used in a preliminary
assessment of exposure.
WARNING: The vibration and noise emissions during
actual use of the power tool can differ from the
declared value depending on the ways in which the tool is
used especially what kind of workpiece is processed
dependant on the following examples and other variations
on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring
it is sharp and in good condition.
The tightness of the grip on the handles and if any anti
vibration and noise accessories are used.
And the tool is being used as intended by its design and
these instructions.
This tool may cause hand-arm vibration syndrome
if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure
level in the actual conditions of use should also take
account of all parts of the operating cycle such as the
times when the tool is switched off and when it is running
idle but not actually doing the job. This may significantly
reduce the exposure level over the total working period.
Helping to minimise your vibration and noise exposure
risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions
and keep well lubricated (where appropriate).

16
Cordless Pruning Saw EN
If the tool is to be used regularly then invest in anti
vibration and noise accessories.
Plan your work schedule to spread any high vibration tool
use across a number of days.
ACCESSORIES
WG324E WG324E.1 WG324E.9
Chain (WA0142) 1 1 1
Guide bar (WA0151) 1 1 1
Lubrication oil 1 1 1
Bar and Chain
Sheath/Scabbard 1 1 1
Charger (WA3880) 1 1 /
Battery (WA3551) 1 1 /
Extension pole
(WA4301) / 1 /
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel
can assist you and offer advice.
INTENDED USE
• The mini pruning saw is intended for cutting only wood
and branches up to a diameter corresponding to the
length of the pruning saw guide bar.
• The mini pruning saw must be used at ground level or
from a suitable platform that is completely stable and
secure.
• During using, the mini pruning saw should be held in
both hands, right hand on the Grip Area and left hand on
the Secondary Grip Area.
• The mini pruning saw is intended for outdoor use only.
• The mini pruning saw is not intended for any other use.
• Mounting of parts on the mini pruning saw is
authorized only for original or manufacturer-approved
spare parts (chain guides or saw chains for example)
as well as for authorized chain guide / saw chain
combinations as indicated in the manual.
• The user is responsible for any accident resulting from
improper use or unauthorized modification of the mini
pruning saw.
ASSEMBLY
WARNING! Do not install the battery pack before
it has been completely assembled.
Always use gloves when handling the chain.
MOUNTING THE SAW CHAIN
1. Unpack all parts carefully. Remove the Housing-
Cover by turning the Housing-Cover Knob in a
counterclockwise direction. (See Fig. A1)
2. Place the pruning saw on a solid, level surface.
3. Use only genuine Worx Chains or those
recommended for Guide Bar.
4. Slide the Chain in the slot around the Guide Bar.
Ensure the Chain is in correct running direction by
comparing it to the chain icon on the Guide Bar, or
referring to the chain direction symbol found on the
saw body. (See Fig. A2)
5. Fit the Chain onto the Drive Sprocket, so that the
Fastening Bar Bolt and the Bar Locating Tab on the
Bar Pad fit into the keyway of the opening on the
Guide Bar. (See Fig. B1, B2)
6. Assure all parts are seated properly. Make sure the
drive links are fully seated in the Drive Sprocket (See
Fig. C1), avoiding a kink as shown in Fig. C2. If kink
occurs, pick up the Chain at the Guide Bar just ahead
of the kink and then pull the kink out.
NOTE: Chain should rotate freely and be free of kinks.
7. Fit the Chain Cover and tighten the Chain Cover by
turning the Housing-Cover Knob clockwise until it is
tight. (See Fig. D)
WARNING: The Chain is not yet tensioned.
Tensioning the Chain applies as described under
“TENSIONING CHAIN”. The Chain now needs to be
inspected to make sure it is properly tensioned.
TENSIONING CHAIN (See Fig. E1, E2, E3)
NOTE: New saw chains will stretch. Check the chain
tension frequently when first used and tighten when the
Chain becomes loose around the Guide Bar.
WARNING:
• Removing the battery pack before adjusting
saw chain tension.
• Cutting edges on chain are sharp. Use protective
gloves when handling chain.
• Maintain proper chain tension always. A loose
chain will increase the risk of kickback. A loose
chain may jump out of guide bar groove. This may
injure operator and damage chain. A loose chain
will cause chain, bar, and sprocket to wear rapidly.
1. Place the pruning saw on any suitable flat surface.
2. Loosen the Housing-Cover Knob a bit to loosen the
Chain Cover lightly.
3. Adjust the chain tension. Turn the Chain Tensioning
Screw clockwise to tighten. (See Fig. E1)
4. The correct chain tension is reached when the Chain
can be raised approx. half the drivelink depth from
the Guide Bar in the center. (See Fig. E2)
5. Tighten the Housing-Cover Knob to secure the Chain
Cover. (See Fig. E3)
NOTE: The Chain is properly tensioned when it can
be lifted off of the Guide Bar and the drivelink is
within the rail of the Guide Bar.
NOTE: The chain will naturally stretch and lose
proper tension under general use. To re-tention,
repeat steps 1-5 listed above.
ASSEMBLING THE EXTENSION POLE (Only for
WG324E.1)
Align and insert the handle of extension pole into the
shaft. Rotate the Locking Knob clockwise to lock. (See
Fig. F1, F2)
NOTE: Make sure that the shaft is firmly locked in place.

17
Cordless Pruning Saw EN
ASSEMBLING THE EXTENSION POLE TO THE MACHINE
(See Fig F3, F4)
Step 1: Align and insert the extension pole into the saw.
Step 2: Hang the buckle on the hook of the saw. Press
the Clamping Lever to tighten the extension pole to the
machine.
NOTE: Make sure the extension pole is locked into
position securely before operation.
REMOVING THE EXTENSION POLE (See Fig. F5)
Loosen the Clamping Lever to release the buckle. Press
the Extension Pole Release Button to disconnect the
extension pole with the saw.
WARNING! When using this machine with the
Extension Pole, make sure that the battery pack has
been removed.
LUBRICATION
NOTE: Chain life and cutting capacity depend on
optimum lubrication. Therefore, the chain should
be oiled before operation.
IMPORTANT It is important to use bar and chain
lubricant that is formulated to perform over a
wide temperature range with no dilution required.
This can be found at the location where you
purchased this saw or your local hardware store. Do
not use dirty, used or otherwise contaminated oil.
Damage may occur to the bar or chain. Use of
non-approved oil will void the warranty.
Do not swallow. If swallowed, call a physician
immediately. Keep out of reach of children. Store
away from heat or open flame.
1. Switch off the pruning saw and remove the battery.
2. Place the pruning saw on a level surface with the
Housing-Cover facing up.
3. Clean the Guide Bar and Chain with a soft brush or
solvent.
4. Apply lubrication oil in area (a) between Guide Bar
and Chain. (See Fig. G)
5. Fit the battery. Switch on the pruning saw.
Lubricationl oil is evenly distributed over the chain. The
saw chain is lubricated.
OPERATION
1. BEFORE USING YOUR CORDLESS TOOL
WARNING! The charger and battery pack are specially
designed to work together so do not attempt to use
any other devices. Never insert or allow metallic objects
into your charger or battery pack connections because of
an electrical failure and hazard will occur.
NOTE: Your battery pack is UNCHARGED and you must
charge once before use.
The battery charger supplied is matched to the Li-ion
battery installed in the machine. Do not use another
battery charger.
(1) CHARGING YOUR BATTERY PACK (See Fig. H1, H2)
The Li-ion battery is protected against deep discharging.
When the battery is empty, the machine is switched off
by means of a protective circuit.
In a warm environment or after heavy use, the battery
pack may become too hot to permit charging. Allow time
for the battery to cool down before recharging.
(2) TO REMOVE OR INSTALL BATTERY PACK (See Fig. I)
Depress the Battery Pack Release Button to remove the
Battery Pack from your tool. After recharging, insert the
Battery Pack into the battery port. A simple push and
slight pressure will be sufficient until a click is heard.
Check to see if the battery is fully secured.
NOTE: When removing the battery pack, hold it
firmly to avoid dropping and injury.
(3) HOLDING AND CONTROLLING THE PRUNING SAW
(See Fig. J)
Hold and control the pruning saw with one hand on the
Grip Area – wrap your thumb around the Grip Area.
Hold and control the pruning saw with your other hand
on the Secondary Grip Area.
2. SWITCHING ON AND OFF (See Fig. K)
ATTENTION: Check the battery pack before using
your cordless tool. Only use the battery pack
listed in the accessories section.
For switching on the tool, press the Lock-Out Button,
then fully press the On/Off Switch and hold in this
position. The Lock-Out Button can now be released.
For switching off, release the On/Off Switch.
3. CUTTING
IMPORTANT: Check recent replaced chain tension
about every 10 minutes during operation.
(1) Installing the battery pack into the machine.
(2) Make sure section of log to be cut is not laying on the
ground. This will keep the chain from touching the
ground as it cuts through the log.
Touching the ground while the Chain is moving is
dangerous and will dull the Chain.
(3) When ready to make a cut, push the Lock-Out Button
completely in with the right thumb and squeeze the
trigger. This will turn saw on. Releasing the trigger
will turn the saw off. Make sure the saw is running at
full speed before starting a cut.
(4) When starting a cut, slowly place moving chain
against the wood. The wood should be as close to
the saw body as possible. Hold saw firmly in place
to avoid possible bouncing or skating (sideways
movement) of saw.
(5) Guide the saw using light pressure and do not put
excessive force on the saw, letting the saw do its
work. The motor will overload and can burn out. It will
do the job better and safer at the rate for which it was
intended.
(6) Remove the saw from a cut with the saw running
at full speed. Stop the saw by releasing the On/off
Switch. Make sure the chain has stopped before
setting the saw down.
(7) Keep practicing on scrap logs in a secure working
area until you are comfortable, using a fluid motion
and a steady cutting rate.

18
Cordless Pruning Saw EN
Kickback Safety Devices On This Saw
This saw has a low-kickback chain and reduced kickback
Guide Bar. Both items reduce the chance of kickback.
However, kickback can still occur with this saw.
The following steps will reduce the risk of kickback.
• Keep all safety items in place on saw. Make sure they
work properly.
• Do not overreach or cut above shoulder height.
• Keep solid footing and balance at all times.
• Stand slightly to the left side of saw. This keeps your
body from being in direct line with chain.
• Do not let Guide Bar nose touch anything when chain
is moving.
• Never try cutting through two logs at same time. Only
cut one log at a time.
• Do not bury the Guide Bar nose or try plunge cut
(boring into wood using Guide Bar nose).
• Watch for shifting of wood or other forces that may
pinch chain.
• Use extreme caution when reentering a previous cut.
• Use only the low-kickback chain and Guide Bar
that were supplied with this pruning saw or
recommended.
• Never use a dull or loose chain. Keep chain sharp with
proper tension.
How to use Saw Safely
1. Use the pruning saw only with secure footing.
2. Hold the pruning saw at the right-hand side of your
body (See Fig. L).
3. The Chain must be running at full speed before it
makes contact with the wood.
4. Use the Base Plate to secure the saw onto the wood
before starting to cut.
5. Use the Base Plate as a leverage point while cutting.
(See Fig. M)
6. Raise the Chain Guard when cutting from bottom to
top of material. (See Fig. N)
7. Do not operate the saw with arms fully extended,
attempt to saw areas which are difficult to reach, or
stand on a ladder while sawing. (See Fig. O)
Never use the pruning saw above shoulder height.
Cutting wood under tension (See Fig. P)
WARNING: When cutting a limb that is under
tension, use extreme caution. Be alert for wood
springing back. When wood tension is released, limb
could spring back and strike operator causing severe
injury or death.
When sawing logs supported on both ends, start the
cut from above(Y) about 1/3 of the diameter into the
log (overbuck) and then finish the cut (Z) from below,
in order to avoid contact of the pruning saw with the
ground. When sawing logs supported on only one end,
start the cut from below (Y) about 1/3 of the diameter into
the log (underbuck) and finish the cut from above (Z)
in order to avoid log splitting or jamming of the pruning
saw.
OPERATION FOR POLE SAW (ONLY FOR WG324E.1)
Cutting with extension pole
1. Install the battery pack into the machine.
2. Before cutting a high branch, consider all the same
points detailed in the previous section “Trimming
Branches” but pay particular attention to the likely
path of the falling branch.

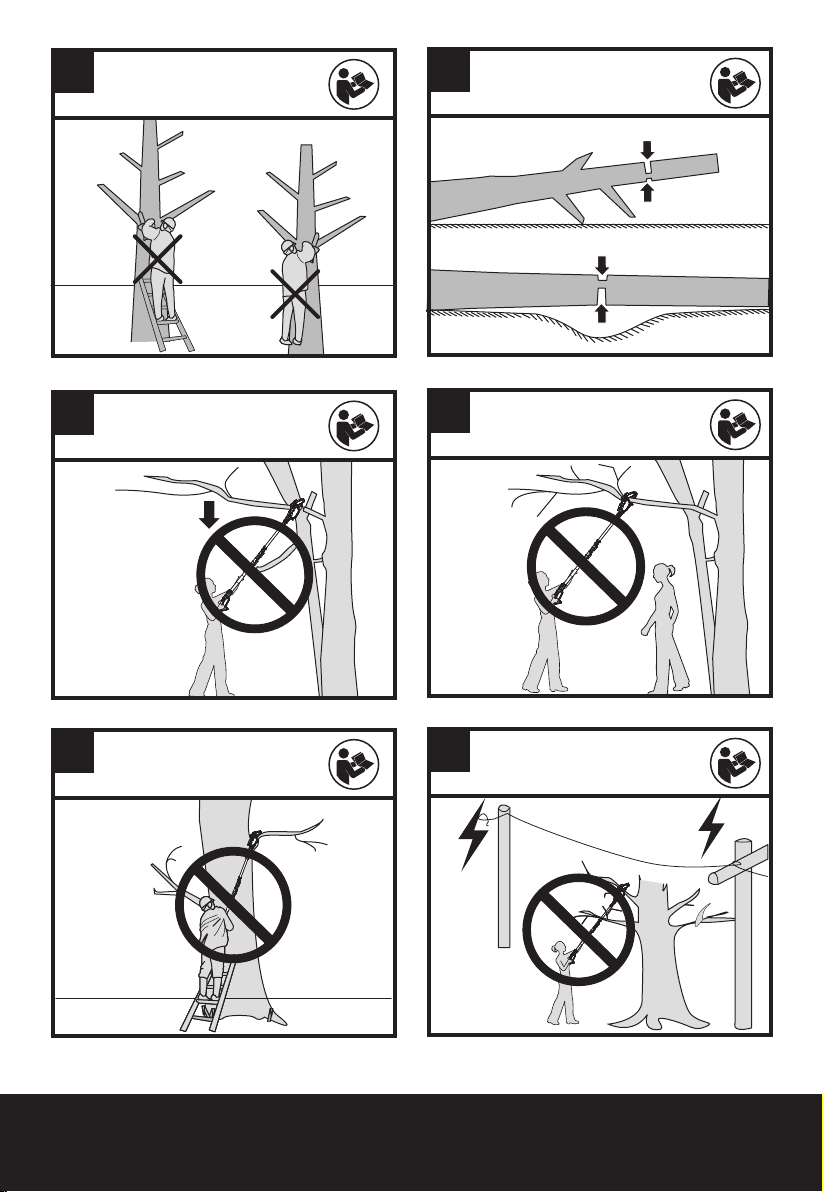

WARNING: Do not stand directly below a branch
being cut. Keep bystanders far away. Do not
stand on a ladder or other type of unstable support
while using the tool. Do not use the tool near cable,
electrical power or telephone lines. Keep 3m away
from all power lines. (See Fig. Q1-Q4)
3. Use both hands to grip Pole Saw. Use only designated
grip areas when operating Pole Saw (See Fig. Q5).
Use firm grip. Thumbs and fingers must wrap around
Pole Saw handle and pole.
4. Make sure your footing is firm. Keep feet apart. Divide
your weight evenly on both feet.
5. When ready to make a cut, press the Lock-out Button,
then fully press the On/off Switch (See Fig. Q6). This
will turn Pole Saw on. Releasing On/off Switch will
turn Pole Saw off. Make sure saw is running at full
speed before starting a cut.
6. When starting a cut, place moving chain against
wood. Hold Pole Saw firmly in place to avoid possible
bouncing or skating (sideways movement) of saw.
7. Guide Pole Saw using light pressure. Do not force
Pole Saw. The motor will overload and can burn out. It
will do the job better and safer at the rate for which it
was intended.
8. Remove Pole Saw from a cut with saw running at full
speed. Stop Pole Saw by releasing trigger. Make sure
chain has stopped before setting Pole Saw down.
SAW MAINTENANCE
Follow maintenance instructions in this manual. Proper
cleaning of saw and chain and Guide Bar maintenance
can reduce chances of kickback. Inspect and maintain
saw after each use. This will increase the service life of
your saw.
NOTE: Even with proper sharpening, risk of kickback can
increase with each sharpening.
MAINTENANCE AND STORAGE OF PRUNING SAW
1. Remove the battery pack
• When not in use
• Before moving from one place to another
• Before servicing
• Before changing accessories or attachments, such
as saw chain and guard
2. Inspect pruning saw before and after each use.
Check saw closely if guard or other part has been
damaged. Check for any damage that may affect
operator safety or operation of saw. Check for
alignment or binding of moving parts. Check for
broken or damaged parts. Do not use pruning saw if
damage affects safety or operation. Have damage
repaired by authorized service center. To locate an
authorized service center, visit www.worx.com.
3. Maintain pruning saw with care.
• Never expose saw to rain or direct moisture.
• Keep chain sharp, clean, and lubricated for better
and safer performance.
• Follow steps outlined in this manual to sharpen
chain.
• Keep handles dry, clean, and free of oil and grease.

19
Cordless Pruning Saw EN
• Keep all screws and nuts tight.
4. When servicing, use only identical replacement
parts.
5. When not in use, always store pruning saw
• in a high or locked place, out of children’s reach
• in a dry place
• with Bar and Chain Cover in place
Bar Maintenance
To maximize bar life, the following bar maintenance is
recommended.
The bar rails that carry the chain should be cleaned
before storing the tool or if the bar or chain appear to be
dirty.
The rails should be cleaned every time the chain is
removed.
To clean the Bar rails.
1. Remove Housing-Cover, Bar and Chain. (see section
ASSEMBLY)
2. Using a wire brush, screwdriver or similar tool, clear
the residue from the inner groove of the bar. (See Fig.
R)
3. Make sure to clean oil passages thoroughly.
Conditions which require Chain and Guide Bar
maintenance:
• Saw cuts to one side or at an angle.
• Saw has to be forced through the cut.
• Inadequate supply of oil to the bar and chain.
Check the condition of the Guide Bar each time the chain
is sharpened. A worn Guide Bar will damage the chain
and make cutting difficult.
After each use, remove the battery pack, clean all
sawdust from the Guide Bar and sprocket hole.
When rail top is uneven, use a flat file to restore square
edges and sides.
File Rail Edges
and Sides
Square
Worn Groove Correct Groove
Replace the Guide Bar when the groove is worn, the
Guide Bar is bent or cracked, or when excess heating or
burring of the rails occurs. If replacement is necessary,
use only the Guide Bar specified for your saw in the repair
parts list or on the decal located on the pruning saw.
Replacing Bar & Chain
Replace chain when cutters are too worn to sharpen or
when chain stops. Only use replacement chain noted in
this manual.
Inspect Guide Bar before sharpening chain. A worn or
damaged Guide Bar is unsafe. A worn or damaged Guide
Bar will damage chain. It will also make cutting harder.
SHARPENING SAW CHAIN
WARNING:
Remove the battery pack before servicing.
Severe injury or death could occur from electrical
shock or body contact with moving chain.
Cutting edges on chain are sharp. Use protective
gloves when handling chain.
Keep chain sharp. Your saw will cut faster and more
safely. A dull chain will cause undue sprocket, Guide Bar,
chain, and motor wear. If you must force chain into wood
and cutting creates only sawdust with few large chips,
chain is dull.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.
FOR BATTERY TOOLS
The ambient temperature range for the use and storage
of tool and battery is 0°C-45°C.
The recommended ambient temperature range for the
charging system during charging is 0°C-40°C.

212020
Cordless Pruning Saw EN
TROUBLESHOOTING TABLE
The following table gives checks and actions that you can perform if your machine does not operate correctly. If these
do not identify/remedy the problem, contact your service agent.
WARNING: Switch off and remove the battery pack before investigating fault.
Symptom Possible Cause Remedy
Pruning saw fails to
operate Out of battery.
Fuse faulty. Charge the battery pack.
Replace fuse.
Pruning saw
operates
intermittently
Over heating
Applying too much pressure while
cutting.
Loose connection.
Internal wiring defective.
On/Off switch defective.
Place the machine in a cool, ventilated place to
cool it down
Applying relatively less pressure while cutting
Contact service agent.
Chain/chain bar
over-heats Chain is over tensioned
Dull chain Adjust chain tension
Sharpen chain or replace
Pruning saw rips,
vibrates, does not
saw properly
Chain tension too loose
Dull chain
Chain worn out
Chain teeth are facing in the wrong
direction
Adjust chain tension
Sharpen chain or replace
Replace chain
Reassemble with chain in correct
direction
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product
Description Battery-powered pruning saw
Type WG324E WG324E.1 WG324E.9 (3-designation
of machinery, representative of battery-operated
pruning saw)
Function Cutting wood
Complies with the following Directives:
2006/42/EC, 2014/30/EU, 2011/65/EU&(EU)2015/863,
2000/14/EC amended by 2005/88/EC
The notified body involved
Name: SGS Fimko Ltd
Address: Takomotie 8, FI-00380 Helsinki, Finland
Certification No.: MD-183
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 88.11 dB(A)
- Declared Guaranteed Sound Power Level 91 dB(A)
Standards conform to
EN 62841-1, EN 12100, EN ISO 3744, EN 55014-1,
EN 55014-2, Parts of EN ISO11680-1
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
2020/11/16
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Other manuals for WG324E
5
This manual suits for next models
2
Table of contents
Languages:
Other Worx Saw manuals

Worx
Worx WU507 User manual

Worx
Worx Trans4mer WX540 User manual

Worx
Worx WX845 User manual

Worx
Worx WU430 User manual

Worx
Worx WX531 User manual

Worx
Worx WORXSAW XL WX427 User manual

Worx
Worx WA4301 User manual

Worx
Worx WX424 HandyCut Installation manual

Worx
Worx WX445 Operation instructions

Worx
Worx WX425 User manual
Popular Saw manuals by other brands

Makita
Makita N5900B instruction manual

MK Diamond Products
MK Diamond Products MK-370 EXP Owner's manual & operating instructions

HOLZMANN MASCHINEN
HOLZMANN MASCHINEN HBS245HQ operating instructions

Makita
Makita LC1230 instruction manual

DeWalt
DeWalt DC495 Replacement instructions

Optimum
Optimum Opti Saw S 285DG operating manual
