User’s Guide for Trail Camera
Thanks for purchasing this trail camera. Please read this instruction manual carefully
before using this product.

Please carefully unpack camera and check that below accessories are
contained in the box.
①. Trail camera x1
②. Instruction Manual x1
③. Mounting Belt x1
④. Wall Mount x1
⑤. Screws x3
Packing List
Manual
① ② ③ ④ ⑤
locking bracket
Product Structure

1
2
3
4
567
10
8 9
① LED lamp
② Lens
③ LED lamp
④ PIR
⑤ SD card slot
⑥ Power key
⑦ Display
⑧ Down key
⑨ UP key
⑩ OK key

1. Install 4pcs AA batteries (NOT INCLUDED).
2. Install SD card (CLASS 6 or higher class Up to 32GB max, NOT
INCLUDED).
3. Put the switch to "AIM", then you can setting(Time/ Date, Interval
Time etc).
4. Put the switch to the “ON” position, The notion indicator LED will
blink red for about 10 seconds. Then shut down; it will enter the PIR
detection state. the trail camera starts working.
Note:
1. Be sure to switch the camera’s power OFF before inserting /exiting
the SD card and loading/unloading the batteries.
2. Formatting the SD card before using it for the first time is
recommended. (Put the switch to "AIM " --Press OK key to skip to
"FOrn" page and use UP/DOWN to change the “N” after “FOrn_”to “Y”
-- Press OK to format the SD card . )
3. A full set of 4AA Alkaline or Lithium batteries is recommended.
The Camera Operating
HOW TO USE?

1. Open the locking bracket ,you can see the battery compartment inside
the camera.
2. Please loading batteries. Be sure to inset each battery so its polarity
(+/- direction) matches the polarity indications at the bottom of the
battery tray (Fig1).
Note:
1. NiMH Rechargeable batteries are not recommended.
2. 4 new batteries are recommended. Mixed old and new batteries are
not recommended.
3. Battery scrapping and recycling Please strictly abide by local
government policies and laws. We are not responsible for any
incidents of danger and violation of local regulations due to improper
battery disposal.
Loading Batteries
Fig1
bat tery b att ery b atte ry ba tter y
- + - +
+ - + -

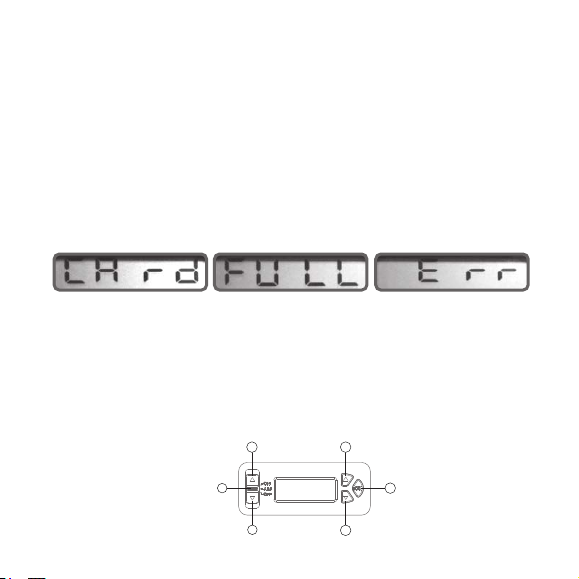

Make sure that the SD card is insert correctly. If you hear “click” sounds
that means it has be inserted correctly .If the SD card is not inset
correctly, or no card is in the slot,”CArd” will appear on the LCD display
(Fig2), and please reinsert the SD card. Other card status display
message:”FULL” (Fig3) indicates the card’s memory is full, with no
remaining room to store files. (Fig4)“Err” means there is a card reading
error (please try a different SD card ).
Inserting SD Card
Fig2 Fig3 Fig4
Using the camera and Setup
Using the camera
1. Operating buttons 1
2
3
4
6
5

① UP key: page up
② Down key: page down
③ OK key: confirm the setting
④ ON key: working mode
⑤ AIM key: setup mode
⑥ OFF key: stop working mode
2. Power/Mode Switch Operation Instruction
Slide the switch to choose work mode:
OFF Mode: The camera’s power switch is in the OFF position. (The
camera is turn off and does not work )
AIM Mode: The camera’s power switch is in the AIM position(The
screen is on, enter setup mode)
ON Mode: The camera’s power switch is in the ON position.(The
camera ready to work and the screen will turn off after
10 seconds)
OFF Mode
The OFF mode is the safe mode when any action must be taken. Please
be sure the camera’s power is switched OFF before you replacing the
battery, removing or inserting SD card, or transporting the device. And
of course, when you are storing or not using the camera, you will switch
it OFF. Please note that even in OFF mode the AUTOPILOT camera
still consumes power at a very low level. Therefore, it’s a good idea to

take the batteries out the battery compartment if the camera will not be
used for a long time
ON Mode
Please be sure the batteries were loaded and SD card was inserted,
and placed the camera to the right induction height or area ,then, move
the mode switch to ON mode. The notion indicator LED will blink red for
about 10 seconds. This interval allows time for you to close the Cam’s
front cover, lock it ,and leave the monitored area. Please note that you
can’t manually setup parameters once in ON mode. The camera will
take pictures or videos automatically.(According to its current slide
switch settings) when it is triggered by the PIR sensor’s detection of
activity in the area it covers. You can either move the power switch
directly move from OFF to ON mode, or stop at the setup position first to
change one or more settings, then move the switch to ON after you have
finished doing so.
AIM Mode
Move the Power switch to the AIM position. It means that the device is
going into setup mode. You can check and change the settings of the
camera in the setup mode, such as the image resolution ,the video
resolution, and the interval time etc.

Note: Always move the power switch from OFF to AIM mode. It is
possible that the camera could would lock up if it is switched from ON to
AIM mode. If this occurs, simply move the switch to OFF and then push
it over to AIM again.
Setup
Once batteries are installed and an SD card is inserted, you are ready
to go into the setup mode to get the camera ready to use, with all
options set to your preference. There are only a few settings to make,
so the process is quick and easy. To start setting up your camera.
1. To enter Setup mode, move the power switch to the middle(AIM)
position ,You can see that the display will come on and show the
initial setup screen. So that you can set and change the camera
parameters as you want.
2. Press the OK key to begin .You can press UP or Down keys to change
the setting of the currently selected option or item. Press OK to
confirm that you choice .When you finish changing a setting, press
OK to lock in the setting and move on to the next option. If there is a
setting that you don’t need or want to change from the default or

current setting, simply press OK to confirm and skip to the next item.
Setting Time and Date
After the Initial setup screen, the next few display screens will allow you
to set the current time and date, so the time/date stamp imprinted on all
your photos and videos will be accurate when captured by the camera to
change the time and date to be current, starting at the current time show
on screen.

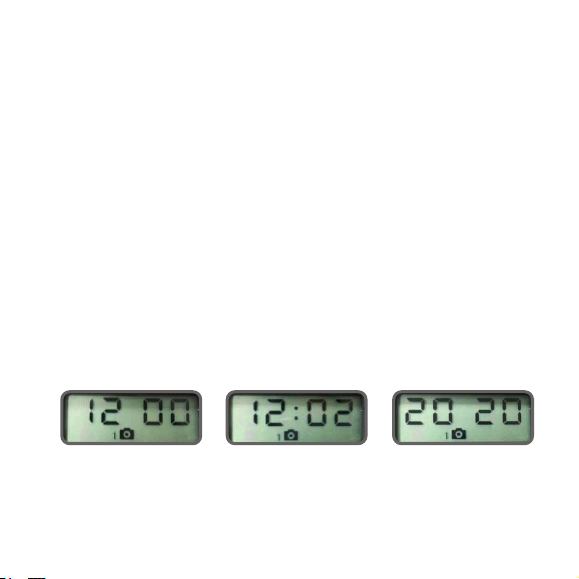

1. Press OK and use UP/DOWN to set the hour. Press OK to confirm
(Fig5).
2. Use UP/DOWN to set the minute. Press OK to confirm(Fig5).
3. Use UP/DOWN to set the month .Press OK to confirm(Fig6).
4. Use UP/DOWN to set the date. Press OK to confirm(Fig6).
5. Use UP/DOWN to set the year. Press OK to confirm and move on to
the next setup item(Fig7). Like setting(see figure below).
Fig5 Fig6 Fig7
Setting Capture Mode and Image /Video
Resolution

Use UP/DOWN to select your preferred image capture mode: Single
Photo per trigger (display shows 1+ a still camera icon, Fig8) Rapid
Sequence of 3 photos per trigger (display shows 3+a camera icon+,
Fig9). Press UP/DOWN arrow to select image resolution(low photo
frequency - 2MP,display shows LO, Fig10. High photo frequency -
12MP,display shows HI,Fig11).Select Video recording mode (display
show a video icon,Fig12). The video resolution default frequency -
720P. Press OK to confirm and skip to next item.
Fig8 Fig9 Fig10
Fig11 Fig12 Fig13
Setting Interval Time
The Interval option lets you set the time between captured images or
videos when animal remains within the camera’s sensor range after it
is first detected and the camera is triggered. Use UP/DOWN to select

the interval time as you want,3sec,15sec (default value), 30 sec, 1min
or 3min. Press OK after setting (Fig13).
Setting Camera ID
Use UP/DOWM to select a reference ID# (from “01” to “99” ) for this
camera, which will be imprinted on all photos/videos along with the time
and date. Set a second camera that will be used in a group of multiple
camera to “02”,etc. Press OK after setting (Fig14).
Fig14 Fig15 Fig16
Restore Default Settings
The display will show “DEFN” . To return the Interval and Capture Mode
to their original,” factory default” settings, use UP/DOWN to change the
“N” after “dEF_”to “Y” ,then press OK to confirm (Fig15).
Note: your time and date setting and camera ID# will not be change
from their current setting to the original defaults. only the Interval and
capture mode settings will be restored to their defaults.

SD Card Format (delete all files)
The display will show “FOrn” . Use UP/DOWN to change the “N” after
“FOrn_”to “Y”, then press OK to confirm (Fig16).
Note: Please be sure to backup and save all files you want to keep first,
as formatting will clear the card completely of all first-they will then be
difficult or impossible to recover form the card .
Mounting
After the setting the camera’s time/date and other options to your
preference, you’re ready to take it outside and begin capturing images
of animals in the area you want to monitor. Please be sure to mount it in
place correctly and securely. To get the optimal picture quality, the tree
should be about 10-30ft. away from the place to be monitored, with the
camera placed at a height of 3.6-4.5 ft.

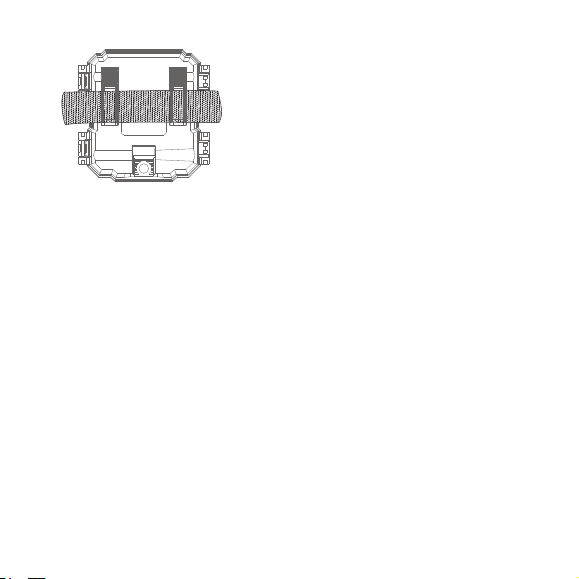

Using the adjustable web belt: Push one end of the belt through the two
brackets on the back of the camera .Thread the end of the strap through
the buckle. Fasten the belt securely around the tree trunk by pulling the
end of the strap firmly so there is no slack left (Fig17).

Fig17
FAQ
Camera won’t power up
1. Make sure that you have installed all batteries in the battery
compartment, filling all battery spaces with no “gaps”.
2. We recommend using a full set of 4 Energizer® Lithium AA batteries.
3. Make sure that the batteries are installed correctly, observing proper
polarity.
4. Do not move the switch directly from “ON” to “AIM”-always move the
switch all the way down to “OFF” first, then back up to “AIM’.
5. Please be sure to switch the power “OFF” and remove the batteries if
necessary. Trying to reopen the camera after 1 min.

Camera stops taking images or won’t take
images
1. Please make sure that the SD card is not full. If the card is full (display
indicates ”FULL” ,the camera will stop talking images.)
2. Make sure that the power/mode switch is in the ON position and not
set to OFF or AIM.
3. Make sure that you are using a good quality SD card in your camera.
We recommends SanDisk® SD cards up to 32GB.
4. If the SD card has its write protect switch in the lock position, the
camera will not take images.
5. Formatting the SD card before using it for the first time is
recommended. It can be completed using the “format” function. Make
sure you have backed up (saved to your computer) any files you want
to keep on a previously used card, as formatting erases all files.
6. Please make sure that the battery have the enough power to support
to work.
Battery life is shorter than expected
1. Check to make sure you have used new alkaline or lithium batteries.
We recommends using a full set of 4 Energize® Lithium AA batteries

to obtain maximum battery life.
2. These are several variables that will determine the battery life
including type of batteries, temperature outside, recording settings,
frequency of camera activity, etc. Colder temperatures, night photos
and photo frequency (low camera delay) will result in shorter battery
life. Note: capturing video clips and time lapse uses more power and
will result in shorter battery life than capture motion detected photos.
1S Interval mode will use more power as more photos and videos will
be taken. We recommends setting the Interval time for more longer
time to maximize battery life.
3. Make sure that you are using a good quality SD card in your camera.
We recommends SanDisk® SD cards up to 32GB. Our experience
indicates that poor quality SD cards can sometimes reduce your
camera battery life.
Camera PIR won’t work
1. Check the Interval time you settings. It won’t take images for a long
time if you setting the Interval time is too longer .You can figure out
that by restore the camera to factory settings.
2. Check if something stuff on the PIR sensor, please be sure the PIR
sensor is clean.

3. Higher temperature will make the PIR detection distance become
shorter. So that sometimes the animal will not be monitored even it is
through by the PIR sensor’s detection of activity in the area it covers.
Please be sure to mount the camera in place correctly and securely.
The height is need to keep the same between the animal and camera.
Camera takes continuous images of no subject
A camera has what is know as a “false trigger” if the PIR sensor thinks
that there is motion and heat in front of the camera lens when there is
no subject in the images. These “false triggers” are the result of placing
the camera in an environment where there is motion associated with
tree branches creating motion in front of the camera or an area where
there is high heat in the foreground and any motion from wind cloud set
off the camera. Setting a camera up over water is also a potential cause
for this issue. To remedy this situation.
1. Try moving the camera to an area that does not have any of these
issues or remove potential obstacles near the lens if possible.
2. If the camera continuous to take images when there is no subject in
them, test the camera by placing it in an inside environment and
aiming at a location where there is no motion.
3. If the camera continuous to show issues, then there is probably an

electronic component issue. If this the case, please contact service
team.
Photo and video quality problems
1. The image is blurred or out of focus
Check if something stuff on the lens, please be sure the lens is clean.
2. Daytime photos or videos appear too bright/dark
Make sure that the camera is not aimed at the sun or other light
sources during the day.
3. Night photos or video appear too bright
You will get the best results when the subject is within the ideal flash
range, no closer than 3m from the camera. Subjects may appear too
light at closer distances.

Specifications
Camera Size
Camera Weight
Image Sensor Type
Lens
Max IR Flash Range
Txt Screen
Storage
Image Resolution-Photo mode
Video Resolution
PIR Detection Distance
PIR Detection Angle
Working mode
Trigger Time
Interval Time
Burst mode
Video Clip time
Stamp
102mmx101mmx63mm
171g
1/4- inch CMOS,1 million pixels
F=2.4; FOV=58 degree; Auto IR-Cut
15meters (850nm )
34x16mm 1/4 Duty 1/3 BIAS
SD / SDHC Card, up to 32GB Capacity
Class 4 or higher
LOW: 2MP: 1920x1080
HIGH:12MP: 4000x3000
1280x720@30FPS
15meters(15℃ )
50 degrees(+/- 2degress)
Day and Night
1.1 second
3s, 15s, 30s, 1min, 3min
Image 1-3
10 seconds ea.
Camera ID, Date and Time

Device Serial No. Set
Power Supply
Stand -by Power
Stand -by time
Power Consumption
Exposure
Water Resistant
Operating Temperature
Operating Humidity
Security Authentication
2 numbers, Digits set by yourself
4AA cell batteries (alkaline or lithium)
Less than 0.18ma/6VDC
4 months (4AA alkaline batteries)
<100ma (350ma w/LED flash)
Auto
Rated Ip54
-10 ℃ ~ 50 ℃
5% ~ 95%
FCC & CE & ROHS
If you have any questions or problems.
Please contact us by email: [e-mail]
We will offer prompt and authoritative reply within 24 hours, and try our
best to resolve your problem ASAP.
