Woxcon SUH4AU-H2 User manual

SUH4AU-H2
HDMI 2.0 1x4 Splitter with Audio Breakout and
4K to 1080p Down-scaling
All Rights Reserved
Version: SUH4AU-H2_2019V1.1
User Manual

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. In the constant effort to improve the product, we reserve the
right to make functions or parameters changes without notice or obligation. Please refer
to the dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
SAFETY PRECAUTIONS
To ensur e t h e b e s t performance from the pr o d u c t , p l ease read all i n s t r u c t i ons carefully
before using the device. Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To prevent fire or shock h azard, do not expose the unit to rain, moisture or install this
product near water.
l Do not put any heavy items on the extension cable in case of extrusion.
l Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with fine ventilation to avoid damage caused by
overheat.
l Keep the module away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
l Do not twist or pull by force ends of the optical cable. It can cause malfunction.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
Table of Contents
1. Product Introduction .................................................................................................... 1
1.1 Features ............................................................................................................. 1
1.2 Packing List ........................................................................................................ 2
2. Specification ................................................................................................................ 3
3. Panel Description ........................................................................................................ 5
3.1 Front Panel ......................................................................................................... 5
3.2 Rear Panel ......................................................................................................... 5
4. System Connection ..................................................................................................... 6
4.1 Usage Precautions ............................................................................................. 6
4.2 System Diagram ................................................................................................. 6
5. DIP Switch Operation .................................................................................................. 7
5.1 EDID Management ............................................................................................. 7
5.2 HDCP Mode ....................................................................................................... 8
6. Video Resolution Down-scaling ................................................................................... 9
7. Firmware Upgrade ..................................................................................................... 10
8. Panel Drawing ........................................................................................................... 11
9. Troubleshooting & Maintenance ................................................................................ 12
10. Customer Service .................................................................................................... 13

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
1
1. Product Introduction
Thanks for choosing the one input to four output HDMI2.0 Splitter. The splitter supports
HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D and multichannel audio formats.
Besides passing EDID information from the display, there are multiple built-in EDID
settings can be selected by the 4-pin DIP switch on the front panel. The splitter can
de-embed digital stereo audio to one analog RCA audio output and one optical Toslink
audio output to provide audio sources for existing audio systems.
The splitter supports 4K to1080p down-scaling up to 4 outputs. Moreover, the splitter
provides a Micro-USB port for convenient firmware upgrade.
1.1 Features
l Splits a single HDMI input to four HDMI outputs.
l Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, Dolby Vision.
l 18Gbps high bandwidth.
l HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP
Passive mode.
l Supports video resolution down-scaling, the 4K input can be automatically degraded
to 1080p output for compatibility with 1080p display.
l Built-in signal equalizer, provides capability to use longer range HDMI cable.
l Up to 6 types of built-in EDIDs can be selected by DIP Switch.
l RCA and Toslink audio outputs for audio de-embedded.
l Up to 6 units can be cascaded to distribute video signal to multiple video displays.
l CEC pass-through.
l Micro-USB port for convenient firmware upgrade.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
2
1.2 Packing List
l 1x HDMI 2.0 1x4 Splitter
l 2x Mounting Ears with 4 Screws
l 4x Plastic Cushions
l 1x Power Adapter (5V DC 1A)
l 1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
3
2. Specification
Video Input
Input
(1) HDMI
Input Connector
(1) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
Video Output
Output
(4) HDMI
Output Connector
(4) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
Audio
Output
(1) AUDIO OUT, (1) SPDIF OUT
Output Connector
(1) RCA connector (L+R), (1) Toslink connector
HDMI Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD,
Dolby Digital® Plus, DTS: X™, and DTS-HD® Master
Audio™ pass-through
DP Audio Format
8 channels LPCM, up to 24bit 192Khz, AC3, DTS
Analog L/R audio Format
PCM
Toslink Audio Format
PCM, Dolby Digital, DTS, DTS-HD
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV
(316mV) nominal consumer line level signal
THD+N
<0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine
at 0dBFS level (or max level)
SNR
>80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation
>70dB, 10KHz sine at 0dBFS level (or max level
before clipping)
L-R Level Deviation
<0.3dB, 1KHz sine at 0dBFS level (or max level before

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
4
clipping)
Frequency Response
Deviation
<±0.5dB 20Hz ~ 20KHz
Output Load Capability
1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation
>70dB@1KHz
Control
Control Part
(1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth
18Gbps
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Power Supply
Input:100V~240V AC; Output: 5V DC 1A
Power Consumption
4W(Max)
Dimension (W*H*D)
190mm x 20mm x 100mm
Net Weight
545g

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
5
3. Panel Description
3.1 Front Panel
①
Power LED: The LED illuminates red when power is applied.
②
INPUT LED: The LED illuminates blue when there is an input signal present.
③
OUT 1~OUT 4 LED: The LED illuminates blue when there is HDMI output on the
corresponding channel.
④
EDID: 4-pin DIP switch for EDID setting.
⑤
FW: Micro-USB port for firmware upgrade.
3.2 Rear Panel
①
IN: Type-A female HDMI input port to connect HDMI source.
②
OUT 1 ~ OUT 4: Four Type-A female HDMI output port to connect HDMI displays.
③
AUDIO OUT: RCA connector for analog audio output.
④
SPDIF OUT: Toslink connec t o r f or optical audi o o u t p u t .
⑤
DC 5V: DC barrel port to connect a power adapter.
12345
12345

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
6
4. System Connection
4.1 Usage Precautions
l Make sure all components and accessories included before installation.
l System should be installed in a clean environment with proper temperature and
humidity.
l All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
l All devices should be connected before power on.
4.2 System Diagram

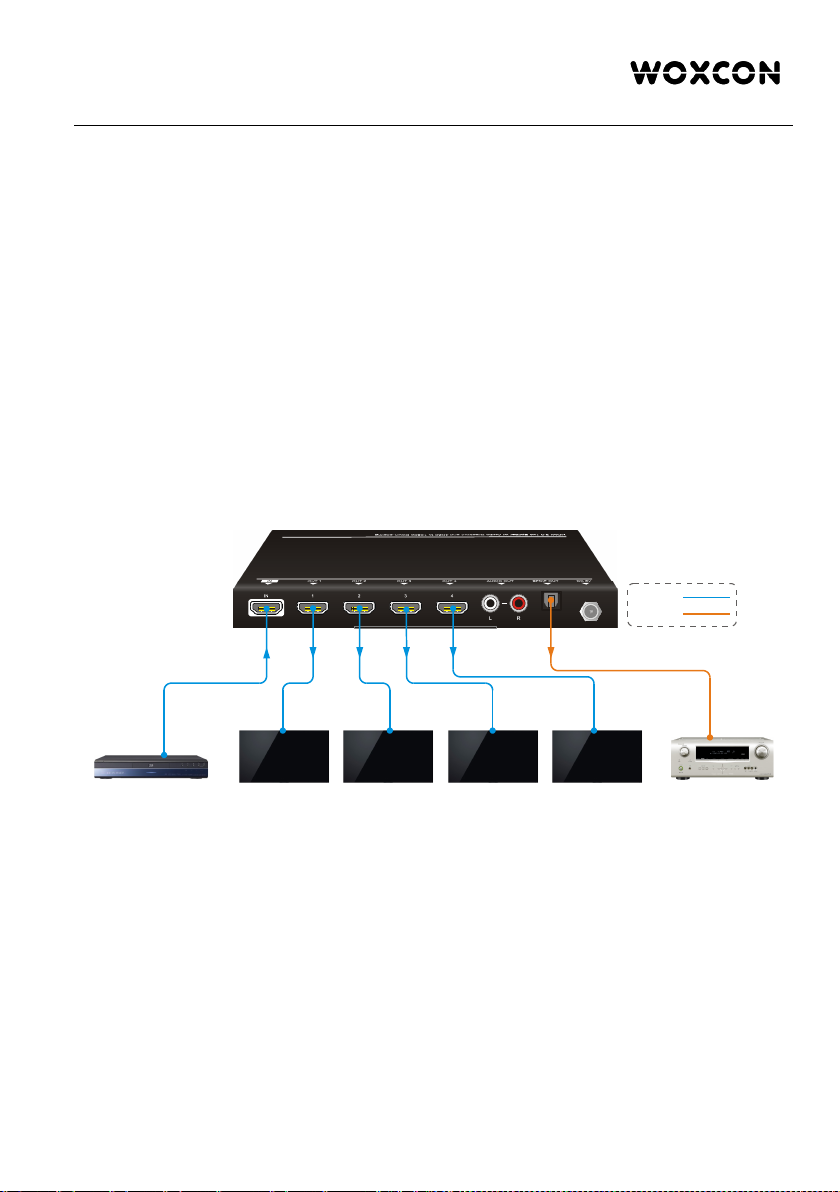

The following diagram illustrates typical input and output connections that can be
utilized with the splitter:
4K Blu-ray 4K TV AVR
4K TV 4K TV 4K TV
HDMI:
AUDIO:

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
7
5. DIP Switch Operation
5.1 EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with the connected display. By default, the source device obtains its
EDID from the first connected display. Meanwhile, since the displays with different
capabilities are connected to the splitter, the DIP switch on the front panel can be used
to set the EDID to a fixed value to ensure the compatibility in video resolution.
The switch represents “0” when in the lower (OFF) position, and it represents “1” while
putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.

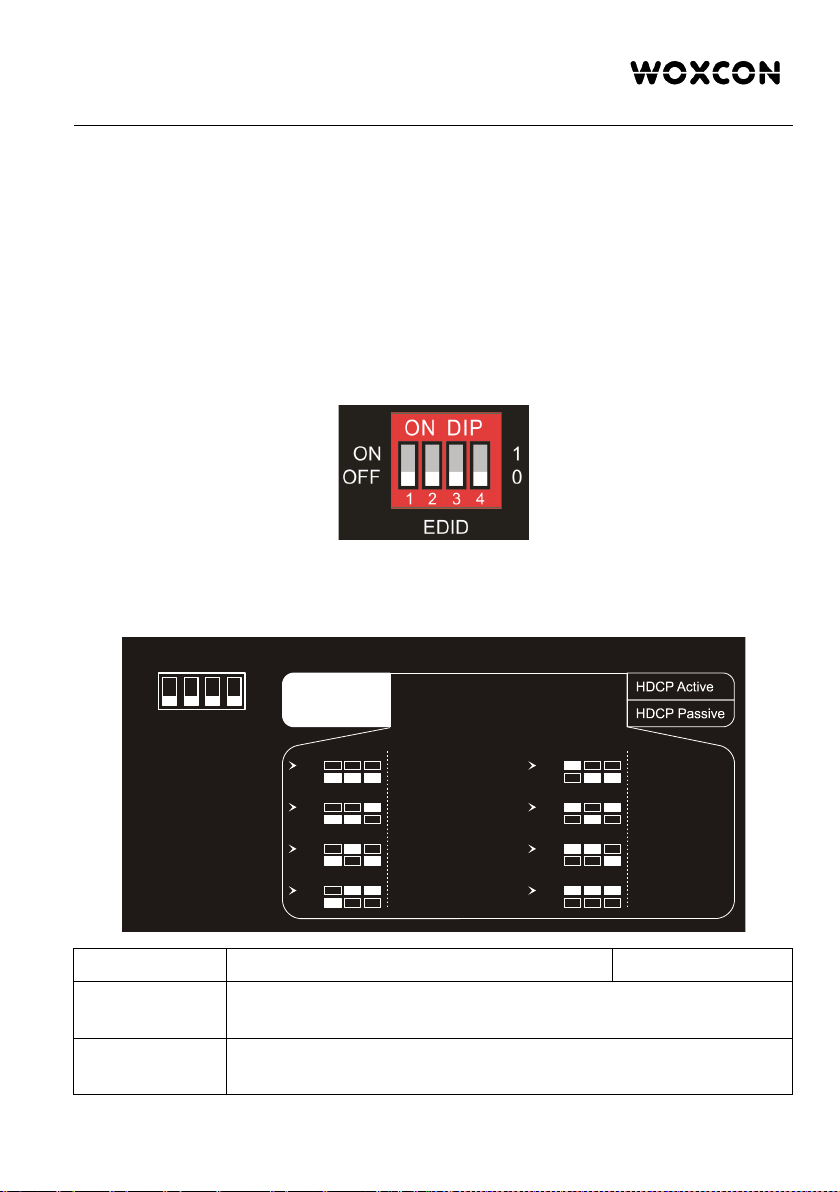

Switch Status
Video Resolution
Audio Format
000
Obtains EDID from the first detected display starting at HDMI output
1>2>3>4.
001
Obtains EDID from the first detected display starting at HDMI output
4>3>2>1.
1 2 3 4
EDID Setting
1080p DTS/Dolby
4K/30Hz LPCM
4K/60Hz LPCM
4K/60Hz DTS/Dolby
Default
1 2 3 4
ON
OFF
1
0ON
OFF
ON
OFF
1 2 3
Priority OUT 1 > 2 > 3 > 4
ON
OFF
1 2 3
Priority OUT 4 > 3 > 2 > 1
ON
OFF
1 2 3
ON
OFF
1 2 3
1080p LPCM
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/30Hz DTS/Dolby

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
8
010
1080p
LPCM
011
1080p
DTS/Dolby
100
3840x2160@30Hz
LPCM
101
3840x2160@30Hz
DTS/Dolby
110
3840x2160@60Hz
LPCM
111
3840x2160@60Hz
DTS/Dolby
5.2 HDCP Mode
Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP
Passive mode.
Switch Status
Mode
HDCP
OFF (0)
Passive
(Default)
Automatically follows the display’s HDCP version.
ON (1)
Active
Automatically removes the HDCP content of HDMI
output for broader video solution.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
9
6. Video Resolution Down-scaling
The product supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080p output for compatibility with 1080p display, shown in the below chart.
Input
Output
#
Resolution
Refresh
Color
Space
Downscale
1080p Specs
1
3840x2160
60
4:4:4
Support
1080p@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080p@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080p@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080p@60Hz 4:4:4
5
3840x2160
30
4:2:0
Support
1080p@30Hz 4:4:4
6
3840x2160
24
4:2:0
Support
1080p@24Hz 4:4:4
7
3840x2160
60
4:2:2
Not Support
N/A
8
3840x2160
30
4:2:2
Not Support
N/A
9
3840x2160
24
4:2:2
Not Support
N/A

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
10
7. Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Connect the splitter to the PC with USB cable.
2) Power on the splitter, and then the PC will automatically detect a U-disk named of
“BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk directly.
5) If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the firmware
was upgraded successfully. If the firmware upgrade failed, please check the file (.bin)
and then follow the above procedure to operate again.
6) Remove the USB cable after firmware upgrade.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
11
8. Panel Drawing
190.0 m m
100.0 mm
20.0 mm

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
12
9. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Colour losing or no video
signal output in HDMI
display.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
The display is not
compatible with the present
output resolution.
Make sure the resolution of
the display(s) is compatible
with the present resolution.
No HDMI signal output in
the splitter while local
HDMI input is in normal
working state.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
Splash screen in output
devices.
Poor quality of the
connecting cable.
Change for another cable of
good quality.
Static becomes stronger
when connecting the
video connectors.
Bad grounding.
Check the grounding and
make sure it is connected
well.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.

HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling
13
10. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed three years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusion
l Warranty expiration.
l Factory applied serial number has been altered or removed from the product.
l Damage, deterioration or malfunction caused by:
ü Normal wear and tear.
ü Use of supplies or parts not meeting our specifications.
ü No certificate or invoice as the proof of warranty.
ü The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
ü Damage caused by force majeure.
ü Servicing not authorized by distributor.
ü Any other causes which does not relate to a product defect.
l Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: Please contact your local distributor for further assistance or solutions.
