Wybron pmn User manual

Power Supply User Manual

2
19000 - 24 Way Coloram Power Supply (600 watts)
19012 - 12 Way Coloram Power Supply (300 watts)
19060 - 6 Way Coloram Power Supply (150 watts)
Software versions: PS24 V3.0, PS12 V3.0, PS6 V3.0
Manual revision: March 30, 2001
CONTENTS
Safety Information.......................................................3
Introduction.................................................................3
The Coloram II System...............................................4
The Coloram II System Components .........................5
Color Changers and Other Components ..............5
Power Supply........................................................6
Cables ...................................................................6
The Coloram II Power Supply Menu...........................7
Menu Tree.............................................................7
Menu Details .........................................................8
Error Messages..............................................8
Installing/Connecting The Coloram Power Supply...15
Head-Feet Restrictions.............................................17
Mounting and Installation Accessories.....................18
Equipment Compatibility...........................................21
Cables.......................................................................21
Specifications............................................................22
Software Version Changes ......................................23
Parts list....................................................................23
Warranty information ................................................24

3
SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This manual gives step-by-step instructions for preparation,
setup and operation of The Coloram II Power Supply.
There is a potential risk of fire, electric shock or injury to persons
if the product is not used as instructed.
This product is to be used in an indoor environment only and is
not intended for residential use.
Introduction
The Coloram II System consists of scrolling color changers, mixing
color changers, dowsers, other products and Power Supplies in a wide
range of models offering ease of setup and use. Its color changing
capability and DMX compatibility affords the designer wide capability
and versatility. The lightweight Color Changers slide easily into the gel
frame holder of the light fixture. The compact Power Supplies attach
easily to the truss of the lighting rig or mount into a 19-inch rack.

4
The Coloram II System
The Coloram II System consists of one or more Color Changers or
other components and a remote Power Supply. The DMX512 control
signal from the lighting board is connected to the Power Supply and
can continue on to more Coloram II Power Supplies or other DMX-
controlled devices. The Power Supply sends both power and control
signal on a single cable eliminating the need for a separate power cable
for each Color Changer.
The Coloram II System also allows you to control the Color Changer fan
speed via one or multiple DMX channels on the lighting console.
The Coloram II System is equipped with the Intelligent Diagnostic
System (IDS). Status information is sent from each of the Coloram
Color Changers to the Coloram Power Supply. The Power Supply in
turn transmits the information along pins 4 and 5 of the DMX cable to
The Watchdog Status Monitor. The Watchdog then displays Color
Changer status information at your lighting console position.
Caution: The Coloram II System is not compatible with The Forerunner
System. Do not connect Coloram Color Changers to Forerunner Power
Supplies, or Forerunner Color Changers to Coloram Power Supplies.
Damage from such action will not be covered by the Coloram or
Forerunner warranties.

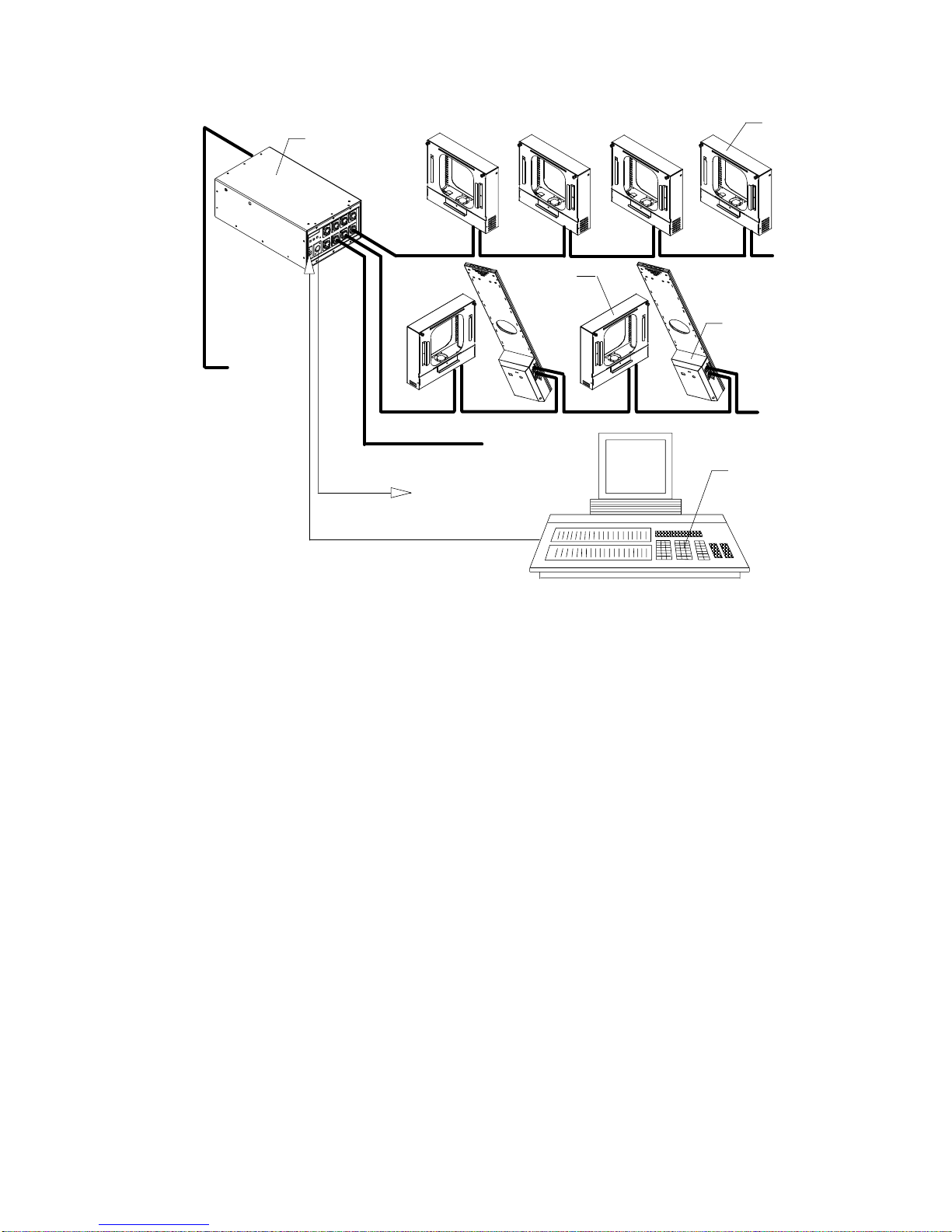

DMX CONSOLE
DMX512
DMX Control console
AC Power
Goboram Gobo Changer
Coloram II
Color Changer
To additional
Color Changers
or Gobo Changers
Coloram II
Power Supply
To additional
Coloram Power Supplies
Buffered
DMX512
To additional
Color Changers
or Gobo Changers
To additional
Color Changers
or Gobo Changers
Figure 1
Coloram II
Color Changer
5
The Coloram II System Components
Color Changers and Other Components
The Color Changers set the position of the gelstring via a signal from
the lighting console. The control signal and DC power (24 VDC) are
both supplied in one cable connecting the Color Changers to the Power
Supply.
Other Coloram II products include The Eclipse dowser, The CXI color
changer and others. Other products are continually being added to the
Coloram II family to expand it’s capabilities.
Refer to the user manual of the various Coloram II products for detailed
operating information on those products.
