X-RIDER FLAMINGO User manual

PRODUCT MANUAL
1/8 Remote Control Tricycle
01
02Safety Precautions
Product Description
04Ready To Run Preparation
05Remote Control System
Thank you for purchasing X-RIDER Flamingo. We believe that this new tricycle will bring you infinite happiness. Before use, please read
the manual carefully and safe keeping. Accidents are caused by illegal use, the company doesn't undertake any responsibility.
The Flamingo is a sport RC tricycle. This product has as below features:
· Easy to drive and install
· Cornering performance is smooth and the posture is as like drift car
· Suitable for two wheel tilt stunts
· Changing shape and the head-shaking cartoon of driver make the whole tricycle more entertaining
· Suitable for DIY interaction between parents and children, through such a common topic, through such a common topic, increase the
friendship between Parent-child
In order to exert the performance, for maximum enjoyment of this product,please read this manual carefully.
We will have strict testing and debugging before exiting the facility. We promise to customers.
Products issue without any material and process problems. We will free for customers to repair within 90 days from the date of
purchase. Customer service e-mail: [e-mail].
The warranty doesn't cover crash damage,modification,failure to maintenance, or the damaged caused by improper use.
The warranty doesn't cover any result which caused by the final user's assembly or the material used for final user's assembly.
1. The specification of the logo
Caution: this symbol indicates where caution is essential to avoid injury to yourself or others.
Note: this symbol indicates where give you a tip in use
2. The use of power
· The product use NiMH battery.
· Never disassemble the polarity required for installation. This may lead to damage.
· While charging,the NiMH battery and charger become hot. Do not charge on top of inflammable materials as this may cause fire.
· Do not operate the DC Peak Charger in direct sunlight or in high temperatures. Continually monitor the charger while charging is in progress.
· Short circuit may cause fire or accident so never disassemble or modify the NiMH battery .
3. The safety of Children
· This model is not a toy. It is designed for users over 14 yeas of age.
· As the product includes small and sharp parts, assemble and store this product only in places out of the reach of children.
4. The safety of User
· It's highly recommended that first-time enthusiasts seek the advice of an experienced modeler before operating this vehicle.
· Cutters,wire cutter and screwdrivers need careful handling.
· Do not touch moving gears. They can cause injury.
· During and after operation,the motor and batteries will be hot. Do not touch them until they have had time to cool down.
5. The range of use
· It can run your car on Asphalt land ，on floor，in sandy,on short carpet Etc .
· Do not operate the model on public roads, in crowded places or near infants. It may cause accidents or injury.
· This product emits electrical waves so do not operate: Inside an aircraft. Near automatic devices such as automatic doors and fire alarms.
Inside hospitals or medical equipment. Operating may cause accidents.
6. The maintenance of product
· Do not store this model in a high-temperature/humidity area or in direct sunlight.
· Do not use water,alcohol, or thinner to clean your car's body.
· Simply wipe it down with a clean,soft cloth.
1. Check all the parts in the box.
· When you open the box, you will find follow parts Tricycle 1set , Body Set 1set，Transmitter 1set, Battery 1pc，Sticker 1pc，Accessories 1pc
· Equipment Sold Separately: Silicone Oil, 3A Battery
· Tool Required：Hex screwdriver,Cross Wrench,Cross screwdriver,Tweezers,Hex Wrench.
2. Remove the R-Clip on the back body shell and the body shell
3. Connect the battery with the receiver and fix the battery with rubber.
4. With body shell post come through the body shell and fasten it with R clip.
192
258
175
171
7.0mm
Remove the R-Clip Push forward 7.0mm Remove body shell upward
01 02 03
Remove Body Shell Install Battery
1. XT-03：
· CH1(Steering) Trim：Steering neutral adjustments can be made by moving the steering trim lever to the left or right.
When you install a servo, always check to be sure the servo is at its neutral position. Adjust the servo horn position and linkage so both are parallel.
Be sure the steering trim on the transmitter is at the neutral position.
· CH1(Steering Dual-Rate)D/R：Use this function to adjust the steering travel of your model. If the model understeers while cornering, add steering by
rotating the CW side of the D/R knob. When the model oversteers, take away steering by rotating the C.CW side of the D/R knob.
· CH1(Steering)Reverse：If the servo operate in the opposite direction,moving the reverse lever for the servo reversing.
· Low Battery Indicator：If the transmitter battery voltage drops below 4.2V the LED will be flashed.
2. XR-03：Receiver+ESC for 1/18 Car
· CH1(Steering)Output：Connect the servo for steering operation.
· Battery connector：Connects to the battery.Red is plus＋,Black is minus－. For Ni-cd battery 5～7cells(6.0～8.4V) or Lithium-Poly battery 2S(7.4V)
· Motor connector：Connect to the motor.
· CH2(Throttle) Operation：Forward 、reverse and brake are all linear.
· When switched to reverse operation just returning the throttle trigger from the brake position to the neutral position.
· Low-battery&Heat protection：When the battery voltage drops below 5.5V or the FET are over heat,the motor will shut off and the LED will be rapid flash.
3. XT-03 & XR-03 Bind：
Binding Process
· Turn the transmitter power on while pressing the bind sw.
· The transmitter Red LED will flashing for 20 seconds.
· Plug the battery into the MR-202, then turn on the power while the transmitter LED is flashing.
· When the LED on the receiver unit is steady light ,binding is complete.
· When the binding procedure is successful, the LED on the receiver will stay solid red when both
the transmitter and receiver are turned on.
TX LED Display
· LED ON：Power on
· LED Rapid Flash：Battery low
· LED Slow Flash：Bind mode
RX LED Display
· LED OFF：Indicates that the power is off or no signal reception
· LED ON：Receiving signals
· LED Rapid Flash：Battery low or heat protector is detected.
Power Switch
Bind Button
Reverse
(CH1)
Steering Trim
Lerer (CH1)
Power/Bind
Indicator
Steering Dual Rate
Lever (D/R)
Antenna
Wire
LED
Indicator
Connects to the steering servo
Battery connector
Power switch
Motor connector
5. USB charge LED display
· Connect USB Charger and outlet before usage. the power LED light on, it can charge battery.
· Connect battery,LED light is slow flash
· LED Light off when full
· Breakdown is flashing.
Battery Compartment
Antenna (Built in)Throttle Trigger (CH2)
Steering
Wheel (CH1)
Grip
03The size of Product

06组装说明

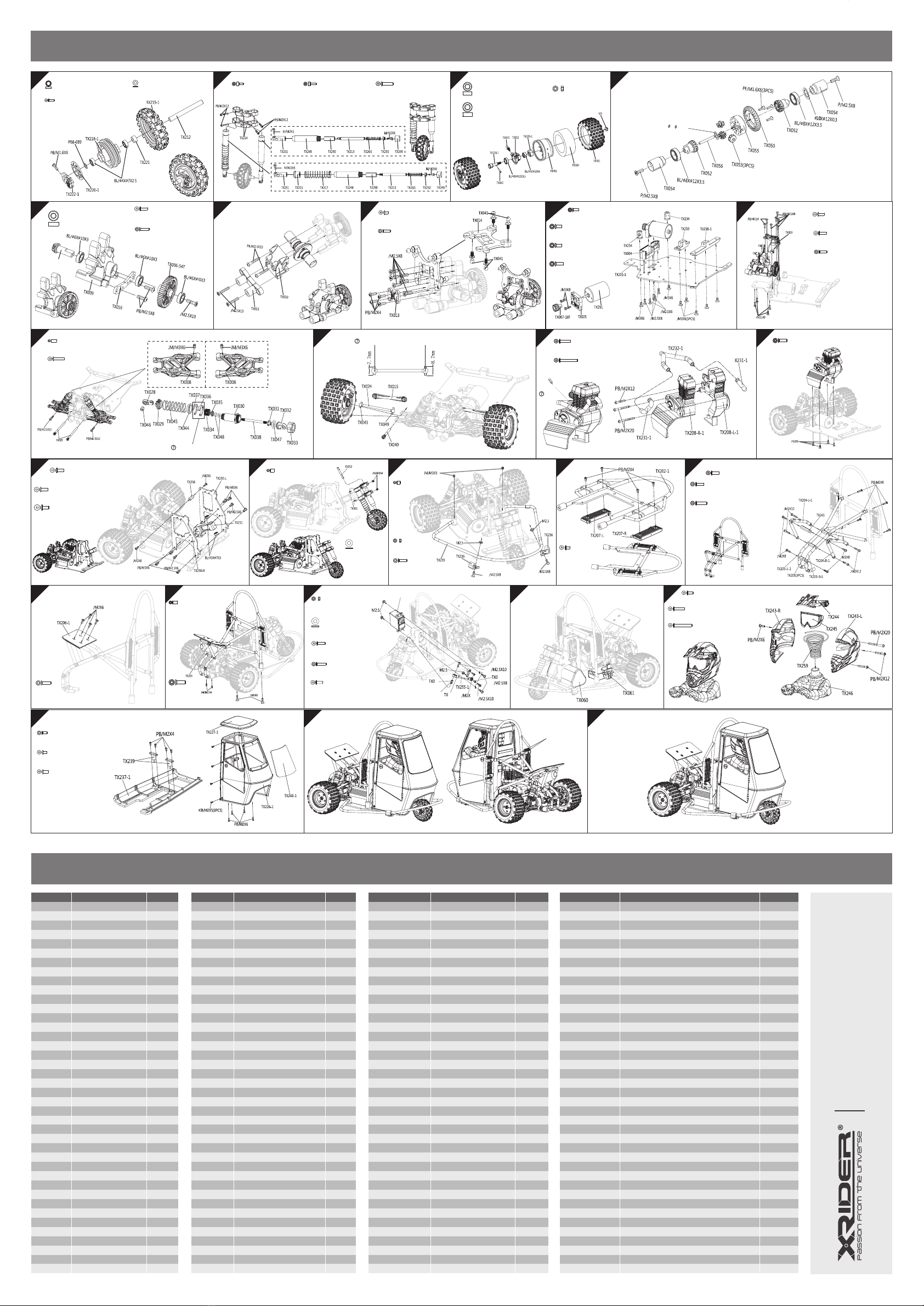

07Drawing No. and Name in Assembling
Item No
TX001
TX002
TX003
TX004
TX005
TX006-54T
TX007-18T
TX008
TX009
TX010
TX011
TX012
TX013
TX014
TX015
TX016
TX019
TX050-32T
TX052-15T
TX051-11T
TX053-9T
TX024
TX055
TX028
TX029
TX030
TX031
TX032
TX033
TX034
TX035
TX036
TX037
TX038
TX039
TX040
TX041
TX042
TX043
Item Name
Rear Tire
Rear Wheel Rim
Upper Gear Cover
Lower Gear Cover
Motor Mount
54T Spur Gear
18T Motor Gear
Suspension Arm
Diff Gear Box
Diff Gear Box
Arm Mount
Rear Hub Carrier
Diff Plate
Shock Tower
Chassis Link
Arm Plate
Gear Diff Shaft
Diff Cup
32T Diff Gear
15T Diff Gear
11T Diff Gear
9T Diff Gear
Dogbone
Gear Diff Mount
Ball End
Rear Shock Spring Cap
Rear Shock Body
Rear Shock Piston
Ball End
Rear Shock Upper Cap
Rear Shock Bottom Cap
Rear Shock Piston
adjusting ring
adjusting ring
Rear Shock Shaft
Suspension Arm Shaft
Suspension Arm Shaft
Ball Stud
Hub Carrier Pin
Dogbone Pin
Qty
2
2
1
1
1
1
1
2
1
1
1
2
1
1
2
1
2
1
2
1
3
2
1
4
2
2
2
2
2
2
2
2
2
2
2
2
6
2
2
Item No
TX044
TX045
TX046
TX047
TX048
TX049
TX060
TX061-R
TX061-T
TX201-1
TX202-1
TX203-L-1
TX203-R-1
TX204-L-1
TX204-R-1
TX205
TX206-1
TX207-L
TX207-R
TX208-L-1
TX208-R-1
TX210
TX211
TX212
TX213
TX214
TX215
TX217
TX218-1
TX219-1
TX220-1
TX222-1
TX226-1
TX227-1
TX228-1
TX229-1
TX230-L
TX230-R
TX231-1
TX232-1
Item Name
Spring Adjuster
Rear Shock Spring
4.5MM Ball
O-ring
O-ring
Dogbone Pin
NiMH Battery 7.2V/800mAh
Receiver
transmitter
Main Chassis
Roll Cage
Left Roll Cage
Right Roll Cage
Left Wing Stay
Right Wing Stay
Hex Post
Rear wing
Left Radiator
Right Radiator
Left Engine
Right Engine
Chassis Stand
Steering Support
Rear Shaft
Front Shock Shaft
Shock Absorber Triples
Front Shock Spring Cap
Front Shock Spring
Front Wheel Rim
Front Tire
Front Brake Disc
Front Brake Caliper
Main Body Shell
Body Shell Cover
Wheel Axle
12MM Hex Wheel Hub
Left Frame
Right Frame
Exhaust Pipe Holder
Exhaust Pipe Holder
Qty
2
2
4
2
4
2
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
2
2
1
1
2
1
Item No
TX233
TX234
TX235
TX236
TX237-1
TX238-1
TX239
TX240-1
TX241
TX243-L
TX243-R
TX244
TX245
TX246
TX248
TX249
TX250
TX251
TX252
TX253
TX255-1
TX258
TX259
TX265
TX290
TX291
TX292
TX300
TX221
TX264
TX301
Ø2xØ4x0.1
PB8-089
91
M2.5
25
BL/Ø4XØ7X2.5
BL/Ø5XØ10X4
BL/Ø6XØ10X3
BL/Ø8XØ12X3.5
Item Name
Exhaust Pipe
Guard Assy Post
Guard Assy
Guard Assy Clip
Body Shell Plate
Chassis Stand
Body Shell Post
Windshield
Hex Post
Helmet（left）
Helmet（Right）
Visor
Eyeshade
Rider
Front Shock Body
Front Shock Cap
Front Shock Slipper
Front Shock Bottom
Steering Shaft
Ball End
Steering Turnbuckle
Hex Post
Helmet Spring
Spring ø5xø22x0.4
Front Shock Tube
32T Brushed Motor
Steering Servo
Foam Inserts
Gasket ø4.1x ø6x3.2
Gasket ø6xø8x0.1
Gasket ø3xø5x0.5
Gasket ø2xø4x0.1
Gasket ø4xø6x0.3
Gasket ø3xø7x1
Hex Nut M2.5
Hex Flange Nuts M3
Bearing ø4Xø7X2.5
Bearing ø5Xø10X4
Bearing ø4Xø7X2.5
Bearing ø4Xø7X2.5
Qty
1
2
1
2
1
1
2
1
1
1
1
1
1
1
2
2
2
2
1
2
1
1
1
2
2
1
1
2
1
2
2
4
1
3
5
2
2
2
3
4
Item No
BLø3Xø7X3
JM/M3X3
JM/M3X4
JM/M3x6
HM/M2X5
HM/M2X6
KB/M1.6X6
HM/M2.5X10
KB/M2.5X15
KB/M2.5X8
KB/M2X5
KB/M2X6
KB/M3X6
KB/M3X8
KM/M2.5X10
KM/M2.5x8
KM/M2.5X8
KM/M3X6
KM/M3X8
PB/M1.6X6
PB/M2.3X6
PB/M2.3X8
PB/M2.5X12
PB/M2.5X15
PB/M2.5X6
PB/M2.5X8
PB/M2X12
PB/M2X20
PB/M2X4
PB/M2X6
PB/M2X8
PB/M3X6
PM/M2.5X8
PM/M2X12
PM/M2X6
PM/M2X8
PB8-125
Item Name
Bearing ø4Xø7X2.5
Set Screw M3x3
Set Screw M3x4
Set Screw M3x6
Cap Head Screw M2x5
Cap Head Screw M2x6
Flat Head Self-tapping Screw M1.6X6
Flat Head Self-tapping Screw M2.5x10
Flat Head Self-tapping Screw M2.5X15
Flat Head Self-tapping Screw M2.5X8
Flat Head Self-tapping Screw M2X5
Flat Head Self-tapping Screw M2X6
Flat Head Self-tapping Screw M3X6
Flat Head Self-tapping Screw M3X8
Flat Head Self-tapping Screw M2.5x10
Flat Head Screw M2.5x8
Flat Head Screw M2.5x8
Flat Head Screw M3X6
Flat Head Screw M3X8
Round Head Self-tapping Screw M1.6X6
Round Head Self-tapping Screw M2.3X6
Round Head Self-tapping Screw M2.3X8
Round Head Self-tapping Screw M2.5X12
Round Head Self-tapping Screw M2.5X15
Round Head Self-tapping Screw M2.5X6
Round Head Self-tapping Screw M2.5X8
Round Head Self-tapping Screw M2X12
Round Head Self-tapping Screw M2X20
Round Head Self-tapping Screw M2X4
Round Head Self-tapping Screw M2X6
Round Head Self-tapping Screw M2X8
Round Head Self-tapping Screw M3X6
Round Head Screw M2.5X8
Round Head Screw M2X12
Round Head Screw M2X6
Round Head Screw M2X8
R Clip
Qty
2
2
4
2
2
2
4
1
2
13
8
8
5
2
2
2
2
2
2
1
2
5
2
2
4
2
7
3
13
5
4
6
2
4
2
4
2
14
19
24 25 26
20 21 22 23
15 16 17 18
PM
PM
PM/M2X6
Round Head M2X6 x2pcs
PB/M3X6
Round Head M3X6 x6pcs
PB/M2.5X6
Round Head M2.5X6 x2pcs
JM/M3X4
Set Screw M3X4 x2pcs
KM
KM
JM/M3X3
Set Screw M3X3 x2pcs
M2.5
Hex Nut M2.5 x2pcs
KM/M2.5X8
Flat Head M2.5X8 x2pcs
PB/M2X4
Round Head M2X4 x4pcs
PM
PM
PM
PM
PB/M2X8
Round Head M2X8 x4pcs
PB/M2X12
Round Head M2X8 x4pcs
PM/M2X8
Round Head M2X8 x4pcs
KB
KB/M2X6
Flat Head M2X6 x4pcs KB
JM/M3X4
Set Screw M3X4 x2pcs
KB/M3X8
Cap Head Screw
M3X8 x2pcs
M2.5
Hex Nut M2.5 x3pcs
PM/M2.5X8
Round Head M2.5X8 x2pcs
PB/M2.5X4
Round Head M2.5X4 x1pcs
KB/M2.5X10
Round HeadM2.5X10 x2pcs
91
Gasket ø3xø7x1x3pcs
TX301
Gasket
ø3xø5x0.5 x2pcs
PB/M2X6
Round Head M2X6 x1pcs
PB/M2X12
Round Head M2X12 x2pcs
PB/M2X20
Round Head M2X20 x1pcs
KB/M2X5
Flat Head M2X5 x8pcs
PB/M2X4
Round Head M2X4 x4pcs
PB/M2X6
Round Head M2X6 x4pcs
BL/Ø4xØ7x2.5
BearingØ4xØ7x2.5 x2pcs
PB8-089
GasketØ4xØ6x0.3 x1pcs
PB/M1.6X6
Round Head Screw M1.6X6 x1pcs
HH
H
H
PB/M2X12
Round Head M2X12 x4pcs
HM/M2X5
Cap Head Screw M2X5 x2pcs
HM/M2X6
Cap Head Screw M2X6 x2pcs
BL/Ø5XØ10X4
BearingØ5XØ10X4 x2pcs
BL/Ø8XØ12X3.5
BearingØ8XØ12X3.5 x2pcs
M3
Hex Flange Nuts
M3 x2pcs
BL/Ø6xØ10x3
BearingØ6xØ10x3 x3pcs
HM/M2.5X10
Flat Head Screw M2.5X10 x1pcs
PB/M2.5X8
Round Head Screw M2.5X8 x2pcs
01
05
10 11 12
06
0302
07 09
08
04
HM
KB
KB/M2.5X8
Flat Head Screw M2X4 x6pcs
PB/M2X4
Round Head Screw M2X4 x4pcs
KB/M2.5X8
Flat Head Screw M2.5X8 x3pcs
KM/M3X6
Flat Head Screw M3X6 x2pcs
PB/M2.5X6
Round Head Screw M2.5X6 x2pcs
KB/M3X6
Flat Head Screw M3X6 x5pcs
KB
6
KB/M2.5X8
Cap Head Screw M2.3X8 x4pcs
PB/M2.3X8
Round Head Screw M2.3X8 x5pcs
PB/M2.3X6
Round Head Screw M2.3X6 x2pcs
KM
PB/M2.5X12
Round Head
M2.5X12 x2pcs
JM/M3X6
Set Screw M3X6 x2pcs
Left Right PB/M2X12
Round Head Self-tapping Screw M2X12 x1pcs
PB/M2X20
Round Head Self-tapping Screw M2X12 x2pcs
13
KB
KB/M2X6
Flat Head M2X12 x4pcs
Tel.: [phone] E-mail: [email protected] @Copyright 2019 X-RIDER Unit 705, Sea View Plaza, 283 Shaukiwan Road, Hong Kong
X-RIDER MODEL COMPANY LIMITED
06252019-01 Version
06Installation Instructions
KM
KM KB
PB
KB
KM
KM
PM
PB
46
46
91
91
4
253
According surface to adjust shock
TX292
PB8-125
Apply
Glue
Wheel Diff Gear
2x 4x0.1
KB
Note:
Please grease first when install the diff gear;
Please coated the screw glue first when screwing down the flat head screw(M2.5x8).
TX056 1
TX051-11T
