X-tail X102 User manual

0406 Version 1.2
0
X102 Handsfree
User Manual

0406 Version 1.2
1
Contents
Introduction ......................................................................................... 1
Headset Features ................................................................................ 2
Charging the Headset ........................................................................ 2
Putting on the Headset ....................................................................... 5
Turning the Headset On/Off ............................................................... 6
Pairing the Headset............................................................................. 7
Placing a Call...................................................................................... 8
Receiving a Call.................................................................................. 9
Ending a Call .......................................................................................9
Volume Control ................................................................................... 9
Transferring a Call ............................................................................... 9
Mute/Un-mute................................................................................... 10
Resetting the Headset....................................................................... 10
Headset LED Indicators..................................................................... 10
Y-Cable LED Indicators..................................................................... 11
Audio Tones....................................................................................... 11
Specifications.................................................................................... 12
Troubleshooting................................................................................. 12
Safety and Certification.................................................................... 13
Warranty and Parts Replacement ................................................... 14
Contacting Priver .............................................................................. 16

0406 Version 1.2
1
Introduction
What is Bluetooth Wireless Technology?
Bluetooth wireless technology is set to revolutionize the personal
connectivity market by providing connectivity between mobile computers,
mobile phones, portable handheld devices and much more. Bluetooth
wireless technology redefines the very way we experience connectivity.
The X102 Handsfree lets you wirelessly connect to the Bluetooth mobile
phone supporting Headset profile or Handsfree profile.
Please read this user manual carefully before you start using the headset.
What is Included in this package?
zX102
Handsfree zSwitching Adapter
zY-Cable zFour
Cushions
zHanging
String zRecharge- able
Earhook
(optional)

0406 Version 1.2
2
Headset Features
1. Talk Button Turns the headset on/off, answers/ends a
call, pairs the headset with a device, and
is used for voice dialing.
2. Volume Up Button Increases the speaker volume.
3. Volume Down Button Decreases the speaker volume.
4. Headset LED Indicator Indicates the headset status.
5. Microphone Picks up the voice inputted.
6. Speaker Plays the sound received.
7. Earpiece Arm Securely holds the headset in the ear.
8. Socket Port Charges the headset and connects the
earhook to the headset.
9. Reset Button Re-initializes the headset.
10. Earhook Attaches the headset over the ear.
Charging the Headset
First-time charge
Before using the headset for the first time, you have to charge its
self-contained battery for 2.5 hours to get a full charge.
3
2
1
6
7
8
9 4
5
10

0406 Version 1.2
3
Recharging
When the battery is low, the headset LED indicator starts flashing red, and a
warning tone will be heard. The low battery warning tone will start 3.5 hours
while in standby mode or 8 minutes while in talk mode before the headset
runs out of power. The warning tone will stop once the rechargeable
earhook is plugged into the headset. However, the warning tone will last for
several minutes if the rechargeable earhook is used after the headset runs
out of the power.
Certainly, you can recharge the headset at any time without first draining
the battery. To keep the battery in good condition, always recharge the
headset once a month if the battery is completely discharged.
A fully charged headset provides:
zTalk time: Up to 6 hours
zStandby time: Up to 120 hours
Knowing the Y-Cable
zDC Jack: Plugging into the earhook
zDC Plug: Plugging into the headset
zPower receptacle: connecting to the switching adapter
zLED Indicators: Showing the charging status
How to charge the headset:
1. The headset must be charged at room temperature.
2. Connect the switching adapter cord to the power receptacle
located on the Y-Cable, and plug the switching adapter into an
(DC Jack)
(DC Plug)
(Power
Receptacle)
(LED Indicators)

0406 Version 1.2
4
electrical outlet. The orange LED indicator on the Y-Cable turns on.
3. Attach the DC plug to the headset’s socket port.
4. When the battery is completely charged, the LED indicator on
the headset turns green.
5. You can now remove the headset from the DC plug, and
unplug the switching adapter from the electrical outlet.
During charging, if a call comes in while the headset is turned on, you can
pick up the headset from the Y-Cable to accept the call.
NOTICE: The socket ports can be used to either charge the headset or
connect the earhook to the headset.
How to charge the rechargeable earhook:
The rechargeable earhook has a built-in battery. It can replace the original
earhook (without battery built in) supplied to provide additional power to
the headset, and greatly extend talk and standby time.
1. Repeat step 2 above.
2. Connect the rechargeable earhook to the DC jack.

0406 Version 1.2
5
3. During charging, the red LED indicator on the Y-Cable shows a steady
light.
4. When charging is complete, the LED indicator turns green.
Putting on the Headset
The X102 Handsfree is designed to be worn on either ear. Its earpiece arm
features an adjustable as well as a 90 degree rotatable design that gives a
secure fit to your ear.

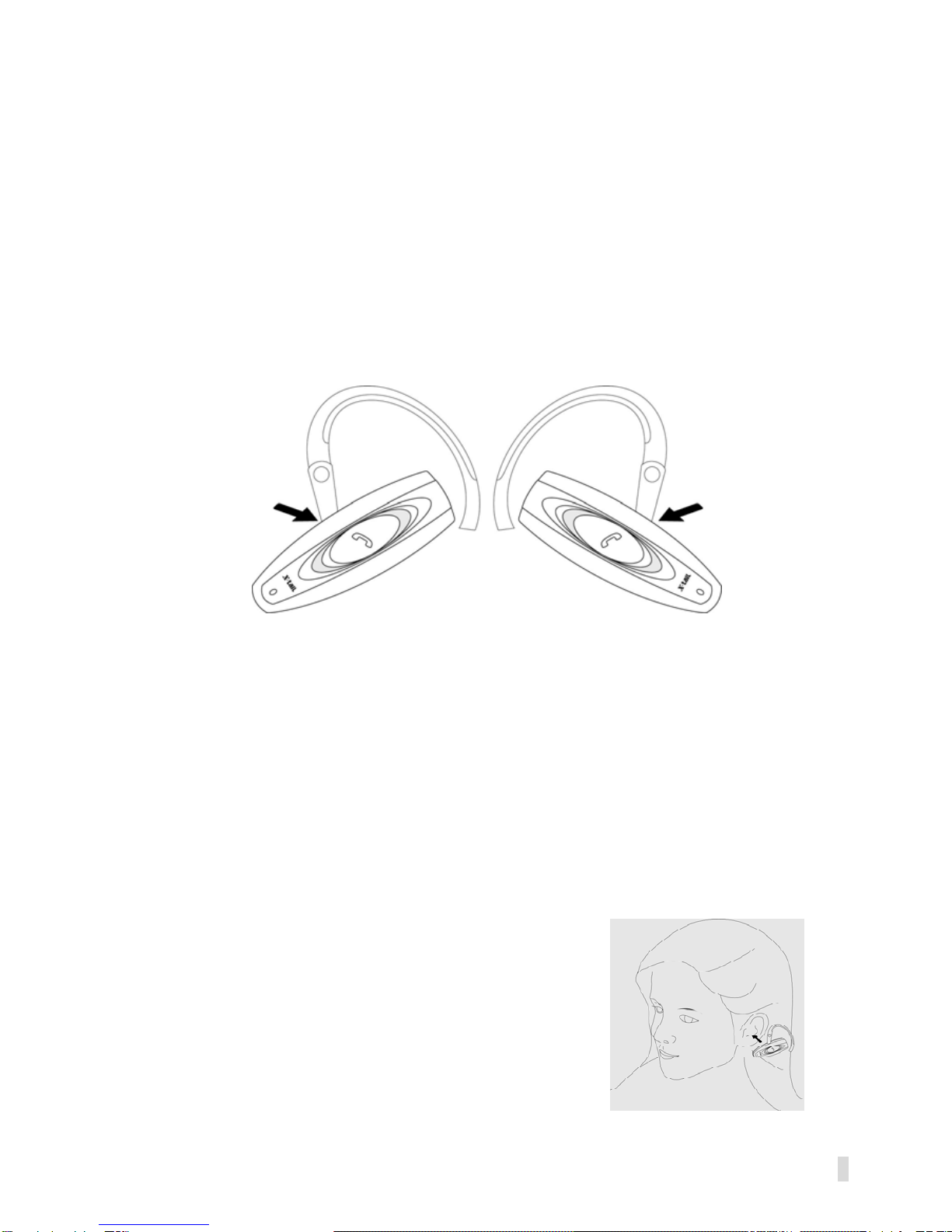

The earhook can be connected into the socket port by either side of the
headset, please see above.
IMPORTANT: Please follow the above instructions to insert the earhook and
avoid vertical insert. Also, be careful when you are adjusting the earhook’s
angel. Do not force it too much or damage may occur.

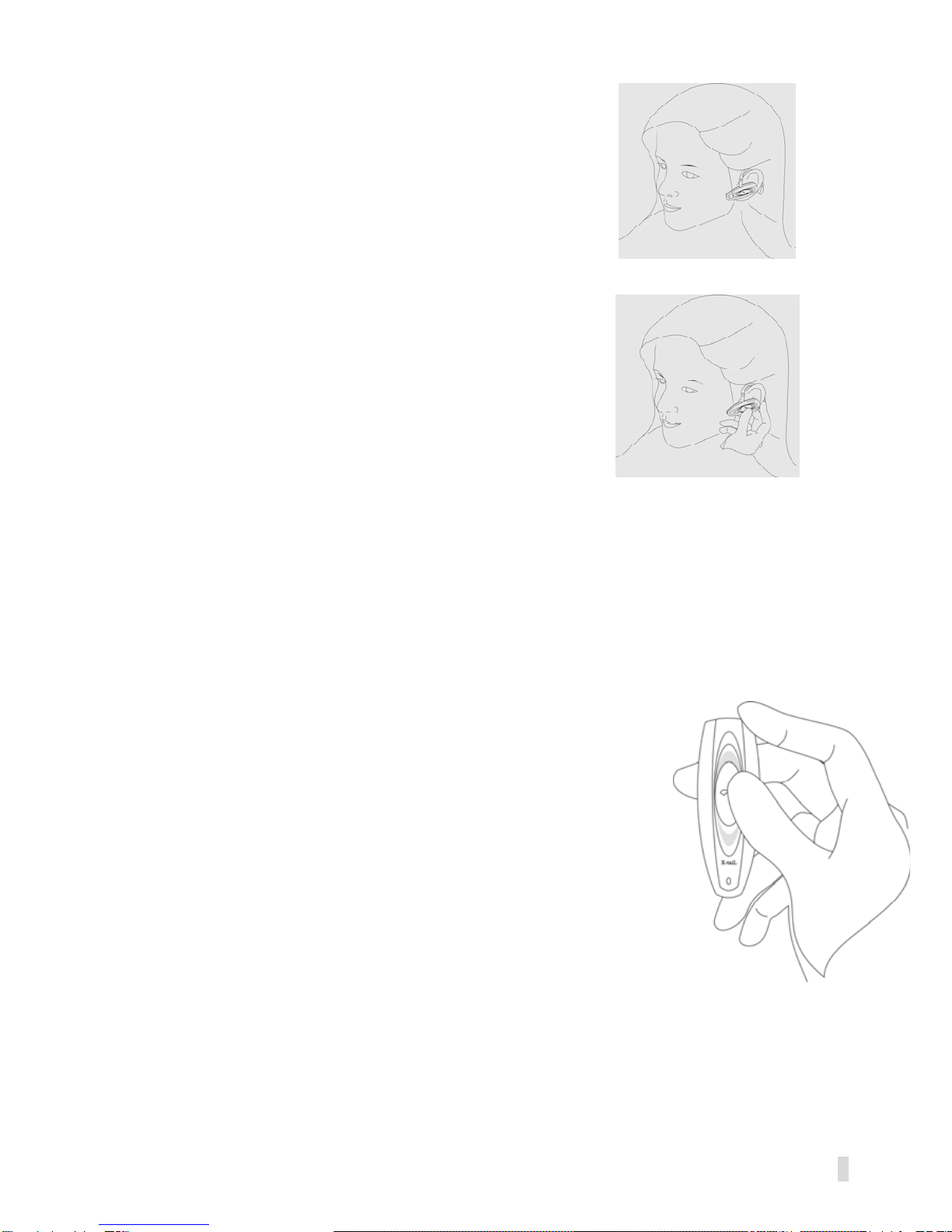

Placing the headset on your ear
1. Directly put the earpiece into your outer
ear canal.

0406 Version 1.2
6
2. Loop the earhook over your ear.
3. Adjust the earpiece arm to stabilize the
headset. The microphone should be
positioned toward to your mouth.
Turning the Headset On/Off
Toturntheheadseton
1. Press the talk button for about 5 seconds until you
hear a low tone followed by a high tone. The
headset LED indicator flashes blue 5 times.
2. The headset turns on and enters standby mode.
The headset LED indicator continuously flashes
blue every 3 seconds.
Toturntheheadsetoff
1. Press the talk button for about 2seconds until you
hear a high tone followed by a low tone. The headset LED indicator
flashes red 5times.
2. The headset turns off and the headset LED indicator no longer blinks.

0406 Version 1.2
7
Pairing the Headset
Before using the headset, you must first pair it with a Bluetooth wireless
technology enabled device, such as a Bluetooth mobile phone.
NOTICE: Pairing must be done every time while the headset establishes a
link with a different Bluetooth wireless technology enabled device. Pairing
mode can only be entered from the power off mode. During pairing, it is
strongly recommended that the headset and phone distance is as close as
possible with no objects in between.
To initiate pairing with a mobile phone:
1. Please turn off the headset.
2. Make sure that the mobile phone is turned on.
3. Press the talk button to turn on the headset, and keep the talk button
pressed for 2seconds until the headset LED indicator alternates
between blue and red. The headset is now ready for pairing process
with the mobile phone.
4. Perform a device discovery from the mobile phone. (For details on
device discovery, please consult your phone’s user’s guide.)
5. Once the mobile phone discovers the headset, the device name
X-102 HF appears on the phone’s screen.
6. Follow the phone instructions to accept pairing. When prompted to
enter the passkey, enter the number: 0000.
NOTICE: It may take several seconds to establish connections.
7. If time runs out after 60 seconds and the pairing fails, you will have to
repeat the steps above. You can view the status from the phone’s
screen.
8. After completing pairing, the phone’s screen will notify you that the
pairing was successful. The headset LED indicator continuously flashes
blue, and the headset goes into standby mode. You are ready to
make and receive calls.

0406 Version 1.2
8
Placing a Call
You can make a call through:
Dialing a number from your mobile phone
1. Dial the phone number from the mobile phone’s keypad.
2. Press the phone’s MAKE/ACCEPT Call key to make a call.
3. The call automatically transfers to the headset.
Voicedialing
To use voice dialing, this functionality is only available if the mobile phone
supports voice dialing. For details on voice dialing, please see your phone’s
user’s guide.
1. Press the talk button once on your headset.
2. After a short tone sounds, speak the name of the person you hope to
reach (if the voice tag of the person has been added to your phone).
3. The phone automatically dials the number. You can see the details of
the call from the phone’s screen.
Redialingthelastnumber
To redial the last number, press either the volume up button or volume
down button for 3 seconds. The function is only available for mobile phones
supporting Handsfree profile.
NOTICE: Make sure the headset and mobile phone are in the link stage. For
the examples of Sony Ericsson and Nokia mobile phones, the and
symbols mean that the linking between headset and phone is established.
For Nokia mobile phone, it is necessary to press the talk button once to
make the symbol on the phone while the headset is disconnected or
power off.

0406 Version 1.2
9
Receiving a Call
When a call comes in, the headset rings and the LED indicator flashes blue
every 3 seconds. You can either press the talk button once on the headset
or press the MAKE/ACCEPT Call key on your mobile phone to answer the
call.
NOTICE: If the mobile phone rings first, wait until you hear a ring tone from
the headset, and then press the talk button to answer the call.
Ending a Call
To end a call, press the headset’s talk button once or press the phone’s END
key. The headset returns to standby mode.
Rejecting a Call
To reject an incoming call, press the headset’s talk button for 2 seconds.
The function is only available for mobile phones supporting Handsfree
profile.
Volume Control
During a call, you can adjust the headset speaker volume by using the
volume up and volume down buttons. An audio tone is played for each
volume up and volume down step.
Press the volume up and volume down buttons to reach your desired
volume level.
Transferring a Call
To transfer a call from the headset to the mobile phone, initiate it from the
mobile phone. (Refer to your phone’s user’s guide)
To transfer a call from the mobile phone to the headset, press the talk

0406 Version 1.2
10
button once.
Mute/Un-mute
To mute the headset sound during a call, press the volume up button or the
volume down button for 2 seconds until you hear 2 low beeps repeated
every 2 seconds. To un-mute, press the volume up button or the volume
down button once.
This function enables you to hear all sounds coming from the person on the
other side, but the person cannot hear your voice.
Resetting the Headset
If the headset does not function normally, you can try to reset the headset
to resolve most problems. To reset the headset, press the reset button at the
bottom of the headset once, and then turn on the headset. Resetting
won’t delete previously stored pairing information.
NOTICE: The X102 Handsfree supports both Headset and Handsfree profiles.
Some mobile phones don’t support all functions listed above. Please
consult your phone’s user’s guide.
Headset LED Indicators
Headset State LED State
Charging complete Green LED on (charging the headset)
Power on Blue LED flashes 5times
Power off Red LED flashes 5times
Pairing mode Blue and red LEDs flash alternatively until the
pairing is complete or time out.
Standby mode – Sony
Ericsson Blue LED flashes once every 3 sec.
Standby mode – Nokia Blue LED flashes 3 times every 3 sec.

0406 Version 1.2
11
Headset State LED State
Incoming call – Sony Ericsson Blue LED flashes 3 times every 3 sec.
Incoming call - Nokia Blue LED flashes 4 times every 3 sec.
Talk mode Blue LED flashes 4 times every 3 sec.
Low battery Red LED flashes instead of blue LED.
Y-Cable LED Indicators
Y-cable State LED State
Power on Orange LED on (plugged into an electrical
outlet)
Charging in process Red LED on
Charging complete Green LED on
The red and green LEDs are used to indicate the status of the rechargeable
earhook while charging.
Audio Tones
Headset State Audio Indication
Power on A low tone followed by a high tone
Power off A high tone followed by a low tone
Pairing mode No audio tone
Low battery (Talk mode) 5 rapid tones
Low battery (Standby mode) Warning tones repeated every 20 seconds
Incoming call – Sony Ericsson A ring tone every 2 seconds
Incoming call – Nokia The same ring tone depends on the
phone
Mute 2 low beeps every 2 seconds
Un-mute Single tone

0406 Version 1.2
12
Specifications
Standard Compliant with Bluetooth specification v1.1
Chipset BlueCore2-Audio single chipset
Profile Supported Bluetooth Headset profile
Radio Frequency 2402 MHz ~2480 MHz
Transmitter Power Class 2 (max 4dBm)
Transmission Range Up to 10 meters
Receiver Sensitivity -79 dBm
Charger Power Supply 5VDC / 500 mA
Temperature Operating: -20℃to 60℃; Storage: -20℃
to 60℃; Charging: 0℃to 45℃
Operation Voltage 3.7V
Battery Rechargeable 110mAh Lithium Polymer
battery
Charging Time 2.5 hours
Talk Time Up to 6 hours
Standby Time Up to 120 hours
Weight 16g, headset only
Dimension 70L x 25W x 15H (mm), not including
earpiece and earhook
Certificate CE_R&TTE, FCC, BQB, DGT (Taiwan)
NOTICE: Talk time and standby time are varied according to different mobile
phones.
Troubleshooting
Headset does not work:
Make sure:
zThe headset is turned on and paired with your mobile phone.
zYou activated the Bluetooth feature on your phone.
zThe headset is within 10 meters of your phone, and no obstructions
between headset and phone.

0406 Version 1.2
13
Charging LED does not turn on when charging the rechargeable earhook:
Ensure:
zThe earhook is properly inserted into DC jack on the Y-cable.
zThe switching adapter is properly inserted into the Y-cable.
Headset does not pair with Bluetooth phone:
zEnsure the headset is on pairing mode. (Blue and red LEDs across
blinking)
zYour Bluetooth phone pairing list may be full, try to eliminate not
necessary Bluetooth devices.
Headset LED indicator flashes red:
zThis indicates the headset is on low battery condition. Please charge the
headset.
Headset is automatically turned off:
zBattery is too low.
Safety and Certification
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by Priver will void the
warranty.
FCCNotices
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in

0406 Version 1.2
14
conjunction with any other antenna or transmitter.
NOTICE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
CEStatement
Important Notice: This device is a 2.4GHz FHSS Bluetooth headset, intended
for office and home uses in all EU and EFTA member states.
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and
licensed to Priver.
Warranty and Parts Replacement
Battery: This headset is equipped with a rechargeable Polymer Lithium-Ion
battery. Replacement or service must be done at a qualified service center
or returned to the manufacturer.
Use only the battery supplied.
Use only the supplied and approved switching adapter.
We warrant the products described below will be against all defects in
material and workmanship from the date of original purchase, for the
period set forth below applicable to the product type.
Product Type Warranty Period
Product One year
Rechargeable earhook 3 months
The conditions of this warranty and our responsibilities under this warranty
are as follows:
zThe warranty is limited to the original purchaser.

0406 Version 1.2
15
zA copy of your receipt or the proof of purchase is required. Without
proof of purchase, your warranty is defined as beginning on the date
of manufacture as labeled on the products.
zThe warranty is void if the serial number, date or product label is
removed, or if the product has been subject to physical abuse,
improper installation, modification, or repair by unauthorized third
parties.
zThe responsibility of our products shall be limited to the repair or
replacement of the product at our sole discretion.
zAny implied warranty on our products is limited to one year from the
date of purchase on all parts, including any cords and connectors.
zSpecifically exempt from any warranty are limited-life consumable
components subject to normal wear and tear, such as microphone,
decorative finishes, batteries, and other accessories.
zWe are not liable for any incidental or consequential damages
arising from the use or misuse of any our products.
zThis warranty gives you specific rights and you may have other rights
which vary from area to area.
zUnless otherwise instructed in the user manual, the user may not,
under any circumstances, attempt to perform service, adjustments or
repairs on this unit, whether in or out of warranty. It must be returned
to the purchase point, factory or authorized service agency for all
such work.
We will not assume any responsibility for any loss or damage
incurred in shipping. Any repair work on our products by
unauthorized third parties voids the warranty.

0406 Version 1.2
16
Contacting Priver
Head office
4F, No. 69-8, Sec. 2, Chung-Cheng E. Rd., Tamshui Zhen,
Taipei Hsien 251,
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Contact: [email protected].tw
Website: www.x-tail.com.tw
Factory
China:
Gold Bridge Industrial Estate,
Ching Shi Zhen, Dong Guan City,
Guang Dong Province, P.R.C.
Tel: [phone]
Fax: [phone]
