X10 TM751 User manual
X10 Wireless Technology, Inc. 90 Day Limited Warranty
X10.com, a division of X10 Wireless Technology, Inc. (X10) warrants X10 products to be
free from defective material and workmanship for a period of 90 days from the original date
of purchase at retail. X10 agrees to repair or replace, at it’s sole discretion, a defective X10
product if returned to X10 within the warranty period and with proof of purchase.
If service is required under this warranty:
Return Merchandise Authorization (RMA) number.
2. Return the defective unit postage prepaid to X10 (see address on back).
3. Enclose a check for $4.00 to cover postage and handling.
4. Enclose a dated proof of purchase.
5. X10 is not responsible for shipping damage. Units to be returned should be packed
carefully.
Please visit www.x10.com/support for help.
TM751-6/13
FCC CAUTION: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This equipment generates and uses radio frequency energy, and if not installed and used properly,
that is, in strict accordance with the manufacturers instructions, it may cause interference to radio and
television reception. It has been type tested and found to comply with the limits for remote control
devices in accordance with the specifications in Sub-Parts B and C of Part 15 of FCC Rules, which
are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by
unplugging the equipment, try to correct the interference by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interference.
• Relocate the product with respect to the radio/TV.
• Move the product away from the radio/TV.
• Plug product into an outlet on a different circuit from the radio/TV experiencing the interference.
• If necessary, consult your local Dealer for additional suggestions.
NOTE: Modifications to any of the components in this kit will void the user’s authority to operate
this equipment.
Trim Trim

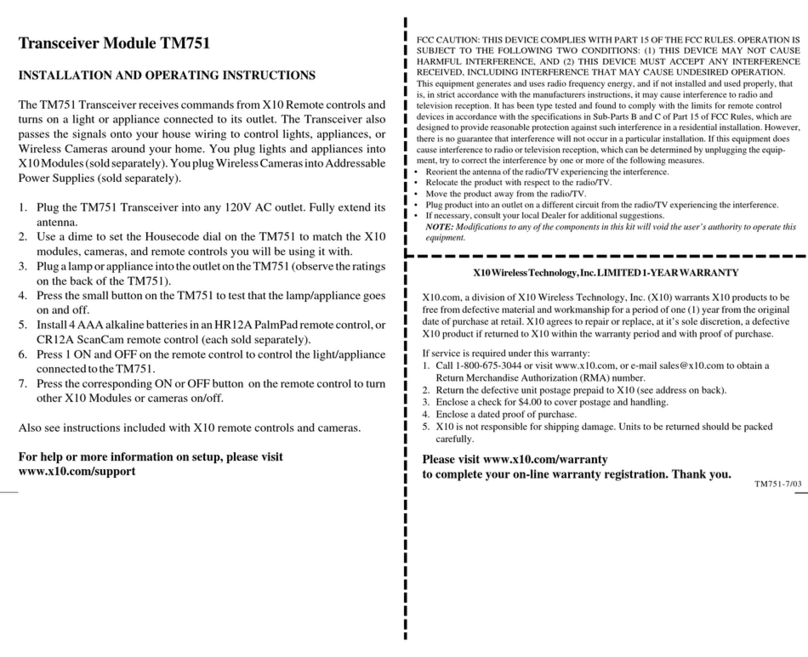

Transceiver Module TM751
INSTALLATION AND OPERATING INSTRUCTIONS
The TM751Transceiver receives commands from X10 Remote controls and
turns on a light or appliance connected to its outlet. The Transceiver also
passes the signals onto your house wiring to control lights, appliances, or
Wireless Cameras around your home. You plug lights and appliances into
X10Modules(soldseparately).YouplugWirelessCamerasintoAddressable
Power Supplies (sold separately).
1. Plug the TM751 Transceiver into any 120V AC outlet. Fully extend its
antenna.
2. Use a dime to set the Housecode dial on the TM751 to match the X10
modules, cameras, and remote controls you will be using it with.
3. PlugalamporapplianceintotheoutletontheTM751(observetheratings
on the back of the TM751).
4. Press the small button on the TM751 to test that the lamp/appliance goes
on and off.
5. Install 4 AAA alkaline batteries in an HR12A PalmPad remote control,
or CR12A ScanCam remote control (each sold separately).
6. Press 1 ON and OFF on the remote control to control the light/appliance
connected to the TM751.
7. Press the corresponding ON or OFF button on the remote control to turn
other X10 Modules or cameras on/off.
Also see instructions included with X10 remote controls and cameras.
For help or more information on setup, please visit
www.x10.com/support
Print reduced by approx 85%.
Final size of above = approx. 7 3/4” x 4 3/4”
Folds into a sheet 3 7/8’x 2 3/8”
(Like all other instruction sheets)
Mini Timer MT13A
AController, Timer andAlarm Clock all in
one! Programs up to eight X10 Modules to
go on and off at specific times, up to a total
of64timed events. Controlseight modules
instantly. Dims lights too.
Maxi Controller SC503
Lets you control up to 16 X10 Modules at
the touch of a button from anywhere in the
house. Dims lights too!
Mini Controller MC10A
Lets you control up to eight X10 Modules
at the touch of a button from anywhere in
the house. Dims lights too!
2-Way Home Control Interface CM15A
Set up from a PC to control up to 256
X10 Modules. ActiveHome Pro software
download & USB cable included.
Thermostat Set-Back TH2807
Automatically sets-back your central
heating/airconditioning.Mountsonthewall
under your existing thermostat and plugs
into an Appliance Module.
WirelessRemoteControlSystemRC5000
Letsyoucontrol16X10modulesfrominside
or outside your home. Can also dim and
brighten Lamp Modules and Wall Switch
Modules. Works with the HR12APalmPad
RemoteandX10RFWallSwitches(SS13A,
SS15A).
Lamp Module LM465
Can be Dimmed and Brightened from any
X10Controller.Respondsto“Alllightson”.
Rated for 300 W. Incandescent only.
2-Way version LM14A.
SocketRocket LM15A
Screwsintoanexistinglightfixture.Controls
up to 150W, incandescent only.
Appliance Module - AM486/AM466
Two pin polarized (AM486) or 3 pin
grounded (AM466). For controlling an air
conditioner,TV,stereo,etc.anywhereinthe
home. Rated 15A for heaters, coffee pots
etc.; 1/3 H.P. for motors; 400W for TVs;
500W for lamps. 2-Way versions available
AM14A (2 pin), AM15A (3 pin).
Wall Switch Module WS467
Forcontrollingimportantindoorandoutdoor
security lights. Replaces your existing
wall switch and installs like a regular
dimmer.Dimmed/brightened from any X10
Controller. Rated 500W incandescent only.
3 - Way Wall Switch Module WS4777
For controlling a light which is controlled
by two switches. Same features as WS467.
Split Receptacle Module SR227
Replacesexistingwalloutlet.Thetopoutlet
functions like an Appliance Module, the
bottom one is a regular outlet. Rated 15A.
Universal Module UM506
Isolated contact relay and beeper. Can be
set for momentary or continuous operation.
Not compatible with X10 security systems.
Trim Trim
X10 Wireless Technology, Inc.
400 Forge Way, Suite 409-412,
Rockaway, NJ 07866
RMA#
Tear off and keep the portion to the right (setup instructions are
on the other side of it) and keep for future use.
visit www.x10.com/support/return_policy.htm
Authorization (RMA) number.
Write your RMAnumber above. Tear off and tape this label to
