Xact XG2100 User manual

CORDLESS TELEPHONE
Model XG2100
OWNER'S MANUAL
INSTALLATION AND
OPERATING
INSTRUCTIONS
PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
4
© 2002 BellSouth Corporation
Visit Us on the Web:
www.uselectronics.info

ongratulations on your selection of a quality XACT Product. With proper care, and by
following the setup and user instructions in this owner’s manual, this unit will provide you
with years of trouble free service.
BellSouth is committed to providing quality products that fit your needs. We would like to have any
comments or suggestions you might have on this product. You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016
When examining your new BellSouth cordless telephone, you will find an array of special
features including:
Filtered Sound™ System - Receives considerably less noise than conventional cordless
telephones because of a special circuit which delivers the clearest possible reception.
50 Channel Autoscan - Press the button on the HANDSET to find and lock on to the clearest
channel for any call.
Telephone Number Storage - Store up to 10 frequently called numbers.
Desk or Wall Mount - Use this equipment as a desk phone and as a wall phone.
TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing.
Automated Functions - Redial the last number called, speed dial 10 numbers, and automatic
STANDBY mode.
Security - Ensures greater privacy because a built-in security code with 65,536 combinations
prevents use of your telephone line by another nearby cordless phone.
Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. The
battery low warning tone tells you when the BATTERY PACK needs recharging. (See page 11.)
Special Services -Use the button to access special services such as Call Waiting
supplied by your telephone company or company switchboard.
STANDBY Mode -When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call.
When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK).
When the HANDSET is off the BASE UNIT, it remains in the STANDBY mode until you activate
the button.
Battery Power Saver -Once fully charged, in STANDBY mode, and with the RINGER SWITCH in
the “ON” position, the HANDSET can receive/send calls for a maximum of five days without the
need for recharging. Length of charge depends on frequency of use.
HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW).
HEADSET JACK - Your telephone can utilize a headset for hands-free communication.
BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.
Special Features
C
TALK
SCAN
FLASH

HANDSET Controls
4
7. PAUSE BUTTON
Pg. 9
1. TALK BUTTON
Pg. 5, 7~9, 13
6. MEMO BUTTON
Pg. 8, 9
10. VOLUME CONTROL
(HI, MID, LOW) SWITCH
11. CHARGE CONTACTS
8. SCAN BUTTON
Pg. 7, 10, 13, 16
3. FLASH BUTTON
9. REDIAL BUTTON
Pg. 9
4. HEADSET JACK
Pg. 10
11. TONE BUTTON
5. RINGER ON/OFF
SWITCH Pg. 8
2. IN USE/BATT LOW
LED INDICATOR
Pg. 7, 8, 11

IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.
HANDSET Controls
1. Button: Press to answer an incoming call or to place a call. Press to end a call.
2. IN USE/BATT LOW LED Indicator: Lights up when the HANDSET is in TALK mode. Blinks
when the battery charge is low. (See page 11 for detail.)
3. Button: Press to answer an incoming call if you have Call Waiting.
4. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication.
(See page 10 for detail).
5. RINGER ON/OFF Switch: Switch to ON to engage the ringer on the HANDSET. Set switch to
OFF to disengage the ringer on the HANDSET.
6. Button: Press to store phone numbers in memory or to call a number you have
previously stored.
7. Button: Press to insert a PAUSE while dialing. (You will need the button to dial
numbers which use an alternative Long Distance Access Code.)
8. Button: Press to change the operating channel when you hear interference.
9. Button: Press to REDIAL the last number you called.
10. HANDSET Volume Control (HI, MID, LOW) Switch: Select the receiver volume level.
11. Button: Press to change the dialing mode from PULSE to TONE.
12. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We
recommend cleaning the CHARGE CONTACTS periodically with a damp cloth.
FLASH
SCAN
REDIAL
TONE
TALK
PAUSE
MEMO
PAUSE

BASE UNIT Controls
1. TELEPHONE LINE
CONNECTION JACK
Pg. 4, 6, 13
3. TONE/PULSE
SELECT SWITCH
Pg. 5, 13
2. POWER-IN
CONNECTION JACK
Pg. 4
5. CHARGE TERMINALS
4. BASE UNIT ANTENNA
6. IN USE/CHARGE
LED INDICATOR
Pg. 8
7. PAGE BUTTON

BASE UNIT Controls
1. TELEPHONE LINE CONNECTION JACK
2. POWER-IN CONNECTION JACK
3. TONE/PULSE Select Switch
4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall
mounting the telephone.
5. BASE UNIT ANTENNA
6. CHARGE TERMINALS: For charging the BATTERY PACK inside the HANDSET. We recommend
cleaning the CHARGE TERMINALS periodically with a damp cloth.
7. Button: Press to page the HANDSET. Press again to stop.
8. IN USE/CHARGE LED Indicator: Lights up when the HANDSET is in TALK mode or when the
HANDSET is placed on the BASE UNIT for charging.
IMPORTANT
Placing your BASE UNIT near appliances such
as televisions, refrigerators, radios, or
microwave ovens may cause interference.
PAGE

Contents
1
Safety Instructions....................................................................................................................... 2
Getting Started............................................................................................................................. 4
Desk Mounting.............................................................................................................................. 6
Wall Mounting............................................................................................................................... 6
Basic Operation....................................................................................................... .................... 7
Preparing for Use.................................................................................................................. 7
Placing Calls...........................................................................................................................7
Receiving Calls...................................................................................................................... 8
Storing Numbers.................................................................................................................... 8
Recalling Stored Numbers..................................................................................................... 9
Redial Feature........................................................................................................................9
Using the Headset Feature.................................................................................................... 10
Security........................................................................................................................................ 10
Recharging the BATTERY PACK.................................................................................................. 11
Changing the BATTERY PACK......................................................................................................12
Problem Solving............................................................................................................................ 13
Technical Information....................................................................................................................14
FCC Requirements........................................................................................................................15
Warranty.......................................................................................................................................17
Wall Mount Template..................................................................................................................... 19

Safety Instructions
2
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions when
using your cordless telephone equipment.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, or anywhere else where there is water.
4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be
a remote risk of electric shock from lightning.
5. Do not use the telephone to report a gas leak in the vicinity of the leak.
6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do not
dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check with local
codes for possible special disposal instructions.
7. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY PACK. Do
not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning.
8. Place this telephone on a stable surface. Serious damage and/or injury may result if the
telephone falls.
9. Do not cover the slots and openings on this telephone. This telephone should never be placed
near or over a radiator or heat register. This telephone should not be placed in a built-in
installation unless proper ventilation is provided.
10. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the
Owner’s Manual. If you are not sure of the voltage in your home, consult your dealer or local
power company.
11. Do not place anything on the power cord. Install the telephone where no one will step or trip
on the cord.
12. Do not overload wall outlets or extension cords as this can increase the risk of fire or electric
shock.
13. Never push any objects through the slots in the telephone. They could touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill
liquid of any kind on the telephone.
14. To reduce the risk of electric shock, do not take this telephone apart. If service or repair work
is required on this telephone, take it to a qualified service representative. Opening or removing
covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause
electric shock when the appliance is subsequently used.
15. Unplug this telephone from the wall outlet and consult a qualified service representative in any
of the following situations.
A. When the power supply cord is frayed or damaged.
B. If liquid has been spilled into the telephone.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions. Improper adjustment
may require extensive work by a qualified technician to restore the telephone to normal
operation.
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.

16. Never install telephone wiring during a lightning storm.
17. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
18. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
19. Use caution when installing or modifying telephone lines.
Battery Safety
CAUTION:
Danger of explosion if the BATTERY PACK is incorrectly replaced. Replace only with the same or
equivalent type. To reduce the risk of fire or personal injury, read and follow these instructions:
1. Use only the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6VDC, 600mAh
U.S. Electronics Inc.
Ni-MH BATTERY PACK: Model B655
(See page 11 for ordering information.)
2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes for
possible special disposal instructions.
3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY PACK is
corrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.
4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK with
conductive materials such as rings, bracelets, and keys. The BATTERY PACK or conductor
may overheat and cause burns.
5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only in
accordance with the instructions and limitations specified in this manual.
6. Observe proper polarity orientation between the BATTERY PACK and BATTERY CHARGER.
SAVE THESE INSTRUCTIONS
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY
PACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal
to dispose of this BATTERY PACK into the municipal waste stream. Check with your local solid
waste officials for details in your area for recycling options or proper disposal.
Safety Instructions
3
IMPORTANT
If you live in an area which receives frequent
thunderstorms, we strongly recommend plugging
your AC ADAPTOR into a surge protector.

Getting Started
Connecting Your Phone
This section is a reference guide to the basic functions and operations of your cordless telephone.
For more detailed descriptions of the operations and features of this telephone, refer to the
Contents on page 1.
1. Carefully remove your cordless telephone from its shipping carton. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place of purchase.
2. Check to be sure you have all items that come with this cordless telephone system. You should
have a HANDSET, BASE UNIT, AC ADAPTOR, MOUNTING BRACKET, TELEPHONE LINE CORD,
SHORT TELEPHONE LINE CORD, BATTERY PACK, BELT CLIP, and Owner’s Manual.
4
3. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION JACK at
the back of the BASE UNIT.
4. Plug the AC ADAPTOR into a 120V AC wall outlet.
USE ONLY WITH CLASS 2 POWER SOURCE 12V DC, 200mA.
5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the other
end into the TELEPHONE LINE CONNECTION JACK on the back of the BASE UNIT. (If you have
an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK ADAPTOR.
This adaptor is available at the same place you purchased your telephone.)
AC ADAPTOR
TELEPHONE
LINE CORD
TELEPHONE
JACK
120V WALL
OUTLET
TONE/PULSE
SELECT SWITCH
TELEPHONE LINE
CONNECTION JACK
POWER-IN
CONNECTION
JACK
3
4
5
5
SHORT TELEPHONE
LINE CORD
TELEPHONE LINE CORD
AC ADAPTOR
BASE UNIT
MOUNTING
BRACKET
HANDSET
BELT CLIP
BATTERY PACK

11. TONE/PULSE Select Switch:
A. If your home is equipped with a tone dialing system, set the TONE/PULSE Select Switch to
the TONE position.
B. If you have a rotary dialing system, set the TONE/PULSE Select Switch to the PULSE
position.
C. If you are unsure which system you have, set the TONE/PULSE Select Switch to the TONE
position. Press the button on the HANDSET to get a dial tone, and press any button
on the TELEPHONE KEYPAD except the zero. If the dial tone continues, it means that you
do not have tone dialing service. Press the button on the HANDSET to hang up. Set
the TONE/PULSE Select Switch to the PULSE mode and then try again.
Getting Started
5
6. We recommend not placing this unit next to appliances. Doing so may cause interference.
7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside the
BATTERY COMPARTMENT.
8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.
9. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.
10. IMPORTANT: Before initial use, charge the HANDSET for 12 hours. Do not charge the
HANDSET with TELEPHONE KEYPAD face down.
Press the button to confirm that you have a dial
tone. If you do not get a dial tone, review steps 3
through 11. If you still do not have a dial tone, refer to
the Problem Solving section on page 13.
Belt Clip Installation
With the back of the HANDSET facing up, insert one
side of the BELT CLIP HOOK into the matching slot at
the top side of the HANDSET. Press down on the
opposite side of the BELT CLIP until the other hook
locks into the slot on the side of the HANDSET.
You are now ready to use your new
BellSouth Cordless Telephone.
TALK
TALK
TALK
BATTERY PACK
BATTERY
COMPARTMENT
COVER
9
78
BELT CLIP HOOK

Desk Mounting
One of the special features of your telephone is the unique design of the MOUNTING BRACKET
which can hold your phone at an angle of 30° when desk mounting. There are two positions to
choose from:
1. NORMAL POSITION (MOUNTING BRACKET not
required):
For normal position, as shown in Figure 1, place the
BASE UNIT on any desired but suitable location.
2. 30° POSITION (See Figure 2):
With the back of the BASE UNIT facing up, insert the
hooks of the MOUNTING BRACKET (with the
position as shown in Figure 3) into the four
slots of the BASE UNIT. Then slide the MOUNTING
BRACKET upward until it locks into place.
Wall Mounting
You may choose to put the BASE UNIT of your cordless telephone on a wall.
1. With the back of the BASE UNIT facing up, connect
the SHORT TELEPHONE LINE CORD to the
TELEPHONE LINE CONNECTION JACK.
2. Insert the free end of the SHORT TELEPHONE LINE
CORD through the hole of the MOUNTING BRACKET.
3. Insert the hooks of the MOUNTING BRACKET into
the matching slots on the back of the BASE UNIT
(following the arrow direction for the WALL MOUNT)
then slide the MOUNTING BRACKET until it locks
into place.
4. Plug the free end of the SHORT TELEPHONE LINE
CORD into the MODULAR WALL JACK.
5. Align the upper keyhole of the MOUNTING BRACKET
with the upper stud of the wall plate, so that the
opening end of the MOUNTING BRACKET matches
the lower stud, then pull the BASE UNIT down until
it is securely seated.
6. Pull out the HANDSET RETAINER TAB in the BASE
UNIT then place the HANDSET in the BASE
UNIT CHARGE CRADLE.
6
FIGURE 1
FIGURE 2FIGURE 3
MOUNTING
BRACKET MODULAR
WALL JACK
WALL
PLATE
WALL PLATE STUD
SHORT TELEPHONE
LINE CORD
1
2
33
33
4
5
5

7
Basic Operation
Preparing for Use
Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure
to do so will require recharging of the BATTERY PACK more often.
1. Place the HANDSET on the BASE UNIT for 12 hours.
2. After 12 hours, remove the HANDSET from the BASE UNIT.
Before you can use your cordless telephone, you must charge the HANDSET for 12
hours. Failure to do so will require more frequent charging of the BATTERY PACK.
See page 11 for more information on the BATTERY PACK.
NOTE:
Depending on the frequency of use, once the HANDSET is fully charged, it remains functional for
approximately 4 hours of continuous use and approximately 5 days when the HANDSET is off the
BASE UNIT in STANDBY mode.
Placing Calls
1. Press the button. The IN USE LED indicator
will light up.
2. Listen for a dial tone.
3. Dial the phone number.
4. When you have finished your call, either press
the button or place the HANDSET on the
BASE UNIT. The IN USE LED indicator will turn
off.
NOTES:
1. The BASE UNIT does not have a ringer and does not ring when receiving an incoming call.
2. If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to warn you
that the background noise level is too high for proper communication between the HANDSET
and the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT to
reduce the noise level. Otherwise, the call will automatically cut off.
TALK
TALK
IMPORTANT
Do not use this telephone within 20 ft. of a
microwave oven while it is working, as you may
experience interference. This is a normal
occurrence with 2.4 GHz phones and should
not be interpreted as a defect in the product.

8
Basic Operation

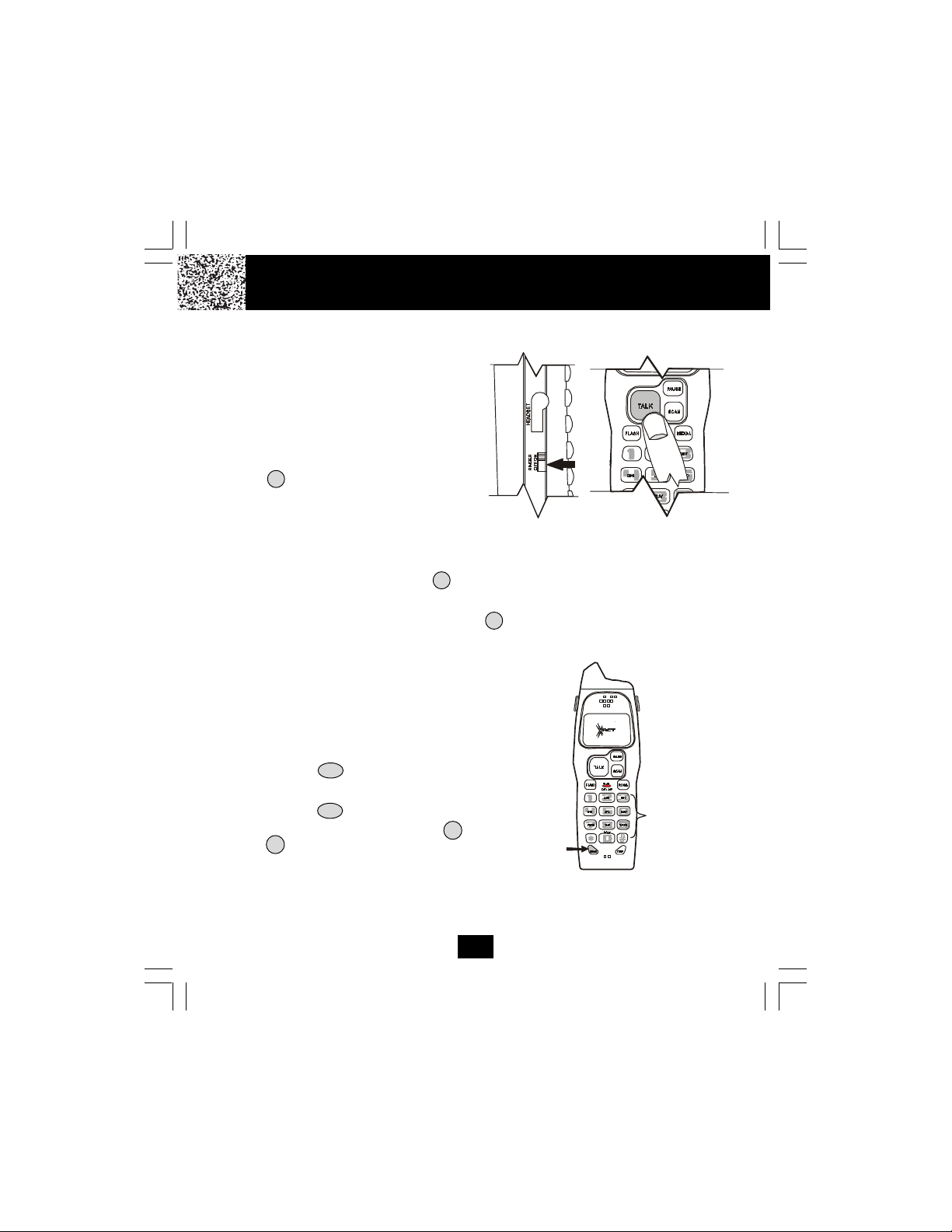

Receiving Calls with the HANDSET on the BASE UNIT
1. When the phone rings, lift the HANDSET.
The IN USE LED indicator will light up.
NOTE: The HANDSET RINGER ON/OFF
switch must be in the “ON” position for
ringer to operate.
2. Start your conversation.
3. To end your conversation, either press the
button or place the HANDSET on
the BASE UNIT. If you place the HANDSET
on the BASE UNIT CHARGE CRADLE, you
activate the automatic STANDBY feature.
Receiving Calls with the HANDSET off the BASE UNIT
1. When the phone rings, press the button. The IN USE LED indicator will light up.
2. Start your conversation.
3. To end your conversation, either press the button or place the HANDSET on the BASE
UNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE, you activate the
automatic STANDBY feature.
Storing Numbers
1. Be sure the BASE UNIT IN USE LED
indicator is off and the HANDSET is in
STANDBY mode (See Special Features
Section).
2. Press the button.
3. Dial the number you want to store.
4. Press the button again.
5. Dial the TELEPHONE KEYPAD ~
button where you want to store that
number. You will hear one confirmation
“beep.”
6. Repeat steps 1 through 5 to store other
telephone numbers.
TALK
0
9
TALK
TALK
MEMO
MEMO 5
2, 4

9
EXAMPLE : To store the number 115-1968 under the TELEPHONE KEYPAD button:
1- Press the button. 4- Press the TELEPHONE KEYPAD button.
2- Dial 115-1968. 5- You have stored 115-1968 under TELEPHONE
KEYPAD button.
3- Press the button again.
A total of 10 telephone numbers can be programmed in memory.
IMPORTANT: The maximum number of digits that can be stored for any phone number is 16 in
PULSE or TONE mode. The maximum number of digits for mixed (TONE and PULSE in combination)
dialing is 15. If you are using a switchboard system to access an outside line (such as an 8 or 9),
press the button to store a PAUSE.
Recalling Stored Numbers from Memory
1. Press the button.
2. Press the button.
3. Press the TELEPHONE KEYPAD button for the number you have stored. The stored number will
be dialed automatically.
EXAMPLE: To recall number 115-1968 stored under the TELEPHONE KEYPAD button:
1- Press the button. 3- Press the TELEPHONE KEYPAD button.
2- Press the button.
Redial Feature
1. If you get a busy tone, press the button to hang up.
2. Later, press the button again.
3. Listen for a dial tone.
4. Press the button. This will automatically redial the last telephone number you
called.
Basic Operation
TALK
TALK
MEMO
MEMO
TALK
REDIAL
1
1
1
1
1
MEMO
MEMO
PAUSE
TALK
IMPORTANT
The AC ADAPTOR must always be
plugged into an electrical outlet.

10
Using the Headset Feature
Your telephone can utilize a headset (not included)
to be connected to your HANDSET for you to enjoy
hands-free communication. Pull out the HEADSET
JACK COVER then insert the small plug on the end of
the headset into the HEADSET JACK at the left side
of the HANDSET. Follow the procedures discussed
in “Receiving Calls” and “Placing Calls” to receive
and place a call.
NOTE:
When you plug the headset plug into the
HEADSET JACK it automatically mutes the
MICROPHONE and SPEAKER of the
HANDSET. Unplug the headset to return the
HANDSET to normal use.
Basic Operation
Headsets are available at most retail outlets that sell telephone equipment. The HEADSET JACK is
compatible with 2.5 mm headset plugs only.
Security System
Your cordless telephone uses a digital coding security system to prevent unauthorized use of your
telephone line by another nearby cordless telephone. The system has its own identifying signal
created by microcomputers in both the BASE UNIT and the HANDSET.
Security Code
This telephone has an internal security code with 65,536 possible combinations.
Resetting Security Code and Channel Information
Communication between the HANDSET and the BASE UNIT may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.
3. After replacing the HANDSET BATTERY PACK.
To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.
Multi-Channel Access
Your cordless telephone lets you select a channel from the 50 frequencies available to transmit
signals between the BASE UNIT and the HANDSET. When you notice interference from other
cordless telephones, change to another channel by pressing the button on the HANDSET.
SCAN
MICROPHONE
HEADSET
SPEAKER
HEADSET JACK
HEADSET JACK
COVER
HEADSET PLUG
(
2.5mm
)

11
Recharging the BATTERY PACK
Battery Type
Use the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6VDC, 600 mAh
U.S. Electronics Inc.
Ni-MH BATTERY PACK: Model B655
This BATTERY PACK is available through:
U.S. Electronics Service Center
105 Madison Avenue
New York, NY 10016
1-800-828-5208
NOTES:
1. During a power interruption, the BASE UNIT does not operate and a phone
conversation cannot be made on the HANDSET.
2.To ensure your phone charges properly, place the HANDSET with the TELEPHONE
KEYPAD face up on the BASE UNIT. The HANDSET will emit a “beep” when it is
properly positioned in the BASE UNIT CRADLE.
Recharging the BATTERY PACK
The nickel metal hydride (Ni-MH) BATTERY PACK in the HANDSET can be recharged many times
using the built-in charger in the BASE UNIT.
When the BATT LOW LED indicator starts to blink rapidly, a “beep”sound will be heard every 12
seconds. This indicates that the BATTERY PACK needs to be recharged.
Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure. When
the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will be
necessary.
The BATTERY PACK used in your telephone may develop a condition known as “MEMORY”. Once
subjected to a regular short discharging routine, the battery assumes the discharging pattern it
was subjected to. This causes rapid discharging thereby shortening the BATTERY PACK charge
span. If you believe your BATTERY PACK has developed a “MEMORY”condition, do not charge the
HANDSET until the BATT LOW LED indicator comes on. When it does come on, charge the
HANDSET fully for 12 hours.
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.

12
Changing the BATTERY PACK
Changing the BATTERY PACK
The BATTERY PACK provides power for the HANDSET of your cordless telephone.
To Replace the BATTERY PACK:
1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.
2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.
3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.
4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.
5. Before use, charge the new BATTERY PACK for 12 hours.
ATTENTION:
The product that you have purchased contains a rechargeable BATTERY PACK. The BATTERY
PACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal
to dispose of this BATTERY PACK into the municipal waste stream. Check with your local solid
waste officials for details in your area for recycling options or proper disposal.
OLD
BATTERY
PACK
NEW
BATTERY
PACK
BATTERY
COMPARTMENT
COVER

13
Problem Solving
Problem Solving Section
For your assistance, we have listed below a few common problems.
Phone does not work, check the following:
1. BASE UNIT is plugged into a power source.
2. HANDSET is charged.
3. TONE/PULSE Select Switch is in the right position.
4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.
Range of phone limited, check the following:
1. BASE UNIT is centrally located in your residence.
3. BASE UNIT is not located near appliances.
No dial tone, check the following:
1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINE
CONNECTION JACK.
2. BASE UNIT is plugged into a power source.
3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the BASE
UNIT for 2 to 5 seconds to reset the system.
Received signal flutters or fades, check the following:
1. BATTERY PACK in the HANDSET is fully charged.
2. HANDSET is not too far from the BASE UNIT.
Interference on reception, check the following:
1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this
noise is a minor annoyance and should not be interpreted as a defect in your system.
(See Technical Information on page 14.)
2. Choose an alternate channel using the button on the HANDSET.
3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as you
may experience interference. This is a normal occurrence with 2.4 GHz phones and should not
be interpreted as a defect in the product.
Excess static, check the following:
1. Check to see that the ANTENNA is not touching another metal object.
If after pressing the button, you receive three “beeps” and no dial tone, check the following:
1. BASE UNIT is plugged into a power source.
2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the BASE
UNIT for 2 to 5 seconds to reset the system.
NOTE:
If none of the telephones in the house are working, disconnect one set at a time to verify that none
of the telephones are causing the problem. If you still have a problem after doing this, and your
telephone still does not work, please contact your local phone company.
TALK
SCAN

14
Technical Information
Technical Information
This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties
in using radio frequencies with a cordless telephone. While these are normal, the following could
affect the operation of your system.
Noise
Electrical pulse noise is present in most homes at one time or another. This noise is most intense
during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent
bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to
these noise pulses, you may occasionally hear them in your HANDSET. Generally they are a minor
annoyance and should not be interpreted as a defect in your system.
Range
Because radio frequency is used, the location of the BASE UNIT can affect the operating range.
Try several locations in your home or office and pick the one that gives you the clearest signal to
the HANDSET.
Interference
Electronic circuits activate a relay to connect the cordless telephone to your telephone line. These
electronic circuits operate in the radio frequency spectrum. While several protection circuits are
used to prevent unwanted signals, there may be periods when these unwanted signals enter the
BASE UNIT. You may hear clicks or hear the relay activate while you are not using the HANDSET.
If the interference occurs frequently, it can be minimized or eliminated by relocating the BASE UNIT.
You can check for interference before selecting the final BASE UNIT location by plugging in the
phone.
NOTICE:
This cordless telephone uses radio communication between the HANDSET and the BASE UNIT and
may not ensure privacy of communication. Other devices, including other cordless telephones,
may interfere with the operation of this cordless telephone or cause noise during operation. Units
not containing coded access may be accessed by other radio communication systems. Cordless
telephones must not cause interference to any licensed radio service.
IMPORTANT
If you live in an area which receives frequent
thunderstorms, we strongly recommend plugging
your AC ADAPTOR into a surge protector.
