XCell Razor 600E
Assembly Manual
Version 1.0

XCell Razor 600E Assembly Manual
Page 2 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
For More Information contact:
Miniature Aircraft USA
31713 Long Acres Drive
Sorrento, FL 32776 USA
Phone [phone]
Fax [phone]
Email: [email protected]

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 3 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Table Of Contents
REVISIONS TO THIS MANUAL......................................................................................................................................................... 5
ERRATA.................................................................................................................................................................................................. 5
I. KIT INTRODUCTION....................................................................................................................................................................... 6
R/C HELICOPTER SAFETY ...................................................................................................................................................................... 6
GUIDELINES FOR SAFE R/C HELICOPTER FLIGHT................................................................................................................................... 6
X-CELL LIMITED WARRANTY .............................................................................................................................................................. 7
WARRANTY PROCEDURES...................................................................................................................................................................... 7
X-CELL RAZOR 600E WARRANTY REGISTRATION ................................................................................................................................7
II. KIT PREREQUISITES..................................................................................................................................................................... 8
SUPPLIES NEEDED FOR ASSEMBLY......................................................................................................................................................... 8

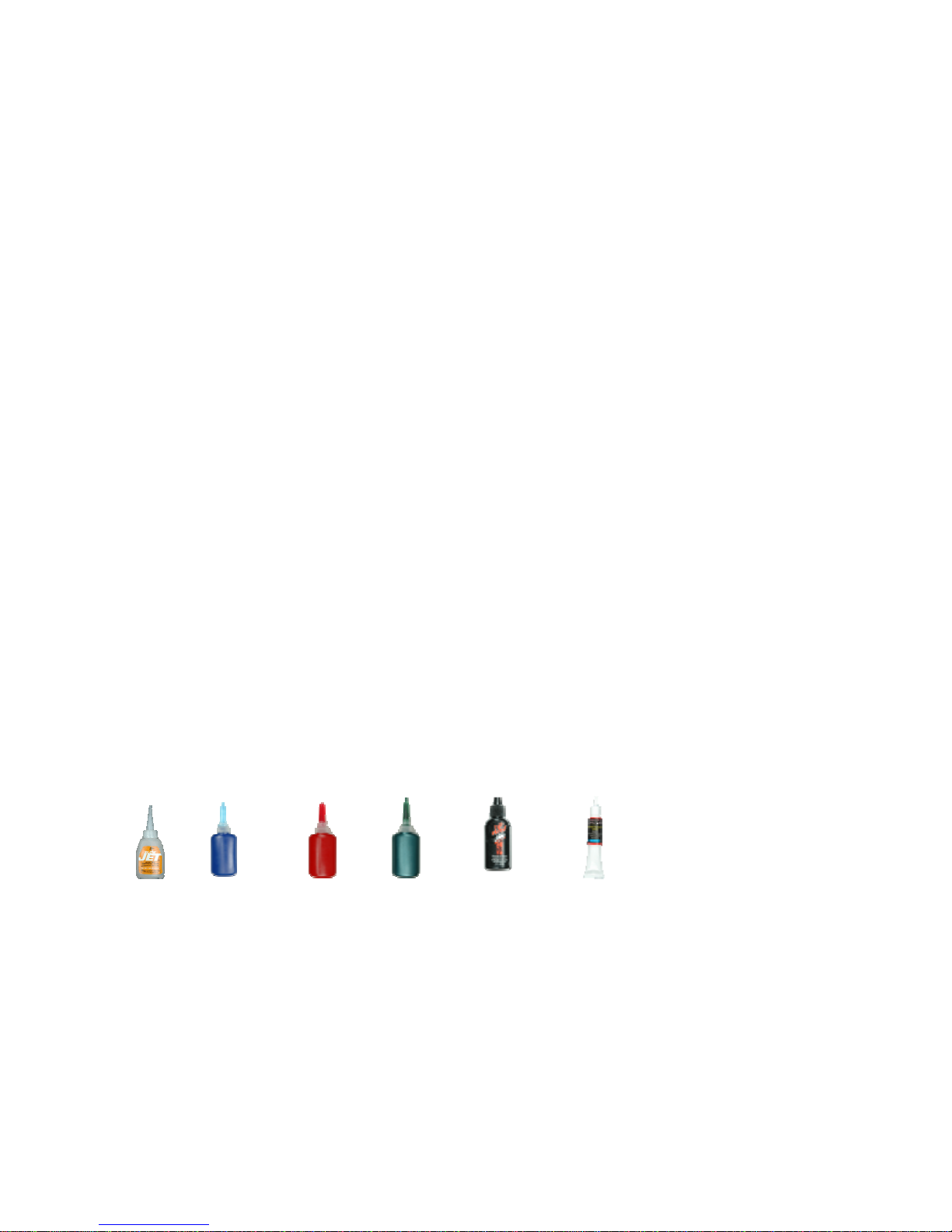

Adhesives Used.................................................................................................................................................................................. 8

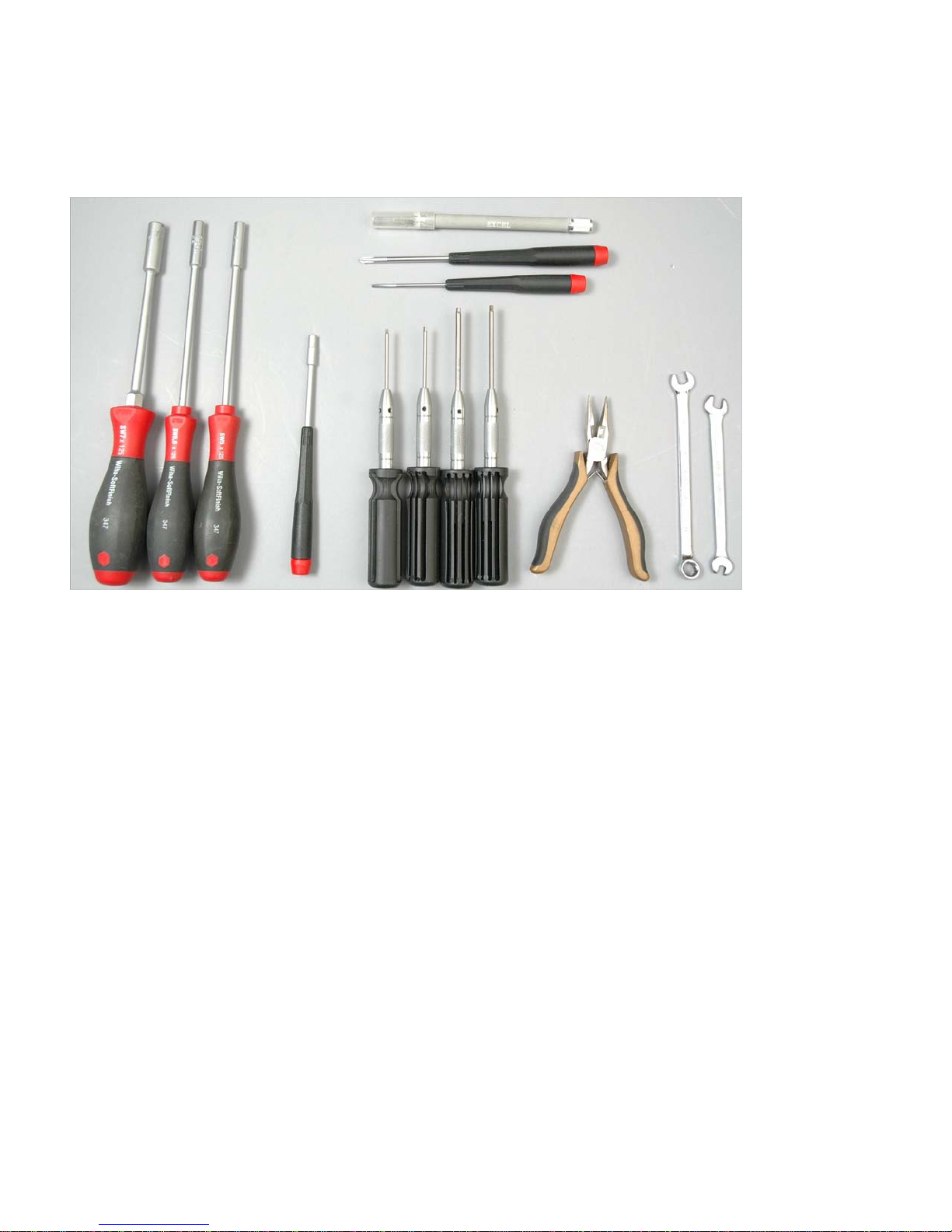

TOOLS NEEDED FOR ASSEMBLY............................................................................................................................................................. 9
ADDITIONAL COMPONENTS NEEDED ................................................................................................................................................... 10
DOCUMENTATION ................................................................................................................................................................................ 11
III. KIT ASSEMBLY PROCESS......................................................................................................................................................... 12
ASSEMBLY TIPS ................................................................................................................................................................................... 12

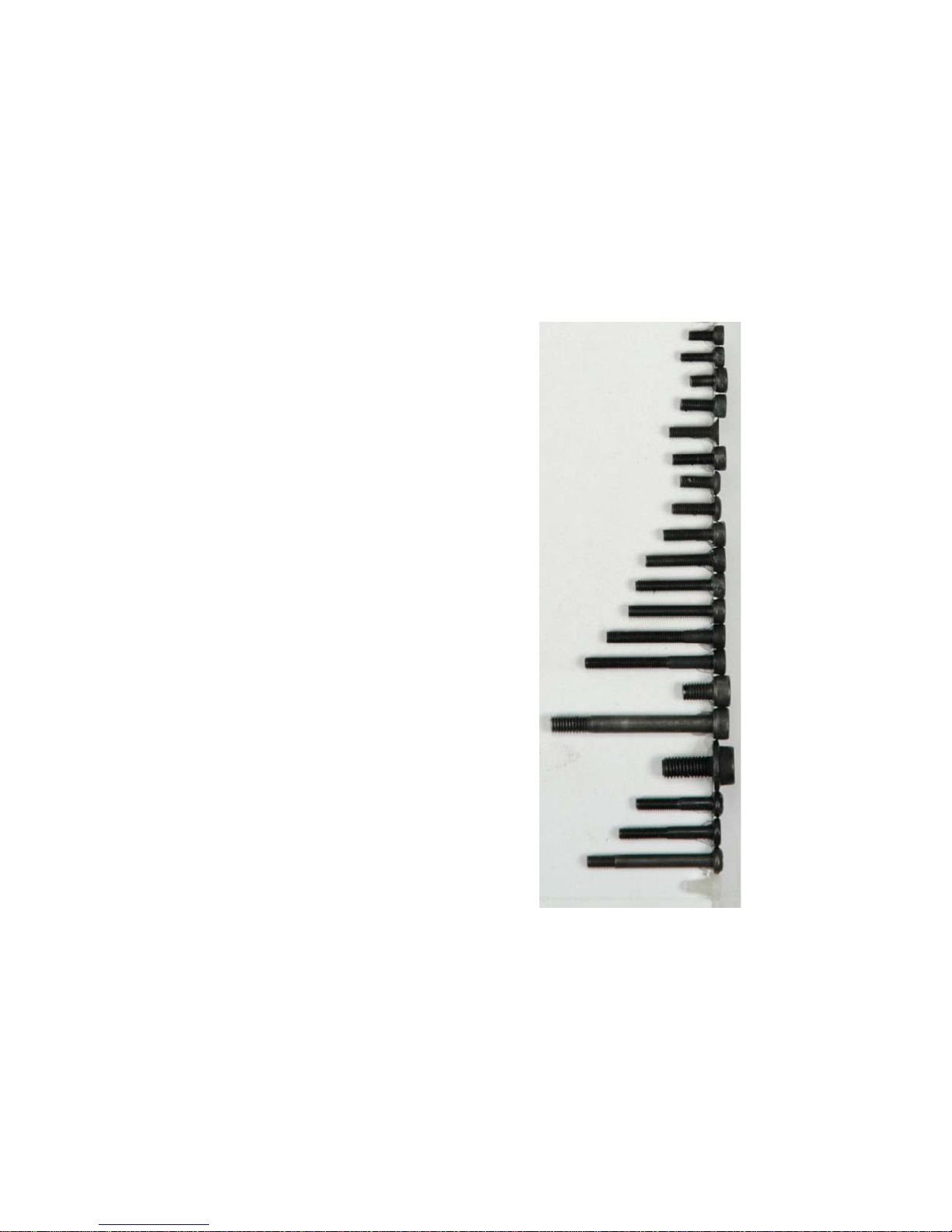

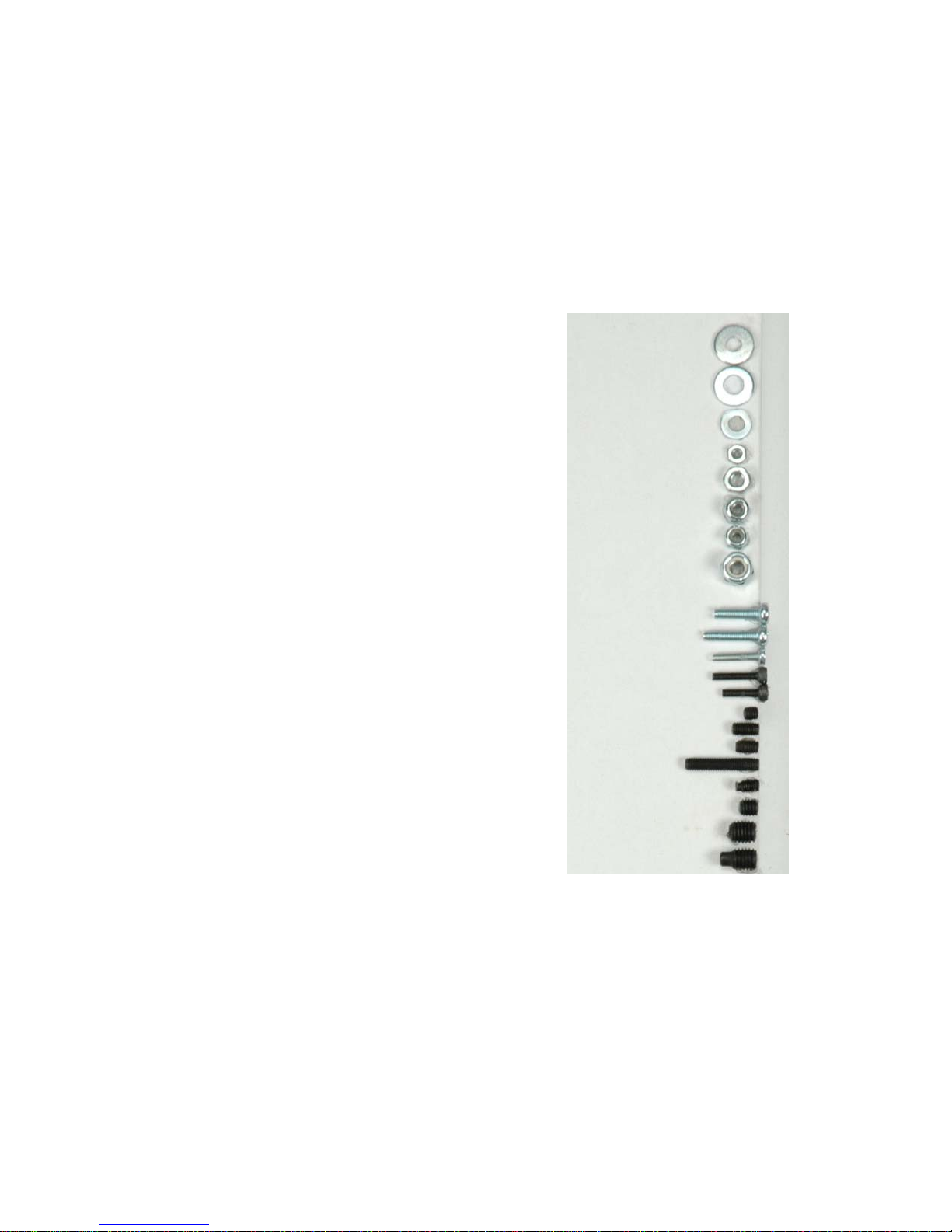

FASTENER GUIDE................................................................................................................................................................................. 13
STEP #1 –TAIL BOOM/TAIL ROTOR ASSEMBLY............................................................................................................................ 15
1A) T/R Transmission - Bag #1A..................................................................................................................................................... 15
1A.1 - Assemble T/R Transmission......................................................................................................................................................16
1A.2 - Install T/R Transmission.............................................................................................................................................................19

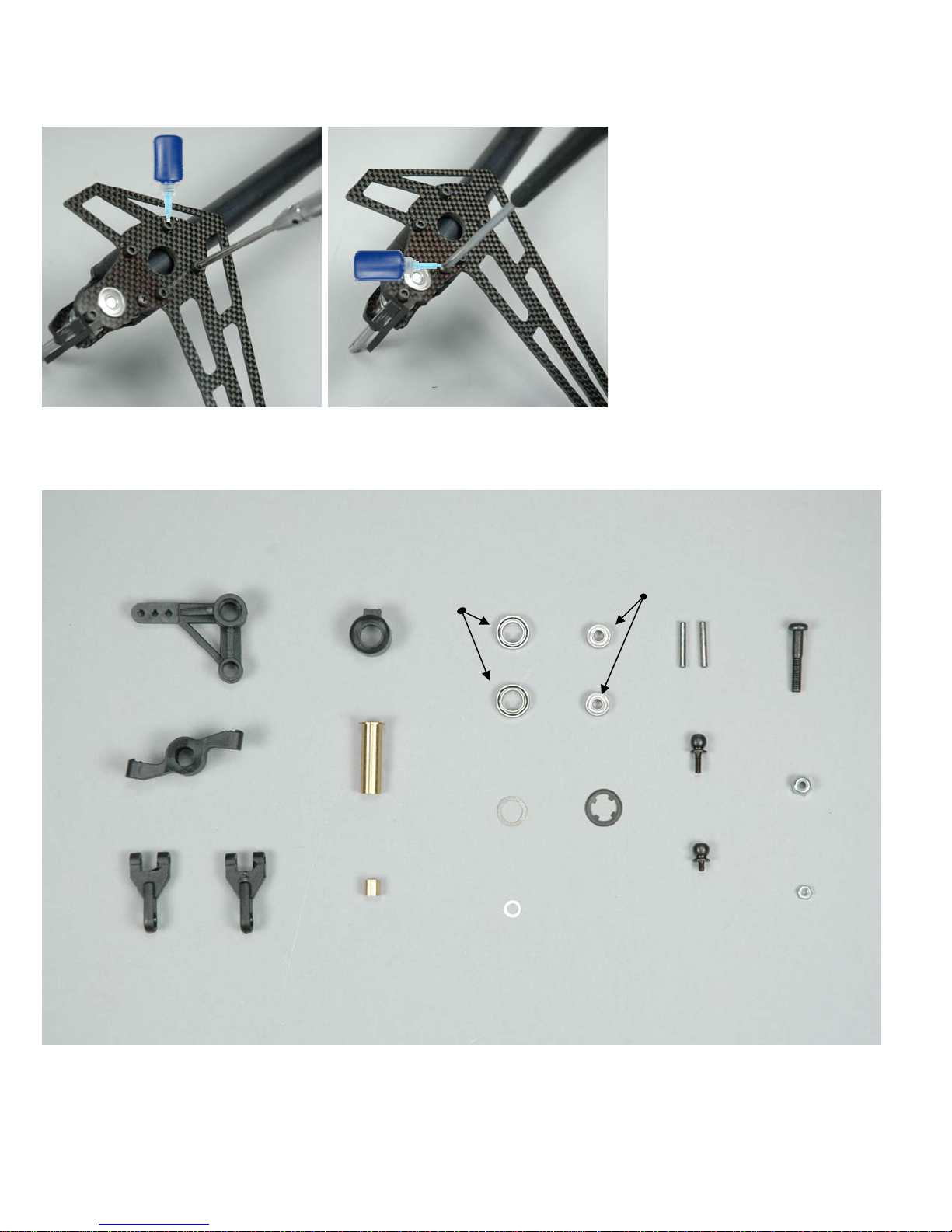

1B) T/R Pitch Yoke/Bellcrank - Bag #1B......................................................................................................................................... 20
1B.1 - Assemble T/R Pitch Yoke/Bellcrank........................................................................................................................................21
1B.2 - Install T/R Pitch Yoke ..................................................................................................................................................................23
1C) Tail Rotor Hub - Bag #1C........................................................................................................................................................ 24
1C.1 – Assemble Tail Rotor Hub ...........................................................................................................................................................24
1C.2 – Install Tail Rotor Blades (optional - not included)...........................................................................................................27
1C.3 – Install Tail Rotor Hub..................................................................................................................................................................27
1D) Tail Boom - Bag #1D ............................................................................................................................................................... 28
1D.1 – Secure Tail Rotor Transmission..............................................................................................................................................29
1D.2 – Assemble Tail Boom Supports.................................................................................................................................................30
1D.3 – Install Tail Boom Supports.......................................................................................................................................................31
1D.4 – Assemble/Install T/R Pushrod Guide....................................................................................................................................31
1D.5 – Assemble/Install T/R Control Rod..........................................................................................................................................32
STEP #2 –LOCATE LARGE SIZED COMPONENTS........................................................................................................................... 34
2A) Large Sized Components - Bag #2............................................................................................................................................ 34
STEP #3 –MAIN FRAME................................................................................................................................................................... 35
3A) Assemble Main Frame - Bag #3A............................................................................................................................................. 35
3A.1 – Assemble Mid-Plate......................................................................................................................................................................37
3A.2 – Install Rudder Servo Plate ........................................................................................................................................................38
3A.3 – Install Rear Vertical Plate..........................................................................................................................................................38
3A.4 – Install Upper Vertical Plates.....................................................................................................................................................39
3A.5 – Install Lower Vertical Plates.....................................................................................................................................................40
3A.5A – Optional Large Battery Spacer Pack...................................................................................................................................41
3B) Assemble T/R Belt Tensioner - Bag #3B................................................................................................................................... 42
3B.1 - Assemble Tail Belt Tensioner....................................................................................................................................................43
3B.2 - Install Tail Belt Tensioner..........................................................................................................................................................43
3C) Assemble Boom Clamps - Bag #3C.......................................................................................................................................... 44
3C.1 - Assemble Tail Boom Clamps.....................................................................................................................................................45
STEP #4 –SKIDS/BATTERY PLATE ................................................................................................................................................. 47

XCell Razor 600E Assembly Manual
Page 4 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
4A) - Skids/Battery Plate – Bag #4................................................................................................................................................. 47
4A.1 - Install Battery Plate/Struts........................................................................................................................................................48
4A.2 – Assemble/Install Skids...............................................................................................................................................................51
4A.3 – Install Tail Boom...........................................................................................................................................................................52
STEP #5 –UPPER FRAME ASSEMBLY .............................................................................................................................................. 54
5A) - Assemble Upper Frame – Bag #5...........................................................................................................................................54
5A.1 - Assemble Upper Frame...............................................................................................................................................................55
5A.2 - Install Upper Frame .....................................................................................................................................................................58
STEP #6 –DRIVE TRAIN.................................................................................................................................................................. 60
6A) Drive Train – Bag #6A............................................................................................................................................................. 60
6A.1 – Assemble/Install Main Gear/Pulley........................................................................................................................................61
6A.2 – Assemble/Install Primary Gear/Pulley..................................................................................................................................65
6B) Motor – Bag #6B ...................................................................................................................................................................... 67
6B.1 – Motor Mount Options ..................................................................................................................................................................67
6B.2 – Install Motor...................................................................................................................................................................................69
STEP #7 –WASHOUT MIXER/SWASHPLATE................................................................................................................................... 70
7A) Washout Mixer/Swashplate Assembly – Bag #7 ....................................................................................................................... 70
7A.1 - Assemble Swashplate..................................................................................................................................................................72
7A.2 – Swashplate Control Rods...........................................................................................................................................................72
7B.1 - Assemble Washout Mixer...........................................................................................................................................................73
7B.2 - Install Swashplate/Washout Mixer.........................................................................................................................................75
STEP #8 –CONTROL SYSTEMS........................................................................................................................................................ 76
8A) – Servo Mounting – Bag #8 ...................................................................................................................................................... 76
8A.1 – Locate Servo Mounts...................................................................................................................................................................77
8A.2 – Install Elevator Servo.................................................................................................................................................................77
8A.3 – Install Aileron/Pitch Servo........................................................................................................................................................78
8A.4 – Install Radio System...................................................................................................................................................................81
8A.5 – Install Battery Mounting............................................................................................................................................................82
8A.6 – Install Speed Controller.............................................................................................................................................................83
8A.7 – Connect and Route Wiring........................................................................................................................................................84
8A.8 – Install Servo Arms/Control Rods............................................................................................................................................84
STEP #9 –ROTOR HEAD.................................................................................................................................................................. 86
9A) Head Block/Blade Grips - Bag #9A.......................................................................................................................................... 86
9A.1 – Assemble Bell Mixer ....................................................................................................................................................................87
9A.2 – Install Bell Mixers.........................................................................................................................................................................88
9A.3 – Assemble Blade Arms.................................................................................................................................................................89
9A.4 - Head Block Assembly ..................................................................................................................................................................90
9A.5 – Install Blade Grips........................................................................................................................................................................92
9B) Flybar Carrier - Bag #9B......................................................................................................................................................... 95
9B.3 – Install Flybar Paddles................................................................................................................................................................100
9B.4 – Assemble/Install Flybar Bell Links .......................................................................................................................................101
9D.5 – Install Rotor Head......................................................................................................................................................................102
9D.6 – Install Rotor Blades...................................................................................................................................................................103
STEP #10 –CANOPY ...................................................................................................................................................................... 104
10A) – Canopy Mount – Bag #10.................................................................................................................................................. 104
10A.1 – Assemble Canopy Knobs.......................................................................................................................................................104
10A.2 – Canopy Preparation.................................................................................................................................................................105
10A.3 – Decals...........................................................................................................................................................................................106
10A.4 – Complete Canopy Standoffs................................................................................................................................................107
10A.5 – Install Canopy...........................................................................................................................................................................107

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 5 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Revisions to this Manual
R1.0
•12/11/06 – Revisions for final kitting modifications
•12/22/06 – Added full completed views
Updated step 1C.1.k
•12/23/06 – Updated steps 1D.1.a, 1D.1.b, 1D.1.c
Updated steps 3A.2.a, 3A.2.b, 3A.3.d, 3A.3.e, 4A.1.a, 4A.1.b, and 4A.1.c
•12/24/06 – Updated steps 1D.2, 1D.3, 3B.2, 10A.3.b
•12/27/06 – Updated steps 3B.1.b, 6A.1 (building notes)
•12/28/06 – Updated steps 4A.1.g, 4A.1.i, 4A.1.n, 4A.3.h, 5A.1.p, 5A.1.u
•01/02/07 – Updated steps 6A
•02/18/07 – Updated steps 8A.6 – Improved connector directions.
Corrected Bag 6A part number
For the most current version of this manual, please refer to www.miniatureaircraftusa.com, visit the Razor
helicopter kit and download the assembly manual
Errata
R1.0
•Some images of the front and rear canopy standoffs do not match the actual part. The image found
in the bag contents is the actual part included
•Some images of the main drive pulley do not match the actual part. The image found in the bag
contents is the actual part included

XCell Razor 600E Assembly Manual
Page 6 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
I. Kit Introduction
R/C Helicopter Safety
A radio controlled model helicopter is a technically complex device that must be built and operated with
care. It is also a fascinating and challenging part of the R/C sport, the mastery of which is very rewarding.
A model helicopter must be built exactly in accordance with the building instructions. The kit manufacturer
has spent much time and effort refining his product to make it reliable in operation and easy to build. The
essentially bolt together construction can proceed quite rapidly, giving the builder a strong sense of
accomplishment that encourages hasty progress from one construction phase to the next, so that the
completed model can be more quickly seen and enjoyed. It is essential to recognize and guard against this
tendency. Follow building instructions exactly. Vibration and stress levels are high and all fasteners and
attachments must be secure for safe operation.
Note that this is the first use of the word SAFETY in these comments. Previously the kit manufacturer’s
efforts to ensure reliable operation were mentioned. That is ALL that he can do. Safe operation is the
responsibility of the builder/flyer and starts with careful construction and continues with selection and
installation of reliable radio equipment and engine.
The need for safety is nowhere greater than at the flying field. A number of guidelines for safe flight have
been developed by experienced flyers and are set down here. It is urged that they be read, understood
and followed.
Guidelines for Safe R/C Helicopter Flight
•Fly only at approved flying fields and obey field regulations.
•Follow frequency control procedures. Interference can be dangerous to all.
•Know your radio. Check all transmitter functions before each flight.
•Be aware that rotating blades are very dangerous and can cause serious injury.
•Never fly near or above spectators or other modelers.
•If a beginner, get help trimming the model first and flight training later.
•Don’t “track” the main blades by holding the tail boom. This is a temptation to builders who cannot
hover yet and is very dangerous.
•Follow all recommended maintenance procedures for model, radio and engine.
WARNING!
This helicopter is not a toy, but a complex flying machine that must be assembled with care by a
responsible individual. Failure to exert care in assembly, or radio or accessory installation, may result in a
model incapable of safe flight or ground operation. Rotating components are an ever present danger and
source of injury to operators and spectators. Since the manufacturer and his agents have no control over
the proper assembly and operation of his products, no responsibility or liability can be assumed for their
use.

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 7 of 110
This document may not be distributed without permission of Miniature Aircraft USA
X-CELL Limited Warranty
The warranty covers defects in material or workmanship or missing components to the original purchaser
for 30 days from the date of purchase. Miniature Aircraft, USA will replace or repair, at our discretion, the
defective or missing component. Defective components must be returned to us prior to replacement.
Any part, which has been improperly installed, abused, crash damaged or altered by unauthorized
agencies, is not covered. Under no circumstances will the buyer be entitled to consequential or incidental
damages. The components used in this kit are made form special materials designed for special
applications and design strengths. We recommend that all replacement parts be original parts
manufactured by Miniature Aircraft, USA, to ensure proper and safe operation of your model. Any part
used which was manufactured by any firm other than Miniature Aircraft, USA, VOIDS all warrantees of this
product by Miniature Aircraft, USA.
Warranty Procedures
Mail all warranty information within 15 days of original purchase date. If service is required, send the
component in question (if not missing) together with a photocopy of your bill of sale and an accurate
description of the problem and part. Ship components fully insured and prepaid. Miniature Aircraft, USA is
not responsible for any shipping damages. We will, at our discretion, notify you of any costs involved, or
ship it COD. You are required to pay all postage, shipping and insurance charges.
X-Cell Razor 600E Warranty Registration
Please print or type, filling in the information listed below and mail immediately
Model No:____________ Serial No:____________ Price paid:___________________
Owners name:______________________________ Age_______________________
Address:____________________________________ Phone:___________________
City:_______________________ State:____________ Zip:___________________
Purchased from: ________________________________________________________
Dealer’s address ________________________________________________________
Comments: ____________________________________________________________
______________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________
MINIATURE AIRCRAFT USA
31713 Long Acres Drive
Sorrento, FL 32776 USA
Phone [phone]
FAX [phone]

XCell Razor 600E Assembly Manual
Page 8 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
II. Kit Prerequisites
In order to assemble this kit, you will need a number of additional supplies and tools to ensure the best
final result. They are as follows:
Supplies Needed for Assembly
Blue Thread
Lock Red Thread Lock Green Thread Lock Oil Grease
Adhesives Used
Slow
Cyanoacrylate JB Weld

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 9 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Tools Needed for Assembly
M5 Nut Driver
M5.5 Nut Driver
M7 Nut Driver
M4 Nut Driver
1.5mm allen driver
2.0mm allen driver
2.5mm allen driver
3.0mm allen driver
Needle Nose Pliers
Phillips Screwdriver #1
Flat Screwdriver 2.5mm
Razor Knife (Xacto)
8.0mm wrench
5.5mm wrench
4.0mm wrench

XCell Razor 600E Assembly Manual
Page 10 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
Additional Components Needed
Gyro – Heading Hold
Battery – NiCad
NiMH/LiPo
800mah
A or AA cells
Switch
Receiver
Gyro
Servo
1 each
Cyclic
Servos
3 each

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 11 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Documentation
The most recent version of all
of the documentation can be
found on the website:
www.miniatureaircraftusa.com
Main Rotor Blades
600-620mm
4mm blade bolt
14mm blade root
Tail Rotor Blades
95-105mm

XCell Razor 600E Assembly Manual
Page 12 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
III. Kit Assembly Process
Assembly Tips
•Please note that this assembly manual consists of a photographic journal of the steps necessary to
construct this helicopter. The builder is encouraged to pay close attention to the "building notes"
and other details noted in the pictures and to carefully review all the photo’s in a given step. The
placement of a given part may be better understood when viewing another view of the assembly.
•Follow the order of assembly. The instructions have been organized into major sections and have
been developed in such a way that each step builds upon the work done in the previous step.
Changing the order of assembly may result in unnecessary steps
•The photos in this manual are organized within each step to correspond with the order of assembly.
The sequence of the photos within a step is from top to bottom and from left to right.
•Clean all metal parts: All of the steel parts in this kit are coated with a lubricant to prevent them
from rusting. This coating can interfere with the adhesives and thread locks needed for assembly.
Use a solvent such as alcohol or acetone to clean the various metal parts, especially threads
•Use thread lock as indicated. Model helicopters are subject to vibration and failing to use thread
lock on any non-locking assembly may result in a part becoming loose or falling off
•Sand sharp edges on any frame plate that Velcro® or wires may rub against to prevent them from
being damaged over time by vibration
•Make sure every bearing runs smoothly after component assembly. If it does not find out why. A
rough running bearing will fail prematurely.
•As a general rule any bolt that threads into a metal part should have thread lock applied and any
screw or bolt that threads into a plastic part should have adhesive applied
•Assembly sections contain the following content:
oThe contents of each bag
oAn overview of part relationships
oAssembly overview
•Photographs will contain assembly icons that indicate use of thread lock, adhesive or lubricant as
needed. If an assembly has more than one of the same part number, application of thread lock,
adhesive or lubricant will apply to all of the same numbered parts in that photograph Examples of
the icons are as follows:
Thick
Adhesive
Blue
Thread
Lock
Red
Thread
Lock
Green
Thread
Lock
Lubricant Grease

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 13 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Fastener Guide
The next two pages contains a list of all of the threaded fasteners in this kit. They will print at
actual size. If it is not clear what the part number of a fastener is, simply find the fastener on the
chart and match its part number and description
Fasteners – Washers, Nuts, Small Bolts, Set Screws
Part # Description Actual Size
0003 M3 Washer (Large) -----------------
0004 M4 Washer ---------------------------
0009 M3 Washer (Small) -----------------
0015 M2 Hex Nut --------------------------
0017 M3 Hex Nut --------------------------
0019 M3 Locknut --------------------------
0020 M2.5 Locknut ------------------------
0021 M4 Locknut --------------------------
0038 M2.5 x 10 Phillips Bolt --------------
0039 M2.5 x 12 Phillips Bolt --------------
0043 M2 x 10 Slotted Bolt ----------------
0049 M2 x 10 Socket Bolt ----------------
0049-3 M2 x 8 Socket Bolt ------------------
0051 M3 x 3 Socket Set Screw ----------
0052 M3 x 6 Socket Set Screw -----------
0053 M3 x 5 Socket Set Screw -----------
0053-5 M3 x 16 Socket Set Screw ---------
0056 M3 x 5 Dog Point Set Screw -------
0057 M4 x 4 Socket Set Screw -----------
0058-4 M5 x 6 Socket Set Screw -----------
0058-5 M5 x 8 Dog Point Set Screw -------

XCell Razor 600E Assembly Manual
Page 14 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
Fasteners – Threaded Bolts
Part # Description Actual Size
0059-1 M2.5 x 6 Socket Bolt ----------------
0059-2 M2.5 x 8 Socket Bolt ----------------
0060-1 M3 x 6 Socket Bolt ------------------
0061 M3 x 8 Socket Bolt ------------------
0062-2 M3 x 12 Flat Head Bolt -------------
0063 M3 x 10 Socket Bolt ----------------
0064 M3 x 8 Button Head Bolt -----------
0064-1 M3 x 10 Button Head Bolt ----------
0065 M3 x 12 Socket Bolt ----------------
0069 M3 x 16 Socket Bolt ----------------
0071 M3 x 18 Socket Bolt ----------------
0073 M3 x 20 Socket Bolt ----------------
0075 M3 x 25 Socket Bolt ----------------
0077 M3 x 30 Socket Bolt ----------------
0078-4 M4 x 8 Socket Bolt ------------------
0082 M4 x 35.5 Socket Bolt --------------
0086 M5 x 12 Flanged Socket Bolt -------
0093 M3 x 18 Phillips Bolt ----------------
0097 M3 x 22 Phillips Bolt ----------------
0099 M3 x 30 Phillips Bolt ----------------
0100 M3 x 8 Nylon Bolt -------------------

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 15 of 110
This document may not be distributed without permission of Miniature Aircraft USA
Step #1 – Tail Boom/Tail Rotor Assembly
1A) T/R Transmission - Bag #1A
#127-13
T/R Fin
1 each
#127-11
Left T/R
Plate
1 each
#127-10
Right
T/R
Plate
1 each
#127-14
T/R Control Arm
1 each
#127-15
Aluminum
T/R Pulley
1 each
#127-16
T/R Output
Shaft
#127-17
M3 x 4 x 8 Flanged
Bearings
2 each
#127-18
.125 x .236
Brass Spacers
2 each
#127-19A
Rear Boom
Clamp Halves
2 each
#127-19B
Rear Boom
Clamp
Halves
w/Stop
2 each
#127-20
T/R Control
Arm Mount
1 each
#127-21
600T T/R
Belt
1 each
#0056
M3 x 5 Dog
Point Set
Screw
1 each
#0053
M3 x 5
Set Screw
1 each
#0059-1
M2.5 x 6
Socket Bolt
2 each
#0060-1
M3 x 6
Socket Bolt
2 each
#0077
M3 x 30
Socket Bolt
4 each
#0099
M3 x 30
Phillips Bolt
1 each

XCell Razor 600E Assembly Manual
Page 16 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
1A.1 - Assemble T/R Transmission
Parts Relationship
#127-13
#127-21
#127-16
#0077 (4)
#0060-1
#0060-1
#127-11
#127-10
#127-14
#127-10 #127-19A
#0056
#0053 #127-15
#127-18 (2)
#127-19B (2)
#127-17
#0059-1
#0099

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 17 of 110
This document may not be distributed without permission of Miniature Aircraft USA
1A.1.a 1A.1.b 1A.1.c
1A.1.d 1A.1.e 1A.1.f
1A.1.g 1A.1.h 1A.1.i
Building Notes – engage dog-point screw
into indentation in t/r output shaft.
#127
-
14
#127-10
#127-10
#0059
-
1
#127
-
18
#127-17 (2)
#127
-
18
#0099
#0060-1
#127-19B #0077
#0077
#127-19B
#127-16
#127-15
Pulley
Installs This
Direction
#0053
#0056
Dogpoint
seats here

XCell Razor 600E Assembly Manual
Page 18 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
1A.1.j 1A.1.k 1A.1.l
1A.1.g 1A.1.h 1A.1.i
1A.1.j 1A.1.k 1A.1.l
#127-11
Pulley
towards
bearing
flan
g
e
Thread belt as shown
Combine halves
#127-21
#0060-1
#127-13
#0077
#127-19A (2)
#127-19A
#0077 (2)
Don’t fully tighten or thread
lock this bolt yet

XCell Razor 600E Assembly Manual
Created: 2/18/2007 Copyright Miniature Aircraft USA Page 19 of 110
This document may not be distributed without permission of Miniature Aircraft USA
A.1.m
Building Notes – do not fully tighten bolts
or apply loctite until the final step of the
assembly. Otherwise it will be difficult to
push the tail boom into the assembly.
1A.2 - Install T/R Transmission
1A.2.a 1A.2.b 1A.1.c
1A.2.d 1A.2.e
#127-19A
Use Masking Tape
#127-29
Top
Of
Belt
Push parts together
until tail boom seats in
rear clamp
Mark top of belt
Insert belt into tail
boom as shown

XCell Razor 600E Assembly Manual
Page 20 of 110 Copyright Miniature Aircraft USA Created: 2/18/2007
This document may not be distributed without permission of Miniature Aircraft USA
1A.2.f 1A.2.g
1B) T/R Pitch Yoke/Bellcrank - Bag #1B
#0101
M2 x 5
Threaded
Ball – Short
1 Each
#0103
M2 x 5
Threaded
Ball – Long
1 Each
#0159
M3 x 7 x 3
Ball Bearing
2 Each
#0225
M2 x 13.5
Dowel Pin
2 Each
#0273
M6.25 x .27 x 8.5
Shim
1 Each
#0435
Brass
Slider
1 Each
#0440
Pitch
Plate
1 Each
#0439
M2.5 x 10 x 6
Ball Bearing
2 Each
#0437
Pitch
Hub
1 Each
#0442
Pitch
Links
2 Each
#0443
Retaining
Push Ring
1 Each
#0445
Bellcrank
1 Each
#0562-1
.128” x .200 x .030”
Shim
1 Each
#0597-3
.125” x .184”
Brass Spacer
1 Each
#0015
M2 Hex
Nut
1 Each
#0019
M3 Lock
Nut
1 Each
#0093
M3 x
18 Phillips
Bolt
1 Each
