Xcruiser XDSR200HD User manual

User’s Manual
XDSR200HD
Full HD
Digital Satellite Receiver
Please read this User’s Manual carefully before installing the receiver.

XDSR200HD
3
Guide of Menus ..............................................................17
1. Channel Search and Setting ................................17
A: LNB Power..............................................................18
B: 22KHz .....................................................................18
C: DiSEqC1.0 or DiSEqC1.1 .......................................18
1.1 Scan .......................................................................19
1.2 OSD Language ......................................................19
1.3 Restore Factory Default .......................................20
1.4 Channel Edit..........................................................21
1.5 Apps.......................................................................21
Troubleshooting.............................................................22
.................................................................23
Index
INDEX .............................................................................2
Precautions.......................................................................3
1. Notice........................................................................5
2. Copyright ..................................................................5
3. Disclaimer .................................................................5
4. Trademarks...............................................................5
Features............................................................................6
1. Main Features...........................................................6
2. Accessories ..............................................................7
Hardware Description.......................................................8
1. .........................................8
2. .........................................9
3. Remote Control Unit ...............................................10
Connecting Diagram.......................................................12
1. Receiver to A/C Power............................................12
2. Receiver to TV with Digital A/V Output ...................13
3. Connecting to Antenna Cable .................................14
4. Receiver to TV with Analog A/V Output ..................14
5. Connecting to Personal Computer (PC) .................16

XDSR200HD
4
1. Important Safety
Instructions
 Read these instructions and keep
for future reference.
 Pay attention to all warnings and
follow all instructions.
 Do not use this device near water.
 Clean only with dry cloth.
 Do not block any ventilation
openings. Install in accordance
with Xcruiser® instructions.
 Do not install near any heat
sources such as radiators,
heat registers, stoves, or other
that produce heat.
 Do not reverse the safety purpose
of the polarized or grounding-
type plug. A polarized plug has
two blades with one wider than
the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade
or third prong is provided for your
safety. If the provided plug does
electrician for replacement of the
obsolete outlet.
 Protect the power cord from
being walked on or pinched
particularly at plugs, convenience
receptacles, and the point where
they exit from the apparatus.
 Only use attachments/accessories
 Use only with the cart, stand,
by Xcruiser®, or sold with the
apparatus. When a cart is used,
use caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
 Unplug this apparatus during
lightning storms or when unused
for long periods of time.

service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
WARNING:
not expose the set to rain or moisture.
Precauons

XDSR200HD
5
2. Notice
 Servicing instructions are for use by
reduce the risk of electric shock, do
not perform any servicing other than
that contained in this manual unless
 The device shall not be exposed to
dripping or splashing and no objects
be placed on the apparatus.
3. Copyright
This manual is protected by copyright
laws.
Copy, use and reproduction of this
manual in part or whole without
Xcruiser®’s prior written approval are
prohibited.
4. Disclaimer
Xcruiser®, distributors and agents
are not liable to any kind of damage
caused by the use of the information
contained in this manual.
The instruction and descriptions which
this manual contains are based on the
time of this manual’s production.
Xcruiser® constantly updates it with
new functions and technology.
change without prior notice.
5. Trademarks
HDMI, the HDMI logo and High-
trademarks or registered trademarks
of HDMI Licensing LLC

XDSR200HD
6
Features
Main Features
 Fully compliant with DVB-S2 standard
 Full HD output in 720p, 1080i, 1080p
 HDCP protection.
 Less than 1 Watt in standby
 Multi-lingual OSD and user-friendly UI
 Parental Control, Teletext, EPG supported
 Favorite Group supported
 DiSEqC1.0, 1.1, 1.2, USALS Compatible
 Time-Shift supported with external hard drive disc
 Supporting pictures with .jpg, .bmp


XDSR200HD
7
6. Accessories
User’s Manual Remote Controller RCA Cable AAA size batteries X2
AC/DC Adapter HDMI Cable USB WiFi Dongle
NOTE: If anyaccessories listedabove are missing,contact the sales representative where you purchased this unit.

XDSR200HD
8

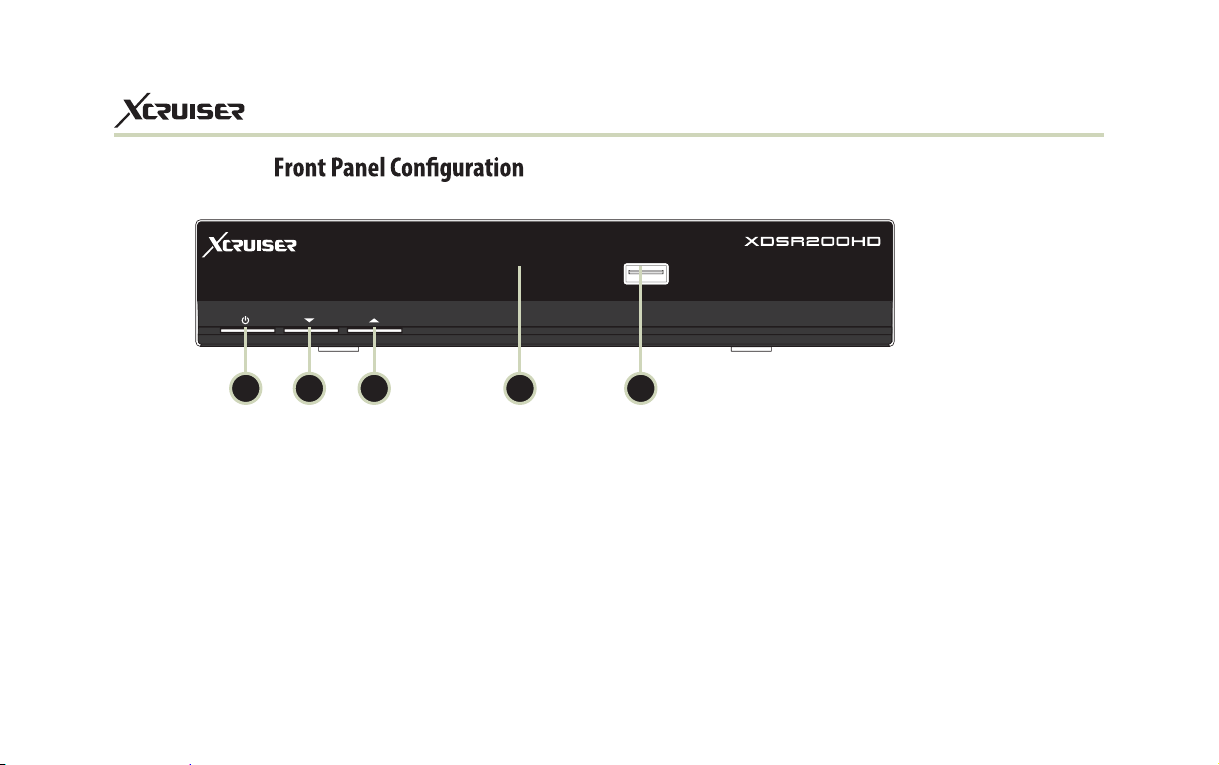

1.
Hardware Descripon
1. POWER Button:
Press to switch between STANDBY and POWER ON
modes.
2. CH Up/Down Button:
Press to change services in normal mode, to move
the highlighted-bar UP/DOWN in menu mode.
3. Remote Sensor:
Receives signal from remote controller.
4. USB:
Use it when connecting to external USB storage
device.
1 2 2 43

XDSR200HD
9

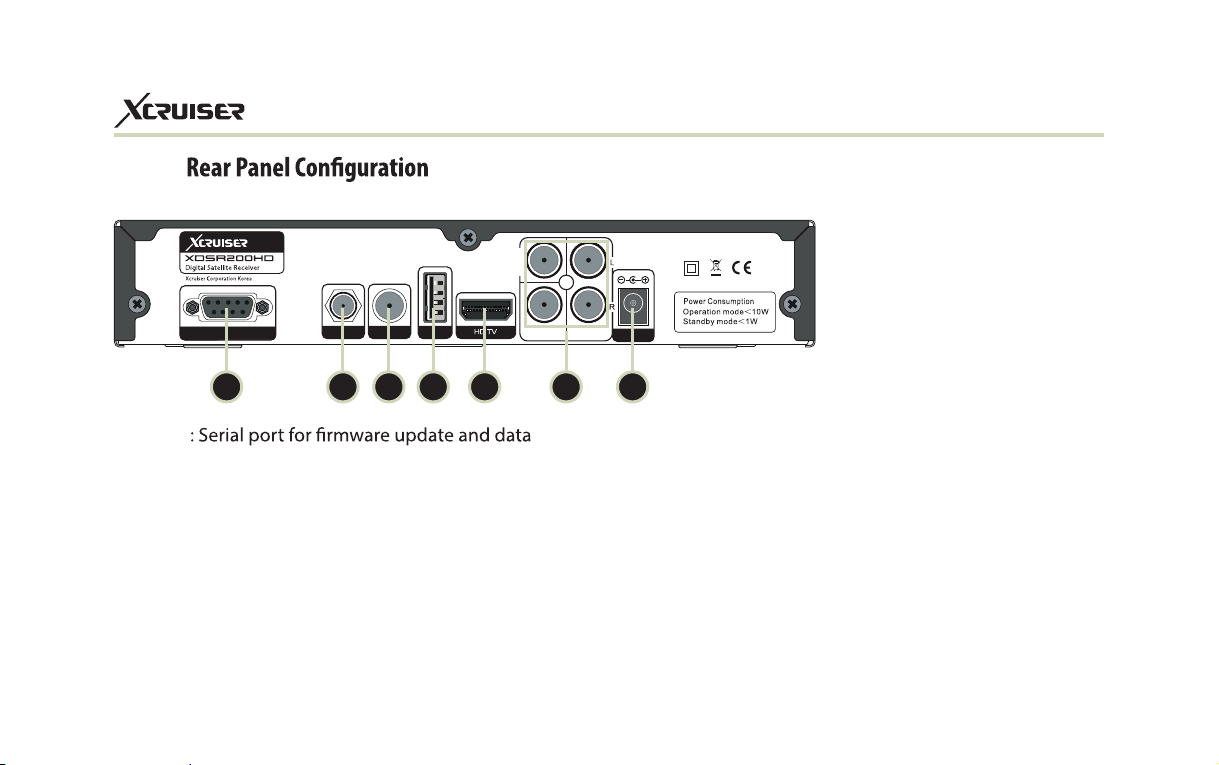

2.
1. RS-232
transfer.
2. LNB IN:Use to connect a satellite antenna.
3. LOOP (LNB OUT):Use it when connecting to another STB
for loop-through.
4. USB: Use it when connecting to external USB storage
device.
5. HDMI: Connects to the TV by using a HDMI cable for the
best quality picture and audio.
6. A/V OUT:Connects to the TV or VCR using a optional RCA
cable (Stereo, Audio output / White, Red, Composite
video output / Yellow)
7. A/C power cable socket: Connects to A/C power cord.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
1 2 3 4 5 6 7

XDSR200HD
10
3. Remote Control Unit
You can power ON/OFF the receiver using on screen menu and a variety of hot key function.
1
2
4
3
6
5
8
7
10
9
12
13
11
14
15
17
16
19
18
21
20
22
23
1. POWER:To switch the
receiver ON from
STANDBY or vice versa.
2. SUBTITLE:Press to display
Subtitle.
3. PLAY:To play the .MP3,
4. RECORD:
functions per menu.
5. FF:To start Fast Forward
function
6. FB:To start Fast Backward
function
7. PAUSE:Used to select the
freeze function. Press
once to freeze the screen
picture.
8. FIND:
channels sort by character.
9. KEY:To change channels, or
to move cursor up in the
menu
10. INFO:To display channel
status or various program
information of current
service.
11. OK:To select menu option
to updated on entry.
12. KEY:To adjust volume level
or to move cursor left
13. KEY:To change channels,
or to move cursor down in
the menu
14. MUTE:To enable or disable
audio.
15. TELETEXT:Shows teletext
information of the current
channel supports.
16. STOP:To stop the Time Shift
recording, or MP3/JPEG
player.
17. TIMESHIFT:If press this key, it
will activate the timeshift
recording.
18. SB:To start Slow Backward
function

XDSR200HD
11
19. SF:To start Slow Forward
function
20. SLEEP:To bring the receiver to
sleep mode.
21. RECALL:Return to the
previous menu or status
22. FAV (Favorite):To set receiver
to the favorite server mode,
display the favorite channel.
23. KEY:To adjust volume level,
or move cursor right in the
menu.
24. MENU:Display the Main Menu
on the screen, or return to
the previous menu or status
25. SAT:Display the satellite list at
normal picture.
26. AUDIO:Audio channels setup,
to select audio mode; Left,
Right, Stereo, Mono.
27. EPG (ELECTRONIC PROGRAM GUIDE):
Display the Programs guide
on screen when available
28. (ZOOM):Select zoom from x1
to x16.
29. NUMERIC KEYS:To select
channels or enter
programming parameters
30. TV/ RADIO:Switches between
TV and Radio mode
31. EXIT:Cancel the user
selection and return to the
viewing mode from a menu.
32. PAGE+:To move up the cursor
to the next or previous page
in the menu or channel list.
33. PAGE-:To move up the cursor
to the next or previous page
in the menu or channel list.
34. V. Format:To switch the
display mode among AUTO.
480i, 480p, 576i, 576P,
720P_50, 720P_60, 1080_50,
1080_60, 106OP_S0 and
1080P_60.
24
26
25
27
28
29
30
31
32
33
34

XDSR200HD
12
Connecng Diagram

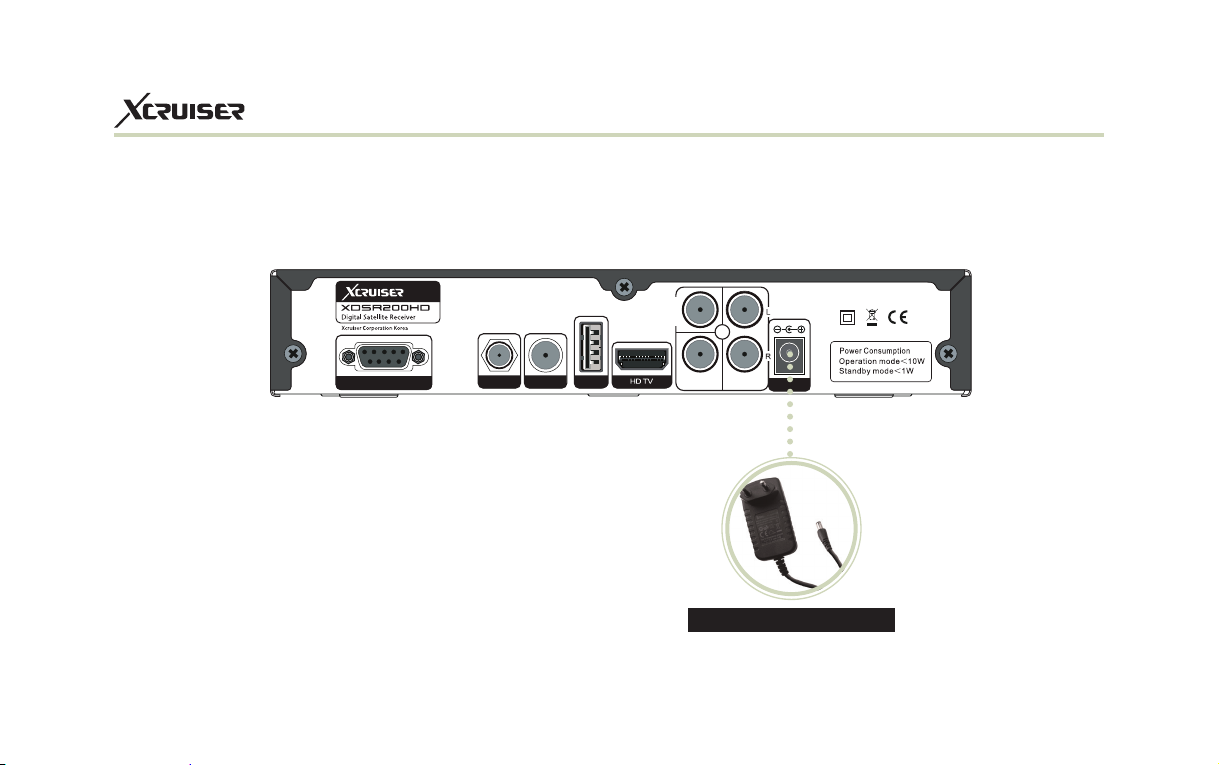

1. Receiver to A/C power
 Connect the A/C power cord between A/C power cord socket of receiver and A/C outlet.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
A/C POWER ADAPTER

XDSR200HD
13

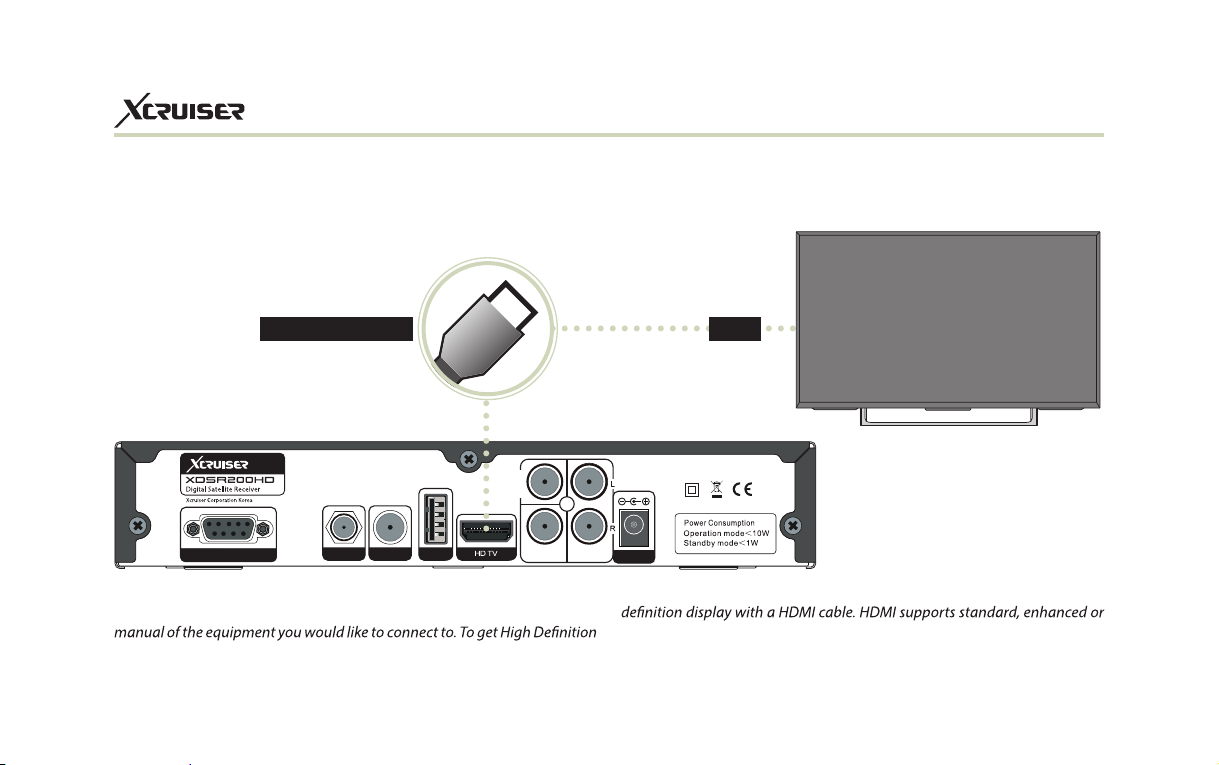

2. Receiver to TV with Digital A/V Output
 Connect the HDMI Cable to the HDMI Connector of the TV.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
NOTE: Depending on the A/V equipment you own, there are various ways you
can connect the STB. To choose the best connection option, please refer to the
playback of HD content, we recommend that you connect your high
HD video and multichannel audio in a single cable.
TV
HDMI CABLE

XDSR200HD
14
3. Connecting to Antenna Cable
Connect the VIDEO and AUDIO L, R to VIDEO IN and
AUDIO L, R IN of TV.
4. Receiver to TV with Analog A/V Output
Using Single DISH: Connect the Satellite
Antenna cable to LNB IN.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
AV CABLESATELLITE DISH
NOTE:The composite connection (RCA) is recommended for
analogue TV. You cannot view HD video with the composite
video connector.
TV

XDSR200HD
15
Using DiSEqC switch: Connect the cable of
DiSEqC switch to LNB IN.
Using DiSEqC motor: Connect the cable of
DiSEqC motor to LNB IN.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
DISH #1DISH #2DISH #3DISH #4
SATELLITE DISH
WITH H-H MOTOR
DiSEqC SWITCH

XDSR200HD
16

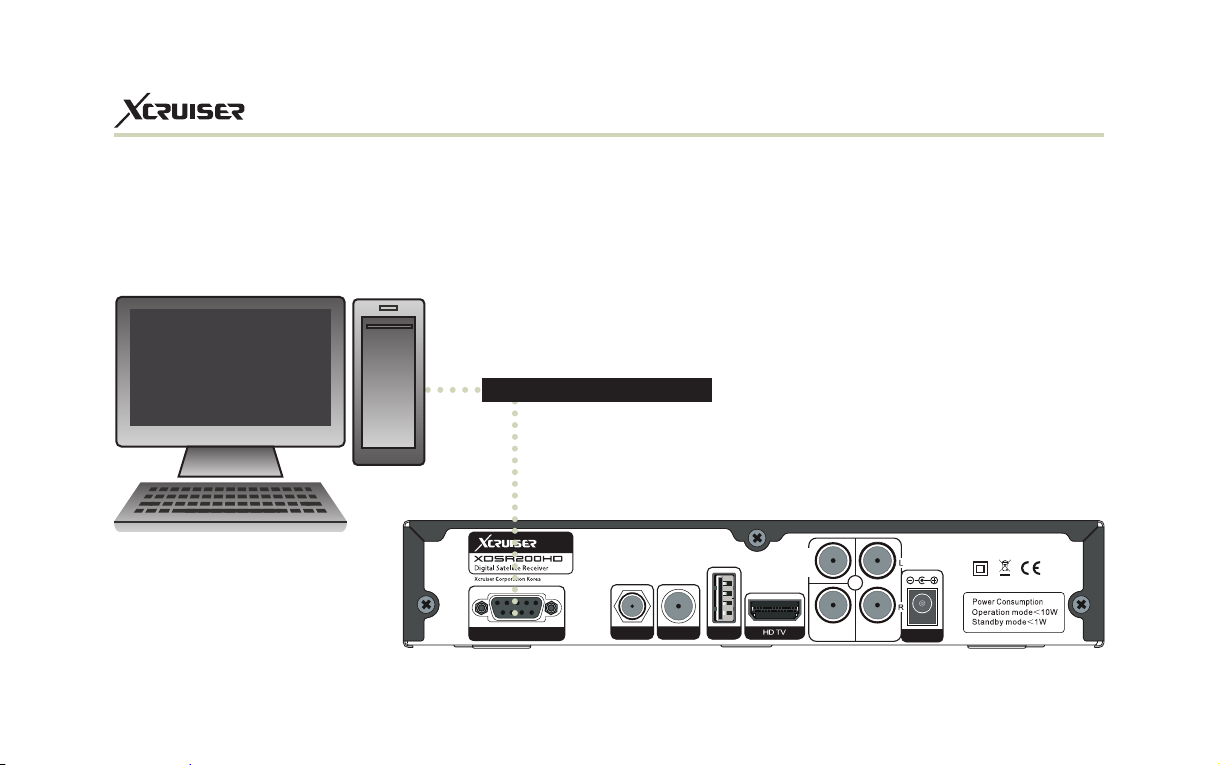

5. Connecting Receiver to Desktop Computer (PC)
 You can connect your satellite receiver to computer using RS-232
cable (not included) to update software.
LNB IN LOOP
VIDE O
COAXIA L AUDI O
RS-232 USB DC 12V
DESKTOP COMPUTER

XDSR200HD
17
Guide of Menus
1. Channel Search and Setting
At this time, please choose Installation -
Antenna Setting and press [OK] key into the
antenna setting page, such as Figure 2.
This window shows the basic options to
search.
Press [MENU] key when receiver starts up,
it will appear main menu screen, such as
Figure 1
Figure 1 Figure 2

XDSR200HD
18
A: LNB Power
You can set according to the requirement of open
LNB power.
B: 22KHz
In case of using two antennas connected to a 22KHz
tone switch box, you can supply either 22KHz or
setting “OFF” to select antenna.
Figure 3 Figure 4
C: DiSEqC1.0 or DiSEqC1.1
If you connect antenna to DiSEqC switch, you
need to specify the DiSEqC inputs to your selected

XDSR200HD
19
Figure 5 Figure 6
1.1 Scan
Then please choose the parameter that you want,
in the “Satellite List” by pressing the blue key, next,
choose the type of search. (such as Figure 3)
Now please choose the “Search” and press [OK]
key to begin searching. (such as Figure 4).
1.2 OSD language
There are many languages for users to set the OSD
language, such as English, French, so please enter
the page of System to install. As shown in Figure 5
and Figure 6.

XDSR200HD
1.3 Restore Factory Default
When necessary, you can choose “Factory Reset” to
recover the original factory status. Such as Figure 7
(Password:0000)
20
1.4 Channel edit
If you want to edit the channel, please switch to
this page, as shown in Figure 8.
Figure 7 Figure 8
