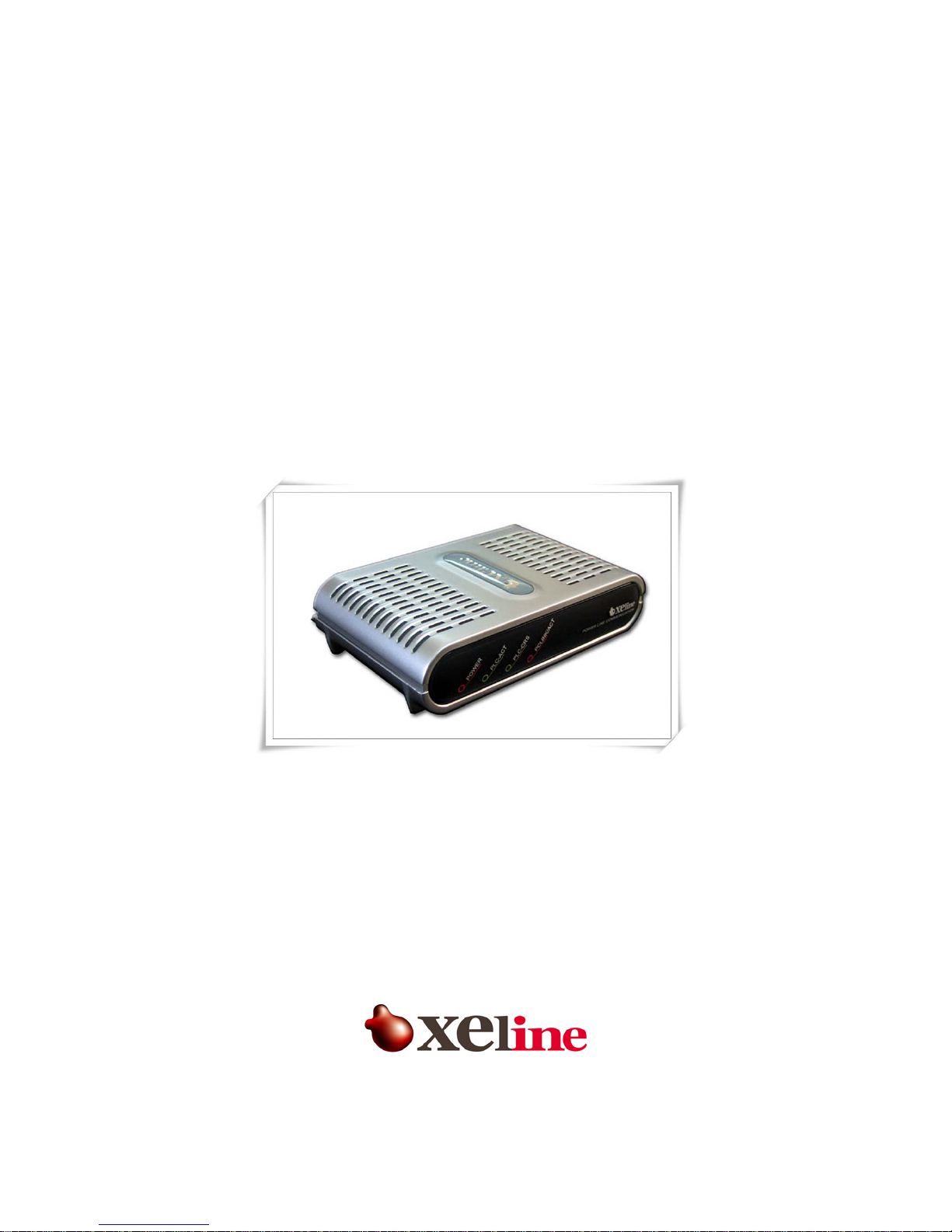

Xeline SU-200B User manual

SU-200B
Installation Manual
(For Technicians Only)
PLC Slave Unit
Plug into the future
Powerline Communication by Xeline
Xeline Co., Ltd.

SU-200B Installation Manual
This document is subject to change without prior notice.
2
ATTENTION
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Change or modification not expressly approved by the party responsible for Compliance could
void the user’s authority to operate the equipment.
This equipment conforms with the following standard(s): EN60950

SU-200B Installation Manual
This document is subject to change without prior notice.
3
Table of Contents
1. Introduction······························································································· 5
2. Before Installing the SU-200B ·········································································· 6
2.1 Package Contents ························································································································6
2.2 Prerequisites·································································································································6
2.3 Safety Precautions·······················································································································7
3. Getting to Know the SU-200B··········································································· 8
3.1 Front View····································································································································8
3.2 Rear View······································································································································8
3.3 Product Specifications·················································································································9
3.4 Minimal Requirements for the Subscriber’s PC········································································9
4. Installing the SU-200B ··················································································10
4.1 Connecting the SU-200B to the Subscriber’s PC····································································10
4.2 Configuring the Subscriber’s PC······························································································· 12
4.3 Final Check (Ping Test)··············································································································15
4.4 Resetting to Factory Default Mode··························································································17
5. Trouble Shooting·························································································18
6. Appendix··································································································19

SU-200B Installation Manual
This document is subject to change without prior notice.
4
Figure Index
Figure 1 XPAS-200B PLC Internet Access System Configuration................................... 5
Figure 2 SU-200B Package Contents .......................................................................... 6
Figure 3 SU-200B Front View.....................................................................................8
Figure 4 SU-200B Rear View......................................................................................8
Figure 5 Connecting the RJ-45 cable and SU-200B...................................................10
Figure 6 Connecting the Power Cable...................................................................... 10

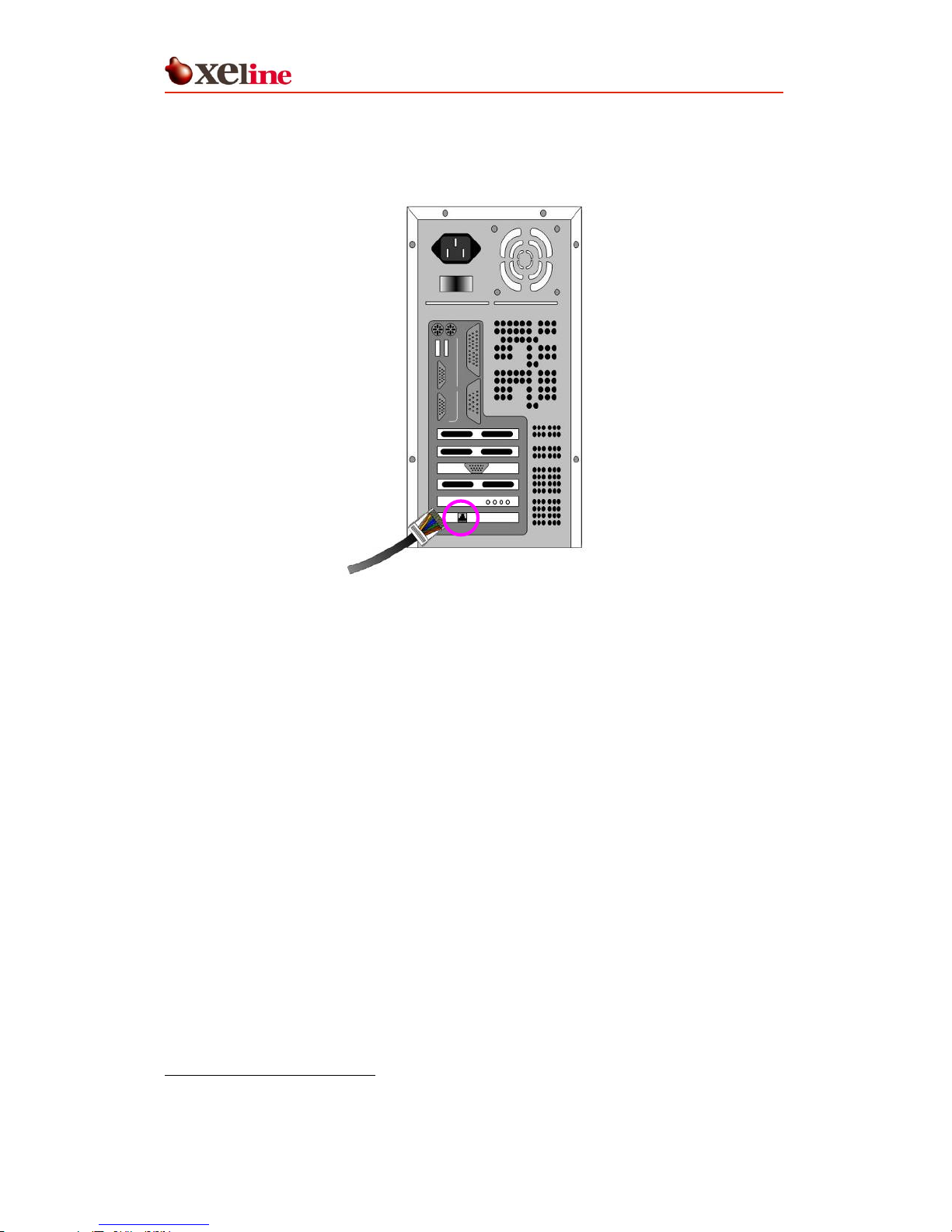

Figure 7 Connecting the SU-200B to the Subscriber’s PC..........................................11
Figure 8 Network and Dial-up Connections..............................................................12
Figure 9 Local Area Connection Properties.............................................................. 12
Figure 10 Internet Protocol (TCP/IP).......................................................................13
Figure 11 Fixed IP Address Setting...........................................................................13
Figure 12 Show Icon in TaskBar ...............................................................................14
Figure 13 Network Configuration Complete.............................................................14

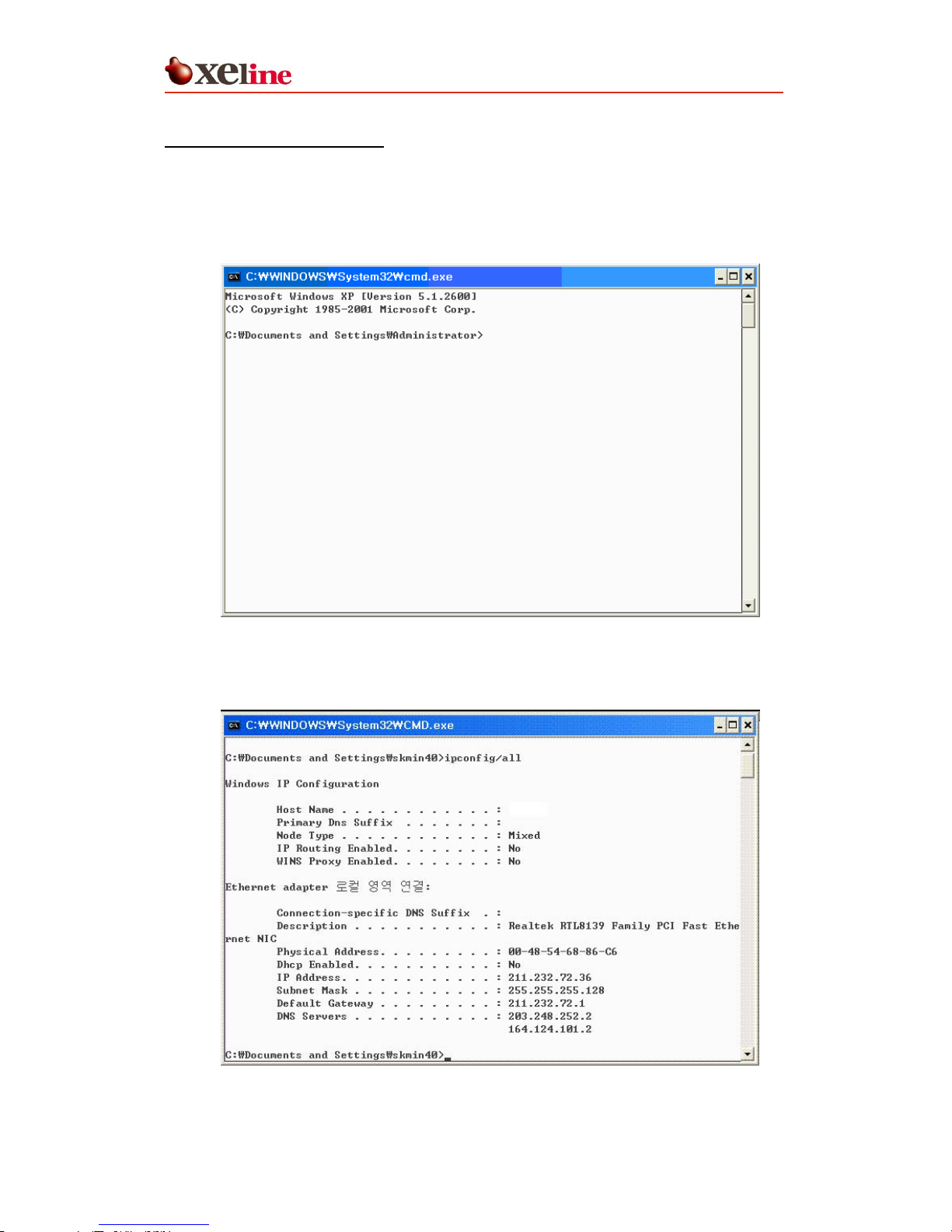

Figure 14 Command Prompt Window.......................................................................15
Figure 15 Checking the Configured IP Address.........................................................15

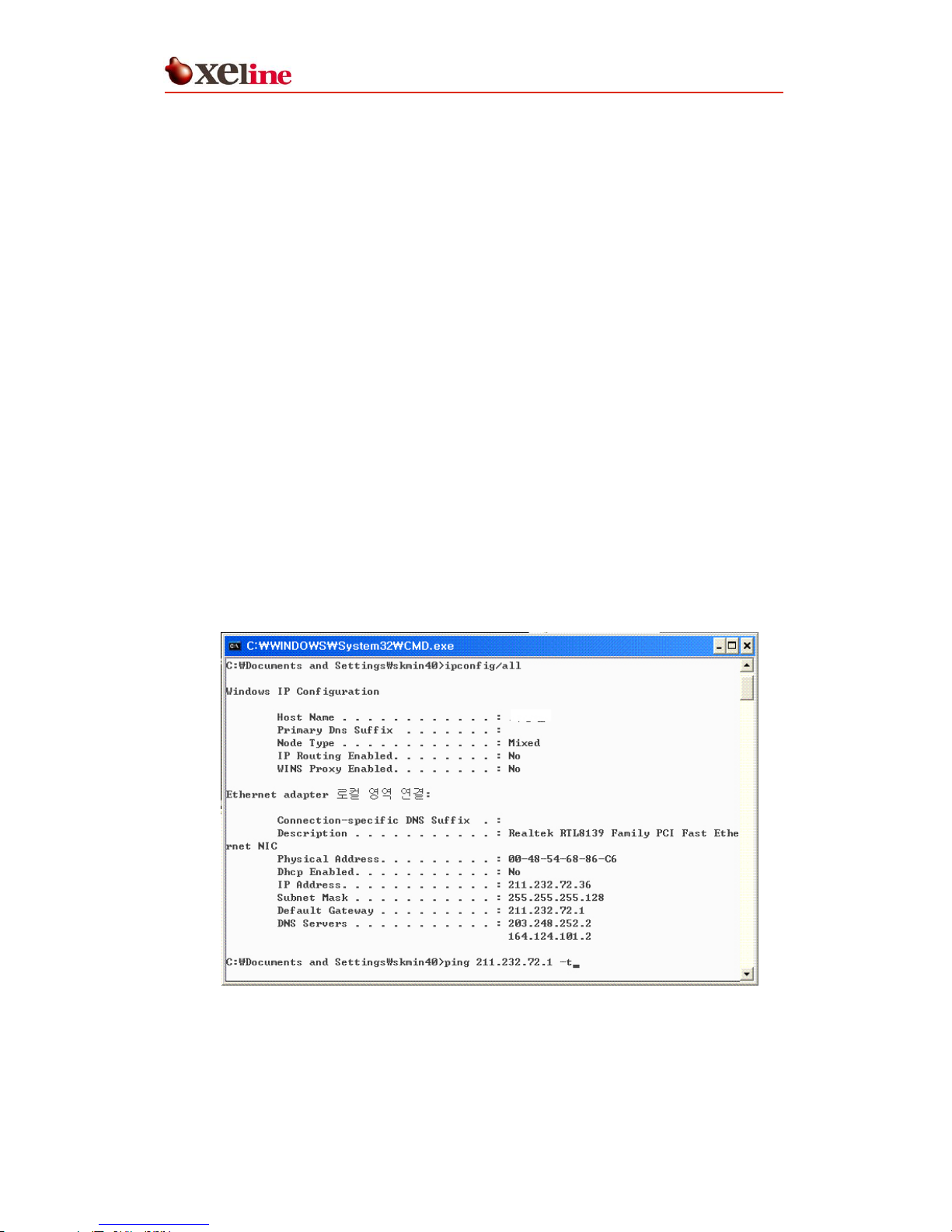

Figure 16 Pinging the Default Gateway IP................................................................ 16
Figure 17 Checking the Ping Results........................................................................ 17

SU-200B Installation Manual
This document is subject to change without prior notice.
5
1.Introduction
Powerline Communication (PLC) technology uses the existing powerline infrastructure to
transfer high-speed data, eliminating the need for expensive and complicated cable
installation. Because the home or office is already a ‘wired network’ through powerlines,
Xeline’s PLC system offers a cost-effective and easy-to-install Internet access solution from
any electrical outlet.
Xeline’s SU-200B is the PLC Slave Unit of the 24Mbps XPAS-200A PLC Internet Access System,
and is designed to enable the end-user to instantly access the Internet or home network from
any electrical outlet in the home or office. One SU-200B is needed for each PC or device that
you wish to connect to the network. Due to the smooth and high quality of data
communication, the SU-200B can also be used with various application equipment to provide
value-added services such as VoPL (Voice over Powerlines) and video conferencing.
The XPAS-200B system supports both Master/Slave or Ad-hoc topology and is based on Xeline's
proprietary Cell-structured MAC (CMAC), which offers virtually unlimited number of nodes per
physical network. Remote configuration and firmware upgrade are also supported for efficient
setup and maintenance of the PLC units in mass-usage environments.
Figure 1 XPAS-200B PLC Internet Access System Configuration

SU-200B Installation Manual
This document is subject to change without prior notice.
6
2. Before Installing the SU-200B
2.1 Package Contents
Before installing, first verify that you have all of the following items.
○SU-200B PLC Slave Unit
○1 AC power cable ○1Installation Manual ○1 RJ-45 cable (CAT 5)
* Core manufactured by: * Core manufactured by:
E-TechElectronicsCo.,Ltd. E-TechElectronicsCo.,Ltd.
Model No. cu1330b Model No. cu1330b
Figure 2 SU-200B Package Contents
If there is a missing item or any visible damage, notify your service provider or dealer
immediately.
2.2 Prerequisites
In order to install the SU-200B, you will need the following items:
(1) Power outlet
Plug the SU-200B directly into a wall outlet.
Note: Data rates may be affected when using an extension cord or power strip.
(2) Computer with 10/100 base-T Ethernet Network Interface Card

SU-200B Installation Manual
This document is subject to change without prior notice.
7
2.3 Safety Precautions
Please make sure to read the following instructions before handling the equipment.
(1) Read all instructions before installing or operating the equipment. Be sure to
keep this manual for further reference.
(2) Please follow all the safety precautions and other installation procedures.
(3) Do not use this product in the following environments:
-Extremely high or low temperatures
-High humidity areas or near water such as sinks or bathtubs
-Areas where sudden changes in temperature occur
-Under direct sunlight
(4) Do not use this equipment near heaters or other devices that emit high heat.
(5) Do not place heavy objects on top of the SU-200B.
(6) Turn off the SU-200B and unplug the cord before cleaning. Do not use liquid or
aerosol cleaners.
(7) If water or any other liquid is spilled on the device, turn off the power and
unplug the cord. Contact Xeline’s Technical Support Center. Continuing to use the
device may cause fire or an electric shock.
(8) Do not open, disassemble, or attempt to repair the device. If service or repair is
required, contact Xeline’s Technical Support Center. Incorrect reassembly can
cause electric shock when the equipment is subsequently used.

SU-200B Installation Manual
This document is subject to change without prior notice.
8
3. Getting to Know the SU-200B

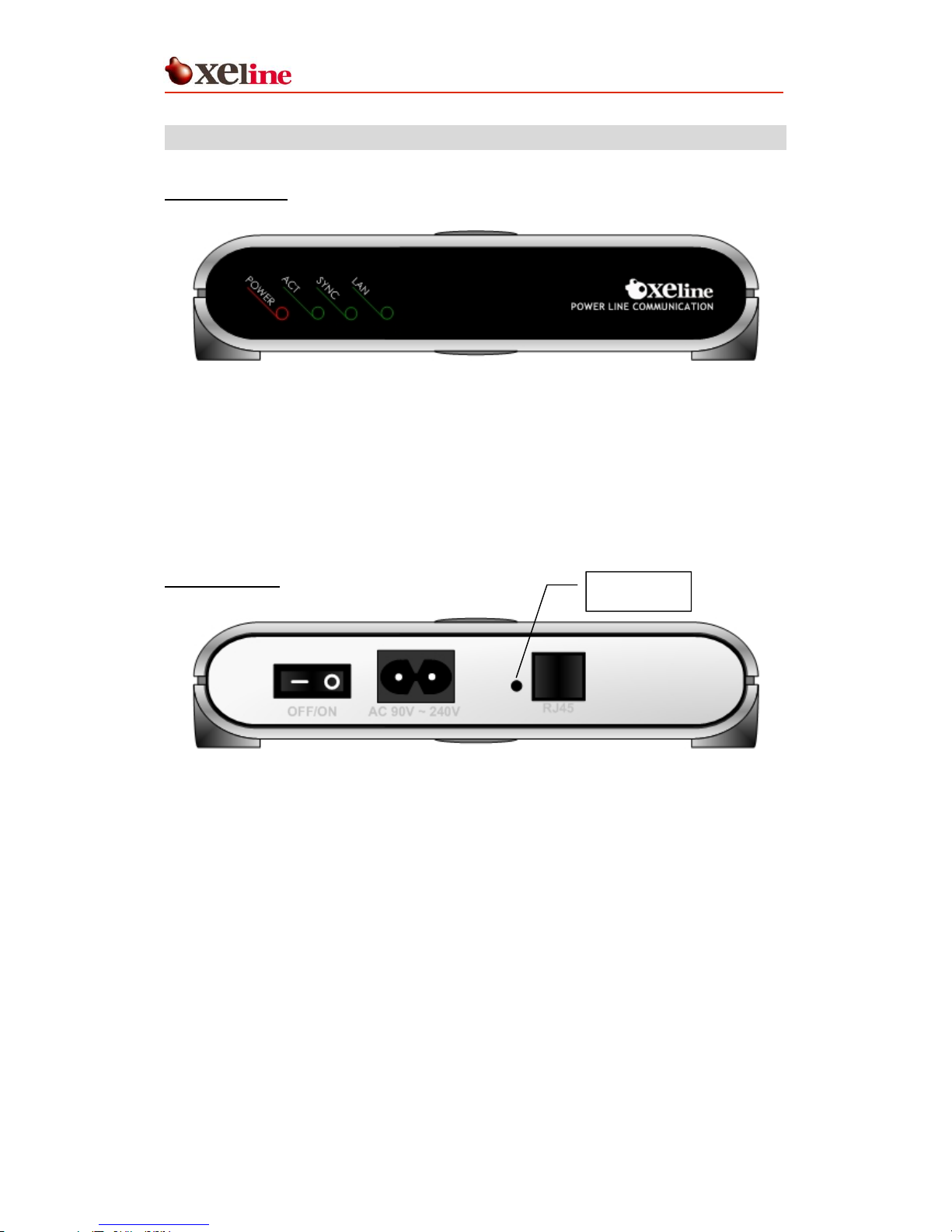

3.1 Front View
Figure 3 SU-200B Front View
PWR Activates when power is turned on.
ACT (PCS) Blinks when PLC signals are detected.
SYNC (LINK) Blinks when the detected PLC signals are valid.
LAN
Activates when the SU-200B LAN port is connected to the PC.
Blinks during data transmission between the SU-200B and the PC.
3.2 Rear View
Reset button
Figure 4 SU-200B Rear View
RJ-45 Port RJ-45 Ethernet port for connection with the PC.
Reset Resets the SU-200B to factory default mode. (Caution!)
AC Inlet For connection to power cable.
Power Switch Switch for turning power ON/OFF.

SU-200B Installation Manual
This document is subject to change without prior notice.
9
3.3 Product Specifications
Specifications Remarks
Data rates Up to 24Mbps
Interface RJ-45 For connection with NIC
Dimensions 186 X 143 X 40mm (W x D x H)
Power AC110~240V, 50/60Hz
3.4 Minimal Requirements for the Subscriber’s PC
CPU Intel Pentium 166MHz or higher
Memory 32MB or more
OS Windows 95, 98, ME, 2000, NT, XP
Network Interface Card 10/100 base-T Ethernet Network Interface Card

SU-200B Installation Manual
This document is subject to change without prior notice.
10
4. Installing the SU-200B

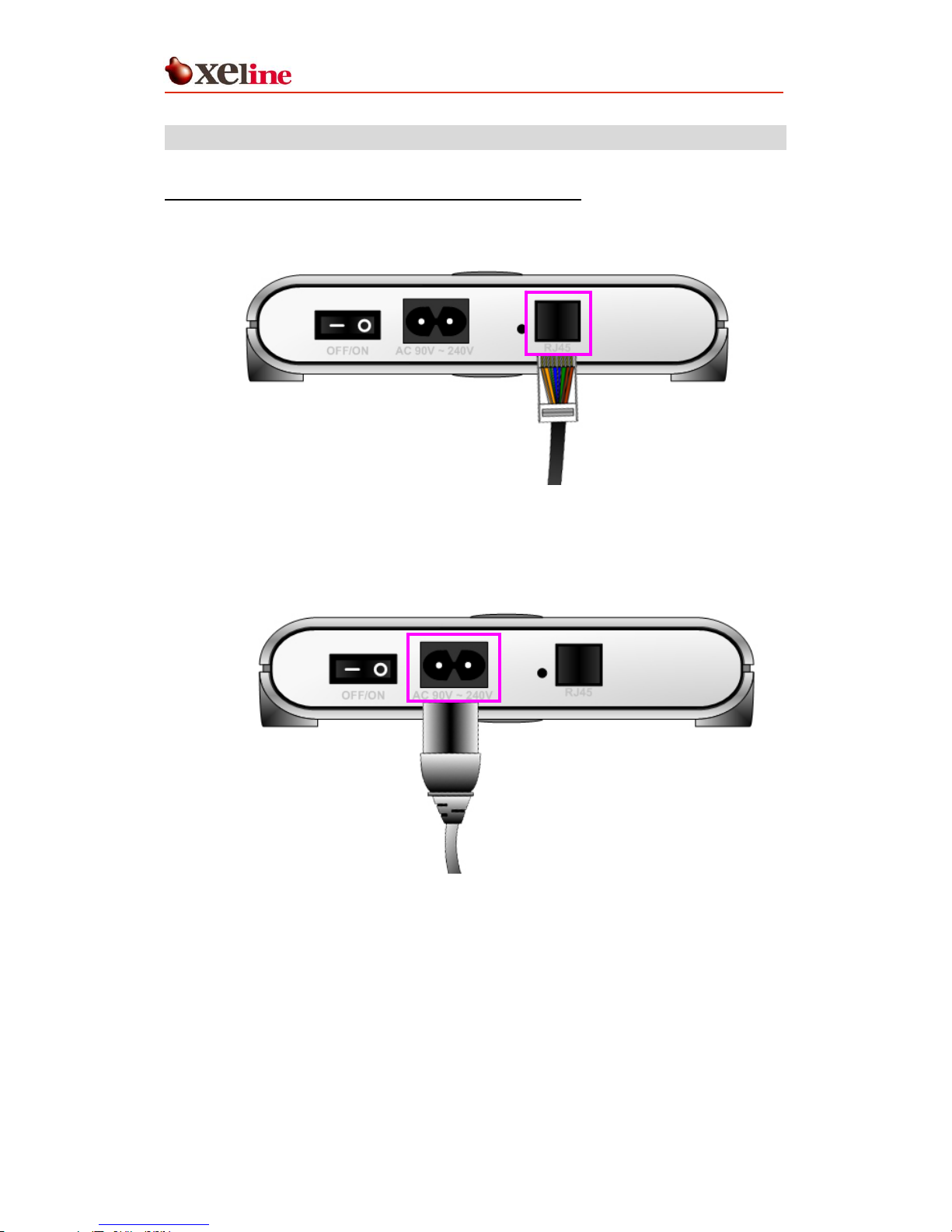

4.1 Connecting the SU-200B to the Subscriber’s PC
① Insert the RJ-45 cable into the RJ-45 Ethernet port of the SU-200B.
Figure 5 Connecting the RJ-45 cable and SU-200B
② Insert the power cable into the AC inlet of the SU-200B and plug the cable into a
power outlet.
Figure 6 Connecting the Power Cable
