XFX nForce 680i LT SLI User manual

Enthusiast
CPU Socket Type
Socket 775
Formfactor
Full ATX
Processor Type
Intel
NVIDIA®nForce
®680i LT SLI™
MCP is engineered for the extreme gamer.
Featuring award-winning NVIDIA nForce 680i SLI performance, true dual x16 PCI Express slots with support
for NVIDIA SLI™ technology, and best-in-class overclocking, the NVIDIA nForce 680i LT SLI motherboard
delivers extreme gaming performance at a great price.
XFX Part Numbers:
MB-N680-ILT
nForce®680i LT SLITM
1333MHz FSB DDR2 800 Motherboard
• 1333MHz FSB achieves up to 22% faster performance*
• Up to 19% better performance in PCMark05*
• Fully support all Socket 775 including Intel Core 2
Quad Processors
• Features NVIDIA SLI memory enhancement
• Premium High Definition Audio brings you home
theater audio experience
• XFX NVIDIA powered graphics card compatibility
*Performance of XFX 680i SLI motherboard compared with Intel 975 and Intel 965 chipset motherboards

nForce®680i LT SLITM
1333MHz FSB DDR2 800 Motherboard
High-Speed Memory
Support high-speed SLI-Ready memory up to DDR2-800 to keep pace with
overclocked systems components.
High Definition Audio (HDA)
High definition audio brings consumer electronics quality sound to the PC
delivering high quality sound from multiple channels. Using HDA, systems can
deliver 192 kHz/32-bit quality for eight channels, supporting new audio formats.
NVIDIA® nTune Utility
Suite of features that safeguards your most important digital media assets;
always reliable, scalable, and accessible. Includes RAID and SATA drive support.
TCP/IP Acceleration
TCP/IP Acceleration delivers the highest system performance by offloading
CPU-intensive packet filtering tasks in hardware, providing users a faster PC
networking environment.
Model Number MB-N680-ILT
Package Contents Installation Manual, Quick Install and Reference Guide, Driver CD,
1394a Cable (1 port), USB 2.0 Cable (4 ports), SATA Data Cable x2,
IDE Cable, Floppy Cable, SATA Power Cable, SLI Bridge, I/O Shield
CPU Socket Type Socket 775
CPU Type Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium EE,
Pentium D9XX, Pentium D8XX
Chipset NVIDIA nForce 680i LT SLI MCP
FSB 1333Mhz FSB
System Memory 240-pin DDR2 up to 8GB (4)
Expansion Slots PCI-E x16 (2), PCI-E x1 (2), PCI (2)
SATA port SATA II ports (6)
LAN Gigabit LAN cards
IEEE 1394 (Firewire) 1394a (2)
USB USB 2.0 ports (8)
Audio 8-channel integrated HDA sound card
Dimensions Full-size ATX (12”x 9.6”)
www.XFXforce.com

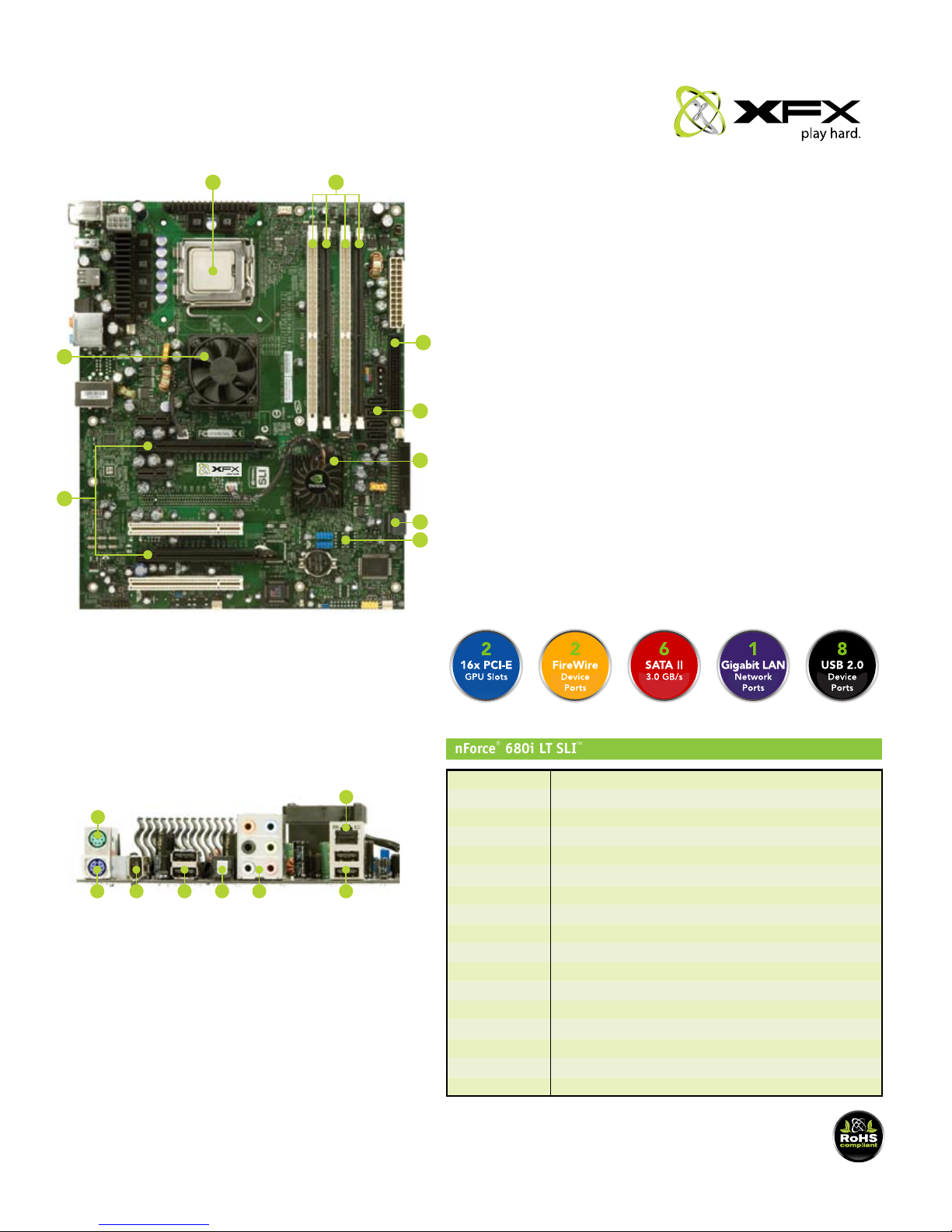

nForce®680i LT SLITM
1. Socket 775 support FSB of 1333 MHz
2. NVIDIA SPP with Active fan (North Bridge)
3. DDR2 DIMM Slots supporting SLI-Ready Memory w/ EPP up
to 800 MHz
4. IDE Connector
5. Serial-ATA II 3GB/s
6. NVIDIA Multimedia and Communication Processor (South Bridge)
7. USB 2.0 Headers
8. True PCI Express x16 slots/NVIDIA SLI Technology
1. PS/2 Mouse Port
2. PS/2 Keyboard Port
3. 1394a (Firewire) Port
4. USB 2.0 ports (2)
5. SPDIF output
6. 8-Channel High Definition Audio
7. USB 2.0 Ports (2)
8. Gigabit Ethernet Port
