Xiaomi Mi Water Purifier User manual

Mi Water Purier
Equipment
The main box
Install the main lter box near faucet. At the same time, make sure that length of
water pipe of lter is su󰀩cient for connection to a source of water.
Touch control unit
Take out sensor unit and water pipe and connect them to faucet.
4 lter cartridges
Cut the package and remove all 4 lters, install the main unit, according to their
serial number.
Accessories
In box with accessories, you will nd adapters for faucet and a small wrench.
Adapters t most faucets. Using wrench, unscrew the aerator, but instead install
adapter.
Adapter: connect sensor unit to faucet
Instructions and warranty card
Picture of accessories
Internal thin
carving adapter
F22
Internal thin
carving adapter
F20
Internal tight
carving adapter
F20
Small wrench External carving
adapter
W24
External carving
adapter
W22
External carving
adapter
F20
XIAOMI-MI.COM

Schematic map
Water from faucet Puried Water
Sensor unit
Water supply button from
faucet
Button for puried water
supply
Blue light: normal
use
Orange indicator:
Water quality
violations
Flashing orange
LED: water
temperature excess
Dust-proof top cover
4 lter cartridges
4 СІІ last lter cartridge with
activated charcoal
3 RO reverse osmosis lter 2 СІ Input lter cartridge with
activated charcoal
1 РР lter cartridge with PP
cotton
Recycling conduit
concentrated impurities
not drinking water
Reset Wi-Fi
Press and hold for 3
seconds
Control panel of the main unit
1 Lifetime indicator of lter cartridge with PP cotton
2 Lifetime indicator of input lter with activated carbon
cartridge
3 Lifetime indicator of reverse osmosis lter
4 Lifetime indicator of last lter cartridge with activated
charcoal
Wi-Fi indicator
Violations indicator
select button of lter cartridge
reset button of lter cartridge
Read about
cartridges
below
XIAOMI-MI.COM

Step by step installation
Read carefully how to install correctly on the following pages
Install lter cartridge (5 page)
Removing and installing an aerator for faucet adapters (5-6 page)
Installing sensor unit (page 7)
Installation of pipeline utilization of concentrated impurities (page 7)
Power Connection, Wi-Fi and downloading mobile applications (page 7)
Run water through the water purier for 10 minutes (7 pages)
Attention:
It is necessary to run water through to wash lter cartridges and tubing. You may see a grayish water or water with bubbles,
it is normal - drain water until it is clear. At your rst use it is necessary to wait a relatively long time, but please be patient.
You may let this water to tank, and then use it to clean the oor, bathroom, etc.
The following shows faucets, which are not suitable for use with Mi Water Purier. If you need to
purchase accessories for stainless steel faucet, contact with an authorized consultant in service
center Xiaomi.
Huajiu water
taps
Outlet of faucet is
squared or some
other shape
Outlet of faucet
is oval
Outlet of faucet is
wider than 24mm
Height is less than
15mm faucet
Retractable faucet
XIAOMI-MI.COM

Step by step installation
Installing lter cartridges Removing and installing adapters mixer
Remove lter cartridges from packaging
Insert rst lter cartridge to corresponding well in such
a manner that the lever of cartridge pointing to 9:00
(Figure 2)
3 points that
indicate correct
position of the lter
cartridge:
A round point, directed at the lock icon (Figure 2)
Slightly press down lter cartridge and rotate it counter-
clockwise by 90%.
Cartridge’s pen points to 12:00 pm (Figure 2)
Surface of lter cartridge is at the same level with
surface of the base unit (Figure 3)
In turn, install remaining cartridges 2,3,4 in the
same way (Figure 4)
After installation, you must necessarily within 10
minutes run water through purier
Note: You need to get rid of water, to rinse lter cartridges and tubes. You may see a grayish
water or water with bubbles, it is normal to drain water until it is clear. When you rst use it is
necessary to wait a relatively long time, but please be patient.
Aerator
Aerator
What is an aerator?
Most faucets in kitchen have tips (aerators) that are in front, and which
can be unscrewed. They are helping with good mixing of water with air,
so you can even see the e󰀨ect of foaming.
Note: In some faucets in bathroom or older models of faucets do not
have an aerator.
Tools Required: small wrench
Wrench is in box with accessories. This tool is designed so you can
easily unscrew aerator and screw in lter adapter.
XIAOMI-MI.COM

Step by step installation
Dismantle aerator
Using wrench, which is in box
with accessories, unscrew
aerator.
Aerator
Remove O-ring
Internal carving aerator
External carving aerator
Smooth external part of aerator
Unscrew with hands
In order to increase frictional force
you can use a towel
For part of aerator carving
Use wrench
First, pick the right size of holes
Installation of a suitable adapter
In box with accessories, select appropriate adapter (in accordance with
direction of thread of aerator and size), screw adapter instead of aerator.
Well screw adapter to prevent water leakage
Spanner will help you to
screw adapter
Safety measures:
1. presence of corrosion promotes incorrect screwing
of adapter;
2. absence of aerator in faucet;
3. Improper installation of aforementioned adapter;
We recommend using a gander faucet in stainless
steel.
XIAOMI-MI.COM

Step by step installation
Installing sensor unit
Installation
With one hand, hold faucet, and
with second - sensor unit. Insert
connector of sensor unit to the
limit. A clicking sound will indicate
a successful installation of sensor
unit.
If you need to remove
sensor unit:
With one hand, hold
faucet, and with second
- pull connector down,
thereby removing sensor
unit.
Installation of pipeline utilization of concentrated
impurities
Direct pipeline utilization of
concentrated impurities in the
sink and using a special suction
cup rmly attaching it to a smooth
surface countertops.
Identied one or more of facts listed above, signicantly a󰀨ects capacity of device and
quality of his work.
Water which comes from pipeline is not drinking, because it contains precipitate, rust,
chlorine residue, etc. You can use any container to collect water and then use it for
washing, cleaning, etc.
Safety measures:
Check pipeline utilization
of concentrated
impurities in presence
of bends, damage,
bonding, as well as
ensure a good ow
capacity.
Power connection, downloading mobile Wi-Fi applications
Power Connection
Plug power cord into outlet of water purier
Download mobile app
In APP Store, nd and download application Mi
Water Purier or scan QR-Code
Wi-Fi connection
After you connect your smartphone to Wi-Fi, open
previously downloaded application, and follow
instructions on screen.
Note: If you do not connect your smartphone to water purier, follow in «Tech
Service» - and make a «Reset Wi-Fi», for stable Wi-Fi connection.
Run water through water purier for 10 minutes
Click on «Clean Water», after which indicator
lights. Remove water and let it drain out (about 10
minutes). After some time, orange indicator will
change to blue, indicating that run water through
water purier can be completed.
Attention:
It is necessary to run water through to wash lter cartridges and tubing. You may see a grayish water or water with
bubbles, it is normal to drain the water until it is clear. When you rst use it is necessary to wait a relatively long
time, but please be patient.
You may let this water to tank, and then use it to clean the oor, bathroom, etc.
XIAOMI-MI.COM

Usage
Outlets of sensor unit
Sensor unit has two outlets:
one is intended for supply
of puried water, second
- for normal, non-ltered
water.
Puried water
Not ltered water
Regulation of water
To supply ltered water,
click on «Clean Water»
and turn on water. To stop
ow of water, close valve
of faucet.
Use of non-ltered water
Note: water temperature does not
a󰀨ect ow of unltered water.
Note: If water temperature exceeds 38 C., turn on usual not ltered water, because
high temperature of water negatively a󰀨ects life of RO reverse osmosis lter.
If water temperature and its pressure is relatively low, supply of puried water
pressure is weak.
If during water supply, indicator changed its color to orange, continue to monitor
water it may change color of indicator back to blue, indicating normal state.
If indicator does not change to a blue color, after some time, do not turn on ltered
water.
Change lter cartridge
Expiration of operation of lter cartridge
Value of indicators
appearance of a ashing orange indicator on any lter
cartridge indicates that it will soon come to an end of
its life.
appearance of steady orange light over any lter
cartridge means that it is reaching to an end of its
lifetime.
Warning: can simultaneously light indicators of overall
lter status
Buy lter cartridge:
01 Register to www.xiaomi-mi.com
02 Appendix «smart house»
03 Scan QR-code
Recommended terms to replace lter cartridges:
Выбор
Сброс
XIAOMI-MI.COM

Changing lter cartridge
Replace lter cartridge with a new and reset
Before you withdraw old lter, do not
turn on water for 2 minutes
According to description of steps
1,2,3 «step by step installation of 1» -
«Installing lter cartridge 4», replace
old lter with a new (Figure 1,2,3)
After switching on, press «Select»
and select a new lter cartridge on
which indicator lights. Press and hold
«Reset» button for 3 seconds after
you hear the buzzer, the light goes o󰀨.
Reset completed successfully (Figure
4)
After installing lter, be sure within 10
minutes to run water through on water
purier
Note: You need to get rid of water, to
rinse lter cartridges and tubes. You
may see a grayish water or water with
bubbles, it is normal to drain water until
it is clear.
Note: you must do a factory reset of a new lter cartridge, or an incorrect
count will continue its life
Reset Wi-Fi
Press
simultaneously
for 3 seconds
Select
Reset
After changing password of router or Wi-Fi, you
need to reset Wi-Fi. At the same time, click on
button «Select» and «Reset» button and hold
for three seconds. Flashing orange LED and
audible alarms indicate a successful reset Wi-
Fi.
Rinsing adapter
Periodically rinse inside of adapter from
precipitation of impurities and other
particulates to prevent clogging of adapter,
because it a󰀨ects quality and water supply
rate. Clearing adapter should be returned to
its original place steel mesh and O-ring.
To remove sensor unit:
With one hand hold mixer, and with second -
pull connector down, thereby removing sensor
unit.
To remove adapter and wash:
Remove adapter and clean it.
loosen and rinse
for dismantling pull down
XIAOMI-MI.COM

Troubleshooting
List of faults
XIAOMI-MI.COM

Safety measures
Antifreeze:
Do not store device in rooms with temperatures
below 0C and not to succumb to its e󰀨ects of low
temperatures.
Water pressure:
This device is used to purify tap water or use it for
other assignments
To guarantee quality of water, use this unit for tap
water pressure 0,1-0,4MRa, in case of excess
pressure on inlet point, use a pressure reducing
valve.
Prevention:
In case of failure, quickly stop water supply, turn
o󰀨 power and call service: 400 100 5678
Do not disassemble device, please use a
specialized repair
When moving or transporting this product, you
must pack it according to directions on box, to
prevent damage to lter.
Regularly clean adapter from the rain, sawdust
and other debris as plugging adapter a󰀨ects
ow rate of clean water. Clearing adapter should
be returned to its original place steel mesh and
O-ring.
While wiping lter, do not let water lter cartridge
to get inside the device, because soon there will
be an unpleasant smell, bacteria can form water
stagnation, which eventually will ow through lter
microcracks.
Do not use water to wash inside or outside of
lter, because stagnant water can be formed, and hence
unpleasant odor and bacteria.
ashing orange light over a particular lter cartridge will
notify you that cartridge must replaced soon. Buy and timely
change lter cartridge.
Use:
For more convenient use of water purier, use connection of
Wi-Fi.
If for a long time you do not use a water purier, turn o󰀨
power and close valve of mixer. During use of lter, will
appear orange light. Continue to use water for as long as
indicator again turns blue indicating the normal state.
In case of turning o󰀨 normal water or during repair of pipes,
turn o󰀨 power and close valve of faucet. Upon renewal of
water supply, open other valves to allow sediment to ow
down and only then device can be used again. Otherwise,
a large amount of sediment after turning o󰀨 of water orafter
a pipe repair will immediately fall into lter cartridges and
quickly clog them.
If quality of ltered water is very bad, temperature and water
pressure is very low, ow of puried water will be relatively
weak, this is normal.
The reason for small noise and vibration when using pure
water is booster pump’s work, this is normal.
Do not put a lter on its side or upside down.
Do not use water purier at a temperature below 5 ° C or
above 38 C., as it may cause damage to unit.
Do not use it in public locations.
Additional accessories and lter cartridges:
For proper operation and safety of device, use
additional components and lter cartridges that are
only of same brand.
Storage:
Do not use it in public locations. Device storaging:
Constant sunlight to lter facilitates rapid «aging» of its
components.
Damage to devices or lter cartridges, in the result of
use of water at a temperature below 5C or above 38
C.
Close location of device near to high temperatures or
powerful magnetic devices can contribute to a re or
damage to electrical circuit.
Placing device in humid or very gathering dust areas
can contribute to emergence of a circuit failure.
Do not place heavy objects on lter or liquid
containers.
Children with mental disabilities:
After removing device from package, avoid any child
contact with box.
Do not allow children to contact, pull, play with
device.
Using by children with intellectual disabilities only
under the supervision of a guardian.
XIAOMI-MI.COM

Safety measures
Other important factors are:
Install unit in a safe place from insects or
other pests, they can chew through power
cord.
Before using, rmly install plumbing. If
you notice water leakage in device,
immediately turn o󰀨 power and water
supply.
Do not install or use unit near a source of
heat or re.
Do not install or use device close to
ammable, explosive devices and high-
power magnetic devices.
Do not put purier in water to wash it.
Mi is using RO water purier RO reverse
osmosis technology. In course of its work
generates concentrated water, ratio is about
50% ± 10%. The quality of water pressure,
water temperature, time of use purier and
its usage habits a󰀨ect the production of
concentrated water.
* Test conditions: tap water, the water
pressure 0.2MRa, the water temperature
is 25° C, after 2 minutes of continuous
operation, we tested.
Main specications
Наличие токсичных и вредных веществ
O: toxic and harmful substances in all
components of device contained in an
amount below limit value according to
SJ / T11363-2006 «requirements limiting
the presence of toxic and hazardous
substances in products.»
X: indicates the presence of toxic and
hazardous substances at least one
of the components in this product in
excess of the limit value, according to
SJ / T11363-2006 «requirements limiting
the presence of toxic and hazardous
substances in products.»
XIAOMI-MI.COM

Image processing technology of water
Supply of tap water 1 РР lter cartridge with PP
cotton
2 СІ Input lter cartridge with
activated charcoal
Booster Pump
3 RO reverse osmosis lter
Withdrawal of concentrated
impurities
Pure water
4 СІІ last lter cartridge with
activated charcoal
Schematic diagram
Power switch
mixer control panel dashboard
Main board
Booster Pump
The solenoid valve
Solenoid valve
Sensor
Flowmeter
TDS
Sensor
XIAOMI-MI.COM

Warranty
1. Within 7 days from the date of purchase, in
case of a problem of «fault list», you can choose
a free replacement product, return or repair.
Return of goods is only possible presentation of a
valid warranty card.
2. Return of goods is only possible through the
main shopping Xіaomi the o󰀩cial website or
o󰀩cial website Tmall and only seven days after
its purchase. You can not take the opportunity to
return the product without reason within seven
days after the purchase, in the event of damage
to the goods incurred due to the human factor,
or in the case of damage to the packaging. RIR
return the goods without reason within seven
days after purchase, all shipping costs borne by
the consumer.
3. Within 8-15 days from the date of purchase,
in case of a problem of «fault list», you choose
a free replacement or repair of the goods. In
the case of replacement of the goods, you
can replace only the main unit and all of its
components can not be replaced.
4. The warranty on the main unit and its
components (except for lter cartridge) is given
for 1 year, but it is necessary to properly maintain
the warranty card.
The conditions are not covered by warranty
- The warranty has already expired;
- The presence of stacking faults, accessories,
instructions, gifts, lack of warranty coupon;
- Damage caused by force majeure;
- Damage resulting from repairs outside the
service center, improper use, falling objects,
water ingress, accident, alteration, misuse, or
from the use of foreign components; or if you
have broken, correct serial number, security
marking, etc .;
- Do not meet the model or code on the device
and in the warranty card;
- Failure resulting from improper use of the
device in conditions that do not correspond to
the data contained in the instruction (voltage,
temperature, humidity, ventilation, etc.)
- Damage resulting from exceeding the
operating conditions;
- When using the device in public places.

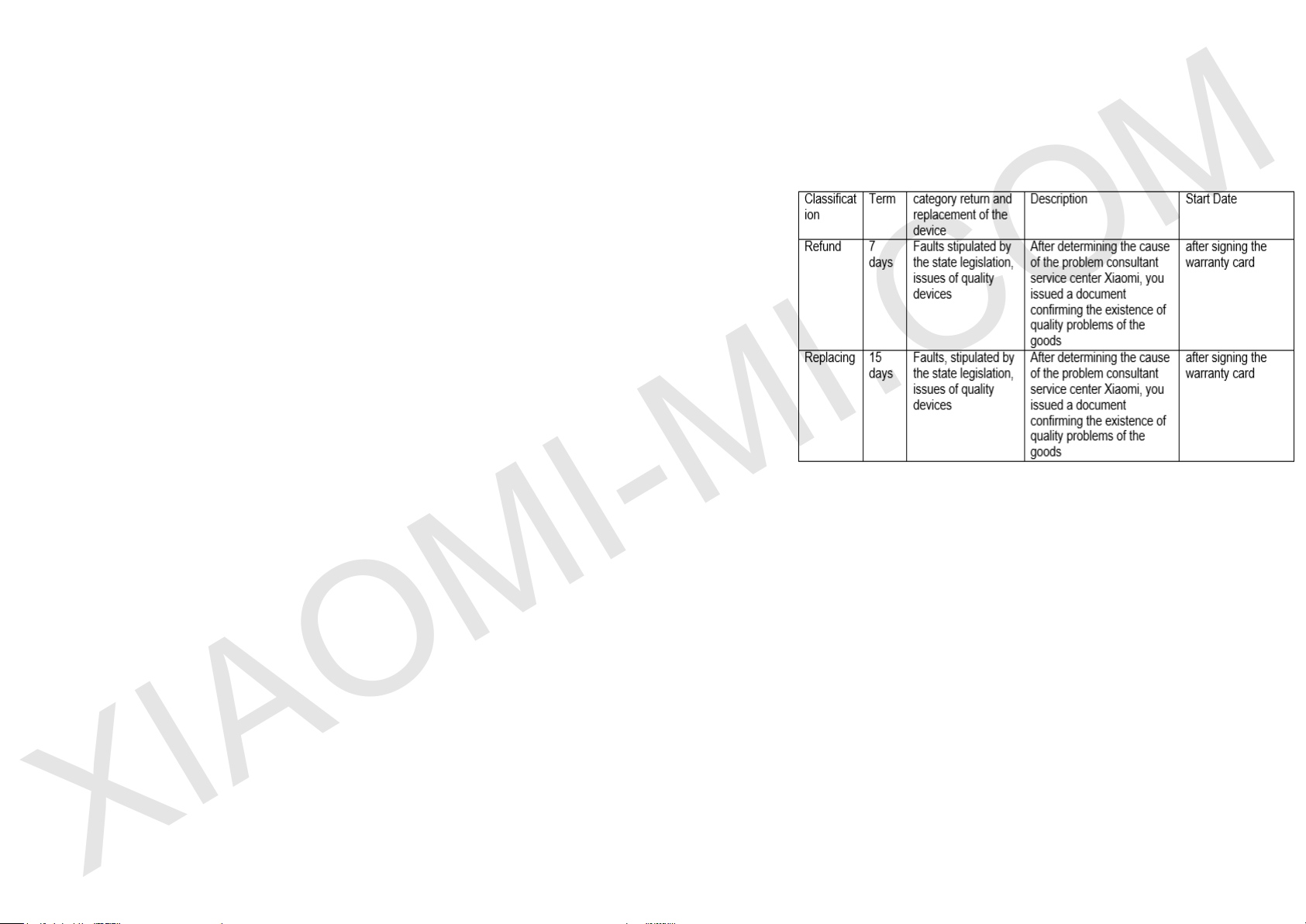

Return and replacement
devices
In other words: When you return the goods without reason,
within seven days after purchase, you must ensure that no
damage to the main unit and its components. In the event of
damage to the goods incurred due to the human factor, or
in the case of damage to the package and return the goods
without reason, within seven days after purchase, all shipping
costs borne by the consumer.
Xiaomi-mi.com
XIAOMI-MI.COM
