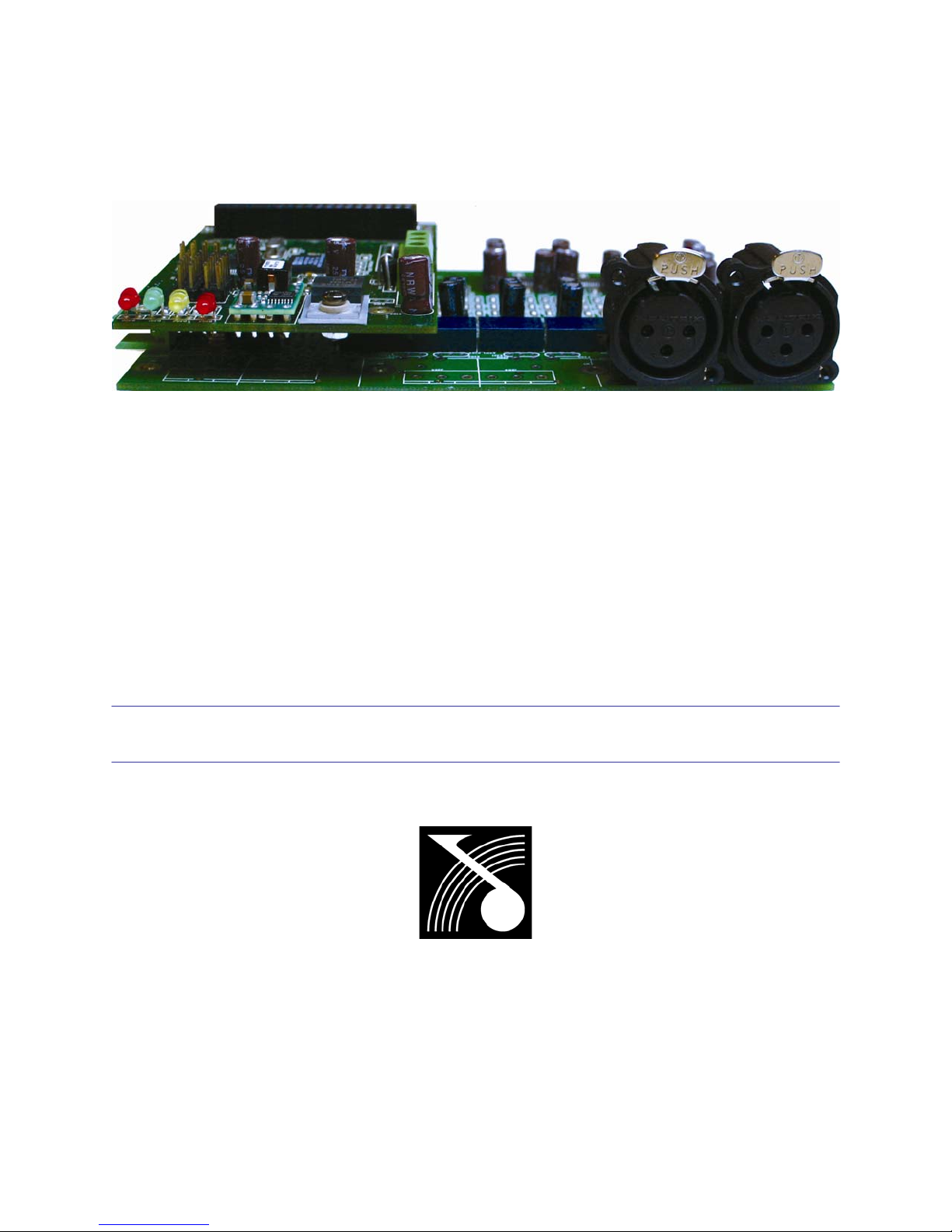

XM-2040
LoudspeakerManagementSystem
UserManual
XILICA Audio Design

XM-2040 User's manual - Page 2

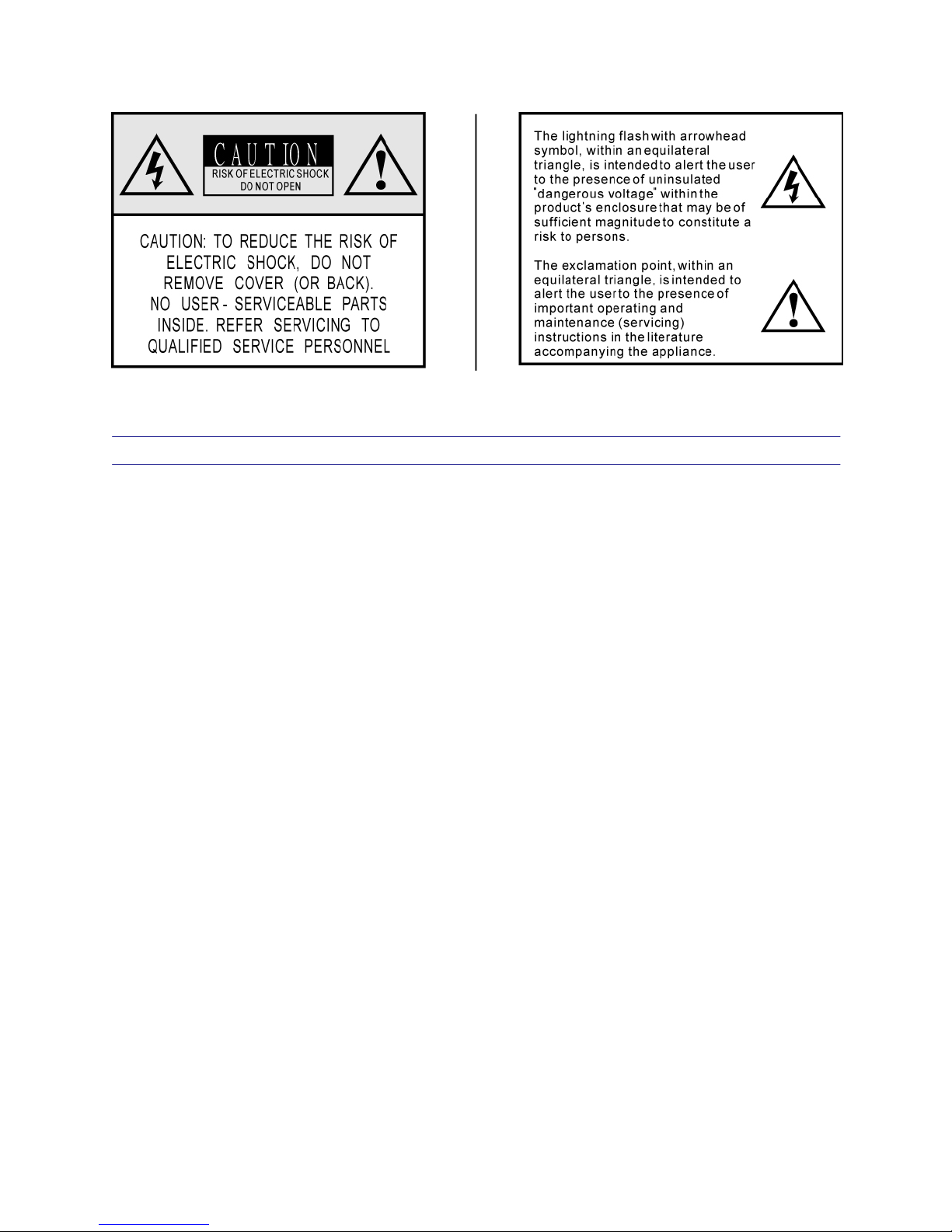

Important Safety Instructions
1. READ THESE INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
2. KEEP THESE INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED ALL WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW ALL INSTRUCTIONS
All operating and use of instructions should be followed.
5. DO NOT USE THIS APPARATUS NEAR WATER
Do not use the product near water. For example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool, and the like.
6. CLEAN ONLY WITH DRY CLOTH
Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
7. DO NOT BLOCK ANY VENTILATION OPENINGS
Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure
reliable operation of the limit and to protect it from overheating. These openings must
not be blocked or covered. The openings should never be blocked by placing the product
on a bed, sofa, rug, or similar surface. This product should never be placed near or over
a radiator or heat source. This product should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided or the manufacture's
instructions have been adhered to.

XM-2040 User's manual - Page 3
8. DO NOT INSTALL NEAR ANY HEAT SOURCES
This Product should be situated away from heat sources such as radiators, stoves, or
other products (including amplifiers) that produces heat.
9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-TYPE
PLUG
A Polarized plug has two blades with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide blade or the third prongs are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE
THEY EXIT FROM THE APPARATUS.
11. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUFACTURER.
12. USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR TABLE SPECIFIED BY THE
MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A CART IS USED, USE
CAUTION WHEN MOVING THE CART/APPARATUS TO AVOID INJURY FROM TIP-OVER.
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may
fall, causing serious injury to someone, and serious damage to the appliance. A unit and
cart combination should be moved with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination to overturn.
13. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR
LONG PERIODS OF TIME.
For added protection for this unit during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the unit due to lightning and power
line surges.
14. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING IS
REQUIRED WHEN THE APPARATUS HAS BEEN DAMAGED IN ANYWAY, SUCH AS
WHEN THE POWER SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED
OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS BEEN
EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN
FROPPED.
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE.
16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.

XM-2040 User's manual - Page 4
Table of Contents
Table of Contents ................................................................... 4
1.0 Introduction .................................................................... 5
2.0 Features .......................................................................... 6
3.0 General Description....................................................... 7
4.0 Connector Pinouts......................................................... 8
5.0 Mechanical Drawing ...................................................... 9
6.0 Powering Up the Device .............................................. 10
7.0 Operating the Device ................................................... 11
8.0 Quick Reference........................................................... 12
9.0 Specifications............................................................... 13
10.0 Warranty........................................................................ 15

XM-2040 User's manual - Page 5
1.0 Introduction
The XM-2040 is a complete 2 input - 4 output digital loudspeaker
management system designed for the touring or fixed sound installation
markets. The absolute latest in available technology is utilized with 40-bit
floating point processors and high performance 24-bit Analog Converters.
The high-bit DSP prevents noise and distortion induced by truncation errors
of the commonly used 24-bit fixed-point devices. A complete set of
parameters include I/O levels, delay, polarity, 8 bands of parametric EQ per
channel, multiple crossover selections and full function limiters. Precise
frequency control is achieved with its 1 Hz resolution. Inputs and outputs
can be routed in multiple configurations to meet any requirements. The XM-
2040 can be controlled or configured in real time with the intuitive PC GUI
accessed via the RS-232, USB or Ethernet (optional) interface. Software
upgrade for CPU and DSP via PC keeps the device current with newly
developed algorithms and functions once available.
Shipped contents:
- XM-2040 unit
- User Manual
- XConsole Software CD

XM-2040 User's manual - Page 6
2.0 Features
> 2 Inputs and 4 Outputs with flexible routing
> 40-bit floating point DSP
> High Performance 24-bit A/D Converters
> 1 Hz Frequency Resolution
> 8 Parametric Equalizers for each Input and Output
> Multiple Crossover types with Full Function Limiters
> Precise Level, Polarity and Delay
> CPU and DSP upgrade via PC
> 3-segment LED’s on Input 1
> Storage of up to 4 Program Setups
> Jumpers Controlled Startup Program
> Security Lock
> RS-232, USB and Ethernet (optional) Interface for PC Control
> Additional functions and field programmable in future

XM-2040 User's manual - Page 7

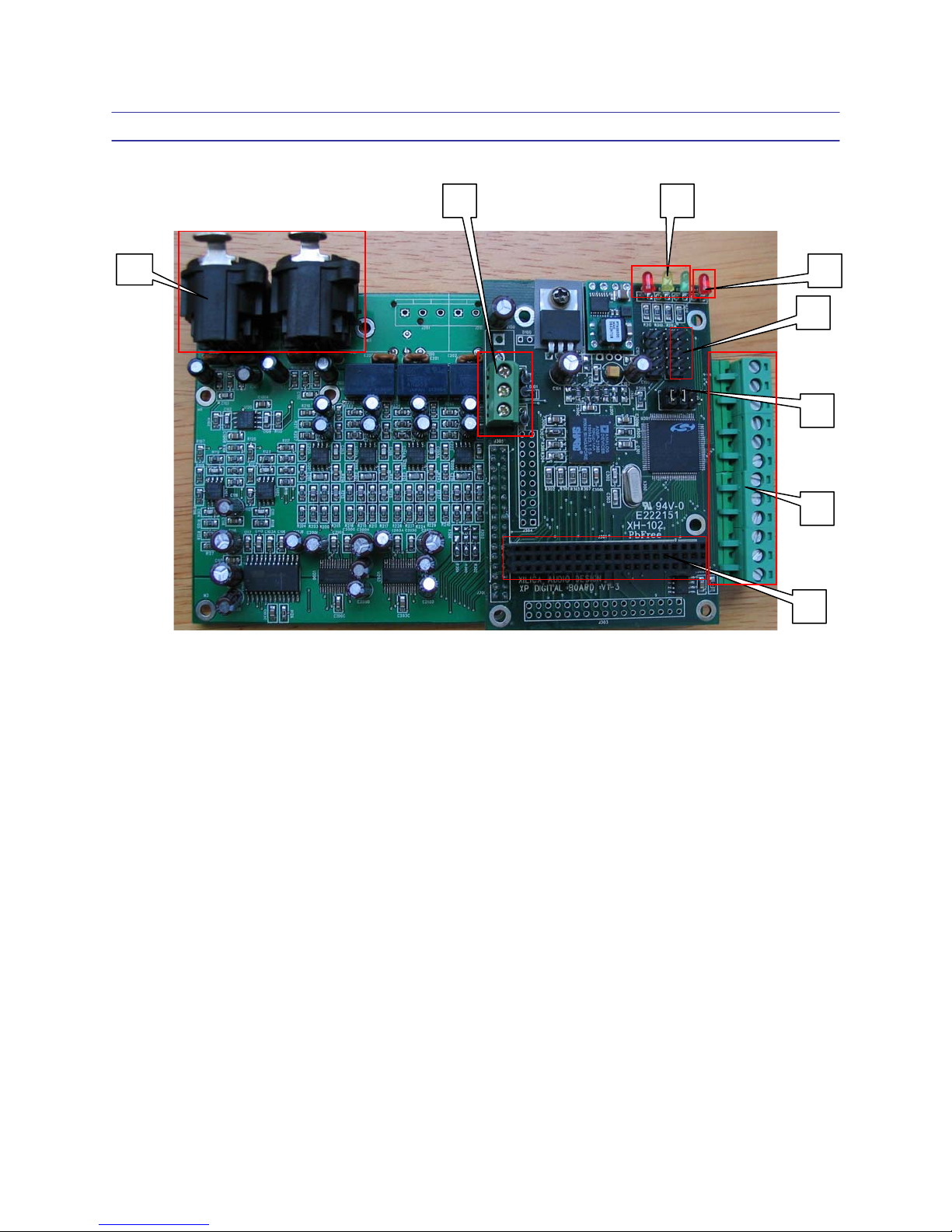

3.0 General Description
1. XLR inputs - Input connectors have pin 1 as ground (shield), pin 2 as +
and pin 3 as -.
2. Euro outputs – A 12-pin Euro type plug-in connectors is provided for
output channels. Pins 1, 4, 7, 10 are ground, pins 2, 5, 8, 11 are + and
pins 3, 6, 9, 12 are -. See "Connector Pinouts" section.
3. Option Slot - Option slot for add-ons such as Ethernet Connectivity
4. Peak Level LED - Indicates the peak level of the Input signal:
Signal (Green), -3dB (Yellow), Over (Red).
5. Power LED (Red) – Indicates whether the device is powered on. A
flashing LED means there is an error and requires a system reset.
6. Power – Connector for the external power supply. See "Connector
Pinouts".
7. Serial Port – Connector for the RS232/USB circuit board. See
"Connector Pinouts".
8. Startup Program – Select the startup program using jumpers. See
"Connector Pinouts".
3
6
5
4
2
1
8
7

XM-2040 User's manual - Page 8
4.0 Connector Pinouts
4.1 Power
4.2 Serial Port
1
4.3 Startup Program
PROG 1
PROG 2
PROG 3
PROG 4
4.4 Euro Outputs
12
1
GND
+12V
-12V

XM-2040 User's manual - Page 9

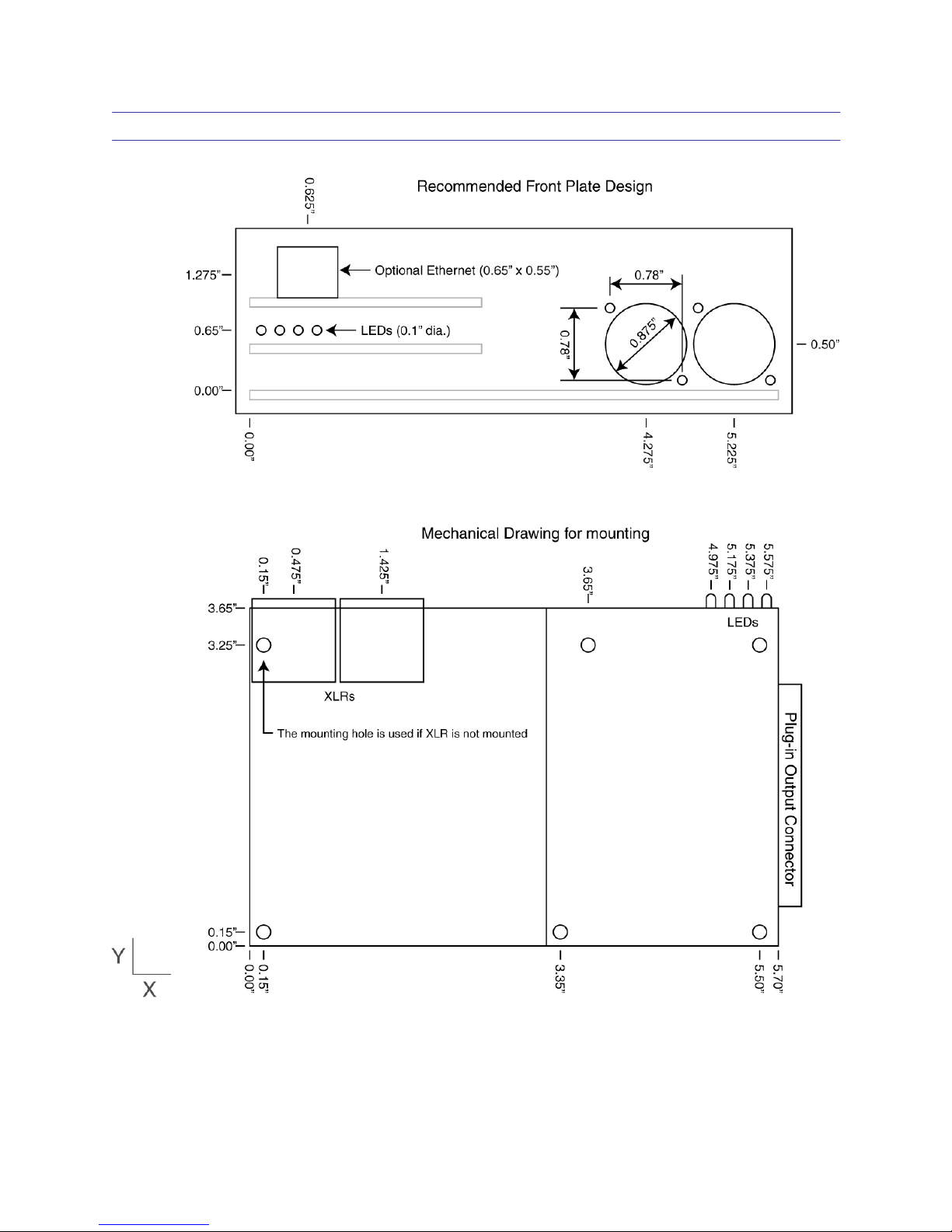

5.0 Mechanical Drawing

XM-2040 User's manual - Page 10
6.0 Powering Up the Device
•Upon powering up the unit, the red Power LED should light up.
•The initialization process takes about 8 seconds.
•If the Power LED flashes at a 1 second interval, there is an error and the
device needs to be reset.
•Now the XM-2040 is ready to operate.

XM-2040 User's manual - Page 11
7.0 Operating the Device
The XM-2040 is shipped with a special PC Graphic User Interface (GUI)
application - XConsole. XConsole gives the user an option to control the
XM-2040 unit from a remote PC via the serial communication link. The GUI
application makes it much easier to control and monitor the device,
allowing the user to get the whole picture on one screen. Programs can be
recalled and stored from/to PC’s hard drive, thus expanding the storage to
become virtually limitless.

XM-2040 User's manual - Page 12
8.0 Quick Reference
Parameters Min Max Steps Units
Level -40 +15 0.25 dB
Polarity + / -
Delay 0 9,600 1 21us steps
EQ Number 1 8 1
EQ Level -30 +15 0.25 dB
EQ Frequency 20 30,000 1 Hz
EQ Bandwidth 0.02 2.50 0.01 Octave
Crossover Low Off / Butterworth / Linkwitz-Riley / Bessel
Crossover Low 20 30,000 1 Hz
Crossover Low 6 48 6 dB/octave
Crossover High Off / Butterworth / Linkwitz-Riley / Bessel
Crossover High 20 30,000 1 Hz
Crossover High 6 48 6 dB/octave
Limiter Threshold -20 +20 0.5 dBu
Limiter Attack
Time 0.3 100 0.1/1 ms
Limiter Release
Time 2 / 4 / 8 / 16 / 32X Attack time
Source Off +15 0.25 dB
Channel Name 6 characters

XM-2040 User's manual - Page 13
9.0 Specifications
Inputs and Outputs
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu
Type: Electronically balanced
Audio Performance
Frequency Response: +/- 0.1dB (20 to 20kHz)
Dynamic Range: 115dB typ (unweighted)
CMMR: > 60dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.002% (1kHz @+4dBu)
Digital Audio Performance
Processor: 40-bit
Sampling Rate: 96kHz
Analog Converters: High Performance 24-bit
Propagation Delay: 1.5ms
Front Panel Controls
LEDs: Power, Signal, -3dB, Clip
Connectors
Audio: 3-pin XLR (x2)
12-pin Euro Type (x1)
Power: 3-Pin Screw Terminal Type
Optional Connectors
RS-232: Female DB-9
USB: Type B
Ethernet: RJ45 CAT-5
General
Power: +/-12V (500mA max)
Dimensions: 6" x 4" x 1" (152 x 102 x 25 mm)
Weight: 1 lbs / 0.45kg

XM-2040 User's manual - Page 14
Audio Control Parameters
Gain: -40 to +15dB in 0.25dB steps
Polarity: +/-
Delay: Up to 100ms per I/O
Equalizers (8 per I/O)
Type: Parametric, Lo-shelf, Hi-shelf
Gain: -30 to +15dB in 0.25dB steps
Bandwidth: 0.02 to 2.50 octaves (Q=0.5 to 72)
Crossover Filters (2 per Output)
Filter Types: Butterworth, Bessel, Linkwitz Riley
Slopes: 6 to 48dB/oct
Limiters
Threshold: -20 to +20dBu
Attack: 0.3 to 100ms
Release: 2 to 32X the attack time
System Parameters
No. of Programs: 30 Internal Storage
4 Selectable upon power-up
Note: Specifications subject to change without notice

XM-2040 User's manual - Page 15
10.0 Warranty
The XM-2040 is warranted covering materials and workmanship for a
period of two (2) year, as determined by the date of retail purchase
(according to the sales receipt from an authorized dealer) or the date of
manufacture if the sales receipt is not available (according to the serial
number). This warranty applies to the product; therefore, the remainder of
the warranty period will be automatically transferred to any subsequent
owner. This warranty applies only to failure of a Xilica product caused by
defects in materials and workmanship during the stated warranty period. It
does not apply to a unit that has been subjected to abuse, accident,
modification, improper handling/installation, or repairs made without factory
authorization or by anyone other than authorized Xilica Field Service
Stations. This warranty is void if the serial number has been defaced,
altered or removed. Products covered by this warranty will be repaired or
replaced at the option of Xilica, without charge for materials or labor,
provided all the terms of this warranty have been met.
For factory service, please call or email for a Return Authorization (R/A)
number before shipping. If the product is shipped, the following information
must be included in the package:
1. Owner’s complete name, daytime phone number, return street address
and return authorization number.
2. The serial number of the product being returned and a copy of the retail
sales receipt, if possible.
3. A complete description of the problem(s) experienced, including a brief
description of how the equipment is being used and other equipments
involved.

XM-2040 User's manual - Page 16
XM-2040 User Manual v1.00 (Mar 2007)
XILICA Audio Design
www.xilica.com
