Xinje VB5N Series User manual

WUXI XINJE ELECTRIC CO., LTD.
VB5N seriesfrequency inverter
User manual
No. INV C 10 20140403 204

2
VB5N
Series Inverter
User Manual
Table of Contents
Preface
———————————————
Safty Precautions
———————————————
Product Introductions
———————————————
Installation and Wiring
———————————————
Operation Descriptions
———————————————
Function Parameters
———————————————
Fault Diagnosis and Disposal
———————————————
Maintenance
———————————————
Communication Protocol
———————————————

VB5N series inverter
This manual includes the basic caution items that you should obey to ensure your personal safety, as well as to protect the
product and the connected equipments. These items are highlighted in the manual by a warning triangle. Please comply
with the essential electric operation `rules that are not indicated in this manual.
Please comply with these items, incorrect operation may cause the system error working even abnormal.
More serious would cause possession loss.
The device and its components can only be used in the applications described in the catalog and the
technical manuals, can only be connected with devices or components from other manufacturers which
have been approved or recommended by Xinje.
The products will run normally in the condition of been transported, stored, configured and installed
correctly, been operated and maintained as recommended.
WUXI XINJE ELECTRIC CO., LTD. Copyright reserved
Without written authority, please do not copy, transfer or use this document and its content. Anyone who disobeys this
should take responsibility for the loss.
Obligation Declare
We have checked and confirmed that the contents in this manual were compatible with the hardware and software de-
scribed. Since mistakes are hard to avoid, we cannot promise total accordant. This manual is subject to change without no-
tices.
2014.01
CorrectApplications
Installing Precautions

VB5N series inverter
i
CATALOG
PREFACE.......................................................................................................................................1
SAFETY PRECAUTIONS...............................................................................................................2
1 PRODUCT INTRODUCTION.......................................................................................................6
1-1. Product overview......................................................................................................................................................................6
1-2. Product technical specification ...............................................................................................................................................7
1-3. Product appearance.................................................................................................................................................................9

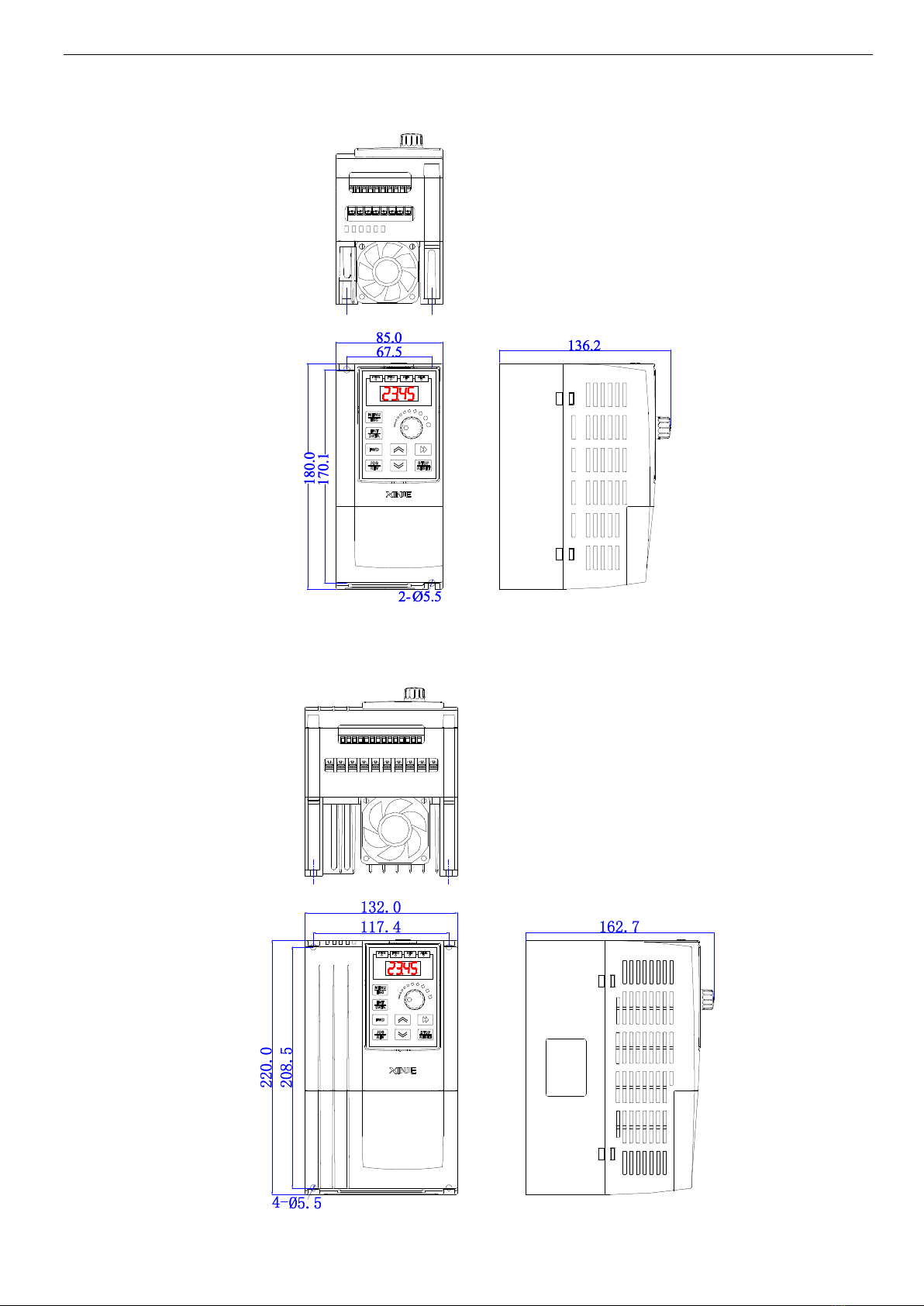

1-4. Product dimension .................................................................................................................................................................10
2 INSTALLATION AND WIRING ..................................................................................................11
2-1. Installation environment ....................................................................................................................................................... 11
2-1-1. Environment requirement................................................................................................................................................. 11
2-1-2. Mounting location and space............................................................................................................................................ 11
2-1-3. Mounting and removing ................................................................................................................................................... 11
2-2. Wiring ..................................................................................................................................................................................... 11
2-3. Wiring of main circuit terminals ..........................................................................................................................................12

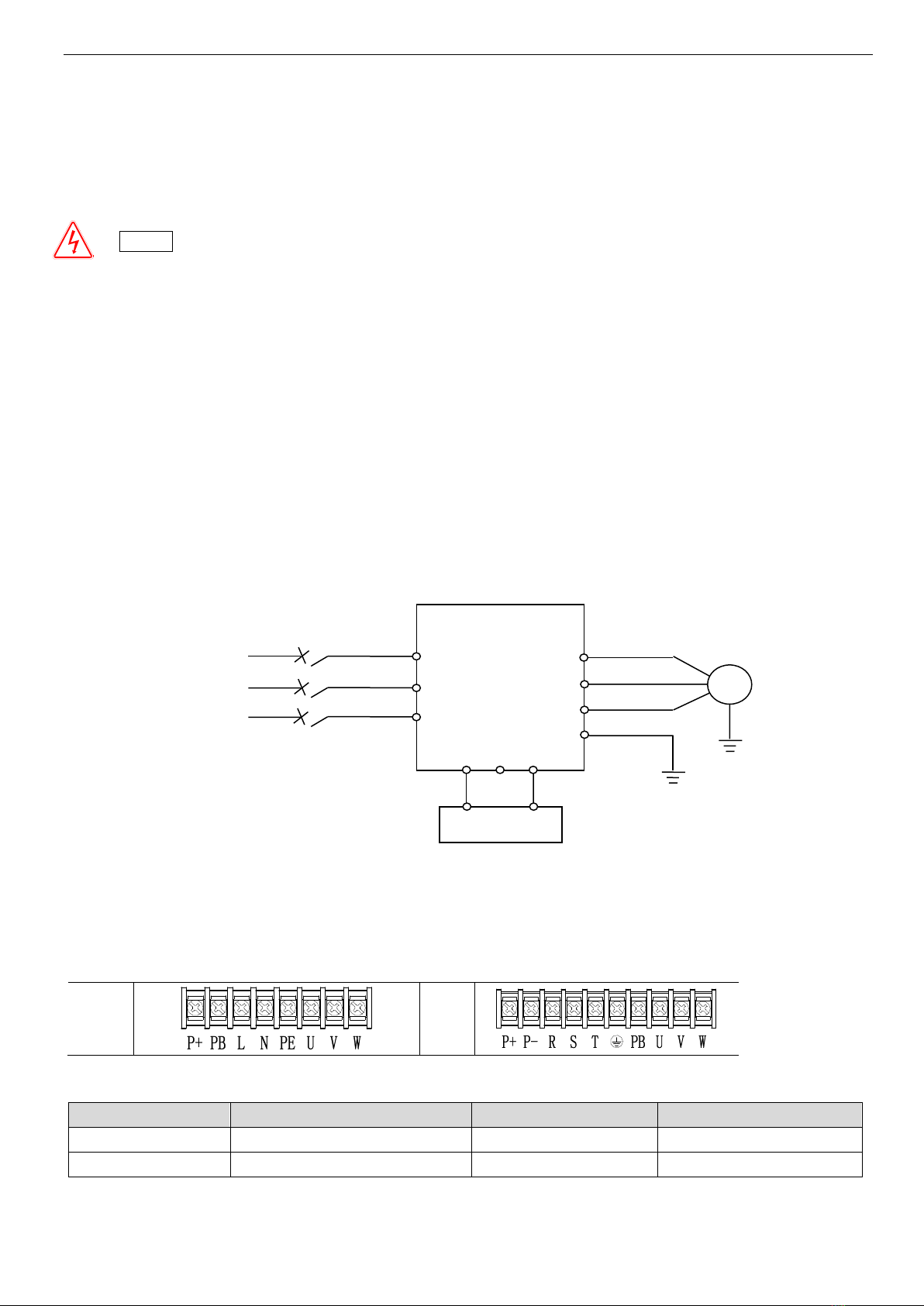

2-3-1. Wiring diagram.................................................................................................................................................................12
2-3-2. Terminal assignment and description ...............................................................................................................................12
2-4. Basic running wiring..............................................................................................................................................................13
2-5. Setting and wiring of control circuit.....................................................................................................................................14
2-5-1.Position and function of terminals and jumpers on control panel......................................................................................14
2-5-2.Terminals on control panel ................................................................................................................................................15
2-5-3. Analog I/O terminal wiring...............................................................................................................................................17
2-5-4. Connection of communication terminals..........................................................................................................................17
2-6. Mounting guide according with EMC..................................................................................................................................19
2-6-1. Control the noise...............................................................................................................................................................19
2-6-2. Local wiring and grounding .............................................................................................................................................20
3 OPERATING INSTRUCTIONS..................................................................................................21
3-1. Run the inverter.....................................................................................................................................................................21
3-1-1. Command channel of inverter ..........................................................................................................................................21
3-1-2. Frequency setting channel ................................................................................................................................................21
3-1-3. Running state....................................................................................................................................................................21
3-1-4. Running modes.................................................................................................................................................................22
3-2. Use the keyboard....................................................................................................................................................................23

ii
3-2-1. Keyboard layout ...............................................................................................................................................................23
3-2-2. Keyboard function............................................................................................................................................................23
3-2-3. Fucntion description of LED and indicator ......................................................................................................................24
3-2-4. Display of the operation panel..........................................................................................................................................24
3-2-5. Panel operation method ....................................................................................................................................................25
3-3. Power on the inverter ............................................................................................................................................................28
3-3-1. Checking after power on ..................................................................................................................................................28
3-3-2. Power on the inverter for the first time.............................................................................................................................28
4 FUNCTION PARAMETERS.......................................................................................................30
4-1. Function code .........................................................................................................................................................................30
4-2. Function code description .....................................................................................................................................................46
4-2-1. Basic operating function parameters (Group P0) .............................................................................................................46
4-2-2. Parameters of frequency setting (Group P1).....................................................................................................................52
4-2-3. Starting and braking parameters (Group P2)....................................................................................................................53
4-2-4. Auxiliary running parameters (Group P3)........................................................................................................................56
4-2-5. Function parameters of terminal (Group P4)....................................................................................................................61
4-2-6. Protection function parameters (Group P5)......................................................................................................................70
4-2-7. Fault recording parameters (Group P6)............................................................................................................................72
4-2-8. Close-loop control parameters (Group P7).......................................................................................................................72
4-2-9. Simple PLC operation parameters (Group P8).................................................................................................................76
4-2-10. Swing frequency function parameters (Group P9) .........................................................................................................80
4-2-11. Vector control parameters (Group PA)............................................................................................................................82
4-2-12. Special application function parameters (Group PB) .....................................................................................................83
4-2-13. Default setting and password (Group PF).......................................................................................................................83
5 FAULT DIAGNOSIS AND SOLUTION ......................................................................................84
5-1. Fault diagnosis and solution..................................................................................................................................................84
5-2. Check the fault records..........................................................................................................................................................86
5-3. Fault reset...............................................................................................................................................................................86
6 MAINTENANCE ........................................................................................................................87
6-1. Maintenance ...........................................................................................................................................................................87
6-1-1. Routine maintenance ........................................................................................................................................................87
6-2. Periodical care and maintenance..........................................................................................................................................87
6-2-1.Periodical care...................................................................................................................................................................87
6-2-2. Periodical maintenance.....................................................................................................................................................87
6-3. Warranty of the inverter .......................................................................................................................................................88
7 COMMUNICATION PROTOCOL...............................................................................................89
7-1. Overview of communication protocol ..................................................................................................................................89

VB5N series inverter
iii
7-2. Communication protocol.......................................................................................................................................................89
7-2-1. Communication networking mode ...................................................................................................................................89
7-2-2. Communication protocol modes.......................................................................................................................................90
7-2-3. Communication port.........................................................................................................................................................90
7-3.Modbus-RTU communication protocol.................................................................................................................................90
7-3-1. Character structure............................................................................................................................................................90
7-3-2. Communication information.............................................................................................................................................91
7-3-3.Communication parameter ................................................................................................................................................93
APPENDIX A ACCESSORIES .....................................................................................................95
A-1. Brake resistor ........................................................................................................................................................................95
A-2. Operate panel and extension cable ......................................................................................................................................95
APPENDIX B FUNCTION CONFIGURATION LIST.....................................................................96

1
Preface
——Essential introduction for this manual
Thank you for purchasing Xinje inverter, this manual should be read and understood before attempting relevant operations.
1. Purpose of this manual
This manual offers guidance and introductions about how to use and maintains the inverter correctly, including functions,
usages, installation, maintenance, etc.
2. Qualified personnel
This manual is intent for the following personnel:
Inverter installation personnel
Project technical personnel(electric engineer, electrician)
Design personnel
The above personnel should read and understand this manual carefully before operating and debugging.
3. Validity of this manual
This manual may only be used for inverters made by Xinje.
4. Electronic Documents
In addition to our written manuals, we offer electronic documentations of our products by the following ways.
User CD
There are software, user manual and application tip of relevant products.
Website
Please visit www.xinje.com to obtain all variable electronic documents.

VB5N series inverter
2
Safety Precautions
Upon unpacking, please confirm that: Check whether the model and the rated values on the nameplate of the inverter are in
accordance with your order. Check if there is any damage occurred during transportation; pleases contact us or the distrib-
utor if you find any missing or damage of the products.
In order to use this product correctly, the user who uses the product for the first time must read this manual carefully and
pay close attention to the safety precautions.
Please keep this manual properly, hand it to the terminal user and lay it on the place where the operators can read it easily.
Confirmations Upon Delivery
Notice
1．Never install an inverter that is damaged or missing components. Doing so can result in injury.
Installation
Notice
1. Always hold the bottom of the inverter when carrying it. If the inverter is held by the front cover, the main body
of the inverter may fall, possible resulting in injury.
2. Attach the inverter to metal or other noncombustible materials. Fire can result if the inverter is attached to a
combustible material.
3. Install a cooling fan or other cooling device when installing more than one inverter in the same enclosure so that
the temperature of the air entering the inverters is below 45℃. Overheating can result in fires or other accidents.
Wiring
Danger
1. Always turn off the input power supply before wiring. Otherwise, an electric shock or fire may occur.
2. Wiring must be operated by an authorized person qualified in electrical work. Otherwise, an electric shock or
fire may occur.
3. Make sure to ground the ground terminals. Otherwise, an electric shock or fire may occur.
4. Always check the operation of any emergency stop circuits after they are wired. Otherwise, possibly result in
injury ( user responsibility for the wiring).
5. Never touch the output terminal directly by your hands or let the output terminals to come into contact with the
inverter case. Never short the output terminals. Otherwise, an electric short or ground short may occur.
6. Never touch the internal circuit or the zero-component until power off and the charge indicator is off as
there may still be high voltage inside theAC motor dirver.
Notice
◎Safty Precautions ◎

VB5N series inverter
3
1．Confirm that the voltage of the main AC power supply satisfies the rated voltage of the Inverter. Injury and fire
may occur if the voltage is not right.
2．Do not perform voltage withstand tests on the Inverter. Otherwise, semiconductor elements and other devices
can be damaged.
3．Connect braking resistors, Braking Resistor Units, and Braking Units as shown in the I/O wiring examples.
Otherwise, a fire may occur.
4. Tighten all terminal screws to the specified tightening torque.
Otherwise, a fire may occur.
5. Do not connect AC power to output terminals U, V, and W.
The interior parts of the Inverter will be damaged if voltage is applied to the output terminals.
6. Do not connect phase-advancing capacitors or LC/RC noise filters to the output circuits.The Inverter may be
damaged or internal parts burnt if these devices are connected.
7. Do not connect electromagnetism switch, electromagnetism contactor to output circuit. When the inverter is
running with load, the electromagnetism switch and electromagnetism contactor will generate inrush current
which will cause inverter’s over current protection.
8. Do not disassemble the whole front cover as disassembling the top front while wiring is ok. Otherwise, inverter
internal parts may be damaged.
Maintenance and Inspection
Danger
1．Do not touch the inverter terminals, as they may carry high voltage.
Otherwise, an electric short may occur.
2．Make sure to have protective cover .Always have the protective cover in place when power is being supplied to
the Inverter. When attaching the cover, please with the power turns off.
Otherwise, an electric short may occur.
3．Maintenance, inspection, must be performed only by authorized personnel.
Otherwise, an electric short may occur.
Notice
1. A CMOS IC is used in the control board. Handle the control board and CMOS IC carefully. The CMOS IC can
be destroyed by static electricity if touched directly.
2．Do not change the wiring, or remove connectors or the Digital Operator, during operation.
Otherwise, The devices may be damaged.
Constant torque low speed running
When the inverter outputs to a common motor at low speed for a long term, the output rated torque should be derated due
to the worsening radiating effect. If low speed constant torque long term running is required, then a special variable fre-
quency motor is needed.
Motor insulation
When using the V5/F5 series inverter, make sure to confirm the insulation of the motor which will be used to avoid device
damage. Besides, do the periodic check for the insulation condition of the motor located in the bad environment to guaran-
tee the system can operate safely.
Negative torque load
If in the case of improving load, negative torque may occur. Braking units should be connected with the inverter, or over
current and over voltage fault may happen.
◎Usage Precautions ◎

VB5N series inverter
4
Mechanical resonance point of load
The inverter may encounter the mechanical resonance point of load within certain output frequency range. Jump frequen-
cies have to be set to avoid it.
Capacitor and resistor
Because the inverter output pulse wave, capacitor and resistors shouldn't be connected with the output terminals of the in-
verter, or the inverter may trip or components may be damaged; Besides, don’t connect switch components such as air
switch and contactor with the output terminals is recommended, as shown in Fig.0-1(If switch components need to be
connected with the output terminals, make sure output current of the inverter is zero when switch is acting).
Fig.0-1 Capacitor is prohibited to be connected with
output terminals of inverter
Derate according to basic frequency setting
When the basic frequency is lower than the reference frequency, please consider duration for the motor so as to avoid mo-
tor’s damage caused by overheating.
Running at frequency above 50Hz
If running at frequency above 50Hz, besides the increment of vibration and noise, the ranges of running speed of motor
shaft and mechanical device have to be guaranteed. Be sure to make an enquiry first.
The electro-thermal protective value of motor
If the applicable motor is selected as per requirements, the inverter can perform the thermal protection to the motor. If the
ratings of applied motor are not in compliance with the inverter, be sure to adjust the protective value or adopt other pro-
tective measures to guarantee the safe running of motor.
Altitude and derate
When the altitude is higher than 1000m, the cooling effect of inverter is deteriorated because of the rareness of air, deration
must be considered, shown in Fig.0-2which indicates the relationship between the altitude and rated current of frequency
inverter.
U
V
W
M
Inverter

VB5N series inverter
5
Fig. 0-2 The relationship between the altitude and rated
current of frequency inverter
About protection classes
The protection class of V5/F5 series inverter IP20 is reached in the case of status display unit or keyboard.
When you scrap the inverter, please pay attention to:
Explosion risk of capacitor: The capacitors in the main circuits may explode when they are burned.
Waste gas when plastic parts are burned: Poisonous gas may be generated when front panel is burned.
Dispose method: Please dispose as industrial rubbish.
4000
（m）
3000
2000
1000
80%
90%
100%
lout
◎Note For Scrap ◎

VB5N series inverter
6
1Product Introduction
1-1. Product overview
VB5N series inverter is produced by Xinje with high performance, easy operating and low noise. It is a innovative product
with a series advanced and practical running and control functions such as practical PI, flexible input and output terminals,
parameter modification online, fixed length control, traverse operation, RS485 control, bus-mastering. It provides OEM
customers with high integrated, reliable, cost-effective solution.
Name Designation Rules
VB5N has 220V and 380V level types. Suitable motor capability is from 0.75KW to 3.7KW. –S is simple type. The differ-
ences between general type and –S type:
Type
RS485
X6 high speed pulse input
Relay output
VB5N-20P7
√
×
×
VB5N-20P7-S
×
×
×
VB5N-42P2
√
√
√
VB5N-42P2-S
×
×
×
VB5N-43P7
√
√
√
VB5N-43P7-S
×
×
×
Note: ×not support √support
Product type
Voltage
Type
Rated capacity (KVA)
Rated output current (A)
Fit motor (KW)
220V
单相
VB5N-20P7
1.5
4.7
0.75
380V
3 phase
VB5N-42P2
3.0
6.0
2.2
VB5N-43P7
5.9
9.6
3.7
series
VB5N: VVVF control
Max suitable motor power
3P7: 3.7KW
0P7: 0.75KW
….
(P: stand for decimal point)
Voltage level
2: 220V
4: 380V
Type
Empty: general type
S: simple type
VB5N -4 3 P 7 -S

VB5N series inverter
7
1-2. Product technical specification
1. Technical specification
220V
Type VB5N-2_ _ _
0P7
Output
Match Motor (kW)
0.75
Rated Output Current (A)
4.7
Rated Voltage (V)
AC 200
Frequency Range (Hz)
0~500
Frequency Resolution (Hz)
0.01
Overload Ability
150%Rated Current for 1 minutes，180% Rated Current for 1 second
Input
Rated Voltage/Frequency
Single-phase 220V,50/60Hz
AC voltage permit fluctuate range
Voltage: -15% ~ +15%
Voltage Unbalance Rate: < 3%
Frequency fluctuate Range
Frequency：±5 %
Power Capacity (kVA)
1.5
380V
Common characteristics
Environment
Application environment
In-door, free from direct sunlight, dust, corrosive gas, oil mist, steam, water drop etc
Elevation
Lower than 1000m (The inverter should be derated when the elevation is higher than
1000m )
Ambient Temperature
-10℃~ +40℃
Humidity
Less than 90% RH, No condensation
Vibration
Less than 5.9 m/s2(0.6M)
Storage Temperature
-20℃~ +60℃
Structure
Protect Configuration
IP20 (In the state of state display units or keyboard)
Cooling Manner
Fan cooling
Installation
Wall mounted or install inside cabinet
Type VB5N-4_ _ _
2P2
3P7
output
Suitable motor (kW)
2.2
3.7
Rated current (A)
6.0
9.6
Rated voltage ( V)
AC 380
frequency range (Hz)
0~500
frequency accuracy (Hz)
0.01
Overload Ability
150% Rated Current for 1 minute, 180% Rated Current for 1 second
Input
Rated voltage
/Frequency
Three phase 380V; 50Hz/60Hz
AC voltage fluctuate range
Voltage：-15% ~ +15%
Voltage Unbalance Rate：<3%
Frequency fluctuate range
Frequency: ±5 %
Power Capacity (kVA)
3.0
5.9

VB5N series inverter
8
2. General Specification
Main Control
Function
Modulation mode
Optimized space voltage vector SVPWM modulation
Control mode
SVPWM control (dead zone compensation for optimized low-frequency)
Frequency precision
Digital Setting: max frequency ×±0. 01%;
Analog Setting: max frequency ×±0.2%
Frequency resolution
Digital Setting: 0.01Hz; Analog Setting: max frequency ×0.1%
Start frequency
0.40Hz ~ 20.00Hz
Torque boost
Auto torque boost, manual torque boost 0.1% ~ 30.0%
V/F curve
Five modes: constant torque V/F curve, 1 V/F curve mode by user and 3 kinds of
torque-derating modes (2nd power, 1.7th power, 1.2nd power)
Accelerate/Decelerate curve
Two modes: linear Acc/Dec, S curve Acc/Dec; seven kinds of Acc/Dec time,
Maximum: 6000 minutes, the time unit (minute or second) is selectable
DC brake
Initial frequency of DC braking: 0~15.00Hz
Braking time: 0~60.0 s
Braking current: 0~80%
Power consumption brake
Built-in brake unit, can connect external brake resistor
Jog
Range of jog frequendy: 0.1Hz~50.00Hz, Acc/Dec time of jog 0.1~60.0s
Built-in PI
Easy to form close loop control system
Multi-step speed running
Multi-step speed work through built-in PLC or control terminals
Textile wobble frequency
Adjustable preset frequency and center frequency
Auto voltage regulation
(AVR)
When the power system voltage changes, maintain the constant of output voltage
Auto energy saving running
Auto-optimize V/F curve according to the load condition to realize energy saving
operation
Auto current limit
Auto-limit running current to avoid trip caused by overcurrent
Fix-length control
The frequency inverter will stop running when reaching the fixed length
Communication
function
With RS485 port, support Modbus-RTU protocol. Be with master-slave mul-
ti-device linkage function
Operate function
Run Command channel
Operation panel setting; control terminals setting; serial port setting; three modes
are exchangeable
Frequency channel
Keyboard analog potentiometer setting; , keys setting; function code dig-
ital setting; serial port setting; UP/DOWN terminal setting; analog voltage setting;
analog current setting; pulse setting; combination setting; different setting modes
can be switched
Digital input channel
Forward/Reverse running command; 6 channels programmable digital input, can
set 35 kinds of function, X6 support 0~20KHz pulse input
Analog input channel
2 channels analog input , 4~20mA and 0~10V can be selected
Analog output channel
1 channel analog output: 0~10V/4~20mA, can output setting frequency, output
frequency
Digital/pulse output channel
1channel programmable open-collector output; 1 channel relay output; 1 channel
0~20KHz pulse output
Operation panel
LED Display
Can display setting frequency, output voltage, output current and other parameters
External meter Display
Display output frequency, output current, output voltage and other physical quan-
tities
Button Lock
Lock all the buttons
Protection Function
Over current protection; over voltage protection; under voltage protection; over
heat protection; over load protection
Optional parts
Brake parts, operation panel, extension cable of operation panel

VB5N series inverter
9
1-3. Product appearance
VB5N single phase 0.75kW:
VB5N single phase 0.75KW
VB5N three phase 2.2KW~3.7KW
4-digits LED display
Panel buttons
LED light
Analog potentiometer
Mounting hole

VB5N series inverter
10
1-4. Product dimension
VB5N single phase 0.75KW (Unit: mm)
VB5N three phase 2.2~3.7KW (Unit: mm)

VB5N series inverter
11
2Installation and Wiring
2-1. Installation environment
2-1-1. Environment requirement
Ambient tempeature: -10ºC~40ºC. The inverter should be derated when the temperature over 40ºC, at the same time
ventilation and heat dissipation should be enhanced.
Far away from the location with direct sunlight, dust, floating fiber or metal powder.
Mount in the location free of corrosive gas and combustible gas.
Mount in the location free of condensation, and the humidity should less then 95%RH.
Mount in the location where vibration less than 5.9m/s²(0.6G)
Far away from electramagnetism interfere source and other electric instruments sensitive with electramagnetism in-
terfere.
2-1-2. Mounting location and space
Mount the inverter vertically under general condition.
The mounting space and distance are shown in Fig. 2-1.
When several inverters are mounted up and down, air diversion plate should be fixed in the middle as shown in Fig.
2-2.
Fig. 2-1 Mounting Space Fig.2-2 Mounting of Multi-Inverters
2-1-3. Mounting and removing
Removing: Romove the four screws on the cover with phillips screwdriver
Mounting:Allign the mounting holes and then fix the screws.
2-2. Wiring
Wiring after power off for at least 10 minutes, otherwise, an electronic short may occur.
Do not connectAC power to output terminals U, V and W.
Both the inverter and the motor should be safety grounded as there is leakage current inside the inverter.The diameter
of grounding copper cable must be more than 3.5mm², grounding resistor must be less than 10ohm.
Withstand voltage test of the inverter has been done in the factory, users would better not do it again.
Do not install electromagnetic contactor, absorption capacitor or other resistance-capacitance absorption devices, as
Inverter
Inverter
Diversion
panel
MENU
ESC
FWD
ENT
DATA
JOG
REV
STOP
RESET
FWD
REV
ALM
HZ
V
A
WARNING
！
* STORED CHARGE DO NOT TOUCH
UNTIL 10 MIN. AFTER DISCO-
* RISK OF ELECTRIC SHOCK-DUAL
SUPPLY DISCONNECT MAINS AND
* DO NOT CONNECT AC POWER TO
OUTPUT TERMINALS OF "U V W"
LOADSHARING BEFORE SERVICE
NNECTION
>100mm
>100mm
>200mm
>200mm
Fan
Caution

VB5N series inverter
12
shown in Fig2-3.
In order to make the input over-current protection and power off maintenance easily, the inverters should connect
power supply via braker.
The connection cable of relay I/O circuit (X1~X4, X6, FWD, REV, OC, DO) should select the twisted-pair or shield
cable with diameter over 0.75 mm². One terminal of the shield layer should be hung in the air and the other terminal
should be connected with the inverter’s grounding terminal PE, the cable length should be less than 50m.
2-3. Wiring of main circuit terminals
2-3-1. Wiring diagram
Fig. 2-3 Wiring of main circuit
2-3-2. Terminal assignment and description
Fig A
Fig B
The relationship between main circuit terminals and product types:
Voltage level
Power (KW)
Fig
Model
220V
0.75
Fig A
VB5N, VB5N(S)
380V
2.2～3.7
Fig B
VB5N, VB5N(S)
Inverter
R（L1）（ L）
S（L2）
T（L3）（ N）
U
V
W
PE
PB P- P+
M
Brake resistor
Breaker
AC
power
Danger
Before layout operation, make sure the power supply of inverter is cut off, all the LED on the operate panel is black out
and delay for more than 10 minutes.
Wiring work can be performed after the voltage between internal electrolesis capacity “+” and “–” is below DC36V.
Wiring work can only be done by trained and professional personnel.
Before power on, please check if the power supply voltage is consistent with the inverter voltage level, otherwise
device damage, human injuries and deaths may occur.
