XM Satellite Radio Xpress RCi User manual

User Guide

3
Table of Contents
Introduction......................... 5
Features....................................6
Safety and Care Information . . . . . . . . . . . . . . . . . 7
What’sintheBox? ..........................9
XpressRCiFunctions........................ 10
Remote Control Functions . . . . . . . . . . . . . . . . . . . 11
Control Knob and Select Button Basics. . . . . . . .12
PowerConnect Vehicle Dock. . . . . . . . . . . . . . . . . .13
Vehicle Installation . . . . . . . . . . . . . . . . . . .15
Step 1: Choose a Location for Your Radio . . . . . .16

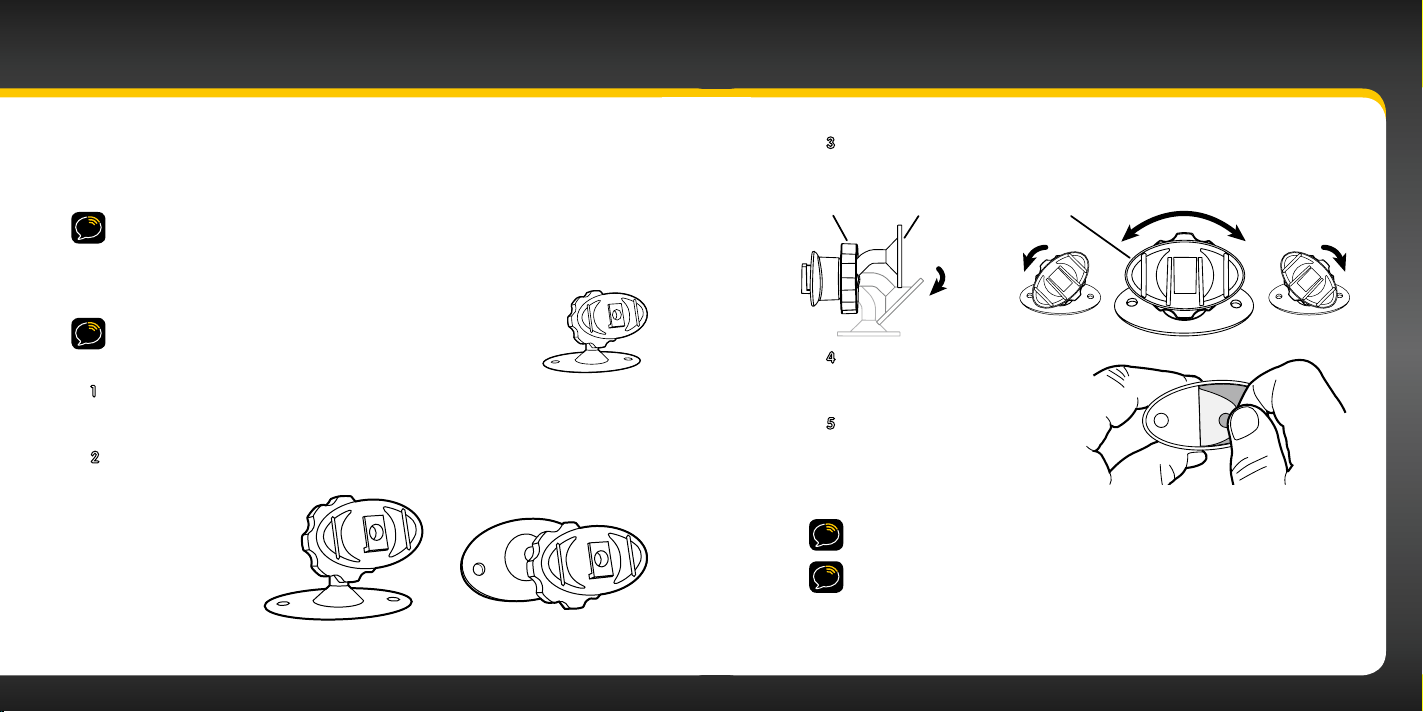

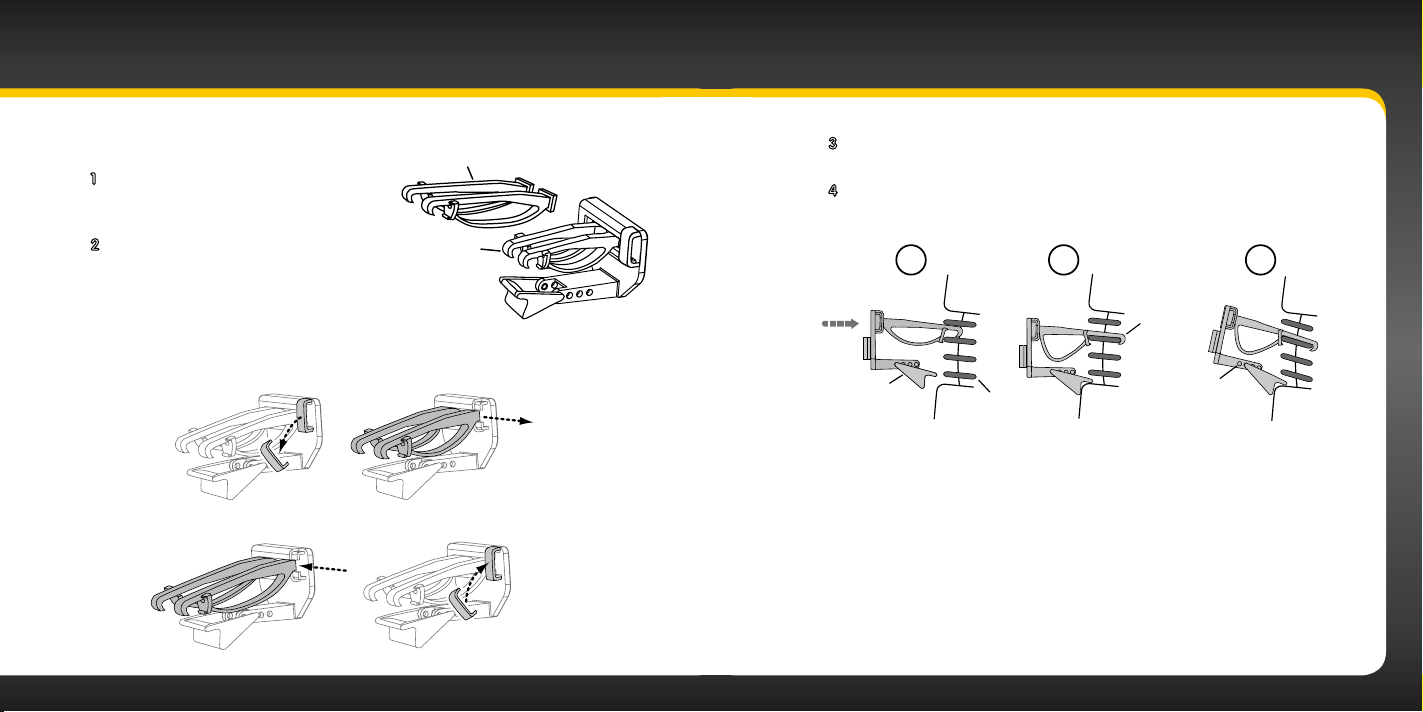

Step 2: Install the Dash or Vent Mount . . . . . . . 18
Step 3: Mount the Magnetic
MountAntenna .........................22

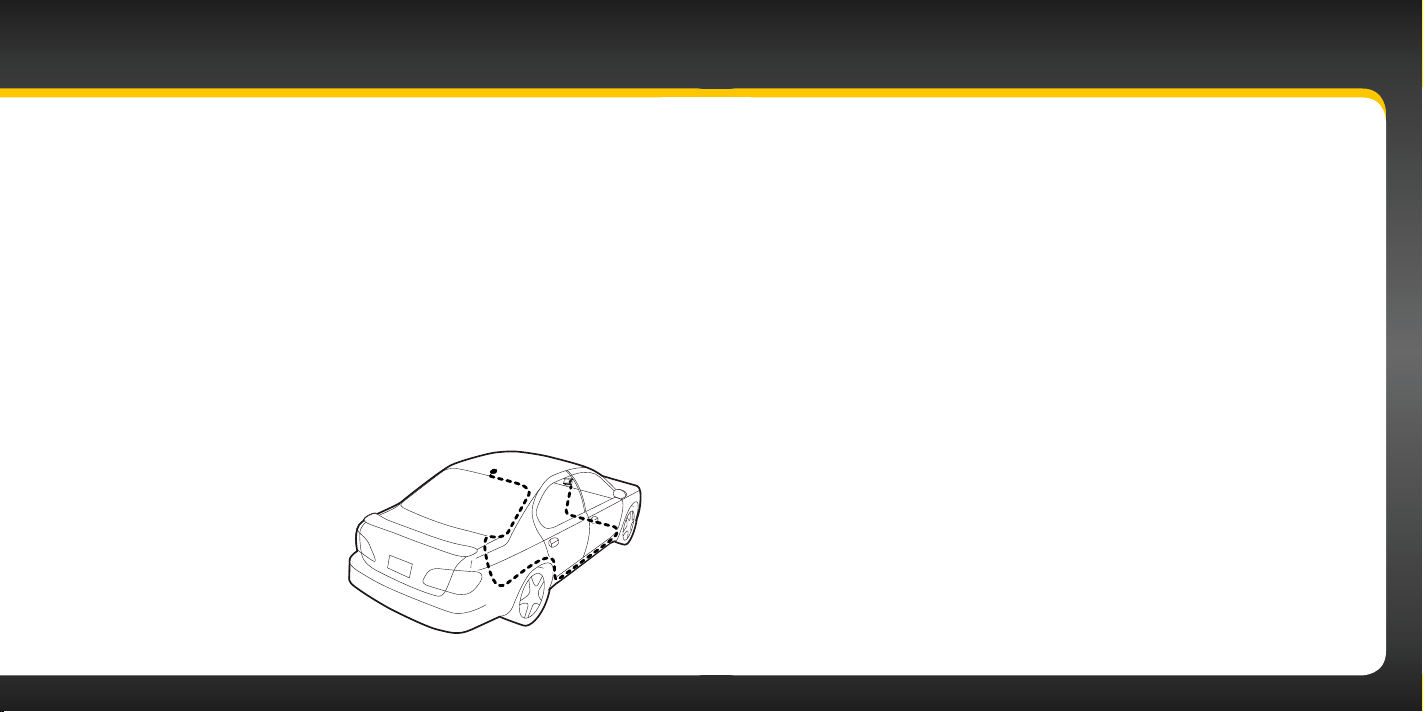

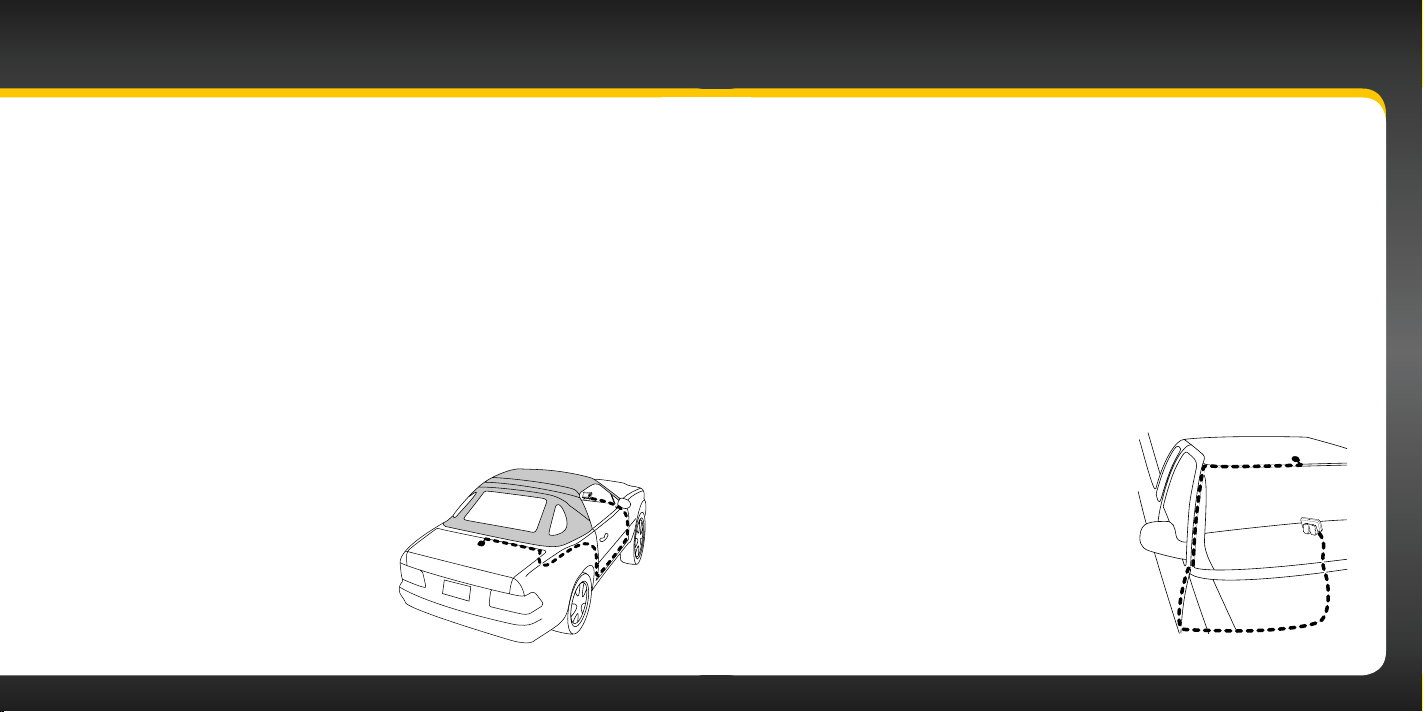

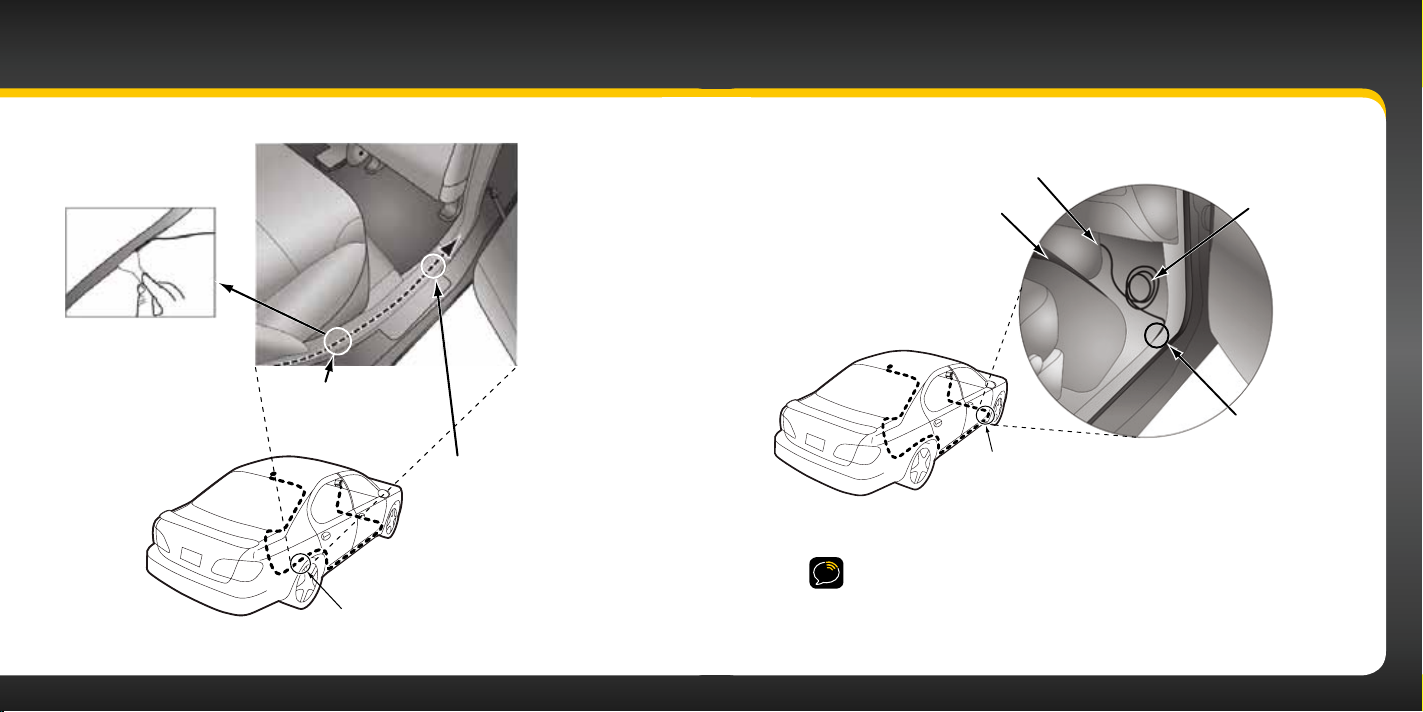

Step 4: Route the Magnetic Mount
AntennaCable..........................27
Step 5: Connect the Magnetic Mount Antenna
and PowerConnect Power Adapter . . . . . . . . 39
Step 6: Connect the Audio . . . . . . . . . . . . . . . . . .40
Activation...........................51
XpressRCi...........................53
TheMainDisplay...........................54
Navigation Basics . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Listening to Satellite Radio. . . . . . . . . . . . . . . . . . 59
FMPresets................................65
SkipaChannel.............................66
Block xL (Explicit Language) Channels . . . . . . . 67
SpecialFeatures.....................69
PauseandReplay..........................70
TuneSelect................................72
GameSelect ...............................75
StockQuotes..............................78
SongSaver.................................80
Where Else Can You Use Your
XpressRCi?........................83
Configuring your XpressRCi...........85
RadioID...................................86
Find Available FM Channels in
YourArea ..............................87
Turn FM Transmitter On/Off . . . . . . . . . . . . . . . . . 90
Set and Select FM Channels. . . . . . . . . . . . . . . . . 92
SetAudioLevel............................95
SignalIndicator............................96
DisplaySettings............................97
SetTime ..................................99
SleepTimer .............................. 103
FactorySettings ..........................104
DemoMode...............................105
Troubleshooting . . . . . . . . . . . . . . . . . . . . 107
Product Specifications . . . . . . . . . . . . . . . 113
Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . 115
Environmental Information. . . . . . . . . . . . . . . . . . 115
Owner’sRecord............................118

4 5
Introduction

6 7
Features
Congratulations on your purchase of the XpressRCi!
The XpressRCihas these exciting features to enhance your overall listening
experience:
• Large vibrant colour display: View artist name, song title, and channel
information on a display with stylish colour backgrounds and graphics.
• Split screen display mode: Split the screen to simultaneously view what’s
playing on the current channel and up to 3 other channels, or view what’s
playing on the current channel and the last channel you were listening to at
the same time.
• Improved audio connection options: Use either the included Aux In Cable,
or the new PowerConnect technology to receive clear sound through your
vehicle’s stereo system.
• Enhanced real-time channel guide: Browse programs, artists, and songs
playing on other channels, without having to change the channel you are on.
• Pause and Replay: Pause, rewind, and replay up to 60 minutes of live radio.
• TuneSelect and GameSelect: Don’t miss your favourite artists and songs
when they are on live radio. And view scores and stats of your teams
anytime, plus get alerts when they are playing.
• SongSaver: Store up to 10 songs so you can listen to them later.
• Stock Ticker: Track the price and daily movement of your favourite stocks.
Please read the entire user guide before using your XpressRCi!
Introduction
Safety and Care Information
IMPORTANT! Always read and understand all the instructions to avoid
injury to yourself and/or damage to your device. XM Radio Inc. disclaims all
responsibility for damage from data loss due to breakdown, repair, or other
causes.
• Do not expose to extreme temperatures (above 60˚C or below
-20˚C, or above 140˚F or below -4˚F).
• Do not expose to moisture. Do not use device near or in water.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not
use liquid or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight for a prolonged period of time, and
do not expose to fire, flame, or other heat sources.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
• If the LCD screen is damaged, do not touch the liquid crystal fluid.

8 9
Warning!
• Opening the case may result in electric shock.
• If the liquid crystal fluid comes in contact with your skin, wipe the skin area
with a cloth and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid comes into contact with your eyes, flush the eyes
with clean water for at least 15 minutes and seek medical care. If the liquid
crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water, and induce vomiting. Seek medical care.
• Make sure that you insert the PowerConnect Power Adapter all the way into
the vehicle’s cigarette lighter or power adapter socket.
• Do not insert several devices into the same power socket.
• Use the PowerConnect Power Adapter and Vehicle Dock away from water
sources to avoid fire or electric shock.
• Do not touch the device with wet hands.
• When using this product, it is always important to keep your eyes on the
road and hands on the wheel. Not doing so could result in personal injury,
death, and/or damage to your device, accessories, and/or to your vehicle or
other property.
• Vehicle installation and radio configuration functions should not be
performed while driving. Park your vehicle in a safe location before
beginning installation.
Your device should be placed in your vehicle where it will not interfere with the
function of safety features, e.g., deployment of airbags. Failure to correctly place
device may result in injury to you or others, if the unit becomes detached during an
accident and/or obstructs the deployment of an airbag.
Introduction
What’s in the Box?
8
5
2
7
4
1
9
6
3
mute
info menu
fm direct
display
0
jump fav
+
XpressRCi Radio
PowerConnect
Vehicle Dock
Remote Control
Magnetic Mount
Antenna
Aux In Cable
Dash Mount
Antenna & Dash Mount
Alcohol Preparation Pads
PowerConnect
Power Adapter
Vent Mount
and Extended
Vent Clamps

10 11
XpressRCiFunctions
Introduction
Remote Control Functions
i
Pause and Replay Buttons
Pause, rewind, and replay
up to 60 minutes of live
radio. Power Button
Turn radio on and off.
Display
Customize the way you view
content on the display.
Left and Right Arrows
Search for channels by
category; also when in
Replay mode, rewind or
fast-forward through
content.
Control Knob
Scroll through lists and
preview channels; also
highlight menu options.
Menu Button
Access advanced features
and configuration options;
also press and hold to
access FM presets.
Select Button
Press to confirm selection
for channel and menu items;
also press and hold to
GameSelect, to TuneSelect,
or to save a song.
Fav Button
Choose among the different
tuning modes: Direct,
Favourite Channels, and
SongSaver.
Jump
Switch between
current channel and
previous channel.
Info Button
View either
sports or stock
information.
Number Buttons
Select your favourite
channels; also enter
a channel number
directly; also access
songs saved in
SongSaver.
8
5
2
7
4
1
9
6
3
mute
info menu
fm direct
display
0
jump
+
fav
Pause and Replay Buttons
Pause, rewind, and replay
up to 60 minutes of live
radio.
Power Button
Turn radio on and off.
Display Button
Customize the way you view
content on the display.
Arrow Buttons
Use up/down arrow buttons
to scroll through lists and
preview channels; also
highlight menu options. Use
left/right arrows to search
for channels by category;
also when in Replay mode,
rewind or fast-forward
through content.
Menu Button
Access advanced features
and configuration options;
also press and hold to
access FM presets.
Select Button
Press to confirm selection
for channel and menu items;
also press and hold to
GameSelect, to TuneSelect,
or to save a song.
Fav Button
Choose among the different
tuning modes: Direct,
Favourite Channels, and
SongSaver.
Jump Button
Switch between current
channel and previous
channel.
Info Button
View either sports or stock
information.
Number Buttons
Select your favourite
channels; also enter a
channel number directly;
also access songs saved
in SongSaver.
—/ FM Button
—:Change channels, or
decrease volume for
Sound System (sold
separately).
FM: Not used in XpressRCi.
+ / Direct Button
+: Change channels, or
increase volume for Sound
System (sold separately).
Direct: Not used in
XpressRCi.
Mute Button
Silence live radio, saved
songs, and replayed
content.

12 13
PowerConnect Vehicle Dock
Colour-Coded Connections
The PowerConnect Vehicle Dock has colour-coded connectors to assist you in
connecting the cables to the correct connector.
ANT (Silver)
Connection for
the Magnetic
Mount Antenna.
AUDIO (Green)
Connection for Aux In
Cable or optional
Cassette Adapter
(sold separately).
Rear View
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM Direct
Adapter (sold
separately).
AUDIO ANT PWR FM
Introduction
Control Knob and Select Button Basics
Turn the Control knob clockwise or counter-clockwise
to scroll through a list and highlight an item in the list.
Press the center of the Select
button to make a selection.
Press the edge to tilt the Select button to select , , display, or jump.
Tilt Right: Tilt Left: Tilt Up: display Tilt Down: jump

14 15
Vehicle Installation
Wire Guide
The PowerConnect Vehicle Dock has a wire guide at the top rear that can help
you to organize the cables and wires connected to the dock. If you need to bring
a cable or wire from one side of the dock to the other, utilize the wire guide by
looping the cable though the wire guide as shown.
Wire Guide
Introduction

16 17
B.
A.
B.
Option 3
Option 4 Option 5
234567890
direct
jump
FM
menu
1
jump
FM
menu
234567890
direct
1
jump
FM
menu
234567890
direct
1
Step 1: Choose a Location for Your Radio
When installing the XpressRCiin your vehicle, choose a location where it will not
block your vision, interfere with the controls, or obstruct the air bag. The location
should be easily accessible and provide good visibility of the display, and should
not be located where it will be in direct sunlight, which will affect the visibility of
the display screen.
Several examples of the XpressRCimounted in a vehicle are shown: Ais the on dash
method using the Dash Mount, and Bis the vent clip method using the Vent Mount.
A.
A.
Option 1 Option 2
234567890
direct
jump
FM
menu
1
234567890
direct
jump
FM
menu
1
Vehicle Installation
B.
A.
B.
display
jump menu
info
234567890fav
1
display
jump menu
info
234567890fav
1
Option 3
Option 4 Option 5

18 19
3 The dock mounting plate can be tilted in different directions.
Adjust as necessary for your particular vehicle. When the
orientation is correct, tighten the knob.
4 Clean the surface with the
alcohol preparation pad and
let it dry thoroughly.
5 Peel off the adhesive liner.
Position, press, and hold the
Dash Mount in place for 30
seconds.
IMPORTANT! Once the mount is attached to the dash, let the adhesive cure
(dry) for 24 hours before attaching the dock and radio to the mount.
TIP! To remove, carefully lift the adhesive pad with your fingers or a spoon.
Warming the pad with a hair dryer for several minutes will help soften the
adhesive.
Knob Adhesive Foot Dock Mounting Plate
Vehicle Installation
Step 2: Install the Dash or Vent Mount
Depending on your situation, you can either choose to use the Dash Mount or the
Vent Mount.
IMPORTANT! When you install the chosen mount, do not attach the dock to the
mount. All cables should be attached to the dock prior to connecting the dock to
the mount.
Installing the Dash Mount:
CAUTION! The adhesive used on the Dash Mount may be difficult
to remove. Do not install this mount on leather surfaces and make
sure the air temperature is at least 15ºC (60ºF) during installation.
1 Locate a flat surface for the Dash Mount. Make sure there is ample
room for the PowerConnect Vehicle Dock and XpressRCiRadio when
installed.
2 Set the orientation of the Dash Mount before adhering it. Loosen the
knob and adjust the adhesive foot for the location you selected in
“Step 1: Choose a
Location for Your
Radio” on page 16.
•Option 1 & 3
should be
oriented as I.
•Option 2 should
be oriented as II.
I II
