Xo XOGSBCARTXLT User manual

PERFORMANCE
GRILL CARTS
ATTENTION:
Warning: Heavy Weight Hazard!
XO PERFORMANCE SIDE BURNER CART ASSEMBLY INSTRUCTIONS
MODEL:
XOGSBCARTXLT
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. PLEASE READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS THAT ACCOMPANY BOTH THIS CART AND THE GRILL BEFORE ASSEMBLING AND
USING THE APPLIANCE. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. DO NOT OPERATE
IN ANY ENCLOSED SPACE.
FAILURE TO FOLLOW ALL SAFETY INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.

Unpacking
•
• Remove all cardboard, foam packaging material and nylon bags.
• Dispose / recycle all packaging materials.
• notsilehtni”dedeeNslooT“eeS.slootderiuqerehtrehtagdnaxobehtnistnetnocehtllayfireV
next pages.
Tools Supplied or needed
1 x Box Cutter
1 x #2 Phillips head
screwdriver
2

Spare Parts List
No. Part Number Description Qty
1. XOPG64974 Handle 2
2. XOPG64975 1
3. XOPG64978 1
4. XOPG64976
5.
6.
7. XOPG64977 1
8. XOPG64979 1
9. XOPG64980
10. XOPG64995 1
11. XOPG64996 Casters Non-Locking
XOPG64997 2
XOPG64981 as 1
/ Base
2
3
457
9
10
11 12
13
6
1
12.
13.
1
1
8
XOPG64980
3

What Comes In The Box
Handles
(2 PCS)
SIDE BURNER
CART ASSEMBLY
Casters
(2 PCS)
Locking Casters
(2 PCS)
Gas Connection Wye
(1 PC)
Electrical Connector
Not Shown
(1 PC)
Hardware
(6 PCS)
Screwdriver
(1PC)
4

ssembly Instructions
The primary cart cabinet is pre-assembled at the factory. You will still need to do some assembly to
attach the handles and casters in addition to mounting the unit to the side of the grill cart.
grate.
You will see an attachment M5x10 bolt on either side that extends out from the interior of the burner
into the side walls of the cart.
Remove these two bolts.
And lift the side burner
up and out from the cart.
5

Lay the empty cart on it’s back. Use the cardboard packaging as a working surface to prevent
scratching. Using (16) M6x12 bolts (4 per caster) attach the caster to each of the corners of the
base as shown.
The locking casters must be installed on the right hand side - the non-locking casters must be
installed on the left.
Remove the (2) handle assemblies from the bag. Remove the M6x60 bolts and use them to attach
one handle to the lid and the other handle to the door as shown.
6

Screw into the right side panel and base 6 - M5x10 bolts 2/3 of the way in as shown below.
7
Remove the right side shelf brackets for installation on the Side Burner Cart.

Slide the side burner cart to the main cart and allow the 4 screws on the top and the two screws on
the bottom to slide over the M5 x 10 bolts. Once in place tighten them witht he supplied screw
driver.
8

Reinstall the side burner into the cart using the removed M5x10 bolts.
9

IF YOU SMELL GAS:
Shut o gas to the appliance.
Extinguish any open ame.
Open the lid .
If odor continues, keep away from the appliance and immediately call your gas
or your re department.
DANGER
10

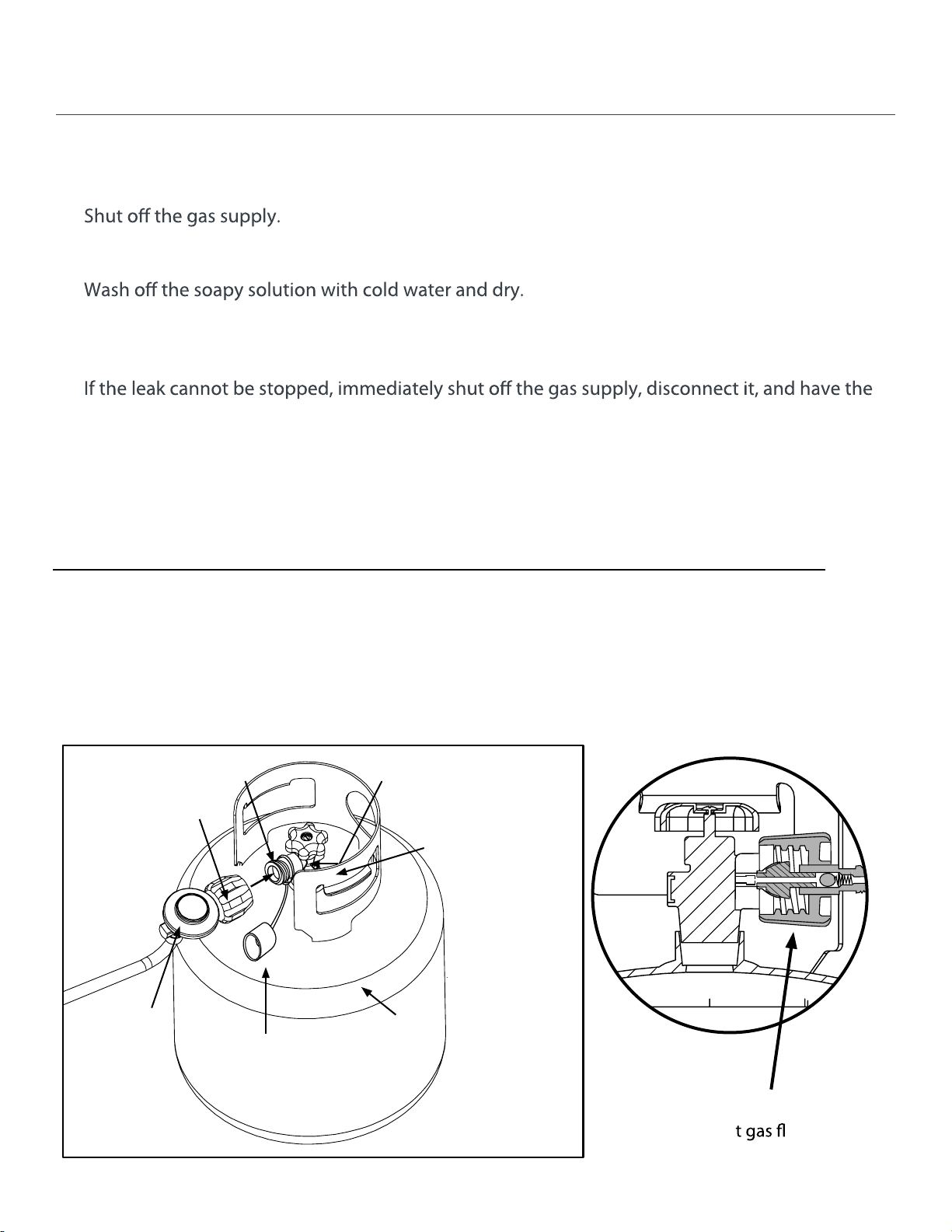

Leak Testing Instructions
Fixing a Gas Leak
•
• Turn all grill controls to the “ON”position to purge the grill of any gas build-up, then turn the
controls back “OFF”.
•
• Tighten the loose joint, or replace the faulty part with manufacturer-recommended replacement
parts.
• Repeat the leak test to ensure that no leaks are present.
•
grill inspected by a licensed gas professional Do not use the grill until the leak has been
corrected.
Cylinder Valve
Coupling Nut
Figure 1.
Figure 2.
Pressure Relief Valve
Propane Tank
(not included)
Propane Dust Cap
(used when in storage
or transportation.)
Propane Regulator
(included)
Hand tighten to ensure proper
seal for correc ow.
Valve Protection Collar
Propane Gas Installation
NOTE: Place gas tank under BBQ and NOT IN THE SMALL CART.
Propane gas Cylinder Connections
Dust Cap - Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types
of caps or plugs may result in leakage of propane.
Propane cylinder must include a collar to protect the cylinder valve
11

XO APPLIANCE | 120 EAGLE ROCK AVE. SUITE 303 | EAST HANOVER, NJ 07936
P. 973.403.8900 WWW.XOAPPLIANCE.COM
IMPORTANT
REFER TO YOUR GRILL OPERATING MANUAL
FOR INFORMATION REGARDING THE GAS
CONNECTION TO YOUR GRILL.
FAILURE TO FOLLOW ALL SAFETY GUIDELINES
MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
