Xomax XM-DTSB1010 User manual

X M -D T S B 1010
INSTALLATION MANUAL
CAR AUDIO/VIDEO SYSTEM
10.1 Inch Million Multi-color Illumination
TFT Touch Screen
Detachable Control Panel
Remote Control
Digital Video Disc Player
Control Panel USB Port and AUX Input
Memory Card Slot
AM/FM-RDS Digital PLL Tuning Radio
BT Compatible

To ensure safety while
d r i v i ng
and to comply with l a w s ,
drivers should not watch video
o r
operate the video device while d r i v i ng .

-1-
C on t e n t
P r e c a u t i on ......................................2
Safety Information........................ 3
Disc Note....................................... 4
Installation .................................... 5
Electric
Connection ...................... 8

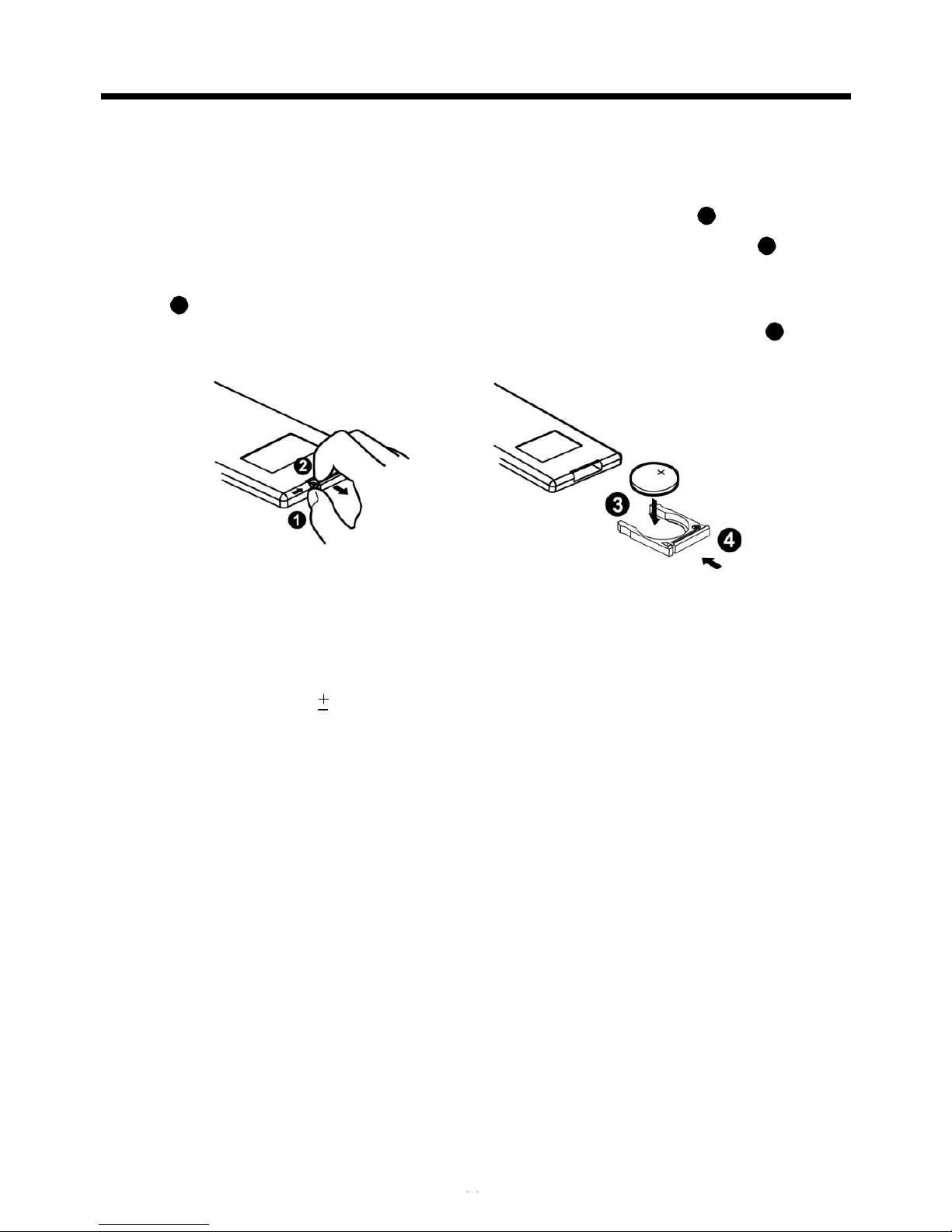

Remote Control ............................ 9
Basic Operation ............................ 12
Main Menu Operation.......................12
Setting animation..............................12
Setting disc.................................... 13
Setting radio...................................13
Setting BT...................................... 13
Setting wallpaper............ ............... 13
Version about................................. 13
Setting time.......... ......................... 13
Setting audio mode......................... 14
Setting video mode......................... 14
Setting OSD language.................... 14
Setting illumination color................. 14
TFT display calibration. .................. 15
Reset Factory Settings .................. 15
Rear View Camera ..........................15
Control Panel ................................ 16
Unit keys .......................................16
Radio Operation............................ 19
Listening to the radio ...................... 19
Storing and Listening to a memory
station ........................................ 19
Automatic Memory Storing &
Program Scanning....................... 20
RDS function.................................. 20
Media Operation............................. 22
Basic Operation .............................. 23
Selecting Play Mode ........................ 23
On-Screen Display Function .............24
Digital Video Special F un c t i on ........25
Multi-Subtitle Language function.......25
Multi-audio language Function.......... 25
Multi-Angle Function........................ 25
Title menu function................................ 25
BT Operation................................. 26
AUX Operation ...............................29
AV Operation.................................. 30
USB Operation ...............................31
Card Operation ..............................31
SWC Operation.............................. 32
Parental Control............................ 33
Region Code.................................. 34
Specification .................................35
Tr oub l e s hoo t i ng ..............................36

-2-
P r e c a u t i on
THANK YOU FOR PURCHASING A SOUNDSTORM MULTIMEDIA PLAYER.
Before operating the unit, read this manual thoroughly and keep it handy
for future reference.
To avoid injury or accident, read the following precautions before
installing and operating the unit.
ON INST
A LL A TION
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged. “Parking Brake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car (refer to the electric connection)
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) P
A NE L
Does not press on the LCD panel on the unit as doing so can distort the
picture or cause a malfunction. The picture may become unclear, or the
LCD panel may be damaged.
NOTES ON C
L E A NING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzene, thinner, commercially available
cleaners or antistatic spray.
-Do not use alcohol to clean the screen.
If your car was parked in a cold or hot place, the picture may not be clear.
The monitor is not damaged. The picture will become clear the temper-
ature in your car becomes normal.

-3-
Safety I n f o r m a t i on
C
A UTION :
THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER
THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE.
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WA RNING :
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
REGION MANAGEMENT INFORM
A TION :
This Digital Video Player is designed and manufactured to respond to the Region
Management Information that is recorded on a Digital Video disc. If the Region
number described on the Digital Video disc does not correspond to the Region
number of this Digital Video Player, this Digital Video Player cannot play this disc.

-4-
Digital
Video
D i g i t a l
V i d e o
Audio and Video
Disc size 12 cm
VCD
V CD Audio and Video
Disc size 12 cm
CD
CD Audio
Disc size 12 cm
MP3
M P3 Audio
Disc size 12 cm

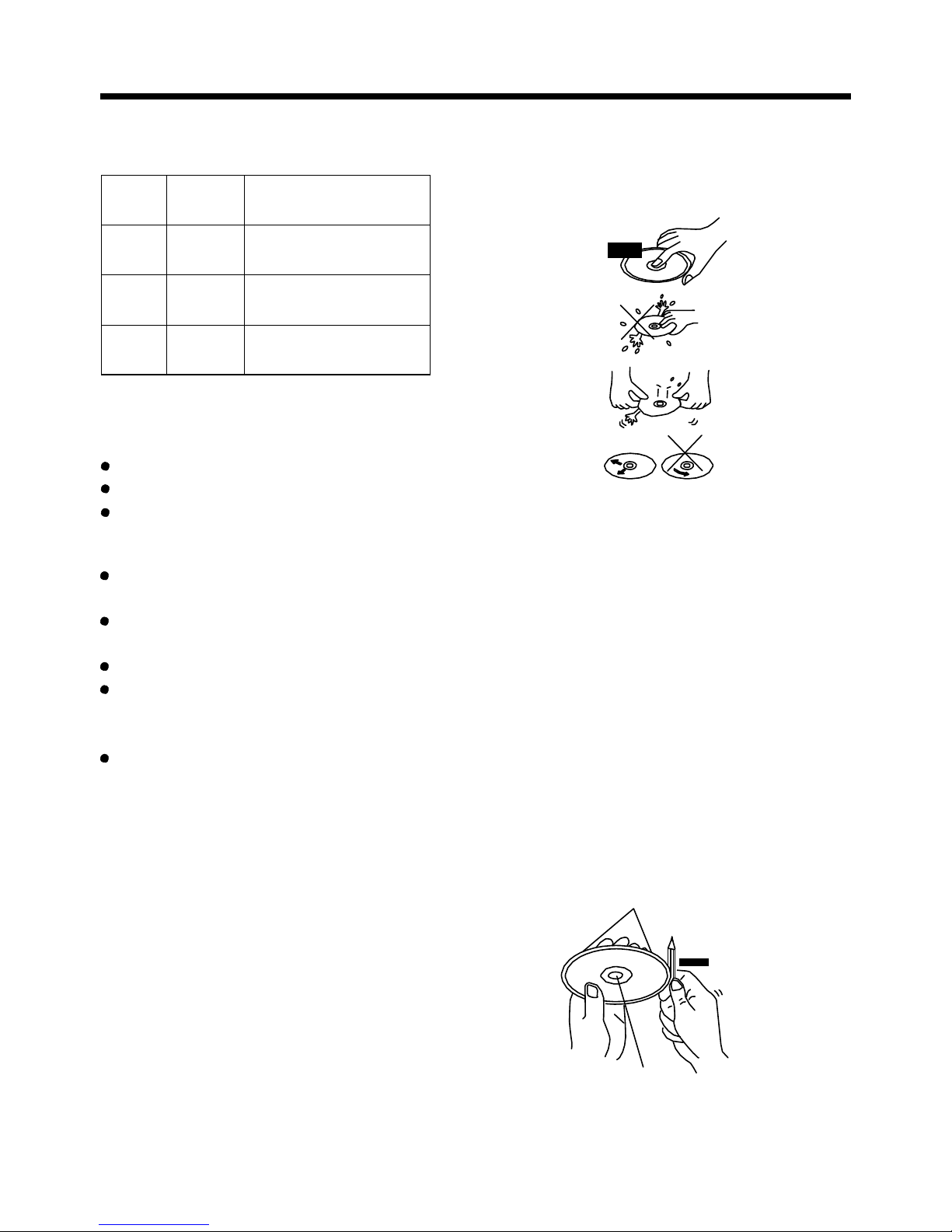

Disc N o t e
Disc formats supported by t h i s
p l a y e r unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Label side
up
Do not t ou c h
t h e
und e r s i d e
of the d i sc
Discs which cannot be
p l a y e d
with this p l a y e r
Digital Video-RAM
CDV
CDG
Handling and C
l ea n i ng
Do no t
b e nd
Wipe the disc f r om
c e n t e r
toward the ou t s i d e
e dg e
Dirt, dust, scratches and warping disc
will cause disoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Disc C
l ea n i ng
Use a dry soft cloth to wipe the surface. If
the disc is quite dirty, use a soft cloth
slightly moisture with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
N
o t e :
A disc may become somewhat scratched
(although not enough to make it
Preparing New Discs with R ough
S
po t s
A new disc may have rough edges on
its inside and outside edges.If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spo t s
on
outside e dg e
Ball point p e n
or p e nc il
Rough spo t s
on i ns i d e
e
dg e

-5-
I n s t a ll a t i on
NOTES
:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
it is all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
of unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
other modifications of the vehicle.
Install the unit where it does not get in the driver's way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.

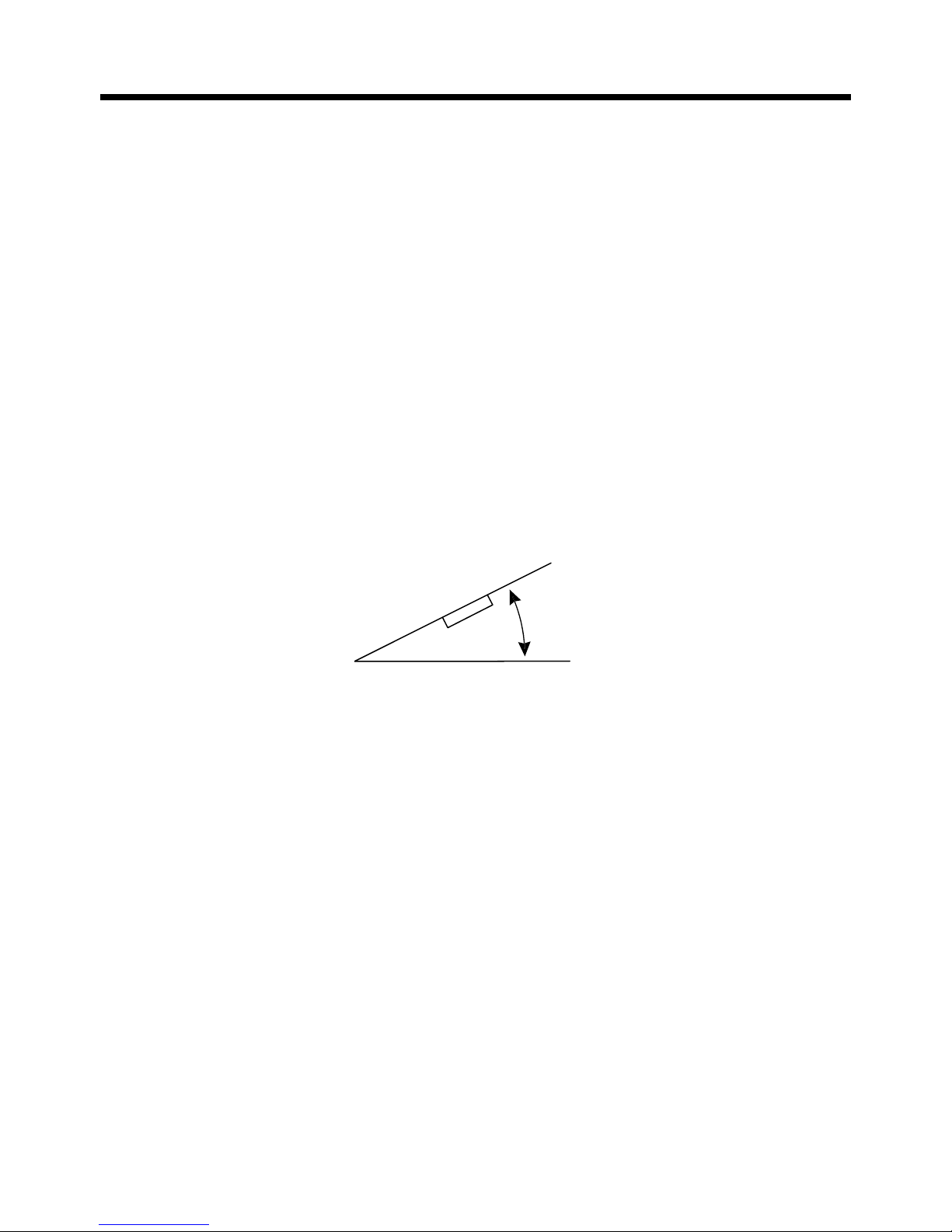

If installation angle exceeds 30 from horizontal, the unit might not give its
optimum performance. 30
Avoid installing the unit where it would be subject to high temperature, such
as from direct sunlight, or from hot air, from the heater, or where it would be
subject to dust, dirt or excessive vibration.
DIN FRONT/RE
A R-MOUNT
This unit can be properly installed either from "Front"(conventional DIN
Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded
screw holes at the sides of the unit chassis). For details, refer to the following
illustrated installation methods.

-6-
I n s t a ll a t i on
Installating the un i t
DASH B O A RD
HEX NUT SPRING
W
A SHER
PLAIN W
A SHER
TAPPING SCREW
METAL MOUNTING
STR
A P
CONSO L E
SLIDE B R A C K ET
HOUSING
HEX B O L T
SCREWDRIVER
T AB S
KEY P L A TE
PLASTIC TRIM OUT
KEY P L A TE
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove
the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into
left and right side of chassis as above illustration.

-7-
I n s t a ll a t i on
Installing the monitor.
1) Press the OPEN/MONITOR-ANGLE button to slide the monitor holder out and
stand it up.
2) Insert the 2 bulges of the monitor into the 2 hollows of the monitor holder and
flip up the monitor, then push the top middle part of the monitor to make the
monitor attach onto the monitor holder.
Removing the monitor.
1) Push the MONITOR REL to detach the monitor from the monitor holder;
2) Hold the top part of the monitor to pull away from the monitor holder and lift it
up to remove it.

-8-
Electric C onn e c t i on
WIRING CONNECTION
RCH IN RED
VIDEO OUT(2) YELLOW
VIDEO IN YELLOW
LCH IN WHITE
RCH RED
LCH WHITE
AV IN
REAR OUTPUT CABLE
FRONT RCA OUTPUT
CABLE
SUBWOOFER GREY
REAR CAMERA INPUT YELLOW
FRONT RCA RED R
VIDEO OUT YELLOW
FRONT RCA WHITE L
RADIO ANTENNA JACK
ISO CONNECTOR
IGNITION SWITCH(B+) RED
FUSE KEY GROUND(BLACK)
KEY 1(BROWN)
MEMORY
BACK-UP(B+)
GROUND(B-)
AUTO ANTENNA
YELLOW
BLACK
BLUE
PINK
LIGHT GREEN
KEY 2(WHITE/ORANGE)
(B+)12V
REAR CAMERA SWITCH
(B-)PARKING BRAKE
FRONT
LCH SPK.
REAR
LCH SPK.
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FRONT
RCH SPK.
REAR
RCH SPK.
No t e :
the earth connection cable (parking brake B-) must be connected in order for
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.

-9-
Remote C on t r o l
Ref #
Button Function
1
/OPEN
Press this button to Open/Close the operate monitor .Long press
it to adjust the angle of monitor Upward/Downward.
2
/MOD Press this button to turn the unit ON , press and hold to turn the unit OFF.
Press it briefly to select a desired work source .
3&7 / In Disc Playback mode, press for fast forward or back forward playback.
In Radio mode, press to scan step by step.
4
AS/ AS function see as page radio Scan operation.
In BT mode, press to receive a call.
5 PLAY/
PAUSE In Disc Playback mode, press to pause playback. Press again to
start where playback stopped.
6&17
/ Press these buttons to skip ahead or back one track.
8 TITLE When playing a Digital Video, pressing this button will open the TITLE
menu which is recorded on the media. When playing a VCD disc,
press this button to create a PBC (Playback Control) menu for the
disc to assist in making playback selections.
9 RPT/2
Repeat function for media playing;
In radio mode, press to select the store station 2.
10
DISP/1
In video playing mode, press to show OSD menu;
In radio mode, press to select the store station 1.

-
10
Remote C on t r o l
Ref #
Button
Function
11 AUDIO/5 Same operation as audio in page 26.
In radio mode, press to select the store station 5.
12 MENU/4 Press this button briefly to display the root level directory of a digital
video disc.
In radio mode, press to select the store station 4.
13&21
VOL+/-
Use these controls to adjust the volume level.
14
SEL Press the SEL(in radio mode,press and hold the SEL) to switch
between BASS,TREBLE,BALANCE, SWF VOL, SWF FREQ.
After switching on the desired mode above, rotate VOL knob to set it.
15
MUTE
Press this button to turn off the audio. Press again to restore the
sound to its prior volume level.
16
BAND/ In Radio mode, press this button repeatedly to switch between
the five radio bands: FM1 > FM2 > FM3 > AM1(MW1) > AM2 (MW2).
In BT mode, press to reject a call.
18
EQ Press repeatedly to cycle through the different equalizer curve
presets you may wish to use for enhanced listening.
19 RDM/3 Random function for media playing;
In radio mode, press to select the store station 3.
20 SUB-T/6 In Digital Video Disc Playback mode, pressing this button will
allow you to change the subtitle language on discs which have
this as an option.
In radio mode, press to select the store station 6.

-
11
Remote C on t r o l
Preparing the Remote C
on t r o l
Inserting the B a tt e r y
1.First push to inside as the direction indicated by the arrow (See 1 ) and then
Remove the battery holder as the direction indicated by the arrow (See 2 ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See 3 ).
3.Insert the battery holder. Push in the holder to the original position (See 4 ).
Using the Remote C on t r o l
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Changing of the view angle on multi-angle Digital Video media.
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Note
:
The lithium cell in the battery compartment of remote control has been secured for
transport with a plastic . Before initial use please remove this plastic so that the
remote control is ready for operation .

-
12
Basic O p e r a t i on
Main Menu O
p e r a t i on
In many modes, touch the icon
or touch the range to enter the
main menu, the message like following
as below.
GENERAL
CLOCK
AUDIO
VIDEO
( 4 )
Setup interface 1
L A NGU A GE
ILLUMINATION COLOR
C A L I B R AT ION
(1)
( 2 )
1. POWER icon
( 3 ) ( 5 ) Setup interface 2
ADJUSTABLE ITEMS :
In any modes, touch the POWER icon
to switch the unit off . The monitor will
draw in automatically .
2. UP/DOWN icon
Touch this icon to adjust the angle of
the monitor upward/downward until
your desired angle .
3. EJECT icon
Touch to allow for inserting or ejecting
disc.
4. When the unit is power on, tap to turn
off the display and the unit still work,
tap anywhere of the display to turn on
the display again.
5. SETUP icon
Touch to enter the SETTING mode,
the message will display as follow :
Touch the
“ ” section on the
setting menu, touch the “ / ”
ranges to select the adjustment item,
Touch the “ ” icon to return to the
previous playback .
GENER AL
ANIMATION 2 MINUTE
KEY BEEP ON
DISC ...
RADIO ...
General setup interface1
GENER AL
BLUETOOTH ON
WALLPAPER ...
ABOUT ...
General setup interface2
A NIM A TION
In RADIO mode, you can change the
playing time of animation among of
“OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M ”.
N o t e :
Please set the playing time of the
animation to
“ 10S ” for the first, when
you turn the unit on .
KEY BEEP : ON or OFF.

-
13
Basic O p e r a t i on
Disc setup as
f o ll o w :
DISC
FORMAT A UTO
TV TYPE 16 : 9
RATING A DU LT
FORM
A T
This player is capable of playing discs
recorded in either PAL or NTSC formats.
Make the selection based on whether
you are connecting the unit to a PAL TV
or an NTSC TV. You can also set the unit
to AUTO (auto select). The disadvantage
to autoselect is that each time you turn
the unit on it checks to see what kind of
monitor is connected, which causes a
small delay and some flickering of the
display image which you may find
unpleasant.
TV TYPE
16:9
4:3 Letter B o x
4:3 Pan S c a n
T
.his is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in LETTER BOX style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected
R A TING
Select to turn Parental Control on or off.
The factory default password is 1234.
(The password must be used to make
changes to the Parental Control
menu below .)
Key in “1234” and then turn to rating
then you can setting as follow:
KID SAFE -> G -> PG -> PG-13
-> PG R -> R ->NC-17 -> A DU L T
R A DIO
ST/MONO: touch to select stereo or mono.
LOCAL: touch to select local or distant.
REGION: touch to select radio frequency.
BT
Touch to select BT function on or off.
WA LL P A PER
Touch to select wallpaper .
AB OUT
Touch to show the version information.
CLOCK SETUP
Touch the CLOCK to adjust the time and
time format.
CLOCK
HOUR 12
MINUTE 36
FORMAT 12HR
AM PM
clock setup interface

-
14
Basic O p e r a t i on
AUDIO SETUP
Touch the audio to turn to audio quality
adjustment.
VIDEO SETUP
COLOR 20
BASS
TREBLE
AUDIO
BRIGHTNESS 20
CONTRAST 20
TINT 20
SUBWOOFER ...
EQ USER
audio setup interface1
A UDIO
LOUDNESS OFF
FADER/BALANCE ...
audio setup interface2
TREBLE: -7 to +7
Adjust treble level .
BASS: -7 to +7
Adjust bass level .
SUBWOOFER: touch to adjust
subwoofer volume and frequency.
EQ: touch to select audio mode as follow:
USER -> JAZZ -> CLASSIC -> POP -> ROCK
LOUDNESS: touch to select loudness
effect as :OFF -> LOW -> MID -> HIGH
FA DER/ BALA NCE :
BALANCE: R 0-10 to L 0-10
Adjust sound balance between left
and right speakers .
FADE: F 0-10 to R 0-10
Adjust sound balance between front
and rear speakers .
Video setup interface
COLOR: 0 to 40
Adjust the color for the picture-lighter
or darker.
BRIGHTNESS: 0 to 40
Adjust if the picture is too bright or
too dark.
CONTRAST: 0 to 40
Adjust the contrast of the bright and
dark portion.
TINT: 0 to 40
Adjust the tint if the human skin color
is unnatural.
-Adjustable when “NTSC “ is selected
for “NTSC/PAL “.
LA NGU A GE
Touch to select OSD language.
ILLUMINATION CO L OR
Touch to select the backlight for all
buttons. Tap auto icon the backlight
change automatically.
C AL I B R A TION
Touch the arrow as show to calibration
the display.

-
15
Basic O p e r a t i on

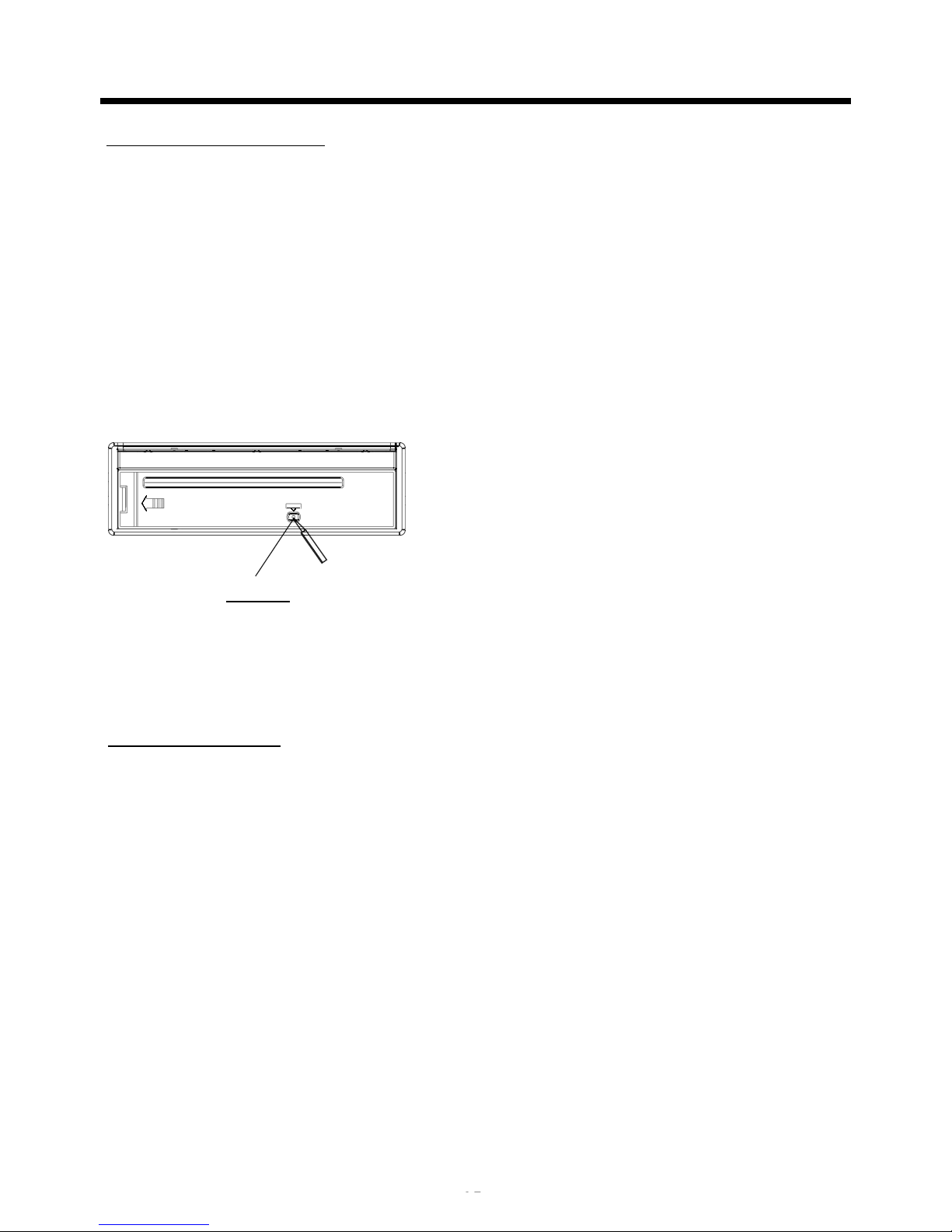

Re s et Fa c tor y Se tt i ng s
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when
all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
RE SE T
RESET
NOTE :
If RESET is selected, all memory data
will deleted, please re-adjust .
Rear V
i ew Ca m e r a
When connecting the rear view camera
the mirror image of the rear view is auto-
matically displayed on the monitor
when you change the gear to the back
position.
(Note: additional monitor can not display
the image.)

-
16
Control Pa n e l
UNIT
K EYS
1
8
4
3
5
6 12
2 9 7
16 13 10 18 17
11
C ontr ol Pa n e l
1. OPEN
B UTTON
14
15
To slide the monitor out and stand it up or into the monitor slot, press this button;
2. VOL KNOB & SEL B UTTON
In normal mode, the VOL knob is used to increase or decrease the volume.
Press the SEL(in radio mode,press and hold the SEL) to switch between
BASS,TREBLE,BALANCE, SWF VOL, SWF FREQ.
After switching on the desired mode above, rotate VOL knob or press VOL+/
VOL- buttons to set it.
In radio mode, press the SEL to select MANUAL/AUTO mode, in radio manual
mode to scan the frequency by rotate the VOL knob, select radio auto mode to
cancel the scan function.
3. (POWER On/Off )/MODE
B UTTON
Short press it to turn on the unit, long press it to turn off the unit.
In power on mode, Press it repeatedly to select RADIO, DISC, USB, CARD,
BT and AUX mode.

-
17
Control Pa n e l
4/9. 7/and 8/ B UTTONS
In radio mode, Long pressing |<< or >>| button can automatically search down
or up for an available station beginning from the current frequency; Briefly
pressing |<< or >>| button can manually search down or up for a your desired
station beginning from the current frequency.
In media or BT MUSIC mode, pressing 8or 7button can play previous or
next track; continuously and long pressing 8or 7button can fast backwards
or forwards at the following multiple of normal speed: x2, x4, x8, x20, x1.
* In BT MUSIC mode, the function of the fast forwards or backwards is disabled.
In BT PHONE mode, for the function of the and buttons, please refer to
the part of the BT Operation.
5. MU/PTY
B UTTON
Press it button to switch of the loudspeakers for a short period. The word MUTE
flashes in the display. Press it again to cancel the mute function. This function
can also be cancelled by rotating the VOL multifunction button.
In Radio Mode, press this button and hold for a bout 2 seconds to select the PYT
of the grogram type (examples of such types of program are : NEWS, POP.....)
Long press this button to switch on or off TA function, and the TA symbol
appears in the display . Refer to the part of the RDS function for details .
6. BND/PAIR
B UTTON
In Radio mode, press it repeatedly to select the desired radio band: FM1, FM2,
FM3, AM1(MW1), AM2(MW2).
For the PAIR function, please refer to the part of the BT Operation.
7. /CH 1-6 (RADIO PRESET)
B UTTON
A) In Disc Playback M od e
Press this button to pause playback, press it again to resume playback.
B) In Radio M
od e
Press this button repeatedly to preset station. With this system a total of 30
stations can be stored in the memory . Each band store up to six preset stations.
The stations might be FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2) band.
Follow the instructions below:
-Store in Me
m o r y
> Select the frequency band
> Press repeatedly the button to select the desired memory key .
> Select the station
> Keep the desired memory key pressed in until the station is heard again
after a brief interruption .
- Retrieve a preset
s t a t i on
press the button repeatedly to retrieve a station which had been stored in the
memory in advance the chose number is shown on display .

-
18
Control Pa n e l
8. REL
B UTTON
Press it to detach the control panel.
10. IR
s e n s o r
11. USB PORT
12. AUX IN
J A C K
13. LCD Display S
c r ee n
14. SD CARD S
L OT
15. RESET
B UTTON
Press this button to return to factory settings.
16. TA/AF
B UTTON
TA Function [traffic Announcement] Button(for Rds O n l y )
In RADIO mode
When you swing briefly the MU/PTY knob in the direction of the TA/AF button ,
the TA function is activated, the TA symbol appears in the display .
(swing it again to turn off . )
AF
[Alternative F r e qu e n c i e s ]
Swing and hold (more than 2’s) the MU/PTY knob in the TA/AF direction , the AF
function is activated. The AF symbol appears in the display . (swing and hold it
again to cancel this function .)
Note: In Radio mode, press and hold the SEL knob for a long time to access the
selection menu: REG ON/REG OFF, PI MUTE/PI SOUND, AF ON/AF OFF .
Repeatedly pressing the SEL knob to select the item and by using the VOL+/- to
change .
17. MIC (
m i c r ophon e)
18. EJECT
B UTTON
