Vcan Hav-744 User manual

USER'S MANUAL

AUTOMOBILE HEADREST DVD PLAYER

DVD VCD CD MP3 JPG£¨support MPEG4 format£©

³ß´ç¼°²ÎÊý

Contents

A Precautions

B Notice before operation

C Accessories

D Features

G Key parts in front of the player

H Key parts at back of the player

I Battery installation for remote controller

J Precautions for remote controller

K Application of remote controller

LD escription for pressing-keys of remote controller

M Basic operations

F System connection and installation

E Video disk type

Power ON/OFF

Disk loading

Disk removing

USB and card reading

N Function of keys

POWER

Cover opening

PLAY/PAUSE

GOTO

Fast forward/fast backward

AUDIO

SUBTITLE

TITLE MENU

³ß´ç¼°²ÎÊý

STOP/RETURN

SLOW

PROGRAM

³ß´ç¼°²ÎÊý

REPEAT

ROOT MENU/PBC

DISPLAY

³ß´ç¼°²ÎÊý

MUTE

ZOOM

PREV/NEXT

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

Contents

VOLUME UP/DOWN

MENU SETUP

DIRECTION KEY

ANGLE

CHANNEL

Number key and 10+ key

Video switch key

Image function key

FM emitting

O Menu operation

SYSTEM SETUP

1.TV SYSTEM

2.AUTO PLAY

3.RESUME PLAY

4.TV TYPE

5.PASSWORD and RATING

6.DEFAULT

LANGUAGE SETUP

1.DISPLAY LANGUAGE

2.Audio/Subtitle/menu language

AUDIO SETUP

TONE

VIDEO SETUP

Brightness/contrast/Hue/Saturation

SPEAKEY SETUP

Dolby output setup

2.DYNAMIC RANGE

3.DUAL MONO

1.OP MODE

P.Description for playing of disks

Playing Mp3 & JPEG disks

Disks available for this player

MPEG4 decoding technology

Q.Operation for game functions

R.Troubleshooting

S.Technical specifications

7.TVfunction operation

Instruction . . . . . . . . .22

Thank you to buy our product, please read the operation instruction carefully prior to operation

so as to use the player correctly, and please keep it appropriately for future reference.

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

A. Precautions

Warning For the sake of your safety, do not watch the video image or open the display in driv-

ing.

Without the approval of authorized organization, any changing or rebuilding for the

player shall cause troubles for user.

Caution The product has dangerous high voltage inside,non-professional personnel shall be not

allowed to dismantle it and repair.If any trouble is found,please turn to the professional

personnel or our authorized maintenance center.

The player is equipped with TFT color LCD,it is frangible,to be careful in delivering and

installing.

Do not clean the device by corrosive chemical detergent, soft cloth is recommended.

The operating voltage is DC 12V(+-2V),the player shall be worked abnormally or be

damaged if the voltage higher or lower than the allowed range.

The player is equipped with radium emitting system,please read the instructions caref-

ully for right operation and keep it well for future reference.If maintenance is needed,

please contact the professionals,do remember to operate it according the correct oper-

ating procedure to avoid the harmful light beam,in order to prevent the direct radium

light beam,do not open the enclosure without permission.

In using ,the LCD might has few bright spot on its screen,which is a very normal phen-

omenon in the active matrix display technology,and it doesn't mean the product has

any fault or trouble.

Special Tips

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST PLAYER

B. Notice before operation

Safety

Before operating the product,please check the voltage of your car and it should be consistent with the working

voltage of the player.

Do grasp the powerplug firmly in connecting or disconnecting to the power,do not pull the power line by force.

The radium emitting light beam used by the product is harmful to eyes,do not dismantle the enclosure without

permission and only the professional technicians are allowed to conduct the repair or maintenance.

Please operate the product in proper temperature,the storage temperature should be -30 C to 75 C, and the

working temperature should be -10 C to 55 C.

To prevent dust falling on the laser head,it shall affect the playing effect,if the head is dusted,please used the

laser head cleaning disk to clean.Refer to the instructions of purchased cleaning dish for detailed operation.

It should be damp-proof,crash-poof and pressure-proof.

Placement

Dew

In the below conditions,moisture shall be formed on the lens(dew formation):

Carry the player from the cold place to warm place;

In the condition of big temperature difference such as at the moment of

opening the heating device;

If the dew is formed,it shall affect the normal work of the player,and

please remove out the disk,lay the player on table for one hour under

the condition of connecting to power so as to vapor the moisrure.

Precautions for disk

In order to keep the disk clean,please take the edge of disk and do not touch its surface;

Do not adhibit any paster or tape on the disk;

Keep the disk away from direct sunshine or heat source;

Please place the disk in the disk box after being used;

Before playing the disk,if the disk is dirted,please clean it with soft cloth from the center to out;

Do not use voatile oil and thinner to clean the disk.

¶ú»úÒ»Ö»

µãÑÌÆ÷µçÔ´Ïß Ê¹ÓÃËµÃ÷ÊéÒ»±¾

ÒôÊÓÆµÁ¬½ÓÏß

µãÑÌÆ÷µçÔ´Ïß Ê¹ÓÃËµÃ÷ÊéÒ»±¾

µãÑÌÆ÷µçÔ´Ïß

V I D E O

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

C. Accessories

Please check the following accessories after opening the package.

Remote controller USER'S MANUAL

User's

Manual

Power connection line Audio connection line

USB connection line

Game disk

Note: it is equipped on these

Players having game function

Game handles

Note: it is equipped on these

Players having game function

Note: it is equipped on these

Players having USB function

Antenna ties

Hardware accessories

According your requirmant

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

D. Feature

Easy to install and it will not damage the car and the user might install it by himself;

No additional player is needed for the integration of display and player;

With built-in FM stereo emitting function,it could be connected by wirelessly with the original car

FM radio part and enjoy the sound box effect through the loudspeaker of radio;

The input ports of audio and video ar e provided for the connection with GPS navigation system;

Audio and video output function and they are installed at the two side of car by pair to support

the synchronous eyjoyment of video image;

With USB and card reading function,the user might use USB disk or SD/MS/MMC card to download

MP3/MP4/WMA to play through PC.

VIDEO CD

JPG

500 LINES

240 LINES

TYPE

DISK SYMBOL

RECORD

FORMAT

HORIZONTAL

DEFINITION

RECORD CONTENT DISK SIZE

240 LINES

500 LINES

Digital


Audio

Audio+Video

Audio

Audio+Video

E. Video disk type

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

Red +12V

Black grounding

Yellow video

Red right channel

White left channel

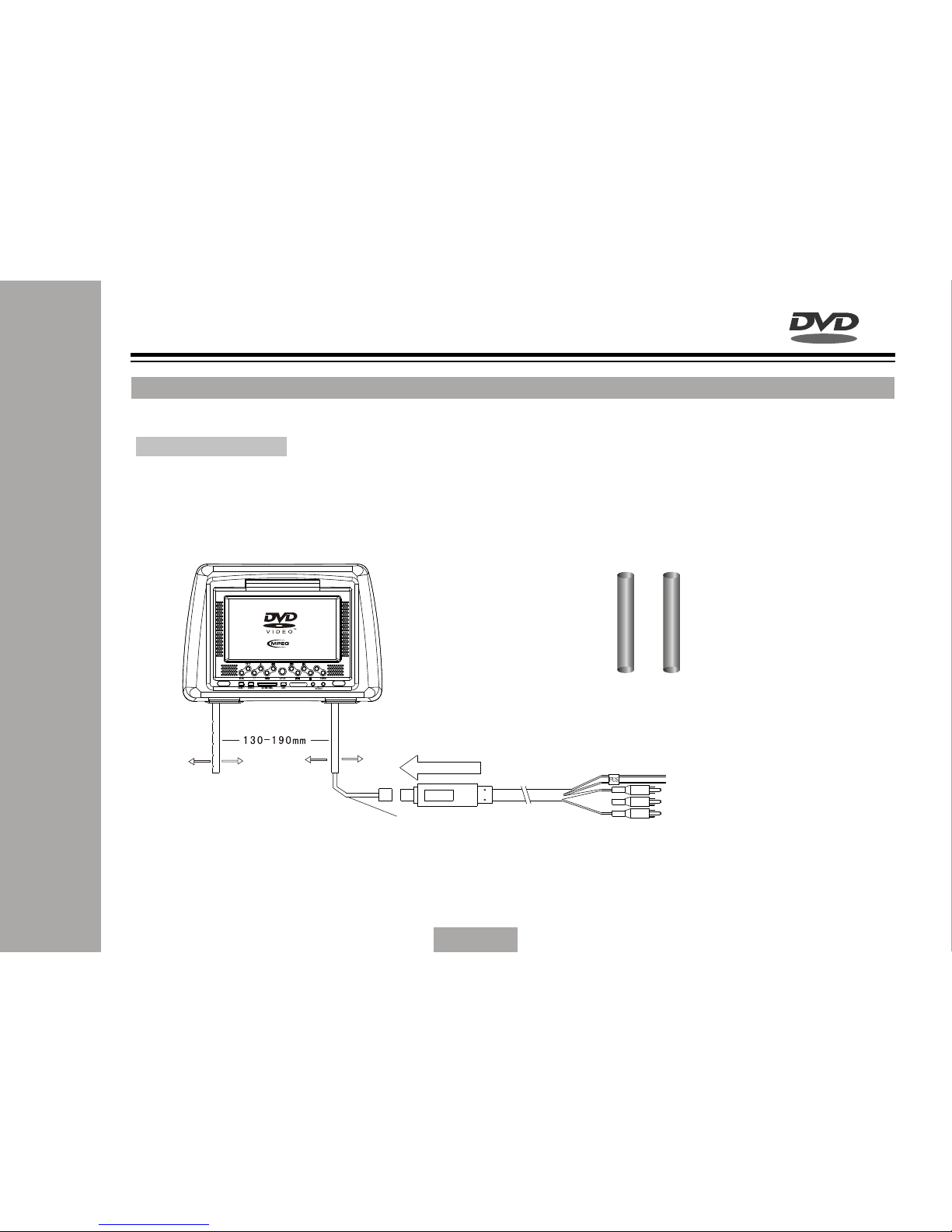

F. System connection and installation

Check whether the shape and installation size is suitable,please select and employ suitable accessories and tool in

disassembling and assembling.

S-VIDEO

Note: the shape and installation size are not suitable for all cars, please select the suitable shape

and installation size.

Fuse box

The install method:

Takes downthe original installation head rest,to select andmatch the steelpipe according to the original insta-

llation pole diameterfor the headrest that having the DVD monitor,then the adjustment head rest steel pipe

spacing, passed thepower source and the audio frequencylines through thechair steel pipe, and connected on the

power source, the sound and video frequency system with the vehicle. simultaneously the head rest will be fixed,

and will freelyto adjust theheight, around size based on the front seat personnel request.

The spare steelpipe

The Antenna (connectionthe main engineradio antenna withthe automobile,

enhancement the effectsof the frequencymodulation launches)

IR A/B

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

TFT LCD

Switch key of IR A/B

Stop key

Power key

G. Key parts in front of the player

Play/Pause key

Next track key

Fast forward key

Audio out

Video out

Receiving

head

Eject key (Open the TFT-lcd,load disk)

Card reading

port

USB port

Interface for game handle 1

Interface for game handle 2

TFT MENU

FM emitting key

Volume - key

Volume + key

Previous track key

Fast backward key

the note 1:Directly pressed tothe volume up\downkey,may make theadjustment to the

volume, pressed to the[ MENU ] single bond,may to convertthe many kindsof patterns onbrightness,

the contrast gradientto the displaymonitor, colored, the clarityand so on,and may makethe function

adjustment by thevolume addition andsubtraction key also.

the note 2:The two gameshandles connection,and USB, SD/MS/MMC card connections on the kneading board is

the reserves connection, our partial machines possibly do not have these connections.

IR A/B

Infraredray

Transmit

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

H. Key parts at the player

Laser head lens

The laying position

of the smalldisk

The enable turnedTFT screen

notice: Please carefully turns onthe display monitorwhen vehicles start , please toclose the

display monitor afterputs well thesmall dish as soon as possible, in order to avoid

damages to thedisplay monitor.

CR2025

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

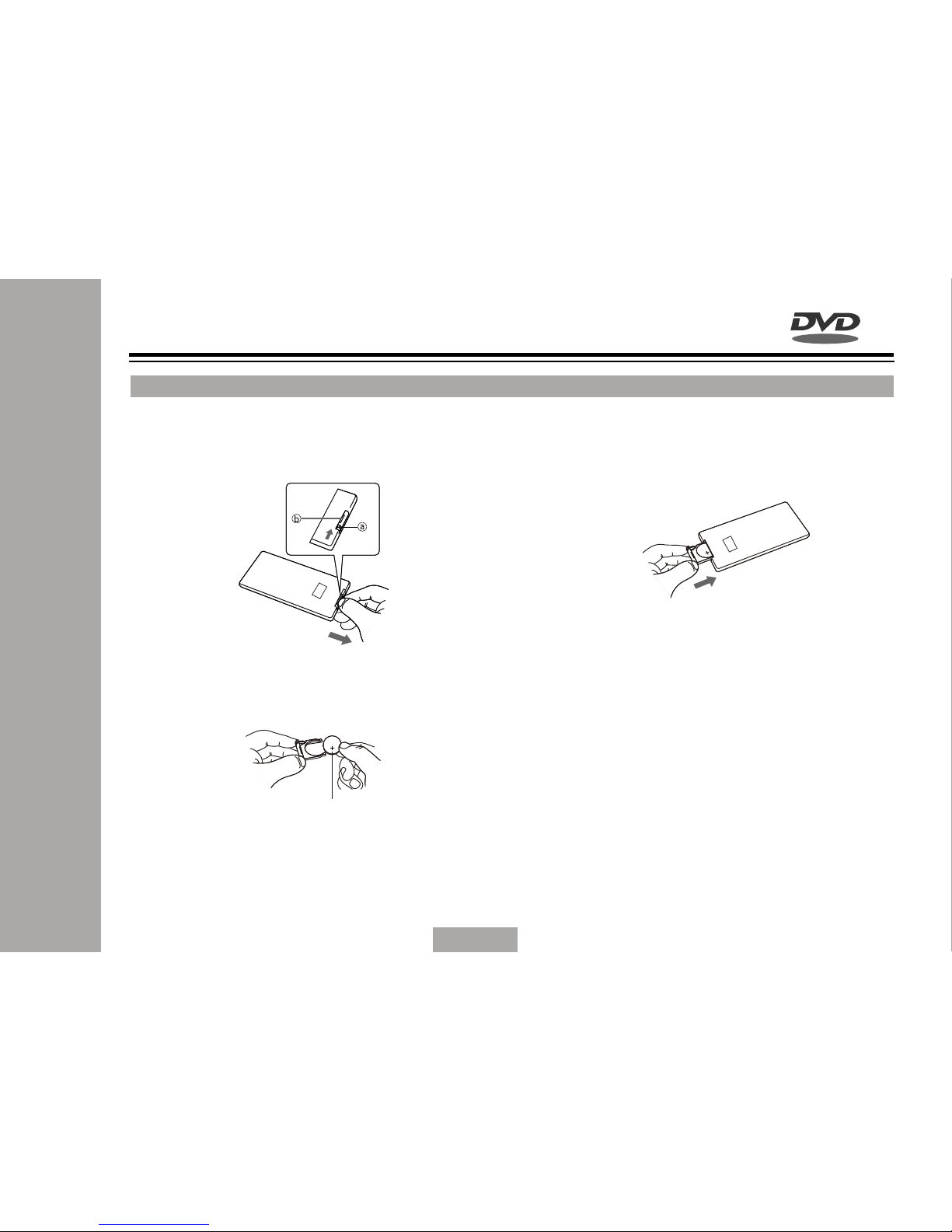

I. Battery installation of remote controller

Take the positions A and B by fingers

(see the figure), press A per the arrowhead

direction and then take out the battery holder.

Take outthe used battery and load the

new battery with anode upwards.

Battery (Cr2025)

Place the battery holderback to its

original position

Cautions:

In order toprevent the battery leakage,

if the remotecontroller shall be not used

for long time(longer than one month),

please take out the battery, if there is liq-

uid flowing out, wipe away carefully and

then reload thenew battery.

¡£

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

< 5 meters

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

J. Precautionsfor remote controller

For the firstuse, please first pull off the PVC sheet so as to electrify the remote controller;

Take noticeto protect theremote controller toavoid damaging;

If there existsbarrier between theplayer and thecontroller, theremote controller might be out of use;

Do not placethe remote controllerunder the stronglight, orit might causethe unavailability ofthe

device;

Please operate theremote controller inthe effective distance.

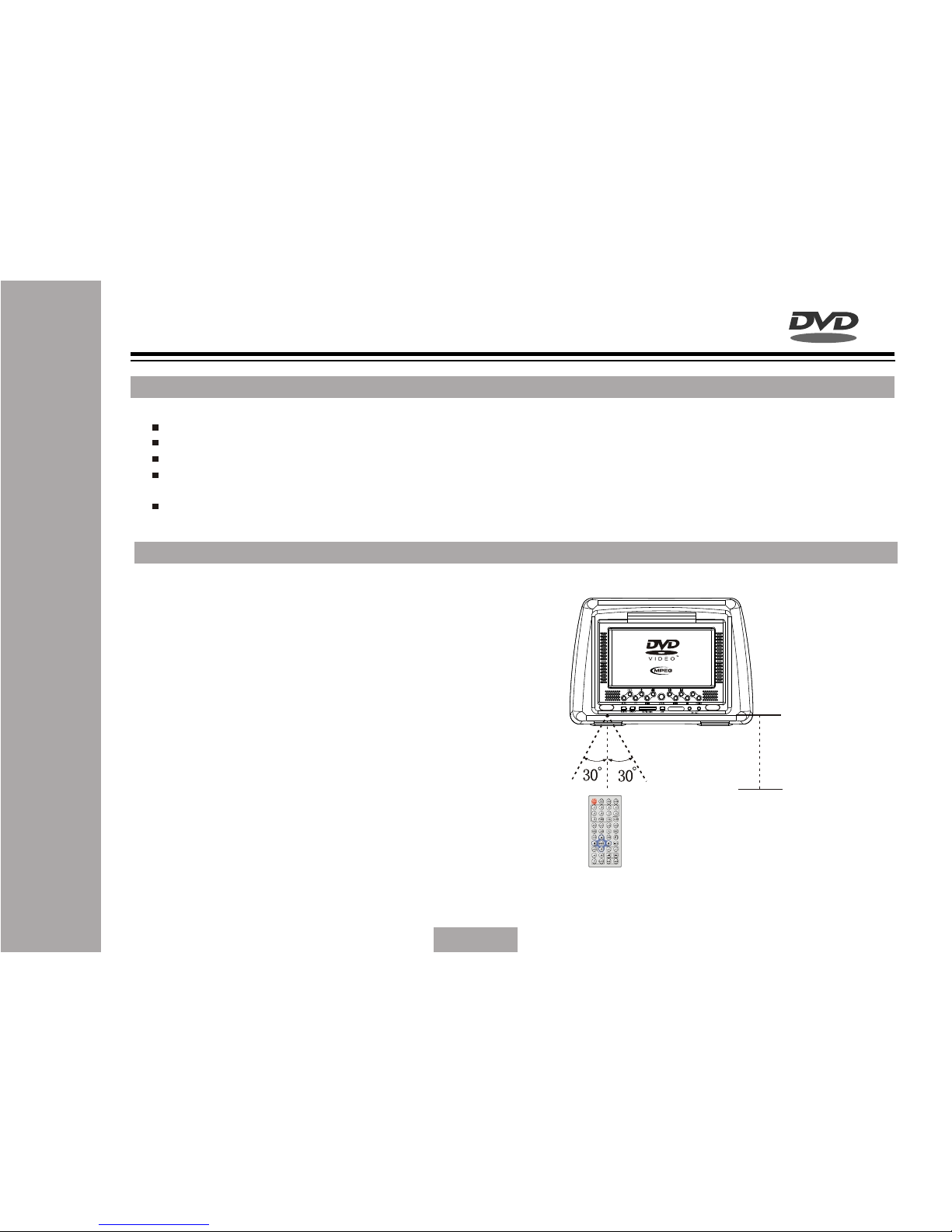

K. Application of remote controller

Application of remotecontroller:

1.Horizontal: ¡À30¡ã

2.vertical: ¡À30¡ã

3.Straight line: 5 meters

Caution:

The most functions could be operated by

the remote controller and few functions

only could be operated on the player.

IR A/B

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

L. Description for the pressing-keys of remote controller

Key Function

1. Root menu/PBC

Press the key to return to the root menu in playing DVD disk,

and open/close the PBC menu in playing VCD2.0 and SVCD.

2. Power

3. Title menu

Power ON/OFF

Press the key to return to the title menu in playing DVD disk.

4. Mute Open/close the sound

5. Number key Number selection

6. GOTO Select desired timeto play

7. Display Display the diskinformation and playingtime

8. Subtitle Subtitle switching, used for SVCD,DVD and Mp4 disks with

multiple subtitles only

9. Program Track programming play

10. Slow Slow play

11. Angle Angle switching key, used for SVCD, DVD and MP4 disks

with multiple anglesonly

12. Language Language switching key, used forSVCD, DVD and Mp4

disks with multiplelanguages only

13. Repeat Multiplemodes of repeat play shall be available

14. Channel (R/L) Channel switching key

15. Setup Open/closeDVD setup menu

16. Play/Pause Play or pause

17. Zoom Zoomin/out, multiplemodes

18. Enter Confirmation

19. Direction key Direction selecting key

20. Stop/Return Stopkey, press the keyto return inplaying

21. Vol+/- Adjust the volume

22. Fast forward/ fast forward or backward

backwardPlay

23. Previous/Next Selectthe previous or next track

24. Menu Switchingthe menus of LCD brightness, contrast,

definition, color andtint.

Used with themenu key to adjust the brightness,contrast,

definition, color andtint.

25. Menu+/-

26. Video switchkey Switching DVD and

AV input

27. FM key FM emitting key

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

M. Basic operations The player maybe used after being connected to the system.

1. Power ON/OFF

(1) Press the panel or the Power key at the top left angle of the remote controller, the power indicator shall be turned

off and the boot image shall be displayed, the player will read the disk, if no disk inside, the LCD shall tell No Disk.

(2) In Power ON state, further press Power key to power off the player and the indicator shall be turned on.

2. Load disk

(1)Press Eject key to open the disk door;

(2)Load the disk (with the label side upwards).

(3)Close the diskdoor.

(4)The player shallplay the diskautomatically.

3. Remove disk

(1)Press Stop key to stop playing;

(2)Press Eject key to eject the door;

(3)Take outthe disk;

(4)Put the diskback to the package bag or box for storage.

Caution:

Be careful totake the disk, wrong operationshall damage theplayer;

Do not damagethe disk, orthe player shall be damaged;

Please keep theside with label upward if it's a single-side disk;

Be careful inplaying two-side DVDdisk for thetwo sides ofthe disk areavailable for playing;

Do not scratchthe surface in takingthe disk.

4. USB andcard reading

(1)The external USB memorizer (USB disk) might be connected by the attached USB connection line. In the state of Power

OFF and no disk is loaded inside, connect the external memorizer to the corresponding USB port, and then press Power

key to power on the player, the device shall detect the signal source automatically (including video, audio and image),

and the player shall play automatically if the signal source format that complies with the player, is detected.

(2)In the state of Power OFF and no disk is loaded inside, connect the external memorizing card (MS/SD/MMC card) to the

corresponding port, and then press Power key to power on the player, the device shall detect the signal source autom-

atically (including video, audio and image), and the player shall play in order automatically if the signal source format

that complies with the player, is detected.

(3)The contents of Mp3, WMA, Mp4 and JPEG formats could be downloaded from the internet through PC and be saved in

the USB disk or external memorizing card to play.

Caution:

Do not pulloff the external memorizer when the player is connectedwith power,otherwise the external memorizeror

the player shallbe damaged;

All signal sourcesthat comply with the player might be played throughthe external memorizer;

Individual MP3 playercouldn't play through USB device.

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

N. Functions of keys

KEY Basic description

Power key Open/close the power.

Eject key Open the disk door.

In normal playingstate, press the key topause to playimage/sound. Further press the keyto

resume to playnormally.

Play/Pause

Press Fast backward key, the imageshall be playedbackward quickly, at thetime, no sound

shall be outputted,press the keysuccessively, the player shall play the disk repeatedly as per

the following method;

Press Fast forward key,the image shallbe played forward quickly, at thetime, no sound shall

be outputted,press thekey successively, the player shall play thedisk repeatedly asper the

following method;

Fast forward (backward) X2 X4 X8 X20

Play

Press the Previous key toselect the previoustrack to play.

Press the Next key to select the next track to play.

In playing VCDand CD disk,press" " (Stop/Return)key to displaypre-stop state, at the

time, press Play key to resume to play; further press Stop key to stopplaying and returnto the

boot interface state.In playing DVD or VCD2.0 disk,it plays therole of returningmenu, and of

stopping playing inplaying menu. Inplaying game, press the keyto return tothe main menuof

game.

Note: MP4 andDVD hasn't the function of pre-stop.

Stop/

Return

Fast backward

Fast forward

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

Slow 1/2 Slow 1/3 Slow 1/4 Slow 1/ 5 Slow 1/6 Slow 1/7

Play

PBC

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

KEY Basic description

Slow

Play by thelower speed, press the key successively to make the player play repea-

tedly, press " "(Play/Pause) key to resume to play normally.

In playing DVDdisk:

Program

Setup of programmingplay: arrange theplaying order ofdisk and thenthe player shallplay the

disks as perthe arranged order.

Note: the programkey shall notbe available unlessPBC is closed,program is not allowed for

MP3 disks; DVDdisk should beprogrammed for itstrack time andVCD disks shouldbe progr-

ammed for itstrack number.Finally, select Play keyand the playershall play thedisks autom-

atically as perthe arranged order, at the time, the number keys arenot available, only the pre-

vious/next key couldbe used. Ifyou want tocancel the programmingfunction, press Program

key to enterthe menu interface andselect Clear keyand then press Enter key toconfirm.

Repeat

Repeat play

Repeatedly play theselected title/chapter (DVD) or track/album (VCD/CDdisk).

In playing DVDdisk, press thekey successively toselect the title or chapter of DVD to play.

For other typesof disks, press Repeat key successively to select one track or the album to play

repeatedly.

In playing VCD2.0or SVCD disk,the PBC menufunction could beachieved by pressPBC key,

the disks couldonly be playedin order if PBC is closed.In playing DVDdisk, press thekey to

stop playing andreturn to theroot menu of disk, press directionkey or numberkey to select

your desired contentsand press Enter key to confirm, the player shall start to play as per the

title or contentsyou setup.

Note: PBC isnot available in playing Mp3, CDor VCD 1.1disks.

µç³ØµÄ°²×°¼°²ðÐ¶

µç³ØÂÝË¿

µç³Ø

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

Title Chapter1/1 1/29 00 00 12

£º £º

2CH

3English

TRACK 2/15

00 00 12

£º £º

VCD

PBC X

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

KEY Basic description

Display

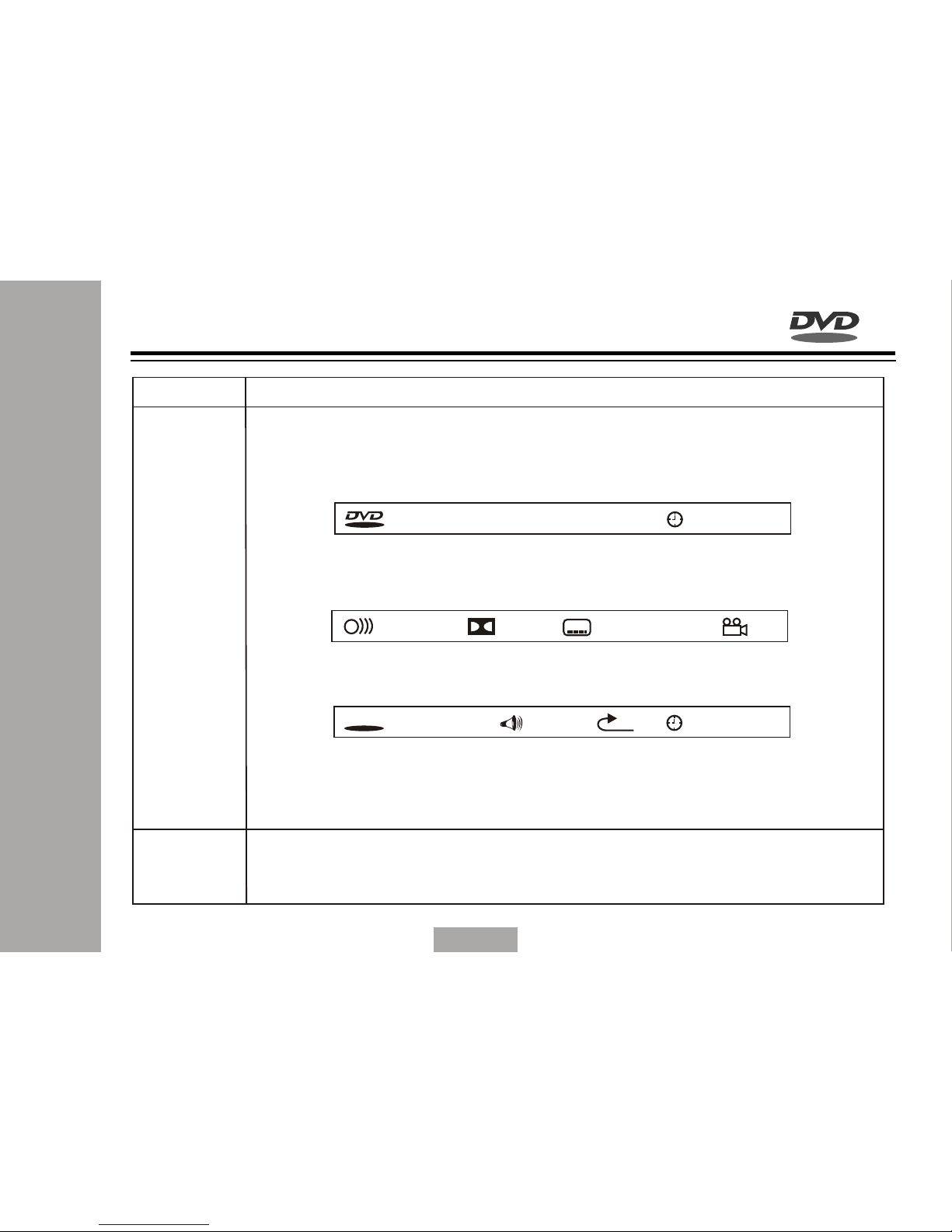

Press Display key for the first time, the LCD shall display: (DVD state)

1) Disk format, current title number and total title number;

2) The Currentchapter and totaltitle number;

3) The playingof current title.

Further press thekey to display:

Display the currentlanguage and thelanguage number supported,channel type, subtitle

display language andangle type.

OFF NO

Press the key for the third time to display nothing.

The display (OSD)in playing VCDdisk is asfollows:

Display the diskformat, currenttrack and totaltrack number,mute mode, PBC mode, and the

track number ofrepeat mode, and the track playing time.

The OSD ofMP3 and CDdisk is samewith VCD exceptthat VCD diskhas PBC option.

Mute

Firstly press theMute key, the player shall play the image without soundoutput, furtherpress

the key tocancel the mute function and resume to play normally.

ZOOM 2 ZOOM 3 ZOOM4 ZOOM 1/2 ZOOM 1/3 ZOOM 1/4 ZOOM£ºOFF

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

TITLE 1/1 1/29CHAPTER 00 00 12

£º £º

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

Zoom

KEY Basic description

Press Zoom key to zoom in the image.

In playing, pressZoom key, the zoom mode shall be cycled as per the following order:

In Image Zoomstate, press direction key" " to move the image.

GOTO

GOTO: start to play from the selected time.

Press GOTO key onthe remote controllerand a timeselection dialog box shall be skipped out,

move the cursorto the timenumber and inputthe time youwant to selectand then theplayer

shall start toplay from theselected time.

Note: the setupof VCD disk is same with DVD disk, theinput time couldn'texceed the longest

time of thedisk.

AUDIO

DVD disk supportseight languages atmost, repeatedlypress Language key to select the diffe-

rent language toplay.If the disk hasn't the language menu,the user mayalso change thelang-

uage by menu.

Note: language functionis only used for these DVD and super VCD disks that have multiple

languages for selection.

Open/close the subtitle, select the subtitle on DVD disk and it'sdisplayed on theTV screen,

which is relatedto the formatof disk.

Subtitle is availableonly in thecondition of thedisk having subtitlefunction, the subtitlefun-

ction is achievedby the Subtitlekey on theremote controller, press the keysuccessively to

select different subtitles.

Subtitle

Title Press Title key to stop playing and returnto the titlemenu of disk,press direction key to select

your desired titleand press Enterkey to confirmto enter the chapter menu.

Stereo Left Channel Right Channel

2/4

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

KEY Basic description

Vol+

Vol-

Volume adjustmentkey

Adjust the volumeby the Vol+ and Vol- key onthe remote controller

Press the key to enter the setup menu to set upsystem, language, audio, video,loudspeaker

and dolby digit, in setup menu, press thekey to exitthe menu interface.

Setup

Up/Down/Left/Right key

Press the keys to select the disk content to be playedand item tobe set upas well asto select

the image partto be zoomed.

Direction key

Change the angle, DVD diskmay record multiplescenes that arerecorded from differentangle,

in playing, theuser may select any one angle to watch.

1. Press Angleon remote controller to select angle 1 and the top right corner of the TV shall

display:

ANGLE

2.Further press Angleon remote controller to select angle 2 and the top right corner of the TV

shall display:

Channel

In playing VCDor individual MP4disk, press Channelkey to changethe channel mode:

Changing the channelmode might eliminate the original singer's sound of OK disk and convert

the dialogue languageof some disks.

Note: Channel functionis not availablefor MP3, CD, WMA, JPGand individual MP4disk.

V I D E O

USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

ÊÊºÏ±¾»ú²¥·ÅµÄµúÆ¬

³ß´ç¼°²ÎÊý

Table of contents

VCAN HAV-744 User manual

Popular Car Video System manuals by other brands
