Xomax XM-DTSBN929 User manual

User's Manual
XM-DTSBN929
XOMAX
ENGLISH

2
XM-DTSBN929
XOMAX
Thank you for purchasing one of our XOMAX products! We appreciate your con-
dence. Enjoy your brand new multimedia unit!
Please read the following manual carefully before you install and use the unit.
Please save this manual in case you will need to clarify further possible ques-
tions regarding installation and usage of our product.
We are constantly trying to keep our online-library of user's manuals for our
products up-to-date. In case you miss some information or if something should
be unclear, please visit our homepage www.xomax.de/download for a current
version of user's manual or contact our customer service.
i
Version 1.0
Last update 04.08.2016
Manual's version
We appreciate our environment, so to keep it safe and clean, we
do not print our manuals on paper but provide our products with
manuals in digital version created in *.pdf format.
You can nd and download them anytime on our homepage
www.xomax.de, view them on your mobile devices and print
them for yourself if needed.
Please note: Any alternations and changes of technical data or/and design
due to technical update of some models need no advertisement.
XOMAX
XM-DTSBN929

3
XM-DTSBN929
XOMAX
EN
Thema:
Index
Safety instructions and precau-
tions 6
Handling by stop only...................... 6
Installation .................................... 6
Regular loudness ............................ 6
Repair of the unit............................ 6
Power supply ................................. 6
Replacement of fuses ...................... 6
Overheating................................... 6
Regular temperature ....................... 6
Cleaning of the unit ........................ 7
Usage of the touchscreen ................ 7
Moisture........................................ 7
The risk of injuries.......................... 7
Handling the CDs and DVDs ............. 7
Specications................................. 8
Package content ............................. 9
Operating elements of the unit ........10
Remote control..............................13
Installation 15
Installation notes...........................15
Before the installation ....................15
Connection schedule – ISO
plug 17
ISO plug conguration 18
Socket A (power supply).................18
Socket B (loud speakers)................18
ISO cable connections 19
Connection schedule – Cinch
multicore 20
Startup operations 21
Usage of the remote control............21
Replacement of the battery.............21
Theft protection 22
Notes...........................................22
Detaching the panel.......................22
Basic functions 22
Unit on/off....................................22
Insert a microSD card ....................22
Insert a USB ash drive..................22
Insert a CD/DVD ...........................23
Factory settings.............................23
Main menu ...................................23
Scroll the pages ............................23
Scroll the lists ...............................23
Volume ........................................24
Mute............................................24
Back to the current mode ...............24
Settings 25
Time Setting .................................25
Sound setting ...............................25
Equalizer ...................................25
Preset Equalizer .........................25
Fader und Balance ......................26
Wallpaper .....................................27
SWC setting..................................27
Index

4
XM-DTSBN929
XOMAX
EN
Thema:
Index
Factory Settings ............................27
Calibration....................................28
Language setting...........................28
Brightness ....................................28
Set the GPS-Path 28
Storage media 30
Supported media...........................30
Supported formats.........................30
ID3 tag (Title, Interpretor)..............30
Radio mode 31
Radio mode ..................................31
Automatic frequency scan...............31
Store the found stations .................31
Switch AM/FM ...............................31
LOC signal sensitivity .....................32
AF funktion (Alternative Frequency) ......32
TA funktion (Trafc Announcement).......32
PTY Funktion (Programme Type) .........32
USB-, SD- and Disc- modes 33
Start the playback mode.................33
Files list .......................................33
Start the playback .........................33
Music playback mode 34
Play/Pause....................................34
Previous / next track......................34
FF / Rewind ..................................34
Repeat track .................................34
Random playback ..........................34
Video playback 35
Display the OSD Video menu...........35
Start DVD playback........................35
Play/Pause....................................35
Previous / next track......................35
FF / Rewind ..................................35
Select track directly (GOTO)............35
Repeat track .................................35
Random playback ..........................35
Switch the subtitles .......................36
Switch the soundtracks ..................36
Call up the DVD menu....................36
DVD video zoom in / out.................36
Picture viewer mode 37
Open the picture ...........................37
Display the options ........................37
Pause / resume the slide show ........37
Previous / next picture ...................37
Select le directly (GOTO) ..............37
Zoom in / out................................37
Bluetooth connection 38
Start Bluetooth mode.....................38
Pairing the unit with an external
device..........................................38
Common information .....................38
Make a call ...................................38
Take a call ....................................39
End / reject the call .......................39
Phone book...................................39
Load the data from the external
phone .......................................39
Dial the number from the book.....39
Search within the book................39

5
XM-DTSBN929
XOMAX
EN
Thema:
Index
Phone protocol ..............................40
Bluetooth music 40
Common information .....................40
Start Bluetooth music ....................40
Rear view camera
(optional) 41
Common information .....................41
Connection ...................................41
Start the rear view camera mode.....41
AV-IN Mode 42
Common information .....................42
Start the AUX mode .......................42
Common solutions 43
Disposal / recycling informati-
on 45
Disposal of an old unit / battery.......45

6
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
Safety instructions and
precautions
!
Handling by stop only
To avoid any accidents please don't
handle the unit while you driving.
Please stop and park the vehicle
at safety place and handle the unit
casually.
!
Installation
Please read the following manual
carefully before you install the
unit. We recommend you to let the
technician install the unit in your
vehicle.
!
Regular loudness
Please set the loudness of the unit
to the appropriate level so you were
still able to hear exterior noises
especially trafc warning signals.
Furthermore the higher loudness
level can damage your hearing
organs.
!
Repair of the unit
Do not open the unit. Do not try to
repair the unit by yourself due to
any emerging technical problems.
While opening the unit by yourself
exists the danger to be electrocuted.
Do not use the unit any further since
you detect any kind of technical
problems.
Leave all the repair operations to
professional technicians.
Due to awed warranty seal the
warranty becomes invalid.
!
Power supply
Use the unit connected only to 12 Volt
on-board power supply. The minus (-)
should be connected with the ground
(GND) (negative).
Due to the wrong conguration exists
the danger of re. In case of doubt
please consult with professional techni-
cians.
!
Replacement of fuses
While replacing the fuse please make
sure that the new fuse has the same
properties as the old one, especially the
amperage.
!
Overheating
Do not occlude the vent holes to avoid
the heat generation and accumulation
in the unit. Otherwise exists the danger
of re.
!
Regular temperature
Please make sure that the temperature
inside of the vehicle amounts to not
more than +60 C.
If it's too hot inside of the vehicle, do
not turn the unit on until the inside
temperature of the cabin descends.

7
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
!
Cleaning of the unit
Please keep the unit clean and remove
the dust from it regularly. Please use for
that a soft and dry cleaning rag.
Major soilings can be removed carefully
with the wet cleaning rag. Do not use
any chemical or alcohol-containing
detergents to avoid the damage of the
unit's varnish.
!
Usage of the touchscreen
Do not press the touchscreen too hard
– it may lead to image distortions, unit
malfunctions and touchscreen damages.
Do not use any sharp articles to use
the touchscreen. Please handle the
touchscreen with your nger or with the
appropriate stylus.
!
Moisture
To avoid the danger of re or the
electric shock do not put the unit in to
the moist environment (e.g. adverse
weather conditions, inappropriate wet
cleaning etc.)
!
The risk of injuries
Do not open the cabinet or modify the
unit. The active laser components used
with this product comply with the
provisions of Laser Class 1.
!
Handling the CDs and DVDs
»Soilings, scratches, dust can impair
the playback and damage optical
lenses.
»Do not label CDs/DVDs with an
inappropriate stickers and markers.
»Do not ever bend the disc.
»Store the discs in an appropriate
sleeves to avoid damages of the media.
»Do not expose discs to direct sunlight.
»Do not touch the mirror surface of
the disc to avoid the soilings such as
ngerprints.

8
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
SD-card slot
Plug type ....................................... MicroSD
Max. supported volume ..................... 128 GB
Filesystem ............................... exFAT, FAT32
Bluetooth
Version ..................................... 2.0 Class 2
Prole ............................ Freisprechen, A2DP
Frequency ........................ 2.4GHz Spektrum
Navigation
Maps .............................................. Europa
Any alternations and changes of
technical data or/and design due
to technical update of some mo-
dels need no advertisement. Errors
expected.
Specifications
Allgemeine Daten
Operating voltage ........................... 12V DC
Fuse ................................................... 15 A
Button illumination color ....................... blue
Installation size ............... 1DIN (Single DIN)
Audio
Output power ........................... 4 x 60 Watt
Loudspeaker impedance ..................... 4 Ohm
TFT LCD Bildschirm
Diagonal ........................ 7 Zoll (ca.17,6 cm)
Image ratio ........................ 16:9 widescreen
Resolution ........................... 800 x 480 Pixel
Typ .................. TFT LCD Touchscreen Monitor
FM-Radio Receiver
Frequency range .................. 87.5 - 108 MHz
AM-Radio Receiver
Frequency range .................. 522 - 1620 KHz
Optical Drive
Loading Mechanism .......................... Slot-In
Disk size ............................. Ø 12 cm / 8 cm
Storage media Type ........................ CD, DVD
USB-port (front)
Plug type ........................................... Typ A
Max. supported volume ..................... 128 GB
Filesystem ............................... exFAT, FAT32
USB-port (back)
Plug type ........................................... Typ A
Max. supported volume ..................... 128 GB
Filesystem ............................... exFAT, FAT32

9
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
A Car radio with front panel
B remote control and Stylus
C Navigation software (MicroSD card)
D installation manual
E 1DIN cage and bezel
F GPS-aerial
G ISO cable
H Audio/Video Cable
I Mounting material
J miniUSB adapter cable
Please check the accessories on
completeness.
The images serve as example. Optically the may vary from the original.
Please note: the package content
may vary due to technical updates.
Package content
A
C
E
D
F
B
G H
I J

10
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
Operating elements of the unit

11
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
1?/OPEN Device on or off/Display
open
Press the power button to turn the unit on.
Keep it pressed for ca. 2 seconds to turn it
down.
To slide the monitor out and stand it up or
into the monitor slot, press this button.
2MODE Mode selection
If the unit is on, press this button to switch
between diverse modes: [Radio], [Disc],
[USB], [SD], [AUX], [AV-IN], [Bluetooth].
3MIC Bluetooth microphone
The microphone is used during hand-free
phone calling via Bluetooth. The micro-
phone should not be blocked to achieve
the best possible sound quality.
4REL Release button
Press it to detach the control panel.
5MUTE/TFT OFF Mute on or off/TFT
off
brief press Press once to turn off audio
output, press again to resume volume
level.
long press press this button to turn on/
off TFT display.
6VOL Change the loudness/Accept or
end a call
rotate Rotate the button clockwise to
boost the loudness and reverse to reduce
the loudness.
brief press [in telephone mode]: to accept
or end a call.
7/ Next and previous track/
Frequency band scan
[in play mode]: skip to the next / previous
track.
[in radio mode]: brief press starts the
automatic radio station search forwards/
backwards.
long press switches to the manual
frequency scan forwards/backwards.
81/< Stored radio stations/pause
[in radio mode]: stored station "1".
[in play mode]: starts or pauses the
playback.
92/RPT Stored radio stations/repeat
[in radio mode]: stored station "2".
[in play mode]: repeat the playback.
A3/RDM Stored radio stations/
random
[in radio mode]: stored station "3".
[in play mode]: random playback.
B4/;Stored radio stations/stop
playback
[in radio mode]: stored station "4".
[in play mode]: stop playback.
C5/qStored radio stations/adjust
the angle of display
[in radio mode]: stored station "5".
[in play mode]: press this button to
adjust the angle of display.
D6/pStored radio stations/adjust the
angle of display
[in radio mode]: stored station "6".
[in play mode]: press this button to
adjust the angle of display.
EAUX Auxiliary audio input

12
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
3,5 mm jack plug for connection with an
external playback device such as MP3
player, smarthone, tablet PC etc.
FUSB USB plug
The USB plug is added for reading of
USB ash drives in following formats
only: FAT32 or exFAT le system.
Maximal supported volume: 128 GB.
other USB devices such as an external
harddisc can not be supported.
GIR Infrared receiver
The IR receiver picks up the infrared
signal from the remote control. Please
make sure that the IR receiver is not
blocked.
H1Eject the disc
When there is a disc in the unit, press
the button to eject the disc.
ISD micro SD-slot
The micro SD card slot is added for
reading of micro SD-/SDHC/SDXC-cards
in following formats only: FAT32 or exFAT
le system.
Maximal supported volume: 128 GB.
JMAP GPS microSD-slot
KRESET Reset
Deletes all the customer's adjustments
and sets the unit back to factory
settings.
!

13
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
Remote control
1. PWR Press once to switch on, press
again to switch off.
2. MUTE Press once to turn off audio
output, press again to resume
volume level.
3. NAVI Press it to enter to exit the
navigation.
4. SOURCE Press this button to
choose audio sources.
5. EQ Press this button to choose
POP, ROCK, CLASSIC, EQ off.
6. SEEK-/8 and SEEK+/7
In normal playback MP3, USB, SD
songs, press this button to previous
song or next song.
7. VOL- / VOL+ Press this button to
increase or decrease volume level.
8. SEL Press this button to choose
sound feature.
9. LOUD Press this button to startup
LOUD function.
10. BAND In radio mode, press this
button to choose band.In VCD, DVD
mode, press this button to choose
AUTO, PAL or NTSC system.
11. LOC/RDM In radio mode, press this
button to switch between local and
direction, In VCD, CD mode, press
this key to randomly play.
12. • Press this button to stop
playing.
13. < Press this button to switch
between play and pause, In stop
mode, press this button to play.
14. ST In radio mode, press this button
to choose stereo or mono station. In
audio mode, it can help stop button
to programmed play.
15. 0-9 Press this button to choose
desired song, section, preset
stations. Decimal numbers, for
example the 19th song, press 10+
and 9 button.
16. AMS/RPT In radio mode, press this
button to browse stored stations.

14
XM-DTSBN929
XOMAX
EN
Thema:
Safety instructions and precautions
In audio mode, press this button to
play repeatedly.
17. TITLE In DVD mode, press this
button to play back to the top menu
of disc.
18. AUDIO In DVD mode, press this
button to switch language of
dialogue. In VCD mode, press this
button to choose left track, right
track,and stereo.
19. GOTO In DVD mode, press this
button, you can dene playing time.
20. SUB-T In DVD mode, press this
button to switch language of subtitle.
21. PBC In VCD mode, press this
button to display all song menus,
work with number button to choose
songs.
22. Š > ‰ ‹ When playing MP3, USB,
SD returns to song menu, up, down
selections can be up ‰ button or
down ‹ key to select up and down,
select and press ENTER key to
conrm. The selected tracks can be
played. Press the left or right arrow
keys to Š or > key, can be on the
next page function operation.
23. SLOW In audio mode, press this
button to slow backward and slow
forward.
24. ANGLE In DVD mode, press this
button to change play angle.
25. SETUP In audio mode, press this
button to choose different set items.
26. OSD Press this button to display
the title chapter and the left time.
27. ZOOM In DVD/VCD mode, press
this button to ZOOM in/out.
28. MENU Press button to back to the
main menu.

15
XM-DTSBN929
XOMAX
EN
Thema:
Installation
Installation
Installation notes
Here you can nd relevant installation
notes and common information.
Before the installation
WARNING!
Please read the following manual care-
fully before you install the unit.
Damages caused due to an inapprop-
riate installation will not be covered by
warranty.
If you do not want to risk your warranty
entitlement, please let the technician
install the unit in your vehicle.
»To avoid a short circuit please
disconnect the vehicle battery before
the installation. To do it properly please
read the manual of your vehicle.
The detailed installation manual
you can nd on our homepage www.
xomax.de.
The printed version of a common
installation manual you can nd in
the package.
i
!
»Make sure that your vehicle is
equipped with a car radio slot of
required size (1DIN)
»As may be the case you will need a
suitable faceplate, adapter or other
accessories. These could be provided
from your local specialist supplier.
»The connection cables may not be
cutted or short-circuited. Otherwise the
warranty becomes invalid.
»Before the installation please make
sure that your vehicle has the 12 Volt
on-board power supply.
»The minus (-) should be connected
with the ground (GND) (negative).
»Please tag the polarity of the avai-
lable speakers before you disconnect
the vehicle battery.
»A proper grounding of the unit's
housing requires a clean ground
connection. Thus the grounding area
should be rust-, stain- and dust-free.
»Please ground the cable separately
from other heavy current devices such
as an amplier etc.
»Please ensure that the colored cables
are connected according to the wiring
diagram. The wrong wiring may lead to
malfunctions or even damages of the
electric elements of the vehicle.
»Please note that the connection
cables of this unit and of the other
devices may have the same purpose
but the different color. For this reason
while connecting this unit with the
other devices please ensure that both
We recommend you to let the
technician install the unit in your
vehicle.
!

16
XM-DTSBN929
XOMAX
EN
Thema:
Installation
of the cables in each case have the
same purpose. To connect everything
correctly please refer to the manuals of
the both devices.
»Please ensure that the negative
speaker cable is in each case connected
with the negative speaker terminal of
the ISO port. Do not ever connect the
negative speaker cables with the vehicle
body.
»This unit is designed and construed
for connection with 4 speakers. Do not
combine this unit with devices that are
designed and construed for connection
with 2 speakers.
»The speakers should feature the
impedance of 4-8 Ohm and a sufcient
wattage.
»Please ensure that the speakers you
are connecting with the unit are intact.
Damaged speakers can impair the unit.
»To avoid a short circuit please isolate
all cable junctions and endings of the
unused cables with the electrical tape.
»All the cables should be layed and
xated tidy and properly. The cables
should not contact any movable or hot
objects.
»If your vehicle doesn't have an "ACC"
ignition position, please connect the red
cable with the ignition switch. Other-
wise the unit will not turn off automati-
cally, causing the discharging of the
vehicle battery.
»To avoid a rogue and hazardous
short circuit do not lay the yellow cable
through the engine bay in order to
connect it with the vehicle battery.
»Do not ever connect speaker cables
among one another. In case you do not
want to connect all the 4 speakers with
the unit please isolate the endings of
unused cables with the electrical tape
to prevent a short circuit.
»Do not ever connect the negative
speaker cables with the vehicle body.

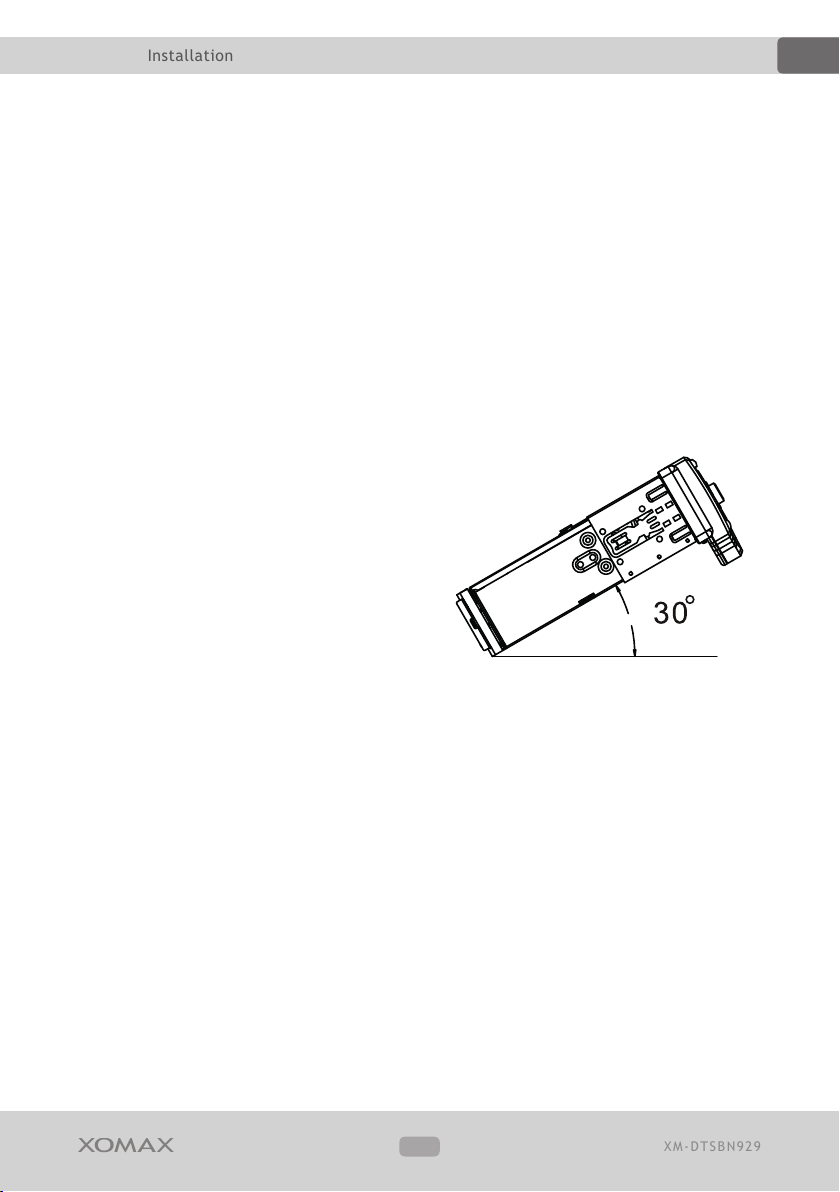

»To ensure a awless performance of
the unit the intergration angle should
amount to +/- 30.

17
XM-DTSBN929
XOMAX
EN
Thema:
Connection schedule – ISO plug
Connection schedule – ISO plug
A8
A7
A5
A4
12V
-
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
+
-
+
-
+
-
+
-
B
B
A
A
permanent current +12V

18
XM-DTSBN929
XOMAX
EN
Thema:
ISO plug configuration
2 1 2 1
4 3 4 3
6 5 6 5
8 7 8 7
A
B
Socket A (power supply)
On the A side you can nd the socket
for power supply.
A1 – spare
A2 – spare
A3 – spare
A4 - +12V battery / steady plus (yello)*
A5 – (+) electric antenna (blue)
A6 – spare
A7 - +12Volt ignition plus (red)*
A8 – (-) minus / ground (black)
* - Some vehicle manufacturers use
their own pin assignment. Especially
the terminals A7 (ignition plus) and A4
(steady plus) are often interchanged.
The incorrect connection in this case
leads to following problem: the unit
can not be turned on if the ignition is
off and all the saved settings are lost
as soon as the unit will be turned off. If
these problems appear the connections
A4 and A7 should be interchanged.
Socket B (loud speakers)
On the B side you can nd the speakers
terminals.
B1 – (+) rear right (violet)
B2 – (-) rear right (violet/black)
B3 – (+) front right (white)
B4 – (-) front right (white/black)
B5 – (+) front left (gray)
B6 – (-) front left (gray/black)
B7 – (+) rear left (green)
B8 – (-) rear left (green/black)
The terminals are coloured by pairs, in
each case one (+) and one (-).
Though the design of ISO plug is
standardized, it's pin assigment is not
and may vary. Thus in case of mis-
match of connections due to different
pin assignments a simple plug'n'play
connection may lead to grievous errors.
!
ISO plug configuration

19
XM-DTSBN929
XOMAX
EN
Thema:
ISO cable connections
ISO cable connections
1Terminal plug
This plug connects the ISO cable with
the unit.
2ISO plug
This plug connects the ISO cable with
the vehicle. The ISO cable as such
serves as an extension cable for an
eased connection of the unit to the
1
2
vehicle provided that the vehicle has a
standardized ISO plug with the approp-
riate pin assignment.
We recommend you to let a
professional technician install the
unit in your vehicle.
!

20
XM-DTSBN929
XOMAX
EN
Thema:
Connection schedule – Cinch multicore
Connection schedule – Cinch multicore
Antenna
