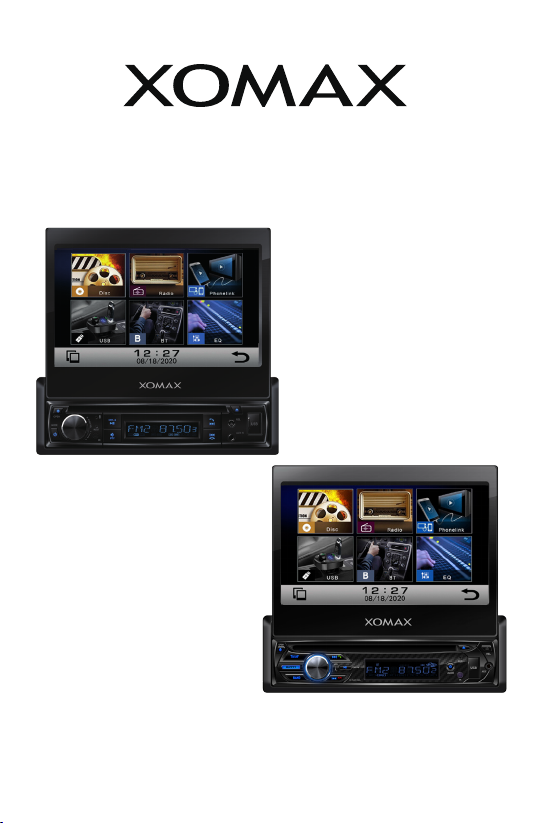

Xomax XM-D749 User manual

MODEL: XM-D749
Instruction Manual
MODEL: XM-D750
1-Din Digital Multimeida Player
7” Motorized TFT Touch Screen
AM/FM Receiver, USB , Bluetooth

IMPORTANT:
• Do not operate this digital video player while the vehicle is moving.
• This is a safety feature to prevent driver distracon.
• It’s illegal in most country for the driver to view video while the vehicle is moving.
• The digital video funcons will be only operated when vehicle is in park and the
parking brake is engaged.
To establish a safe level:
• Start your volume control at a low seng.
• Slowly increase the sound unl you can hear it comfortably and clearly, and
without distoron, we want you listening for a lifeme.
• Once you have established a comfortable sound level, set the dial and leave it
there.
Precauons:
1. To reduce the risk of fire, electric shock, and interference, do not aempt to
repair this product yourself. Refer all servicing to a qualified technician.
2. This digital video player is compable with VIDEO/AUDIO discs with 12 cm size:
- DVD disc
- VCD disc
- CD, CD-R, CD-RW disc
- MP3 disc
3. Do not switch on this digital video player for long me when the vehicle’s motor
is switched off. This could cause the vehicle baery to discharge and the vehicle
can no longer be started.
4. Do not apply strong mechanical stress like drop, shock or any force to the TFT
LCD. Do not too hard hit, press or rub the TFT LCD display surface. If the display
surface is dirty, please wipe the surface soly with coon swab or clean cloth.
5. Never place any foreign objects into the openings of this product such as disc
slot, USB port, AUX IN jack. Otherwise you might damgage the slots and
connectors.
6. Do not throw the baery cell of remote control into fire as this may cause an
explosion. Keep baery cells out of reach of children.
How to Handle Discs:
• Handle a disc by its edges. Do not touch the playing side.
• Before inserng a disc, wipe the disc outward from the disc
center with a clean, so, dry and lint-free cloth. Do not use
solvents or thinners such a petrol/benzene or clearners.
• Aer removing a disc from the disc slot, place the disc in a sleeve
or case to keep it clean and prevent scratches.
• Do not sck paper or tape on the disc surface. If there is glue(or
adhesive) on the disc surface, remove it before using the disc.

Copyright Notes:
This product incorporates copyright protecon technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporaon and other rights owners.
Use of this copyright protecon technology must be authorized by Macrovision
Corporaon, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporaon. Reverse engineering or
disassembly is prohibited.
Region Management informaon:
This product iis designed and manufactured to respond to the Region Management
Informaon that is recorded on a digital video disc. If the Region number described
on the digital video disc does not correspond to the Region number of this DVD
player. the disc cannot be played on by this DVD player.
INSTALLATION:
• Before Installaon:
- We recommend you to let a professional technician install the unit in vehicle.
- Disconnect negave baery terminal of vehicle.
- Revome the trim ring from unit (if installed).
• Mounng the Head Unit:
- Carefully remove the exisng head unit.
- Before finally installing this product, connect wiring harness temporarily and
make sure it’s all connected up properly and test the head unit if it can work
properly. (Consult a qualified technician if you unsure)
- Insert the mounng sleeve into the installaon dashboard.
- Bend mulple mounng tabs around the mounng sleeve unl the mounng
sleeve is secure.
- Connect all wiring harnesses and slide the head unit into the mounng sleeve
unl it clicks into place.
- To fix this DVD player onto the rear part of the chassis using the mounng
sleeve, metal strap, hex bolt and screws to the vehicle.
Note: if you need other screws to fix other terminal, please buy from your dealer
according to the drilling of holes size.

Hex Bolt
Spring Washer
Plain Washer
Tapping Screw
Screwdriver
Tabs
Hex Nut
Dash Board
Key Plate
Key Plate
Plasc Trim Out
Metal Mounng Strap
Console
Slide Bracket Housing
INSTALLATION:
Wiring Connecons:
Gray: Front Right (+)
Gray/Black: Front Right (-)
White: Front Left (+)
White/Black: Front Left (-)
Violet: Rear Right (+)
Violet/Black: Rear Right (-)
Green: Rear Left (+)
Green/Black: Rear Left (-)
Red: ACC 12V (+)
Yellow: BATTERY 12V (+)
Black: GND (-)
Blue: ANT (+)
Orange: BACK (+)
Pink: BRAKE (-)
Orange/Black: ILL (+)
Brown: SWC 1
Brown/white: SWC 2
Black: SWC-GND
Audio/Audio I/O Connections
1. Rear View Video input (Yellow)
2. Subwoofer Output 2 (Green)
3. Subwoofer Output 1 (Green)
4. Video input (Yellow)
5. Left Audio input (White)
6. Right Audio input (Red)
7. Video Output 1 (Yellow)
8. Rear Left RCA Output (White)
9. Rear Right RCA Output (Red)
10. Video Output 2 (Yellow)
11. Front Left RCA Output (White)
12. Front Right RCA Output (Red)
FUSE 10A
ANT
10A
Speaker/Power Connections

Wiring Connecons:
RED
YELLOW
BLACK
BLUE
ACC
B+
GROUND
POWER ANTENNA
FRONT LEFT
CHANNEL SPEAKER
REAR LEFT
CHANNEL SPEAKER
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
SWC - GND
SWC - 1
SWC - 2
REVERSE (+)
PARKING BRAKE (B-)
ILLUMINATION (+)
FRONT RIGHT
CHANNEL SPEAKER
REAR RIGHT
CHANNEL SPEAKER
ORANGE
BROWN
BROWN / WHITE
BLACK
PINK
ORANGE / BLACK
GRAY
GRAY / BLACK
VIOLET
VIOLET/BLACK
Note: the ground connecon cable (parking brake B-) must be connected in
order for pictures to be played back to the monitor. If the cable has not been
correctly connected, warning message appears on the monitor.
Control Panel Buons:

1. OPEN/ BUTTON
Briefly press to slide the monitor out of slot.
Repeatedly press this buon to lt up and down the monitor.
Press and hold this buon to slide the monitor inside of the slot.
2. /MODE BUTTON
In power off mode, press it to turn on the unit. Long press it to turn off the unit.
In power on mode, short press it repeatedly to select one mode of the RADIO,
DISC, USB, Bluetooth and AUX IN(AV IN).
3. Volume KNOB / SELECT BUTTON
Rotate the VOL knob to increase or decrease the volume level.
Press the SEL buon to access to audio sengs: Volume, Dimmer, Bass, Treble,
Balance, Fader, Loundness On/off, EQ Standard/Classic/Rock/Pop/Jazz/ Electric
/User.
4. Handsfree Microphone
Uses the bluetooth handsfree system to receive your voice when calling.
5. IR REMOTE SENSOR
6. Tune Previous/ Skip Previous track, Reject and End Call ( )
In Radio mode, press it to tune radio frequency downward one step at a me.
Press and hold to scan strong singal radio staon downward step by step.
In Disc/USB/BT music playback, press this buon to skip previous track.
Press and hold this buon to fast backward playback.
In BT mode, press this buon to reject an income call or end a call.
Control Panel Buons:

7. MUTE ON/OFF, PTY(Program Types)
In power on mode, press the MUTE buon to toggle mute on or off.
In radio mode, press and hold the PTY buon, you can select specific staons
of a certain program type such as News, Info, sports, Talk, Rock etc..
8. (PLAY/PAUSE) /CH 1-6 (PRESET RADIO STATION)
• In Disc/USB/BT music playback mode
Press this buon to pause playback, touch again to resume playback.
In Radio Mode
Press repeatedly to preset radio staon. With this system a total of 30 staons
can be stored in the memory. Each band store up to six preset staons.
The staons might be FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2) band.
• In Radio Mode
Press repeatedly this buon to recall the preset staons which had been stored
in the memory in advance.
9. Tune Nest/ Skip Next track, Make a Call, Receive and Redial Last Call ( )
In Radio mode, press to tune radio frequency upward one step at a me.
Press and hold to scan strong singal radio staon upward step by step.
In Disc/USB/BT music playback, press to skip next track.
Press and hold to fast forward playback.
In BT phone mode, press the buon to make a call / receive a call / redial
the last dialed phone number.
10. (EJECT) BUTTON
Insert the disc, label side facing up, unl the mechanism senses its presence and
draws the disc in. Press it to eject the disc.
11. USB PORT
The USB port is designed for media playback from flash memory devices and
charging for iPhone / andriod mobile phone. The charging current consumpon
is 1 ampere. Open the cover for USB device use.
If you would like to play MP4/MP3/WMA files contained in a USB sck.
Please open the cover, and insert the USB sck into the USB port.
12. AUXILIARY INPUT JACK
Insert an external device to this 3.5mm auxiliary jack in order to have audio
output of the device through the unit.
13. BAND( For XM-D750 Only)
In radio model, press BAND to select between FM1, FM2, FM3, AM1 and
AM2 bands.
Control Panel Buons:

Control Panel Buons:
14. TA(Traffic Announcement Sengs)/AF(Alternave Frequencies),
(For XM-750 Only)
In Radio mode, briefly press the TA/AF buon to toggle TA on or off.
• ON: TA symbol will be displayed if this funcon is acvated. In the TA mode,
once a traffic message is received, the unit switches to the radio staon from a
different mode(e. g. USB mode).
• OFF: The funcon is deacvated.
In Radio mode, press and hold the TA/AF buon to toggle AF on or off, the device
searches the best frequency for the selected staon.
• ON: If a certain broadcast staon has bad recepon, the device switches
automacally to a broadcast staon broadcasng the same program via the
same RDS broadcast chain.
• OFF: The funcon is deacvated.
15. Release the detachable front panel
If you want to remove the front panel from the chassis for safe keeping, please
press this release buon to detach this lile front panel.
16. RESET SYSTEM
The RESET buon is used to reset all paramenters to factory default sengs.
This funcon may be used when the LCD does not display normally or sound is
distorted, or when any of controls are disabled.
Gently press the RESET buon to reset your system with a thin object with a
pointed end.
Remote controls:
1. OPEN /
Briefly press this buon to slide the monitor out of slot.
Repeatedly press this buon to lt up and down the
monitor.
Press and hold this buon to slide the monitor inside of
the slot.
2. (Power on/off), MODE
Press it to turn the unit ON or OFF.
Press it briefly to select different modes: DISC, RADIO,
USB, Phonelink,Bluetooth and AUX IN / AV IN
3 & 7. /
In Disc/USB Playback mode, press each one to reverse
and fast forward with X2, X4, X8, X20 speed.
In Radio mode, press each one to select the next or the
previous preset staon.
4. AS /
In Radio mode, press and hold AS buon to store 18 FM staons and 12 AM staons
automacally.
Press it briefly to recall the preset staon that stored in memories in each band.
Press the buon to make a call / receive a call / redial the last dialed phone
number.
5. (Play/Pause)
In Disc/USB/BT music playback mode, press it to pause playback.
Press it again to start where playback stopped.

Remote controls:
6 & 17. /
In Disc/USB/BT music playback, press both buons to
skip next or previous track.
In Radio mode, press each one to seek tuning down
or up.
Press and hold each one to manual tuning down or up.
8. TITLE
In DVD playback, press this buon to enter tle menu
which is recorded on the media. (If the DVD disc with
tle menu).
9. RPT(Repeat playback) / 2
In Disc/USB playback mode, press and hold the RPT
buon to enter different repeatedly playing modes:
Repeat tle, Repeat One, Repeat Dir(folder), Repeat All.
In radio mode, press to store or recall the preset staon 2.
10. DISP / 1
In video playing mode, press and hold DISP buon show informaon such as Title
number, Chapter number, Track number, elapsed me, remain me etc.
In radio mode, press to store or recall the preset staon 1.
11. AUDIO / 5
In DVD playback, press and hold AUDIO buon repeatedly to switch the language
of audio if the DVD disc is recorded with mul-languages.
In VCD playback, press and hold AUDIO buon repeatedly to switch L/R or stereo
audio track.
In radio mode, press to store or recall the preset staon 5.
12. MENU / 4
In DVD playback mode, press and hold the MENU buon to display the root level
directory of DVD disc.
In radio mode, press to store or recall the preset staon 4.
13 & 21. VOL+/VOL-
Use these controls to adjust the volume level.
14. SEL
Press to turn to EQ sengs.
15. MUTE
In power on mode, press the MUTE buon to toggle mute on or off.
16. BAND /
Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands.
In BT mode, press the buon to reject an income call or end a call.
18. EQ
Press repeatedly to cycle through the different equalizer curve presets you may wish to
use for enhanced listening.
19. RDM / 3
In Disc/USB Playback mode, press and hold RDM buon to play tracks in random order,
press again to cancel the RDM funcon.
In radio mode, press to store or recall the preset staon 3.
20. SUB-T/6
In DVD playback, press and hold the SUB-T buon repeatedly to switch the language
of subtle if the DVD disc is recorded with mul-subtles.
In radio mode, press to store or recall the preset staon 6.

Setup Operaons:

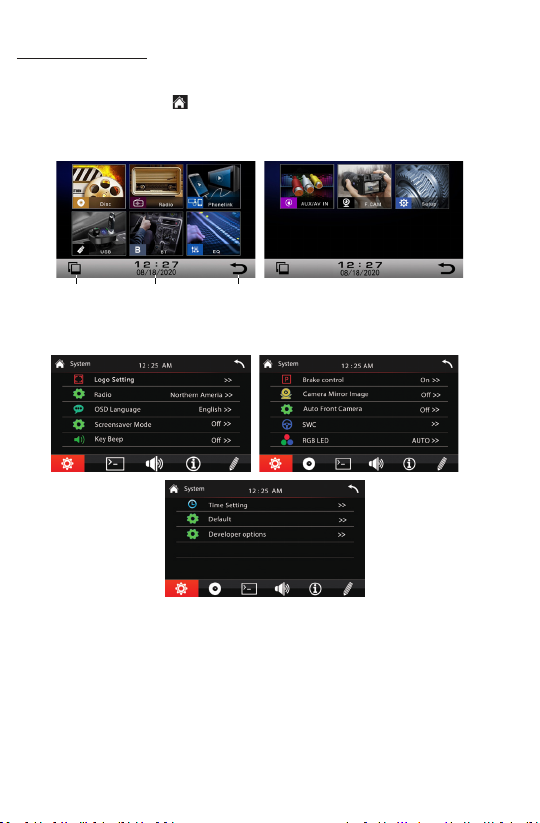

Main Menu:
In each mode, touch the icon to enter the main menu as below image.
In the main menu, tap the desired icon to enter each of the following sengs:
Disc(CD/VCD/DVD), Radio, Phonelink, USB, Bluetooth, EQ Preset, AUX/AV IN,
F.CAM(Front View Camera), Setup.
In main menu, touch the “ Setup” icon to enter the setup menu, as below image.
Then user can set up or adjust the general sengs for this DVD player.
Wallpaper Time & Clock Return
A. System: Logo Seng, Radio Area, OSD Language, Screensaver Mode, Key Beep,
Parke contro, Headlight Detecon, Camera Mirror Image, Auto Front Camera
On/Off, SWC, RGB LED Seng, Time Seng, Default.
• Logo Seng: To set a logo as the splash screen for this DVD player.
• Radio Area: To choose the radio area: EUROPE, Northen America, South America,
Russia, Japan, Asia.
• OSD Language: English, Chinese, Arabic, Greek, Thai, Hebrew, Turkish, Russian,
French, German, Spanish, Persian, Indonesian, Portuguese, Italian.
• Screensaver Mode: Enables or Disables the screensaver of this DVD player.
• Key Beep: Enables or Disables the beep buzzer signal to confirm use.

Setup Operaons:
• Parke control: Enables or Disables the brake detecon.
This safety feature to prevent driver distracon. We recommend user to enable this
brake detecon funcon. When enable this funcon, user were forbidden to watch
video from this unit while this system is not detect the brake signal of the parking
brake.
• Camera Mirror Image: Enables or Disables the camera mirror image.
• Auto Front Camera: Allows you to preset the duraon of the front view camera video:
Off, 5 seconds, 10 seconds, 15 seconds.
• SWC(Steering Wheel Control)
Tap “SWC” to enter the study operaon menu.
First, make sure the SWC connecng wires have
been connected to this unit.
Before study, tap the icon to clear all
previous sengs.
Press and hold a steering wheel buon, at the
same me, tap the funcon buon on touch
screen that you want to set on to the steering wheel.
• RGB LED (Key Lights):
- To preset the color of buon illuminaon: Red, Blue, Purple, Green, Yellow, Cyan,
White, Auto(color automacally change one by one), LED Off.
• Time Seng:
Tap the “Time Seng” to enter the me seng
interface, tap the and buon to
adjust Year, Month, Day, Hour, Minute.
Tap the buon to preset 12 or 24 Hours
format as sytem clock me format.
Tap the buon to preset date format.
• Default
Tap this item to restore to all parameters to
factory default sengs.
B. DISC(DVD Setup):
Tap the icon to set up the DVD system language:
• Audio Language: Chinese, English, Japan, French,
Spanish, Portuguese, Lan, German
• Subtle Language: Chinese, English, Japan,
French, Spanish, Portuguese, Lan, German
• Menu Language: Chinese, English, Japan, French,
Spanish, Portuguese, Lan, German
• Password: Allows you to change the password,
first input old password, then you can
change the password for parental control rang
as your favour. The factory default password is “0000”.
• Rang: Every me changing parental control rang, user have to input the password.
User can select one of below suitable parental control rang: 1 Kid Safe, 2 G, 3 PG,
4 PG 13, 5 PG-R, 6 R, 7 NC-17, 8 Adult.

Setup Operaons:
C. Screen(Video Sengs)
Tap the icon to set up the video parameter of screen:
• Adjust(Video Parameter Sengs)
Tap this item to set the Brightness, Contrast,
Hue, Saturaon, Sharpness of this TFT screen.
- Brightness: 00, ~, 36
- Contrast: 00, ~, 36
- Hue: 00, ~, 36
- Saturaon: 00, ~, 36
- Sharpness: 00, ~, 36
Tap the icon to clear all previous sengs.
• Touch Calibraon
Touch this item to enter touch screen calibraon mode,
Tap the cursor “+” connuously unl it move to next posion. Follow the cursor
to finish the calibraon of touch screen.
• Wallpaper: To change the wallpaper.
D. Audio Sengs
Tap the icon to enter the audio seng:
Tap the “car” icon to enter the sound effect
mode, tap the EQ buon to enter EQ seng.
• Sound effect:
Tap the FL, FR, RL, RR, ALL buon to preset the
sound effect in car.
Move the blue circle at the middle of “car
inside” interface to quick preset sound
effect for driver, front seat passenger, le
back passenger, right back passenger and
all passengers in the car.
- Tap the “ ” buon to clear all the audio
sengs.
- Tap the “ ” buon to exit from the
audio seng.
• EQ Presets:
- User can preset EQ: User -> POP -> Classic
-> Rock -> Jazz.
- Tap LOUD buon to enables or disables loudness.
- Tap SUB buon to enables or disables subwoofer output.
E. Version (System informaon)
Tap this item to view the soware version.
F. Version (Factory Setup)
Tap this item to enter factory setup.

1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight brightness Adjust
5. Disc Eject
6. Acve Media
7. Current Radio Recepon State
8/9. Tune/Seek Down & Tune/Seek Up
Tap this buon to seek tuning down or up.
Tap and hold this buon to move radio frequency down or up one step at a me.
10. Preset Staons
Tap and hold one of preset staon touch buons to store the preset staon.
Tap one of preset staon touch buons to recall the preset staon.
11. Band Selector
12. (Automac Store Preset Staons, Automac Scan Preset staon)
Tap and hold this buon for more than 2 second to store staon automacally.
Tap this buon to recall each preset staon that stored in the memories.
13. Stereo/Mono Recepon
14. DX/LOC Recepon
15. Input a specific radio frequency
16. Audio Seng
17. PTY(Program Types)
Touch to display program types. Search for staons according to program type.
18. TA(Traffic Announcement)
Tap the TA buon to enables or disables the TA funcon (traffic informaon).
This funcon is used for maintaining a program being listened to during a trip if its
frequency changes.
19. AF(Alternave Frequencies)
Tap this buon to enables or disables the alternave frequency seek mode (AF).
When this funcon is enabled, the tuner will periodically scan received frequencies
and play any traffic informaon message that may be broadcast.
Radio Operaons:
Press the MODE buon on the remote control, or tap the “Radio” icon on touch screen
to enter radio mode.
11
1 2 5 643
10
7
8
9
12 13 14 15 16
17 18 19

Insert DVD/CD Disc
With the label facing up, insert a standard size DVD/CD disc into the disc slot.
Eject DVD/CD Disc
on faceplate) or tap the icon on the touch screen to eject the disc.
• This USB port is designed for media playback from flash memory devices.
If you would like to play MP4/MP3/WMA/JPEG files contained in a USB flash memory
device, please insert the USB flash memory into the USB port.
• This USB port is also designed for phonelink and charging for iPhone / andriod mobile
- DVD Playback
remote control, or tap the “DISC” icon on touch screen to switch DVD playback.
1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight brightness Adjust
5. Disc Eject
7. Previous Track / Fast backward
8. Play/Pause
9. Next Track / Fast forward
10. Stop Playback
41 2 3 65
78 9 10 11 12 13 14 15 16 17 18 19 20 21
11. Root Menu
12. Next Page of the Menu Bar
13. Previous Page of the Menu Bar
14. Repeat Playback
15. Random Playback
16. Title Menu
17. Zoom In/ Zoom Out

- CD, CD-R/CD-RW/ MP3 Disc Playback:
DVD/CD/MP3/USB Card Operaons:
- VCD Playback:
1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight brightness Adjust
5. Disc Eject
6. Acve Media
7. Previous Track / Fast backward
8. Play/Pause
9. Next Track / Fast forward
1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight Brightness Adjust
5. Disc Eject
6. Acve Media
7. Previous Track / Fast backward
8. Play/Pause
9. Next Track / Fast forward
10. Sort the List of the Folders and Files
11. View the Music File List
41 2 365
78910 11 12 13 14 15 16 17 18 19 20 21
41 2 365
78910 11 12 13 14 15 16 17 18
10. Stop Playback
11. Repeat Playback
12. Next Page of the Menu Bar
13. Previous Page of the Menu Bar
14. Random Playback
15. PBC(Playback Control) On/Off
16. Zoom In/ Zoom Out
17. Audio Track Selector
18. Audio Sengs
12. Next Page of the Menu Bar
13. Previous Page of the Menu Bar
14. Repeat Playback
15. Random Playback
16. Audio Sengs
17. View the Root Directory in Disc
18. View the Music Files/Folders
19. View the Video Files/Folders
20. View the Photo Files/Folders
21. Return

DVD/CD/MP3/USB Card Operaons:
- Photo Playback:
1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight Brightness Adjust
5. Disc Eject
6. Acve Media
7. Previous Track / Fast backward
8. Play/Pause
9. Next Track / Fast forward
10. Sort the List of the Folders and Files
11. View the Music File List
1. Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight Brightness Adjust
5. Disc Eject
6. Acve Media
7. Previous Photo
8. Play/Pause
9. Next Photo
41 2 365
78910 11 12 13 14 15 16 17 18 19 20 21
41 2 365
78910 11 12 13 14 15 16 17

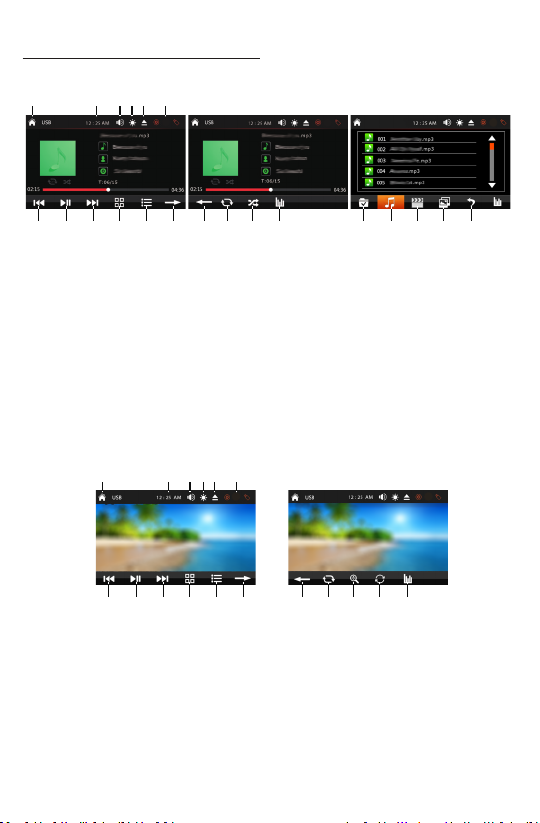

- MP3 Disc/USB Card Playback:
12. Next Page of the Menu Bar
13. Previous Page of the Menu Bar
14. Repeat Playback
15. Random Playback
16. Audio Sengs
17. View the Root Directory in USB
Flash Memory Device
18. View the Music Files/Folders
19. View the Video Files/Folders
20. View the Photo Files/Folders
21. Return
10. Sort the List of the Folders and Files
11. View the Photo File List
12. Next Page of the Menu Bar
13. Previous Page of the Menu Bar
14. Repeat Playback
15. Zoom In/ Zoom Out
16. Rotate Photo
17. Audio Sengs

Bluetooth Operaons:
-Pairing and Connecng
Before using a Bluetooth phone with this unit, the phone must be paired and
connected. The Bluetooth signal of the unit will broadcast when the power is on.
This DVD player will displayed as "XOMAX" on your phone.
When prompted, enter the pass code "0000" on your phone. Once paired, the
Bluetooth phone should automacally connect this unit whenever the unit is in range.
- Make a call
Input the phone number by using the keypad in
Bluetooth mode.
- Making and Ending a Call
Tap to make a call, and tap to end a call.
- Redial last dialed number.
Tap to redial the last dialed phone number.
- Transferring Audio
Tap icon to transfer audio between this car
bluetooth hands-free system and mobile phone.
- Disconnect or reestablish bluetooth connecon
Tap to disconnect the bluetooth connecon.
Tap to reconnect the bluetooth connecon.
- Viewing Recent Call List
Tap icon to view the income calls.
Tap icon to view the outgoing calls.
Tap icon to view the missed calls.
Tap icon to refresh the recent call list.
- Contacts List (Phonebook)
Tap icon to view the contacts(phonebook).
Tap icon to refresh the phone book.
Tap icon to and input a key-leer to retrieve
the specified contacts.
- Streaming Audio
Tap icon on bluetooth mode to enter the
music control playback interface.
Tap icon to skip to the previous track.
Tap icon to play or pause the music.
Tap icon to advance to the next track.
- Setup
Tap icon to set auto connect, auto answer and
Pin Code.
- Audio Sengs
Tap icon to set sound effect and EQ sengs.

Phone link allows you to mirror the screen of certain Android smartphones on the
screen of this car DVD player. Simply connect your device to the USB port
and you're ready to see your favorite smartphone apps directly on the screen.

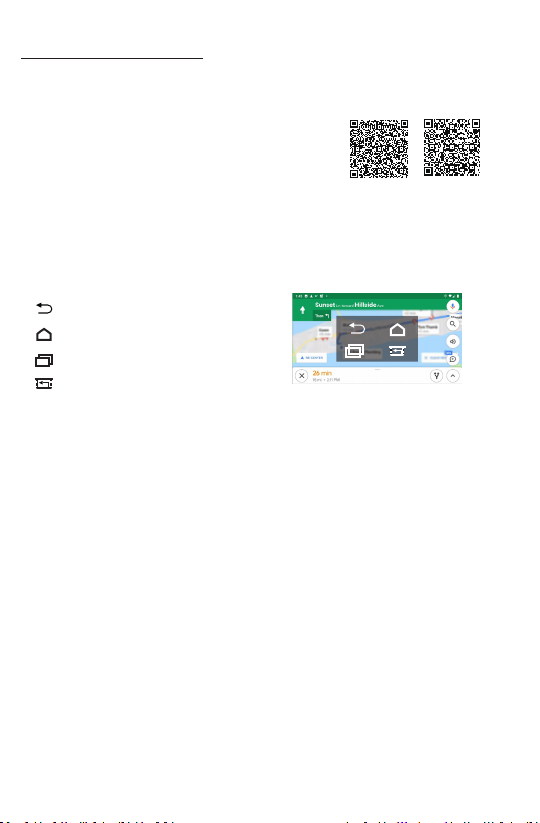

- Android phone link:
1) Please scan one of QR code on right side to download
the “Phonelink” app and install it to your smartphone.
2) Connect the original cable of your Smartphone, first to the car DVD player in
the USB port, and then connect it to your phone.
3) Now the car DVD player’s screen will do the mirror funcon with your smartphone
and you will be able to run any applicaon or funcon of your smartphone.
Using of the Icons:
1. : Return to the previous step
2. : Return to home page of smart devices
3. : Landscape mode (Rotate the screen)
4. : Exit the phone link mode
Android Phone Link Operaons:
Note:
a. To unlink your smartphone from the car DVD player, just disconnect the USB
cable again.
b. For Android smart devices, this unit support two-way control (both by the car DVD
player and connected smart devices).
c. For Android smart devices, the Bluetooth must be connected, to have sound output.
d. Some phones do not support Landscape mode on the home screen.
AMAZON GOOGLE

Technical Specificaons:
• 1 DIN Size Universal Standard
• Power Output: 4 x 60 Wa (240 Max.)
• 7 inch Wide Screen TFT Video Display
• Pixel Resoluon: 800 x 480 Pixels
• Brightness: 400 Nits
• Aspect Rao 16:9 High Definion
• Video System: NTSC/PAL (Auto Recognion)
• FM Tuner Frequency Range: 87.5 ~ 108.0 KHz (50KHz/Step)
• AM(MW) Tuner Frequency Range: 522 ~ 1620 KHz (9KHz/Step)
• Bluetooth A2DP, AVRCP Support
• Loundly Speaker Impedance: 4 Ohm
• Signal to Noise Rao: 60dBA
• Frequency Response: 20Hz - 20KHz
• Connecon Interface: AV (RCA) Inputs/Outputs,Subwoofer Output
• Mulmedia Disc Support: DVD/VCD/CD/CD-R/CD-RW/VCD/MP3/MPEG
• File Compability: JPEG, MP3, AVI, WAV and More
• USB Flash Memory Device
• Working Voltage: DC 12V
• Chassis Dimensions (W x H X D): 178 x 50x 166 mm (Not Included Metal Sleeve)
