Clarion VX603AU User manual

VX603AU
Owner's manual
DVD MULTIMEDIA STATION WITH BUILT-IN
BLUETOOTH & 6.2" TOUCH PANEL CONTROL
NAVIGATION READY (SD603AU SOLD SEPARATELY)

NOTICES / WARNINGS
English
VX603AU
Navigation: (SD603AU sold separately)
Although the navigation MicroSD (SD603AU) is sold separately, it is important to know
that the GPS antenna is supplied with your VX603AU.
Clarion strongly recommends that the GPS antenna be installed at the same time
as your unit. This will save time and possibly additional installation cost in the future
because your unit will have to be removed from the dashboard.
For your safety, the driver should not watch any video sources and/or operate the
controls while driving. This includes the use of reversing cameras while travelling in a
forward direction which is prohibited, according to Australian Road Laws.
Clarion strongly recommends that when installing a reverse camera to this product,
the camera’s power source be derived from the vehicles reversing lamp circuit either
directly (if suitable) or via the use of a relay. This will ensure that the reverse camera
can only be viewed while the vehicle is travelling in a reverse direction.
Reverse Camera Warning:
Warranty Conditions:
For detailed information regarding warranty conditions please see the separate
warranty card enclosed with your product. There you will also find information regarding
how to register your product for Clarion’s “Free Extended Warranty” program.
• “Free Extended Warranty” subject to terms and conditions
You can also view the warranty conditions at any time by visiting the Clarion website
and clicking on the “Warranty Information” link.
http://www.clarion.com.au
Legal Safety Requirement:
According to Australian law, it is illegal for a driver to view a video source while the
vehicle is in motion. It is a legal requirement that the park brake wire of this unit
be connected to the vehicle park brake terminal.
Clarion Co. Ltd., Clarion Australia Pty. Ltd. will not be held responsible for improper
installation of this product which infringes any law.
GPS Antenna:
Your VX603AU is navigation ready. If you did not include navigation in your original
purchase, you can very easily add navigation to your unit at any stage by purchasing the
Clarion SD603AU. Installation is as simple as inserting the MicroSD card.
The SD603AU comes with full 3D map coverage of Australia & New Zealand and includes
features such as: Turn-by-turn voice guidance with Text-to-Speech, Motorway Junction
View, Tunnel View, SUNA Predictive Traffic, 3D City & 3D landmarks, Extended Points of
Interest, School Zones, Speed Camera and much more.
To ensure you are not purchasing a product where the map is out of date, the SD603AU
comes with a “Latest Map Guarantee”. This means that no matter when you decide to
purchase the SD603AU, you have a full 30 days to download the latest map via Clarion’s
decicated update site, “clarion.naviextras.com”.

1. FEATURES ........................................................................................................................ 4
Expanding Systems........................................................................................................... 4
2. PRECAUTIONS ................................................................................................................. 5
3. CAUTIONS ON HANDLING .............................................................................................. 6
Front Panel / Generalities.................................................................................................. 6
Cleaning the body ............................................................................................................. 6
USB Port ........................................................................................................................... 6
SD Slot .............................................................................................................................. 6
Handling Discs .................................................................................................................. 7
4. CONTROLS ....................................................................................................................... 8
Operational Panel.............................................................................................................. 8
Names of Buttons.............................................................................................................. 8
Remote Control ................................................................................................................ 9
5. MAIN MENU OPERATIONS............................................................................................ 11
6. SYSTEM SETUP.............................................................................................................. 12
7. DISC OPERATIONS ........................................................................................................ 15
DVD System.................................................................................................................... 15
Accessing a Disc ............................................................................................................. 17
DVD Player Operations ................................................................................................... 18
CD Player Operations ..................................................................................................... 20
MP3/WMA Playback........................................................................................................ 21
MP4/DivX Playback......................................................................................................... 23
8. SD/USB OPERATIONS ................................................................................................... 24
Accessing an USB........................................................................................................... 24
Accessing an SD Card .................................................................................................... 24
SD/USB Audio Operations .............................................................................................. 25
SD/USB Video Operations .............................................................................................. 25
9. BLUETOOTH OPERATIONS .......................................................................................... 26
Bluetooth Telephone Operations..................................................................................... 26
Bluetooth Audio Operations ............................................................................................ 28
10. RADIO OPERATIONS ................................................................................................... 29
11. PANDORA OPERATIONS ............................................................................................ 31
12. iPod & iPhone OPERATIONS ...................................................................................... 32
13. NAVIGATION OPERATIONS (Sold separately) ................................................................34
14. AUX OPERATIONS ....................................................................................................... 34
15. TROUBLE SHOOTING.................................................................................................. 35
16. ERROR DISPLAYS........................................................................................................ 38
17. SPECIFICATIONS ......................................................................................................... 39
18. WIRING AND CONNECTIONS...................................................................................... 40
Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
Contents
3
English
VX603AU

1. FEATURES
• 6.2” Wide-VGA colour LCD TOUCH PANEL
• Compatible with iPod®/ iPhone®via USB
• 4V/6ch RCA Output with HPF/LPF and BEAT-EQ with 3 Band Parametric
Equalizer
• Optional Navigation with "Latest Map Guarantee" (Navigation sold separately)

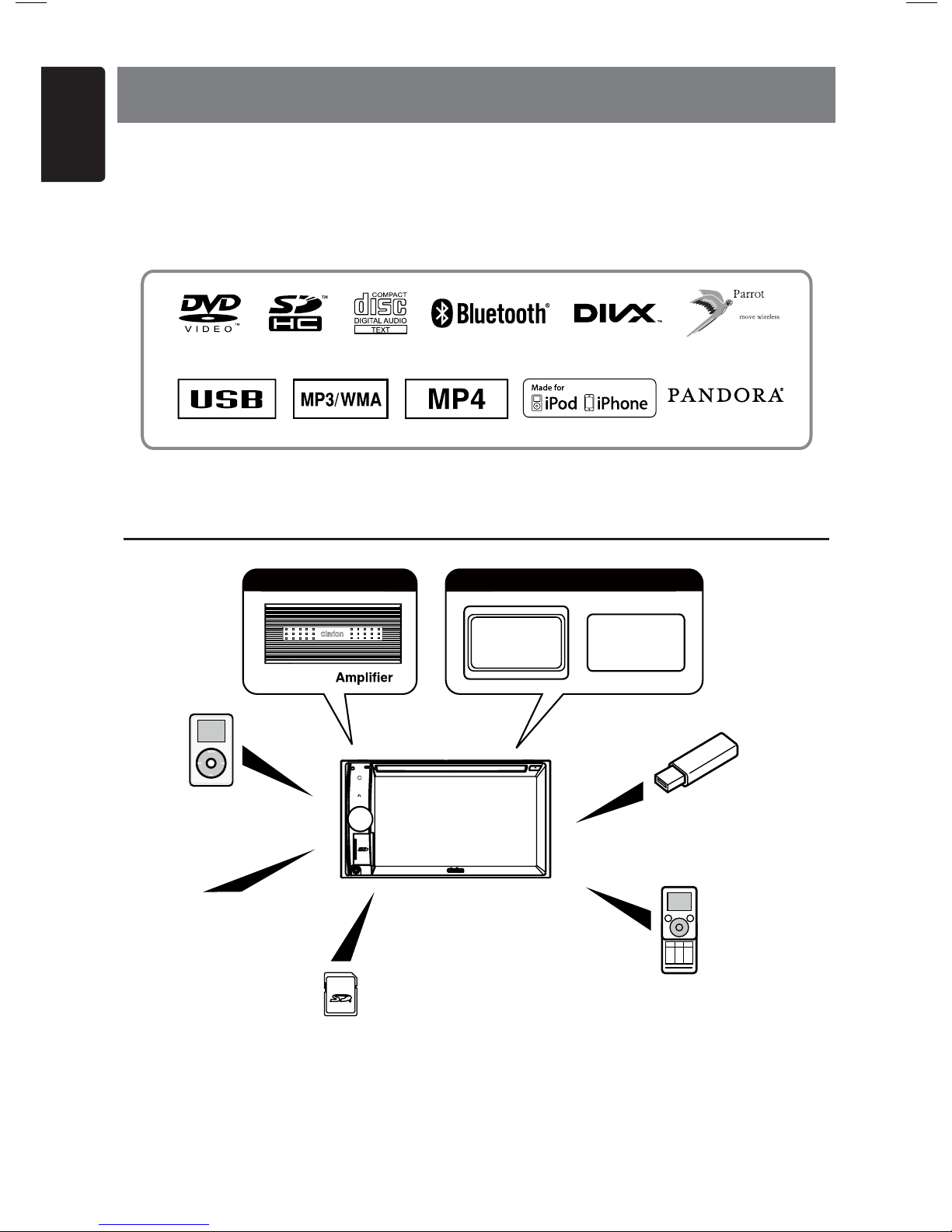

Expanding Systems
Portable Player
(Connect via AUX IN Jack)
USB Memory
Bluetooth®
mobile phone
iPod®/ iPhone®
Notes:
•.dlosyllarenegstcudorplaicremmocehterasemarfehtfoedistuodetsilsmetiehT
6 Channel
Expanding audio features
Rear
Monitor
Rear Vision
Camera
Expanding visual features
SD Card
4
English
VX603AU

2. PRECAUTIONS
For your safety, the driver should not operate the controls while driving.
Also, while driving, keep the volume to a level at which external sounds can be heard.
WARNING
1. When the interior of the car is extremely cold and the player is used soon after switching
on the heater, moisture may form on the disc or the optical parts of the player and proper
playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth. If
moisture forms on the optical parts of the player, do not use the player for about one hour.
The condensation will disappear naturally allowing normal operation.
2. Driving on extremely bumpy or rough roads can cause the disc to skip during playback.
3. This unit uses precision parts and components for its operation. In the event that trouble
arises, never open the case, disassemble the unit, or lubricate the rotating parts. Contact your
Clarion dealer or service center.
4. “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been
developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory with iPod or iPhone may
affect wireless performance.
iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.
5.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
6. This product incorporates copyright protection technology that is protected by U.S. patents
and other intellectual property rights. Use of this copyright protection technology must be
authorized by Rovi Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is
prohibited.
Use of this product by the customer is restricted to play program materials to which the Rovi
copyright protection process has been applied.
7. The Bluetooth®.cnI,GIShtooteulBybdenwoskramedartderetsigererasogoldnakramdrow
and any use of such marks by Clarion Co.,Ltd, is under license.
8. DivX® ® and associated logos are trademarks
of Rovi Corporation or its subsidiaries and are used under
license.
DivX Certified®to play DivX®video, including premium
content.
Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274
ABOUT DIVX VIDEO: DivX®is a digital video format created
by DivX, LLC, a subsidiary of Rovi Corporation. This is an
official DivX Certified®device that plays DivX video. Visit
divx.com for more information and software tools to convert
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified®device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more information
on how to complete your registration.
5
English
VX603AU
VX603AU
TX-1089K-C
VX603AU
PN:127071003539

3. CAUTIONS ON HANDLING
Front Panel / Generalities
For a longer service life, be sure to read the following cautions.
• Do not allow any liquids on the unit from drinks, umbrellas, etc. Doing so may damage the
internal circuitry.
• Do not disassemble or modify the unit in any way. Doing so may result in damage.
• Do not let cigarettes burn the display. Doing so may damage or deform the body.
• If a problem should occur, have the unit inspected at your store of purchase.
• The remote control unit may not work if the remote control sensor is exposed to direct
sunlight.
Cleaning the body
• Use a soft, dry cloth and gently wipe off any dirt and/or dust.
• For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirt
gently, then wipe again with a dry cloth.
• Do not use benzene, thinner, car cleaner, etc., as these substances may damage the body
or cause the paint to peel. Also, leaving rubber or plastic products in contact with the body for
long periods of time may cause stains.
USB Port
• The USB memory sticks must be recognized as “USB mass storage class“ to work properly.
Some models may not operate correctly.
When the memorised data is lost or damaged by any chance, Clarion shall not be liable
for any damage.
When using an USB memory stick, we recommend that you backup your data stored on it
before using a personal computer etc.
• Data files may be damaged when using a SD card in the following situation:
When taking out the card or turning the power off while data on the card is being read.
When affected static electricity or electric noise.
• Any issues that arise from connecting with a computer are not covered. Refer to computer
or USB drive product manual.
SD Slot
• When using a SD card, we recommend that you backup your data stored on it before using a
personal computer etc.
• Data files may be damaged when using a SD card in the following situation:
When taking out the card or turning the power off while data on the card is being read.
When affected static electricity or electric noise.
• Any issues that arise from connecting with a computer are not covered. Refer to computer
or USB drive product manual.
6
English
VX603AU
• Please note: The standard SDcard slot is for music, movie and/or background image files only.
The MicroSD card slotis for Navigation ONLY. Only insert SD603AU navigation card.

Handling Discs
Handling
ssenhguoremosevahyamscsidweN•
around the edges. If such discs are used,
the player may not work or the sound may
skip. Use a ball-point pen or the like to
remove any roughness from the edge of
the disc.

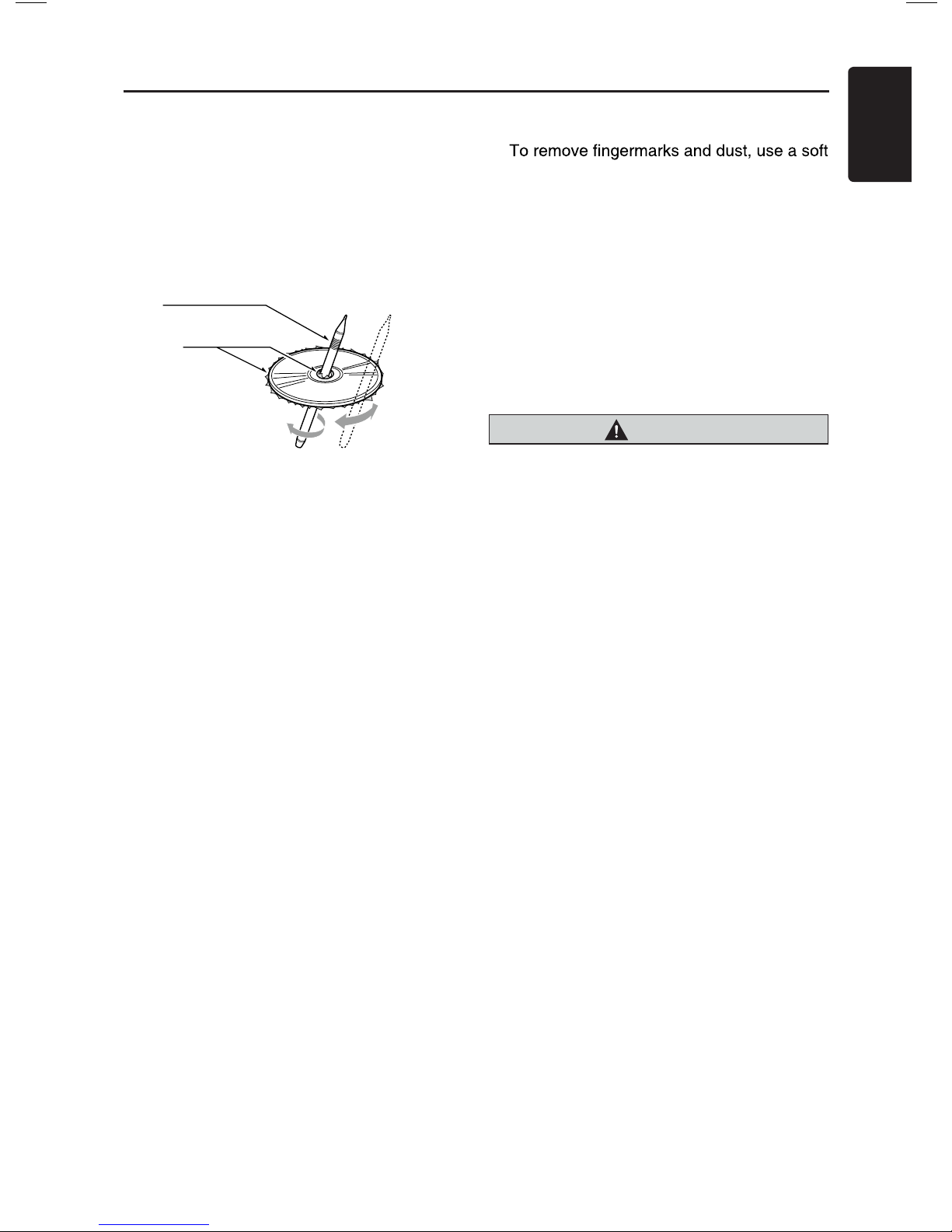

csidehtfoecafrusehtnoslebalkcitsreveN•
or mark the surface with a pencil or pen.
epatenahpollecynahtiwcsidayalpreveN•
or other glue on it or with peeling off marks.
If you try to play such a disc, you may not
be able to get it back out of the player or it
may damage the player.
,sehctarcsegralevahtahtscsidesutonoD•
are misshapen, cracked, etc. Use of such
discs may cause misoperation or damage.
,esacegarotsstimorfcsidaevomeroT•
press down on the center of the case and
lift the disc out, holding it carefully by the
edges.
csidelbaliavayllaicremmocesutonoD•
protection sheets or discs equipped with
stabilizers, etc. These may damage the
disc or cause breakdown of the internal
mechanism.
Storage
rothgilnustceridotscsidesopxetonoD•
any heat source.
roytidimuhssecxeotscsidesopxetonoD•
dust.
morftaehtceridotsc
sidesopxetonoD•
heaters.
Cleaning
•
cloth and wipe in a straight line from the
center of the disc to the circumference.
sahcus,stnevlosynaesutonoD•
commercially available cleaners, anti-static
spray, or thinner to clean discs.
csidehttel,renaelccsidlaicepsgnisuretfA•
dry off well before playing it.
On Discs
ehtevomerdnarewopehtffonrutreveN•
unit from the car with a disc loaded.
CAUTION
For your safety, the driver should not insert
or eject a disc while driving.
Ball-point pen
Roughness
7
English
VX603AU

[POWER/VOL] Knob
.nonoitinginehwmetsysehtnorewopotsserP•
.emulovehtetumotsserptrohs,norewopnehW•
.emulovehtesaercedroesaercniotbonkehtetatoR•
.metsysehtffonrutotdnoces1nahteromyeksihtdlohdnasserP•
[ ALL ] ALL MENU Button
• Short press to show/exit shortcut menu.
• Long press to show/exit main source menu.
[ ] NAVI/AV Button (If optional Navigation installed)
;edomnoitagivanretneotsserP•
.ecruostnerrucnruterotniagasserP•
[ ] EJECT Button
.csidtcejeotsserP•
[ MIC ] Hole
enohporcimlanretnI•
[RESET] Button
• Press to load original settings.
Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored
in memory are cleared.

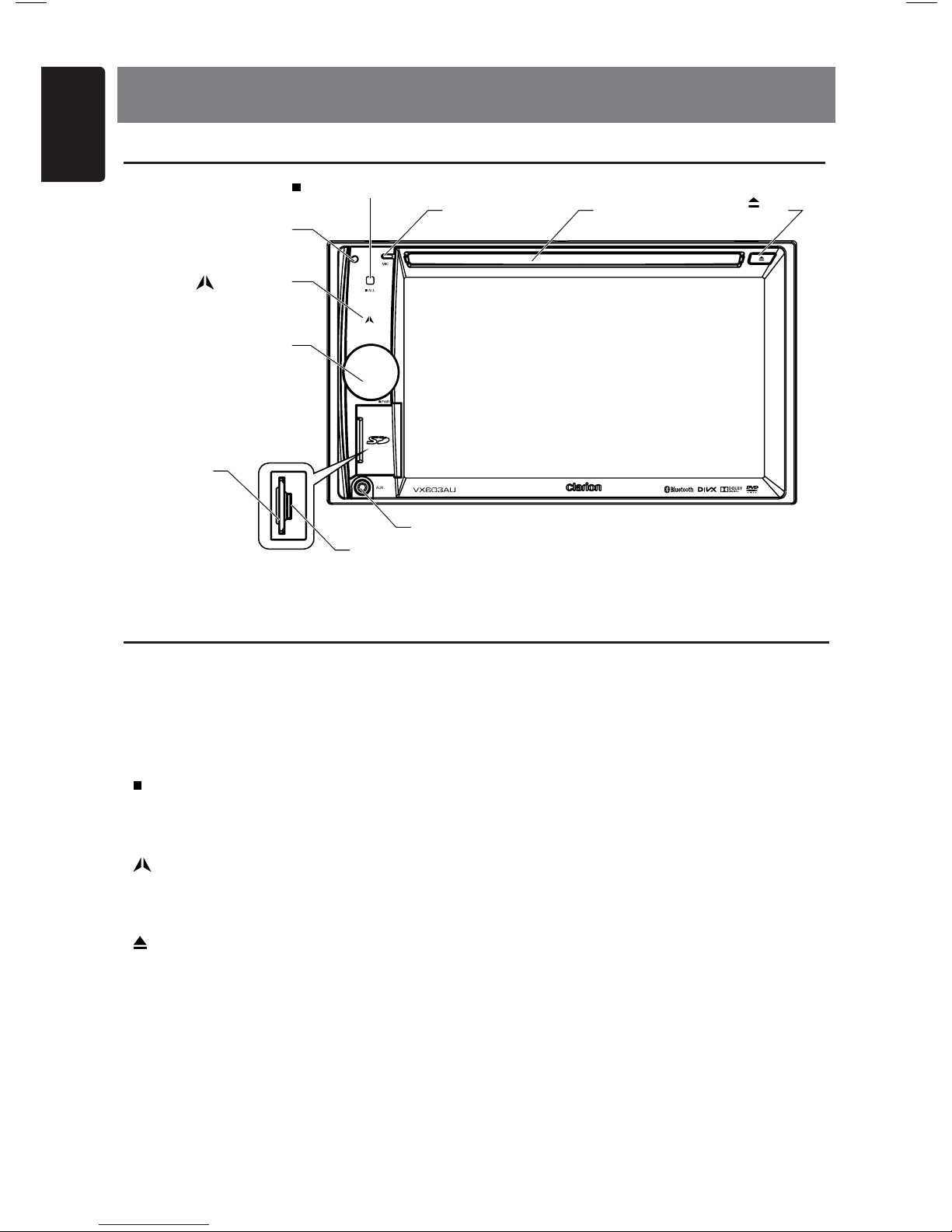

4. CONTROLS
Operational Panel
Names of Buttons
AUX Jack
SD/MMC
Card Slot
[MIC] Disc Slot
RESET
[POWER/VOL]
[ ALL ] ALL MENU
[ ] EJECT
[ ] NAVI/AV
Micro SD card slot (Navigation ONLY)
Only for Clarion navigation map card. (Sold separately) Inserting anything other
than specific navigation card may cause damage to the unit or your media.
8
English
VX603AU

Remote Control
[SRC / ] Button
• Show main source menu
• Power on / Power off (long press)
[OPEN] Button
• Not used
[+], [-] Buttons
levelemulovtsujdA•
[MAP] Button
edomnoitagivanretnE• *
[PIC] Button
neercstsujdA•
[BAND] Button
dnabrenuttceleS•
[TAG] Button
• Not used
[TITLE] Button
UNEMELTITDVD•
[RPT] Button
kcabyalptaepeR•
[ENT] Button
retnE•
[RDM] Button
kcabyalpmodnaR•
[ROOT] Button
UNEMTOORDVD•
[ ], [ ] Buttons
• Manual tune
• Fast backward/forward playback
[SUB.T] Button
eltitbusDVD•
[ANGLE] Button
elgnaDVD•
[ ], [ ] Buttons (Rear)
• Chapter up/down
• Fast backward/forward playback (long
press)
[SEND/END] Button
pukciP•
pugnaH•
[MUTE] Button
emulovehtetuM•
[0]~[9] Button
yekciremuN•
[SRCH] Button
edomtupnirebmuN•
[BACK] Button
aB• ck from source menu return to previous
display
[ ], [ ], [ ], [ ] Buttons
thgir/tfel/nwod/purosrucevoM•
*Button only functions if Navigation installed
9
English
VX603AU

[ / STOP] Button
esuaP/yalP•
)sserpgnol(potS•
[ ], [ ] Buttons
• RADIO mode
• Previous / next preset station
• Seek down/up (long press)
• DVD mode
Previous/next chapter.
• CD/BLUETOOTH mode
Previous/next track.
[ZOOM] Button
• ZOOM (DVD)
[AUDIO] Button
.egnahcmaertsoiduaDVD•
[SRC] Button (Rear)
ecruosraertxenegnahC•
[ ] Button (Rear)
esuaP/yalP•
)sserpgnol(potS•

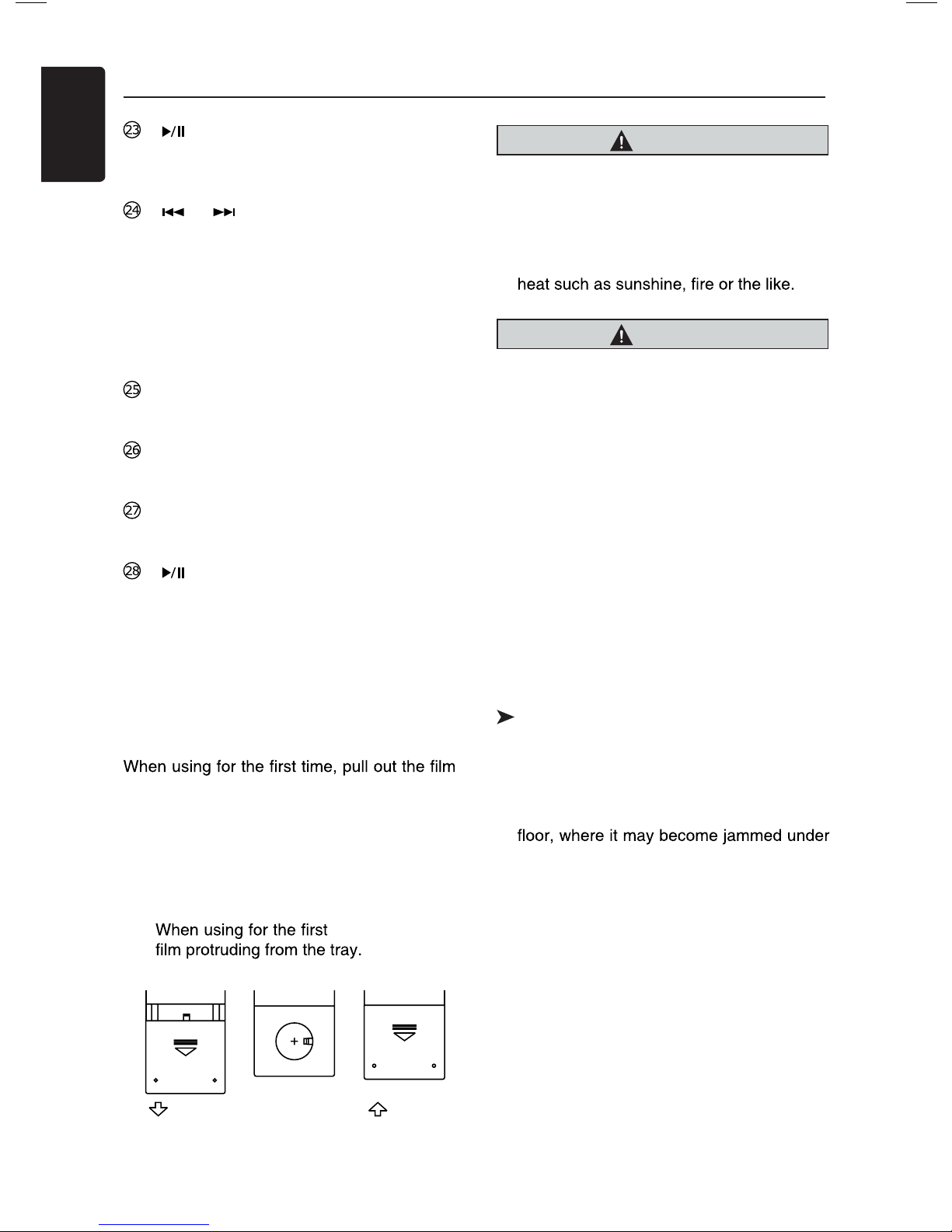

Remote Control
Use and care of the remote control
Using the remote control
Point the remote control in the direction of the
front panel to operate.
protruding from the tray.
Replacing the battery
S1 lide out the back cover of the remote
control.
I.2 nsert the battery with the plus (+) and
minus (–) poles aligned properly.
• time, pull out the
3. Close the back cover.
CAUTION
K• eep the battery out of the reach of
children.
Should the battery be swallowed, consult
a doctor immediately.
aB• tteries (battery pack or batteries
installed)must not be exposed to excessive
CAUTION
.yrettabmuihtil)V3(5202RCenoesU•
silortnocetomerehtfiyrettabehtevomeR•
not used for a month or longer.
• There is a danger of explosion if the
battery is incorrectly replaced. Replace
only with the same or equivalent type.
• Do not handle the battery with metallic
tools.
• Do not store the battery with metallic
objects.
• If the battery leaks, wipe the remote
control completely clean and install a new
battery.
nehW• dis posi ng of use d batt erie s,
comply with governmental regulations or
environmental public institutions’ rules that
apply in your country/area.
Important
• Do not store the remote control in high
temperatures or direct sunlight.
• The remote control may not function
properly in direct sunlight.
• Do not let the remote control fall onto the
the brake or accelerator pedal.
10
English
VX603AU

5. MAIN MENU OPERATIONS
Long press [ ALL ] button on the PANEL to
show main source menu.
Short press [ ALL ] button to show Short
cut menu.
Front Zone Source
Touch [ - ] on the bottom of screen to show
front zone sources.
Change page by dragging left or right or
touching other [ - ] buttons.
Touch the icons on the screen to enter
corresponding work mode, such as Disc
mode, Tuner mode, Telephone mode, etc.
Touch [Audio Off] to mute the volume.
Rear Zone Source
Touch [Rear] on the bottom of screen to
show rear zone sources.
Touch the icons on the screen to enter
corresponding work mode, such as Disc
mode, USB mode, iPod mode, etc.
Touch [2ZoneOff] to turn off the rear zone
monitor.
Custom Setting
Touch [Custom] on the bottom of screen to
show custom setting menu.
[Settings]: Touch the icon to enter system
setting menu. (see “System Setup”)
[Beat EQ]: Touch the icon to enter equalizer
setting menu. (see “System Setup”)
[Short Cut]: Touch the icon to enter Shortcut
setting menu. Hold the desired icon for more
than 2 seconds until it’s activated, then drag
it to the bottom. The name will appear on the
bottom.
tfelgarddnaneercsehtforetnecehtdloH•
or right to show more icons.
.stuctrohs5latotekamnacuoY•
Y• ou can access the shortcut list by
pressing the [ ALL ] button.
[Illumi Color]: Touch the icon to enter
Illumination color setting menu. (see “System
Setup”)
[Wallpaper]: T ouch the icon to e nter
Wallpaper setting menu. (see “System
Setup”)
[Monitor Off]: Touch the icon to turn off the
monitor.
To turn on the monitor, touch the monitor
again.
11
English
VX603AU

In all modes, long press [ ALL ] button to
enter main source menu. Touch [Custom]
on the bottom left of the screen, then select
[Settings] on the screen to enter Setting
menu. Touch the icons on the left of screen
to select category: General, Time, Sound,
Display or Setup. To exit Setting menu, touch
[ ] on the bottom left of the screen.
General
System language
Touch the button to the right of “System
language” to show language list. Select
desired language, touch [OK] to confirm, or
touch [Cancel] to exit without saving.
Close operation bar
When select [Auto], the operation bar will
close automatically after 10 seconds.
When select [Manual], the operation bar will
not close unless you touch the blank area on
the screen.
Main Menu Icons
When select [Active], main menu show
animation icons.
When select [Simple], main menu show
simple icons.
Illumi Color
Touch [Set] to the right of “Illumi Color” to
show key illumination setting menu.
Edit Color: There are 12 preset colors and
3 custom colors, you can select one color by
touch Color 1~12 or Custom 1~3.
Touch [Adjust] to show edit color menu.
Drag the color bar or inputting the RGB value
to select one color, touch [OK
Initialize: Load original buttons backlight.
Touch [ BACK ] on the bottom left of the
screen to return to main setting menu.
Wallpaper
Touch [Set] to the right of “Wallpaper” to
show Wallpaper setting menu.
Touch [ ] or [ ] button to select the scene,
to preview it, then touch [Set
setting.
To import images, touch [Import].
Select a mobile storage device on the
list, then select desired images and touch
[Import]. Touch [Cancel] to exit.
Beep
Touch [On] or [Off] to turn on/off the key
beep sound.
Blinking LED
Touch [On] or [Off] to turn on/off the blinking
LED.
At blinking LED [On] mode, when ACC off,
the LED on the top left of the panel will blink.
cancel
Touch [On] or [Off] to set the internal
System software
Touch [Version] to show current software
version.
Factory default
Touch [Restore] to load the original factory
settings.
Time
GPS sync (requires Navigation)
Touch [On] to synchronize time with GPS
and the following setting is disable: “Time”.
Time
Touch the button to the right of “Time” to
show time setting menu. Touch [ ] or [ ]
button to select hour or minute. Touch [Set]
Back] to exit without saving.
24-Hour format
Touch [On] to select 24-Hour format.
Touch [Off] to select 12-Hour format.
6. SYSTEM SETUP
12
English
VX603AU

Sound
Beat EQ
Touch the button to the right of “Beat EQ” to
showEQ setting menu. You can select : “Bass
Boost”, “Impact”, “Excite”, “Custom” or “Off”.
To adjust the value, touch [-] or [+] button on
the screen.
Touch [Back] to exit.
Balance/Fader
Touch [Set] to the right of “Balance/Fader” to
show Balance/Fader setting menu.
Touch [ ] or [ ] button to adjust Fader,
and touch [ ] or [ ] button to adjust
Balance.
Touch [Center] to reset the value.
Touch [Back] to exit.
Sub woofer control
Touch [-] or [+] button on the right of “Sub
woofer control” to adjust sub woofer level.
Sub woofer phase
Touch to select sub woofer phase Normal or
Reverse.
High pass
Touch the button to the right of “High pass
Touch [Cancel] to exit.
Low pass
Touch the button to the right of “Low pass
Filter” to show the sub-menu, then select the
Touch [Cancel] to exit.
Magna Bass Ex
Touch [On] to turn on the loudness.
Display
Dimmer Mode
Touch [Auto], [Day] or [Night] to choose
dimmer mode.
Auto: The dimmer is controlled by your car
light.
Dimmer
Touch [-] or [+] button to the right of “Dimmer”
to adjust dimmer.
The setting is only for Day or Night.
Setup
Touch [Setup] on the right of screen to
spread the setting list. then touch the button
to the right of desired option to adjust or
show the sub-menu. Touch [Close] to close
the list.
AUX
• Input Aux Sense (AUX1)
Choose “Low”, “Middle“ or “High” input
sense of auxiliary device.
Bluetooth
• Bluetooth
Choose Bluetooth function on or off.
• Telephone Speaker
Choose Front Left or Front Right speaker
at telephone mode.
• Tone Select
Touch [Auto] to use ringtones of your
mobile phone.
[hcuoT Internal] to use preset ringtone of
the unit.
• Software Update
Update the software.
Camera
• Camera Interrupt
[esoohC On], the screen will switch to rear
camera menu automatically when backing.
DVD
• Menu Language
Select menu language from list.
• Audio Language
Select audio language from list.
• Subtitle Language
Select subtitle language from list.
• Set Password
To set password for parental control,
Touch [Set] to show password menu.
13
English
VX603AU

Input numbers by touching the digit and
[OK] buttons. Touch [X] button to delete a
digit inputted. Touch [Back] to exit.
• Parental Control
Touch the button to the right of “Parental
Control” to show parental control menu.
Enter password, then select a parental
level. Touch [OK Back] to
exit.
Navigation
• Navigation Interrupt
Select navigation interrupt On, Pop-Up or
Off.
• Voice Guidance
tnI:NO errupt function of voice guidance
is on. While interrupting no attenuate
function of AV sound.
MUTE: Interrupt function of voice guidance
is on. While interrupting attenuate function
of AV sound is on.
OFF: Interrupt function of voice guidance
is off. While interrupting no attenuate
function of AV sound.
PANDORA
• PANDORA
Select PANDORA On or Off.
noitacilppa®arodnaPehtsahIf your iPhone
installed, please select on, otherwise set off.
Anti Theft
• Anti Theft code
You can set an Anti-theft code. After set
successfully, when Battery wire reconnect,
you need to input the Anti-theft code.
1. Long press the [General] button until a
dialog box popped up. Touch [Yes] to set
a personal code of Anti-Theft.
2. Input a 4-digit code. Touch [OK
To remove the code, long press the
[Ge neral] b utton and inpu t t he old
password.
Note:
Please make a note of the Anti theft code not
to forget. if the right code is not inputted, it
becomes impossible to operate this unit.
14
English
VX603AU
Note:
Navigation Interrupt / Voice Guidance settings
only when optional navigation is installed.

DVD System
DVD video is a high-quality digital video
source that provides crisp and clear images.
One 12 cm disc contains either one film or
four hours of music.
DVD Video Features
This unit provides the following functions in
addition to the high image quality and sound
quality of DVD video.
Notes:
rof,noitcessihtnidebircsedsnoitcnufehT•
example, the recorded language, subtitles,
angles, etc. differ depending on the DVD
video disc.
ehthtiwdedivorpsnoitcurtsniehtotrefeR
DVD video.
• S o m e dis c f u n c t i o n s m ay ope r a t e
differently from described in this manual.
Multi-sound function
DVD video can store up to 8 languages
preference.
eracsidehtnoderotssegaugnalehT•
indicated by the icon shown below.
Multi-angle function
angles allows you to select the angle of
choice.
eraselgnadedrocerforebmunehT•
indicated by the icon shown below.
Subpicture (subtitles) function
A DVD video can record subtitles for up to 32
languages and you can select the language
of the subtitles you wish to see.
T• he number of recorded subtitle languages
are indicated by the icon shown below.
Multi-story function
When a DVD video contains more than one
wish to enjoy.
The operation procedures vary with the disc;
observe the instructions for selecting a story
provided during playback.
Menu screens
Menu can be called up during DVD video
playback to perform menu setting.
yalpsidunemgniwohselpmaxE•
Discs
Playable discs
This DVD video player can play the following
discs.
Playable discs
DVD video discs Audio CDs CD TEXT
MP3/WMA DivX MP4
About CD Extra discs
A CD Extra disc is a disc in which a total of
two sessions have been recorded. The first
session is Audio session and the second
session is Data session. Your personally-
created CDs with more than second data
7. DISC OPERATIONS
15
English
VX603AU

sessions recorded cannot be played on this
DVD video player.
Note:
ehtylno,csidartxEDCaevahuoynehW•
first session will be recognized.
About playing a CD-R/CD-RW disc (MP3,
WMA)
This player can play CD-R/CD-RW discs
previously recorded in music CD format (MP3,
WMA)
About playing a DVD-R/RW or DVD+R/
RW disc
This player cannot play DVD-R/RW and
DVD+R/RW discs previously recorded in
video CD format.
However, MP3/WMA files recorded on
DVD-R/RW and DVD+R/RW discs can be
played.
Discs that cannot be played back
This DVD video player cannot play back
DVD-Audio, DVD-RAM, Photo CDs, etc.
Note:
yamtI• also not be possible to play back
CDs recorded on a CD-R unit and CD-RW
unit. (Cause: disc characteristics, cracks,
dust/dirt, dust/dirt on player’s lens, etc.)
afI• CD-R or CD-RW disc that has not
been finalized is played, it will take a long
time to start playing. Also, it may not be
possible to play depending on its recording
conditions.
uoY• cannot play SuperAudio CDs Playback
of the CD player is not supported even if it
is a hybrid disc.
About MP3/WMA playback
This unit can play back CD-R/CD-RW,
DVD-R/RW and DVD+R/RW discs on which
MP3/WMA music data have been recorded.
For a detailed information, see the section
entitled “Listening to MP3/WMA”.
Note on region numbers
The DVD video system assigns a region
number to DVD video players and DVD discs
by sales area. DVD video players sold in
Australia can play back DVD discs with the
region number “ALL”, “4” or any combination
of numbers that also incorporate a “4”.
The DVD video region number is marked on
the disc jacket as shown below.
44
6
16
English
VX603AU

Accessing a Disc
CAUTION
For your safety, the driver should not
insert or eject a disc while driving.
Eject function
Just pressing the [ ] button, ejects the disc
even if the power to the unit was not turned
on.
Notes:
fuoyfI• orce a disc into before auto
reloading, this can damage the disc.
51rofdetcejetfelsi)mc21(csidafI•
seconds, the disc is automatically reloaded
(Auto reload).
Listening to a disc already loaded
in the unit
Long press [ ALL ] button to enter main
source menu, then select [Disc] to enter Disc
mode.
If Disc is not on the current source menu,
touch [ - ] buttons on the bottom of the
screen, or hold the center of screen and drag
left/right to show more icons.
When the unit enters the Disc mode, play
starts automatically.
Loading a disc
Insert a disc into the center of the disc
slot with label facing up. The disc plays
automatically after loading.
Notes:
reveN• insert foreign objects into the disc
slot.
yamereht,ylisaedetresnitonsicsidehtfI•
be another disc in the mechanism or the
unit may require service.
17
English
VX603AU

Playback menu
Touch the bottom half of screen to show
operation bar.
1. Play/Pause/Stop(long press)
2. Show cursor keys in DVD title menu
3. Previous chapter
Fast-backward (long press)
4. Progress bar
5. Next chapter
Fast-forward (long press)
6. Root menu
Root Title (long press)
7. Show other options
8. Repeat play
9. Select audio language
10. Select subtitle language
11. Show next page
12. Select DVD angle
13. Back to main operation bar
14. Show previous page
15. Turn on Widescreen mode
16. Direct search
17. Adjust picture effect
18. Show playback information
19. Mute indicator
Pausing play
1. Touch the [ ] button on the screen to pause
play.
T.2 ouch [ ] button to resume play.
Selecting a chapter
Chapter-up
Touch the [ ] button to move to the
beginning of the next chapter.
Chapter-down
Touch the [ ] button to move back to the
beginning of the current or previous chapter.
Fast forward/Fast reverse
Fast forward
Touch and hold the [ ] button for more
than 2 seconds.
Fast reverse
Touch and hold the [ ] button for more
than 2 seconds.
Repeat
During playback, touch [ ], [ Repeat ]
buttons to repeat play.
Search function
During playback, touch [ ], [ ] buttons to
show search menu.
Input number by digit buttons, touch [OK]
to begin searching or touch [Close] to clear
inputting.
Touch [Chapter] or [Title] to show DVD
chapter/title list.
DVD audio select
During playback, touch [ ], [Audio] buttons
to select audio language to listen if the DVD
has multiple audio languages.
DVD Player Operations
18
English
VX603AU

DVD subtitle select
During playback, touch [ ], [ Subtitle ]
buttons to select the subtitle language if the
DVD has multiple language subtitles.
Playback information
During playback, touch [ ], [ Information ]
buttons to view playback information.
Adjust picture
During playback, touch [ ], [ Adjust
Picture ] button, then use [-], [+] buttons to
adjust Dimmer/Brightness/Contrast/Color.
DVD angle select
During playback, touch [ ], [ Angle ]
buttons to select different angle to view if the
DVD has multiple-angle views.
19
English
VX603AU

CD Player Operations
Playback menu
Touch the bottom half of screen to show
operation bar.
1. Show track list (Browse)
2. Title/Artist/Album information
3. Play/Pause
4. Repeat play
5. Previous track
Fast reverse (long press)
6. Progress bar
7. Next track
Fast forward (long press)
8. Random play
9. Show other options
Scan: Scan play stored stations
Browse mode
Touch the [ ] button to show track list.
Drag up/down to browse the tracks, and
touch desired track to select it.
Pausing play
1. Touch the [ ] button on the bottom left of the
screen to pause play.
“PAUSE” appears in the display, and [ ]
button becomes [ ] .
T.2 ouch [ ] button to resume play.
Selecting a track
Track-up
1. Touch the [ ] button to move to the
beginning of the next track.
Track-down
T.1 ouch the [ ] button to move back to
the beginning of the current track.
[ehthcuoT.2 ] button twice to move back
to the beginning of the previous track.
Fast forward/Fast reverse
Fast forward
Touch and hold the [ ] button .
Fast reverse
Touch and hold the [ ] button .
* For MP3/WMA discs, it takes some time
until the start of searching and between
tracks. In addition, some error may occur
in the play time.
Search Function
[ehthcuoT.1 ] button to show track list.
Touch [ ] button to enter search menu.
I2 nput numbers by touching digit buttons,
then touch [Search] to begin searching.
To delete numbers, touch [ ] button.
3. Touch [ ] button to exit.
Other various play functions
Scan play
This function allows you to locate and play
on a disc.
Touch the [ ] button, then touch [Scan] to
scan play.
Repeat play
This function allows you to play the current
track repeatedly or play a track currently
being play ed in the MP3/WMA folde r
repeatedly.
Touch the [ ] button to select Track
Repeat, Folder Repeat or All Repeat.
Random play
This function allows you to play all tracks
recorded on a disc in a random order.
Touch the [ ] button to perform random
play.
20
English
VX603AU
