Xoro HRS 8664 User manual

User Manual
HD DVB-S2 Receiver
HRS 8664
HRS 8660
HRS 8659
HRS 8658
HRS 8566v2
HRS 8556v2
HRS 2610
SD DVB-S2 Receiver

ENG 3
English
Table of Content (ENG)
Safety information 5
Content of the service 8
Notes 9
Recycling Information 9
Accessories 10
Control Elements 11
Front Panel 11
Rear Panel 11
Remote Control 12
Insert battery and operation 12
Buttons 13
Connection 14
Connecting to the TV 14
Connection to satellite dish 15
Connection to a Hi-Fi system 15
Connecting to USB storage 15
Initial Installation 16
Initial Installation 16
Dish Setup-preparation 17
Dish Setup-Procedure 18
Dish Setup-explanation of the parameters 19
Channel Search 20
Daily Use 21
Switch Channel 21
Channel List 21
Favourite 21
Subtitles 21
Audio settings of TV programs 22
Teletext 22
Mute 22
Change Volume 22
Information 22
Aspect Ratio 22
EPG 23
Timer Programming on EPG 23

ENG 4
English
Table of Content
Recorder 24
Recording 24
Record programming 24
Recording List 24
Rename recorded files 24
Delete recorded files 24
USB Media Player 25
Supported file formats 25
Supported Media 25
Photos 26
Music 27
Movie 27
Supported Formats 29
Settings 30
Main Menu 30
Program 30
Picture 32
Channel Search 33
Time 33
Option 34
System 35
USB and Apps 36
Troubleshooting 37
Specifications 38
Warranty 39

ENG 5
English
SAFETY INFORMATION

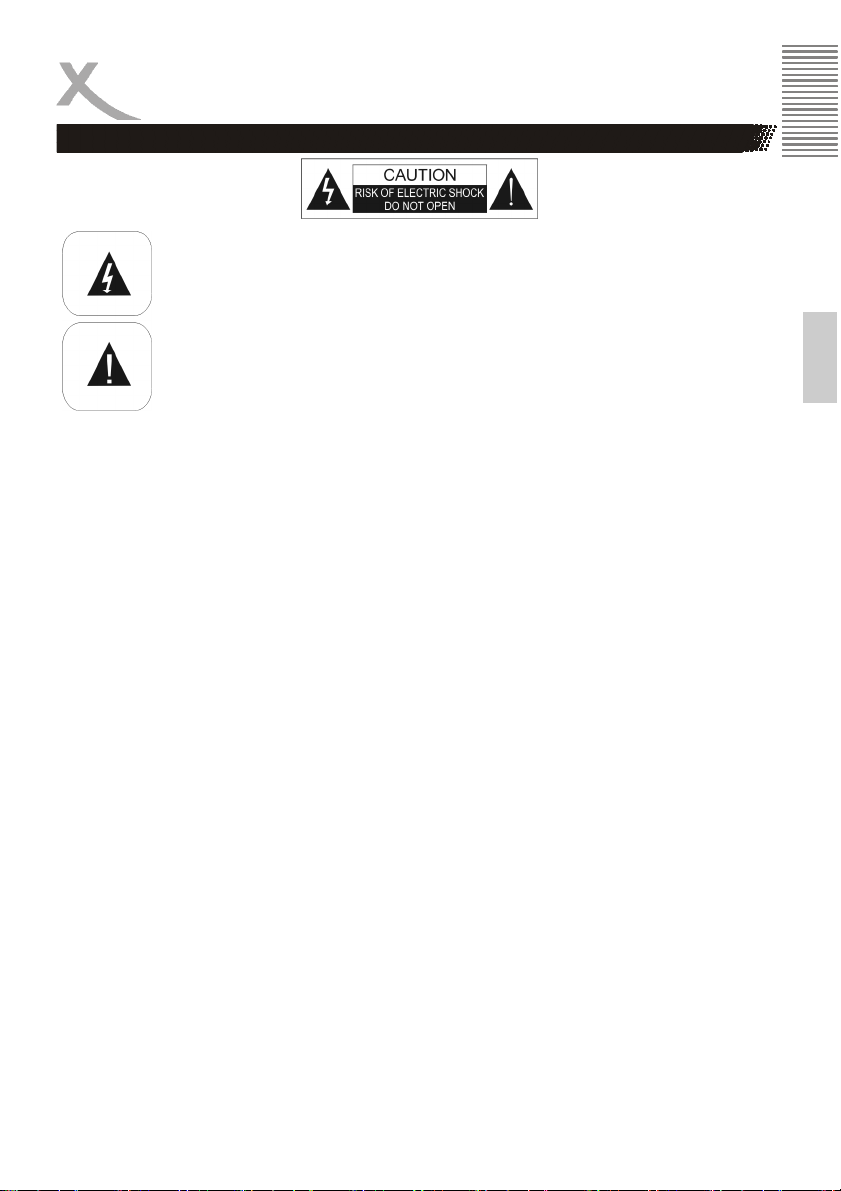

The lightning flash with an arrowhead symbol within an equilateral triangle is intended
to alert the user of the presence of un-insulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user of the
presence of important operating and maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
User Manual
1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future refer-
ence.
3. All operating and use instructions should be followed.
Satellite dish
XORO DVB Receiver is designed for the connection to a regular satellite dish.
 Please have the satellite dish installed by a technician to insure a perfect function and avoid
damage.
 The Satellite dish will have to be grounded.
 If the dish fails to take the precise position, it will cause signal disturbance or other problems.
Please have the antenna measured by a technician.
 Please employ high quality antenna cable.
 If the LNB is too old, it might not be suitable for receiving current satellite program. Please
choose a LNB which fits all programs. (These LNBs bear often the label “Digital” or
“Universal”).
Please get informed of the correct dish position and program list from the web page of the satellite
operators or from specialized stores.

ENG 6
English
SAFETY INFORMATION
Power Supply
1. Never touch the plug with wet hands.
2. Do not stand vases etc. on the appliance. Water could seep into the
appliance.
3. Keep the appliance away from rain and any moisture.
4. If you want to pull the plug out of the plug socket, always pull directly
on the plug. Never pull on the cable as it could tear.
5. Make sure that the power cable is not bent, caught or run over and
that it does not come into contact with heat sources.
6. Make sure that the power cable is not wound around the device while
in operation.
7. Never place the machine on the power cable while it is being operat-
ed.
8. Only use extension cables that are designed for the power consump-
tion level of the machine.
9. Only operate the machine if the electrical voltage stated on the type
plate beneath the machine agrees with the voltage on your plug
socket. The wrong voltage can destroy the machine.
10. Do not open the appliance.
11. Pull out the mains plug if the appliance is not to be used over a long-
er period of time.
12. Take care that nobody can trip over the power supply cable.
13. To disconnect the unit completely from the mains, the AC power
cable must be unplugged from the mains socket.
Declaration of conformity
Hereby, MAS Elektronik AG declares that the following radio equipment types are in compliance
with Directive 2014/53/EU:
XORO HRS 8664
XORO HRS 8660
XORO HRS 8660/01
XORO HRS 8659
XORO HRS 8659/01
XORO HRS 8658
XORO HRS 8556 V2
XORO HRS 8556 V2
XORO HRS 2610
The full text of the EU declaration of conformity is available at the following internet address:
www.xoro.de/downloads

ENG 7
English
SAFETY INFORMATION
Position
1. Do not connect accessories on the player which are not defined
by the manufacture.
2. Do not place this product on an unstable cart, stand, tripod, brack-
et, or table. The product may fall, causing serious injury to a child
or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product should fol-
low the manufacturer's instructions, and should use a mounting accessory recommended by
the manufacturer.
3. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
4. The device is able to show a still image on the TV screen or monitor over an unlimited period
of time. This can cause damage to the screen. It is therefore advisable to activate the screen
saver. Or switch the player off, if the device is not in use.
5. Do not uses the device permanent in the 4:3 mode. This can cause damage to the TV screen.
6. Do not increase the volume when the player is just playing very quiet sections. This cold dam-
age the speaker if very loud passages starts all of a sudden after the quiet section.
7. Switch the player off by the Off/On switch if it is not going to used for a longer period of time.
8. Disconnect the main plug during thunderstorms.
9. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation
of the product and to protect it from overheating, and these openings must not be blocked or
covered.
10. The openings should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface.
11. This product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
12. Protect the device against weather influences, moistures and high
temperature.
13. Never spill liquid of any kind on the product.
14. Do not expose the device and the remote control to direct sun-
light.
Operation
1. Reception of digital broadcast in SD or HD by satellite.
2. Recording DVB-S on USB storage and play back the recorded files from USB storage.
3. Time Shift function with a connected USB storage
4. Playback of supported video, audio and picture files from USB storage.
The device is designed for private household.

ENG 8
English
1. Servicing - Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage or other
hazards. Please turn to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper ad-
justment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and
3. When the product exhibits a distinct change in performance this indicates a need for service.
4. When replacement parts are required, be sure the service technician has used replacement
parts specified by the manufacturer or have the same characteristics as the original part. Un-
authorized substitutions may result in fire, electric shock, or other hazards.
5. Nicotine can damage the electronic components. In case of service regarding too much nico-
tine, than the warranty/guarantee expired.
Contact of the XORO customer service
Phone: [phone] (Mo-Fr, 11.00am - 5.00pm, German/English)
E-Mail:[email protected]
ERS GmbH Elektronik Repair Service
Weidegrund 3/Hall 1
21614 Buxtehude
Germany
AFTER-SALES SERVICES

ENG 9
English
Recycling & Environment
Disposal of electrical and electronic products (waste equipment)
This crossed-out dustbin on the product, the accompanying materials and/or on the
packaging means that electrical and electronic equipment must not be disposed of in
general household waste. Consumers are required by law to dispose of such equip-
ment separately from general household waste. Old appliances must be taken to the
relevant collection points for treatment, refurbishment or recycling in accordance with
the statutory provisions. Furthermore, there is an obligation to remove batteries that
are not enclosed in the appliance before disposing of the old appliance and to dispose of them sepa-
rately. The same applies to lamps that can be removed from the old appliance without destroying it.
By properly disposing of old products, you contribute to environmental protection and human health.
Consumers must take responsibility for deleting any personal data that may be stored on the old
appliance before disposing of it.
Recycling of paper and cardboard
The material recycling symbol on the packaging board and on the user manual
indicates that they are recyclable. Do not dispose of the packaging with normal
household waste.
Disposal of batteries
Every consumer is legally obliged to hand in batteries at a collection
point of his community or the retailers so that they can be disposed
of in an environmentally friendly way.
The disposal of batteries in household waste is prohibited!
A chemical symbol (Pb for lead, Hg for mercury, Cd for cadmium) under the crossed-out wheelie bin
indicates that the battery contains more than 0.0005% mercury, more than 0.004% lead or more
than 0.002% cadmium.

ENG 10
English
Notes
Please make sure that the following accessories are included:
 XORO DVB-S2 Receiver
 Remote Control
 User Manual
Notes:
 Please employ only the original accessories.
 Shall any item be damaged or missing, please contact directly the shop where you bought this
product.
Features
Accessoires

ENG 11
English
CONTROL ELEMENTS
Front Panel
1. USB 2.0 port
2. IR receiver
3. LED Display: Shows the program number, clock or status information
4. CH- key: switch to previous channel
5. CH+ key: switch to next channel
6. Power button
7. LED indicator (Green: Power On, Red: Standby)
1. Aerial Input (LNB IN)
2. Network Connector (RJ45)
3. Digital audio output (S/PDIF coaxial - not present in HRS 8658)
4. HDMI output
5. TV SCART output
6. Power cord
Rear Panel

ENG 12
English
 Insert the battery into the receptacle of the
remote.
 For the best results, aim the remote towards
at the player. Stay within 5 meter and angles
of 60 degrees or less.
 Remove battery during storage or when you
are not using the device for a long time.
Notes:
1. Remove and exchange old batteries. Leaking out battery acid can damage your health and
the remote control.
2. Clean leaking out battery acid with a cloth
3. In case of skin contact immediately wash the affected area.
4. Please contact a medic after swallowing the battery or battery acid immediately
5. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes
wash out the eyes and seek medical advice.
Remote Control
Insert batteries and operationradius

ENG 13
English
Remote Control
Buttons
Buttons of the remote control
Power (on/off)
SUB-TITLE (subtitle)
AUDIO (change sound track)
MUTE (sound on/off)
EPG
GOTO (start play back from a certain point defined by time)
PAGE (page up/down)
TTX (videotext)
REPEAT (Repeat)
MENU (to access main menu)
CH+/CH-(change channel, select menu up/down)
EXIT (quit menu, to the higher menu)
VOL+/VOL-(change volume, select menu right/left)
FAV (to access favorite list)
TV/RADIO ( switch between TV and Radio)
OK (confirming selection, to access program list)
0-9 (Numerical buttons)
RECALL (to previous program or higher directory)
INFO i (to access information page)
( fast rewind/fast forward)
II(previous/next file)
(start play back)
II (Pause)
■(Stop playback, access Media player)
●(Recording*)
PVR (Display recorded files*, red button)
V-FORMAT (change HDMI solution , green button)
ASPECT (change aspect ratio, yellow button)
TIMER (display timer list, blue button)
Notes:
Some buttons function only as described above in the corre-
sponding mode. For example: the GOTO button and the Repeat
button function only in media player mode. Please take note of
further descriptions in the manual and the notice on the screen.
Only one remote control be delivered in your accessories.
(*): Only available for the models which support PVR.

ENG 14
English
Connection
General information
1. Assure that the device is switched off
and unplugged.
2. Read the manual of your TV and at-
tend to the safety instructions.
3. Connect the power cable at last with a
electronic socket.

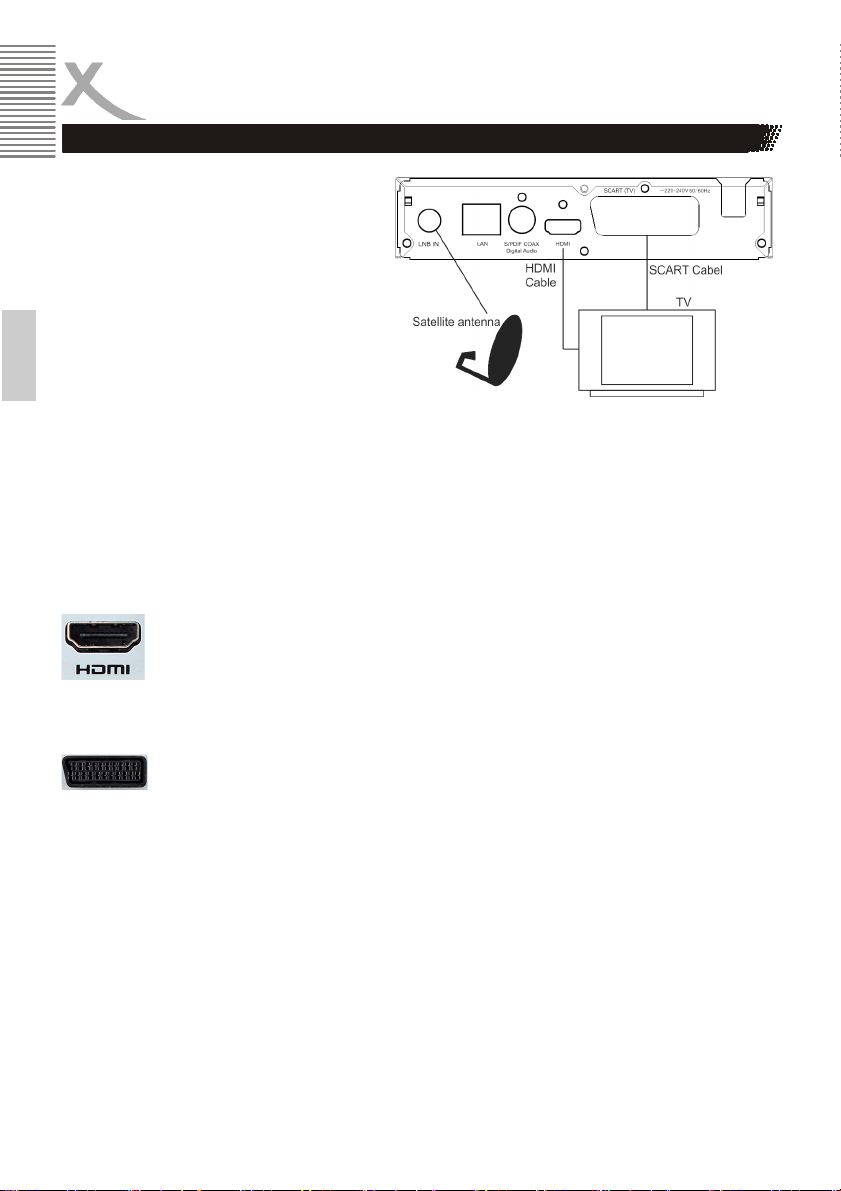

The DVB-S2 receiver could be connected either through HDMI or SCART to TV. Please connect the
receiver through HDMI if possible. The TV could only display the signal in high definition quality
through HDMI output.
HDMI: Connect the HDMI output of Receiver to a free HDMI input of the TV. Please read
the manual of your TV to select the HDMI input. Generally the TV does not switch
automatically to the HDMI input upon connection. A HDMI cable is necessary for
this connection.
SCART: Connect the TV SCART output of Receiver to a AV input of the TV. Please read the
manual of the TV to select the SCART input. Generally the TV does not switch auto-
matically to the SCART input upon connection. A SCART cable is necessary for this
connection. It is not included in the delivery of the receiver.
Notes:
 The Receiver is designed for TV with 16:9 as aspect ratio. Please refer to the page 32 how to
set a TV with aspect ratio 4:3 to fit the receiver. It is also described there how to change the
HDMI resolution and signal type under the SCART connection.
 Please employ high quality cables. Low quality cables (especially up 1,5 m length) might
cause picture failure or make an image transmission impossible. Poorly shielded cables might
result in “double image” or disturbing sound.
Connecting to the TV

ENG 15
English
Connection
Connect the cable of your satellite dish to the Antenna input LNB IN of the
Receiver.
Notes:
 Screw the so-called F plug together with the LNB IN.
 Please make sure to avoid short circuit at the F plug.
 Employ only high quality antenna cables . Low quality antenna cables
might cause disturbance
A coaxial cable is necessary for the S/PDIF signals for the digital connection to a Hi-Fi system. This
cable is not included in the delivery of this receiver. Connect the S/PDIF out put with the S/PDIF
input of your Hi–Fi system. Please refer to the manual of the Hi-Fi system to select the audio input.
Notes:
The Receiver could output digital signals in PCM-(Stereo) or AC3-Bitstream. If your Hi-Fi system
provides no sound for programs with AC3 sound track, please refer to page 35 to change the out
put format of the S/PDIF out put.
The USB port is on the front side of the Receiver. It takes the receiver under circumstances some
time to recognize the USB and get ready for further operation.
Please remove the USB storage only after playback processes are completed.
Following USB devices will be supported:
 USB storage
 Max. capacity 2048B
 File system: FAT32, NTFS
 MBR-Partition Style
Notes:
 There are a variety of USB storages on the market. Not all of them conform the specification
of USB storage. If your USB storage could not be read by the Receiver, please try another
USB storage.
 If a USB device could not be read any more, please carry out a data storage medium analysis
with your computer or format the storage again.
 USB storages requiring higher electric current than 500mA (0,5A) do not conform the specifi-
cation of USB storage. These USB storages could possibly not work smoothly together with
Receiver.
 Please always save all data on the USB before connection to the Receiver.
If you need open Network Apps, please connect internet cable to LAN port.
Connection to satellite dish
Connecting to USB storage
Connection to a Hi- Fi system
Connecting to Internet

ENG 16
English
Initial Installation
Initial Installation
The XORO installation menu will be displayed by initial
operation of the DVB Receiver. This menu contains
four options:
1. OSD Language
2. Country
3. Channel search
4. Load the pre-inst.
Navigate with the arrow keys CH+ and CH– to high
light the option and make the selection with the VOL–
and VOL+ buttons.
OSD Language
Choose the menu language.
Country
Select the country where you use the DVB Receiver.
Channel Search
Please select “Channel Search/Satellite Setting” to define further parameters for a scanning, if your
satellite receiving system fulfill following criteria:
 System with rotatable antenna
 System with more than one antenna or LNB (DiSEqC)
 System with nonstandard components
Most of the customers could complete the installation by selecting “load the pre-inst.”.
Load the Pre-inst.
A program list of the satellite ASTRA 19.2° is saved in the factory firmware. German TV programs
top this list.
In most cases, the installation is completed with loading the program list.
Select the OSD language and country and decide whether to load the pre installed program list.
Press OK to confirm.
 The first TV program will be shown on the screen
after loading the pre programmed list. If there is
no TV program to be seen, please check the
cable connection, Antenna Set up and carry out
the channel scanning.
 If you have chosen not to take the pre installed
list, there appears a “Dish Setup” menu on the
screen.
For the case there appears no “Installation Guide”
menu after connection and power on, please read the
page 35 to reset the device.

ENG 17
English
Initial Installation
Preparation:
You will have to be informed of following points to make a successful channel scanning.
 Towards which satellite does your antenna ori-
ent?
 If you have more than one antenna or one anten-
na with more than one LNB, you will have to
know which type of switch (Toneburst or DIS-
EqC) is employed and to which port is each An-
tenna LNB connected.
 For a Unicable/SCR EN50494, you will have to
know which IF-Channel is available and its corre-
sponding Frequency.
Please ask the installer, if any of the parameter is not
known. If you live in a rental house or apartment,
please ask the renter.
Example for Germany:
The most satellite antennas orient satellite ASTRA 19.2° and have a “universal” or “Digital” LNB. We
recommend the pre installed list in the case.
If you would not like to use the pre programmed list, the common setup for ASTRA 19.2° is as fol-
lowing:
Satellite: 019.2E Astra 1H.
LNB Type: 09750/10600
LNB voltage: 13/18V
22KHz: AUTO
Toneburst: None
DiSEqC 1.0/1.1: None
Motor: None
Dish Setup-preparation

ENG 18
English
Initial Installation
On the left side of the screen there is a list of satellites for which the DVB Receiver is pre pro-
grammed. Settings of the chosen satellite is displayed on the right side.
Process:
 Select the first satellite to be set up with CH+/CH
 Press the OK button. The chosen satellite is marked with a hook, confirming this satellite will
be considered in the coming channel scan.
 Press the button VOL+ to access to right side.
 Select the option with CH+/- and change the parameter with VOL+/-
 Press Menu after defining all parameters for this satellite to get back to the left side.
 If your satellite system can receive signals from a number of satellites, select a further satellite
with CH+/-. Press OK and define the parameter on the right side.
 Repeat this procedure for all satellites available for your receiver.
Notes:
 After a correct setting, an approximate value of the signal quality will be shown on the lower
part of the menu.
 If a satellite is missing on the list, press the RED button. A dialogue winter appears, input the
value for longitude, East/West and frequency, and choose “Blind Scan” in the coming channel
scan. If you add a satellite to the list, there will be no display of the signal quality for this satel-
lite, in spite of correct setting. Signal quality could only be displayed for satellites with pre
installed transponder lists.
 Press GOTO to display the Transponder of the chosen satellite. Add new transponder with
the RED button and mark the transponder for channel scan with OK.
Dish Setup-Procedure

ENG 19
English
LNB Typ: define the oscillator frequency for your LNB . Please take the correct value from the
manual of your LNB (standard:09750/10600)
If you have a Unicalbe/SCR EN50494, select LNB type Unicable (A or B, A is generally the correct
choice by a Unicable system for satellite reception). Choose a free channel (IF channel) and the
corresponding frequency. Please refer to the manual of your Unicable system. Ask your renter for
the free channel, if the connection is provided in the rental house.
LNB Voltage: This parameter defines the voltage of the antenna, this voltage decides signal from
horizontal or vertical polarized transponder will be received. The setting will only have to be changed
in very rare cases. A false setting will result in missing program or no signal reception at all.
(standard:13/18V)
22KHz: The receiver can switch the LNB with 22 KHz signals for the reception of another
frequency band. The setting will only have to be changed in very rare cases. A false setting will re-
sult in missing program or no signal reception at all. (standard: Auto)
Toneburst: Tone burst switcher has two input ports, enabling the connection of 2 antennas or
LNB to the receiver. If you have a Tone burst switcher, you will have to select one of the both con-
nections (A or B) for the satellite chosen on the left side.
DiSEqC: DiSEqC switcher has up to 16 input ports enabling the connection of multiple anten-
nas or LNB to the receiver. If you have a DiSEqC switcher, you will have to select one of connec-
tions for the satellite chosen on the left side. Please check which version (1.0, 1.1) could be support-
ed in the manual of your switcher.
Motor: Rotatable Antennas require extended configurations. We recommend professional
installation from a technician. Please set up according to your antenna. You can open further set up
windows with the RED and the GREEN button.
After the set up has been done for all reachable satellites, please press the BLUE button to open the
menu for channel scan.
Initial Installation
Dish Setup-explanation of the parameters

ENG 20
English
Initial Installation
There appears a window showing “Channel Search” upon pressing the BLUE button on the menu of
the Satellite Setting.
On this Window you can make three entries to affect the scan result.
Search Mode:
 Standard: The receiver scans channels according to a pre programmed list. This search pro-
cess goes quickly but without being able to find programs on new transponders.
 Blind search: The receiver scans every possible frequency. It takes a little bit more time than
standard scan. However it is possible to find programs from unknown transponders.
 Network: The receiver scans channels according to a pre programmed list. The frequency of a
new transponder could be found out through analysis of the known transponders. The scan
process is shorter than “blind scan”, but there might be possibly missing programs.
Please employ “Blind Scan”. It takes a little bit longer, but will result in a complete program list. If
you have added a new satellite on the menu of Satellite Setting, please employ “Blind scan”, for
there is no transponder list available for the newly added satellite. There is no “Blind scan” option in
case of UniCable system.
Encrypted:
 All programs: both free and encrypted programs (Pay TV)
will be added to the program list during the channel scan.
 FTA (free): The channel scan saves only free programs.
The XORO DVB Receiver can not decrypt Pay-TV programs.
Please select “FTA” (free programs), so that you will get a
shorter program list and save some time in sorting the pro-
grams.
Service Type:
 All: The channel scan saves both TV and Radio
programs.
 DTV: The channel scan saves only TV programs.
 Radio: The channel scan saves only Radio pro-
gram.
Press the OK button to start the Channel scan.
After the channel scan is completed, live picture of the
first found channel will be shown on the screen.
Channel Search
