Xpelair XPAP6 Quick reference guide

1
USE & CARE INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND SAVE FOR FUTURE REFERENCE
XPAP6 - HEPA Air Purifier with 2 stage purification
With Pre-filter, HEPA filter, Activated Carbon filter,
UV
-
C
lamp
,
PCO
&
Ionizer
2
IMPORTANT WARNINGS
Failure to comply with the warnings listed below may
result in electric shock or serious injury.
This product should be used only in accordance with the specifications
outlined in this manual. Usage other than as specified in these
instructions may result in serious injury, risk of fire or electric shock.
• IMPORTANT - To reduce the risk of electric shock, the plug is intended to fit
in a standard polarized 13Amp socket outlet, only plug the appliance directly
into a proper electrical outlet.
• To protect against electrical hazards, DO NOT immerse in water or other
liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical
appliances. For this reason, always supervise children when they are near the
unit. These appliances can be used by children aged from 3 and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Always unplug the air purifier before moving it, opening the grill, changing
filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the
plug and not the cord when un-plugging the appliance.
• NEVER drop or insert any object into any openings.
• DO NOT operate appliance connected to an extension cable
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the
cord near heat registers, radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from traffic areas and where it will not be tripped over.
• DO NOT route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan
fails to rotate, after the appliance malfunctions, or if it has been dropped or
damaged in any manner. Send to Customer Service for assistance.
• Use appliance only for intended household use as described in this manual.
Any other use not recommended by the manufacturer may cause fire, electric
shock or injury to persons.

3
• DO NOT use outdoors.
• DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such
as a bed or sofa, as this could cause the unit to tip over, blocking the air intake
or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on
this unit. Doing so will void your warranty. The inside of the unit contains no
user serviceable parts. All servicing should be performed by qualified
personnel only.
• WARNING: To reduce the risk of fie or electric shock, do not use this fan with
any solid-state speed control device.
• WARNING: To avoid danger of suffocation please remove all packaging
materials particularly plastic and EPS and keep these away from vulnerable
people, children and babies.
• WARNING: To avoid the risk of accidental strangulation from the supply cord
all children and vulnerable people must be supervised when in the vicinity of
the product whether it is working or not
TECHNICAL SPECIFICATIONS
Rated Voltage: AC 230V, 50Hz:
Rated Power: 50W
Noise Level: 30dB(L), 40dB(M), 50dB(H)
UV Light: Wavelength: 254nanometers.
Lamp life: Approx. 20,000 hours
Weight: 4.5Kg:
Dimensions: 390 (L) x 145(W) x 428(H) mm
Coverage Area: Approx. 35 m
2
Clean air delivery rates (CADR)
Smoke 221
Pollen 261
Dust 236
4
BEFORE OPERATING THE AIR PURIFIER:
1. Carefully remove your air purifier from box and plastic bag.
2. Select a firm, level and flat location for the air purifier.
*For proper air flow, locate the unit at least 1 foot from any wall or furniture.
*Make sure none of the inlet or outlet grills are blocked or obstructed.
3. Before using, remove the filters from their bags and dispose of the bags
safely.
4. Plug the power cord into the correct voltage AC outlet.
IMPORTANT:
When moving the air purifier, always lift the unit by the carrying handle
located on the back.
When the unit is not in use, it is better to switch it off and unplug it.

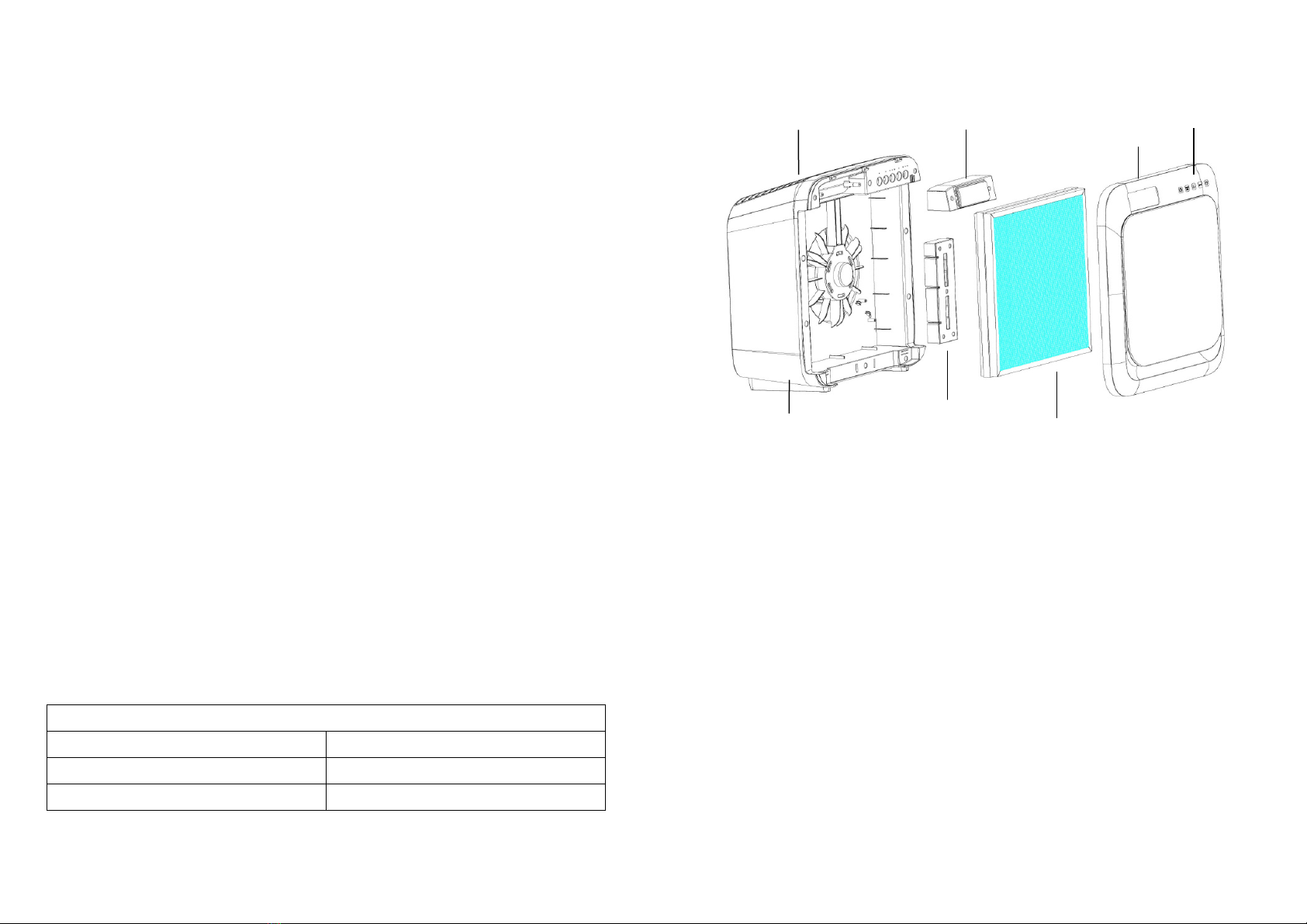

PRODUCT STRUCTURE
OPERATING INSTRUCTIONS
Main unit UV-C/PCO device 3 in 1 filter (Pre-filter,
Activated Carbon filter, HEPA
filter)
Front cover
Touch panel
Air outlet
LED screen

5
6 STAGE AIR PURIFICATION SYSTEM
1. PRE-FILTER: Captures initial dust and allergen particles.
2. ACTIVATED CARBON FILTER:
Absorbs formaldehyde, benzene and other noxious gas.
3. HEPA FILTER: Captures dust, smoke, pollen and other allergens.
4. UV-C LIGHT: Destroys micro-organisms such as germs, viruses, bacteria
and fungi (such as mould toxins).
5. PCO: When photo catalyst titanium dioxide (TiO2) absorbs Ultraviolet (UV)
radiation, it will produce hydrogen gas and hydroxyl radicals which help
remove VOCs, odours and kill germs.
6. IONIZER: This generates negative ions which help clear the air of mold
spores, pollen, pet dander, odors, cigarette smoke, bacteria, viruses, dust
and other hazardous airborne particles. They do this by attaching to these
positively charged particles in large numbers causing them to become too
heavy to stay airborne causing them to attach to the surfaces of the filters.
OPERATING THE AIR PURIFIER
1. “POWER” BUTTON:
Press this button to turn on or switch off the unit.
Note: When REPLACE FILTER light is flickering, press and hold this
button for 5 seconds to reset the filter change indicator.
2. “AUTO”/SLEEP BUTTON:
First press to turn on the auto mode;
Second press to turn on auto mode and Sleep mode;
Third press to turn off auto mode;
Fourth press to turn off auto mode and sleep mode.
3. “SPEED” BUTTON:
The fan speed of the unit can be adjusted when the unit is in operation (L/I
M/II H/III). Each time that you press on the (SPEED) button, the speed is
adjusted from L (low) to M (medium) to H (high).
6
4. “UV-C/Ion” BUTTON:
First press to turn on UV-C;
Second press to turn on UV-C and Ionizer;
Third press to turn off UV-C;
Fourth press to turn off UV-C and Ionizer.
5. “TIMER” BUTTON:
1) By pressing this button, the purifier can be timed to operate for intervals
of 2 hours, 4 hours and 8 hours, stopping automatically when the
selected operating time has elapsed.
2) Press this button (Timer) to select the required operating time. An
indicator light automatically indicates the selected operating time.
3) To select the continuous operating mode, press the button repeatedly
until there are no more time indicator lights lit.
LED SCREEN
ABOUT ODOUR SENSOR:
When you turn on the AUTO function, the dust sensor will detect VOCs,
odours and other smells and adjust the fan speed according to the level of
impurities it detects.
Note: When you turn on the product the odour sensor requires about 2 minutes
to detect the surrounding air quality. After operating for 2 minutes the air
quality indicator will indicate the surrounding air quality.
Odour sensor
location

7
INSTALLING & REMOVING FILTERS
FILTER REPLACE INDICATOR
The REPLACE FILTER light will flicker continuously indicating that it is time to
replace the filter. Replace the filter according to the directions then press the
RESET FILTER button and hold for 5 seconds to restart the system. The light
will stop flickering
*Combination Filter will last approximately 6 months.
1. Open the front cover from the bottom of the front cover.
2. Remove the combination filter by pull the two strips.
3. Insert new combination filter into the unit. Consult the strips on the filter for
correct installation direction.
4. Reattach the front cover of the unit and securely latch into place.
5. Press and hold AUTO button for 5 seconds to reset Filter Change Indicator.
The air purifier should be cleaned at least once every month and the outer Pre-
filter/Activated Carbon Filter attached to the HEPA Filter should be cleaned
every month. More frequent cleaning may be required depending on
environmental conditions.
FILTERS
Carefully clean with the brush attachment of your vacuum cleaner. This will
remove lint and dirt.
CLEANING & MAINTAINING
THE COM
B
INATION FILTER
8
NOTE:
-Only the Extra Pre-filter is washable, you must make sure the pre-filter is dry
before you refit it to the combination filter.
-The Combination Filter is one filter system. The multiple layers include: the
Pre-filter, HEPA Filter and Activated Carbon Filter.
Front （
（（
（ Pre-filter& Carbon filter ）
））
） Back (HEPA filter)
UV LAMP REPLACEMENT
1. Open the UV lamp cover using a screw driver to remove the 5 screws.
2. Take the UV lamp out of the holder carefully and unplug the connectors.
3. Connect the new UV lamp to the connectors and fix the lamp back in the
holder carefully.
4. Replace the cover and refit the screws
WARNING: Do not look at the UV lamp directly while it is operating.

9
MAINTENANCE CAUTION
Use a clean, dry, soft cloth to wipe the external surface of the unit.
NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.
CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on
and/or in the unit while cleaning as they will damage the product.
NEVER use alcohol or other solvents.
MINI TROUBLESHOOTING GUIDE
Before carrying out any of the following service checks, unplug the unit from
the mains.
Insufficient air flow Check that the filters are clean
Check for any obstructions in the air inlet and
outlet
Unit will not start Check the power supply and electric fuses.
Check that the Front Cover is latched firmly in
place. Check that the Filter is firmly in place.
Excessive noise Check for any foreign objects in contact with the
fan.
The filter may be clogged and ready for
replacement.
The foam sealing gaskets have been installed
incorrectly.
Uneven positioning.
PURCHASING SPARE FILTERS & UV LAMPS
Spare filters and UV Lamps can be obtained at our partner online shop
www.dimplex.co.uk. Alternatively, spare filters and UV Lamps may be
available from the retailer.
Note:
Spare 3 in 1 filter part number: 6017004
Spare UV Lamp part number: 6017002
GDHV Group Ltd reserves the right to modify the content of these instructions,
at any time and without prior notice.
10
RECYCLING
The crossed bin symbol on the appliance indicates that the product, at the end
of its life, must be disposed of separately from domestic waste, either by taking
it to a separate waste disposal site for electric and electronic appliances or by
returning it to your dealer when you buy another similar appliance. The user is
responsible for taking the appliance to a special waste disposal site at the end
of its life. If the disused appliance is collected correctly as separate waste, it
can be recycled, treated and disposed of ecologically; this avoids a negative
impact on both the environment and health, and contributes towards the
recycling of the product’s materials. For further information regarding the waste
disposal services available, contact your local waste disposal agency or
manufacturer.
AFTER SALES SERVICE
Your product is guaranteed for one year from the date of purchase. Within this
period, we undertake to repair or exchange this product free of charge (subject
to availability), provided it has been operated in accordance with these
instructions. Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Should you require after sales information or assistance with this product in the
first instance please email us at:
Email: [e-mail]
GDC Group Ltd.
MILLBROOK HOUSE
GRANGE DRIVE
HEDGE END
SOUTHAMPTON
SO30 2DF
Tel: [phone]
Republic Of Ireland Tel: [phone]
A division of GDC Group LTD
Website: www.gdcgroup.co.uk
This product complies with EU Directive 2002/96/EC
XPAP6-IM-170518
