Operation Manual
Waste Water Pump
62820-62821

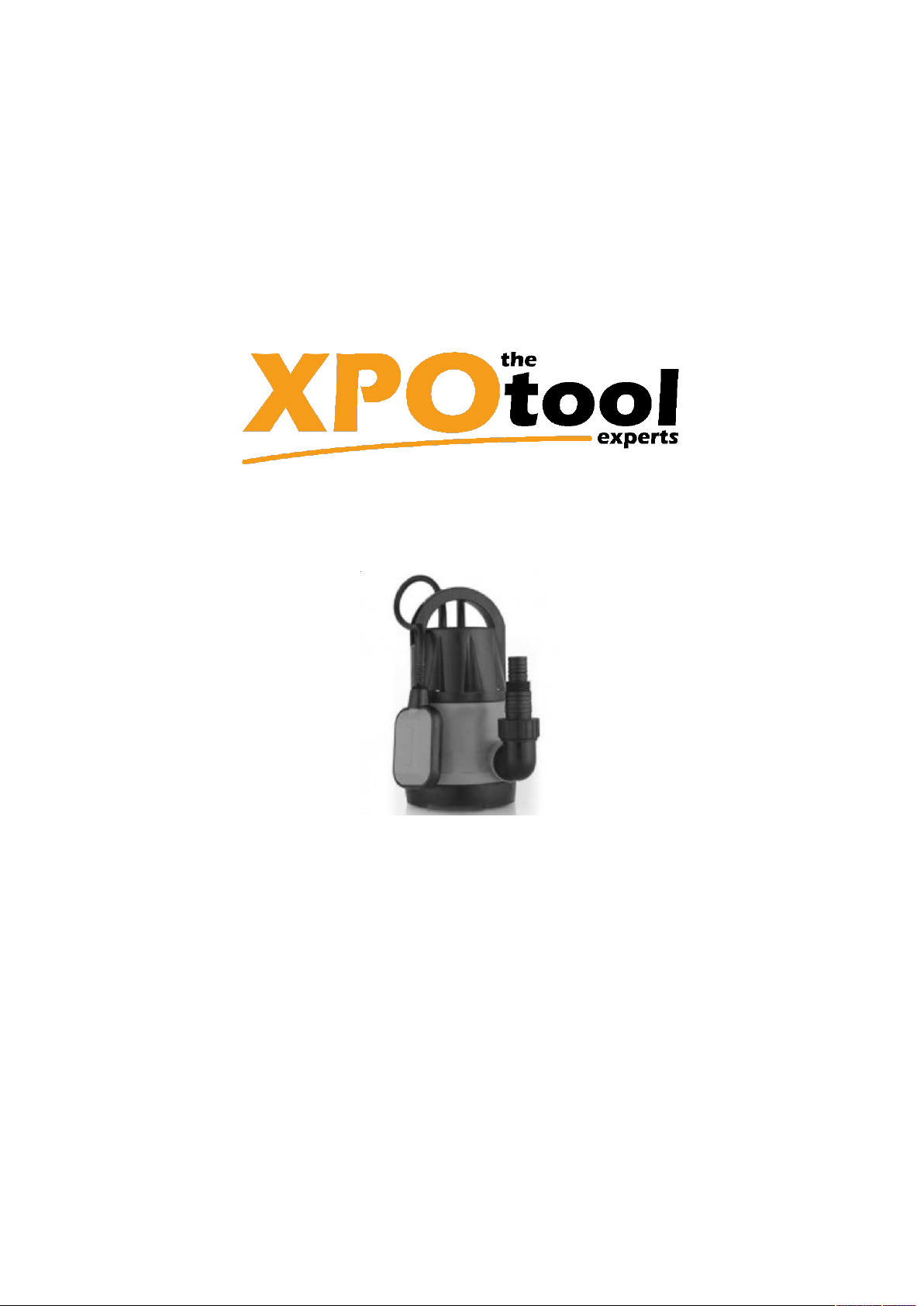

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. tten -
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus -
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
https://www.XPOtool.com rtikel 62820 - 62821 Seite 2
The Tool Experts
02 2021-1

Introduction
Thank you for purchasing this quality product. o minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety instructions for the pump
1. Familiarise yourself with the use of the pump and the limitations and potential hazards.
2. Make sure that the power source meets the requirements of your device.
3. Disconnect the pump from the mains before carrying out maintenance work.
4. Release the pressure in the system before performing maintenance on a component.
5. Drain the liquid from the system before carrying out maintenance on the pump.
6. Secure the discharge line before starting the pump. n unsecured discharge line may recoil and
cause injury and/or damage to property.
7. Before each use, check the hose for wear and damage. Make sure that all connections are properly
secured.
8. Check the pump and system components occasionally. Keep the pump and the system free of
residues and contaminants. Carry out maintenance when necessary.
9. Provide means to relieve pressure on pumps whose discharge line may be shut off or clogged.
Personal safety
lways wear safety goggles when working with or on a pump.
Keep your work area clean, tidy and well lit. Stow away tools and accessories when you are no
longer using them.
Keep bystanders away from your work area.
Child-proof your workplace by using padlocks and master switches and removing ignition keys.
When connecting an electrically driven pump, all electrical and safety regulations must be fol-
lowed.
The pump motor is equipped with an automatic resetting thermal protection and can restart unex-
pectedly.
Electric shock hazard: This device is designed for 230 V operation only. To reduce the risk of
electric shock, make sure the device is connected to a properly installed safety plug.
ll wiring should be done by a qualified electrician.
Keep the mains cable away from sharp objects, hot surfaces, oil and chemicals. void bending
the cable. Replace or repair damaged or worn cables immediately.
Use cables of sufficient size to minimise voltage drop on the motor.
Do not touch a running engine. Modern motors can develop high temperatures during operation.
Additional precautions
Please have the following things checked by an expert before using the pump.
1. Earth connection
2. Earth connection
3. Residual current circuit breakers must comply with the safety regulations of the power plants
and function without faults.
4. Residual current circuit breakers must comply with the safety regulations of the power plants
and function without faults.
5. Electrical connections must be protected from humidity.
https://www.XPOtool.com rtikel 62820 - 62821 Seite 3
The Tool Experts
02 2021-1

6. If there is a risk of flooding, the electrical connections must be directed to higher locations.
7. The circulation of aggressive liquids and abrasives must be avoided at all costs.
8. The waste water pump must be protected from frost and from running dry.
9. The pump must be supplied via a residual current circuit breaker (RCD) with a rated fault op-
erating current of no more than 30 m .
10. This device is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they are super-
vised or instructed by a person responsible for their safety.
11. Read these instructions and the safety instructions carefully. Keep the instructions so that you
can refer to them at any time.
12. lways switch off the power supply at the power source before inserting or removing the
mains plug. lways pull devices out of the socket by the mains plug, do not pull the cable for
this purpose.
13. Switch off devices and disconnect them from the power source when not in use or before car-
rying out cleaning operations.
14. Only use your device with an extension cable if this cable has been tested by a qualified tech-
nician.
15. lways use your device on a power outlet with the voltage specified on the device ( C only).
16. Never leave the device unattended while in use.
17. Use devices only for their intended purpose.
18. Do not place a device on or near a gas flame, an electrical element, a heated stove. Do not
place it on top of another device.
19. Never let the power cable hang over the edge of a table or come into contact with a hot sur-
face.
20. Never use an electrical device if the power cable is damaged or the device has any damage. If
you suspect damage, have the device repaired by a professional.
21. Only use the pump as described in the instructions. Only use accessories recommended by
the manufacturer.
Durability
Your submersible pump is intended for the circulation of water with a maximum temperature of
35 . ℃
This pump must not be used for other liquids, especially not for fuels, cleaning liquids or other
chemical products!
Assembly
The pump can be installed as follows:
In a fixed position with fixed piping
In a fixed position with flexible hose pipe
Note: You should never install the pump by suspending it unsupported from the discharge line or the
mains cable.
1. The submersible pump must be suspended from the handle provided or placed on the bottom
of the shaft.
2. To ensure the proper functioning of the pump, the bottom of the shaft must be kept free of
mud and dirt of all kinds.
https://www.XPOtool.com rtikel 62820 - 62821 Seite 4
The Tool Experts
02 2021-1

3. If the water level drops too far, the mud in the sump dries out quickly and prevents the pump
from starting. Therefore, it is necessary to check the pump regularly (by performing commis-
sioning tests).
4. The float is set so that the pump can be started immediately.
Note! The pump should have a minimum size of 40 × 40 × 50 cm so that the float can move freely.
Power supply
The pump is equipped with a safety plug in accordance with regulations. The pump is designed for
connection to a 230 V~50 Hz safety socket. Make sure that the device is in perfect condition. Insert
the plug into the socket and the pump is ready for operation.
Important note!
If the main cable or the plug have been damaged by external influences, repairs to the cable are pro-
hibited. Repairs may only be carried out by a competent electrician.
Areas of application
This pump is mainly used as a basement pump. When installed in a shaft, this pump provides protec-
tion against flooding. It is also used wherever water needs to be transported from one place to an-
other, for example at home, in agriculture, horticulture, sanitary work and much more.
Work settings
fter you have carefully read through these instructions, you can put the pump into operation. How-
ever, please note the following things beforehand:
1. The pump is located at the bottom of the shaft.
2. Make sure that the pressure line is properly connected.
3. Check that the electrical connection of 230 V and 50 Hz is present. ny fibre particles that
may have accumulated in the pump housing should be removed with a water jet.
4. Check that the socket is in good condition.
5. Make sure that water and humidity can never get to the main components.
6. void running the pump dry.
Service manual
This waste water pump is an approved and high quality product that is subject to a strict final
inspection.
We recommend regular inspection and maintenance to ensure long equipment life and unin-
terrupted operation.
Important information!
Disconnect the power plug before carrying out any maintenance work.
In the event that the pump is to be transported frequently during operation, it should be
cleaned with clear water after each use.
In case of a stationary installation, the function of the float switch should be checked every 3
months.
ny fibre particles that may have accumulated in the pump casing should be removed with a
water jet.
https://www.XPOtool.com rtikel 62820 - 62821 Seite 5
The Tool Experts
02 2021-1

Every 3 months the serrated edge should be cleaned of mud.
Remove residues on the float with clear water.
Cleaning the impeller
If excessive sediments accumulate in the pump casing, disassemble the lower part of the pump as fol-
lows:
. Loosen the 4 screws from the bottom of the inlet strainer.
B. Remove the suction strainer from the pump housing.
C. Clean the impeller with clean water.
D. Important! Do not place the pump on the impeller.
E. Reassemble the pump in reverse order.
Setting the on/off operating point
By adjusting the floating switch and its snap-in holder, the switch-on and off point of the floating switch
can be set. Before operating the pump, check the following points:
The floating switch must be installed in such a way that the level of the switch-off point and the
level of the switch-on point can be reached easily and with little effort. To check this, place the
pump in a container filled with water, carefully lift the float switch by hand and then lower it
again. While doing this, check whether the pump switches on or off.
Make sure that the distance between the floating switch head and the snap-in holder is not too
small. Proper operation cannot be guaranteed if the gap is too small.
When setting the floating switch, make sure that it does not touch the base before the pump
switches off. Caution! Danger of running dry!
roubleshooting
Error Causes Solution
Pump does not start No power supply Check the power supply.
Floating switch does not switch Move the floating switch to a
higher position.
No flow Inlet strainer blocked Clean the inlet strainer with a jet
of water.
Pressure air hose bent Readjust the hose.
Pump does not switch off Float cannot sink Place the pump correctly on the
shaft bottom.
Insufficient flow Inlet strainer blocked Clean the inlet strainer.
Reduced pump performance
due to dirty water
Clean the pump and replace
worn parts.
The pump switches off after a
short running time
Thermal switch stops pump due
to dirty water
Pull out the mains plug. Clean
the pump and impeller.
Water too hot; thermal switch
stops pump
Make sure that the maximum
water temperature does not ex-
ceed 35 .℃
https://www.XPOtool.com rtikel 62820 - 62821 Seite 6
The Tool Experts
02 2021-1

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
https://www.XPOtool.com rtikel 62820 - 62821 Seite 7
The Tool Experts
02 2021-1
