XPower 8885741 User manual

8885741

121
1
Table Of Contents
Topic Page #
Important Safety
Tips, Precautions, Warnings,
and Usage Instructions
2-5

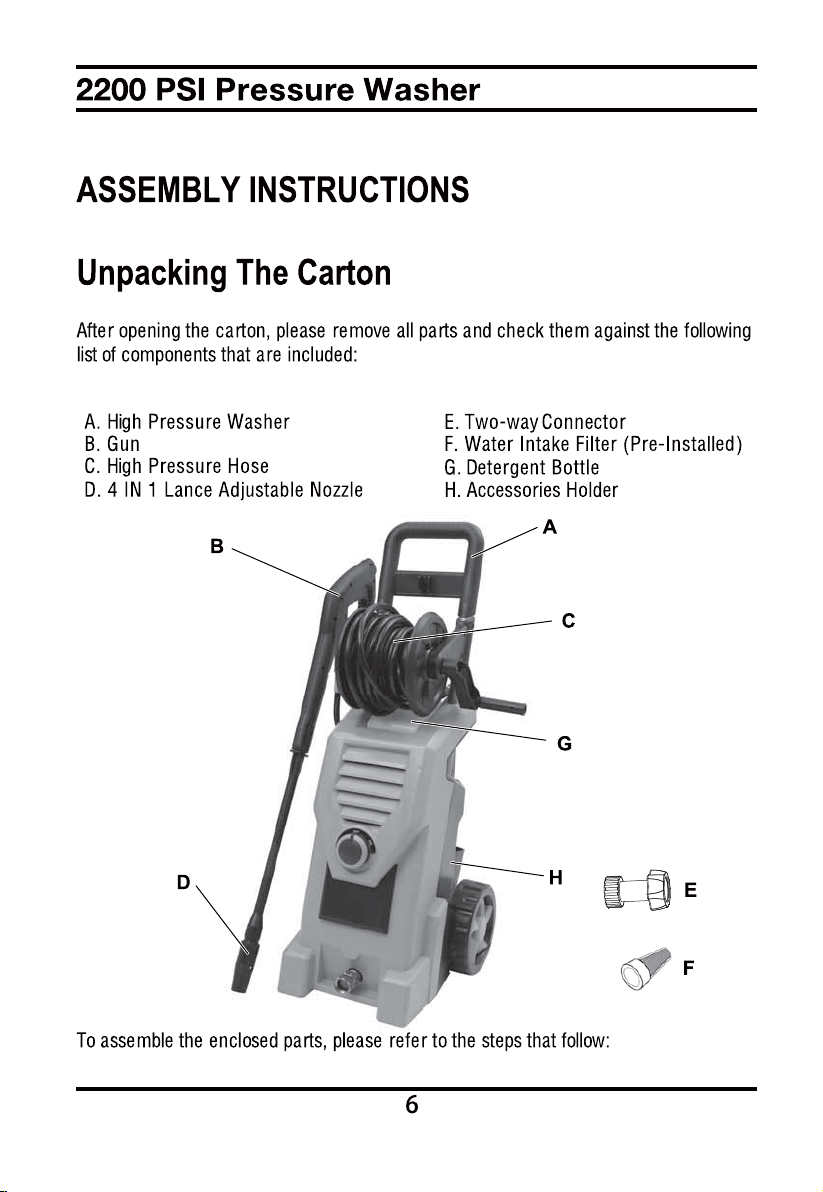

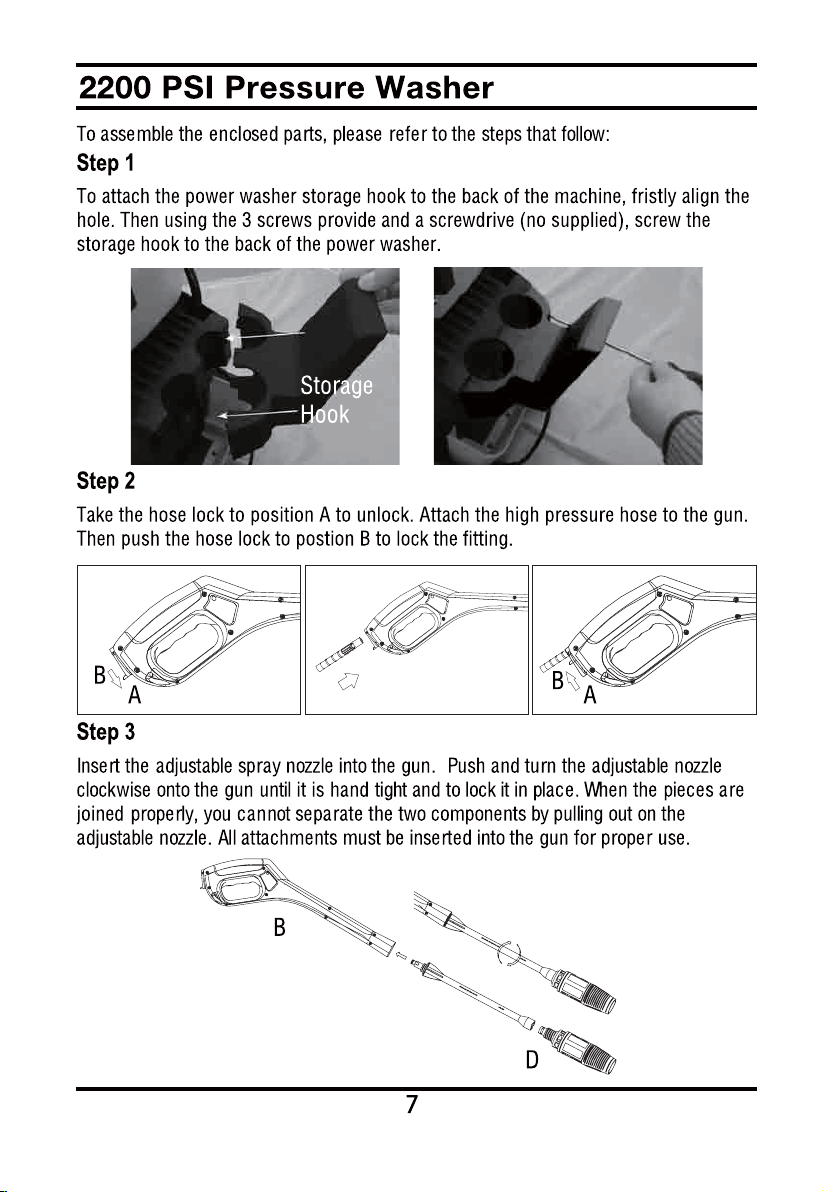

Assembly Instructions 6-8
Operating Instructions 8-11
Detergents 11-13
Clean-up and Storage 13-15
Cleaning Tips 15-16

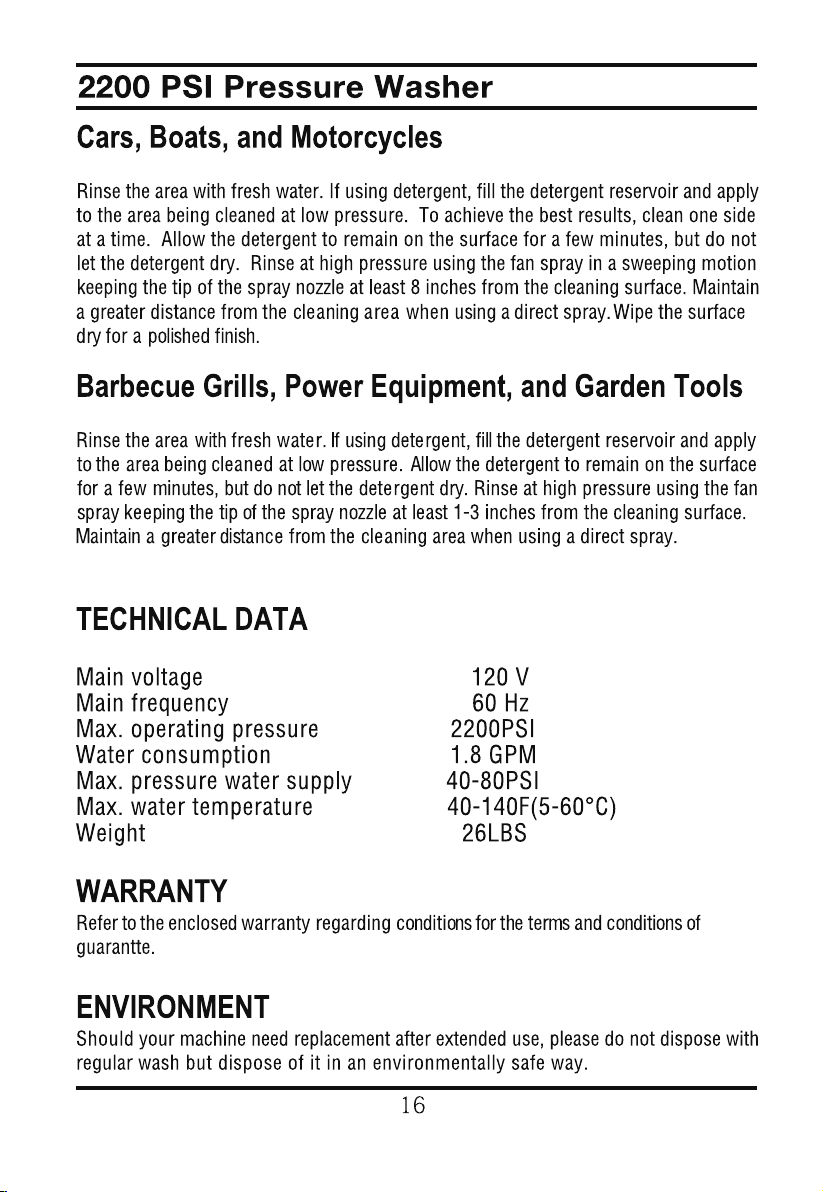

Technical Data 16

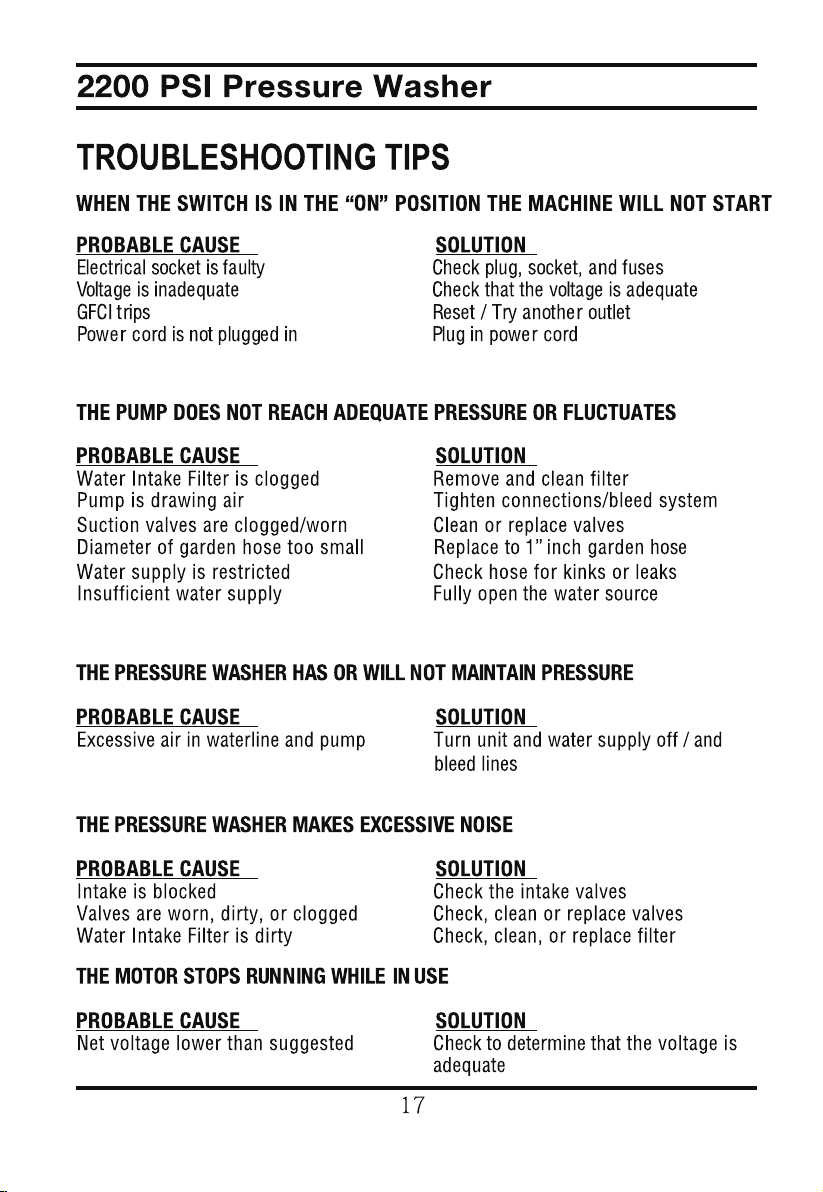

Troubleshooting Tips 17
Limited Warranty 18- 19

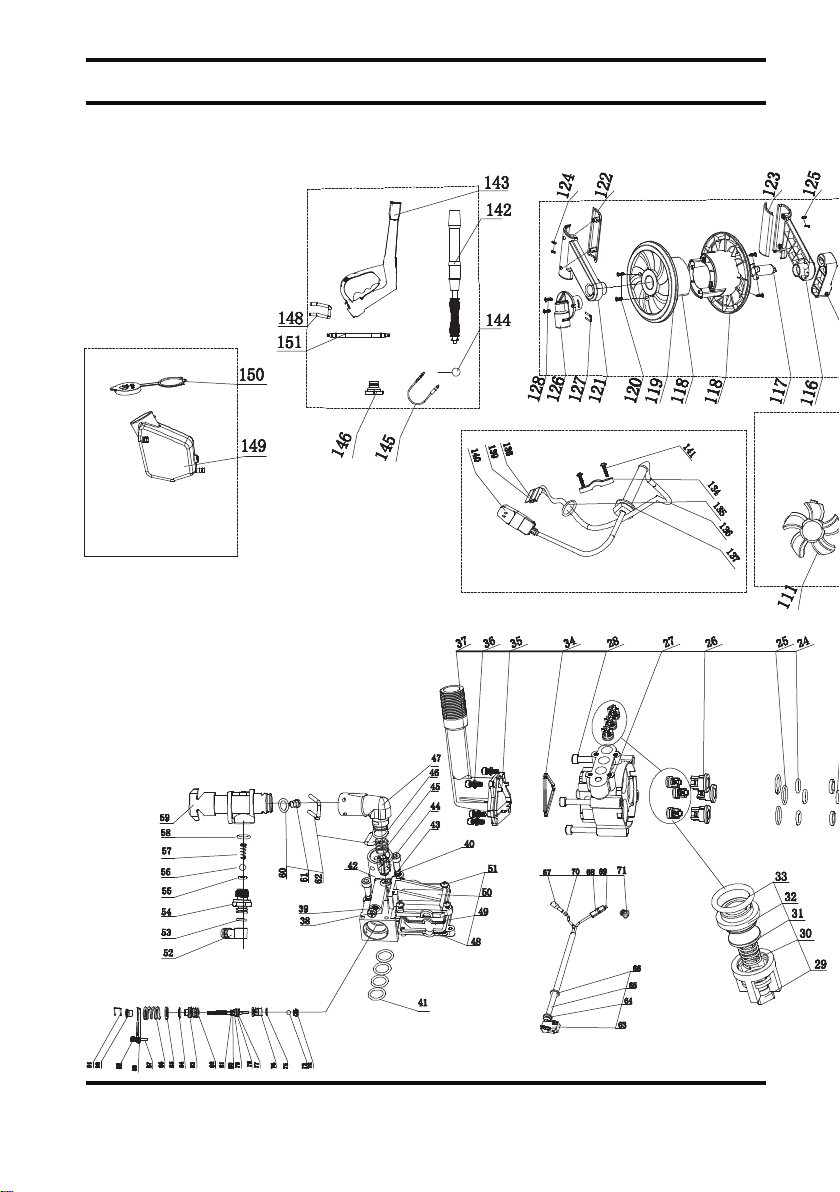

Parts 20- 26
200 PSI Pressure Washer

121
2
GROUND FAULT CIRCUIT INTERRUPTER
(GFCI)
This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into
the plug of the power supply cord. This device provides additional protection from the
risk of electric shock. Should replacement of the plug or cord become necessary, use
only identical replacement parts that include GFCI protection.
This unit is equipped with a Ground Fault Circuit Interrupter (GFCI). When connecting
the GFCI to the receptacle, the indicator should appear red. If the indicator is not red,
depress the RESET button on the GFCI until the indicator appears red. If the indicator
does not appear red, please see Section titled “Troubleshooting” for more information.
IMPORTANT SAFETY TIPS
Never point the high-pressure nozzle at people or animals.
Never drink alcobol or use drugs while operating the pressure washer.
Never operate the pressure washer whilestanding in water.
Never touch the electrical plug with wet hands.
Never let the electrical connections rest in water.
Never operate the pressure washer without the water turned on.
Never use hot water with this pressure washer.
200 PSI Pressure Washer

121
3
IMPORTANT SAFETY PRECAUTIONS
WARNING: When using this product, basic
precautions should always be followed,
including the following:
1. Read all instructions before using the product. Save all
safety instructions.
2. Do not operate the pressure washer when fatigued or under
the influence of alcohol or drugs.
3. Risk of infection or injury – do not direct the high pressure
water stream at any people or animals.
4. Do not allow children to operate the pressure washer at any
time.
5. To reduce the risk of injury, close supervision is necessary
when the pressure washer is used near children.
6. Know how to stop the unit and reduce pressure immediately.
Be completely familiar with the controls.
7. Stay alert – always be aware of where you are directing the
high pressure spray
8. Keep cleaning area clear of all people.
9. Maintain safe footing and balance at all times – do not
overreach or stand on an unstable support.
10. The work area should have adequate drainage to reduce the
possibility of a fall due to slippery surfaces.
11. Follow the maintenance instructions specified in the manual.
12. To reduce the risk of electrocution, keep all connections dry
and off the ground. Do not touch the plug with wet hands.
GENERAL SAFETY PRECAUTIONS
1. Intended for outdoor household use only.
2. High-pressure hose can develop leaks from wear, abuse,
kinking etc. Do not use a damaged hose.
3. Do not use the pressure washer in areas near combustible
materials, combustible fumes, or dust.
4. Some chemicals or detergents may be harmful if inhaled or
ingested causing severe injury. Use a respirator or mask
whenever there is a chance that vapors may be inhaled.
200 PSI Pressure Washer

121
4
Read all instructions included with the mask so you are certain
the mask will provide the necessary protection against inhaling
harmful vapors.
5. Before starting the pressure washer in cold weather, check all
of the parts of the equipment and be sure that ice has not
formed. Do not store the unit anywhere that the temperature
will fall below 0
°C (32°F).
6. DO NOT MAKE ANY MODIFICATIONS TO ANY OF THE
COMPONENTS! Units with broken or missing parts, or without
the protective housing or covers should NEVER be operated
7. Keep the high-pressure hose connected to the pressure
washer and the spray gun while the system is pressurized.
Disconnecting the hose while the unit is pressurized is
dangerous, and may cause injury.
8. Do not leave the pressure washer unattended while the power
switch is ON.
9. Keep the water spray away from electrical wiring or fatal electric
shock may result.
SERVICING OF A DOUBLE-INSULATED
APPLIANCE
In a double-insulated product, two systems of insulation are provided instead of
grounding. No means of grounding is provided on a double-insulated product, nor
should a means for grounding be added to the product. Servicing a double-insulated
product requires extreme care and knowledge of the system, and should be done
only by qualified service personnel. Replacement parts for a double-insulated product
must be identical to the parts they replace. A double-insulated product is marked with
the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. This symbol may
also be marked on the product.
USE OF EXTENSION CORDS
Use of an extension cord with this product is NOT RECOMMENDED. If you must use an
extension cord, use only extension cords that are intended for outdoor use. These cords
are identified by a mark ing “ACCEPTABLE FOR USE WITH OUTDOOR APPLIANCES, STORE
INDOORS WHILE NOT IN USE.” Use only extension cords having an
200 PSI Pressure Washer

121
5
electrical rating not less than the rating of the product.Examine the extension cord before
use. Do not use damaged extension cords! Do not pull on cord to disconnect from the
receptacle. Always disconnect by pulling on plug. Keep the cord away from heat and
esharp dges. Always disconnect the extension cord from the receptacle before
tdisconnecting he product from the extension cord.
WARNING – To reduce the risk of electrocution, keep all connections dry and off
the ground. Do not touch the plug with wet hands.
PROPER USE OF THE PRESSURE WASHER
THIS UNIT IS INTENDED FOR USE WITH COLD WATER ONLY!
DO NOT USE HOT WATER IN THIS PRESSURE WASHER.
1. Operate the pressure washer at no more than the fluid pressure
rated for the pressure washer. Never run the pressure washer
without a water supply. Running the unit without a water supply
will cause irreparable damage to the unit.
2. Make sure that the water supply you use for the pressure
washer is not dirty, sandy, and does not hold any corrosive
chemical products. Using a dirty water supply will compromise
the life of the pressure washer.
3. CAUTION - The pressure washer can be used for a variety of
applications including washing cars, boats, patios, decks,
garages etc. where high pressure is necessary to remove dirt
and debris.
High-pressure water flow can damage the work surface if not
used properly! See the section titled “Operating Instructions” for
more details. Always test the spray in an open area first.
4. NEVER move the unit by pulling on the high pressure hose. Use
the handle provided on the top of the unit.
5. Always hold the high pressure gun and wand with two hands.
Keep one hand on the gun/trigger, while supporting the wand
with the other hand (see diagram).
6. When dispensing detergent, the pressure washer applies
detergent to the cleaning area at low pressure only. Once the
detergent has been applied, spray the detergent off of the work
area by using the adjustable nozzle.
200 PSI Pressure Washer

121

121

121
8
Step 4

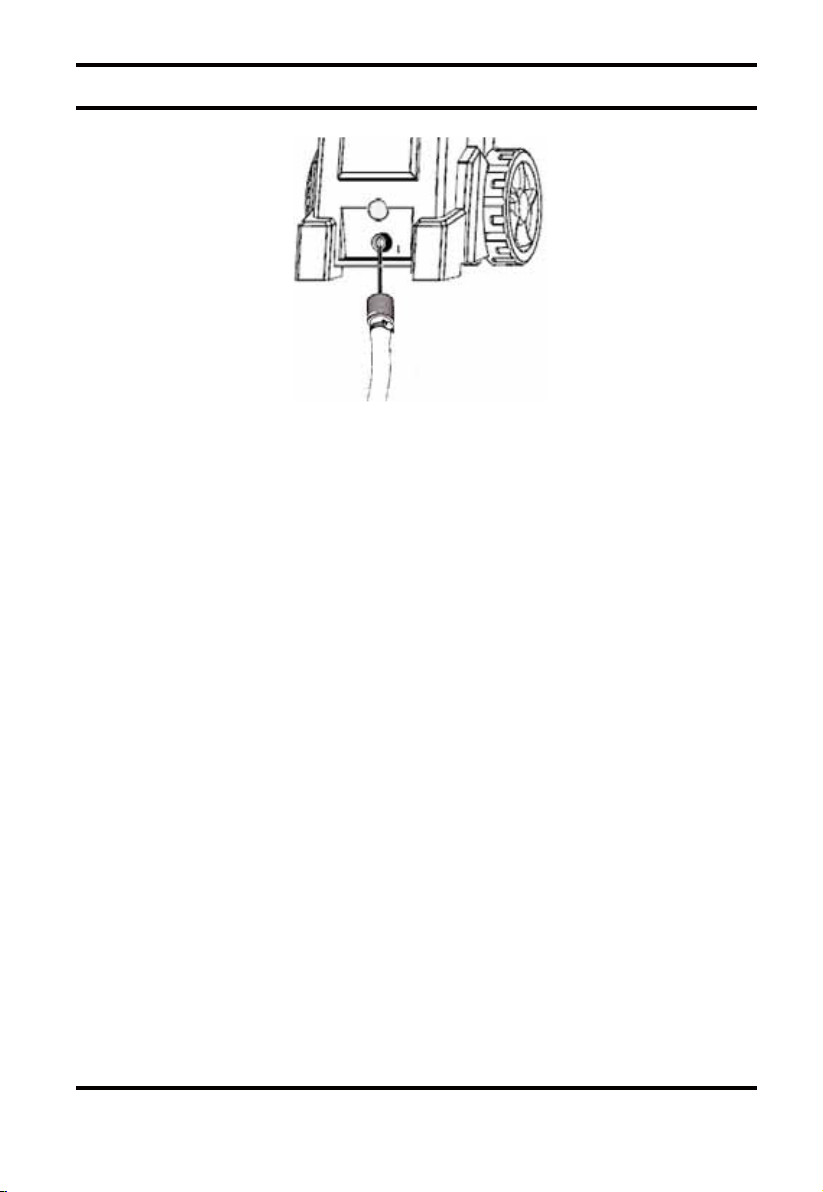

Attach the hose connector to pressure washer. Before attaching the connector to the male
fitting, remove the plastic cap, which is inserted onto the male fitting on the pressure washer
before shipping. This plastic cap can be discarded once removed. After both components have
been installed, attach the garden hose with connector screw on the pressure washer. Connect
the garden hose to the waterspout.
200 PSI Pressure Washer
OPERATING INSTRUCTIONS
THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY!
DO NOT USE HOT WATER IN THIS PRESSURE WASHER!
Starting Up
After connecting the pressure washer to your cold
water supply, proceed as follows:
-Make sure that the on/off switch is
in the off position.

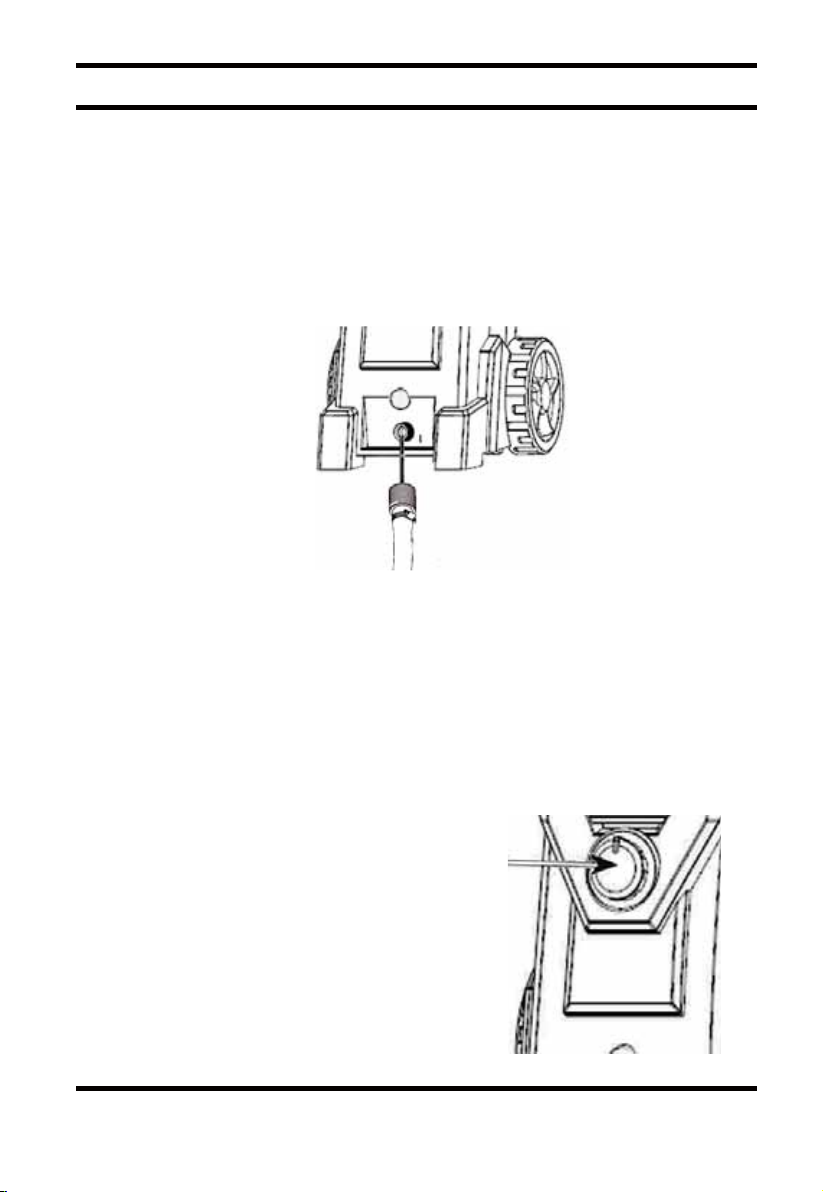

-Connect the garden hose with a quick
connect to the inlet fitting.
-Attach the hose to the gun as per
assembly instruction step #1.
-Insert the adjustable spray nozzle
into the gun as per assembly step
#2.

121
200 PSI Pressure Washer
9
-Connect the high pressure hose to
the high pressure outlet fitting as
per assembly step #3.
-Open the water supply valve completely.
-Before turning the unit on, press the gun trigger to bleed all the
remaining air out of the pump and hose.
-Start the pressure washer by turning the on/off switch to the
on position and squeeze the trigger.
REMINDER: mThe otor does not run continuously,only when the trigger is squeezed.
WARNING – Risk injury the unit will start spraying
when trigger is squeezed. When turning the unit off after
use, high pressure still exists inside the hose and unit. Point
the gun in a safe direction and discharge the excess
pressure. NEVER direct the high pressure water stream at
people or animals.
Automatic On / Off
The pressure washer is equipped with an automatic on/off switch.The pressure washer
will only run when the power switch is in the ON position and the trigger on the gun is
squeezed. When you release the trigger to stop spraying water through the gun, the
motor on the pressure washer will automatically shut off. Simply squeeze the trigger
again to resume using the washer. To stop using the pressure washer, release the
trigger and switch the unit to the OFF position. The unit should be turned completely
OFF while not in use or while unattended.
Bleeding The Gun
It is very important to bleed all the air out of the pressure washer before using it.To do this
1. Release trigger lock.
2. Squeeze the trigger before turning the electrical supply on.This removes any air trapped
inside the pressure washer and lance before using the units.
3. Continue holding trigger for approximately one minute to allow any excess air out of the
unit.Water will flow through the gun at low pressure during this procedure.
4. Lock the trigger.
5. Plug the power cord into the electrical outlet.
6. Release the trigger lock.
7. Turn the ON/OFF switch clockwise to the I/ON position.
The pressure washer is ready for operation.

121
200 PSI Pressure Washer
10
Gun Safety Lock
This pressure washer is equipped with a gun trigger safety lock. When not using the
pressure washer, use the safety lock to protect from accidentally engaging the high
pressure spray.

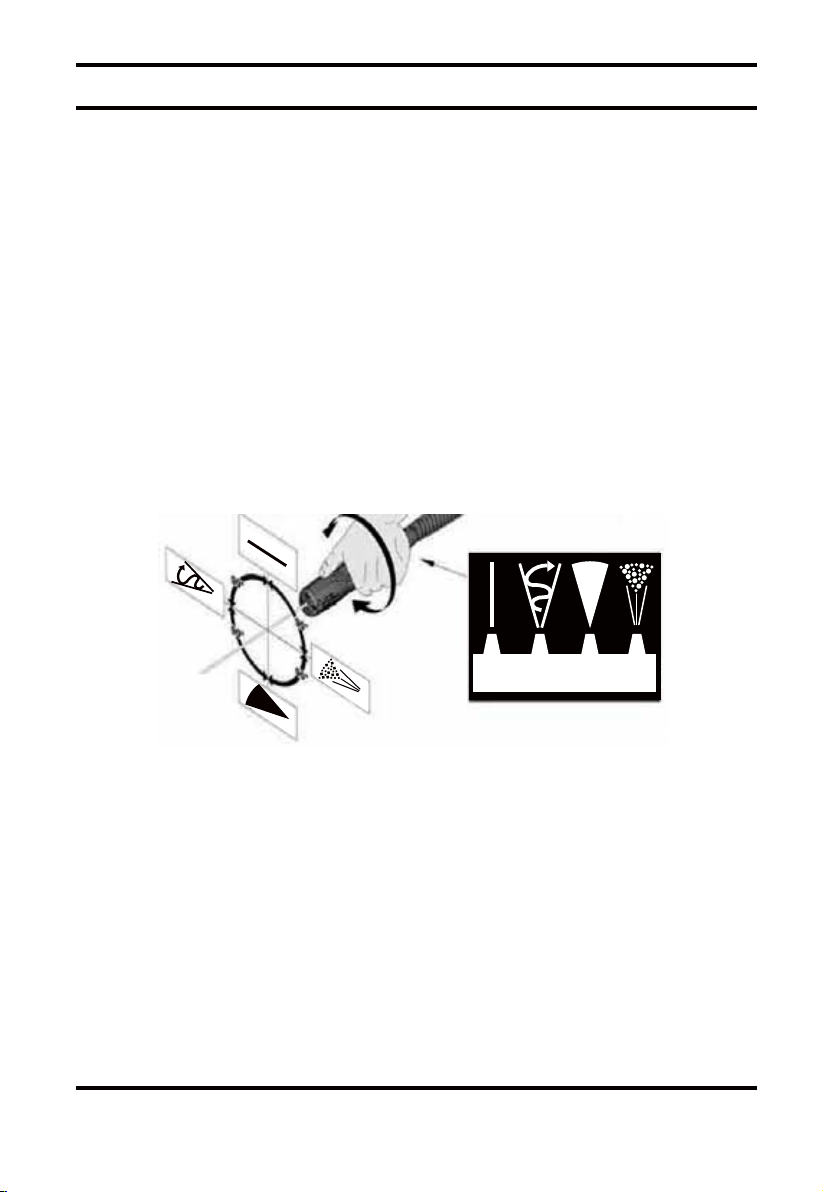

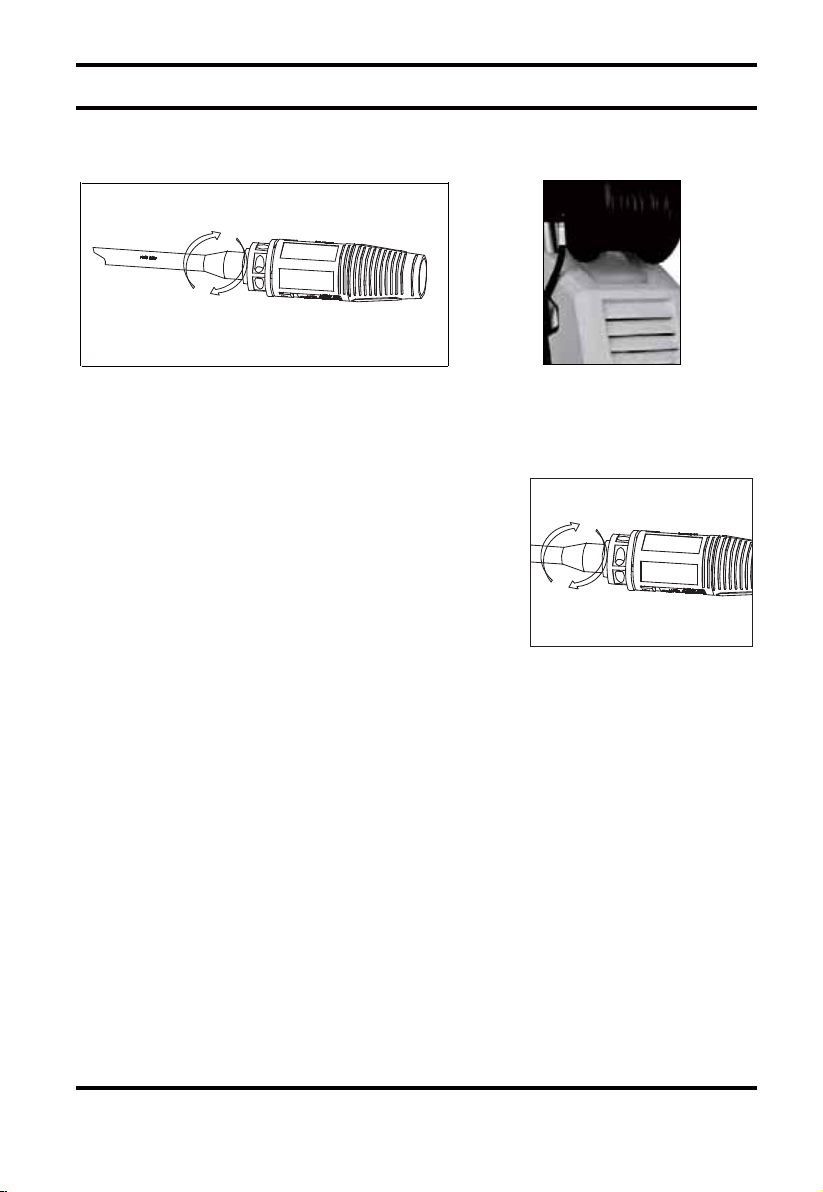

Adjustable Spray Nozzle
The 4 IN 1 adjustable nozzle will allow you to use a variety of spray patterns from a
full fan spray to other spray. When using the pressure washer to clean wood decks,
siding, vehicles etc., always start using the fan spray and begin spraying from a
a minimum 36” away to avoid damaging the surface of the material you are cleaning.
Always begin by spraying in a test area free and clear of people and objects.
Dispensing Detergent
The built-in detergent dispenser will allow you to apply liquid detergent onto the work
surface. Detergent application happens at low-pressure only. Insert the adjustable
nozzle onto the gun, and turn it to “LOW PRESSUER SOAP” so that the pressure washer is
in low-pressure mode (see Figure A below). Remove the cap on the detergent reservoir
and fill with liquid detergent only (see Figure B below). Do not put any water into the
reservoir. The pressure washer will mix water and detergent automatically. When
finished applying the detergent to the work surface, turn it to “HIGH PRESSURE” of the
adjustable nozzle and spray off the detergent by using the high-pressure spray (see
Figure A below). In high-pressure mode, the pressure washer will not dispense detergent.
HIGH
PRESSURE
JET
STREAM
HIGH
PRESSURE
OSCILLATING
FANNED TURBO
HIGH
PRESSURE
WIDE
FAN SPRAY
LOW
PRESSURE
SOAP

121

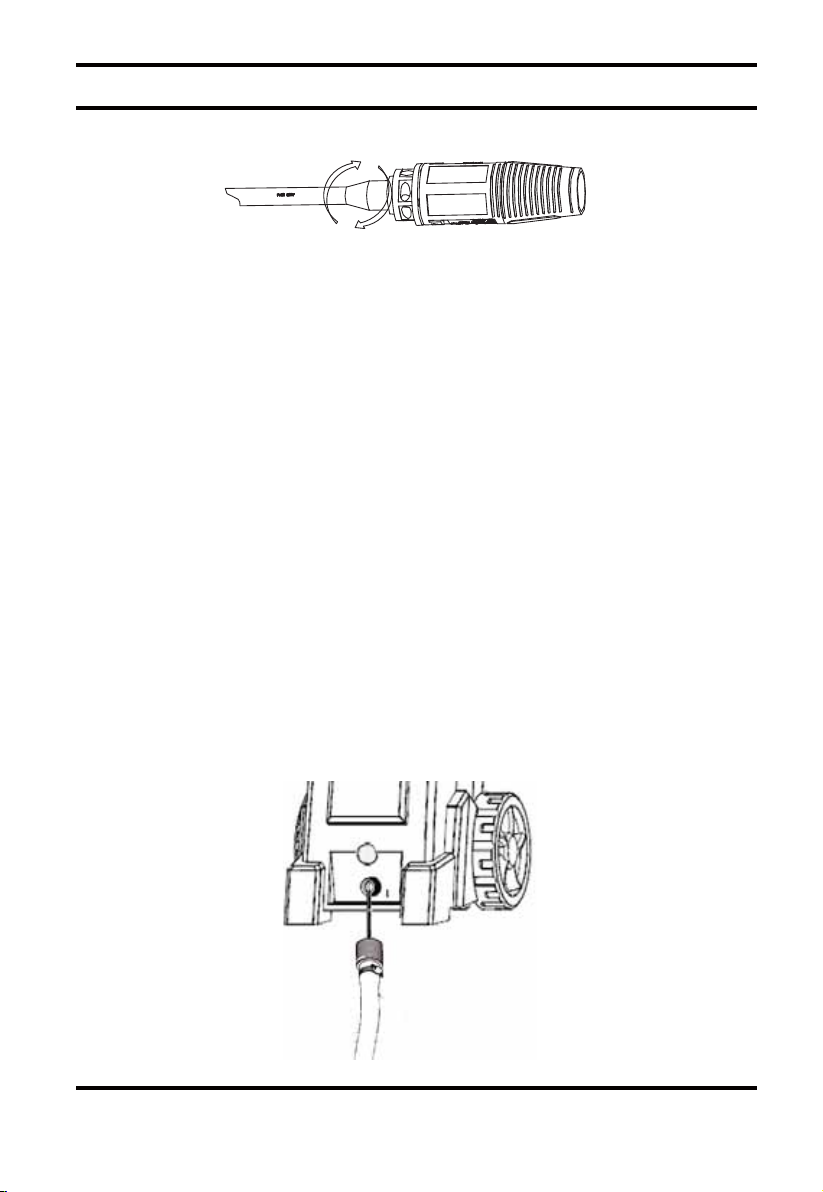

Low Pressure Setting
11
FIGURE A
High Pressure Setting
200 PSI Pressure Washer
FIGURE B

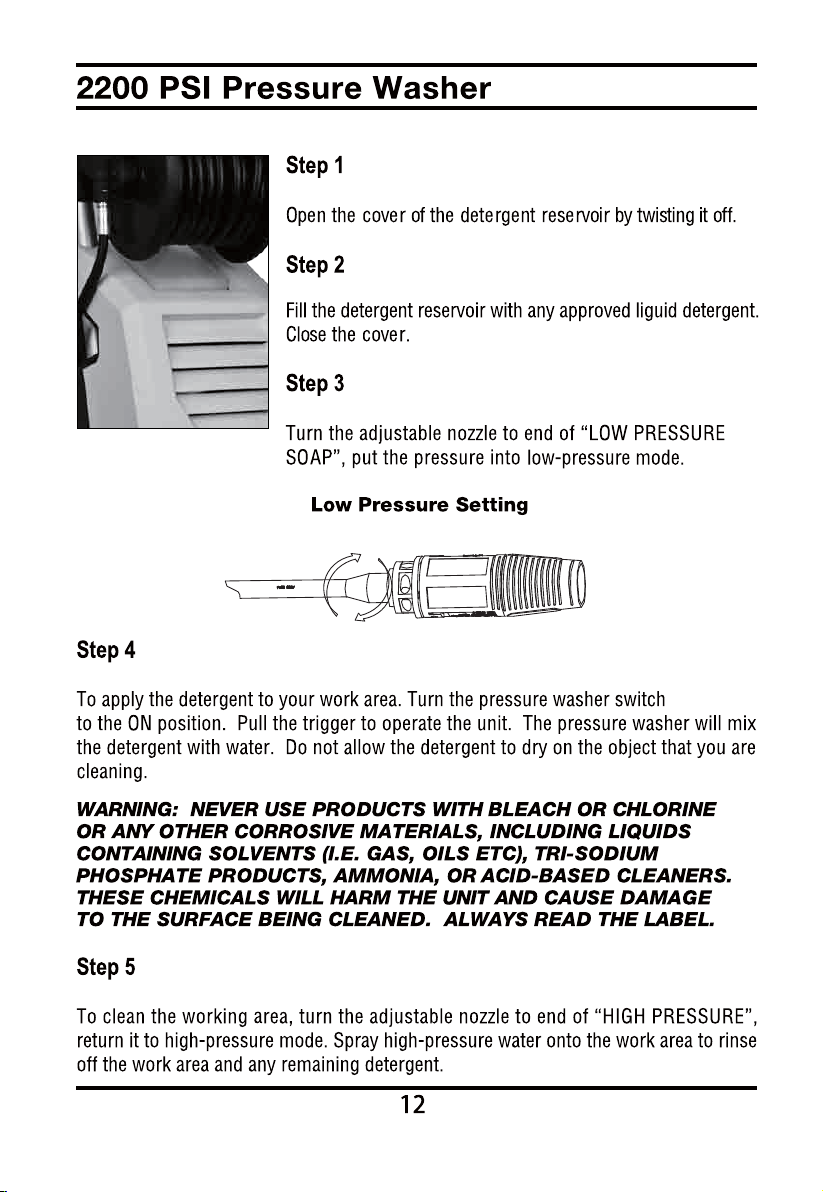

USING DETERGENTS
The pressure washer will dispense detergent only at low pressure.
ADJUSTING THE PRESSURE
To adjust the pressure,proceed as follows:
1. Hold the shaft of the lance in one hand.
2. Turn the grey part of the nozzle clockwise
to obtain the high pressure.
3. Turn the grey part of the nozzle anticlockwise
to obtain the low pressure.
AUTO STOP SYSTEM
The pressure washer is fitted with an automatic stop system to protect the motor when
W
in use.
hen the trigger is released the motor will stop.
When the trigger is squeezed the motor will start up again.
Use the adjustable spray nozzle to apply detergents and to rinse clean.
Biodegradable detergents are specifically formulated to protect the environment and
your pressure washer. These Detergents will not clog the filter and will protect the
internal parts of the pressure washer for a longer life.
Low Pressure Setting
High Pressure Setting

121

121
13
200 PSI Pressure Washer
High Pressure Setting
CLEAN-UP AND STORAGE
Shutting Down the Pressure Washer
WHEN FINISHED USING THE PRESSURE WASHER,FOLLOW THESE
STEPS TO SHUT DOWN THE UNIT:
tTurn the pressure washer to the OFF position.
tTurn off the water supply.
tBefore disconnecting high-pressure hose connection, point the gun in a
safe direction and discharge the high-pressure water.
tDisconnect high-pressure hose from the pressure washer and gun.
tDisconnect garden hose from the pressure washer.
tRemove excess water from the pump by tipping the unit on both sides to
drain any remaining water from the inlet and outlet fittings.
tRemove the Water Intake Filter and flush with water to remove dirt or
debris. Return the filter once it is cleaned.

121
14
tDrain the detergent reservoir and flush with running water.
tWipe away any remaining water on all parts and fittings.
tEngage the gun safety lock.
tStore the pressure washer, parts, and accessories in an
area with a temperature above 0°C (32°F).
200 PSI Pressure Washer
Winterizing and Long-Term Storage
FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,ADDING
THE FOLLOWING STEPS….
tAfter disconnecting the water supply, and before disconnecting the
high-pressure hose, turn the pressure washer on for 2-3 seconds, until any
remaining water in the pump exits. Turn the unit off immediately.
CONTINUED USE OF THE PRESSURE WASHER WITHOUT THE
WATER SUPPLY ATTACHED WILL CAUSE SEVERE DAMAGE TO
THE UNIT!
tAlways store the pressure washer, parts, and accessories in an area with a
temperature above 0° C (32° F).
WARNING: FAILURE TO COMPLY WITH THESE STORAGE
INSTRUCTIONS WILL RESULT IN DAMAGE TO THE PUMP
ASSEMBLY.
Maintenance
tThis pressure washer is supplied with a closed lubrication system, so no
addition of oil is ne eded.
tCheck all hoses and accessories for damage prior to use.
tCheck the water intake filter periodically for deposits. Clean this filter
regularly for maximum performance.

121
15
200 PSI Pressure Washer
CLEANING TIPS
WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND
CLEAR OF PEOPLE AND OBJECTS BEFORE YOU AIMING AT THE
INTENDED CLEANING SURFACE.
Wood and Vinyl Decks
Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent
reservoir and apply to the area being cleaned at low pressure. For optimal results,
reduce your work area to smaller sections and clean each section one at a time. Allow
the detergent to rest on the surface for a few minutes and then rinse at high pressure.
Do not let the cleanser dry. Always clean from left to right and top to bottom for best
results. Rinse at high pressure using the fan spray keeping the tip of the spray nozzle
at least 6-9 inches from the cleaning surface. Maintain a further distance from the
cleaning area when using a direct spray.
Caution: For softer woods, increase the distance from the cleaning area.
Cement Patios, Stone, and Brick
Rinse the area with fresh water.If using detergent, fill the detergent reservoir and apply
to the area being cleaned at low pressure. Rinse at high pressure using the fan spray
in a sweeping motion keeping the tip of the spray nozzle at least 3-6 inches from the
cleaning surface. Maintain a further distance from the cleaning area when using a
direct spray.

121

   
   
     
 

121
This limited warranty does not cover: (a) normal wear and tear; (b) damage through
abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage
from misapplication, overloading, or improper installation; (d) improper maintenance and
repair; and (e) product alteration in any manner by anyone other than Us, with the sole
exception of alterations made pursuant to product instructions and in a workmanlike
manner.
Limitations onthe Warranty
You must retain Your product purchase receipt to verify date of purchase and that You are
the original purchaser. To make a warranty claim, contact Us at [phone], identify
the product by make and model number, and follow the claim instructions that will be
provided. The product and the purchase receipt must be provided to Us in order to
process Your warranty claim.
Obligations of Purchaser
You acknowledge and agree that any use of the product for any purpose other than the
specified use(s) stated in the product instructions is at Your own risk.
Assumptionof Risk
This limited warranty gives You specific legal rights, and You also may have other rights
which vary from state to state. Some states do not allow limitations or exclusions on
implied warranties or incidental or consequential damages, so the above limitations may
not apply to You. This limited warranty is governed by the laws of the State of Minnesota,
without regard to rules pertaining to conflicts of law. The state courts located in Dakota
County, Minnesota shall have exclusive jurisdiction for any disputes relating to this
warranty.
Governing Law

121
EXPLODER VIEW
19
2200 PSI Pressure Washer
