Xtool X100 PAD2 User manual

X100 PAD2
Auto Key Programmer
User Manual

X100 PAD2 Diagnosis System
Declaration
1. This manual is designed for the usage of X100 PAD2, applying to X100 PAD2 smart
automotive diagnosis platform.
No part of this manual can be reproduced, stored in a retrieval system or
transmitted, in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), without the prior written permission of Xtool.
2. Use the device only as described in this manual. The user will be responsible
solely for the after-effects of violating the laws and regulations caused by using the
product or its data information; in this case Xtool will not bear any legal
responsibility.
3. Xtool shall not be liable for any incidental or consequential damages or for any
economic consequential damages arising from the accidents of individual users and
the third parties, misuse or abuse of the device, unauthorized change or repair of
the device, or the failure made by the user not to use the product according to the
manual.
4. All information, specifications and illustrations in this manual are based on the
latest configurations and functions available at the time of printing. Xtool reserves
the right to make changes at any time without notice.
5. is the registered trademark of SHENZHEN XTOOLTECH CO.,LTD.
6.In countries that the trademarks, service marks, domain names, logos and the
name of the company are not registered, Xtool claims that it still reserves the
ownership of the unregistered trademarks, service marks, domain names, logos and
the company name. All other marks for the other products and the company’s name
mentioned in the manual still belong to the original registered company.
You may not use the trademarks, service marks, domain names, logos and company
name of Xtool or other companies mentioned without written permission from the
trademark holder.
7. Please visit www.xtooltech.com for more information on the X100 PAD2.
8. Xtool reserves the right for the final interpretation of this manual content.
Xtool X100 PAD2 User Manual Instructions
Please read this user manual carefully before using the scanner.
When reading the manual, please pay special attention to the words “Note”,
“Caution” or “Warning”, read them carefully for appropriate operation.

X100 PAD2 Diagnosis System
Xtool X100 PAD2 Diagnosis System Main Unit Maintenance
Avoid shaking or dismantling the unit as it may damage the internal components.
Do not use hard or sharp objects to touch the LCD screen; do not use excessive force;
do not expose the screen to strong sunlight for a long period.
Caution: keep it away from water, moisture, high temperature or very low
temperature.
If necessary, calibrate the screen before testing to ensure the accuracy of LCD
performance.
Keep the main unit away from strong magnetic fields.
Operation Instructions
For safe operation please follow the instructions below:
Keep the scanner away from heat or fumes when using it.
If the vehicle battery contains acid, please keep your hands and skin or fire sources
away from the battery during testing.
Exhaust gas of vehicle contains harmful chemicals, please ensure adequate
ventilation.
Do not touch the cooling system components or exhaust manifolds when engine is
running due to the high temperatures reached.
Make sure the car is securely parked, Neutral is selected or the selector is at P or N
position to prevent the vehicle from moving when engine starts.
Make sure the (DLC) diagnostic link connector is functioning properly before starting
the test to avoid damage to the Diagnostic Computer.
Do not switch off the power or unplug the connectors during testing, otherwise you
may damage the ECU and/or the Diagnostic Computer.

X100 PAD2 Diagnosis System
Contents
CHAPTERⅠAbout X100 PAD2 ......................................................................................1
1. Appearance ................................................................................................................1
1.1. Front View...............................................................................................................1
1.2. Back View................................................................................................................1
2. Layout of X100 PAD2 Tablet .......................................................................................2
2.1. Top View of X100 PAD2 Tablet................................................................................2
2.2. Side View of X100 PAD2 Tablet...............................................................................2
3. X100 PAD2 Technical Parameters...............................................................................2
CHAPTERⅡHow to Use X100 PAD2 ...........................................................................3
1. X100 PAD2 Activation.................................................................................................3
2. X100 PAD2 Main Interface and Functional Buttons Descriptions..............................3
2.1. Main Interface.........................................................................................................3
2.2. Sub-menu and Functional Buttons .......................................................................5
2.3. Toolbar Functional Buttons.....................................................................................5
3. Vehicle Connection Diagnosis ....................................................................................6
3.1. Vehicle Connection Test..........................................................................................6
3.2. Precautions Before Use...........................................................................................6
4. Special function and Diagnosis ..................................................................................7
4.1. Menu Options .........................................................................................................7
4.2. Test Functions .........................................................................................................9
4.3. Read ECU .............................................................................................................10
4.4. Read DTCs..............................................................................................................11
4.5. Clear DTCs .............................................................................................................11
5. Settings.....................................................................................................................12
6. XCloud ......................................................................................................................13
7. Update......................................................................................................................13
8. Report.......................................................................................................................13
9. Remote.....................................................................................................................15
CHAPTERⅢHow to Use KC100 ..................................................................................16
CHAPTER ⅣLocation of Diagnostic Link Connectors on Different Vehicle Models ................. 19
1. Diagnostic Link Connectors Locations of Various Vehicle Models...........................19
2. Location Diagram of Vehicle Diagnostic Link Connectors........................................22
3. Diagnostic Link Connectors Terminal Definition and Communication Protocols ....22

X100 PAD2 Diagnosis System
1
CHAPTER ⅠAbout X100 PAD2
1. Appearance
1.1. Front View
1.2. Back View

X100 PAD2 Diagnosis System
2
2. Layout of X100 PAD2 Tablet
2.1. Top View of X100 PAD2 Tablet
①Charging port: Battery charging
②DB15 Port: Supports wired connection with car by the cable
③USB Type C Port: Connect with PC for data transmission
④Power Button: Power on or power off
2.2. Side View of X100 PAD2 Tablet
①Earphone jacket
②TF Card Port
③Mini HDMI Port
3. X100 PAD2 Technical Parameters
Operating System:
Processor:
Memory:
Display:
TP:
Camera:
Sensors:
Audio Input/Output:
Power and Battery:
Power Voltage:
Power Consumption:
Operating Temperature:
Humidity:
Dimension(L×W×H):
Android
Quad-core 1.6GHz Processor
1G RAM,16G FLASH
8 inch IPS LCD with 1024x768p resolution
8 inch multi-point touch screen
Rear camera, 5.0 Megapixel, AF with Flashlight
Gravity Sensor, Ambient Light Sensor
Microphone, Dual Speakers, 3-Band 3.5mm
stereo/standard headset jack
12V
29.6W
-20 to 50℃(-4 to 126℉)
4000mAh, 7.4V lithium-polymer battery
<90%
240×177×30mm
①
②
③
④
①
②
③

X100 PAD2 Diagnosis System
3
CHAPTER ⅡHow to Use the X100 PAD2
1. X100 PAD2 Activation
1.1. Please activate X100 PAD2 before you use it to test vehicles. And please connect
WiFi first.
1.2. Input activation code (on the manual cover), product serial number (each device
will have a serial number and activation code), nickname (workshop’s name or user’s
nickname), login account (can be your email address or cell phone number) and
password, the system will then save it. Activation is a one time process. The
diagnostic application will start after activation.
2. X100 PAD2 Main Interface and Functional Buttons Descriptions
2.1. Main Interface
Tap on X100 PAD2 application icon, the main interface and sub-menus will be shown
as below.

X100 PAD2 Diagnosis System
4

X100 PAD2 Diagnosis System
5
2.2. Sub-menus and Function Buttons
Function Buttons
Descriptions
Opens the X100 PAD2 diagnostic application. It can read
diagnostic information, view live data, perform actuation tests
and special functions etc.
By selecting “Setting”, users can access the language setting
and other system related settings.
Online Communication Platform for X100 PAD2 users.
(English version is coming soon)
Click UPDATE after X100 PAD2 is connected to internet, then
you can download the latest diagnostic software directly to
X100 PAD2.
Users can view all the diagnostic reports and diagnostic data
generated in the diagnosis process.
Users can get remote help and support when needed.
2.3. Toolbar Function Buttons
Function Buttons
Descriptions
Screen capture
Turn down the volume
Return to previous interface
Return to the main interface of Android System
Show (recently used) applications
Turn up the volume
Click here to return to the diagnostic interface
Click here to return to diagnostic vehicle models interface

X100 PAD2 Diagnosis System
6
3. Vehicle Connection Diagnosis
3.1. Vehicle Connection Test
a. Turn on X100PAD2 tablet
b. Connect cables and X100PAD2 in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD2 application to test vehicles. (Shown as
follows)
①X100 PAD2 Mainframe
②Main Test Cable
③OBDII Connector
④Vehicle
3.2. Precautions before Use
3.2.1. The vehicle power supply has to meet the normal voltage limits DC 9-15V
3.2.2. Users should check the position of the DLC port and ensure the OBDII 16pin
connector and the DLC port are correctly aligned before attempting to connect.
3.2.3. When taking some special functions tests, users are required to operate the
device according to operating instructions. For vehicle, it has to strictly meet the
requirements, for example, the conditions that some vehicle models need to be
reached are as follows: engine temperature 80℃/105℃, turn off the loads (such as
headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
3.2.4. If users can not find the tested vehicle model or electronic control system in
the X100 PAD2 test menu, they may need to update the software or consult Xtool
technical service department.
3.2.5. Please ensure that only official XTOOL cables and connectors are used to
prevent damage to the unit.
3.2.6. Before powering off the unit, please ensure that you cancel or complete the
current task or function and return to the main interface, then power off.
3.2.7. Do not use excessive force to operate the touch screen.
3.2.8. During long period of non-use, please disconnect the power and turn off the

X100 PAD2 Diagnosis System
7
X100 PAD2 unit.
4.Special function and Diagnosis
4.1. Menu Options
4.1.1. After the X100 PAD2 mainframe is connected to the vehicle via main test cable,

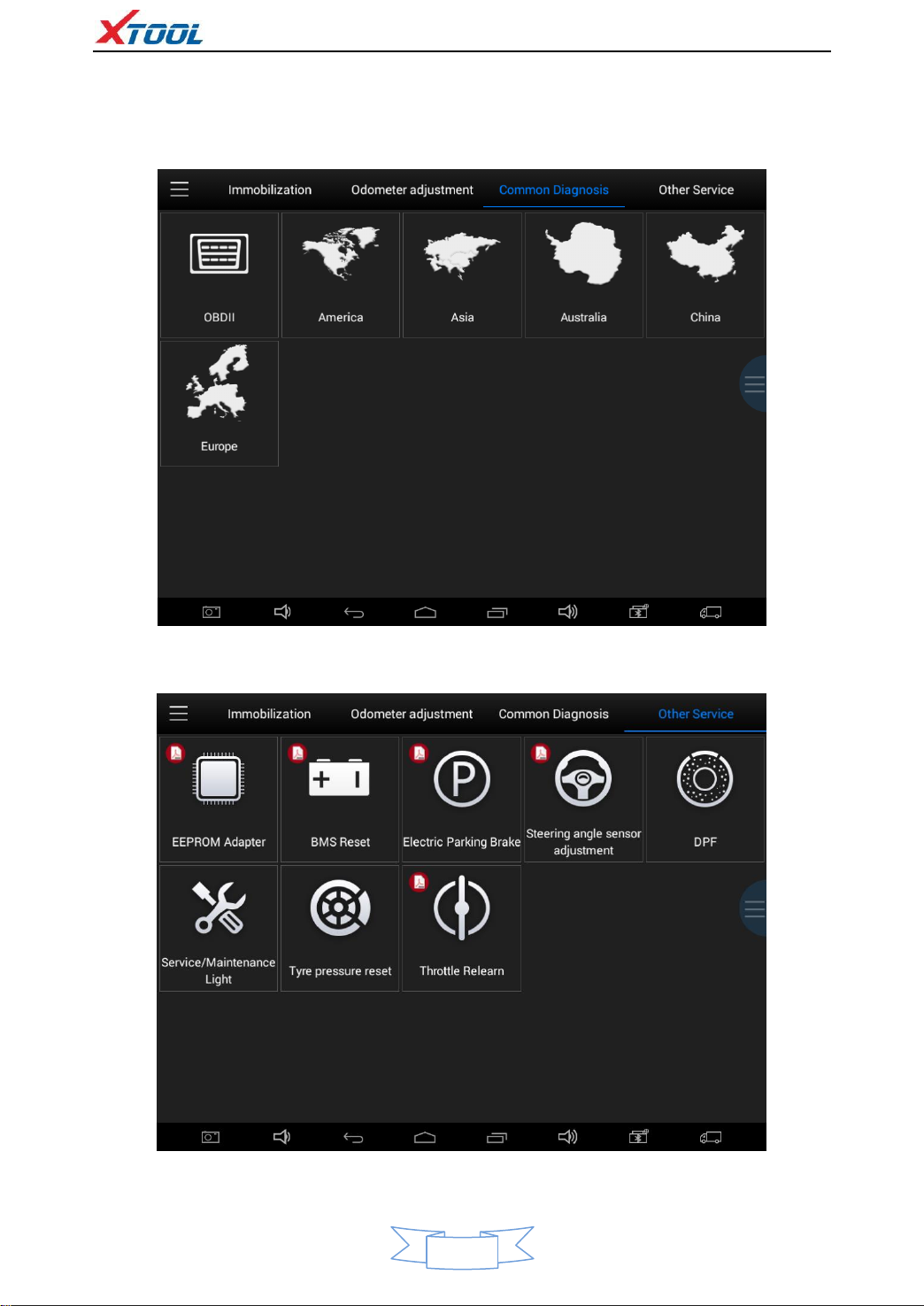

Immobilization can be performed. The Immobilization interface is shown as below:
4.1.2. X100 PAD2 lists mileage adjustment separately. The Odometer Adjustment
interface is shown as below:

X100 PAD2 Diagnosis System
8
4.1.3. Users can choose the relevant menu for the vehicle being tested: selection for
Europe will enter the European cars menu, selection for Asia will enter the Asian
cars menu, selection for America will enter the American cars menu.
4.1.4. Besides the usual system diagnostic functions, XTOOL also has developed a
series of special diagnostic functions for certain vehicles as follows:

X100 PAD2 Diagnosis System
9
4.2. Test Functions: it can read and clear faults codes for all systems of vehicles.
4.2.1. Using VW as an example, select Common Diagnosis, then select EUROPE.Choose the
VW word. If the wordis not showing onthe screen,pleaseswipe up or downto displayit.
PLEASE NOTE: Different vehicles have different menus and systems.
Common main function menu includes the following options:
Read ECU: This function is to read the ECU version information, which is the
equivalent of “System Identification” or “System Information” in some electronic
control systems.
This will allow you to read ECU related software and hardware versions, models and
production date of diesel engine, part number, etc.
Read DTCs: read the trouble codes that are stored in the ECU.
Clear DTCs: clear current and historical trouble codes memory in ECU. The trouble
codes can not be erased without eliminating the fault that the code relates to. TIP:
Save or print the currently stored fault codes before clearing them to provide help in
the case of an intermittent fault.
4.2.2. Toolbar function buttons descriptions
Function Buttons
Descriptions
Return to previous interface
Print test data
Click to record the data, click again to send your
feedback to XTOOL service center
After clicking the data record button the second time the data feedback page will
appear as shown below, showing diagnostic software version, vehicle being tested,
and the steps performed in the diagnostic process. Users can then enter the nature

X100 PAD2 Diagnosis System
10
of the problem and any other relevant information and send the form to the Xtool
engineering department.
4.3. Read ECU
This function is used to read ECU version information, which is the equivalent of
“System Identification” or “System Information” in some electronic control systems.
This will allow you to read ECU related software and hardware versions, models and
production date of diesel engine, part number, etc. shown below:

X100 PAD2 Diagnosis System
11
4.4. Read DTCs
Select Read Fault Codes to read the trouble codes stored in the ECU. The screen will
show the trouble codes and their definition, shown below:
Tip: In the process of diagnosis, if the device shows “System is OK” or “No Trouble
Code”, it indicates that the ECU has not detected a fault in any of the circuits that it
monitors. If there is a fault which is not being recorded it may be that the fault is
with a part of the system not under the control of ECU, such as a mechanical system
fault. It is also possible that the signal of a system sensor may be incorrect but still
within the ECUs stored limits, this can be verified in Live Data.
4.5. Clear DTCs
4.5.1. Return to the previous step, select Clear Fault Codes to clear the current and
historical trouble codes memory in ECU. Performing this function will clear all the
current and historical trouble codes. Please ensure that the trouble codes have been
recorded before clearing, shown below:

X100 PAD2 Diagnosis System
12
4.5.2. Click YES to confirm the operation, if the communication is normal, it will
show “Trouble Codes Successfully Cleared” or “Trouble Codes Cleared”. Generally,
users will need to re-read trouble codes after clearing them to confirm that the
trouble codes have been cleared.
5. Settings
By selecting Settings users can set the language, unit and other system related options.
Languages: select the language. Please tick the required option from the
multi-language options on the right.
Units: Select unit of measurement. Users can select Metric or British Unit.

X100 PAD2 Diagnosis System
13
6. XCloud (English version is coming soon)
All the auto maintenance technicians who use our products can not only look up the
maintenance information that we put on our cloud service platform conveniently,
and combine the diagnosis result to query, and communicate with other Xtool users
in our forum, but can also access various online databases of maintenance and
diagnostic skills and vehicle maintenance plans.
7. Update
X100 PAD2 updates directly via the Internet using WiFi or wired connection. To access the
update application open the X100 PAD2 application and click UPDATE , shown below.
8. Report
Report is used for viewing and printing the saved files, such as Live Data, Trouble Codes or
pictures generated in the process of diagnosis, users also can view a record of which cars
have been previously tested. It includes three parts: PDF Files, Pictures and Data Playback.

X100 PAD2 Diagnosis System
14
8.1. PDF Files:
8.1.1. PDF files are the diagnostic reports of Live Data or Trouble Codes that have been
saved during diagnosis. Entering PDF will allow you to view and print these reports.
8.1.2 Click PDF icon to generate PDF when you want to save the trouble code report
8.2. Data Replay:
With Data Playback you can play back recorded Live Data & freeze frame data.

X100 PAD2 Diagnosis System
15
8.3. File Management:
Pictures are all the screen capture files saved in the diagnosis process.
9. Remote
If users encounter problems and are not able to solve them, they can open this
application and ask for remote assistance.
How to get remote assistance from Xtool Technical Assistance Center:
a. Open X100 PAD2
b. Click Remote and open the Team Viewer interface. Generate and display device ID.
c. Your partner will also need to download and install Team Viewer.
d. Inform your partner of your Team Viewer ID and password to enable them to
begin remote access of the X100 PAD2.

X100 PAD2 Diagnosis System
16
CHAPTERⅢHow to Use KC100
If you purchase an EXTRA dongle KC100, you can work with VW/Audi/Skoda/Seat
4th and 5th immobilizer software and BMW CAS1-3++ immobilizer software. Lets
take VW as an example. Since VW 4th and 5th Immo programming needs online
programming, please make sure X100 PAD2 connect Internet before doing
programming. Please find operation steps as below:
1. Please use main cable and OBDII connector (or other relative connector) to
connect between X100 PAD2 and your car’s OBD port.
2. Please use TYPE-C to mini USB cable to connect between X100 PAD2 and KC100.
