XTRACK 99.729 User manual

99.729 99.730
FINGERPRINT READER
99.729 / 99.730
GENERAL WARNINGS
Mottura Serrature di Sicurezza S.p.A. thanks you for choosing this product and reminds you:
- to read these instructions very carefully before installing and using this product and before doing any maintenance.
- to keep these instructions for future use and attach the sales receipt to validate the warranty.
- in case of problems, contact your authorized dealer only.
“DO NOT use a liquid, spray, or wet cloth to clean the escutcheon! If liquids enter the scanner, they will oxidize and permanently damage
its components. Use a dry cloth only. DO NOT paint the escutcheon with any method or substance. Failure to follow these instructions will
immediately void the warranty.”
Mottura Serrature di Sicurezza S.p.A. may change the characteristics of the products described in these instructions at any time and without
notice. Always disconnect power supply before carrying out any connection/assembly operation and/or subsequent procedure.
WARRANTY TERMS
This device has been inspected by Mottura Serrature di Sicurezza S.p.A. and is guaranteed against all manufacturing defects for the period
dened by Italian law; the period begins on the date of purchase as demonstrated by the sales receipt. The warranty is eective if the sales
receipt, bearing information identifying the device, is shown to the dealer or service personnel. The warranty covers the replacement or
repair of parts found defective due to faulty manufacture; shipping costs to and from service centers are charged to the customer.
In case of a repeated malfunction of the same origin or a malfunction that cannot be repaired, Mottura Serrature di Sicurezza S.p.A. may
decide, in its nal judgment, to replace the entire device. The warranty on the replacement device will continue to the expiration of the
original device. If the device must be serviced at the customer’s home, the customer is required to pay (if requested) a minimum charge to
cover the transfer costs of authorized service personnel.
Transport is at the customer’s risk if the customer ships the device, and at the service personnel’s risk if the device is picked up and transpor-
ted by service personnel.
LIMITS OF LIABILITY
The warranty does not cover damage deriving from:
- negligence, carelessness, or use other than as described below
- failure to protect the device before doing any procedure that may generate scrap or waste (welding, drilling of panels, drilling of structure,
etc.) that prevents its correct functioning
- maintenance work not conforming to these instructions or done by unauthorized personnel
- use of accessories/components that are not original Mottura products
- shipping of the device without the necessary precautions
- any circumstances not attributable to manufacturing defects.
Operating temperature: -10°C to +55 °C.
In addition, Mottura Serrature di Sicurezza S.p.A. declines all liability for any harm to persons or damage to property deriving from failure to
comply with all of the instructions and warnings contained in this manual.
5 protection against dust
and wire contact with
dangerous parts.
4 protection against
splashing water.

2
INSTALLER
1 - ESCUTCHEON .................................................................................................................. pag. 3
2 - ASSEMBLY AND ELECTRICAL CONNECTION...
... WITH XMODE ......................................................................................................................... 4
... WITH XNOVA OR OTHER ELECTRONIC/ELECTRICAL LOCKS .............................................................. 4
3 - AUTHENTICATION WITH XMODE ............................................................................................. 5
4 - AUTHENTICATION WITH XNOVA OR OTHER ELECTRONIC/ELECTRICAL LOCKS ....... 6
USER
5 - MANAGING TAGS WITH XMODE ............................................................................................... 7
6 - MANAGING TAGS WITH OTHER ELECTRONIC/ELECTRICAL LOCKS /XNOVA
6.1 MEMORIZING MASTER TAGS ........................................................................................................ 7
6.2 MEMORIZING SERVICE TAGS ........................................................................................................ 8
6.3 DISABLING SERVICE TAGS ........................................................................................................ 9
6.4 ENABLING SERVICE TAGS ........................................................................................................ 10
6.5 DELETING SINGLE TAGS ........................................................................................................ 11
6.6 DELETING ALL TAGS ........................................................................................................ 12
7 - MEMORIZING FINGERPRINTS (XMODE / ELECTRONIC / ELECTRICAL LOCKS / XNOVA) ............. 13
8 - DELETING FINGERPRINTS (XMODE / ELECTRONIC / ELECTRICAL LOCKS / XNOVA) .................... 14
9 - USING THE FINGERPRINT (XMODE / ELECTRONIC / ELECTRICAL LOCKS / XNOVA) ...................... 15
CONTENTS
NOTICE FOR USING THE FINGERPRINT SCANNER
For optimum use of the ngerprint scanner, it is strongly advised not to install the product in areas exposed to extre-
me temperatures, high temperature uctuations, high humidity levels, or exposed to dust of any kind and consi-
stency. Avoid installing the product in places exposed to direct sunlight.
When opening the lock, place your nger the same way it was recorded during memorization. The scanner is programmed
to work with a certain degree of security during the scan, and will always recognize only the same portion of skin scanned
during memorization. Therefore, a dierent nger swipe will NOT be memorized.
During memorization and scanning, place your nger slowly with moderate pressure. Keep it at and never curved. Dirt or
grease of any kind on the ngerprints to be recorded will make correct functioning of the scanner very dicult or impossi-
ble. Dry or cold skin, or cuts or abrasions on the nger will compromise good scanning. These factors may negatively aect
use of the ngerprints even if they were correctly memorized.
The memorization and use of ngerprints is subjective and may vary considerably from person to person, especially in
relation to the depth and quality of each person’s ngerprints.
CAUTION : the system is supplied in factory condition, i.e., any MOTTURA TAG can operate the lock and
access programming. The rst thing the user must do is delete all of the ngerprints and TAGs to prevent
any unauthorized access. After this is done, the user MUST MEMORIZE the ngerprints and TAGs that will
have access to the opening.
99334GB - FINGERPRINT READER - REV. 02

3
1. ESCUTCHEON
INSTALLER
99.729 ESCUTCHEON
BODY IN BLACK RESIN
ACTIVATION SENSOR
99.730 ESCUTCHEON COVER
FINGERPRINT SCANNER
KEYPAD
ACTIVITY LED
TRANSPONDER TAG READER
CONNECTOR
The external FINGERPRINT SCANNER/TRANSPONDER escutcheon has 3 function keys, a transponder reader (RFID),
a buzzer, and four LEDs (red-yellow-blue-green).
It lets you open/close the lock in two ways:
- FINGERPRINT: the scanner lets you enter a maximum of 32 ngerprints authorized to operate the lock.
- TRANSPONDER KEY (TAG): the escutcheon checks the presence of a transponder key (TAG – not included) placed
near the center of the keypad. The number of stored TAG keys is NOT tied to the escutcheon but to the device to
which it is connected :
XMODE protected tag system : 255 TAG
XMODE free tag system : 200 TAG
XNOVA / ELECTRONIC / ELECTRICAL LOCKS : 200 TAG
The function keys are:
- numeric buttons 1, 2, E to be used during programming.
The LED show door state on any operation under way :
- RED LED ashing lock closed
- RED LED on lock closing
- GREEN LED ashing lock open
- GREEN LED on lock opening
- YELLOW LED on + 3 beeps signal to replace batteries
- YELLOW LED on + double high-low sound batteries low
The signal to replace the batteries is given before any operation is carried out (opening/closing, etc.).
You should replace the batteries as soon as possible to ensure correct functioning of the lock.
Buzzers signal when the lock has been opened or closed.
TAG - CARD
Art. 99691/99705
TAG - KEY
Art. 99692/99706
99.729 ESCUTCHEON COVER

4
Ø2.5
99.724
99.746
99.729
99.730
2. ASSEMBLY AND ELECTRICAL CONNECTION
Make a 62 x 36 mm gap in the door panel as shown in the gure, then connect the wire to the lock.
The connections must be made by a qualied technician competent to existing electrical safety standards and to
Rules of Good Engineering.
N.B. All connections must be made with the electrical supply switched o and the batteries disconnected.
... WITH OTHER ELECTRONIC / ELECTRICAL / XNOVA LOCKS
To connect the escutcheon to XNova or other electronic/electrical locks, use an interface card (RELAY MODULE Art. 99724 with
MAIN POWERED - Art. 99746 with MAIN POWERED and BATTERY) to be purchased separately. See the article’s instruction manual.
... WITH XMODE ELECTRONIC LOCKS
INSTALLER
99334GB - FINGERPRINT READER - REV. 02
Internal
escutcheon
Cable 99.699
Cable
99.698
Protect wires
against any
external
tampering
AC/DC Adapter
12Vcc - Art. 99.683
Wired battery pack
(9V) - Art. 99.703/704
For XNOVA
use Dry contact
99.727
(White and purple)
For other
eltctronic locks
use bipolar wire
Cable
99.699
230 VAC

5
1 2
4
6
5
7
3
INSTALLER
3. AUTHENTICATION WITH XMODE LOCKS
The ngerprint reader must ALWAYS be authenticated with the lock in order to function and to guarantee maxi-
mum security. This procedure DELETES all previous ngerprints (any test ngerprints that may open the lock
without authorization).
KEEP THE DOOR OPEN AND USE ONLY THE EXTERNAL ESCUTCHEON
The system automatically exits programming mode.
* If the lock is new or has been reset,
any free Mottura TAG can be used
to enter programming mode and
open the lock!
One or more master TAGS SHOULD
BE MEMORIZED immediately to
guarantee security.
See the lock user manual (chapter 5)
for memorization and management
of TAGS.
Activate the escutcheon Press 1 then holding down 1 press E
Present GREEN CARD (Protected system)
or TAG * (free system)
Press 2....
then holding down 2 press 1 Press E
Repeat the
operations
OK
NO

6
1 2
45
3
OK
4. AUTHENTICATION WITH OTHER ELECTRONIC/ELECTRICAL /XNOVA LOCKS
The ngerprint reader must ALWAYS be authenticated with the RELAY MODULE (Art. 99724 / 99.746) in order to fun-
ction and to guarantee maximum security. This procedure DELETES all previous ngerprints (any test ngerprints
that may open the lock without authorization).
KEEP THE DOOR OPEN
The system automatically exits programming mode.
Press SET-UP button Press E
Repeat the
operations
INSTALLER
Activate the escutcheon Press 1 then holding down 1 press E
99334GB - FINGERPRINT READER - REV. 02
NO

7
1 2 3
4
8
5
7
6
6. MANAGING TAGS WITH OTHER ELECTRONIC/ELECTRICAL/XNOVA LOCKS
USERS
ATTENTION: if no TAGS are memorized on the control unit (new lock or after a reset), any free Mottura TAG can be
used to enter programming mode! You SHOULD IMMEDIATELY MEMORIZE rst your master TAGS, then any
service TAGS, to guarantee maximum security.
After this operation, the control unit will accept only the memorized TAGS.
Present master TAG (1)
Present TAG (2) within 10 sec.
6.1 MEMORIZING MASTER TAGS
Press 1
Press 1
Press E (LED ash alternately)
Memorization
MASTER TAG
TAG already
memorized as
MASTER
TAG already
memorized as
SERVICE
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
SERVICE TAGS, if inserted,
are disabled
5. MANAGING TAGS WITH XMODE
ATTENTION : See the lock user manual (chapter 5) for management of TAGS.
(1) If the lock is new or reset, any free Mottura TAG can be used to enter programming mode!
(2) Becomes MASTER TAG.
Activate the escutcheon Press 1 then holding down 1 press E

8
1 2 3
4
8 9
5
7
6
USERS
Present master TAG
Press 2 Present TAG within 10 sec
6.2 MEMORIZING SERVICE TAGS
Press 1
Press 1
Press E (LED ash alternately)
Memorization
of SERVICE TAG
TAG
already memorized
as MASTER
TAG
already memorized
as SERVICE
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
ATTENTION: if you try to memorize a service TAG before you have memorized at least one master TAG, the TAG will
automatically be memorized as a master.
Activate the escutcheon Press 1 then holding down 1 press E
SERVICE TAGS, if inserted,
are disabled
99334GB - FINGERPRINT READER - REV. 02

9
1 2 3
4 5
7
6
8 9
USERS

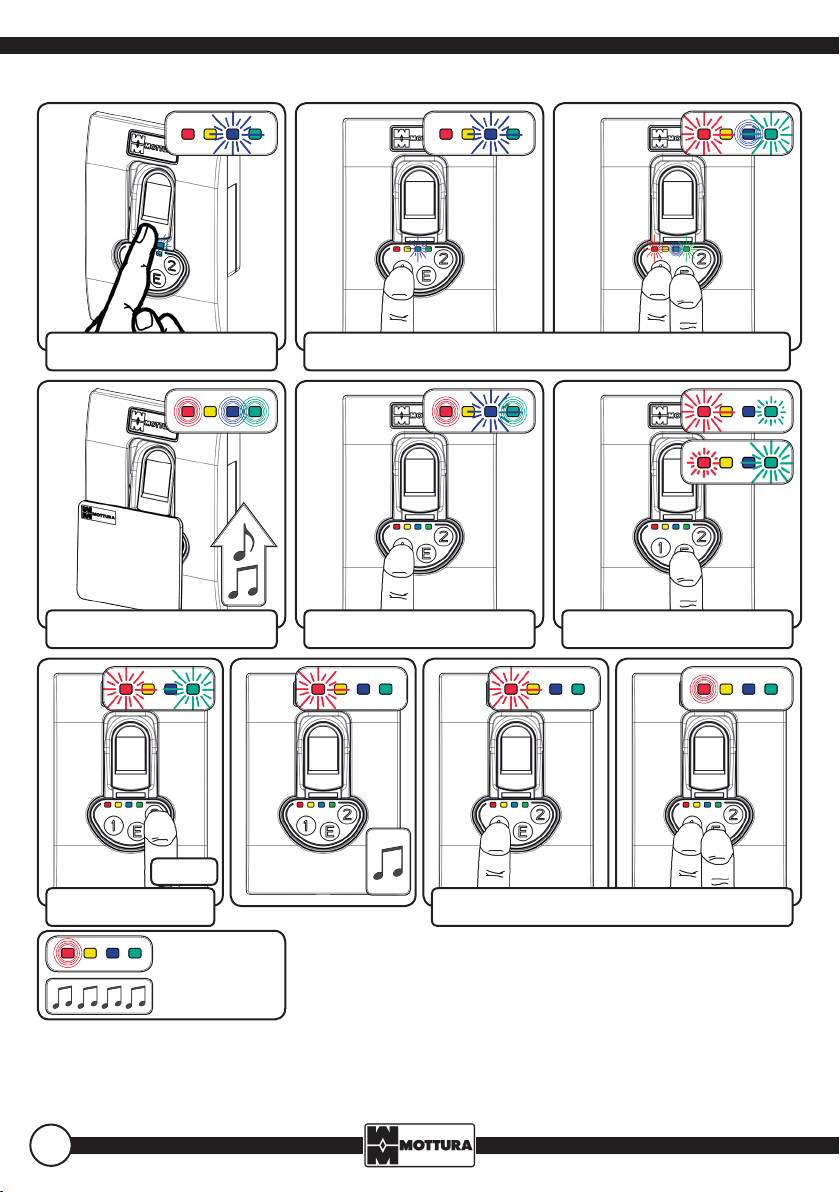

6.3 DISABLING SERVICE TAGS
Press 1
SERVICE TAGS
DISABLED
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
Present master TAG Press 1 Press E (LED ash alternately)
Activate the escutcheon Press 1 then holding down 1 press E
Press 1 then holding down 1 press E
SERVICE TAGS, if inserted,
are disabled

10
1 2 3
4
8 9
5
7
6
USERS
Present master TAG
6.4 ENABLING SERVICE TAGS
Press 1
Press 1
Press E (LED ash alternately)
SERVICE TAGS
ENABLED
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
Activate the escutcheon Press 1 then holding down 1 press E
Press 1 then holding down 1 press 2
SERVICE TAGS, if inserted,
are disabled
99334GB - FINGERPRINT READER - REV. 02

11
1 2 3
4
8
5
7
6
109
USERS
Present master TAG
6.5 DELETING SINGLE TAGS
Press 1
Press 2 for 3 seconds
Press E (LED ash alternately)
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
Present TAG
within 10 sec
TAG deleted Unknown TAG
ATTENTION : You CANNOT delete the
master TAG used to enter programming
mode.
Press E
Activate the escutcheon Press 1 then holding down 1 press E
3 sec.

12
1 2 3
4 5 6
87 109
USERS
Present master TAG
6.6 DELETING ALL TAGS
Press 1 Press E (LED ash alternately)
The system returns to point 6. To exit, press "E" or wait 20 sec. (timeout).
TAGS being
deleted
Press 2 for 3 seconds Press 1 then holding down 1 press E
Activate the escutcheon Press 1 then holding down 1 press E
99334GB - FINGERPRINT READER - REV. 02
3 sec.

13
OK
5 6
8
7 9 11
10 12
1 2 3
4
USERS
The system returns to point 5. To memorize another ngerprint (maximum 32) repeat the operations from point 6.
To exit, press "E" or wait 20 sec. (timeout).
7. MEMORIZING FINGERPRINTS (XMODE / ELECTRONIC / ELECTRICAL / XNOVA LOCKS)
ENTER PROGRAMMING MODE: KEEP THE DOOR OPEN AND USE ONLY THE EXTERNAL ESCUTCHEON
Present master TAG Press E (LED ash alternately) Press 1
Place your nger
rst time
Place your nger
second time
Activate the escutcheon Press 1 then holding down 1 press E
Place your nger
third time Maximum limit of nger-
prints inserted (32)
NO

14
6
7 8
3 sec.
OK
1 2 3
5
4
USERS
8. DELETING FINGERPRINTS (XMODE / ELECTRONIC / ELECTRICAL / XNOVA LOCKS)
ENTER PROGRAMMING MODE: KEEP THE DOOR OPEN AND USE ONLY THE EXTERNAL ESCUTCHEON.
delete ALL
ngerprints
The system returns to point 5. To exit, press "E" or wait 20 sec. (timeout).
Present master TAG Press E (LED ash alternately) Press 2 (LED ash alternately)....
....then holding down 2 press E Press E for 3 seconds
Activate the escutcheon Press 1 then holding down 1 press E
99334GB - FINGERPRINT READER - REV. 02

15
1 2
OK
USERS
9. USING THE FINGERPRINT (XMODE / ELECTRONIC / ELECTRICAL / XNOVA LOCKS)
Place nger: activate the
escutcheon and if recognized
the imprint opens the lock.
Escutcheon not authenticated
with lock (LED ash alternately)
After you have stored the ngerprints, you can use them to operate the lock.
ngerprint
valid
scanning error or
unknown ngerprint (*)
* In case of failed scan, see page 2
(USING THE FINGERPRINT READER)
NO

www.mottura.it
99334GB - 04/17 - a_017329
