XTZ SEAS equipped XTZ99 W10.17P User manual

Sida: 1 / 10

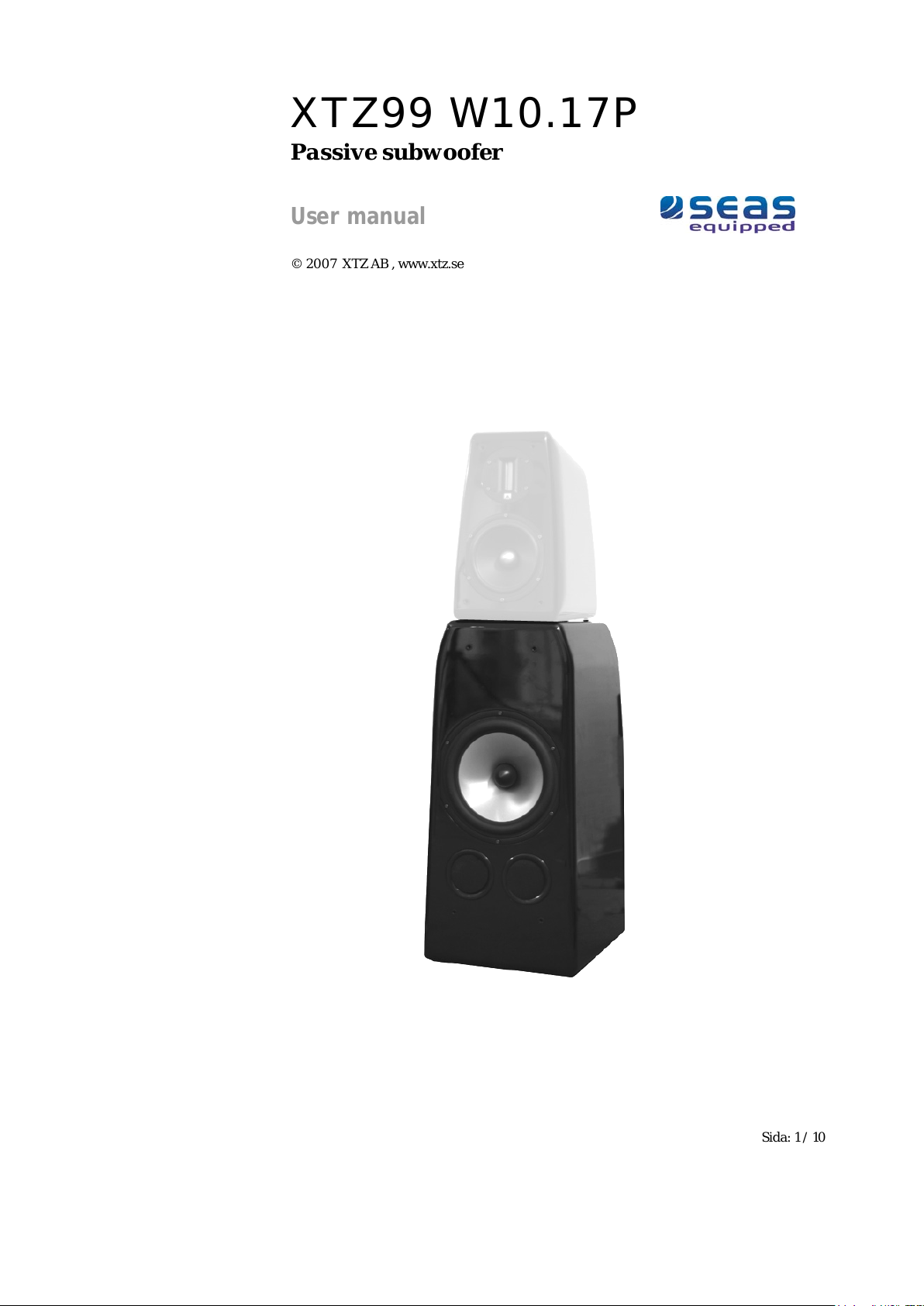

XTZ99 W10.17P
Passive subwoofer
User manual
© 2007 XTZ AB , www.xtz.se

Sida: 2 / 10
Table of contents
Page:
Contents 3
About XTZ 3
Technical presentation 4
Preparations 4
Practice of sound / Installation and placement tips 5
Mounting 7
Area of usage 8
Technical specifications 9
Service & Support 10

Sida: 3 / 10

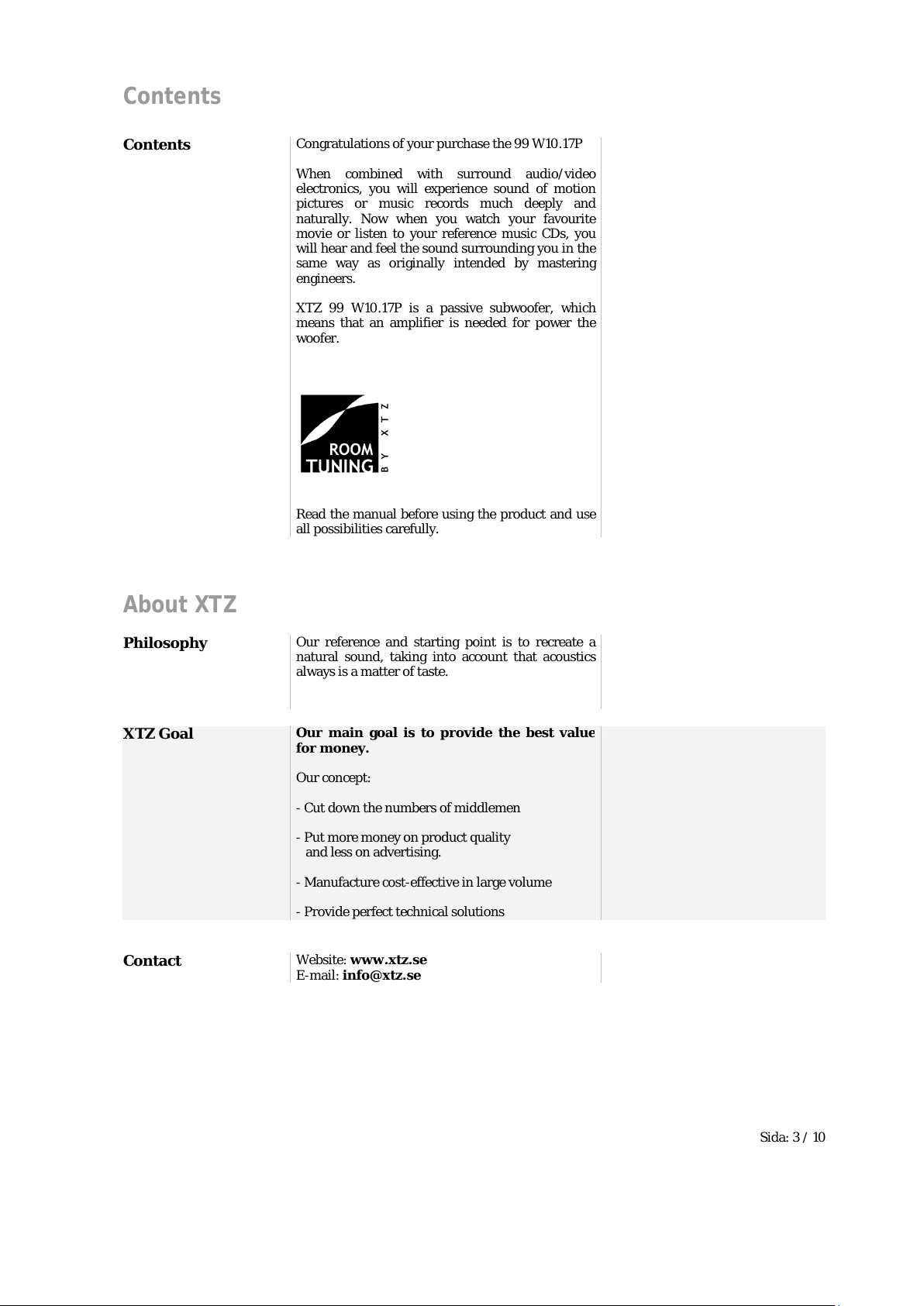

Contents
Contents
Congratulations of your purchase the 99 W10.17P
W
hen combined with surround audio/video
electronics, you will experience sound of motion
pictures or music records much deeply and
naturally. Now when you watch your favourite
movie or listen to your reference music CDs, you
will hear and feel the sound surrounding
you in the
same way as originally intended by mastering
engineers.
XTZ 99 W10.17P is a passive subwoofer, which
means that an amplifier is needed for power the
woofer.
Read the manual before using the product and use
all possibilities carefully.
About XTZ
Philosophy
Our reference and starting point is to recreate a
natural sound, taking into account
that acoustics
always is a matter of taste.
XTZ Goal
Our main goal is to provide the best value
for money.
Our concept:
- Cut down the numbers of middlemen
- Put more money on product quality
and less on advertising.
- Manufacture cost-effective in large volume
- Provide perfect technical solutions
Contact
Website: www.xtz.se
E-mail: [e-mail]

Sida: 4 / 10

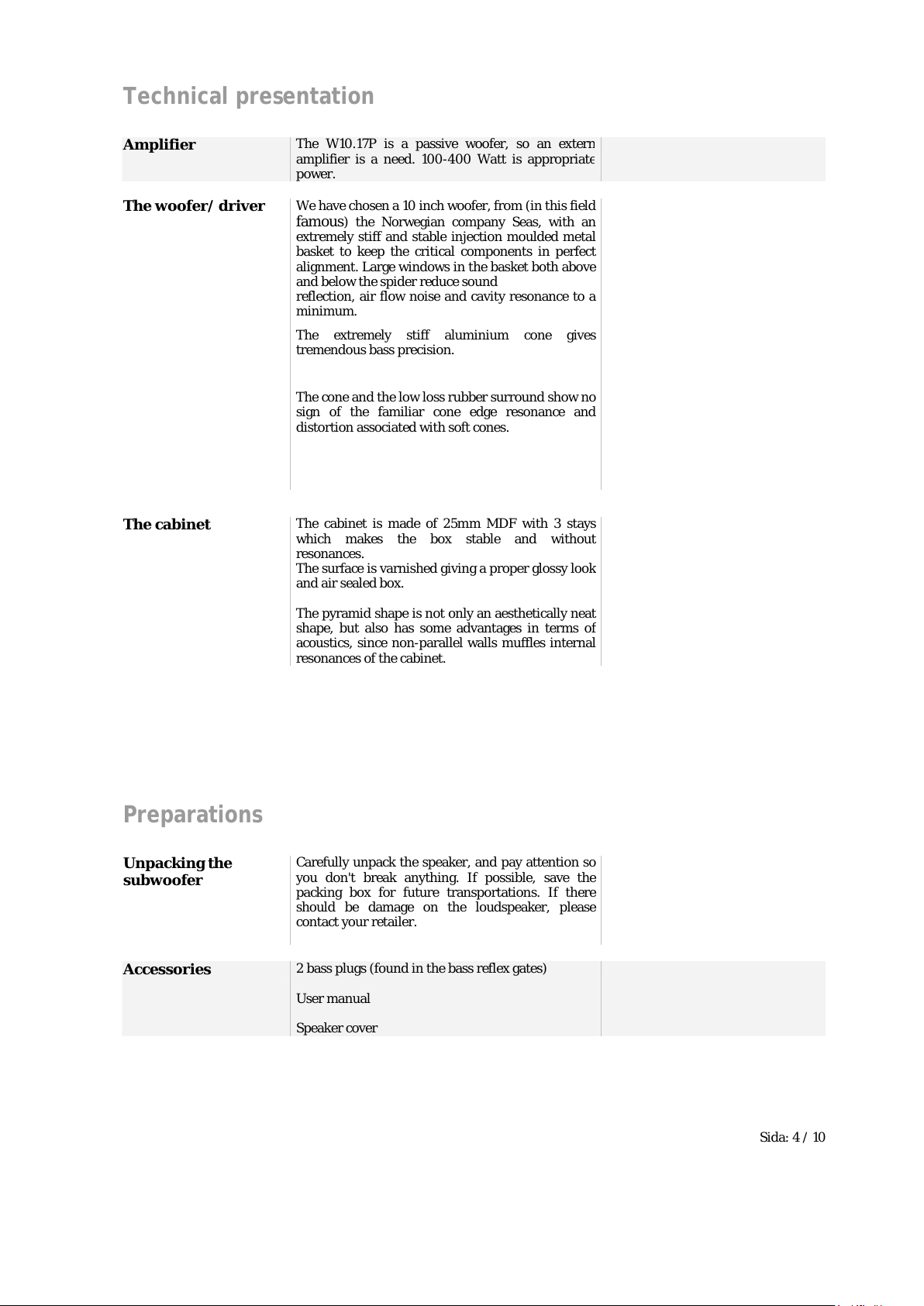

Technical presentation
Amplifier
The W10.17P is a passive
w
oofer, so an extern
amplifier is a need. 100-400 Watt is appropriate
power.
The woofer/ driver
We have chosen a 10 inch woofer, from (in this field
famous) the Norwegian company Seas,
w
ith an
extremely stiff and stable injection moulded metal
basket to keep the critical components in perfect
alignment. Large windows in the basket both above
and below the spider reduce sound
reflection, air flow noise and cavity resonance to a
minimum.
The extremely stiff aluminium cone gives
tremendous bass precision.
The cone and the low loss rubber
surround show no
sign of the familiar cone edge resonance and
distortion associated with soft cones.
The cabinet The cabinet is made of 25mm MDF with 3 stays
which makes the box stable
and without
resonances.
The surface is varnished giving a proper glossy loo
k
and air sealed box.
The pyramid shape is not only an aesthetically neat
shape, but also has some advantages in terms o
f
acoustics, since non-parallel walls muffles internal
resonances of the cabinet.
Preparations
Unpacking the
subwoofer
Carefully unpack the speaker, and pay attention so
y
ou don't break anything. If possible, save the
packing box for future transportations. If there
should be damage on the loudspeaker, please
contact your retailer.
Accessories
2 bass plugs (found in the bass reflex gates)
User manual
Speaker cover

Sida: 5 / 10
Practice of sound / Installation and placement tips
This chapter contains common information on
loudspeaker placement and installation.
This is general rules, so there are exceptions o
f
some rules
In which room do
you achieve the best
sound?
No matter how good the equipment is, in the wrong
listening environment it will inevitably sound bad.
There are some basic rules concerning a proper
loudspeaker installation:
Reflections
Carpets, curtains and soft furniture absorb mid
range and high frequency sound, and this is
preferable. Big empty area, on the contrary, reflects
it and produces hard reflections that may lead to
blurry dialogue. Apart from colouring the sound,
also the perspective of the sound will deteriorate.
Reflections in the room can roughly be compared to
the reflections that yield ghost pictures on a T
V
screen.
Amplification of bass
frequencies
A loudspeaker that is placed near a wall,
ceiling or
floor will amplify lower frequencies in a sometimes
not desirable way (since it may lead to an indistinct
sound recreation). This amplification becomes even
more obvious if the loudspeaker is placed near a
corner. Thus, for a sound as clear as possible, the
loudspeaker should be placed at least 30 cm (about
12 inch) away from the wall
Some constructions are
made to be placed closed to
a wall.
Furniture
Be aware that furniture may vibrate and thus create
bad sound at loud bass.
Room dimension
Quadratic rooms or rooms where the length is
exactly twice as long as the width should be
avoided, since they may create unwanted
resonance.
Placement of the
subwoofer
The placement of the subwoofer in the room
dramatically affects the overall frequency response
and sound level of the system. At low frequencies
the effect of the room is
strong. Even a slight
change in the subwoofer's location can make a
significant difference in the frequency balance.
Patience and methodical experimentation is needed
to find an optimal placement. The placement
affects the phase difference between the main
loudspeakers and the subwoofer.
One basic rule is to place the subwoofer together
w
ith or near the front system (especially important
if the front loudspeaker also propagate
bass
frequencies) as this will minimize the risk of phase
eliminations in the room.

Sida: 6 / 10

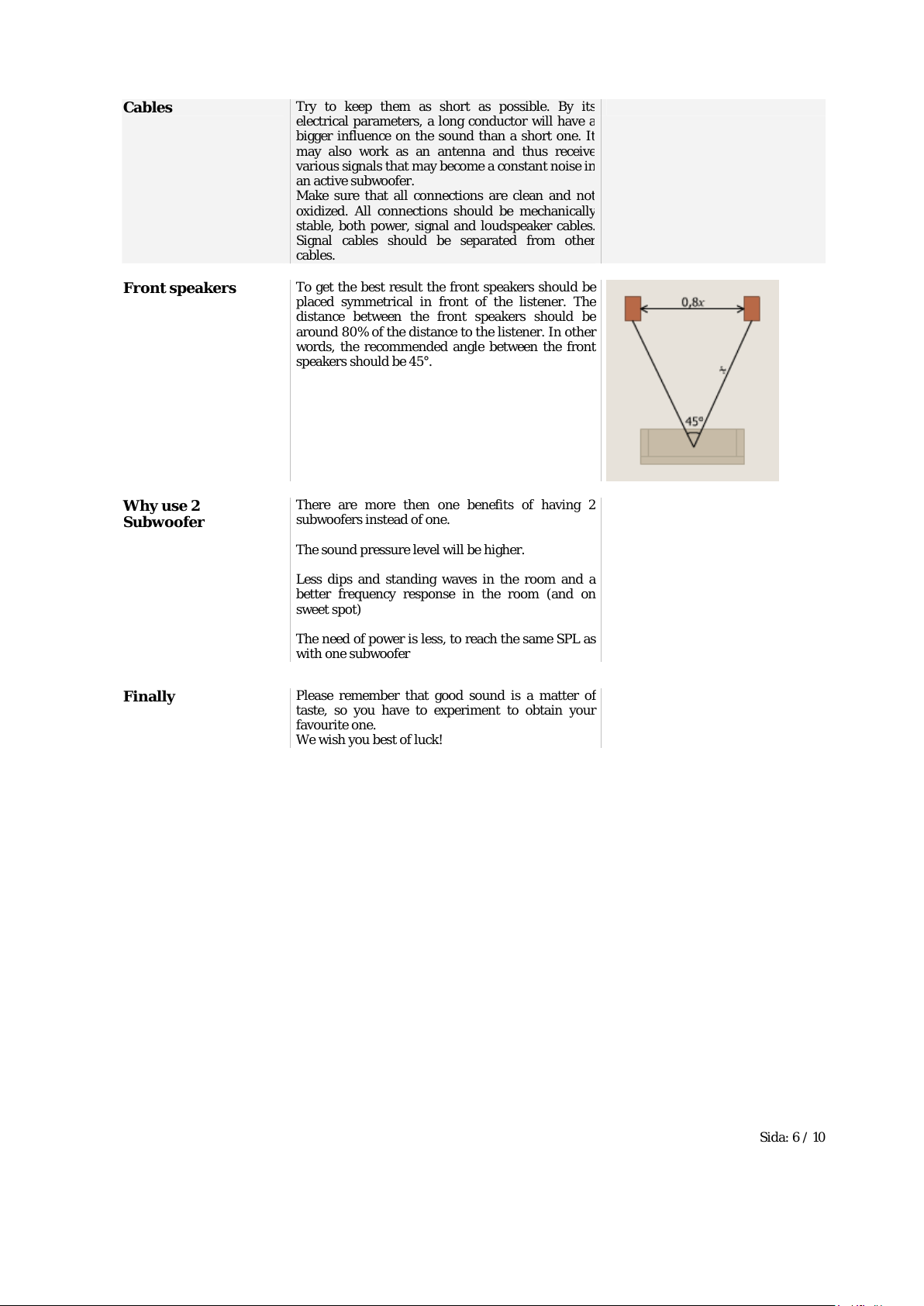

Cables
Try to keep them as short as possible. By its
electrical parameters, a long conductor will have a
bigger influence on the sound than a short one. It
may also work as an antenna and thus receive
v
arious signals that may become a constant noise in
an active subwoofer.
Make sure that all connections are clean and not
oxidized. All connections should be mechanicall
y
stable, both power, signal and loudspeaker cables.
Signal cables should be separated from other
cables.
Front speakers
To get the best result the front speakers should be
placed symmetrical in front of the listener. The
distance between the front speakers should
b
e
around 80% of the distance to the listener. In other
words, the recommended angle between the front
speakers should be 45°.
Why use 2
Subwoofer
There are more then one benefits of having 2
subwoofers instead of one.
The sound pressure level will be higher.
Less dips and standing waves in the room and a
b
etter frequency response in the room (and on
sweet spot)
The need of power is less, to reach the same SPL as
with one subwoofer
Finally
Please remember that good sound is a matter o
f
taste, so you have to experiment to obtain
y
our
favourite one.
We wish you best of luck!

Sida: 7 / 10
Mounting
Mounting
Generally:
The placement of the subwoofer in the room affects
the overall frequency response and sound level o
f
the system dramatically, as at low frequencies the
influence of the room is strong.
Even a slight change in the subwoofer's location
can make a significant
difference in the frequenc
y
balance, and often patience
and methodical
experimentation is needed to find the optimum
placement.
This subwoofer is intended for XTZ 99.26, but can
of course be used with other speakers.
Together they will be a competent 2.2 system.
Spikes
99 W10.17P have feet of rubber to
absorb
vibrations. But it’s possible to change this to spikes.
The Rubber foot are adjustable to get the
subwoofer in level
w
ith the floor. The foot are
removable for those who want to mount spikes.
(M6 screw)
Connect with the
correct phase
A
lways connect using the correct phase, from the
+-pole on the amplifier to the +-pole on the
loudspeaker and respectively for the minus (-) pole
If you by accident connect the other way,
there is no risk of damage. However, the
phase of the signal will be not correct,
resulting in improper sound.
Overload
With high power load under long time there is ris
k
of overloading the driver and/or the amplifier.
WARNING!
All products, amplifiers, speakers, cross-
overs can be damaged if playing loud
music for a long time
The initial playing
time
It takes about 50 to 100 hour of initial playing time,
for the driver to sound optimally. During this time,
the speaker may be used normally.

Sida: 8 / 10

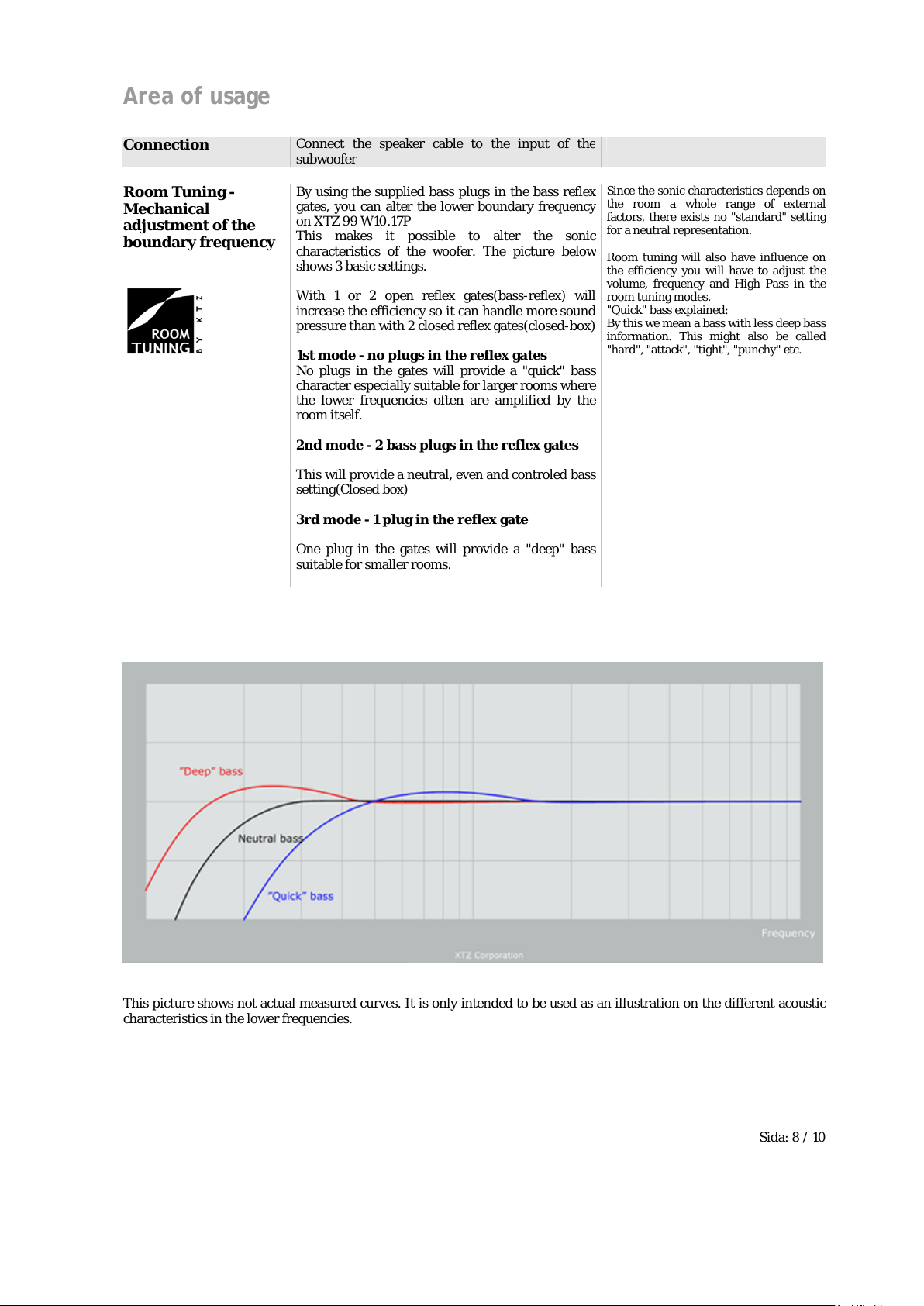

Area of usage
Connection
Connect the speaker cable to the input of the
subwoofer
This picture shows not actual measured curves. It is only intended to be used as an illustration on the different acoustic
characteristics in the lower frequencies.
Room Tuning
-
Mechanical
adjustment of the
boundary frequency
By using the supplied bass plugs in the bass reflex
gates, you can alter the lower boundary frequenc
y
on XTZ 99 W10.17P
This makes it possible to alter the sonic
characteristics of the woofer. The
picture belo
w
shows 3 basic settings.
With 1 or 2 open reflex gates(bass-reflex) will
increase the efficiency so it can handle more sound
pressure than with 2 closed reflex gates(closed-
b
ox)
1st mode - no plugs in the reflex gates
No plugs in the gates will provide a "quick" bass
character especially suitable for larger rooms where
the lower frequencies often are amplified by the
room itself.
2nd mode - 2 bass plugs in the reflex gates
This will provide a neutral, even and controled bass
setting(Closed box)
3rd mode - 1 plug in the reflex gate
One plug in the gates will provide a "deep" bass
suitable for smaller rooms.
Since the sonic characteristics depends on
the room a whole range of external
factors, there exists no "standard" setting
for a neutral representation.
Room tuning will also have influence on
the efficiency you will have to adjust the
v
olume, frequency and High Pass in the
room tuning modes.
"Quick" bass explained:
By this we mean a bass with less deep bass
information. This might also be called
"hard", "attack", "tight", "punchy" etc.

Sida: 9 / 10
Technical specifications
Construction type
Passive subwoofer, Bass reflex gate or may be set as
closed box.
Room-tuning.
Dimensions
700 x 330 x 405 mm (HxBxD)
Weight
25,5 kg
Magnetic shielded
No
Power handling
driver
300 W Short term - IEC 268-5
125 W Long term - IEC 268-5
Impedance driver
8 ohm
Driver
10" Aluminium cone, aluminium frame, High flow
basket, 3kg magnet. Total weight 4Kg
Connections.
Speaker input - Gold plated banana plug / pole
screw.

Sida: 10 / 10
Service & support
Warning!
This subwoofer is capable of delivering sound
pressure levels in excess of 85 dB, which may cause
permanent hearing damage.
Guarantee
This product is supplied with a ONE year guarantee
against manufacturing faults or defects that might
alter the performance of the unit. Refer to your
supplier for full sales and guarantee terms.
Service
If you need service contact your local dealer.
Y
ou are always welcome to contact us if you have
problems with product by e-mail:
[e-mail]
Webpage: www.xtz.se
ALWAYS pack the product / part ver
y
carefully. Unfortunately damages during
transportation are very common. If the
package is weak, the transporting
company does not compensate damages.
Always enclose a copy of the receipt and a
description of the defect.
Support
Please contact our “free-of-charge” support if you
need installation advice, or if any problems occur
during the installation.
Contact us by e-mail [e-mail]
and include
your phone number if you require
help, and we will
ring you back.
