Xvive U6 User manual

For DSLR Cameras
U6 COMPACT WIRELESS
MIC SYSTEM
Manual

02
This Class B digital apparatus complies with Canadian
ICES-003.
IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen
4e Décembre 2014:
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2)
This device must accept any interference, including
interference
that may cause undesired operation
of the device.
CERTIFICATION
Radio Approvals:
FCC Part 15.249, FCC Part 15 B, RSS-210 (Canada), EN 300
440 (Europe), EN 301.489 (Europe), Japan Radio 2.4 GHz
Band (Japan), MIC ARIB STD-T66 (Japan), California 65, CE.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSEUNDESIRED OPERATION.
Warning: Changes or modications not expressly approved
in writing by Xvive may void the users authority to
operate this equipment.
RF Exposure Statement: This transmitter must not be
co-located or operated in conjunction with any other
antennae or transmitter.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
CERTIFICATION
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This Class B digital apparatus complies with Canadian
ICES-003.
03

04
Hereby, SHENZHEN FZONE TECHNOLOGY CO., LTD,
declares that this type of equipment is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY INSTRUCTIONS
FOR LITHIUM-ION
RECHARGEABLE BATTERIES
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THE APPLIANCE TO RAIN OR
MOISTURE.
If abused or misused, the rechargeable batteries may
leak. In extreme cases, they may even present a risk of
explosion, re, heat, smoke or gas. Xvive does not accept
any liability for damagearising from abuse or misuse.
• Keep away from children.
• Only charge rechargeable batteries with chargers
recommended by Xvive.
• Observe correct polarity.
• Pack/store charged rechargeable batteries so that the
terminals cannot contact each other (danger of shorting
out/re hazard).
• Do not expose to moisture.
• Switch rechargeable battery-powered products
o after use.
• Only charge rechargeable batteries at ambient
temperatures between 10°C/50°F and 40°C/104°F.
• When not using rechargeable batteries for extended
periods of time, charge them regularly
(about every three months).
• Do not mutilate or dismantle.

05
INFORMATION ABOUT COLLECTION
AND DISPOSAL OF OLD ITEMS
AND USED BATTERIES
Cd
These symbols on the products, packaging, or on any
documents in the package mean it is incorrect to mix the
used electrical and electronic products and batteries with
general household garbage.
• Do not heat above 60°C/140°F, e.g. do not expose to
sunlight or throw into a re.
• Immediately remove rechargeable batteries from
obviously defective products.
• Do not continue to use defective rechargeable batteries.
• Only use rechargeable batteries specied by Xvive.
• Dispose of rechargeable batteries at special collection
points or return them to your specialist dealer.
• Store the products in a cool and dry place at room
temperature (approx. 20°C/68°F).
• Remove the rechargeable batteries if the products will
not be used for extended periods of time.
To protect our environment, please take old products
and used batteries to proper collection places, and follow
your national legislation and the Directives 2012/19/EU
and 2006/66/EC.
To deal with these old products and batteries
properly, please
help to save valuable resources
and prevent any possibility
of side eects on human health and our environment due
to the inappropriate disposal of the old products and used
batteries.
You can contact your local authority for getting more
helpful information on how to dispose the recycling and
collection of the old products and batteries.
[For business users in the European Union]
If you want to discard electrical and electronic item, please
contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union.
Please contact your local authorities or dealer for more
information on disposal of old items and used batteries.

06
1. Carefully observe all instructions in the U6 manual
2. Do not to perform service operations beyond those
described in the U6 Manual. Service is required when
the apparatus was damaged in any way, such as:
• liquid was spilled or objects were dropped into the
device,
• the unit was exposed to rain or moisture,
• the unit does not operate normally or signicant
changes in performance occur,
• the unit is dropped or the housing is damaged.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE KEEP THESE INSTRUCTIONS
IN A SAFE PLACE
WARNING: BEFORE USING YOUR XVIVE U6 WIRELESS AUDIO FOR VIDEO SYSTEM,
CAREFULLY READ THE OPERATING INSTRUCTIONS.
3. Do not place near heat sources, such as radiators,
heating ducts, or appliances which produce heat.
4. Guard the device against objects or liquids entering
the device. Do not use or store the unit close to water.
5. Clean only with a damp cloth.
6. Only use attachments/accessories specied by the
manufacturer.
7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure
to practice “safe listening.”

FEATURES
07
3. Do not place near heat sources, such as radiators,
heating ducts, or appliances which produce heat.
4. Guard the device against objects or liquids entering
the device. Do not use or store the unit close to water.
5. Clean only with a damp cloth.
6. Only use attachments/accessories specied by the
manufacturer.
7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure
to practice “safe listening.”
The U6 is an ultra-compact wireless microphone system
designed primarily for video production. The transmitter
can be worn discreetly in two dierent ways: using a clip
or hook+loop tape. The clip keeps the transmitter in place
on the underside of your shirt for a very discreet look.
Alternatively, the hook+loop method completely
conceals the transmitter under your clothing. Both
methods are versatile and provide a solution for any
application. The transmitter features a built-in omnidirec-
tional condenser microphone and wirelessly transmits
crystal-clear, studio-quality digital audio on the 2.4 GHz
band to the camera-mounted receiver. The system's
four-channel design allows four U6 sets to be used in the
same area, or one set can be used with four frequencies to
ensure connectivity when there are competing wireless
devices nearby. U6 is perfect for video content creation,
lmmaking, vlogging, YouTube, live streaming and more.
• 2.4 GHz for true diversity wireless system
• Omnidirectional microphone built into the transmitter
• High-resolution 24-bit / 48 kHz audio
• Up to 4 hours of battery life
• Less than 5 ms latency
• 4 wireless channels
• Dynamic range: 100 dB
• Signal-to-noise ratio: 100 dB
• 3.5 mm / 1/8” TRS output from the receiver to your DSLR
or video camera
• Three receiver output level presets: 0 dB, -10 dB, and -20 dB
• Frequency response: 80 Hz – 20 kHz
• Solid RF connection over a 90 ft / 27 m range
(actual range depends on RF signal absorption, reection
and interference)

1
2
3
4
5
6
7
TRANSMITTER
08
3
1
5
2
Fur windshield Clip Loop fastener piece
Hook fastener piece
4
6
7
Channel display
Power LED
Microphone
USB charging port
Power and Channel switch
Hook fastener
Clip sockets

1
2
3
4
5
6
7
8
RECEIVER
09
1
5
32
8
4
7
6
Dual USB charging cable
3.5 mm to 3.5 mm stereo cable
(for sending audio to a DSLR camera)
3.5 mm Female TRS to 3.5 mm Male TRRS adapter
(for sending audio to a TRRS-input smartphone or laptop)
Channel display
Gain display
Power LED
Gain switch
3.5 mm TRS output
USB charging port
Power and Channel switch
Clip

10
2.4 GHz SPECTRUM OVERVIEW AND INTERFERENCE
Tips and Methods to Improve
Wireless System Performance
1) Keep more than 3 meters distance between the U6
receiver and other transmitters such as WiFi routers.
2) Change channels to avoid interference with other
WiFi systems.
3) In case of interference from other WiFi systems, shorten
the distance between the U6 receiver and transmitter.
4) The channels used are the same for Xvive
U3/U3C/U4/U5/U6 devices. A maximum of six sets of
U2/U3/U3C/U4/U5 or U6 can be used at the same
location at the same time.
The U6 operates in the 2.4 GHz ISM band, the same band
used by Wi-Fi, Bluetooth, and other wireless systems.
2.4 GHz is an open band and as such does not require a
license to operate worldwide.

QUICK START
1. POWER AND CHANNEL
Turn the units on by pressing and holding the power
button for 3 seconds, until the display screen lights up.
Short presses on the power button will switch to the
next channel (check the 1-4 channel display). Make sure
you set the same channel on both the transmitter and
the receiver. When the units are successfully paired,
the green LED on the receiver will illuminate.
2. INSTALL THE FUR WINDSHIELD
The fur windshield is specially designed to reduce
wind noise when recording outdoors or in dicult
environmental conditions.
11
POWER ON / CHANNEL
POWER ON / CHANNEL
Transmitter
Receiver

QUICK START

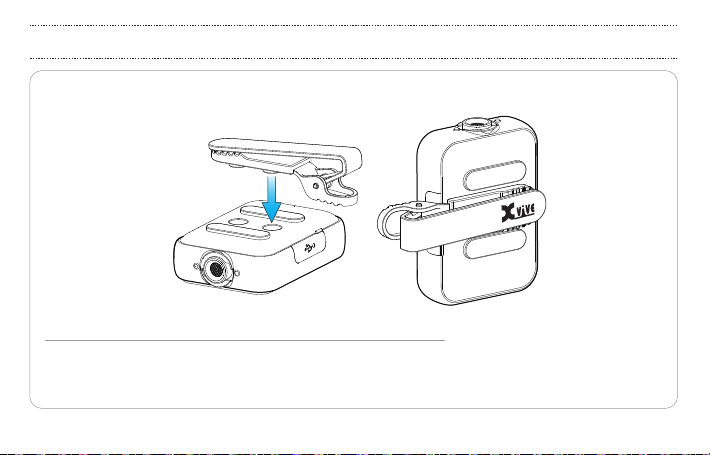

3. SET UP TRANSMITTER
Please keep the transmitter at least
10" / 25 cm away from your mouth
or audio source.
4. CONNECTING THE RECEIVER TO A DSLR CAMERA
Slide the receiver’s foot into the camera’s shoe mount. Connect the
receiver output to the camera input using the supplied 3.5 mm
TRS cable.
>10 inches /
25 cm
12

QUICK START
4.1 CONNECTING THE RECEIVER TO A SMARTPHONE
5. THREE OUTPUT
GAIN LEVELS
To connect to a smartphone with a TRRS 3.5 mm / 1/8” jack, plug one
end of the included stereo cable into the receiver, and the other end
into the TRS to TRRS adapter. Plug the adapter into the smartphone’s
headphone jack. If your smartphone has a USB-C or lightning connector,
you will need to purchase an additional adapter (TRRS to USB-C or TRRS
to lightning). You can use the hook+loop fastener adhesives to attach
the receiver to your smartphone or tripod/mount. Stick the hook pieces
on the Receiver, and the loop piece on your smartphone.
13

14
TRANSMITTER APPLICATION METHOD
CLIP
Fasten the clip to the transmitter by pressing the round nubs on the clip into the round
sockets on the transmitter. When the transmitter is clipped underneath your shirt or other
clothing, it may create a slight protrusion, but will be generally unnoticeable.

15
HOOK+LOOP
Stick the Hook pieces on
the transmitter
TRANSMITTER APPLICATION METHOD
Hook
Hook
WARNING
Hook fastener material can catch onto knit or loosely woven fabrics (e.g. wool sweaters) and cause damage,
so avoid making contact between the hook fastener on the back of the transmitter and your clothing.
The adhesive on the back of the loop fastener piece can leave a residue on some fabrics. Avoid leaving the
loop fastener stuck on clothing for a long time. Please use with caution.
There are two small hook fastener adhesive strips on the transmitter. Stick
a loop sticker on the inside surface of your clothing, or anywhere else
within range of the transmitter (about 10 inches from your mouth). Then
simply press the transmitter against the loop piece.
Loop fastener piece

BATTERIES AND CHARGING
Always store at room temperature
When storing the unit, please check the battery
charge level regularly and charge if necessary.
35 minutes
1 hour and 15 minutes
2.5 hour
1 hour
2 hours
4 hours
CHARGING TIMES BATTERY LIFE
POWER STATUS LED,
INDICATES POWER STATUS
LED o = 100% ~ 30%
Solid red = 29% ~ 11%
Blinking red = less than 10%
16
The U6 system comes with a dual USB charging cable, which charges the transmitter and the receiver at the
same time. Plug it into any 5V USB charger adapter or USB power source.
Note: Turn o the power while charging. Please do not use U6
while charging, as this may reduce your battery life.
Connect to a
power supply
or USB power
outlet
OR

ISSUE SOLUTION
No sound
Distorted audio
Voice too low
Signal instability: RF LED ickering
Multiple connections
• Check that the power switches on the transmitter and the receiver
are both turned on, and that the batteries are at least partially charged;
• Ensure that the transmitter and receiver are both on the same channel.
• Ensure that the receiver’s audio output has been connected
correctly to the camera or other recording equipment;
• Turn up the gain on the receiver to an appropriate level;
• Check the volume and gain of the camera is working.
• Turn o the automatic volume adjustment of the camera and set
it to manual adjustment;
• Try turning down the output level of the receiver;
• Keep at least 10 inches away from your mouth or audio source
• Turn up the receiver output level;
• Set the camera audio input level control to “manual” mode and
turn up the level
• See manual part of “2.4 GHz spectrum overview and interference” on page 10.
• Make sure the receivers are both set to the same channel as the
transmitter you want them to receive audio from.
TROUBLESHOOTING
17

PRODUCT SPECIFICATIONS
18
Wireless type 2.4 GHz ISM worldwide open band
Wireless range Up to 90 ft / 27 m; depends on RF signal absorption, reection and interference
RF sensitivity -86 dBm and -92 dBm
Total harmonic distortion 0.2%
Transmitter RF output power <10 mW E.I.R.P. max
Antenna type 1/4 wave sleeve dipole, non-removable
Number of antennas Transmitter: 1, Receiver: 2 (True diversity for both channels simultaneously)
Available channels Up to 4
Latency 5 ms
High-resolution audio 24-bit / 48 kHz
Transmitter mounting modes Clip / Hook+Loop
Microphone polar pattern Omnidirectional

PRODUCT SPECIFICATIONS
19
Frequency range 80 Hz – 20 kHz
Sensitivity -32 dB ± 3 dB
Dynamic range 100 dB
Signal-to-noise ratio 100 dB
Receiver analog output 3.5 mm TRS
Receiver output gain 0 dB, -10 dB, -20 dB
Charging voltage & current 5V 1A
Charging time 2.5 hours
Battery 3.8V rechargeable Li-ion / Receiver: 420 mAh / Transmitter: 330 mAh
Battery life 4 hours
Dimensions Receiver: 39 x 14 x 50 mm / Transmitter: 30 x 13 x 43 mm
Weight Receiver: 29 g (1.02 oz) / Transmitter: 18 g (0.63 oz)

2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town,
Baoan District, Shenzhen Guangdong, China, 518101
E-mail: [email protected]
www.xvive.com
Reach
R210-160181
SHENZHEN FZONE TECHNOLOGY CO., LTD.
Note: The manufacturer reserves the right to change these specications without notice.
