Xylem BLOX BRIDGE BR-BLOX-12 Series User manual

TM
TM
INSTALLATION INSTRUCTIONS
BLOX
BRIDGE
BR-BLOX-xxXX
THANK YOU FOR CHOOSING XYLEM
Please take a few minutes to review this manual before you start installation. If you encounter any installation problems, please don’t
hesitate to contact us. Before you begin, please observe all local building codes. Unpack the new product and inspect for damage.
The appearance of your vanity may differ from the illustrations in this guide.This instructions still apply. Please ensure the finished wall
is straight and plumb and the floor is flat and perpendicular to the finished wall.
ROUGH-IN DIMENSIONS
SUGGESTED TOOLS AND MATERIALS
Philips Screwdriver Level Drill Tape Measure Safety Glasses
10'
BR-BLOX-20XX BR-BLOX-12XX
BR-BLOX-12XX 12”
SH-BLOX-20XX 20”
Model # X (inch)
FLOOR
FINISHED
WALL
Y (inch)
3-7/8” (100mm)
5-1/2”
(140mm)
X 21-1/2” (546mm)
Undermount
Vessel
Application Y (inch)
28.5”
25.5”
SUGGESTED HEIGHT:

CARE AND CLEANING
2” x 12”
Header
WALL PREPARATION
Vessel
Undermount
Application Z (inch)
31”
34”
SUGGESTED HEIGHT: Finished Wall
Z

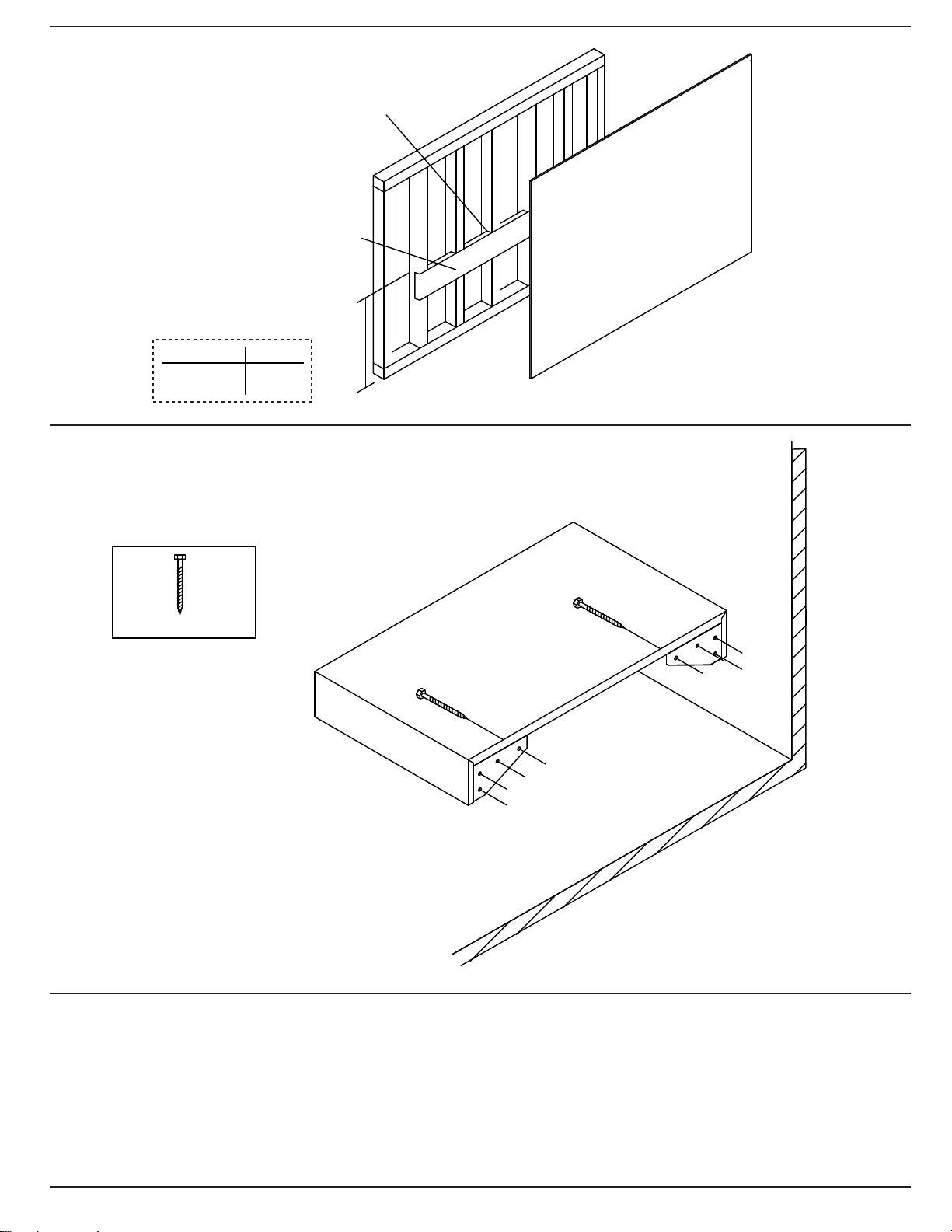

Notch studs 1-1/2" (38mm) to
provide support for header.
Extend the header beyond the
countertop to the nearest stud.
INSTALLATION INSTRUCTIONS
BLS01
HARDWARE INCLUDED
x 8
For customer support please visit www.xylem.biz or call 866 395 8112 weekdays 8:00 to 5:00 EST or fax [phone] any time
Rev 2/10
Level the vanity with a leveler and attach
the brackets to the 2 x 12 header using
screws provided.
• To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading.Also avoid extreme
changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units. Avoid placing furniture
directly under windows.
• Dust the vanity frequently with a clean, soft, dry or lint-free cloth. Clean the surface by rubbing in the direction of the grain using damp
lint-free cloth. Avoid using silicone cleaners and waxes.
• Clean up excess water and spills immediately. Use blotting rather than a wiping action. Water left over a long period of time will cause
white spots in the finish. Please note that some chemicals may damage the finish.
