YA SB-500-AFD2PADi User manual

DE FR IT EN
DE – Betriebsanleitung
FR – Mode d‘emploi
IT – Istruzioni per l’uso
EN – Instruction manual
SB-500-AFD2PADi

95 SB-500-AFD2PADi
94 SB-500-AFD2PADi
EN
Finally arrived at YA! Take a seat and enjoy the world of YA! You will see: it is a wonderfull place to be.
Please read these instructions. The appliance must only be used for the intended purpose
according to these instructions. Observe the safety instructions.
Keep the instructions carefully and pass them on to further users.
The manufacturer reserves the right to change design, accessories or equipment without prior
notice.
Dear customer

97 SB-500-AFD2PADi
96 SB-500-AFD2PADi
EN
Carefully read the instructions before use. Keep the instructions, if you need to read it again
or if you want to pass on the appliance to another user.
■ The appliance must only be connected to a voltage supply in accordance with the rating label
on the supplied adapter.
■ This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
■
Do not allow power cable to hang down within easy reach
■ Keep children away from packing material (e.g. plastic bags).
■ Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance
from place to place, after use.
■ Never carry or pull the appliance by the cable. Don’t pull the cable over sharp edges. Don’t jam
it. Don’t bend it.
■ If the supply cable is damaged, it must be replaced by the manufacturer or its service agent or
 similarlyqualiedpersoninordertoavoidhazard.
■ Regularly check if the mains cable / appliance / extension lead is defective. In this case the
appliance must not be put into operation (immediately pull the plug). Send it to the manufacturer
for repair.
■ Only trained personnel should repair electrical appliances. Unskilled repairs can cause
considerable danger to the user.
Safety instructions

97 SB-500-AFD2PADi
96 SB-500-AFD2PADi
EN
■ Do not use attachments not recommended by the manufacturer.
■ Neverputtheappliance/cableonhotsurfacesornearopenames.
■
Never subject the appliance, power cable or plug to moisture, water or any other liquid.
■ Never attempt to open the casing of the appliance.
■ Positiontheappliancesothatithassufcientventilation.Neverblocktheventilationopenings.
Ensure that no objects or liquids enter the ventilation openings.
■ The equipment contains a laser radiating laser rays according to the limit of laser
product of class 1.
■ Batteriesmustnotbeexposedtoexcessiveheatsuchadirectsunlight,reandthelike.
■ If the battery leaks, remove it, clean the contacts of the appliance and wash your hands
■ If you do not use the appliance for a long time, remove the battery.
■ Where the mains plug is used as the disconnect device, it shall remain readily operable.
■ Listening with headphones for long periods at full volume may cause damage to the hearing.
■ Switch the appliance off and pull the plug out of the mains when it is not in use. Don’t wind the
cable around the appliance. The appliance is only cut from the mains if the plug is pulled out!
WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels
containing water.
Safety instructions

99 SB-500-AFD2PADi
98 SB-500-AFD2PADi
EN
Safety instructions
Electrostatic discharge (ESD) precaution:
When electrostatic discharge (ESD) occurs at the front surface (whether metal or plastic) or near
any part or any button of this unit, or at the USB port and/ or SD-card slots (if they exist on this
product), there may be a possibility that the product may stop operation and/ or shut down
immediately. This is a normal condition and intended to protect the unit and internal components
against damage. In such a case, please reset the unit (by disconnecting and reconnecting
AC-power source) to revert the unit to normal operation.
CAUTION
There is a danger of explosion if batteries are exchanged improperly.
Only replace batteries with ones of the same type.
■
Do not put any container (f. ex. vases, etc.) containing liquids on or in the surroundings
of the appliance.
■ Subjecttotechnicalmodications.Noliabilityfortypographicalerrors.

99 SB-500-AFD2PADi
98 SB-500-AFD2PADi
EN
Key to symbols
WARNING
This symbol and WARNING heading is used when failure to follow or non compliancy with the
operating and work instructions as well as with prescribed work procedures and the like, may
cause injuries or fatal accidents.
CAUTION
This symbol and the heading CAUTION is used when failure to follow or non compliancy with
the operating and work instructions as well as with described procedures and the like may
cause damage to the appliance.
NOTE
This symbol and the heading NOTE apply to technical requirements that the user must pay
attention to during the activities.

101 SB-500-AFD2PADi
100 SB-500-AFD2PADi
EN
Proper use of the appliance
Improper use of the appliance
The appliance is designed for household use and not for industrial operation.
Any other use is improper and could endanger persons.
No warranty for any possible damage can be accepted if the appliance is used for improper purpo-
se, wrongly operated or unprofessionally repaired. In such a case, any warranty claim is void.
Not household waste. Before disposal, remove the battery. Make worn out appliances
unusable. Pull out the mains plug and sever the cable. Return electrical appliances to
a shop of sale or dispose of product and battery separately in accordance with local
regulations. The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.
Disposal of old electrical appliances

101 SB-500-AFD2PADi
100 SB-500-AFD2PADi
EN
1 x SB500 speakers
1 x Remote control (battery incl.)
1 x Stand (for unit)
1 x Instruction manual
Scope of delivery

103 SB-500-AFD2PADi
102 SB-500-AFD2PADi
EN
Technical data
Powersupply   AC100V-240V~50/60Hz   
Power consumption Standby: < 1 W
In operation: 32 W
Dimension 550 x 109 x 108 mm with stand
Weight 1.5 kg
Speaker 10 W x 2
Amplier   5Wx2
Protection Class 2

103 SB-500-AFD2PADi
102 SB-500-AFD2PADi
EN
Indicator
mark
Lock
symbol
Click
Operation

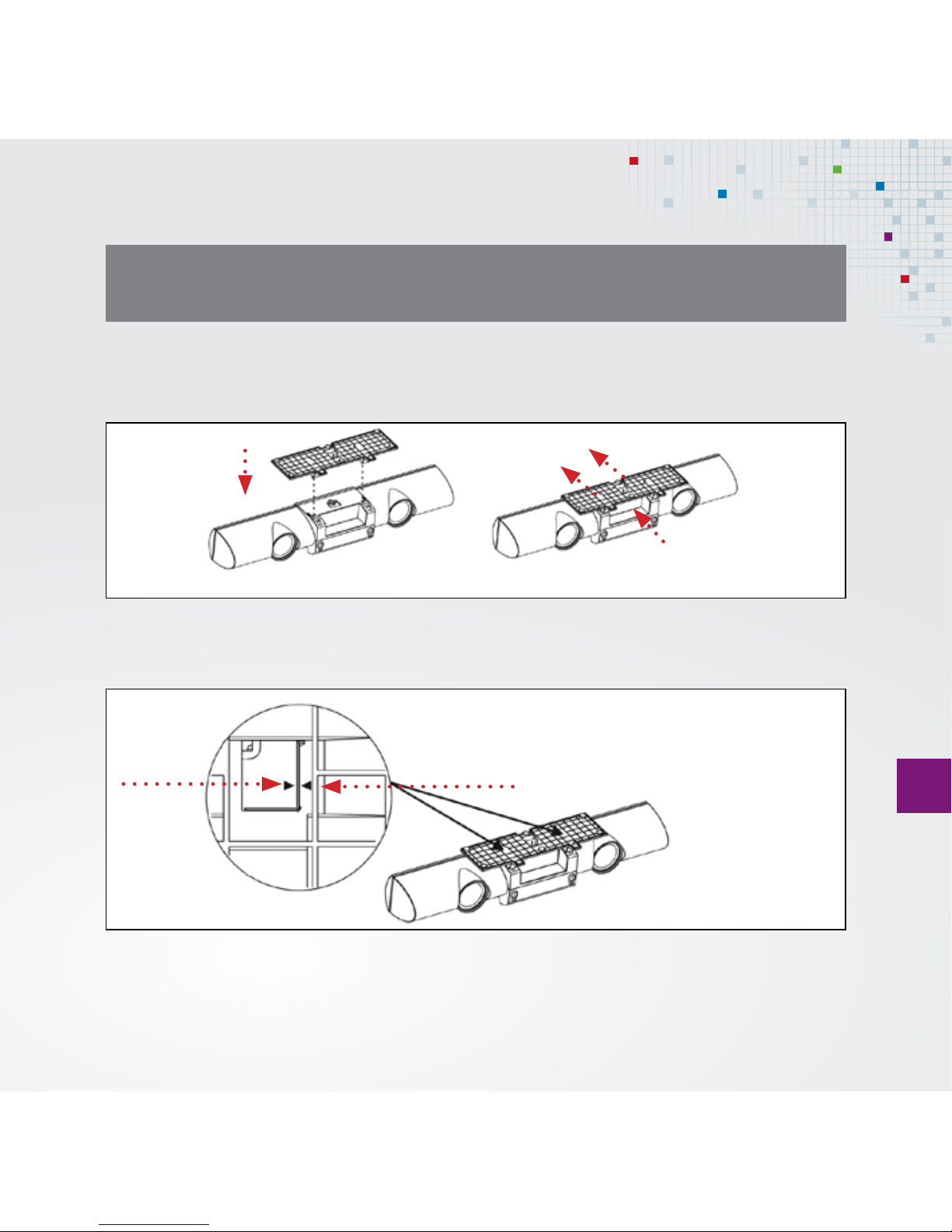

Stand
Place the stand under the unit and slide it forward
Stop when the indicator arrow mark is aligned with the mark at the unit
(To release the stand press the clip and and slide the stand downwards)

105 SB-500-AFD2PADi
104 SB-500-AFD2PADi
ON / STANDBY
2
1
EN
Operation

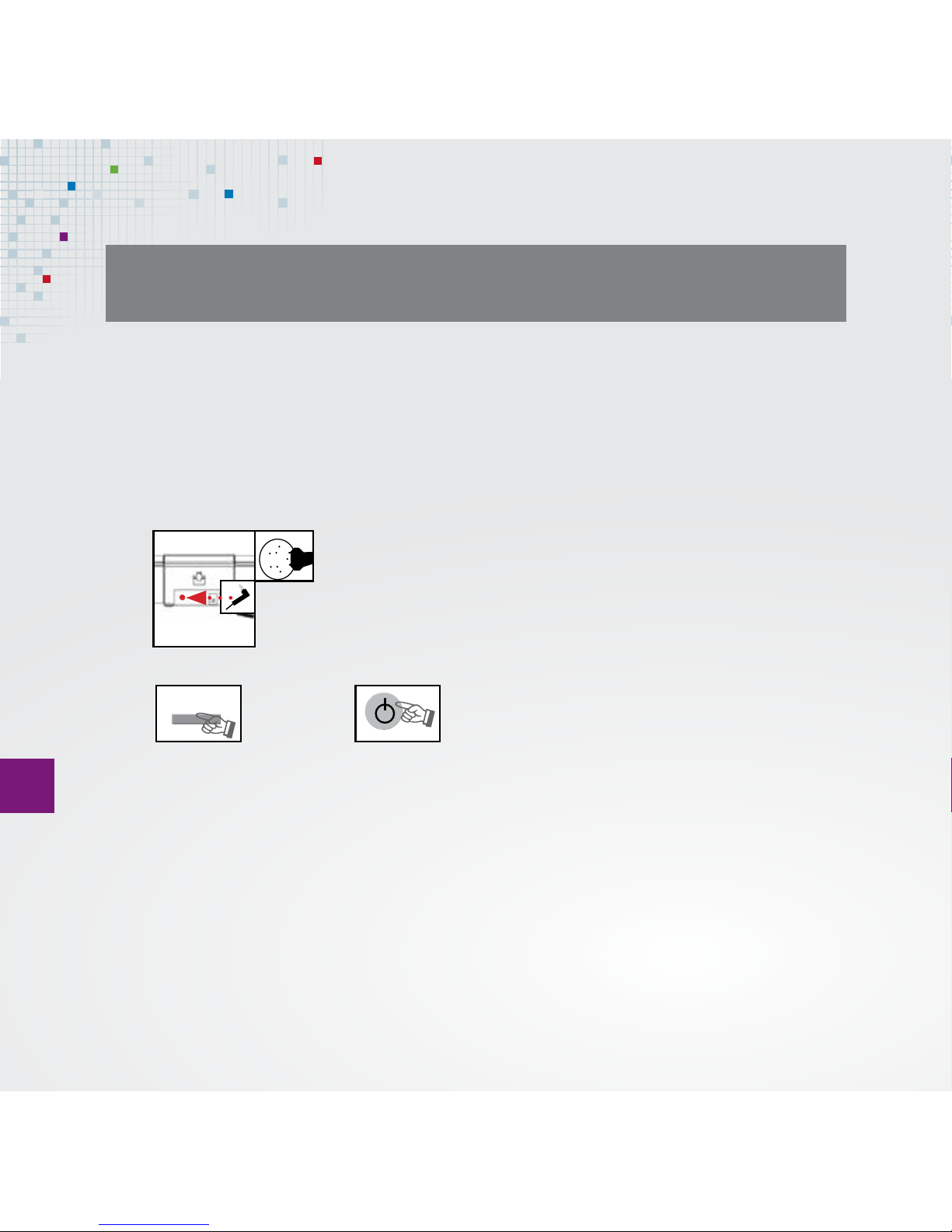

Use of the appliance
The appliance is equipped with an AC adaptor, rating DC = 15V, 3A and a plug:
■ Use only the supplied AC-adaptor to operate the unit.
Use of other adaptors may damage the unit or cause it to malfunction.
■ 1. Plug the tail end of the AC-adaptor into the DC-jack (socket)
2. Connect plug to the mains supply
■ Press ON / STANDBY to switch on the appliance
Appliance Remote control
■ This appliance cannot be switched off completely. It is either in operation or in standby mode.
■ The display is dimmed in standby mode, time is displayed
■ Power consumption is reduced in standby mode

105 SB-500-AFD2PADi
104 SB-500-AFD2PADi
- +
+ -
EN
Operation
Remote Control
■ Connect two batteries of 1.5 V (AAA/UM-4/LR03) (not supplied) and test
if the appliance reacts on the remote control with ON / STANDBY
Wall mount setup
■ This unit can be mouted on to a wall surface
■ Type of screws neccessary for wall mounting: 2 x 3.5 x 34 mm BA
WARNING
Not all types of walls are suitable or strong enough to support the weight of this unit.
Please refer to a specialist to make sure that your wall is suitable, before wall mounting.
Drilling of holes must also be done by an experienced specialist, to avoid injury and damage
to your walls. Never place objects on top of the speakers when they are wall mounted.

107 SB-500-AFD2PADi
106 SB-500-AFD2PADi
EN
17
2
5610 11 12
7 8 9 13 14
3 4
1920212223
1
1
18
17
17
1615

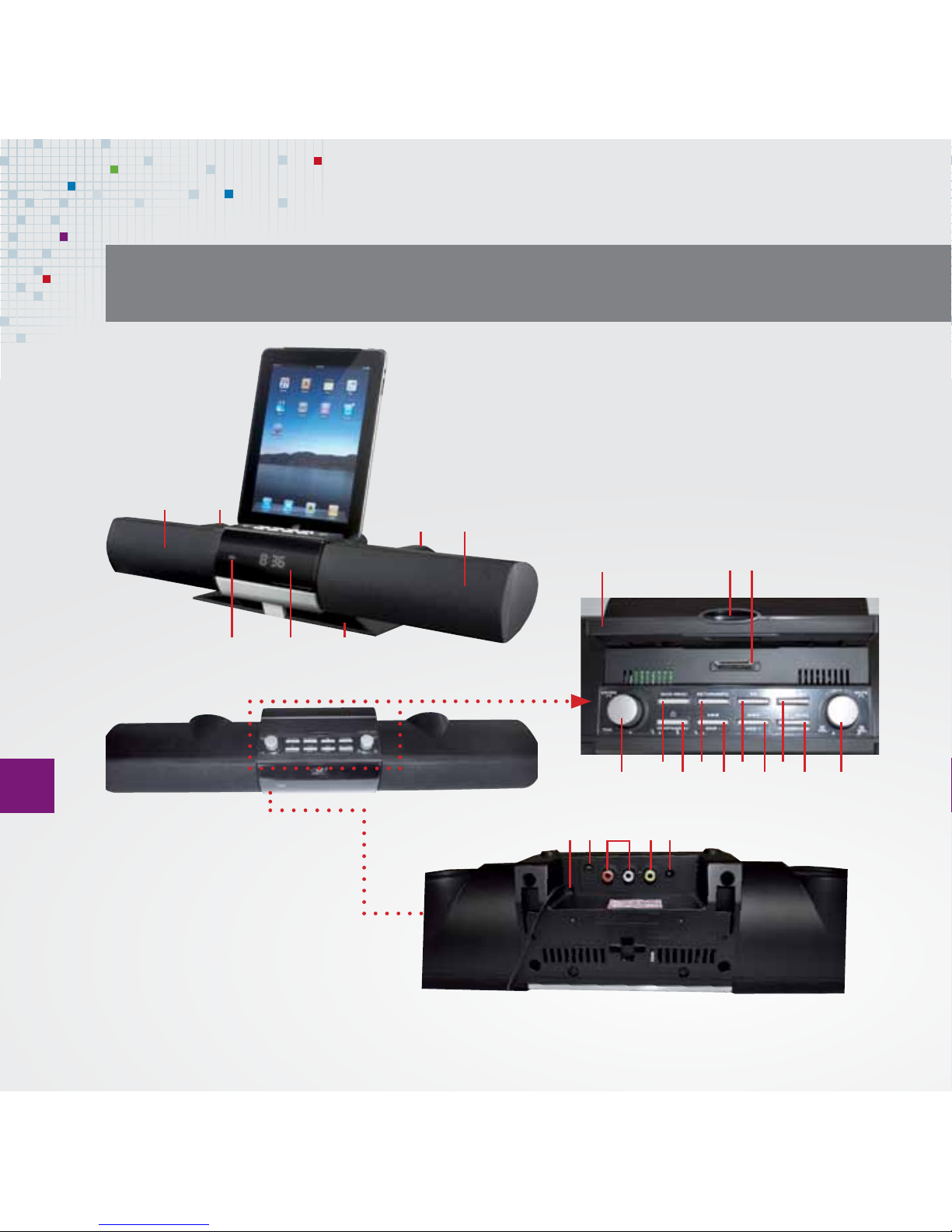

Overview SB-100-AFD2PADi

107 SB-500-AFD2PADi
106 SB-500-AFD2PADi
EN
1 Passive Subwoofers
(left & right)
2 Docking Door
3 Docking Door Finger Grip
4 iPod / iPhone / iPad Dock
5 Tuning MULTI JOG Rotate Knob/
ENTER Button
6 MAIN MENU
7 RETURN / INFO.
8 EQ (Equalizer)
9 FUNCTION
10 ON / STANDBY
11 SKIP -
12 SKIP +
13 PLAY / PAUSE / SCAN
14 VOLUME adjust (+/-) KNOB /
MUTE
15 Remote Control Sensor
16 Display
17 Main Speakers (left & right)
18 Unit Stand
19 DC JACK (DC 9V )
20 VIDEO OUT
21 AUX INPUT-1 Sockets
(left & right)
22 AUX INPUT-2 (LINE-IN) SOCKET
23 Antenna wire

109 SB-500-AFD2PADi
108 SB-500-AFD2PADi
EN
1
3
4
7
6
11
15 20
16 21
17 22
19
18 23
24
5
10
12 14
8
9
13
2
Overview Remote Control SB-100-AFD2PADi

109 SB-500-AFD2PADi
108 SB-500-AFD2PADi
EN
1 FUNCTION
2 ON / STANDBY
3 PLAY / PAUSE / SCAN
4 VOLUME -
5 VOLUME +
6 MUTE
7 EQ (Equalizer)
8 RETURN / INFO.
9 MAIN MENU
10 UP
11 SKIP -
12. ENTER
13 SKIP +
14 DOWN
15 i-MENU
16 RANDOM
17 REPEAT
18 SNOOZE
19 NUMBERS
20 TUNE +
21 TUNE -
22 ALARM
23 SLEEP
24 Battery Compartment
(rear of unit)

111 SB-500-AFD2PADi
110 SB-500-AFD2PADi
EN
The appliance is supplied with a digital clock which is displayed at all times during the unit is ON,
except in this two situations:
1. When using the FUNCTION key to select FM Mode:
Display shows frequency before returning to the digitl clock
2. When using the appliance function controls that require information to be displayed
Switch on appliance Press ON / STANDBY
Press MAIN MENU
Choose display (System) SKIP- resp. SKIP+ or MULTI JOG WHEEL
Conrm PressENTER
Choose display (TIME) SKIP- resp. SKIP+ or MULTI JOG WHEEL
Conrm PressENTER
Choose display (12H/24H) SKIP- resp. SKIP+ or MULTI JOG WHEEL
Conrm PressENTER
Appliance returns to time settings menu
Choose display (TIME/DATE) SKIP- resp. SKIP+ or MULTI JOG WHEEL
Set hour UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set minutes UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
NOTE If you have chosen 12H AM or PM option will be displayed. Chose option with
UP resp. DOWN (on remote control) or MULTI JOG WHEEL and press ENTER
toconrm.
Set clock

111 SB-500-AFD2PADi
110 SB-500-AFD2PADi
EN
Appliance returns to SET Date option
Set day UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set month UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set year UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set clock

113 SB-500-AFD2PADi
112 SB-500-AFD2PADi
EN
Set alarm
This appliance is supplied with a Timer function. It is used for programming to enable the appliance
to schut off or on automatically. This function can be use as an alarm clock.
CAUTION Timer only functions when time is programmed.
Press ALARM on remote control
Display shows ALARM 1 SETUP
Conrm PressENTER
Choose display (OFF/ON) UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set hour UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Set minutes UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
Display shows Duration 15
Set duration UP resp. DOWN (on remote control) or MULTI JOG WHEEL
(15 / 30 / 45 / 60 / 90)
Conrm PressENTER
Display shows Source Buzzer
Set source UP resp. DOWN (on remote control) or MULTI JOG WHEEL
(BUZZER / DAB / FM / iPOD)
Conrm PressENTER

113 SB-500-AFD2PADi
112 SB-500-AFD2PADi
EN
Display shows DAILY
Choose alarm UP resp. DOWN (on remote control) or MULTI JOG WHEEL
(Daily / once / weekends / weekdays)
Conrm PressENTER
NOTE If alarm once is selected day, month and year need to be entered
Set volume UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
NOTE Volume setting is not available for BUZZER source. If alarm source is DAB or
FM station choose with UP resp. DOWN (on remote control) or MULTI JOG WHEEL
last listened or one of the preset station in the memory (See page 27)
The symbol on the display shows when the timer function is active.
Switch off alarm
Press ALARM on remote control
Display shows ALARM 1 SETUP
Conrm PressENTER
Choose display OFF UP resp. DOWN (on remote control) or MULTI JOG WHEEL
Conrm PressENTER
NOTE If no key is pressed for 10 seconds, the appliance automatically returns to its initial
function. The programming is not saved.
