Yaesu FTA-750L User manual

Operating Manual
AIR BAND TRANSCEIVER
FTA-750L
FTA-550
FTA-450L


Important Notice!.......................................................... 1
Introduction................................................................... 2
Safety Precautions ....................................................... 3
Models, Accessories and Options .............................. 5
Models .................................................................................. 5
Supplied Accessories ............................................................ 5
Available Options ................................................................. 5

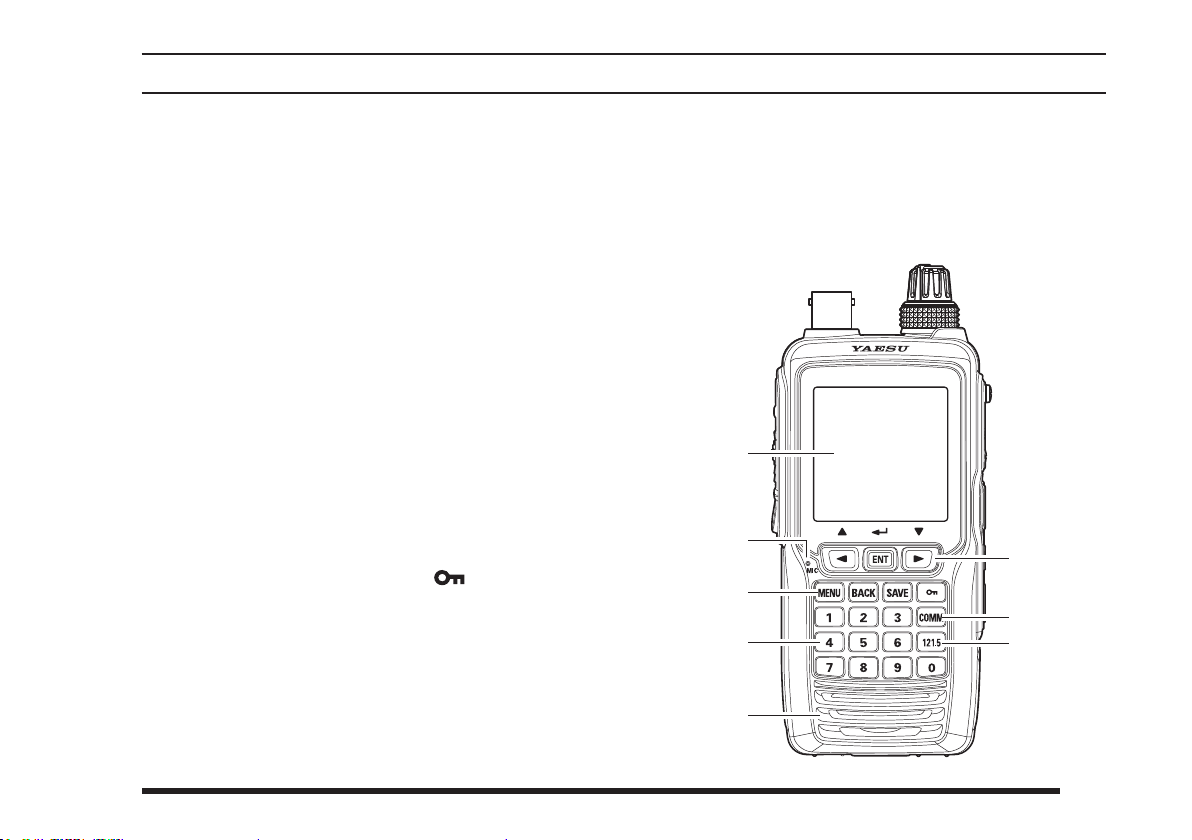

Controls & Connectors (Top Panel)............................ 6
LCD Display (COM Band)........................................... 10
Before You Begin........................................................ 14
Battery Installation and Removal ....................................... 14
Battery Charging................................................................. 15
Alkaline Battery Tray Installation....................................... 16
Low Battery Indication ....................................................... 16

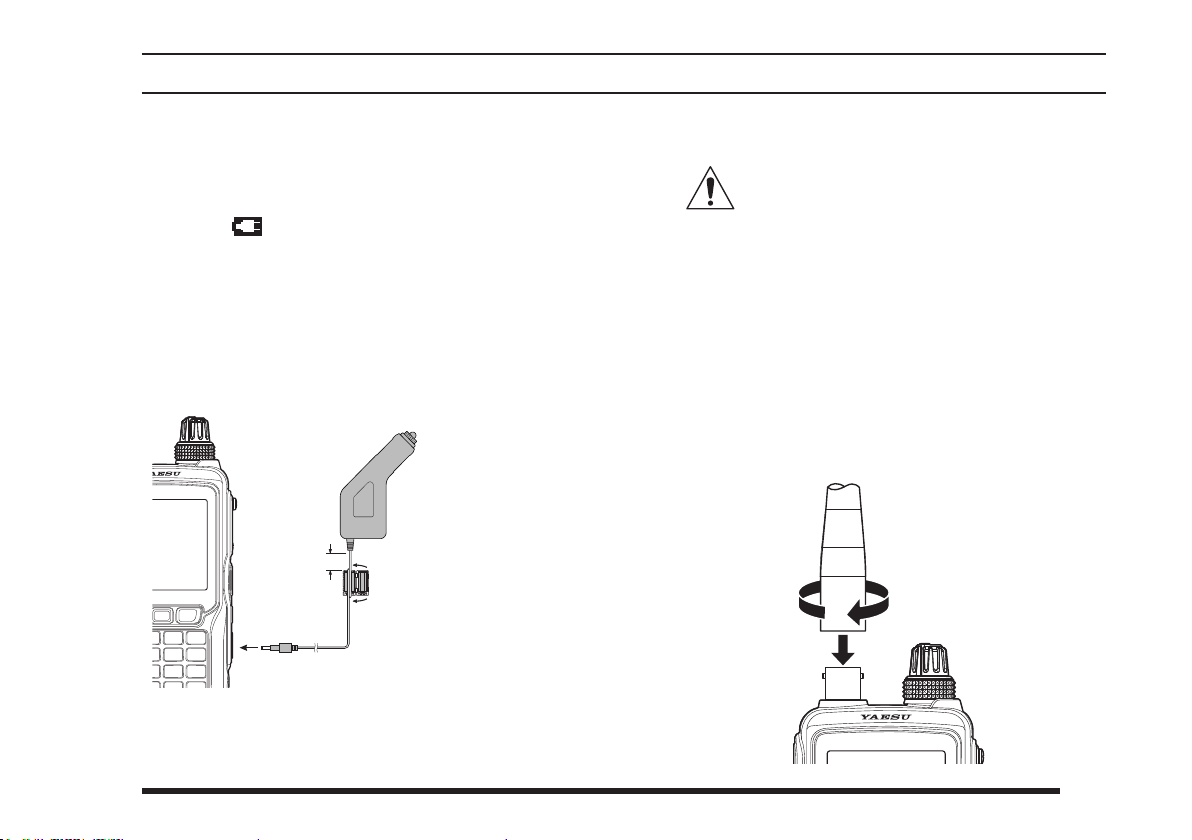

External DC Power Supply Connection ............................. 17
Antenna Installation............................................................ 17
Belt Clip Installation........................................................... 18
Headset Connection ............................................................ 18
Precautions.......................................................................... 19
Basic Operation.......................................................... 20
Reception (COM Band)...................................................... 20
Accessing the 121.5 MHz Emergency Frequency.............. 23
Transmission (COM Band)................................................. 24
Operation Bands ................................................................. 25
Operation Modes................................................................. 26
Resetting the Radio............................................................. 27
Advanced Operation .................................................. 29

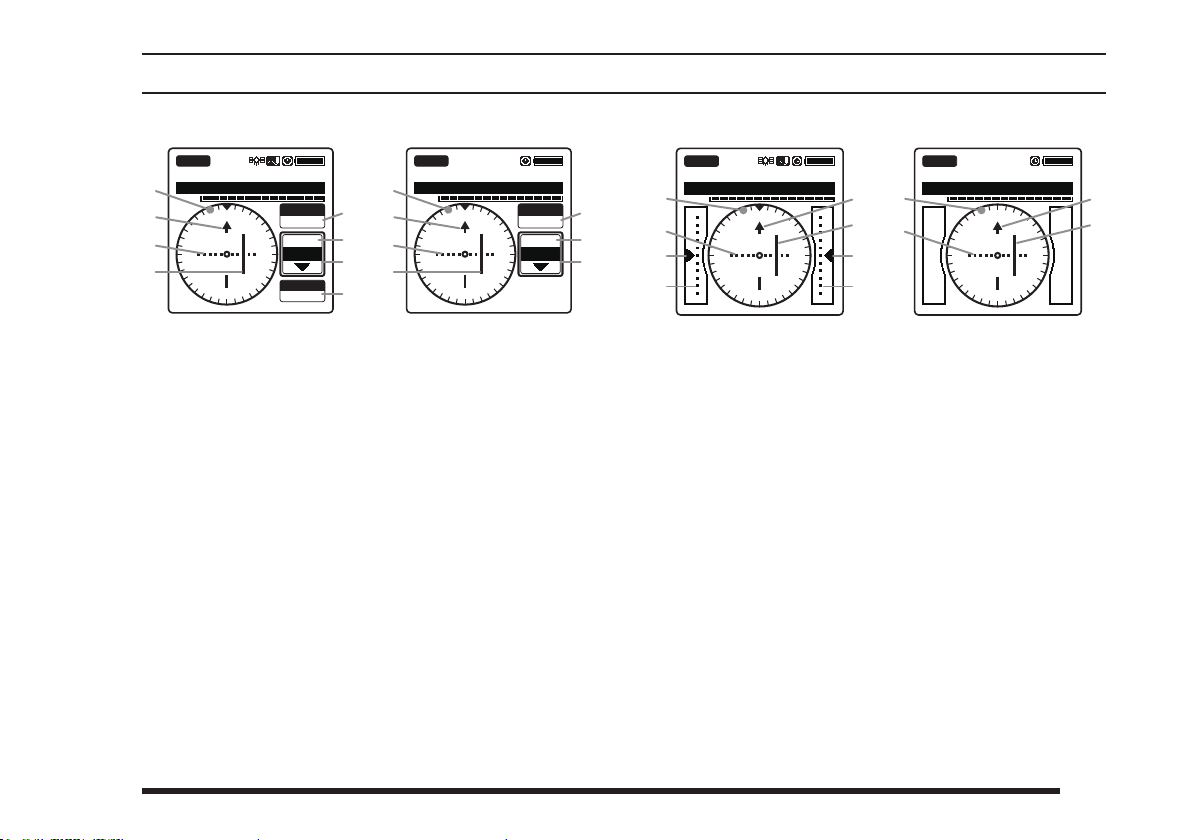

Reception of VOR Signals.................................................. 29
Reception of ILS Signals .................................................... 33
Split Operation.................................................................... 35
Reception of Weather Channel Broadcasts......................... 37
- Weather Channels for USA/ Canada only -...................... 37
Dual Watch Operation......................................................... 39
Timer Mode Operation ....................................................... 41
TOT Feature........................................................................ 45
Saving the Battery during Reception.................................. 45
Using the Headset Microphone........................................... 46
VOX Operation................................................................... 46
Side Tone Control ............................................................... 47
Lock Function..................................................................... 48
PTT Lock Function............................................................. 50
Changing the Channel Steps............................................... 50
ANL Feature ....................................................................... 51
Memory Operation...................................................... 52
Recalling the Memories...................................................... 52
Instant Storage .................................................................... 54
Maintenance of the Memory............................................... 55
Scanning Operation ................................................... 59
Scanning Channels.............................................................. 59
Selecting Scanning Band (FTA-750L/FTA-550 only)........ 60
Scanning the Specied Channels........................................ 61
Activating the GPS Unit ..................................................... 63
GPS Function (FTA-750L Only) ................................. 63
Displaying the Position Information................................... 64
Memorizing the Position Information................................. 66
Recording the Position Information.................................... 67
Waypoint Navigation (FTA-750L Only)...................... 68
Entering the Navigation (NAVI) Mode .............................. 68
Setting the Destination........................................................ 69
Basic Operation................................................................... 72
Maintenance of the Memory............................................... 73
Setting of the COMM Mode Operation.............................. 74
Setting of the GPS Mode Operation (FTA-750L Only)...... 77
Setting of the Operation and Conguration of the Radio ... 82
About the Radio.................................................................. 84
Summary of the SETUP Menu ........................................... 85
 ............................................................. 87
Troubleshooting for Headset Connection................ 89

1

FCC RF Exposure Compliance Requirements for Occupational Use Only:
The FTA-750L/FTA-550/FTA-450L have been tested and comply with the Federal Communications Commission (FCC)
RF exposure limits for Occupational Use/Controlled Exposure Environment. In addition, both radios comply with the
following Standards and Guidelines:
 FCC 96-326, Guidelines for Evaluating the Environmental Eects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human
Exposure to Radio Frequency Electromagnetic Fields.
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromag-
netic Fields - RF and Microwave.
This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is
restricted to occupational use, work related operations only where the radio operator must have the knowl-
edge to control its RF exposure conditions.
When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away
from your mouth and keep the antenna at least 1 inch (2.5 cm) away from your head and body.
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-Talk
congurations. DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the “TX”icon is displayed on the upper left corner of the screen of the radio.
You can cause the radio to transmit by pressing the PTT button.
Always use YAESU authorized accessories.
NOTICE
There are no user-serviceable points inside this transceiver.
All service jobs must be referred to your Authorized Service Center.

2

The YAESU FTA-750L/FTA-550/FTA-450L are compact, stylish, solid hand-held transceivers providing communica-
tion (transmit and receive) capability on the International Aircraft Communication Band (“COM” band: 118 to 136.975
MHz).
FTA-750L/FTA-550 are additionally provide VOR and ILS navigation features on the “NAV” band (108 to 117.975
MHz).
The FTA-750L/FTA-550/FTA-450L boast a 1.7” x 1.7” (43.2 x 43.2 mm) full dot matrix LCD displaying a plenty of
information in a row. The FTA-750L/FTA-550/FTA-450L include NOAA weather band monitoring and 200 memory
channels. The channel congurations can be easily reprogrammed in minutes using the optional PC Programming Soft-
ware and your PC. In addition, the FTA-750L provides positioning and navigation features realized by the internal GPS
unit.
We recommend that you read this manual in its entirety, so as to understand the many features of the FTA-750L/FTA-
550/FTA-450L completely. Keep this manual handy, so you may use it for reference.
Note: The VOR, ILS, and GPS navigation features of the FTA-750L/FTA-550 are for supplemental aids to naviga-
tion only, and are not intended to be a substitute for accurate (primary) VOR or landing service equipment.
You assume full responsibility for the use of the FTA-750L/FTA-550.
Congratulations!
You now have at your ngertips a valuable communications tool, a YAESU two-way radio! Rugged, reliable
and easy to use, your YAESU radio will keep you in constant touch with your friends and colleagues for years to
come, with negligible maintenance or down-time.
Please take a few minutes to read this manual carefully. The information presented here will allow you to derive
maximum performance from your radio, in case questions arise later on.
We’re glad you joined the YAESU team. YAESU products cover the entire spectrum of radio communications
applications, and our worldwide support network is here to serve you. Let us help you get your message across.

3

Yaesu is not liable for any failures or problems caused by the use or misuse
of this product by the purchaser or any third party. Also, Yaesu is not liable
for damages caused through the use of this product by the purchaser or
any third party, except in cases where ordered to pay damages under the
laws.
Types and meanings of the marks
DANGER
This mark indicates an imminently hazardous
situation, which, if not avoided, could result in
death or serious injury.
WARNING
This mark indicates a potentially hazardous
situation, which, if not avoided, could result in
death or serious injury.
CAUTION
This mark indicates a potentially hazardous
situation, which, if not avoided, may result in
minor or moderate injury or only property damage.
Types and meanings of symbols
These symbols signify prohibited actions, which must not be done
to use this product safely.
For example: indicates that the product should not be disas-
sembled.
These symbols signify required actions, which must be done to use
this product safely. For example: indicates that the power plug
should be disconnected.
DANGER
Do not use this product in “an area where use of it is prohibited”,
e.g., inside the hospital or train.”
This product can affect electronic or medical devices.
Do not use this product while riding a bicycle or driving a car.
Accidents can result.
Be sure to stop the bicycle or car at a safe place before using this product.
Do not perform transmission in a crowded place for the safety of
persons using a medical device such as a cardiac pacemaker.
The radio wave emitted from this product can cause the medical device
to malfunction and result in an accident.
Do not touch any material leaking from the battery pack with bare
hands.
The chemical that has stuck to your skin or entered your eye can cause
chemical burns. In such a case, consult the doctor immediately.
Those who are carrying a medical device such as a cardiac
pacemaker should not perform transmission near the device. When
transmitting, use an external antenna and keep as far as possible
away from the external antenna.
The radio wave emitted by the transmitter can cause the medical device
to malfunction and result in an accident.
Do not use this product or the battery charger in a place where
inflammable gas is generated.
A fire or explosion can occur.
Do not solder or short-circuit the terminal of the battery pack.
A fire, leak, overheating, explosion, or ignition can result. Do not carry the
battery pack together with a necklace, hair pin, or small metal objects. A
short circuit can result.
WARNING
Do not power this transceiver with a voltage other than the specified
power supply voltage.
A fire, electric shock, or damage may result.
Do not use the battery pack for any model other than the specified
transceiver.
A fire, leak, overheating, explosion, or ignition can result.
Do not make very long transmissions.
The main body of the transceiver may overheat, resulting in a failure or
burns.
Do not disassemble or make any alteration to this product.
An injury, electric shock, or failure can result.
When transmitting, keep the transceiver at least 5.0 mm (3/16 inch) away
from your body. Use only the supplied antenna. Do not use modified or
damaged antennas.
Keep the terminals of the battery pack clean.
If terminal contacts are dirty or corroded, a fire, leak, overheating,
explosion, or ignition can result.
Do not handle the battery pack or charger with wet hands. Do not
insert or remove the power plug with wet hands.
An injury, leak, fire, or failure can result.

4
If smoke or strange odor is emitted from the main body, battery pack,
or battery charger, immediately turn the transceiver off; remove the
battery pack, and remove the power plug from the outlet.
A fire, leak, overheating, damage, ignition, or failure can result. Contact
the dealer from which you purchased this product or Yaesu Customer
Support.
Do not use the battery pack which is externally damaged or deformed.
A fire, leak, heating, explosion, or ignition can result.
Do not use any battery charger which is not specified by Yaesu.
A fire or failure can result.
If charging of the battery pack cannot be completed within the
specified charging time, immediately remove the power plug of the
battery charger from the outlet.
A fire, leak, overheating, explosion, or ignition can result.
CAUTION
Do not dangle or throw this product by holding its antenna.
This product can hit and injure someone. In addition, doing so can result
in a transceiver failure or damage.
Do not use transceiver in a crowded place.
The antenna can hit someone, resulting in an injury.
Do not place this transceiver in a place subject to direct sun-light
or near a heater.
The transceiver can deform or discolor.
Do not place this transceiver in a humid or dusty place.
A fire or failure can result.
During transmission, keep the antenna as far from you as possible.
Long-time exposure to electromagnetic waves can have a negative
impact on your health.
Do not clean the case with thinner or benzene.
Use a soft, dry cloth to clean the case.
If the transceiver is not being used for an extended period, turn it off and
remove the battery pack for safety.
Do not drop, strike, or throw the transceiver.
A failure or damage may result.
Keep magnetic cards and video tape away from the transceiver.
The data recorded on cash cards or video tape can be erased.
Charge the battery pack within the temperature range from +5 °C to
+35 °C (+41 °F to +95 °F).
Charging the battery pack outside this temperature range can cause
leak, overheating, decrease in performance, or reduction in service life
can result.
When unplugging the power cord of the battery charger, be sure to
hold the power plug.
Pulling the power cord can dam-age it and cause a fire or electronic
shock.
Do not use the earphones or head-phones at an extremely high
volume level.
Hearing impairment can result.
Keep this product out of reach of children.
An injury, etc. can result.
Install the belt clip securely.
If they are installed improperly, the transceiver may fall or drop, resulting
in an injury or damage.
Do not place a heavy object on the power cord of the battery
charger.
The battery cord can be dam-aged, resulting in a fire or electric shock.
Do not use the included battery charger to charge any battery pack
which is not specified for use with the charger.
A fire can result.
Do not operate the transmitter near the TV or radio.
Radio disturbance can occur in the transceiver, the TV, or the radio.
Do not use any products other than the specified options and
accessories.
A failure can result.
When the battery charger is not in use, remove its power plug from the
outlet.
Before discarding the worn battery pack, affix tape or the like to its
terminals.
Before using this transceiver in a hybrid or fuel-saving car, be sure to
check with the auto-mobile manufacturer regarding use of the transceiver
in that car.
Noise generated by an onboard electrical device (inverter, etc.) can
disrupt the normal operation of the transceiver.
Do not use at extremely low atmospheric pressure.

5

Models
FTA-750L Lithium-ion battery pack included
FTA-550L Lithium-ion battery pack included
FTA-550 AA Battery Version
Rechargeable battery pack not included.
Requires “AA” batteries for operation.
FTA-450L Lithium-ion battery pack included
Supplied Accessories
Lithium-ion Battery Pack (7.2 V 2200 mAh) SBR-39LI*1
AC Charger SAD-25*1
Charger Cradle SBH-11*1
Cigarette Lighter DC/DC Converter SDD-12
Helical Antenna SRA-20A*2
Belt Clip SHB-11
Headset Adapter Cable SCU-42
Alkaline Battery Tray SBT-12
USB Cable T9101606
Ferrite Core L9190192
Operating Manual
Warranty Card
Available Options
SSM-10A Speaker Microphone
SEP-10A Earphone (available only with the
SSM-10A)
SEP-11A Earphone
YCE01 PC Programming Software
(Download the YCE01 PC Program-
ming Software from the YAESU web-
site.)
Availability of accessories may vary. Some accessories
are supplied as standard per local requirements, while
others may be unavailable in some regions. Consult
your YAESU Dealer for details regarding these and any
newly-available options.
Connection of any non-YAESU-approved accessory,
should it cause damage, may void the Limited Warranty
on this apparatus.
*1 These accessories are not supplied with the FTA-550 AA Battery Version.
*2 Antenna gain: 2.15 dBi
Impedance: 50 ohms

6
()
Antenna Jack
This BNC connector accepts the supplied flexible
antenna, or an external antenna designed to provide
50 Ω impedance on the Aircraft Communication
Band.
VOLUME (Inner) Knob
Turn this (inner) control clockwise to increase the
volume.
DIAL Selector (Outer) Knob
This (outer) 20-position detented rotary switch tunes
the operating frequency or selects the memory chan-
nels.
DIAL
VOL
  

7
LCD (Liquid Crystal Display)
The display shows selected operating conditions, as
indicated on Pages 10 to 13.
Microphone
Speak into this opening in a normal voice level,
while pressing the PTT switch, to transmit.
Cursor Keys and ENT Key
The cursor keys [◄]and []are used to select an
item displayed on the LCD.
Press the ENT key to determine the selection or en-
tered values.
Control Keys
Press the MENU key to display the MENU screen.
Press the BACK key to return the display to the
previous screen.
Press the SAVE key to store the current channel in-
formation to the memory.
Press and hold the lock key [] to enable the
lock feature. Controls and keys will be disabled.
Press and hold again to disable the lock feature.
COMM Key
Press this key to enter the COMM mode instantly.
Numeric Keypad
The keypad is used when setting frequencies.
121.5 Key
Press and hold this key to access the emergency fre-
quency (121.5 MHz) instantly.
Loudspeaker
The internal speaker is located in this position.







()

8
POWER Switch
Press and hold this button to turn the radio on and
o.
PTT (Push To Talk) Switch
Press and hold this button to transmit when you are
operating in the COM band. Release this button to
return to the “Receive” mode. See Page 24 for
details.
SQL (Squelch) Switch
This button may be pressed to “open” the squelch
manually, allowing you to listen for very weak
signals. Press and hold this button for 2 seconds
to “open” the squelch continuously. Press this but-
ton again to resume normal (quiet) monitoring. See
Page 22 for details.
()



DATA
MIC/SP
EXT
DC
PTT
SQL

9
MIC/SP Jack
You may connect the supplied SCU-42 Headset
Adapter Cable or the optional SSM-10A Speaker/
Microphone to this jack. To use this jack, you must
rst remove the cover from the transceiver body.
Do not allow the FTA-750L/FTA-550/
FTA-450L to get wet while the cover over
the MIC/SP jack is removed.
DATA Jack
You may connect the optional USB cable to this
jack. To use this jack, you must rst lift the rubber
cover away from the transceiver body.
Do not allow the FTA-750L/FTA-550/
FTA-450L to get wet while the rubber cov-
er is removed.
EXT DC Jack
When an external 9.5- to 10.5-Volt DC power
source is available, you may connect the SDD-12
Cigarette Lighter DC/DC Converter here.
1) Do not allow the FTA-750L/FTA-550/
FTA-450L to get wet while the rubber cov-
er is removed.
2) Do not connect any accessory unapproved by
YAESU to supply DC power.
()



DATA
MIC/SP
EXT
DC
PTT
SQL

10
LCD Display (COM Band)
VOL
BUSY
MEM
VDW ±
FLG
MR
G
133.800
132.400
134.800 MIAMI
127.600 MIAMI 2
119.150
124.250 North
129.200
Los Angeles
“BUSY” icon appears during
audio reception, or “TX” during
transmission.
This field displays the icons indicating
various statuses of the transceiver,
such as “GPS on”ø, “Data Logger on”ø,
“Timer on”, “Battery full”, etc.
ø: FTA-750L/FTA-550 only
This field displays the
operation modes.
This field displays the
operating frequency.
“MEM” icon appears if
the selected channel is
programmed into the Scan
Memory.
This field displays the
icons indicating various
statuses of functions,
such as “VOX on”, “Split
on”, etc.
This field displays the
tag name of the current
channel.
This field displays the
level of the audio volume
or the squelch.
This field displays the
channels you have
previously used.

11
()
VOR CDI Screen
113.600
VOL
SOGKT
150
355°
OBS
000°
NAV VOR
FROM
KLAX-VOR
N
S
EW
33
24
21 15
12
30
3
6







113.600
VOL
355°
OBS
000°
NAV VOR
FROM
KLAX-VOR
N
S
EW
33
24
21 15
12
30
3
6






FTA-750L FTA-550
Compass rose
Course indicator (OBS direction)
Deviation marks
Course deviation needle
OBS (omni bearing selector) value
VOR value
TO/FROM indicator
SOG (speed over ground) value according to the
GPS signal
ILS CDI Screen
108.500
VOL
NAV LOC GS
KLAX-RWY07R
N
S
EW
33
24
21 15
12
30
3
6




 
108.500
VOL
NAV LOC
KLAX-RWY07R

 
FTA-750L FTA-550
Compass rose
Course (runway) indicator
Deviation marks for localizer
Course deviation needle for localizer
Height deviation indicator for glide slope
Deviation marks for glide slope

12
()
GPS Information Screen
133.800
MR
FLG
VOL
LAT/LON
23° 56.890N
123° 56.890W
COG
095°
Oct/25 09:56AM
SOGKT
095 ALTM 0956.8
BUSY
MEM
DATE
KLAX-ATIS

 


Latitude and longitude values
COG (course over ground) value
Date obtained from the GPS signal
SOG (speed over ground) value
Altitude value
GPS Compass Screen
133.800
VOL
SOGkph
360
Oct/25
09:56AM
COG T
000°
ALTft
10000
BUSY
MR
FLG
KLAX-ATIS
MEM





Compass rose
Course indicator
COG (course over ground) value
SOG (speed over ground) value
Altitude value
Date obtained from the GPS signal

13

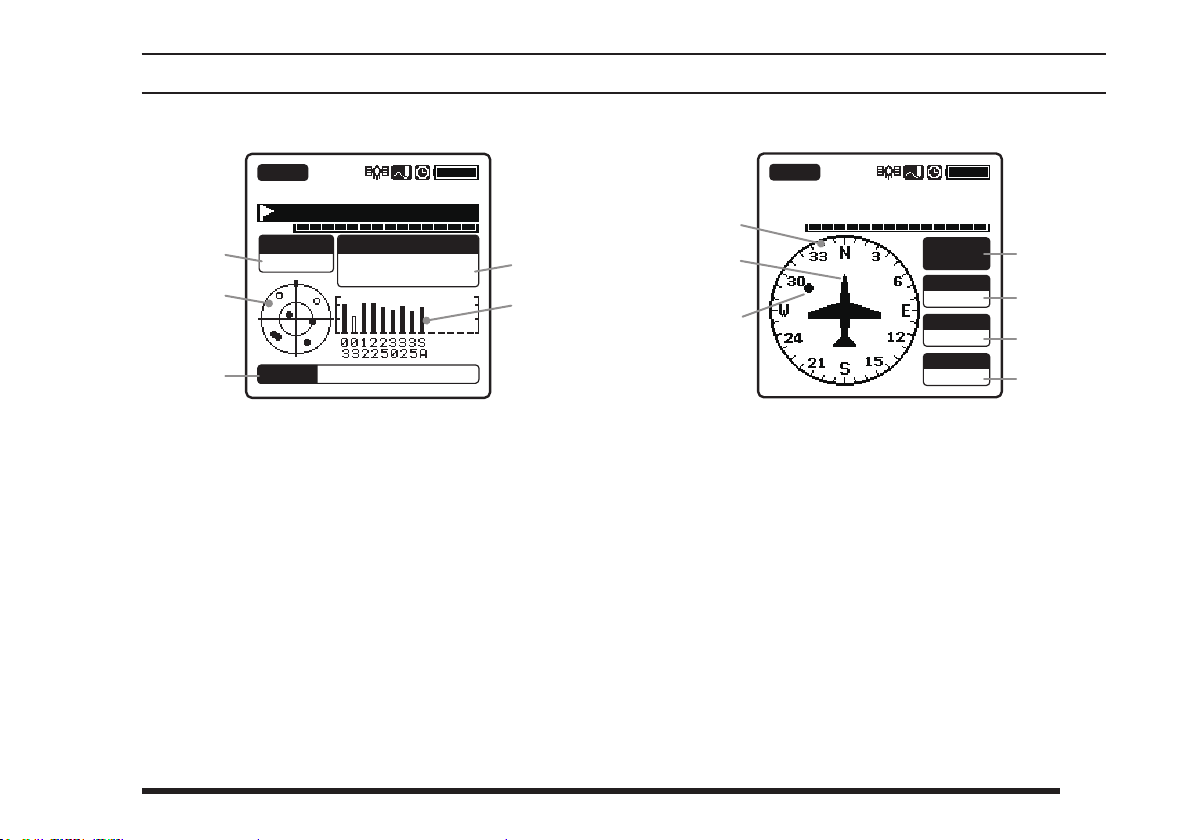

LCD Display (FTA-750 Only)
GPS Status Screen
133.800
VOL
BUSY
FLG
MR
KLAX-ATIS
LAT/LON
23° 56.890N
123° 56.890W
Oct/25 09:56AM DATE
STATUS
SEARCH




GPS receiver operation status
Radar scope for captured GPS satellites
Date obtained from the GPS signal
Latitude and longitude values
GPS signal strength indicator
Waypoint Navigation Screen
133.800
VOL
SOGkph
360
COG T
000°
DSTkm
10
KLAX
BUSY
KLAX-ATIS
MR
ALL







Compass rose
Course indicator
Destination indicator
Tag name of the destination
DST (distance) value
COG (course over ground) value
SOG (speed over ground) value

14

Battery Installation and Removal
To install the battery, insert the battery pack SBR-
39LI into the battery compartment on the back of the
transceiver , press the end of the battery pack while
pressing the battery pack latch on the bottom of the
transceiver , then lock the pack by sliding the locking
plate beside the latch until the entire “LOCK” ap-
pears .
Note:
Be sure that the rubber gasket on the SBR-39LI is
not loose when inserting.
To remove the battery, turn the
transceiver o, slide
the locking plate until the “UNLOCK” appears en-
tirely , lift up the end of the battery pack by pressing
the battery pack latch, then pull out the battery from
the radio.
PUSH
DATA
MIC/SP
EXT
DC
Battery Pack
Latch
Do not attempt to open any of the recharge-
able Lithium-ion packs, as personal injury
or damage to the Lithium-ion pack could
occur if a cell or cells become accidentally short-
circuited.
Note:
To remove the battery pack after the belt clip SHB-11
is mounted (see Page 15), lift up the clip before you
press the battery pack latch.
Caution:
Risk of explosion if battery is replaced by an incorrect
typ.
Dispose of used batteries according to the instructions.

15
Before You Begin
You may insert the cable plug of the SAD-25
into the EXT DC jack located on the right side of
the transceiver directly. In this case, the “ ”
icon will appear in the top right corner of the
LCD display.
4. If the transceiver is inserted correctly, the RED indi-
cator on the SBH-11 will glow.
A fully-discharged pack will be charged com-
pletely in 5.5 hours, and then the GREEN indica-
tor on the SBH-11 will glow.
It takes 10 hours for full charge with the SAD-
25 connected to the transceiver directly.
Important Notes:
The
SAD-25 is not designed to power the transceiv-
er for operation (transmission).
Do not leave the charger connected to the transceiver
for continuous periods in excess of 24 hours. Long
term overcharging can degrade the Lithium-ion bat-
tery pack and signicantly shorten its useful life.
If using a charger other than the SAD-25, SBH-11,
or if using a battery pack other than the SBR-39LI,
follow the appropriate instructions provided with the
charger/battery. Contact your Dealer if you have any
doubts about the appropriateness of the particular
charger or battery pack you intend to use.
Battery Charging
It is necessary to charge the Lithium-ion battery fully
before its rst use. Follow the procedure below:
1. Install the Lithium-ion battery pack onto the trans-
ceiver. Ensure that the transceiver is switched o.
2. Insert the cable plug of the SAD-25 Battery Char-
ger into the jack located on the back of the SBH-11
Charging Cradle, then plug the SAD-25 into the AC
line outlet.
EXT
DC
MIC/SP
DATA
VOL
DIAL
SAD-25
SBH-11
3. Insert the transceiver into the SBH-11; the antenna
jack should be at the left side when viewing the
cradle from the front.

16
Before You Begin
Alkaline Battery Tray Installation
The supplied SBT-12 Battery Tray allows operation of
the FTA-750L/FTA-550/FTA-450L using six “AA”
size alkaline battery cells.
 When installing a cell, insert the (–) end rst, then
press in the (+) end so the cell snaps into place. Pay
attention to the polarity indicated inside the case.
SBT-12
Alkaline Battery Tray
The SBT-12 must not be used with re-
chargeable cells. The SBT-12 does not con-
tain the thermal and over-current protec-
tion circuits required when utilizing Ni-Cd and Ni-
MH cells.
Note: Replace all six cells at the same time in case of
low battery.
To install the SBT-12, remove the Lithium-ion bat-
tery pack first from the transceiver, turn the open
side of the SBT-12 down, then insert it into the bat-
tery compartment.
Note: Be sure that the rubber gasket on the SBT-12
is not loose when inserting.
Low Battery Indication
As your battery discharges during use, the voltage
will gradually become lower. When the battery volt-
age reaches 6.0 Volts, the “ ” icon will blink on the
LCD display, indicating that the battery pack must be
recharged or the alkaline battery cells must be replaced
before further use.

Avoid recharging Lithium-ion batteries before the
“Low Battery” indicator is observed, as this can de-
grade the charge capacity of your Lithium-ion battery
pack. YAESU recommends that you carry an extra,
fully-charged pack with you so you will not lose
communications capability due to a depleted Lithi-
um-ion battery.
The fully-charged battery lasts for 12 hours on the
FTA-750L or 13.5 hours on the FTA-550/FTA-
450L under the conditions below:
Battery saver ... OFF
Operation ratio ... TX:RX:Standby = 6:6:48 (sec)

17
Before You Begin
External DC Power Supply Connection
You may insert the cable plug of the optional SDD-12
Cigarette Lighter DC/DC Converter into the EXT DC
jack located on the right side of the transceiver. In this
case, the “ ” icon will appear in the top right corner
of the LCD display.
When making DC connections via the SDD-12, be ab-
solutely certain to observe the proper voltage level and
polarity guidelines.
The SDD-12 can be connected to 12 to 24 Volt DC
power sources.
SDD-12
Cigarette Lighter DC/DC
Converter (12 to 24 Volts)
Ferrite Core
Wind the cable one turn,
then snap two halves
As close
as possible
For noise reduction from exogenous noise, wind one
turn of the SDD-12 cable around the ferrite core,
and snap its two halves together, per the illustration
above. Attach the ferrite core as close as possible to
the SDD-12 body, as shown.
Do not connect any accessory unapproved
by YAESU to supply DC power; otherwise
the FTA-750L/FTA-550/FTA-450L may
be damaged.
Antenna Installation
To attach the supplied antenna to the FTA-750L/
FTA-550/FTA-450L, grasp the base of the antenna
rmly, and exert a moderate “pinching” pressure on
the base as you press the antenna onto the radio’s an-
tenna connector. While exerting this pressure, rotate
the antenna clockwise 1/4 turn to lock the antenna in
place.



18
Before You Begin
Belt Clip Installation
You may mount the clip to the rear of the FTA-750L/
FTA-550/FTA-450L using the supplied screws.
DATA
MIC/SP
EXT
DC
DATA
MIC/SP
EXT
DC
SHB-11
Belt Clip
with two screws (M3 x 8)
Headset Connection
You may use an optional headset through the supplied
SCU-42 Headset Adapter Cable (see also Page 89).
SCU-42
Headset
(not supplied)
Speaker
Microphone
PTT switch*
(not supplied)
*Please purchase an aftermarket PTT switch.
1. Remove the cover and two screws of the MIC/SP
jack located on the right side of the transceiver.
2. Insert the plug of the SCU-42 to the MIC/SP jack.
3. Fix the plug with two screws attached to the SCU-
42.
Either of the plug directions are acceptable as
long as the both screws t the screw holes.
4. Insert the plugs of the headset to the sockets of the
SCU-42.
