Yamaha DVD-S2300 User manual

100826
P.O.Box 1, Hamamatsu, Japan
■CONTENTS
TO SERVICE PERSONNEL .......................................... 2
PREVENTION OF ELECTRO STATIC DISCHARGE... 4
LOCALE MANAGEMENT INFORMATION ................... 4
FRONT PANELS............................................................ 5
REMOTE CONTROL PANELS...................................... 5
REAR PANELS .............................................................. 6
SPECIFICATIONS.......................................................... 7
INTERNAL VIEW ........................................................... 8
DISASSEMBLY PROCEDURE / 分解手順 .............. 9~15
OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE /
光ピックアップの故障診断と交換手順 .................. 16~17
SERVICE MODE AND SELF-DIAGNOSIS FUNCTION /
サービスモードと自己診断機能 ............................. 18~24
ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT /
メカニズムユニットの分解組立 ............................. 25~35
OPTICAL PICKUP TILT ADJUSTMENT /
光ピックアップあおり調整..................................... 36~39
DISPLAY DATA ..................................................... 40~41
IC DATA ................................................................. 42~43
PIN CONNECTION DIAGRAM .................................... 44
PRINTED CIRCUIT BOARD .................................. 45~53
BLOCK DIAGRAM................................................. 54~55
SCHEMATIC DIAGRAM ........................................ 56~76
PARTS LIST......................................................... 77~104
REMOTE CONTROL.................................................. 105
SERVICE MANUAL
DVD AUDIO/VIDEO SACD PLAYER
DVD-S2300
DVD-S2300
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

DVD-S2300
2
DVD-S2300
WALL
OUTLET EQUIPMENT UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may
cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during
servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
Laser Emitting conditions:
1) When the Top Cover is removed, and the "POWER" SW is turned to the "ON" position, the laser component will emit a
beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens
of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser
emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual.
Adjustment of this control can increase the laser emission level from the device.
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked s
and must be replaced with parts having specifications equal
to those originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohm shunted
by 0.15µF.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both polarities.
THE DVD PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.

DVD-S2300
3
DVD-S2300
Laser Diode Properties
Type: Semiconductor laser GaAlAs
Wave length: 658 nm (DVD)
790 nm (VCD/CD)
Output Power: CLASS IIa 1mW (DVD)
CLASS I1mW (VCD/CD)
VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER-
SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING!: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN.
WARNING
Theuseofopticalinstrumentswiththisproductwillincreaseeyehazard.
Repairhandlingshouldtakeplaceasmuchaspossiblewithadiscloadedinsidetheplayer

DVD-S2300
4
DVD-S2300
■PREVENTION OF ELECTRO STATIC DISCHARGE
The laser diode in the traverse unit (optical pickup) may be damaged due to static electricity from clothes or the human body.
Use caution to prevent electrostatic damage when servicing or handling the laser diode.
1. Grounding for Electrostatic Damage Prevention
Some devices, such as the DVD player, use an optical pickup (laser diode) that will be damaged by static electricity in the
working environment. Only attempt service after ensuring that all grounding procedures have been completed.
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
2. Handling of the Optical Pickup
1. To prevent damage to the optical pickup replacement parts during transportation and before installation, both ends of the
laser diode are short-circuited. After installing the new part, remove the short circuit according to the correct procedure in
this service manual.
2. Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the laser
diode.
3. Handling Precautions for the Traverse Unit (Optical Pickup)
1. Handle the traverse unit (optical pickup) gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.
1M Conductive material
(sheet) or iron sheet
Anti-static wrist strap
1
2
4
2
5
5
4
2
6
3
5
■LOCALE MANAGEMENT INFORMATION
Locale Management Information : This DVD player is designed and manufactured to respond to the Locale Management
Information that is recorded on the DVD disc. If the Locale number described on the DVD disc does not correspond to the
Locale number of this DVD player, this DVD player cannot play this disc.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.

DVD-S2300
5
DVD-S2300
■FRONT PANELS
U, J models
A, B, G models
■REMOTE CONTROL PANELS
U, J models A, B, G models

DVD-S2300
6
DVD-S2300
■REAR PANELS
U model
A model
B, G models
J model

DVD-S2300
7
DVD-S2300

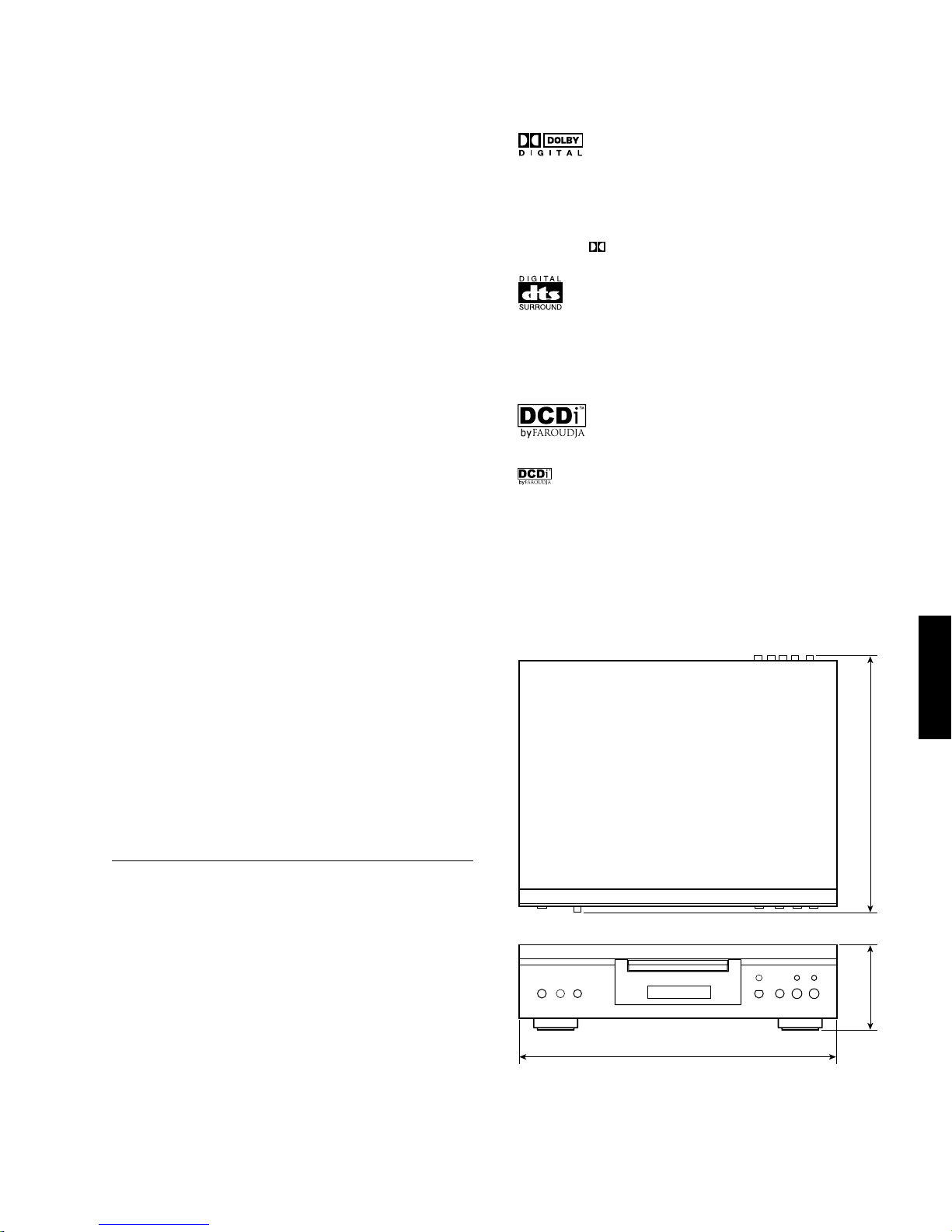

435 (17-1/8")
Unit : mm (inch)
116 (4-9/16") 350 (13-3/4")
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”and the double-D symbol are trademarks of
Dolby Laboratories.
ドルビーラボラトリーズからの実施権に基づき製造されていま
す。ドルビー、DOLBY、ドルビーデジタル、PROLOGICおよび
ダブルD記号 は、ドルビーラボラトリーズの商標です。
“DTS”and “DTS Digital Surround”are registered trademarks of
Digital Theater Systems, Inc.
DTS、DTSDigitalサラウンドはデジタルシアターシステムズの登
録商標です。
“DCDi”is a trademark of Faroudja, a division of Sage Inc.
はSage社の事業部門であるFaroudiaの登録商標です。
■SPECIFICATIONS/参考仕様
Output Level / 出力レベル
SACD/DVD/VIDEO CD/CD-DA (1kHz 0dB) ................2 V ±0.3 V
Signal to Noise Ratio / 信号対雑音比
SACD/DVD/VIDEO CD/CD-DA ......................................... 115 dB
Dynamic Range / ダイナミックレンジ
SACD ........................................................................... 108dB
DVD(48kHz,24bit) ..................................................... 103dB
VIDEO-CD/CD-DA ........................................................ 99dB
Harmonic Distortion / 歪率
SACD ............................................................................. 0.0016 %
DVD (48kHz, 24bit) ........................................................ 0.0020 %
VIDEO-CD/CD-DA ......................................................... 0.0022 %
Frequency Response / 周波数特性
DVD ........................................... 2 Hz - 22 kHz (48 kHz sampling)
2 Hz - 44 kHz (96 kHz sampling)
DVD Audio ..............................2 Hz - 88 kHz (192 kHz sampling)
VIDEO-CD/CD-DA ...................................................2 Hz - 20 kHz
Video Output / 映像信号出力
........................................................................... 1 Vp-p (75 ohms)
S Video Output / Sビデオ信号出力
Y ........................................................................ 1 Vp-p (75 ohms)
C ..................................................... NTSC: 0.286 Vp-p (75 ohms)
PAL: 0.300 Vp-p (75 ohms)
Component Video Output / コンポーネントビデオ出力 [U, A, J
models]
Y ........................................................................ 1 Vp-p (75 ohms)
Pb ................................................................... 0.7 Vp-p (75 ohms)
Pr .................................................................... 0.7 Vp-p (75 ohms)
Digital Output Terminal / デジタル出力端子
.................................................................. Optical x 1, Coaxial x 1
Other Output Equipment / その他の出力端子
......................................................SCART terminal (G, B models)
D端子(Jmodel)
Analogoutputterminals
Power Supply / 電源電圧
U model ................................................................AC 120 V, 60Hz
A model ...............................................................AC 240 V, 50 Hz
B, G models ........................................................AC 230 V, 50 Hz
J model.......................................................... AC 100 V, 50/60 Hz
Power Consumption / 消費電力
U, A, B, G models ................................................................. 34 W
J model.................................................................................. 28 W
Dimensions / 寸法 (W x H x D)
.......................................................................435 x 116 x 350 mm
(17-1/8 x 4-9/16 x 13-3/4)
Weight / 質量
.............................................................. 8.7kg（19lbs.3oz.）
Finish / 仕上げ
............................................................... Gold Color (G, J models)
BlackColor(U,A,B,Gmodels)
TitaniumColor(Gmodel)
Accessories / 付属品
Remote Control, Batteries x 2 (AA, R6, UM-3),
Audio/Video Cable, Power Cable
* Specifications are subject to change without notice due to product
improvements.
※ 参考仕様および外観は予告なく変更されることがあります。
U .......... U.S.A. model A ...... Australian model
B .......... British model G ...... European model
J........... Japanese model
DIMENSIONS/寸法図

DVD-S2300
8
DVD-S2300
1
67
2 3 4 5
9 A08
■INTERNAL VIEW
1MAIN (4) P.C.B.
2AUDIO (2) P.C.B.
3MAIN (6) P.C.B. (B, G models only)
4MAIN (1) P.C.B.
5AUDIO (1) P.C.B.
6MAIN (5) P.C.B.
7MAIN (3) P.C.B.
8TERMINAL P.C.B.
9DVD Mechanism
0DVD Module P.C.B.
ASACD P.C.B.

DVD-S2300
9
DVD-S2300
2
1
1
3
34
■DISASSEMBLY PROCEDURE/分解手順
Fig. 1
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Top Cover
a. Remove 4 screws (1) and 3 screws (2). (Fig. 1)
b.
Remove the top cover rearward while lifting it up. (Fig. 1)
2. Removal of Inner Cover
a. Remove 4 screws (3) and 2 screws (4). (Fig. 1)
b. Remove the inner cover. (Fig. 1)
（番号順に部品を取り外してください。）
AC電源コンセントから、電源コードを抜いてください。
1. トップカバーの外し方
a. ①のネジ4本、②のネジ3本を外します。（Fig.1）
b.
トップカバーを持ち上げながら後方へ外します。（Fig.1）
2. インナーカバーの外し方
a. ③のネジ4本、④のネジ2本を外します。（Fig.1）
b. インナーカバーを取り外します。（Fig.1）

DVD-S2300
10
DVD-S2300
Tray Lid
トレーリッド
OPEN
Gear Jig
ギア治具
Tray open/close hole
トレー開閉穴
3. Removal of Tray Lid
a. Remove the gear for opening the tray from the DVD-
Mechanism and install it onto a screwdriver to make a
gear jig. (Fig. 2)
b. Insert the gear jig into the tray open/close hole. (Fig. 3)
3. Turn the gear jig counterclockwise to open the tray.
(Fig. 3)
4. Remove the tray lid from the tray section. (Fig. 4)
3. トレーリッドの外し方
a. DVDメカよりトレー引き出しギアを外し、ドライバー
に挿入し、ギア治具を準備します。（Fig.2）
b. ギア治具をトレー開閉穴に挿し込みます。（Fig.3）
c. ギア治具を反時計方向に回し、トレーをオープンさせま
す。（Fig.3）
d. トレー部よりトレーリッドを取り外します。（Fig.4）
Fig. 2
Cut
カット DVD-Mechanism
DVDメカ
Gear for opening the tray
トレー引き出しギア Keep the Gear after using 使用後、ギアは大切に保管してください。
Gear
ギア Screwdriver
ドライバー
<Gear jig>
〈ギア治具〉
Fig. 3 Fig. 4

DVD-S2300
11
DVD-S2300
7
6
8
6
CB602
CB803
3 x 8
Bonding
CB10
CB605
Front Panel Unit
フロントパネルユニット
3 x 8
3 x 8
5
5
DVD-Mechanism
DVDメカニズム
CB1
CB6
3 x 10 -8
3 x 10 -8
Fig. 5
Fig. 6
4. Removal of DVD-Mechanism
a. Disconnect the connectors CB1 and CB6. (Fig. 5)
a. Remove 4 screws (5). (Fig. 5)
b. Remove the DVD-Mechanism. (Fig. 5)
5. Removal of Front Panel Unit
a. Remove 4 screws (6) and 1 screws (7). (Fig. 6)
b. Remove 4 screws (8) (Fig. 6)
C. Disconnect the connectors CB10, CB602, CB605 and
CB803 and then remove the Front Panel Unit. (Fig. 6)
4. DVDメカの外し方
a. コネクターCB1、CB6を外します。（Fig.5）
b. 5のネジ4本を外します。（Fig.5）
c. DVDメカを取り外します。（Fig.5）
5. フロントパネルユニットの外し方
a. 6のネジ4本、7のネジ1本を外します。（Fig.6）
b. 8のネジ4本を外します。（Fig.6）
c. コネクターCB10、CB602、CB605、CB803を外し、フ
ロントパネルユニットを取り外します。（Fig.6）

DVD-S2300
12
DVD-S2300
B
B
Support/P.C.B.
サポート／P.C.B.
3 x 8
3 x 8
CB303
CB304
CB301
CB302
3 x 10 -8
CB12
CB3
AUDIO P.C.B.
SACD P.C.B.
Support
サポート
CB13
0
9
ACC
C
C
U, A models only
U, A, J models only
J model only
J model only
B, G models only
B, G models only
Fig. 9
Fig. 7
Fig. 8
6. Removal of AUDIO P.C.B.
a. Disconnect the connectors CB301, CB302, CB303 and
CB304. (Fig. 8)
b. Remove 4 screws (9). (Fig. 7)
c. Remove 2 screws (0) and then remove the AUDIO (1)
P.C.B. (Fig. 8)
7. Removal of SACD P.C.B.
a. Disconnect the connectors CB3, CB12 and CB13. (Fig. 8)
b. Remove the SACD P.C.B. with the tip of the 4 support
pinched with pliers or the like. (Fig. 8)
8. Removal of Support/P.C.B.
a. Remove 1 screws (A). (Fig. 7)
b. Remove 5 screws (B) and then remove the Support/
P.C.B. (Fig. 9)
6. AUDIOP.C.B.の外し方
a. コネクターCB301、CB302、CB303、CB304を外しま
す。（Fig.8）
b. 9のネジ4本を外します。（Fig.7）
c. 0のネジ2本を外し、AUDIO（1）P.C.B.を取り外しま
す。（Fig.8）
7. SACDP.C.B.の外し方
a. コネクターCB3、CB12、CB13を外します。（Fig.8）
b. 4箇所のサポートの先をペンチ等でつまみながら、
SACDP.C.B.を取り外します。（Fig.8）
8. サポート／P.C.B.の外し方
a. Aのネジ1本を外します。（Fig.7）
b. Bのネジ5本を外し、サポート／P.C.B.を取り外しま
す。（Fig.9）

DVD-S2300
13
DVD-S2300
D
E
F
MAIN (6) P.C.B.
MAIN (1) P.C.B.
CB609
3 x 20
3 x 15
-8
3 x 10 -8
CB608
CB606
Support
サポート
DVD Module P.C.B.
DVDモジュールP.C.B.
Support
サポート
Fig. 10 Fig. 11
9. Removal of DVD Module P.C.B.
Remove the DVD module P.C.B. with the tip of the 4
support pinched with pliers or the like. (Fig. 10)
10.Removal of MAIN P.C.B.
a. Disconnect the connectors CB606, CB608 and CB609.
(Fig. 11)
b. Remove 7 screws (C). (Fig. 7)
c. Remove 1 screw (Dand E) and remove 2 screws (F)
and then remove the MAIN (1) and (6) P.C.B. (Fig. 11)
9. DVDモジュールP.C.B.の外し方
4箇所のサポートの先をペンチ等でつまみながら、DVD
モジュールP.C.B.を取り外します。（Fig.10）
10.MAIN(1)、(6)P.C.B.の外し方
a. コネクターCB606、CB608、CB609を外します。（Fig.
11）
b. Cのネジ8本を外します。（Fig.7）
c. Dのネジ1本、Eのネジ1本、Fのネジ2本を外し、
MAIN（1）、（6）P.C.B.を取り外します。（Fig.11）

DVD-S2300
14
DVD-S2300
Yellow
黄
White
白
Extension cable
延長ケーブル CB508
Connect with care to the polarity.
極性に注意して接続してください。
35pin
15pin
SACDP.C.B.のチェック
・ トップカバー、インナーカバーを外し、SACDP.C.B.を
外します。
SACDP.C.B.の右側を上にして立てます。（Fig.12）
・ SACDP.C.B.に接続されているケーブルを下記のサービ
ス用延長ケーブルに交換します。（Fig.12）
35ピン延長ケーブル（200mm）:MFA35200
15ピン延長ケーブル（200mm）:MFA15200
Checking the SACD P.C.B.
•After removing the top cover and inner cover, remove
the SACD P.C.B.
Set the SACD P.C.B. upright with its right side upward.
(Fig. 12)
•Replace the cables connected to the SACD P.C.B. with
the following extension cables for servicing. (Fig. 12)
35-pin extension cable (200mm) : MFA35200
15-pin extension cable (200mm) : MFA15200
Fig. 12
AUDIOP.C.B.のチェック
・ トップカバー、インナーカバーを外し、AUDIOP.C.B.
を外します。
AUDIOP.C.B.のリアパネル側を上にして立てます。
（Fig.13）
・ AUDIOP.C.B.に接続されているコネクターを一旦外
し、下記のサービス用延長ケーブルを介して再度接続し
ます。（Fig.13）
3ピン延長ケーブル（100mm）:VM017100
Checking the AUDIO P.C.B.
•After removing the top cover and inner cover, remove
the AUDIO P.C.B.
Set the AUDIO P.C.B. upright with its rear panel side
upward. (Fig. 13)
•Disconnect the cable connected to the AUDIO P.C.B.
and then reconnect it via the following extension cable
for servicing. (Fig. 13)
3-pin extension cable (100mm) : VM017100
Fig. 13

DVD-S2300
15
DVD-S2300
35pin
AUDIO P.C.B.
MODULE P.C.B.
SACD P.C.B.
22pin
26pin
15pin
MODULEP.C.B.のチェック
・ トップカバー、インナーカバー、サポート／P.C.B.を外
した状態にします。MAIN P.C.B.の上に布を敷き、
AUDIO P.C.B.を乗せます。SACD P.C.B.および
MODULEP.C.B.の右側を上にして立てます。（Fig.14）
・ SACDP.C.B.およびMODULEP.C.B.に接続されている
ケーブルを下記のサービス用延長ケーブルに交換しま
す。（Fig.13）
35ピン延長ケーブル（200mm）:MFA35200
15ピン延長ケーブル（200mm）:MFA15200
26ピン延長ケーブル（JGS0098）:TX946370
22ピン延長ケーブル（JGS0116）:AAX16610
Checking the MODULE P.C.B.
•With the top cover, inner cover and support/P.C.B.
removed, spread cloth over the MAIN P.C.B. and place
the AUDIO P.C.B. on it. Set the SACD P.C.B. and
MODULE P.C.B. with their right side upward. (Fig. 14)
•Replace the cables connected to the SACD P.C.B. and
MODULE P.C.B. with the following extension cables for
servicing. (Fig. 13)
35-pin extension cable (200mm) : MFA35200
15-pin extension cable (200mm) : MFA15200
26-pin extension cable (JGS0098) : TX946370
22-pin extension cable (JGS0116) : AAX16610
Fig. 14

DVD-S2300
16
DVD-S2300
Initialize the player.
Press " ", " " and
" " buttons on the
player for 3 seconds or
longer.
"NO DISC" is displayed, unit
does not play smoothly, etc.
Check the laser drive current.
Replace the optical pickup.
Check the laser drive current
after replacement.
•Write the present value into
the unit if it is 60 (DVD), 45
(CD) or less.
Replace with a new optical pickup if the
preset value is more than 60 (DVD), 45
(CD).
Cause: Damage due to static electricity
during replacement.
Do the optical pickup tilt
adjustment.
When not repaired, check the
Module P.C.B.
Use the tilt adjustment
check function.
Value is more than
70 (DVD), 55 (CD).
Value is 70 (DVD),
55 (CD) or less.
Method: With no disc in the player:
Press the "ON SCREEN" button on
the remote control unit while pressing
the " " and " " (DVD) or
" "(CD) buttons on the
player.
[Display content]
LDD○○○ ○○○（DVD）
LDC○○○ ○○○（CD）

     
FactorySetting Presentvalue
Method: With no disc in the player:
Press the "ON SCREEN" button on
the remote control unit while pressing
the " " and " " (DVD) or
" "(CD) buttons on the
player.
Writing method:
Press the " " button on the remote
control unit while pressing " " and
" " butons on the player.
■OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE
1. Self-diagnosis
An optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing,
use the following procedure for effective Self-diagnosis and tilt adjustment. Be sure to use the self-diagnosis function before
replacing the optical pickup when "NO DISC" is displayed. As a guideline, you should replace the optical pickup when the
value of the CD laser drive current is more than 55 (70 for DVD).
Note:
•Check the value within three minutes after applying the power to the player. (When the unit warms up, the result will be
incorrect.)
•Be sure to perform the following operation in the DVD mode.

DVD-S2300
17
DVD-S2300
NODISC表示が出る
スムーズに再生しない等
レーザー駆動電流の確認
光ピックアップ交換
交換後の
レーザー駆動電流の確認
・現在値が60（DVDの場合）、
45（CDの場合）以下なら
本体に書き込む
現在値が60（DVDの場合）、
45（CDの場合）を越える
場合は、新しい光りピック
に取り替える。
（原因）
交換時に静電気ダメージ
を与えた
光ピックあおり調整
あおり調整確認
機能を使う
現在値が
70（DVDの場合）、
55（CDの場合）を越える
現在値が
70（DVDの場合）、
55（CDの場合）以下
プレーヤーの初期化
本体の ボタンと 
ボタンと ボタ
ンを3秒以上押す。
直らない場合は、モジュール
基板をチェックする。
［確認方法］…ディスク無の状態で
本体の ボタンと ボタン
（DVD）または （CD）
を押しながらリモコンの
ONSCREENボタンを押す。

［表示内容］
LDD○○○ ○○○（DVD）
LDC○○○ ○○○（CD）

     
工場出荷値 現在値
［確認方法］…ディスク無の状態で
本体の ボタンと ボタン
（DVD）または （CD）
を押しながらリモコンの
ONSCREENボタンを押す。

［書込方法］
本体の ボタンと ボタンを
押しながらリモコンの を押す。
■光ピックアップの故障診断と交換手順
1. 故障診断
本機には、新機能として「光ピックアップ故障診断機能」と「あおり調整確認機能」を内蔵しております。修理時は、次の手法
を用い効率的に故障診断、およびあおり調整を実施ください。
特に「NODISC」表示が出る場合は光ピックアップを交換する前に「故障診断」を行います。レーザー駆動電流の現在値が「55
を越える」場合が光ピックアップ交換の目安になります。
注意
・ 電源を入れてから3分以内に診断をしてください。（プレーヤーが温まると正確な診断ができません。）
・ 下記の操作はDVDモードに設定した状態で行ってください。

DVD-S2300
18
DVD-S2300
Item Player mode and Function Display Cancellation
button combination method
Error code In STOP mode, press The latest error code stored in Error code (play_err) is expressed in Cancelled
check " " and " " EEPROM is displayed. the following convention. automatically 5
buttons on the player, Error code = 0 x DAXX is expressed: →nn UXX seconds later.
and "0" button on the Error code = 0 x DBXX is expressed: →nn HXX
remote control unit. Error code = 0 x DXXX is expressed: →nn FXXX
Error code = 0 x 0000 is expressed: →nn F–––
* "nn" denotes the serial number of history.
Jitter check In PLAY mode, press Jitter rate is measured and J_xxx_yyy_zz Press STOP or
" " and " " displayed. OPEN button.
buttons on the player,
and "5" button on the
remote control unit.
Jitter rate is shown in decimal notation to
one place of decimal.
Focus drive value is shown in
hexadecimal notation.
Region In STOP mode, press The region numbers and video x_yy_zzz Cancelled
display " " and " " format are displayed. automatically 5
buttons on the player, seconds later.
and "6" button on the
remote control unit.
Version In STOP mode, press DVD module firmware version srrr_xyzzzz Cancelled
display " " and " " is displayed. automatically 5
buttons on the player, seconds later.
and "7" button on the
remote control unit.
DVD laser In STOP mode, press DVD laser drive current is LDD_034_032 Cancelled
drive current " " and " " measured and the result is automatically 5
measurement buttons on the player, displayed together with the initial seconds later.
and "ON SCREEN" value stored in EEPROM.
button on the remote After the measurement, DVD
control unit. laser emission is kept on. It is The value denotes the current in decimal
turned off when the "POWER" notation.
key is switched off. The above example shows the initial
current is 34mA and the measured value
is 32mA.
Initial setting In STOP mode, press The initial current value for each LDO_034_028 Cancelled
of laser drive " " and " " DVD laser and CD laser is automatically 5
current buttons on the player, separetely saved in EEPROM. seconds later.
and " " button on
the remote control
unit. The value denotes the current in decimal
notation. The above example shows the
initial current is 34mA and 28mA for DVD
laser and CD laser respectively when the
laser is switched on.
■SERVICE MODE AND SELF-DIAGNOSIS FUNCTION
1. Service Mode
a. Turn on the POWER switch.
b. Press the SACD/DVD button to set to the DVD mode, and the DVD mode indicator lights up.
c. It is possible to use the following service modes, using the buttons on the player and the remote control unit in
combination.
Note: For jitter check, load the DVD test disc. [DVDT-S15 (AAX07320) or DVDT-S01]
Focusdrivevalue
Readerrorcounter
Jitterrate
Jittercheckmode
↑ ↑ ↑ ↑
N:NTSC/6:PAL60
N:noPAL/P:PAL
RegionNo.
↑ ↑↑
Versionnumber
↑
Measuredcurrent
InitialcurrentstoredinEEPROM
DVDlasercurrentmeasurementmode
↑ ↑ ↑
CDlasercurrentmeasurement
DVDlasercurrentmeasurement
Lasercurrentinitialsettingmode
↑ ↑ ↑

DVD-S2300
19
DVD-S2300
1. サービスモード
a. 電源スイッチをONにします。
b. SACD/DVDボタンを押してDVDモードにします。
DVDモードインジケーターが点灯します。
c. 本体とリモコンのボタンの組み合わせで下記のサービスモードが活用できます。
注）ジッタチェックには、DVDテストディスクを使用します。［DVD-S15（AAX07320）orDVDT-S01］
項目 動作条件とキー操作 機能 表示 解除方法
エラー ストップ状態で、 EEPROMに格納された最新の エラーコード(playerr)を下記ルールで 5秒後に自動解除
コード 本体" "＋" "＋ エラーコードを表示する。 表示する。 する。
表示 リモコン"0"を押す。 エラーコード=0xDAXXの表示→nnUXX
エラーコード=0xDBXXの表示→nnHXX
エラーコード=0xDXXXの表示→nnFXXX
エラーコード=0x0000の表示→nnF---
※"nn"はエラー履歴番号
ジッタ表示 プレイ状態で、 ジッタを測定し表示する。 Jxxxyyyzz STOPまたは
本体" "＋" "＋ OPENボタン
リモコン"5"を押す。 を押す
表示値は小数点以下1桁の10進数。
フォーカス駆動値は16進数表示。
リージョン ストップ状態で、 リージョン番号とビデオ xyyzzz 5秒後に自動解除
表示 本体" "＋" "＋ フォーマットを表示する。 する。
リモコン"6"を押す。
バージョン ストップ状態で、 DVDモジュールファームウエア srrrxyzzzz 5秒後に自動解除
表示 本体" "＋" "＋ バージョンを表示する。 する。
リモコン"7"を押す。
DVDレ−ザ ストップ状態で、 DVDレーザー電流を測定し、 LDD034032 5秒後に自動解除
駆動電流測定 本体" "＋" "＋ EEPROMに記録された初期値と する。
リモコン" ONSCREEN " 共に表示する。
を押す。 なお、測定後、DVDレーザは
点灯を継続し、"POWER"キーに
よる電源オフで消灯する。 表示値は10進数で電流を示す。上記の例
では、レーザオン時電流の初期値が34mA、
現在値が32mAであることを示す。
レーザ駆動 ストップ状態で、 DVDとCDの初期値を別々に LDO034028 5秒後に自動解除
電流初期値 本体" "＋" "＋ EEPROMに記録する。 する。
設定 リモコン" "を押す。
表示値は10進数で電流を示す。上記の例
では、レーザオン時の電流初期値が、
DVDレーザ34mA、CDレーザ28mAである
ことを示す。
フォーカス駆動値
リードエラーカウンタ
ジッタ測定値
ジッタ表示モード
↑ ↑ ↑ ↑
N:NTSC/6:PAL60
N:noPAL/P:PAL
リージョン番号
↑ ↑↑
バージョン番号
↑
電流現在値
EEPROMに記録された電流初期値
DVDレーザ電流測定モード
↑ ↑ ↑
CD電流測定値
DVD電流測定値
レーザ電流初期値設定モード
↑ ↑ ↑
■サービスモードと自己診断機能

DVD-S2300
20
DVD-S2300
Item Player mode and Function Display Cancellation
button combination method
CD laser In STOP mode, press CD laser drive current is LDC_028_026 Cancelled
drive current " " and " " measured and the result is automatically 5
measurement buttons on the player, displayed together with the initial seconds later.
and "ON SCREEN" value stored in EEPROM.
button on the remote After the measurement, CD
control unit. laser emission is kept on. It is The value denotes the current in decimal
turned off when the "POWER" notation.
key is switched off. The above example shows the initial
current is 28mA and the measured value
is 26mA.
DVD user In STOP mode, press All settings on the setup menu "Initialized" is desplayed on the video
settings " ", " " and return to factory defaults. monitor connected to the player.
initialization " " buttons on
the player for 3
seconds or longer.
Measuredcurrent
InitialcurrentstoredinEEPROM
CDlasercurrentmeasurementmode
↑ ↑ ↑
2. Self-Diagnosis Function (UHF Display)
This unit incorporates a convenient self-diagnosis function for use in troubleshooting.
Display method Display Diagnosis
Service numbers U11 Focus error
displayed during use. H01 Tray loading error
H02 Spindle servo error
H03 Traverse error
H04 Tracking servo error
H05 Seek error
H06 Power supply error
In STOP mode, press F0** Disc format error
" " and " " buttons on F1** Disc code error
the player, and " 0 " button F2** Decoder LSI error
on the remote control unit. F3** SDRAM error
F4** IIC BUS error Refer to error code.
F5** DSC error
F6** ECC error
F7** Microprocessor error
F8** Microprocessor error
