Owner’s Manual
EN
Contents
Introduction .......................................................... 2
Features .....................................................................2
Accessories ................................................................3
Part names .................................................................4
Preparation ........................................................... 7
Charging .....................................................................7
Turning on/off .............................................................7
Pairing with a Bluetooth device ..................................8
Establishing a Bluetooth connection ..........................9
Ending a Bluetooth connection ...................................9
Using earphones ................................................ 10
Listening to music .....................................................10
Using the phone .......................................................11
Operating the connected Bluetooth device
by voice commands ............................................11
Troubleshooting ................................................. 12

En 2
Thank you for selecting for the Yamaha EPH-W53 Earphones. The EPH-W53 is a pair of
earphones designed for use with a portable audio player or smartphone via Bluetooth con-
nection.
This manual explains preparations and operations for everyday users of the unit.
Features
\• Enjoy music wirelessly via Bluetooth connection to a portable audio player or a
smartphone.
• A built-in internal microphone lets you answer phone calls and carry on conversa-
tions.
About content in this manual and the “Safety Brochure”
• To ensure optimum performance, please read this manual carefully.
• Please read the included "Safety Brochure" before using the device.
• The illustrations in this manual are for instructional purposes only.
• The company names and product names in this manual are the trademarks or registered trade-
marks of their respective companies.
• The “ WARNING” icon indicates points that may lead to death or serious injury if not
properly observed.
• The “ CAUTION” icon indicates points that may lead to injury if not properly observed.
• The “NOTICE” sections contain points that you must observe to prevent product failure, dam-
age or malfunction and data loss.
• The “Note” sections contain important or detailed supplementary information.
Responsible Use
Do not use the earphones at high volume in a public place. Sound leakage from
the earphones may be a nuisance to people around you.
Introduction

En 3
Accessories
This product includes the following accessories.
CAUTION
Keep small parts out of the reach of infants. Your children may accidentally swallow
them.
•QuickManual
• Safety Brochure
•USBpowercable
•Eartips
Included with the unit are pairs of eart-
ips in various sizes (LL, L, M, S, and
SS). The M-size eartips are already
attached to the earphones when
shipped from the factory.
• Ear stabilizers
Included with the unit are pairs of ear
stabilizers in various sizes (L, M, and S).
The M-size ear stabilizers are attached
to the earphones when shipped from
the factory.
• Carrying case
LL SSLSM
LMS

En 4
Part names
qEartips
Attach eartips of the size that best fits your ears. The M-size eartips are already attached
to the earphones when shipped from the factory.
CAUTION
• Do not use the earphones with detached or broken eartips. Doing so may cause injury
or illness.
• Securely attach the eartips to the earphones. If the eartips detach from the earphones
and lodge in your ears, they may cause injury or illness.
Note
• If the eartips are not securely positioned in your ears, you may not hear the bass range
clearly. To enjoy optimum sound quality, adjust the eartips so they will fit in your ears perfectly.
Also, try replacing poor-fitting eartips with eartips of an appropriate size.
Right side
(R)
Left side
(L)
Back sideController side
Replacing the eartips
Eartip

En 5
wEar stabilizers
Attach ear stabilizers of the size that best fits your ears. The M-size ear stabilizers are
attached to the earphones when shipped from the factory.
NOTICE
When attaching the ear stabilizers, do not confuse the front and the back.
eCharging connector
Connect the included USB power cable to charge. Open the cover to connect the cable.
rIndicator
Indicates the status of the device by lighting or flashing.
Status Indicator Reference
page
When pushing the function
key in the power-on state
Lights in blue
(turns off in 0.5 seconds) Page 8
When turning on Lights in blue
(turns off in two seconds) Page 7
When turning off Lights in orange
(turns off in one second) Page 7
During Bluetooth pairing Flashes in blue and
orange alternately Page 8
When Bluetooth pairing is
completed
Lights in blue
(turns off in two seconds) Page 8
When the battery is less
than 10% charged Flashes in orange Page 7
During battery charging
Lights in orange
(turns off when the charg-
ing is completed)
Page 7
Replacing the ear stabilizers
Ear stabilizer
Ear stabilizer
Appropriate ear
stabilizer

En 6
t+ key
Press to raise the volume.
Press and hold more than three seconds to forward one song.
yFunction key
Enables you to perform the following operations.
- Turning on/off (press and hold for three seconds)
- Pairing with a Bluetooth device (press and hold more than five seconds)
- Playing back music and pausing (press briefly)
u- key
Press to lower the volume. Press and hold more than three seconds to reverse to the top
of the song. Press and hold more than three seconds immediately again to go back one
song.
iMicrophone
Used in conversation or voice controls.

En 7
Charging
1 Open the cover of the controller section.
2 Connect the charging connector to a computer, etc., with the included USB power cable.
The indicator lights in orange.
Note
• Make sure to charge the earphones before using them for the first time.
• When charged in a place where the temperature is extremely high or low, charging may be
completed quickly or charging may not be possible.
• To maintain optimum performance, charge the earphones at least once every six months.
• Batteries have a finite lifetime. The battery capacity is reduced gradually by the number of
times it is used and the elapsed time of use.
• The actual lifetime of a battery differs depending on how it is stored, how it is used, the sur-
rounding environment, etc.
• When the battery is charging, the indicator lights in orange. When charging is completed, the
indicator turns off.
• A full charge cycle takes about three hours.
Turning on/off
Press and hold the function key more than three seconds.
When turning on, the indicator lights in blue
for two seconds.
When turning off, the indicator lights in
orange for one second.
Note
If the earphones are left with no Bluetooth connection for ten minutes, they automatically turn off.
Preparation
2
1
2
EPH-W53
USB power cable
(included)
Computer, etc.,
Charging connector
USB terminal
Press and hold more than three seconds
Lights in blue
Lights in orange
Press and hold more than three seconds

En 8

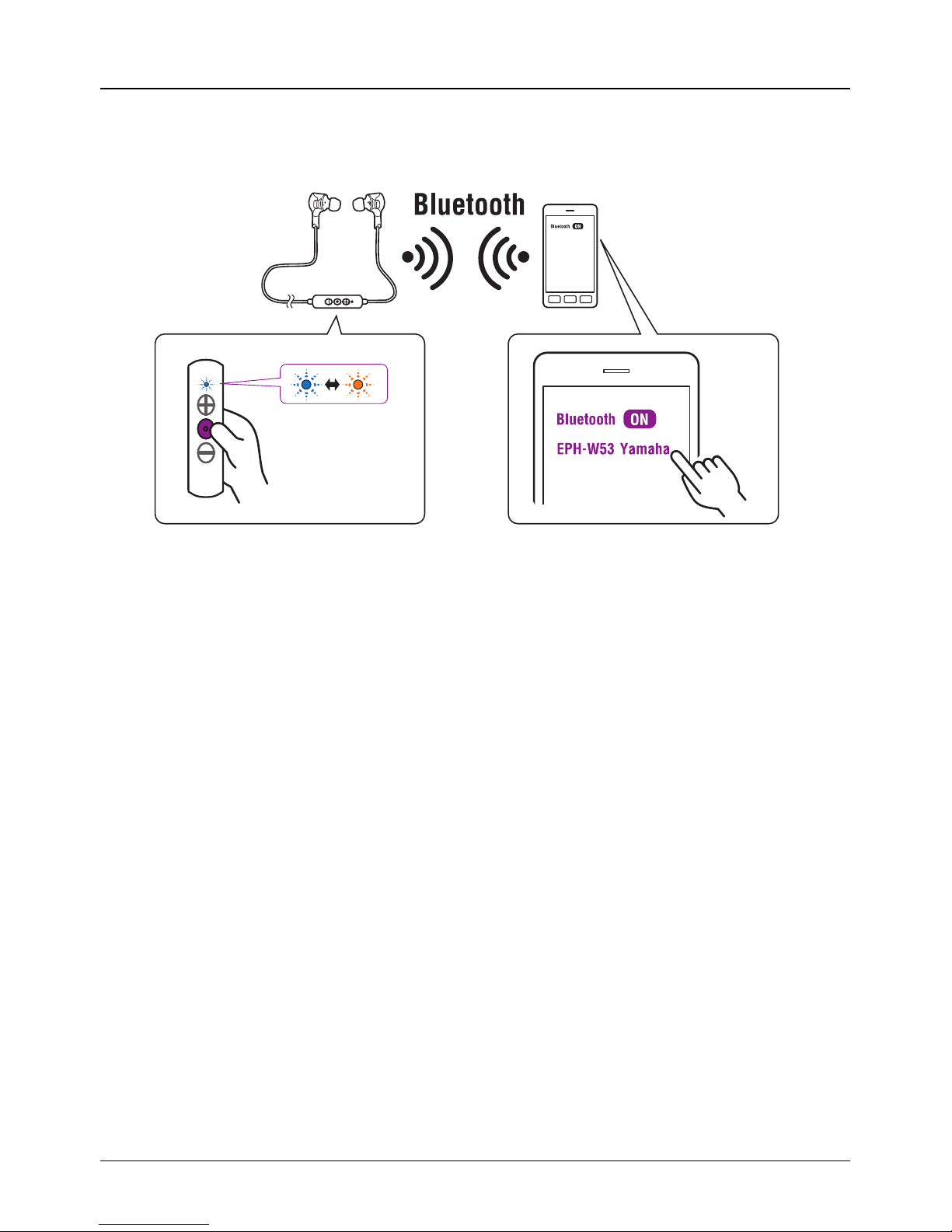

Pairing with a Bluetooth device
“Pairing” is the process of registering Bluetooth devices each other. Pairing must be per-
formed when you use a Bluetooth connection for the first time, or if the pairing data has been
deleted.
1 If the earphones turn on, turn off to press and hold the function key until the indi-
cator lights in orange.
Note
• When the earphones turn on, the indicator lights briefly when the function key is pressed
briefly.
2 Press and hold the function key until the indicator flashes in blue and orange
alternately. (more than five seconds)
The earphones are waiting for pairing.
3 Perform the pairing process on the Bluetooth device.
For details, refer to the owner's manual of the Bluetooth device.
3-1. Access the Bluetooth setting screen on the Bluetooth device.
3-2. If the Bluetooth setting is disabled, enable it.
3-3. In the list of detected devices, tap “EPH-W53 Yamaha” to select it.
Pairing is completed.
When pairing is completed, the indicator lights in blue for two seconds.
Note
• These earphones can be paired with up to eight Bluetooth devices. When pairing has suc-
ceeded with the ninth device, pairing data is deleted for the oldest paired device.
• If two minutes elapse before pairing is completed, the receiver stops waiting for pairing.
• If you are asked to enter a pass key, enter the numerals “0000. ”
EPH-W53 Bluetooth device

En 9
Establishing a Bluetooth connection
Press and hold the function key until the indicator lights in blue (for about three or
four seconds).
The earphones turn on and a Bluetooth connection is established with the most-recently con-
nected Bluetooth device.
Note
• If you continue to press and hold the function key, the earphones are waiting for pairing. If a
pairing operation is not needed, immediately stop pressing after the indicator lights in blue.
• Some Bluetooth devices may not connect automatically.
• If the Bluetooth device does not connect to the earphones automatically, operate the device to
connect to the earphones.
• If you turn off the Bluetooth setting of the Bluetooth device, a Bluetooth connection is not
established with that device when you turn on the power of the receiver.
• The earphones can establish a Bluetooth connection with two devices simultaneously (multi-
point connection). To establish a Bluetooth connection with the second device, perform the
process also on that Bluetooth device. Audio from the connected Bluetooth devices can be
switched by playing or stopping music from the connected Bluetooth devices.
Ending a Bluetooth connection
If a Bluetooth connection exists, you can end it in either of the following ways.
- Turn off the power of the earphones.
- End the Bluetooth connection on the Bluetooth device.

En 10
Wear the earphones with the L mark in your left ear, and the one with the R mark in your
right ear.
Listening to music
The controller section on the earphones enables playback operation of the connected Blue-
tooth device.
Using earphones
Play Press the function key once briefly.
If you want to select a specific song and play it,
perform the appropriate operations on the Blue-
tooth device.
Pause While the song is playing, press the
function key once briefly.
Skipping forward to the next song Press and hold the + key more than three
seconds.
Reversing to the top of the song
(while in the middle of the song) /
skipping back to the previous song
(when at the beginning of the song)
Press and hold the - key more than three
seconds.
Raising the volume Press the + key once briefly.
Lowering the volume Press the - key once briefly.
LR
For the
left ear
For the
right ear
