Yamaha PJP-CAM1 User manual

PJP-CAM1
ProjectPhone Fisheye
OWNER’S MANUAL
Thank you for purchasing Yamaha PJP-CAM1.
Please read this manual carefully before you operate the
product and keep it in a safe place for future reference.
ContentsContents
IMPORTANT SAFETY INSTRUCTIONS i
CAUTION iii
Supplied Accessories 1
System Requirements 2
Controls and Functions 3
Preparation 4
Installing the PJP-CAM1Camera Driver 4
Checking the status of this unit 5
Basic Operations 6
About the “PJP-CAM1 Controller” screen 7
Previewing the image 8
Moving the “PJP-CAM1 Controller” screen to the top 8
Configuring the “Video Output Format” setting 8
Saving setting information 9
Importing setting information 9
Checking the PJP-CAM1 Controller version 9
Auto-Switch Shooting Mode 10

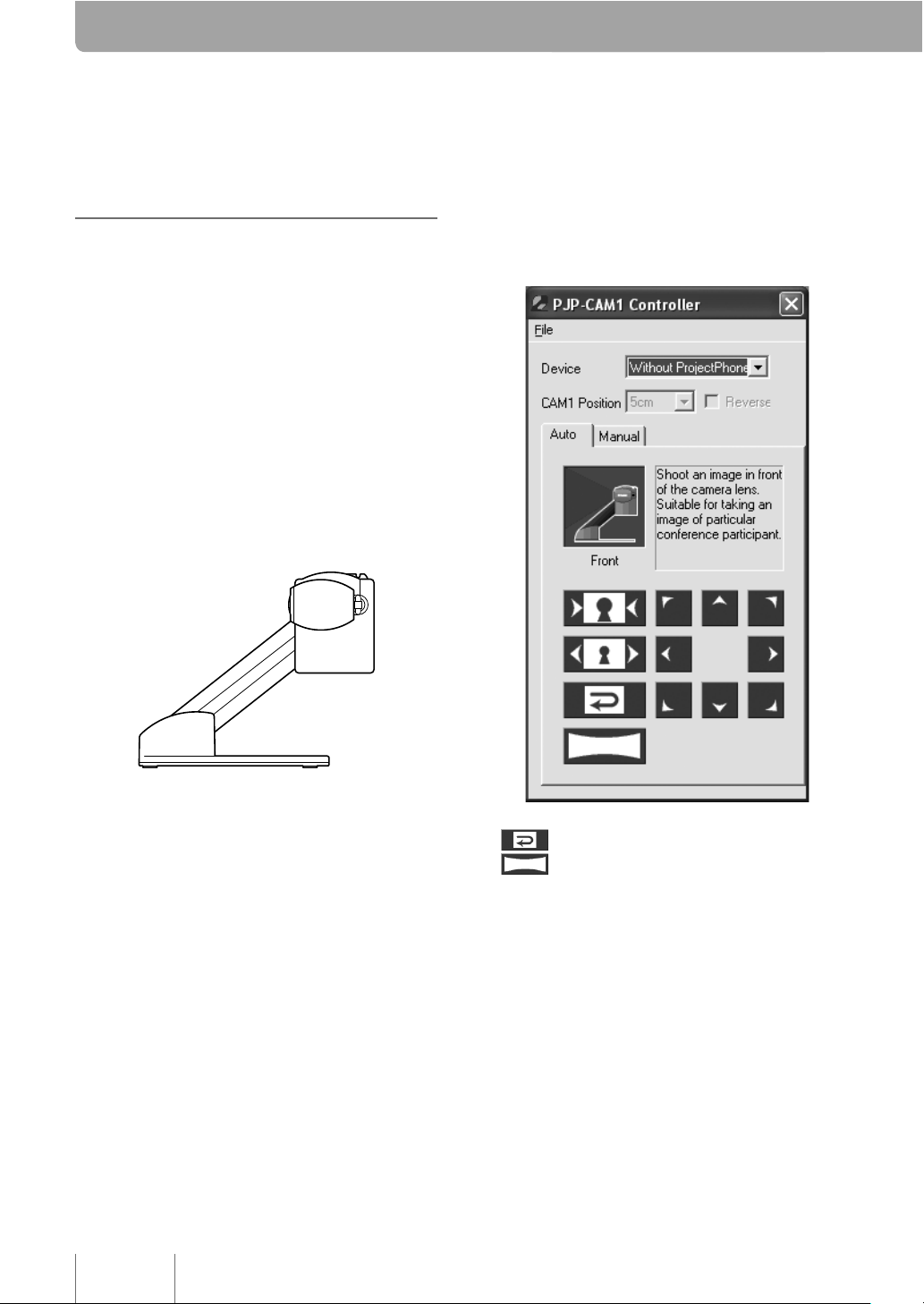

Shooting the front image (Front Mode) 10
Shooting the entire circumference (Upside Mode) 11
Shooting the document (OHP Mode) 12
Using the camera in handheld style (Release Mode) 13
Manual Shooting Mode 14
Using This Unit in Combination with a PJP 15
Placing this unit and PJP 15
Auto-tracking shooting from the front 16
Auto-tracking shooting in all directions 16
Using the Latest Features 17
Updating the firmware via a network 18
Updating the firmware using a local file 19
Checking the firmware release note 19
Specifications 20

IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
• Explanation of Graphical Symbols
This graphic symbol is intended to alert you to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
This graphic symbol is intended to alert you to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.
1 Read Instructions – All the safety and operating
instructions should be read before you operate the
product.
2 Retain Instructions – The safety and operating
instructions should be retained for future reference.
3 Heed Warnings – All warnings on the product and in the
operating instructions should be adhered to.
4 Follow Instructions – All operating and use instructions
should be followed.
5 Cleaning – Unplug this product from the PC before
cleaning. Do not use liquid cleaners or aerosol cleaners.
6 Attachments – Do not use attachments not
recommended by the product manufacturer as they may
cause hazards.
7 Water and Moisture – Do not use this product near water
– near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and
the like.
8 Accessories – Do not place this product on an unstable
cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and
serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended
by the manufacturer.
9 A product and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination
to overturn.
10 Ventilation – Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the product and to protect it from overheating, and
these openings must not be blocked or covered. The
openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been
adhered to.
11 Power Sources – This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply
to your home, consult your product dealer or local
power company. For products intended to operate from
battery power, or other sources, refer to the operating
instructions.
12 USB cable Protection – USB cable should be routed so
that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.
13 Lightning – For added protection for this product during
a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the PC
and disconnect the antenna or cable system. This will
prevent damage to the product due to lightning and
power-line surges.
14 Power Lines – An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.
15 Object and Liquid Entry – Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid
of any kind on the product.
16 Servicing – Do not attempt to service this product
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
17 Damage Requiring Service – Unplug this product from
the PC and refer servicing to qualified service personnel
under the following conditions:
a) When the USB cable is damaged,
b) If liquid has been spilled, or objects have fallen into
the product,
c) If the product has been exposed to rain or water,
i

d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as
an improper adjustment of other controls may result
in damage and will often require extensive work by
a qualified technician to restore the product to its
normal operation,
e) If the product has been dropped or damaged in any
way, and
f) When the product exhibits a distinct change in
performance - this indicates a need for service.
18 Replacement Parts – When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock, or other hazards.
19 Safety Check – Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product is in
proper operating condition.
20 Wall or Ceiling Mounting – The unit should be mounted
to a wall or ceiling only as recommended by the
manufacturer.
21 Heat – The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
COMPLIANCE INFORMATION STATEMENT
(DECLARATION OF CONFORMITY PROCEDURE)
Responsible Party: Yamaha Electronics Corporation,
U.S.A.
Address: 6660 Orangethorpe Avenue Buena Park,
California 90620
Telephone: [phone]
Hours of operation: Monday through Friday
8 a.m. - 4 p.m. PST.
Type of Equipment: ProjectPhone Fisheye
Model Name: PJP-CAM1
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received
including interfernce that may cause undesired
operation.
See user manual instructions if interference to
radioreception is suspected.
FCC INFORMATION (for US customers)
1 IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved
by Yamaha may void your authority, granted by the
FCC, to use the product.
2 IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable/s supplied with
this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void
your FCC authorization to use this product in the
USA.
3NOTE: This product has been tested and found
to comply with the requirements listed in FCC
Regulations, Part 15 for Class “A” digital devices.
Compliance with these requirements provides a
reasonable level of assurance that your use of this
product in a commercial environment will not result
in harmful interference with other electronic devices.
However, operation of this product in a residential area
is likely to cause interference in some form. In this
case you, the user, bear the responsibility of correcting
this condition.
This product generates/uses radio frequencies and,
if not installed and used according to the instructions
found in the users manual, may cause interference
harmful to the operation of other electronic devices.
Compliance with FCC regulations does not guarantee
that interference will not occur in all installations. If
this product is found to be the source of interference,
which can be determined by turning the product “OFF”
and “ON”, please try to eliminate the problem by using
one of the following measures:
Relocate either the product generating the interference
or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker of fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/
reorient the antenna. If the antenna lead-in is 300 ohm
ribbon lead, change the lead-in to coaxial type cable.
If these corrective measures do not produce
satisfactory results, please contact your local retailer
authorized to distribute this type of product. If you
can not locate the appropriate retailer, please contact
Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe
Ave, Buena Park, CA 90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
ii

1 To assure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
2 Install this unit in a well ventilated, cool, dry, clean place
with at least 10 cm on the top, 10 cm on the left and
right, and 10 cm at the back of this unit — away from
direct sunlight, heat sources, vibration, dust, moisture,
and/or cold.
3 Locate this unit away from other electrical appliances,
motors, or transformers to avoid humming sounds.
4 Do not expose this unit to sudden temperature
changes from cold to hot, and do not locate this unit in
an environment with high humidity (i.e. a room with a
humidifier).
5 Avoid installing this unit where foreign object may fall
onto this unit and/or this unit may be exposed to liquid
dripping or splashing. On the top of this unit, do not
place:
– Other components, as they may cause damage and/
or discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may fall and
liquid may cause electrical shock to the user and/or
damage to this unit.
6 Do not cover this unit with a newspaper, tablecloth,
curtain, etc. in order not to obstruct heat radiation. If
the temperature inside this unit rises, it may cause fire,
damage to this unit, and/or personal injury.
7 Do not use force on the USB cable.
8 When disconnecting the USB cable, grasp the plug; do
not pull the cable.
9 Do not clean this unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
10 Do not attempt to modify or fix this unit. Contact qualified
YAMAHA service personnel when any service is
needed.
11 Condensation will form when the surrounding
temperature changes suddenly. Disconnect the USB
cable, then leave the unit alone.
12 When using the unit for a long time, the unit may
become warm. Disconnect the USB cable, then leave
the unit alone for cooling.
13 To prevent damage by lightning, keep the cables
disconnected during a lightning storm.
FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to
wide slot and fully insert.This Class A digital apparatus
complies with Canadian ICES-003.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
WARNING
This is a class A product. In a domestic environment
this product may cause radio interference in which case
the user may be required to take adequate measures.
CAUTION: READ THIS BEFORE OPERATINGYOUR UNIT.
About this manual
• In this manual, the names of the following products are
described as follows.
- Yamaha PJP-CAM1: this unit
- Yamaha PJP-50R: PJP-50R
- Yamaha PJP-100UH: PJP-100UH
- Yamaha PJP-25UR: PJP-25UR
- Yamaha PJP-100H: PJP-100H
- Yamaha ProjectPhone: PJP
- Yamaha ProjectCast: PJC
- Microsoft®Windows®: Windows
- Microsoft®Windows XP®: Windows XP
- Microsoft®Windows Vista®: Windows Vista
• The model names, IP addresses, domain names and URL
names mentioned in the setting examples are used merely
for the purpose of ease of explanation. When you perform
actual settings of this unit, be sure to set the addresses
and names according to the actual configuration of your
network.
• Detailed knowledge on the Internet and network may
be required to utilize this unit at its full performance. As
the provided manual does not give detailed technical
information, please also refer to commercially available
books as required.
• Microsoft and Windows are registered trademarks of
Microsoft Corporation in the United States and/or other
countries.
iii

Supplied Accessories
This product includes the following accessories. Before using this product, make sure
you received all of the following parts.
• USB cable x 1
• Video cable x 1
• Camera stand x 1
• Document table x 1
• CD-ROM x 1
• Owner’s manual (this manual) x 1
1

System Requirements
The following condition is required to use the applications included in this unit.
Computer
• Operating system: Windows XP (SP2) or Windows Vista (32 bit)
• CPU: Pentium III 1 GHz or more
• RAM: 256 MB or more (512 MB or more is recommended)
• HDD space: 10 MB or more
• USB: USB1.1 or USB2.0
• Network: TCP/IP (when using in combination with a PJP-50R)
• Others: DirectX 8.0 or later (when using Windows XP)
PJP-10 Ver. 2.0 or later (when using in combination with a PJC)
Yamaha ProjectPhone
Note
If your system does not meet the following conditions, update the firmware.
When using in combination with a PC
PJP Firmware Compatible OS
PJP-50R Ver. 1.34 or later Windows XP
PJP-100UH Ver. 1.40 or later Windows XP/Windows Vista
PJP-25UR Ver. 1.12 or later Windows XP/Windows Vista
When using in combination with a PJC
PJP Firmware Compatible OS
PJP-50R Ver. 2.02 or later Windows XP
PJP-100H Ver. 2.04 or later Windows XP
2








Release button
Press this button to remove the camera from the camera stand.
Lens cover
Remove this before using the camera.
Camera stand
You can fold the camera stand to store easily when not in use.
Camera
USB port
Connect to the computer using the USB cable.
MIC terminal
Reserved for future extension.
VIDEO terminal
Outputs video signals.
Controls and Functions
3

Installing the PJP-CAM1
Camera Driver
Follow the procedure below to install the PJP-CAM1
Camera Driver on the computer.
Notes
• To avoid unexpected data loss, quit all applications
running on the computer before the installation.
• Log on to the computer as an administrator when
installing the PJP-CAM1 Camera Driver.
1Load the supplied CD-ROM into the
computer’s CD-ROM drive.
2Select the CD-ROM drive, and then
double-click “PJP-CAM1 Camera Driver
Setup.exe”.
The setup program starts.
3Click “Next”.
The “License agreement” screen appears.
4Read the contents carefully, and then
click “Yes”.
The message prompting you to connect this
unit appears.
If you do not agree with the contents of the
license agreement, click “No” to cancel the
installation.
5Connect this unit to the computer using
the supplied USB cable.
The installation starts.
Tip
Although a warning message regarding hardware
compatibility may appear several times, continue
the installation by clicking “Continue Anyway” (the
compatibility has been already confirmed by the factory).
6Click “Finish”.
The installation is completed.
Tip
If the message to reboot the computer appears, reboot it.
Preparation
4

To uninstall the PJP-CAM1 Camera Driver
Follow the procedure below to uninstall the PJP-
CAM1 Camera Driver from the computer.
1From the taskbar, select [Start] – [Control
Panel].
The “Control Panel” screen appears.
2Click “Add or Remove Programs”.
The “Add or Remove Programs” screen
appears.
3Select “YAMAHA PJP-CAM1 Camera
Driver”, and then click “Remove”.
The “Confirm Uninstall” screen appears.
4Click “OK”.
The uninstallation starts. When the
uninstallation is complete, the “Maintenance
Complete” message appears.
5Click “Finish”.
Tip
If the message to reboot the computer appears, reboot it.
Checking the status of
this unit
After the connection is complete, follow the
procedure below to check whether the computer
recognizes this unit properly.
1From the taskbar, select [Start] – [Control
Panel] – [System] – [Hardware] tab –
[Device Manager].
The “Device Manager” screen appears.
Note
If the “System” icon is not displayed in the “Control
Panel” screen, click “Switch to Classic View” at the
left of the screen.
2Check that the following items are
displayed in the list.
If the name of this unit is not displayed, it may
not be recognized by the computer. In this
case, check the connection and computer
settings.
5

Note
When using this unit at a video conference, do not
suspend the computer. When the computer is resumed,
the camera image may not be displayed properly.
1Connect this unit to the computer using
the supplied USB cable.
n
Note
Do not connect more than one PJP-CAM1 to the
computer at the same time.
2Start the computer.
The PJP-CAM1 Controller automatically starts
up and appears in the task tray (the lower
right screen).
Tip
If the PJP-CAM1 Controller does not start up automatically,
the default setting may be changed. In this case, select
[Start] – [All Programs] – [YAMAHA PJP-CAM1 Camera
Driver] – [PJP-CAM1 Settings] to start it.
Basic Operations
This chapter describes how to operate the basic functions of this unit.
3Right-click , and then select “Show
Controller”.
The “PJP-CAM1 Controller” screen appears.
4Configure the settings.
Change the settings of this unit according to
the use environment.
To quit the PJP-CAM1 Controller
Follow the procedure below to quit the PJP-CAM1
Controller.
1From the menu bar of the “PJP-CAM1
Controller” screen, select [File] – [Close],
or click at the top right corner of the
screen.
The “PJP-CAM1 Controller” screen closes.
2Right-click in the task tray, and then
select “Exit”.
The PJP-CAM1 Controller exits.
6

About the “PJP-CAM1
Controller” screen









[File]
Select to display the [File] menu.
“Device”
Select a PJP to be used with this unit. If no PJP will
be used, select “Without ProjectPhone”.
Tip
When using this unit in combination with a PJC, refer to
“ProjectCast Installation Guide”.
“CAM1 Position”
Specify the distance between this unit and PJP (used
in combination) from “5cm”, “25cm”, “50cm”, and
“1m”.
“Reverse”
Check the box if the direction of this unit relative to
the PJP (used in combination) is opposite to the
default.
Shooting Mode tabs
Switch the shooting mode between “Auto” (auto-
switch shooting mode) and “Manual” (manual
shooting mode).
Camera Mode display
Shows the camera mode currently selected. This
function is available only when the “Auto” tab is
selected.
Zoom buttons
Adjust the zoom setting.
Control buttons
Configure the shooting method. The functions of
these buttons change depending on the camera
mode.
Position Adjustment buttons
Adjust the position to be shot for partial view.
When using this unit in combination with a PJP
Orientation Selection radio
button
Select the position (position of each talker or
original position) to be shot.
"“Enable Tracking”
Check the box to switch the shooting position
automatically in conjunction with the PJP’s tracking
function.
7

Basic Operations (continued)
Previewing the image
Follow the procedure below to display the preview
screen to check the image being shot by this unit.
• From the menu bar of the “PJP-CAM1
Controller” screen, select [File] – [Show
Video Window].
The “PJP-CAM1” screen appears and displays
the image being shot by this unit.
You can adjust the image quality with the slider
on the screen.
Tip
When using this unit in combination with a PJP-25UR/PJP-
100UH, the lower the image quality will make audio/video
playback smoother. Drag the slider left to lower the image
quality.
Note
When a blue screen appears, this unit is being used by
another application.
To close the “PJP-CAM1” screen
Repeat the above step.
Moving the “PJP-CAM1
Controller” screen to
the top
Follow the procedure below to set the “PJP-CAM1
Controller” screen always on the top of the desktop.
1From the menu bar of the “PJP-CAM1
Controller” screen, select [File] –
[Settings].
The “Settings” screen appears.
2Check the “Always onTop” box, and then
click “OK”.
Configuring the “Video
Output Format” setting
Configure the setting of the video signal format
(NTSC/PAL) output from the PJP-CAM1 video
terminal.
1From the menu bar of the “PJP-CAM1
Controller” screen, select [File] -
[Settings].
The “Settings” screen appears.
2Select the video output format, and then
click “OK”.
8

Saving setting
information
Follow the procedure below to save the information
of current settings as a file.
1From the menu bar of the “PJP-CAM1
Controller” screen, select [File] – [Export].
The “Save As” screen appears.
2Specify the file name and directory to
save the file, and then click “Save”.
The setting information is saved.
Importing setting
information
Follow the procedure below to import setting
information from a file.
1From the menu bar of the “PJP-CAM1
Controller” screen, select [File] – [Import].
The “Open” screen appears.
2Select a file of which information is
imported, and then click “Open”.
The setting information is imported.
Checking the PJP-
CAM1 Controller
version
• In the “PJP-CAM1 Controller” screen, select
[File] – [About PJP-CAM1 Controller].
The “About PJP-CAM1 Controller” screen
appears. Check the version information
displayed in the screen.
9

Auto-Switch Shooting Mode
In the Auto-Switch Shooting mode, this unit automatically selects the camera mode (from “Front Mode”,
“Upside Mode”, “OHP Mode”, and “Release Mode”) according to the direction of the camera.
Shooting the front image
(Front Mode)
This mode is for shooting the front image of
participants. You can adjust the shooting position in
the “PJP-CAM1 Controller” screen.
1Select the “Auto” tab.
2Turn the camera to the front.
Automatically switches to “Front Mode”.
3Use the Control buttons to select the
shooting method.
: Selects the default shooting range.
: Selects the maximum shooting range.
4Use the Zoom buttons and Position
Adjustment buttons to adjust the
shooting position.
10

Shooting the entire
circumference
(Upside Mode)
This mode is for shooting the entire circumference.
You can select the display style from the partial
image, panoramic image, and hemispheric image.
1Select the “Auto” tab.
2Turn the camera upward.
Automatically switches to “Upside Mode”.
3Use the Control buttons to select the
shooting method.
: Displays the partial image.
: Displays the entire circumference in
double-column panoramic format.
: Displays the entire circumference in
hemispheric format.
4Use the Zoom buttons and Position
Adjustment buttons to adjust the
shooting position.
Note
You cannot adjust the shooting position when
selecting or .
11

Auto-Switch Shooting Mode (continued)
Shooting the document
(OHP Mode)
This mode is for shooting a document. You can use
this unit as an overhead projector.
1Select the “Auto” tab.
2Turn the camera downward.
Automatically switches to “OHP Mode”.
3Attach the supplied document table to
this unit.
Fit the cut on the document table to the camera
stand.
4Use the Control buttons to select the
shooting method.
: Configures the field angle suited for A5
(148 x 210 mm) documents.
: Rotates the image by 90 degrees.
5Use the Zoom buttons to adjust the
shooting position.
12

Using the camera in
handheld style
(Release Mode)
In this mode, you can release the camera from the
camera stand and use it in the handheld style.
1Select the “Auto” tab.
2Release the camera from the camera
stand.
While holding down the Release button, rotate
the camera to release it.
Automatically switches to “Release Mode”.
3Direct the camera toward the subject.
4Use the Zoom buttons to adjust the
shooting position.
To select the default shooting range, click
.
To install the camera
1Attach the camera to the camera stand
so that the marks face each other.
2While holding down the Release button,
rotate the camera to fix it.
13

Manual Shooting Mode
In the Manual Shooting mode, you can manually configure the settings to suit the environment.
1Select the “Manual” tab.
2Adjust the direction of the camera.
3Use the Control buttons to select the
shooting method.
: Displays the image with the maximum
field angle setting.
: Displays the entire circumference in
double-column panoramic format.
: Displays the entire circumference in
hemispheric format.
4Use the Zoom buttons to adjust the
shooting position.
Note
You cannot adjust the shooting position when
selecting or .
14

UsingThis Unit in Combination
with a PJP
By using this unit in combination with a PJP, you can switch the shooting position automatically based on
the talker's position detected by the PJP's microphones.
Placing this unit and
PJP
Follow the procedure below to place this unit and
PJP.
1 Place this unit and PJP on the
conference table.
Place this unit and PJP as shown below. Keep
the distance between them within 1 m. (when
using with the default settings)
When using PJP-50R
When using PJP-100UH/100H
When using PJP-25UR
Within 1 m
Within 1 m
Within 1 m
2 Connect the PJP to the computer.
To connect a PJP-50R
Refer to “PJP-50R Audio Driver Instruction
Manual” (the PDF file in the “PJP-50R
AudioDriver” folder) included in the supplied
CD-ROM.
To connect a PJP-100UH/PJP-25UR
Refer to the instruction manual of your PJP.
Note
To use a PJP-25UR, you need to run the PJP-25UR
Controller. Refer to “PJP-25UR User's Manual”.
Tip
When using this unit in combination with a PJC, refer to
“ProjectCast Installation Guide”.
3 Connect this unit to the computer.
4 Right-click , and then select “Show
Controller”.
The “PJP-CAM1 Controller” screen appears.
5 Select your PJP in “Device”.
6 Specify the distance between this unit
and PJP in “CAM1 Position”.
Select the nearest value from “5cm”, “25cm”,
“50cm” and “1m”.
Note
If you placed this unit in the reversed direction in
step 1, check the “Reverse” box.
15

Using This Unit in Combination with a PJP (continued)
Auto-tracking shooting
from the front
Follow the procedure below to shoot an image
in front of the camera and switch the display
image automatically based on the talker's position
detected by the PJP's microphones.
1In the “PJP-CAM1 Controller” screen,
select the “Auto” tab.
2Turn the camera to the front.
Automatically switches to “Front Mode”.
3Check the “Enable Tracking” box.
Tip
To adjust the shooting position without the auto-tracking
function, use the Orientation Selection radio button.
Auto-tracking shooting
in all directions
Follow the procedure below to shoot an image of
the entire circumference and switch the display
image automatically based on the talker's position
detected by the PJP's microphones.
1In the “PJP-CAM1 Controller” screen,
select the “Auto” tab.
2Turn the camera upward.
Automatically switches to “Upside Mode”.
3Check the “Enable Tracking” box.
Tip
To adjust the shooting position without the auto-tracking
function, use the Orientation Selection radio button.
16
